Purchase Notice:

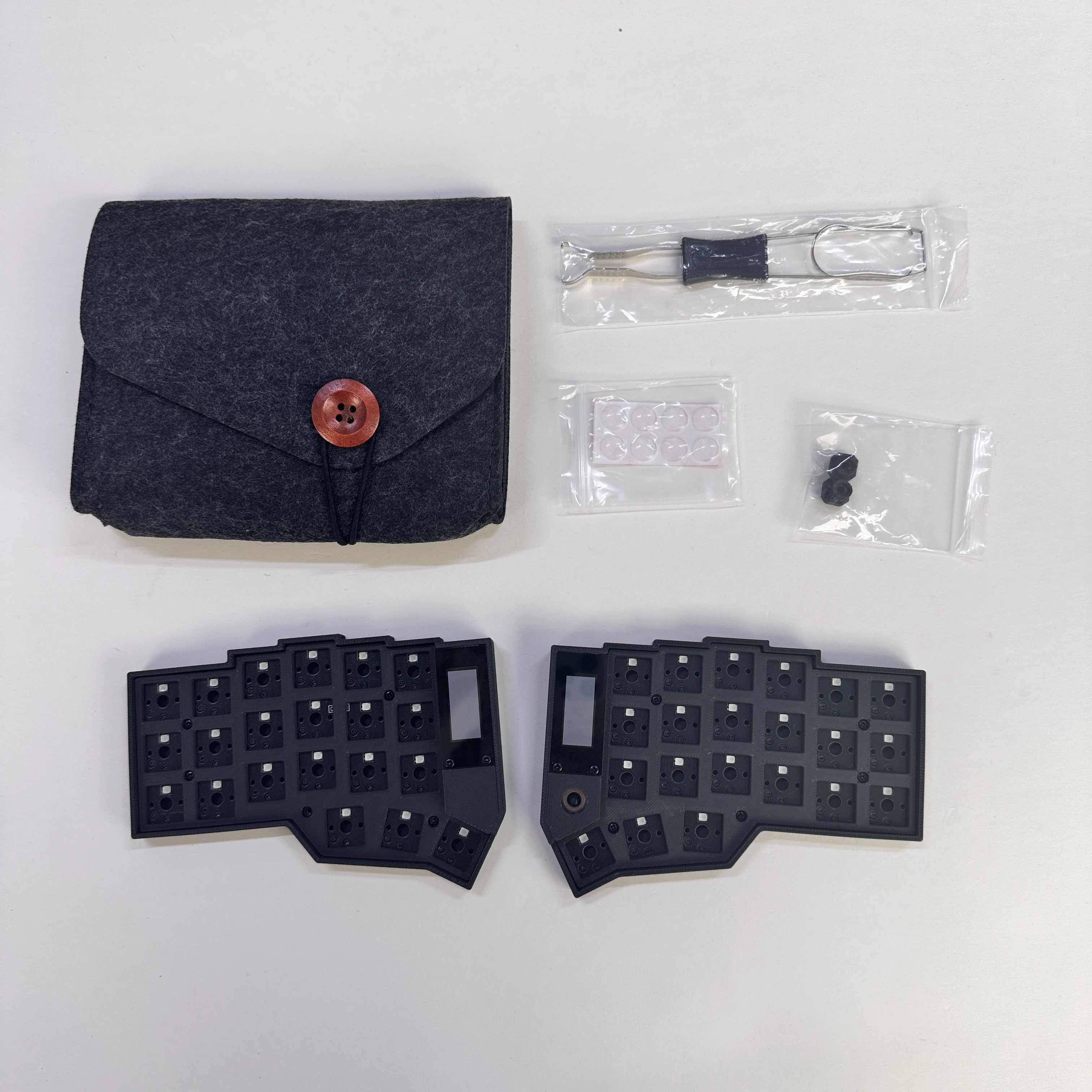

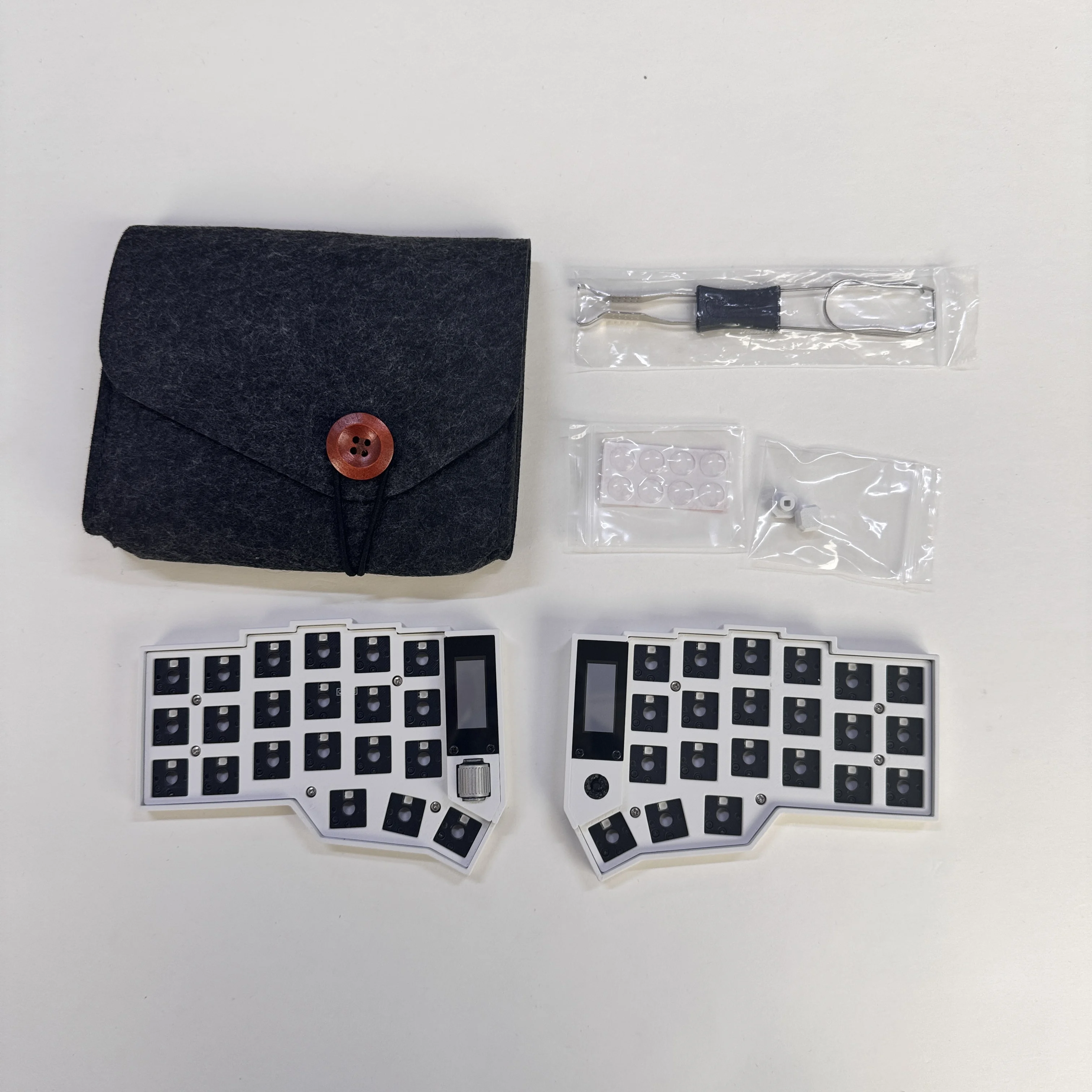

Keyboard kit=no shaft switch, no keycap, no C-port cable included
Complete keyboard=Ready to use out of the box
Product Introduction:
1. Bluetooth/USB dual-mode split keyboard, ZMK firmware
2. The screen is nice! View ultra-low power LCD screen, almost no electricity consumption. The screen content includes keyboard status, current Bluetooth channel, whether there is a connection record for the current Bluetooth channel, whether the current Bluetooth channel has established a connection, current layer, battery level, and typing speed

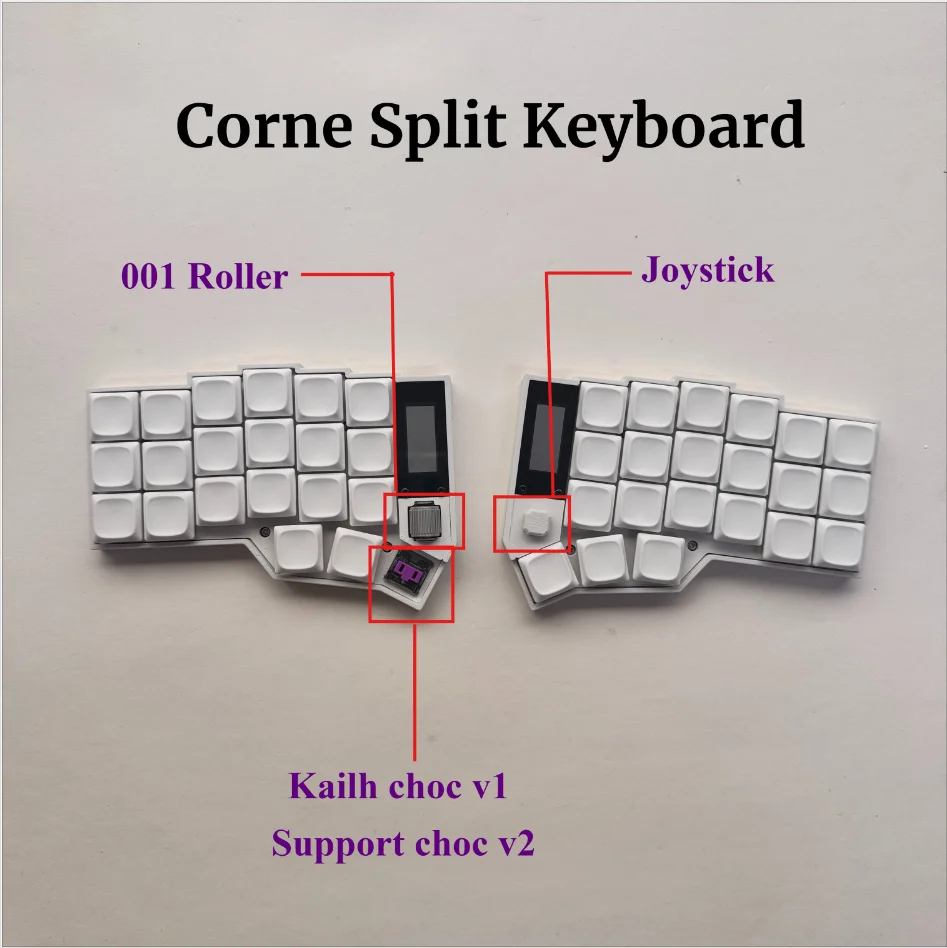

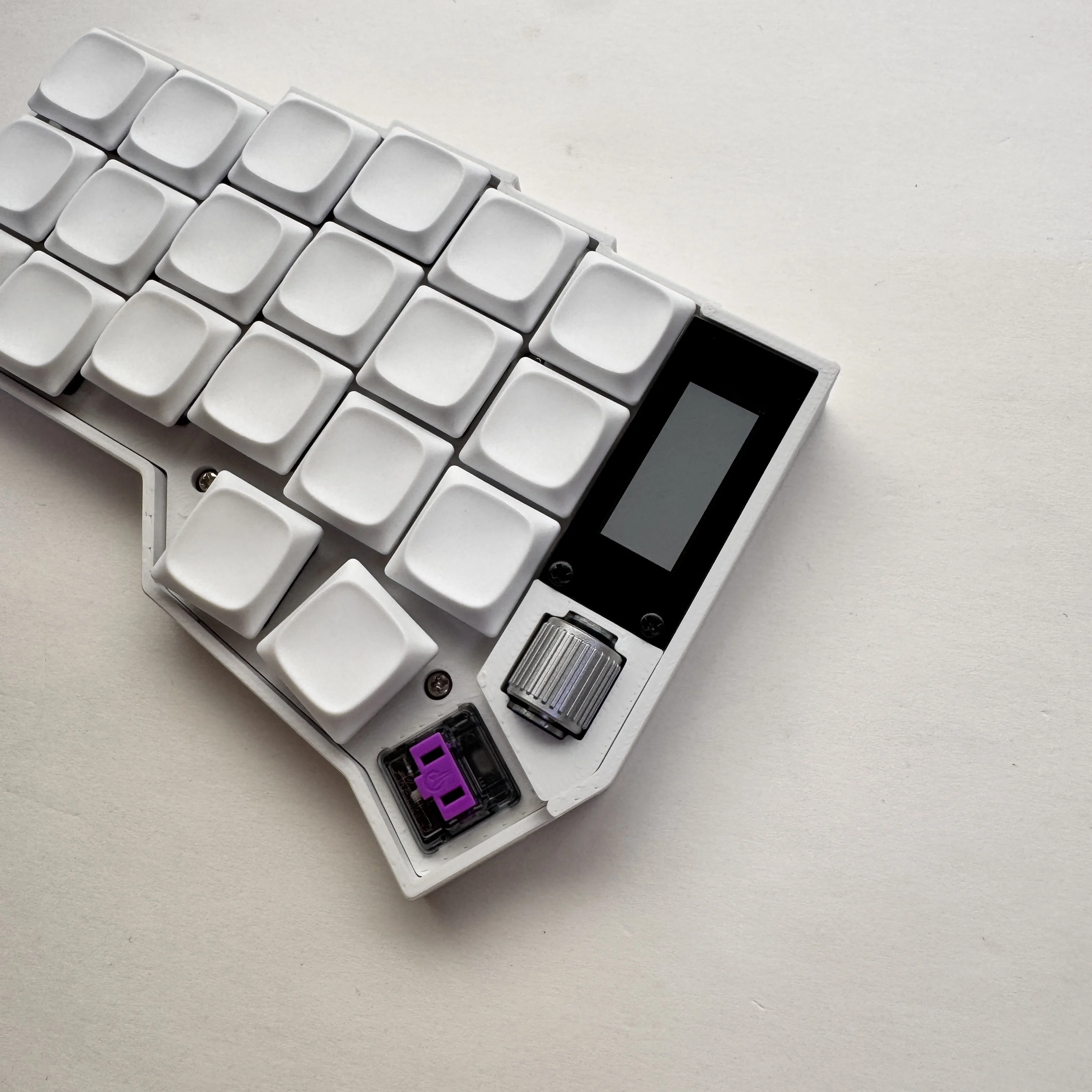

3. The bottom of the left-hand screen is a Panasonic horizontal scroll wheel, which has a very low cost-effectiveness, so it is recommended to choose the BCD version without Panasonic scroll wheel.
4. The keyboard has RGB backlighting, but it consumes a lot of electricity
5. Because Panasonic horizontal rollers, nice! View prices are very expensive. So multiple versions have been launched, which can be purchased on demand.
6. The battery has a capacity of 200mAh and a range of approximately 166 hours. Considering that the keyboard will automatically sleep, the actual practical time is about 10-20 days
7. The shaft supports Kaihua Kaih Choc v1 and Choc v2

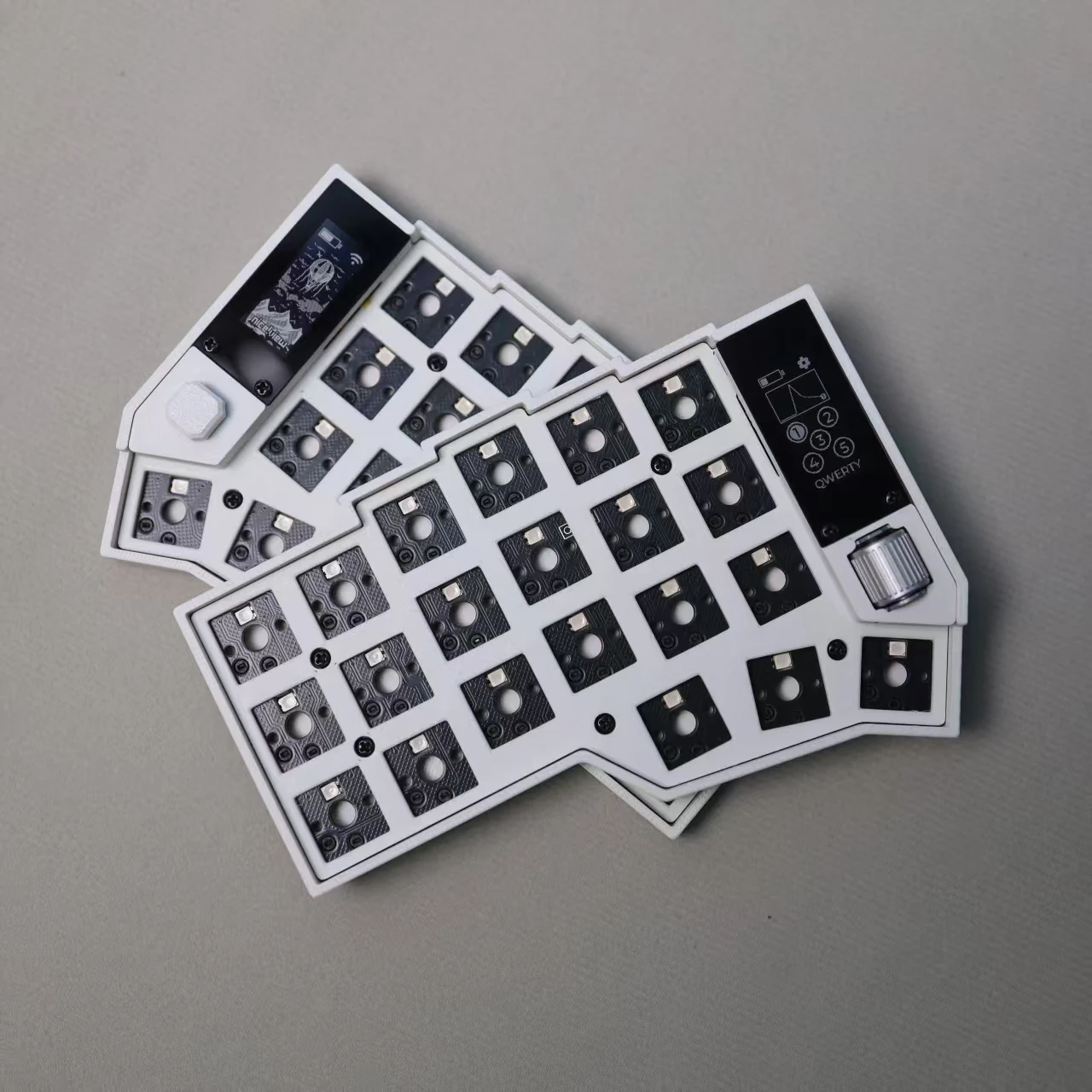

8. Hot swappable can easily change the shaft, and the keyboard uses the Kaihua 1350 hot swappable shaft holder

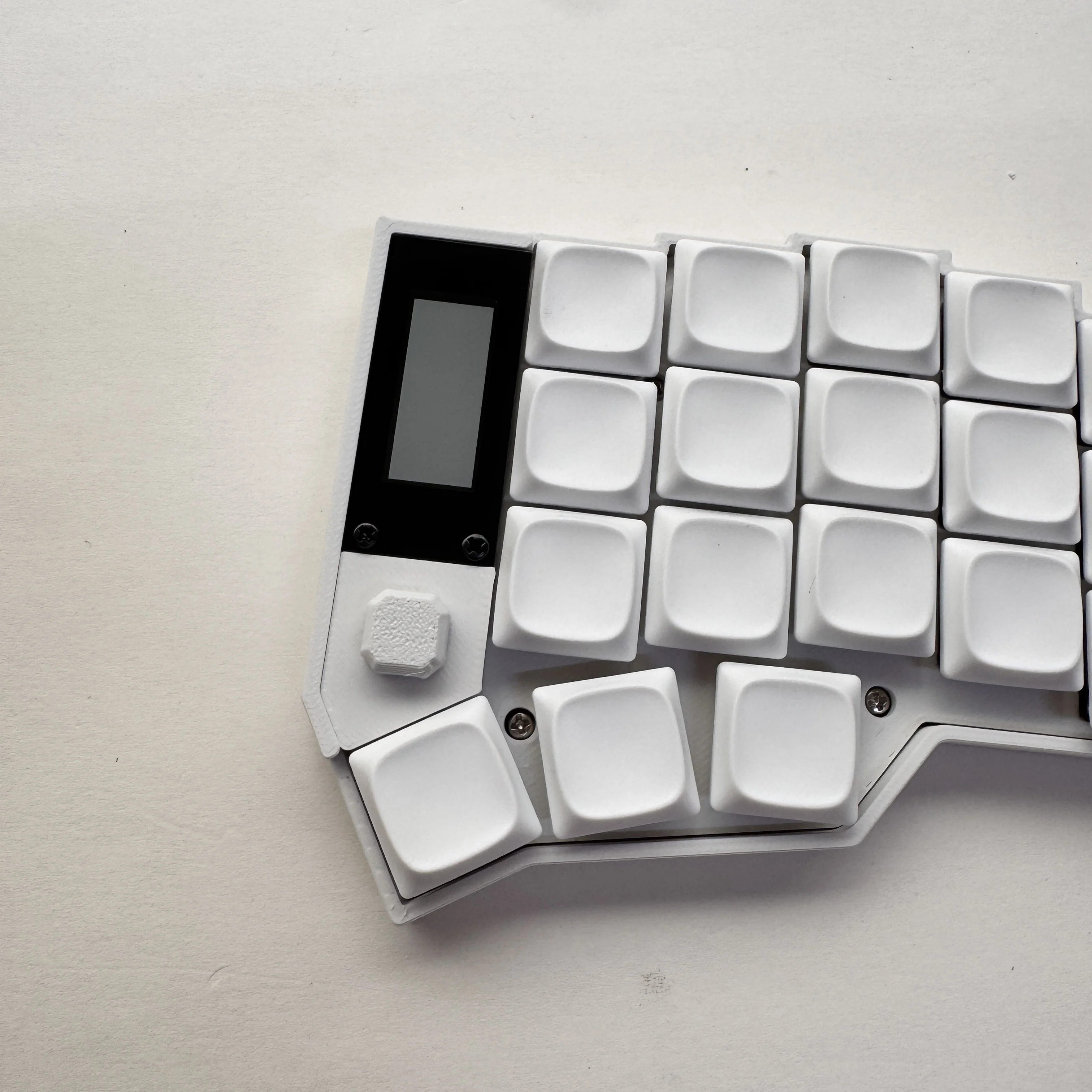

9. The default function of the knob is to adjust the volume, the first layer of the joystick is the directional keys, and layer1 and layer2 are used to control the mouse pointer. However, it is far less user-friendly than a mouse and cannot replace it
10. Provide a model file of the shell, and users can also print and replace the shell themselves
11. Provide a keyboard code repository that can be modified and compiled on GitHub. Compile keyboard firmware using ZMK.
12. For users who are particularly concerned about keyboard thickness, it is recommended to purchase the version without knobs or joysticks, which is thinner
13. The reset switch is located inside the circular hole on the back of the keyboard. After double clicking, the keyboard enters BL mode. Please refer to the instruction document for details. The toggle switch on the side of the thumb key is a battery switch, and both sides are turned to the lower side to turn on the battery.
