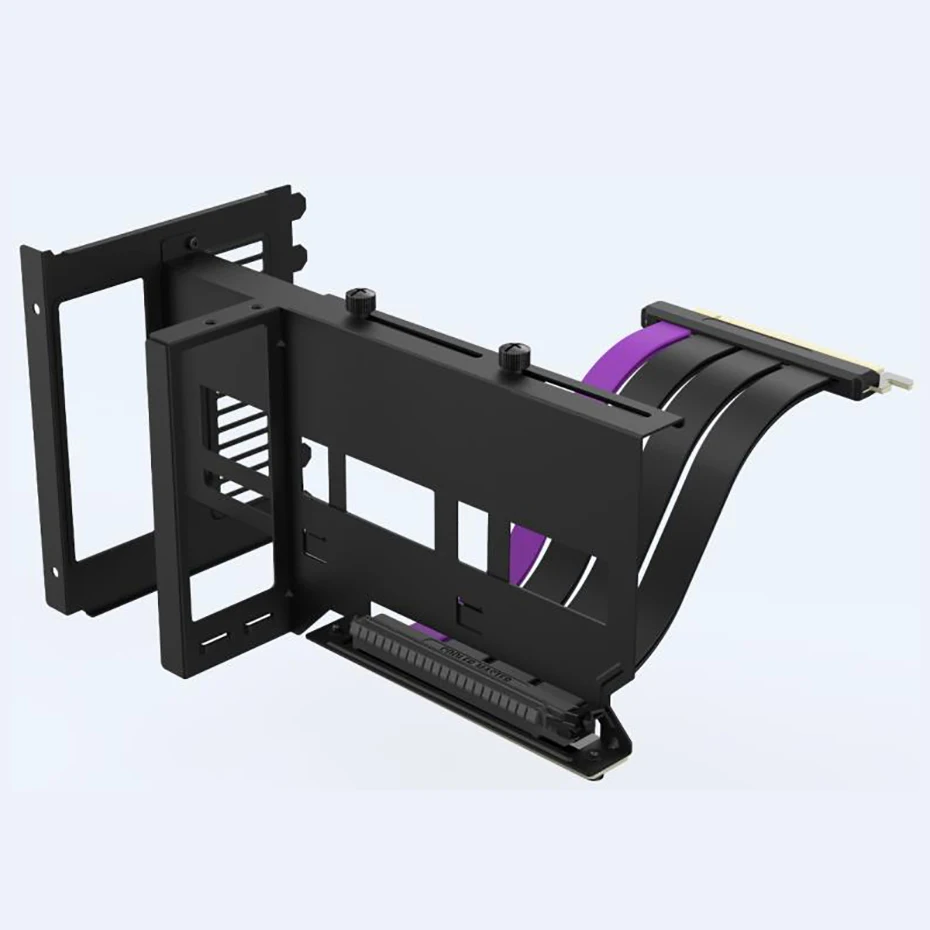

MODEL NUMBER ：MCA-U000R-KFVK01
AVAILABLE COLOR(S) ：Black
DIMENSIONS (L X W X H) ：GFX Holder kit: 184 x 142 x 121mm / 7.25 x 5.59 x 4.77 inch (closed), Riser cable: 165mm (6.49in)
SUPPORTED GRAPHICS CARDS ：Any length, up to 2.5 slots wide
RISER CABLE MODEL ：Riser Cable PCie 3.0 Ver.2
COMPATIBILITY ：PCI-E 3.0
CERTIFICATIONS ：EMI, IPC4101D/21
ELECTRONIC COMPONENT MATERIALS ：PCBA, Copper Wire 28 AWG, Copper Wire 30 AWG
INSULATION MATERIALS ：PE, TPE

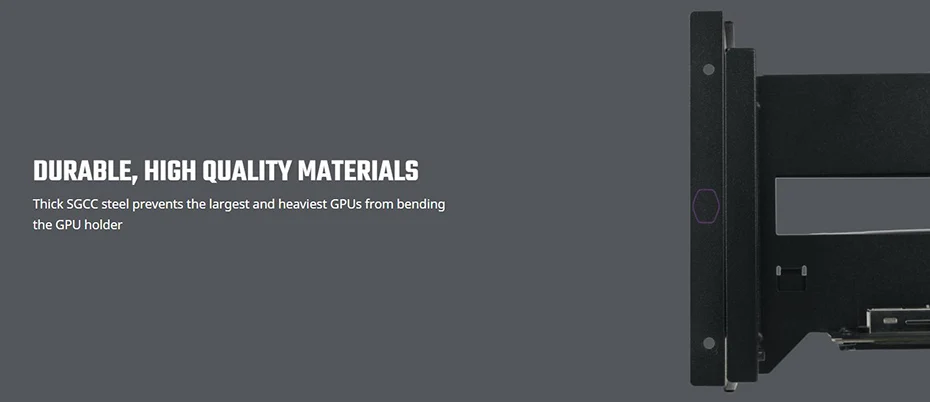

OTHER MATERIALS ：ABS, SPCC, SGCC Steel, Nickel, Gold, Brass

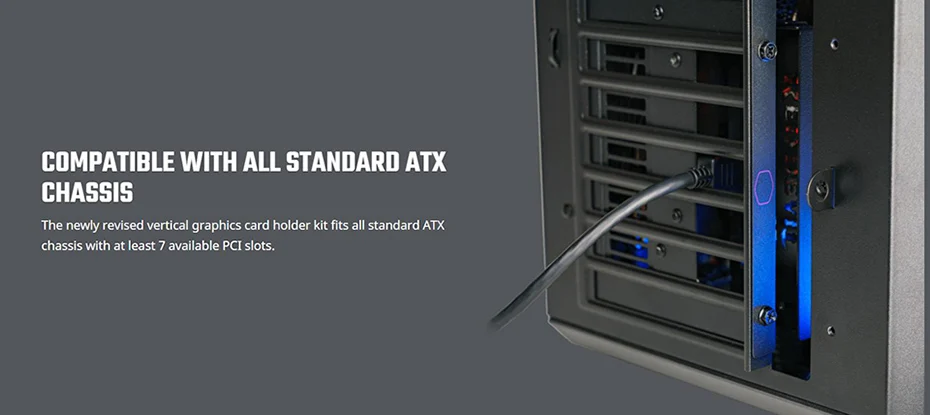

REQUIRED PCI SLOTS ：7 PCI slots are required for mounting
WARRANTY ：1 year
NET WEIGHT ：0.41kg
GROSS WEIGHT ：0.55kg
EAN CODE ：4719512103128
UPC CODE ：884102075438
SERIES ：Others
NOTE ：This product is only compatible for devices that support the PCI-E 3.0 specification. If you use this product with a motherboard that supports PCI-E 4.0, please enter into BIOS option and select PCI-E 3.0 before installation., The Vertical GPU Holder Kit V2 can also accommodate 3-slots GPUs but allows installation of only 2 screws out of 3

The length of the graphics card cable in the set bracket is 165mm, and the length of the graphics card cable purchased separately is 300mm.

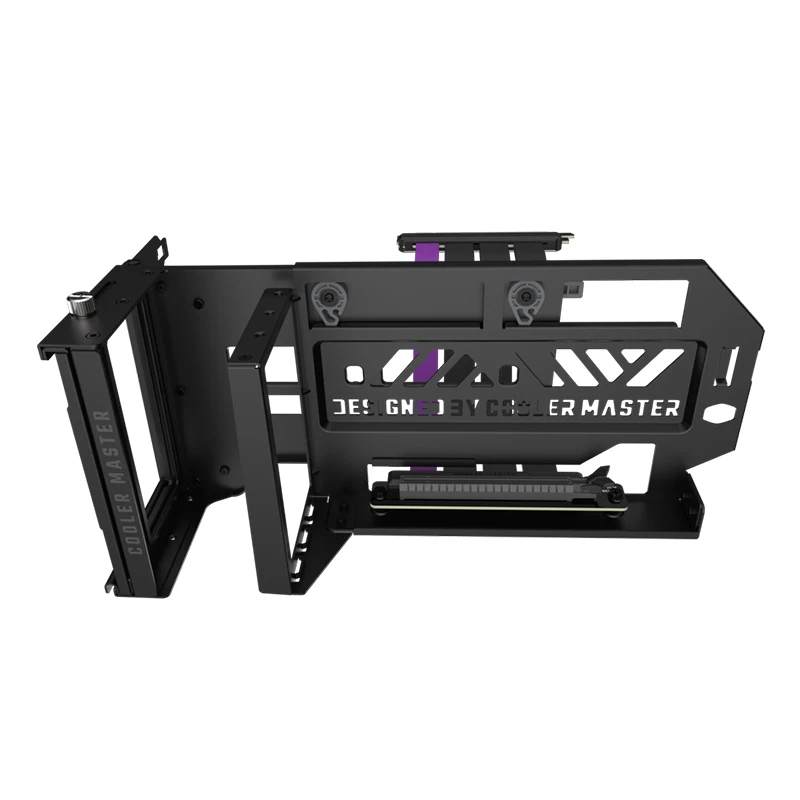

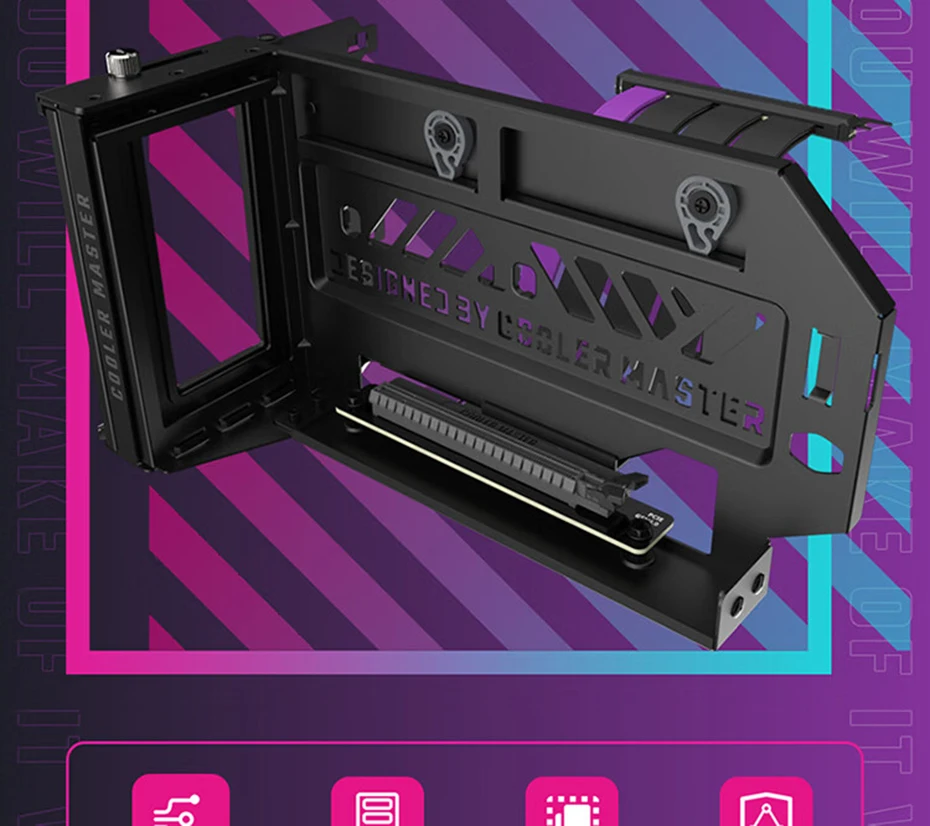

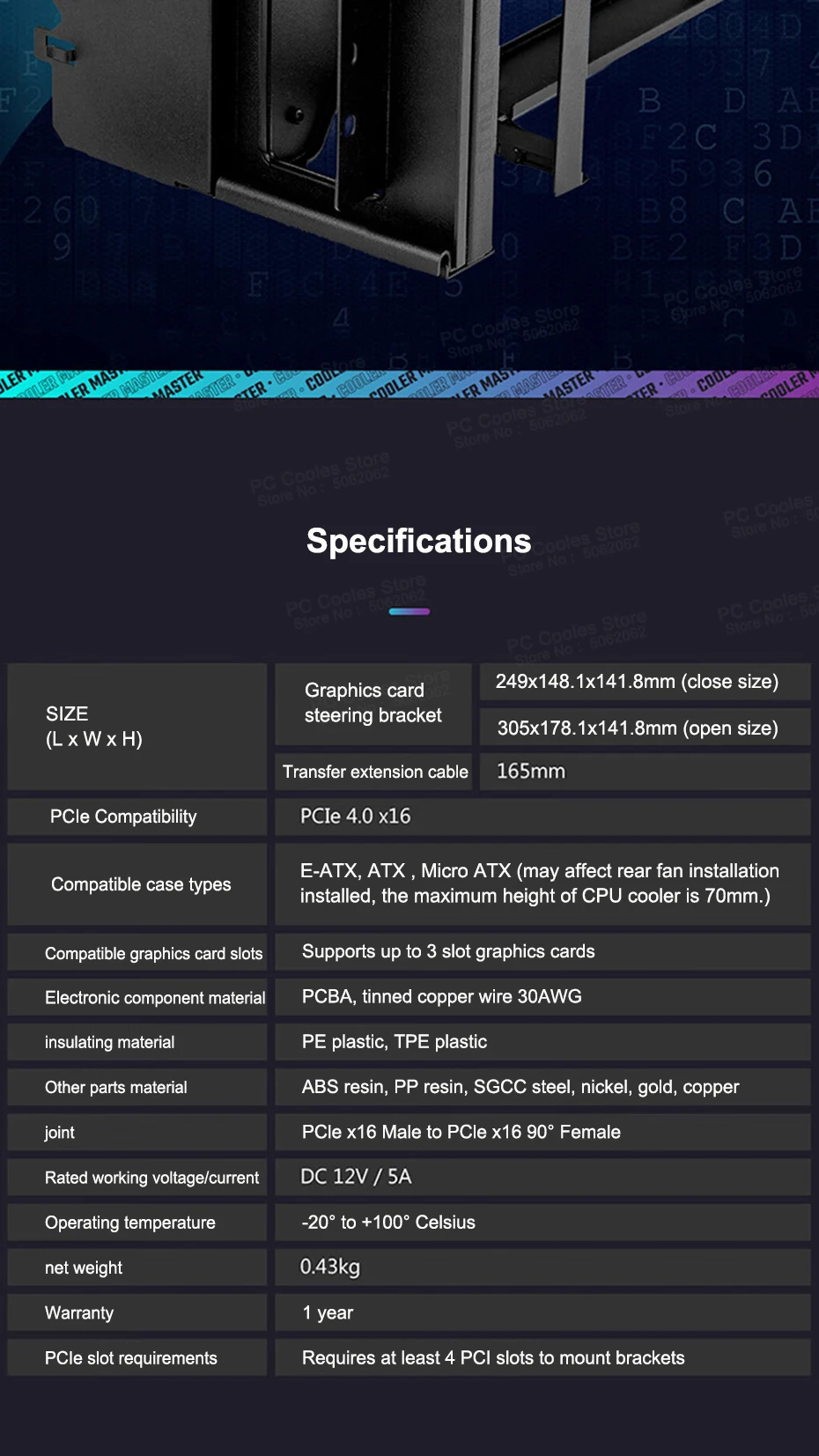

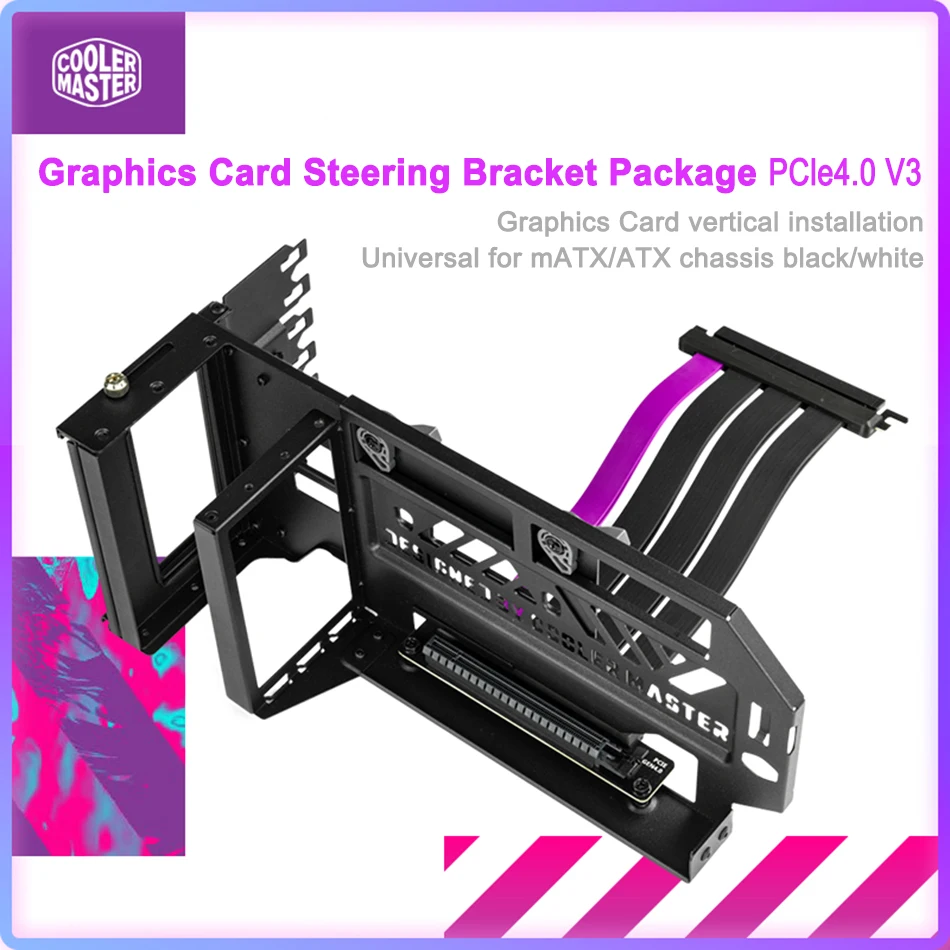

PCle4.0 Graphics Card Steering Bracket KIT V3

Product name: Graphics card steering bracket set V3
Product number: MCA-U000R-KFVK03
Exterior Color: Black/Gray
Dimensions (L x W x H)
Graphics card bracket: 249x148.1x141.8mm (close size)
305x178.1x141.8mm (open size)
Extension cord: 165mm (6.49in)
Compatible chassis types: E-ATX, ATX, Micro ATX (may affect the rear fan installation
installed, the maximum height of CPU cooler is 70mm.)
Compatible GPU size: any length, up to 3 slots
Extension cable model: PCIe 4.0 x16 graphics card extension cable
Compatibility : PCIe 4.0 or older
CE certification number: BKC210933AC
PCB/Wire UL Number: E1895721/E252840
Component Material : PCBA, Tinned Copper Wire 30 AWG
Insulation part material: PE, TPE

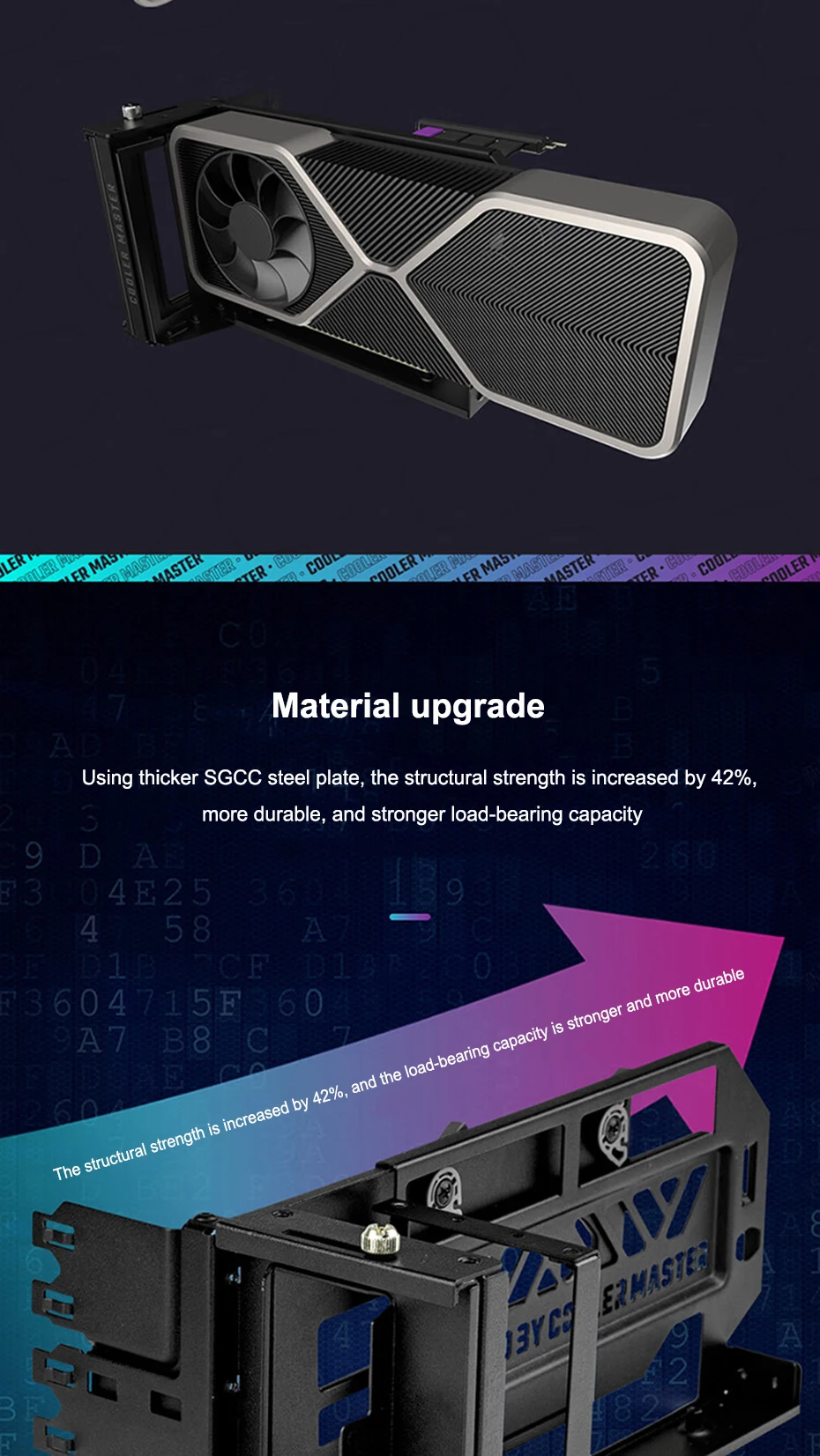

Other Materials : ABS, PP, SGCC Steel, Nickel, Gold, Brass
Interface: PCIe x16 Male to PCIe x16 90° Female
Working voltage and current: DC 12V / 5A
Operating temperature: -20° to +100° Celsius

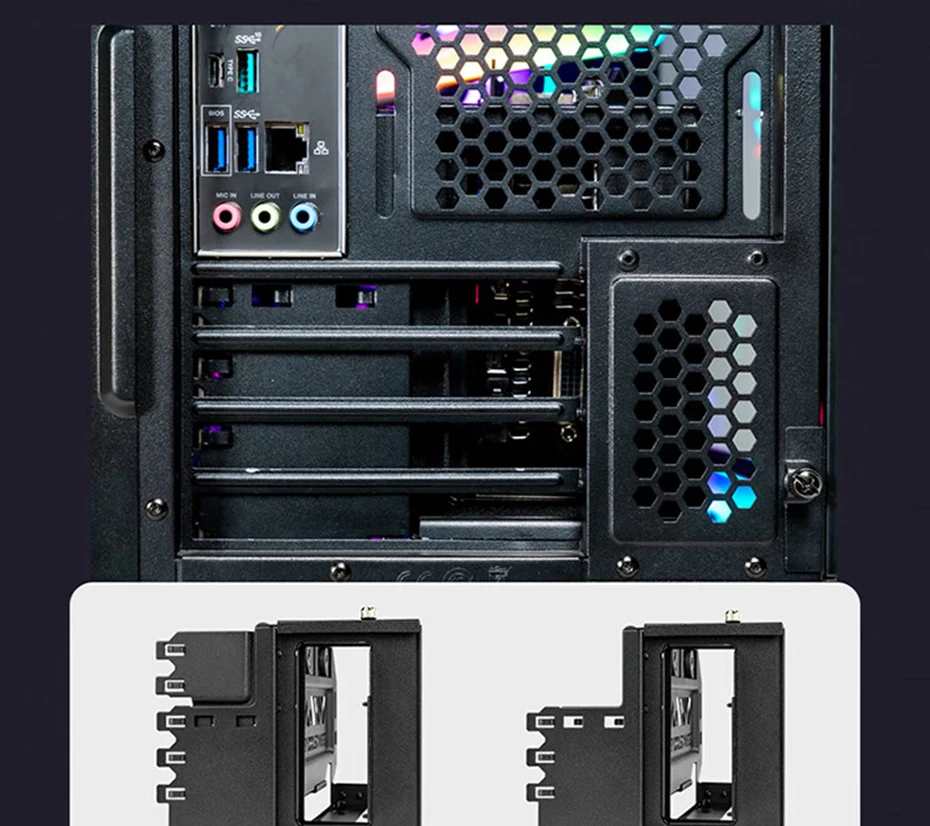

Number of PCI slots required: at least 4 slots are required for installation
Net weight: 0.81 kg
Gross weight: 1.03 kg
Warranty: 1 year

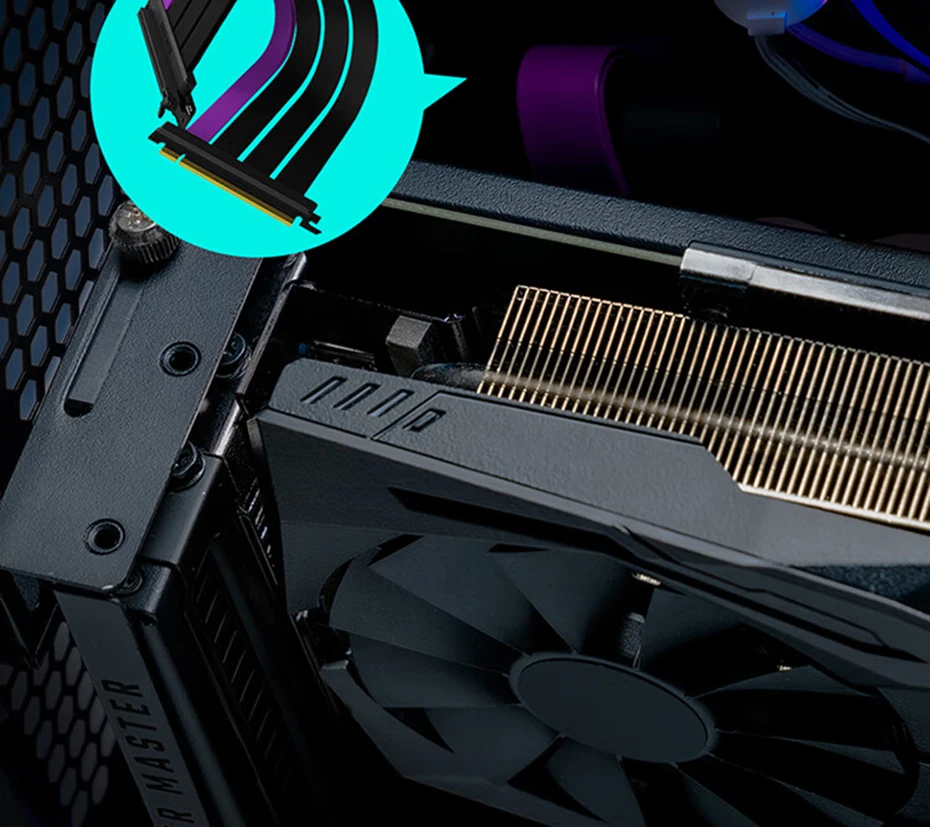

PCle 4.0 x16 Cable

Compatibility: PCle 4.0 x16 Cable
Electronic component material: PCBA, tinned copper wire 30AWG
Insulation material material: PE plastic, TPE plastic
Material of other parts: ABS resin, PP resin, nickel, gold, copper
Interface: PCle x16 male to PCle x16 90º female
Rated working voltage/current: DC12v/5A
Working temperature: -20 to +100°C
Net weight: 145g
Riser cable: 165mm
Warranty: 1 year

PCle 3.0 x16

MODEL NUMBER ：MCA-U000R-KFVK01
AVAILABLE COLOR(S) ：Black
DIMENSIONS (L X W X H) ：GFX Holder kit: 184 x 142 x 121mm / 7.25 x 5.59 x 4.77 inch (closed), Riser cable: 165mm (6.49in)
SUPPORTED GRAPHICS CARDS ：Any length, up to 2.5 slots wide
RISER CABLE MODEL ：Riser Cable PCie 3.0 Ver.2
COMPATIBILITY ：PCI-E 3.0
CERTIFICATIONS ：EMI, IPC4101D/21
ELECTRONIC COMPONENT MATERIALS ：PCBA, Copper Wire 28 AWG, Copper Wire 30 AWG
INSULATION MATERIALS ：PE, TPE
OTHER MATERIALS ：ABS, SPCC, SGCC Steel, Nickel, Gold, Brass
REQUIRED PCI SLOTS ：7 PCI slots are required for mounting
WARRANTY ：1 year
NET WEIGHT ：0.41kg
GROSS WEIGHT ：0.55kg
EAN CODE ：4719512103128
UPC CODE ：884102075438
SERIES ：Others
NOTE ：This product is only compatible for devices that support the PCI-E 3.0 specification. If you use this product with a motherboard that supports PCI-E 4.0, please enter into BIOS option and select PCI-E 3.0 before installation., The Vertical GPU Holder Kit V2 can also accommodate 3-slots GPUs but allows installation of only 2 screws out of 3

The length of the graphics card cable in the set bracket is 165mm, and the length of the graphics card cable purchased separately is 300mm.
