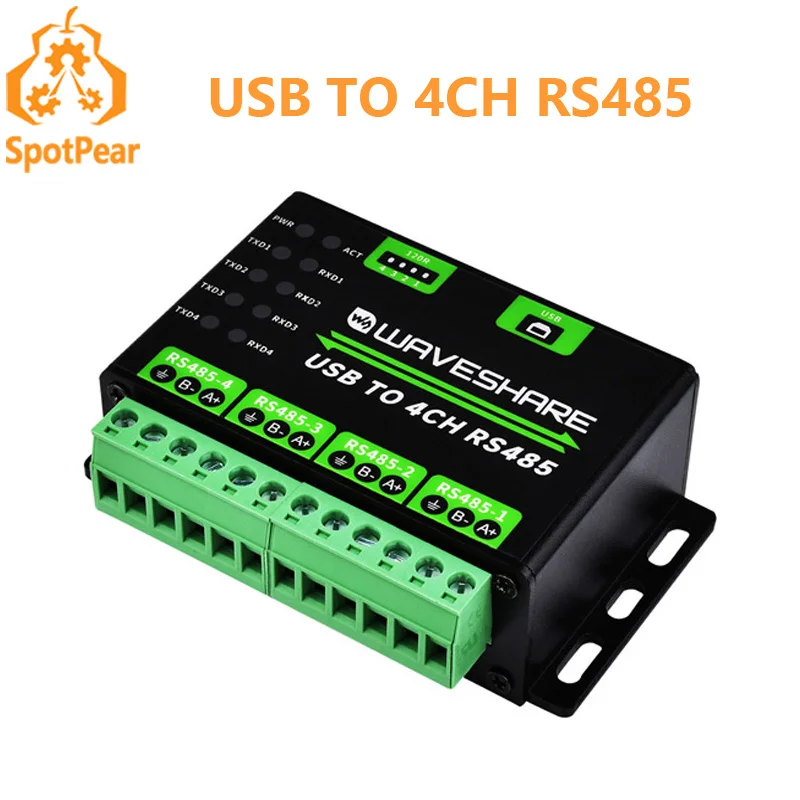

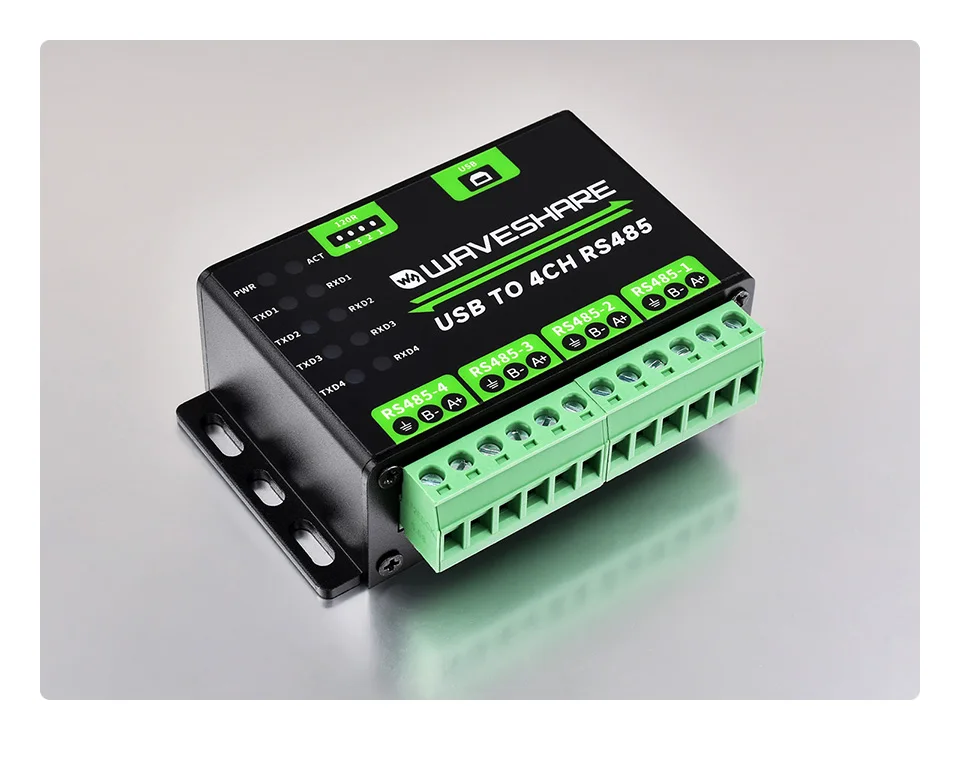

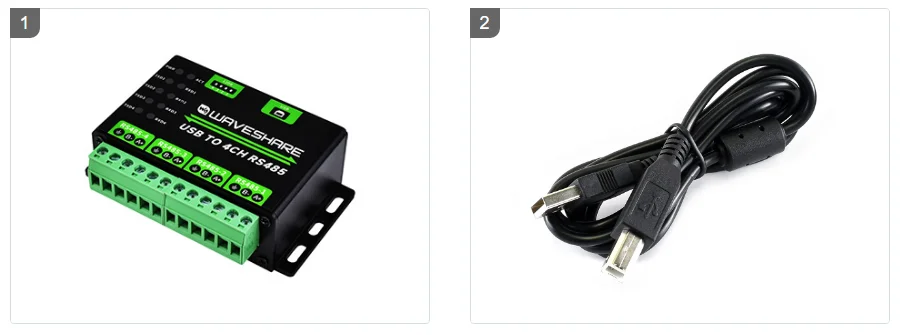

Convertidor industrial USB a 4 canales RS485, carcasa de aleación de aluminio, circuitos de protección múltiple, soporte para sistemas múltiples

Stable Transmission | Multi Devices | Multi Systems

• Extending USB to 4CH RS485, allows concurrent and independent communication for each channel

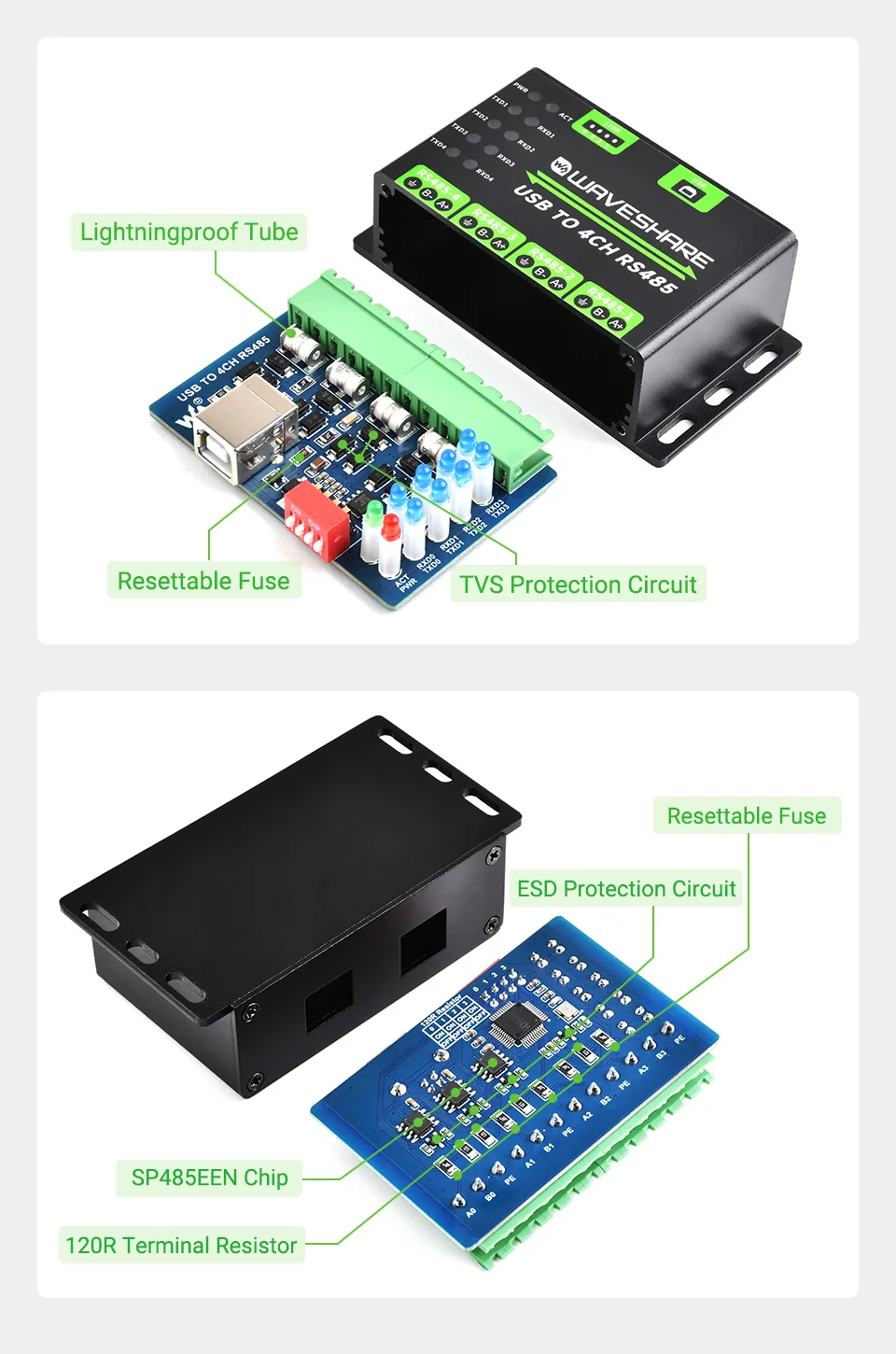

• Onboard TVS (Transient Voltage Suppressor), effectively suppress surge voltage and transient spike voltage in the circuit, lightningproof & anti-electrostatic

• Onboard resettable fuse and protection diodes, ensures the current/voltage stable outputs, provides over-current/over-voltage proof, improves shock proof performance

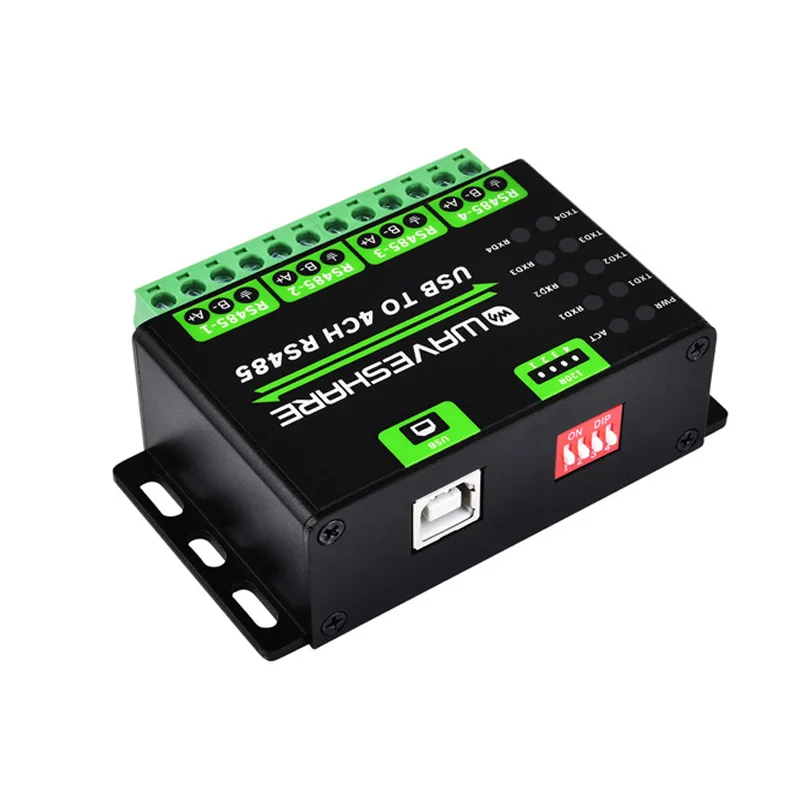

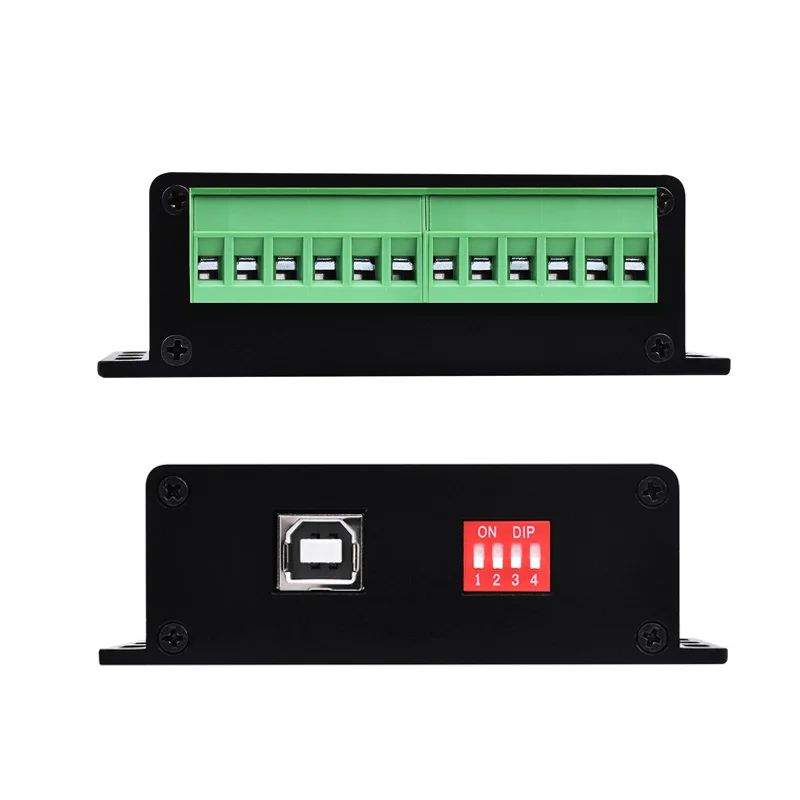

• Onboard RS485 output terminal 120R resistors, enabled/disabled via DIP switch

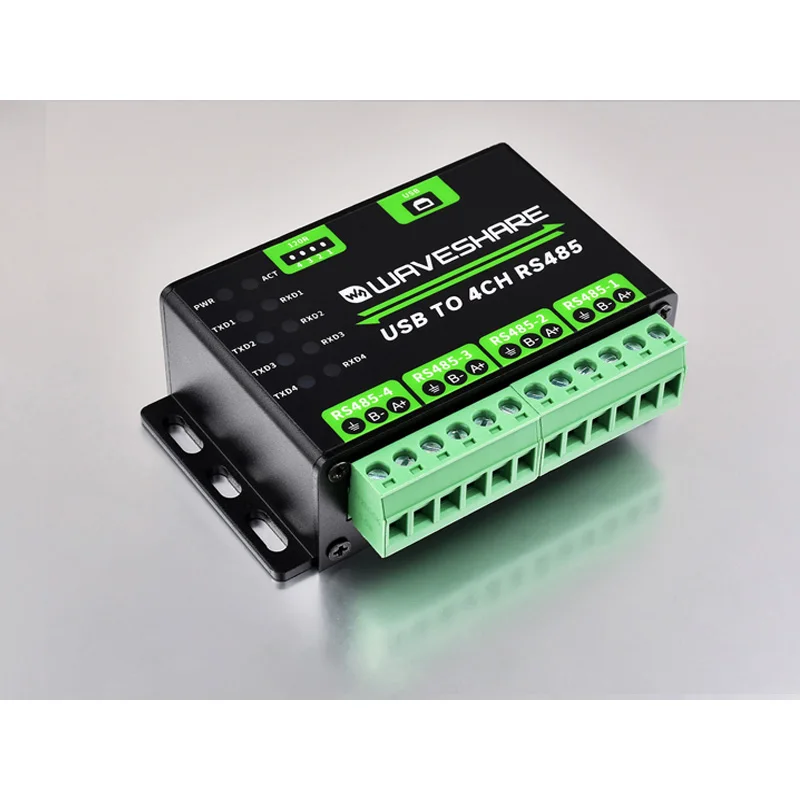

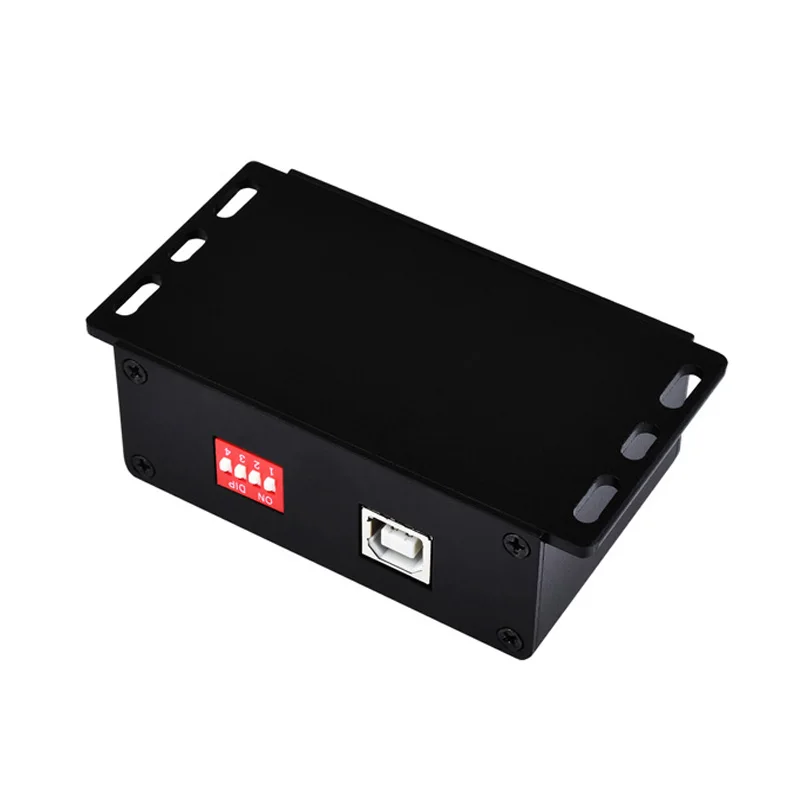

• Aluminium alloy case with oxidation dull-polish surface, CNC process opening, solid and durable, well-crafted

Onboard Resettable Fuse And Protection Diode, Provides Over-Current/Over-Voltage Proof, Improves Shock Proof Performance; Onboard Voltage Translator Circuit, With Surge Suppress And ESD Protection, Safe And Stable Communication

Supports Win7/8/8.1/10/11, Mac, Linux, Android, Etc.

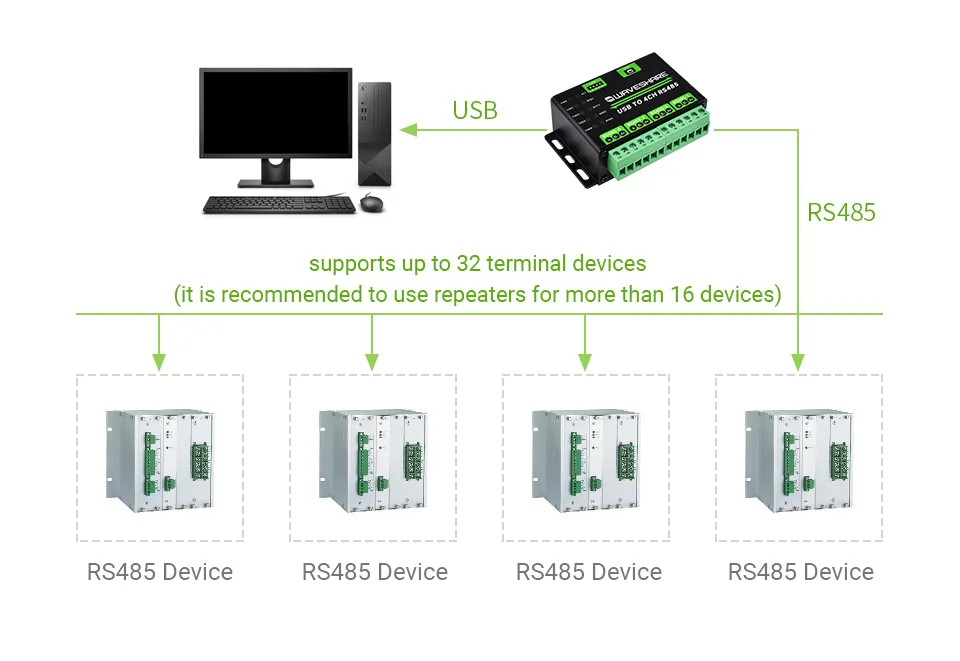

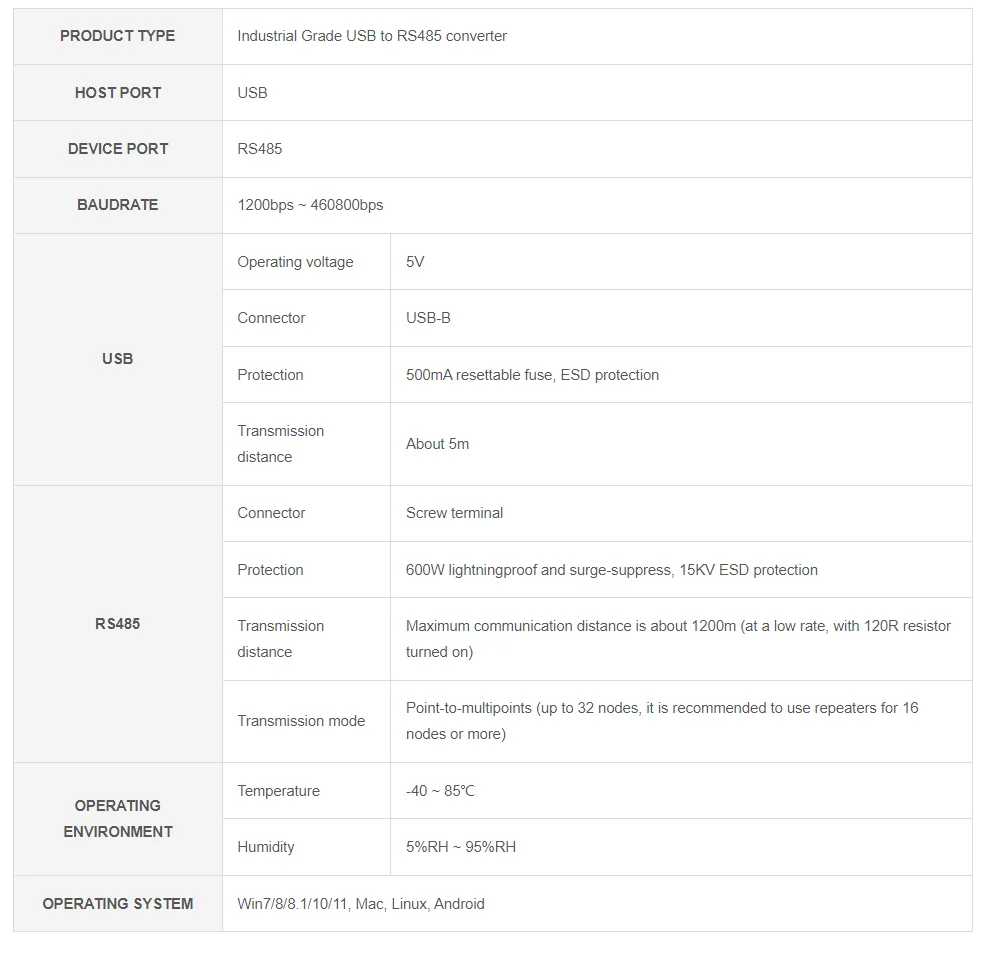

The USB Signal Can Be Converted Into 4 Balanced Differential RS485 Signals And The Transmission Rate Is Stable. The Reliable Speed Is 1200~460800bps, The Transmission Distance Is About 1.2km For RS485, And About 5 Meters For USB.

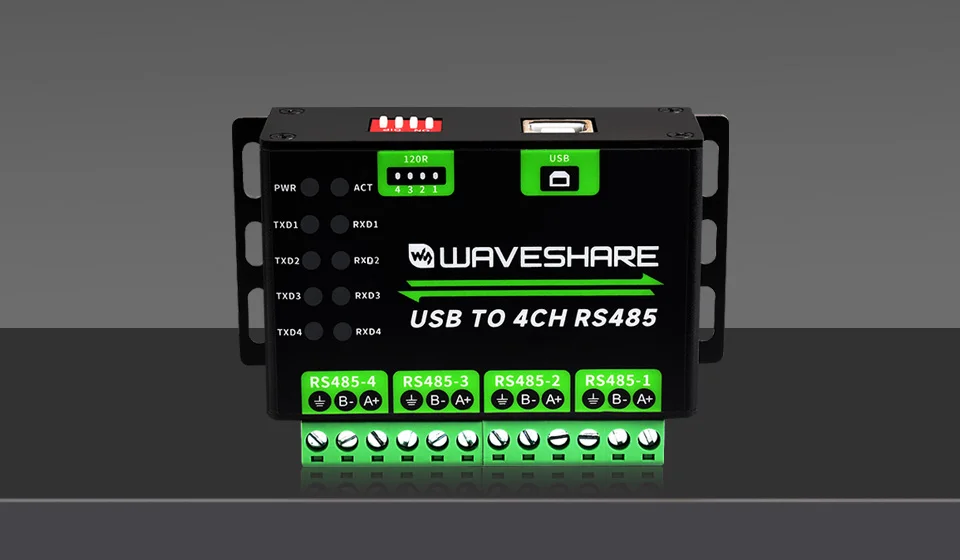

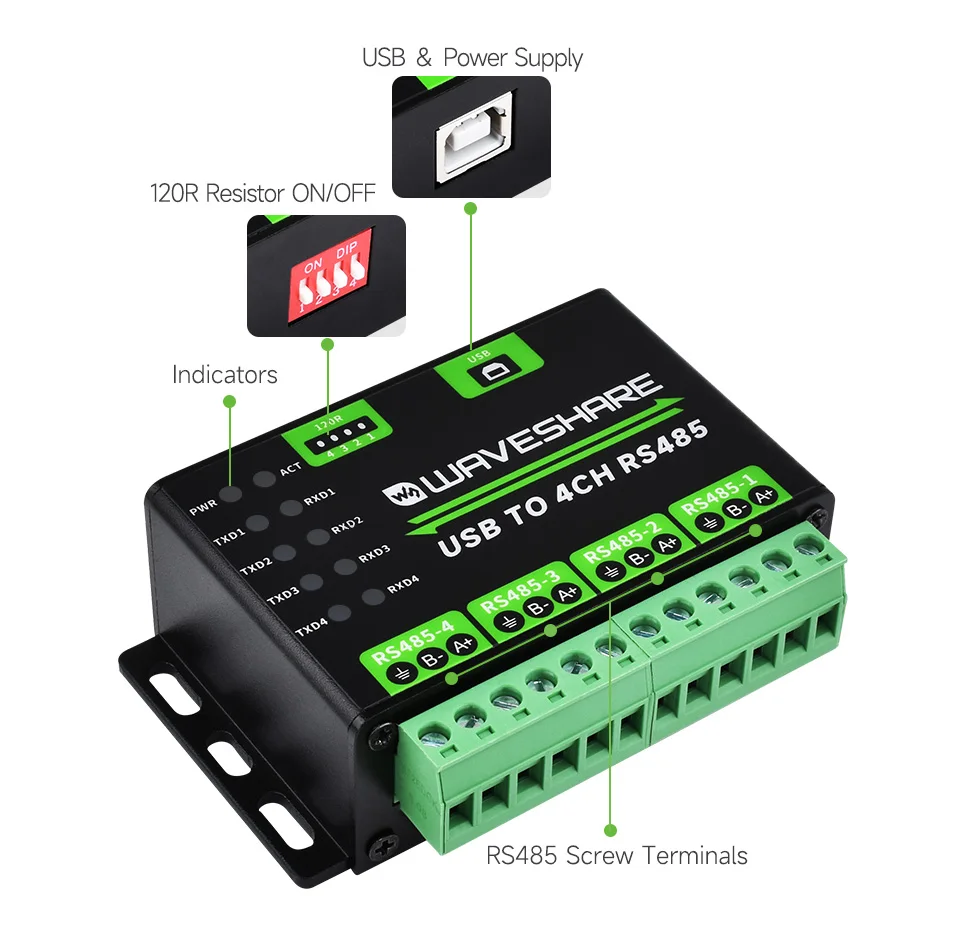

INDICATOR INTRODUCTION

PWR

power indicator, lights up while the USB is connected and voltage is detected

ACT

Status indicator, lights up green while the driver is detected.

RXD(1~4)

Blue RXD indicators, light up when the device ports send data back
(corresponding to 4 channels respectively)

TXD(1~4)

Blue TXD indicators, light up when the USB port is sending data
(corresponding to 4 channels respectively)

PE

Signal ground

A(1~4)

A(1~4) differential signal A+

B(1~4)

B(1~4) differential signal B-
