Convertidor de adaptador de disco duro SATA de 1 a 5 puertos, concentrador PM, enrutador, multiplicador de Puerto SATA, divisor de tarjeta elevadora, almacenamiento
18,75 €
18,94 €
Enlace proporcionado por:

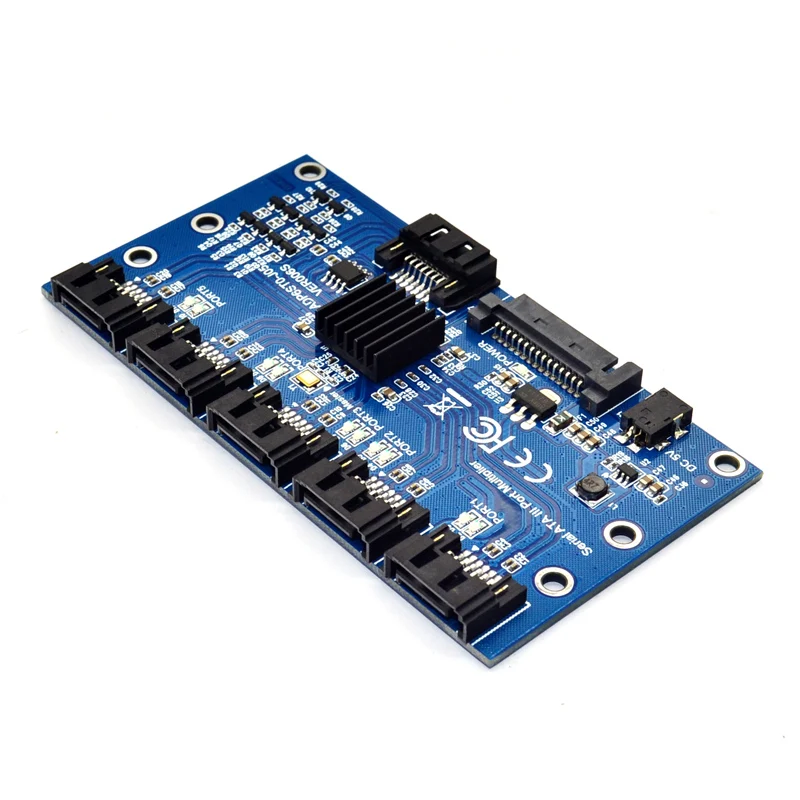

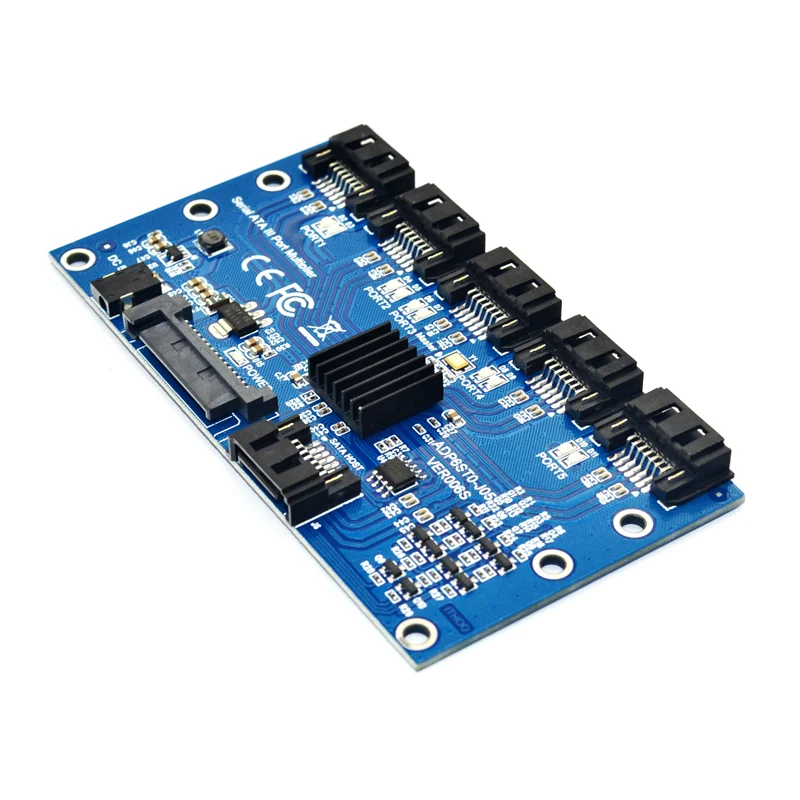

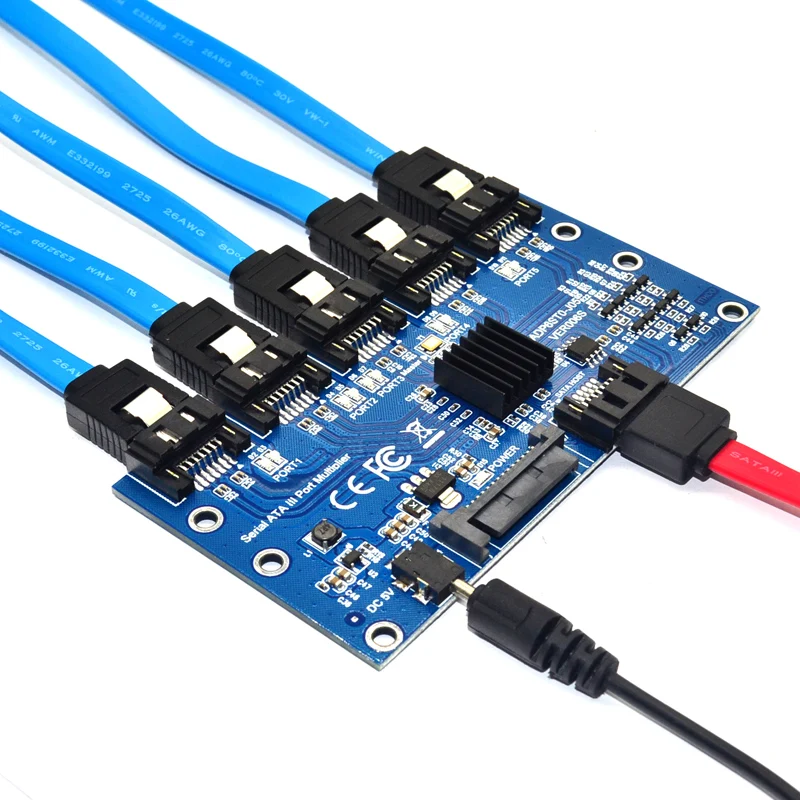

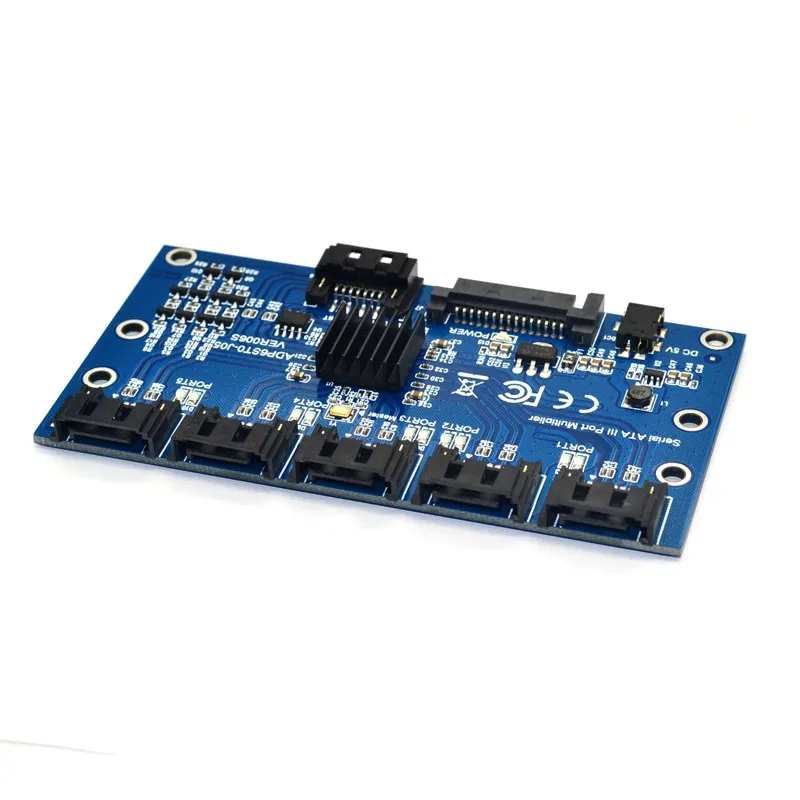

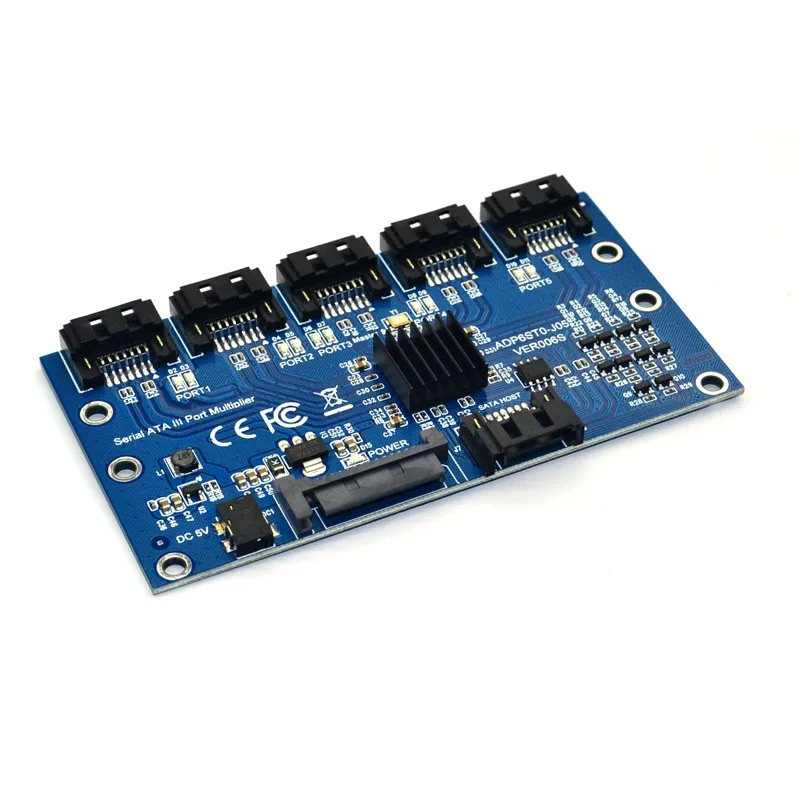

SATA 1 to 5 Ports Hub PM Router SATA Port Multiplier Riser Card Splitter Storage Hard Disk Adapter Converter
About Description:
Feature:
· Supports 6-port 6.0Gbps SATA III interface
· Output swing control and automatic impedance calibration for SATA III PHY
· Supports asynchronous signal recovery
· Supports spread spectrum clocking
· Supports partial / slumber power saving mode
· Automatically speed negotiation
· Supports BIST and loopback mode
· Supports staggered spin-up (Optional)
· Supports Hot-Plug
· Supports asynchronous notification
· Supports ATAPI drives
· Supports command-based and FIS-based swit
· Supports 6-port 6.0Gbps SATA III interface
· Output swing control and automatic impedance calibration for SATA III PHY
· Supports asynchronous signal recovery
· Supports spread spectrum clocking
· Supports partial / slumber power saving mode
· Automatically speed negotiation
· Supports BIST and loopback mode
· Supports staggered spin-up (Optional)
· Supports Hot-Plug
· Supports asynchronous notification
· Supports ATAPI drives
· Supports command-based and FIS-based swit
Compliance:
· Compliant with Serial ATA Port Multiplier Spec. Revision 1.2
· Compliant with Serial ATA Port Selector Spec. Revision 1.0
· Compliant with Serial ATA PHY Electrical Spec. Revision 1.0
· Compliant with Serial ATA High Speed Serialized AT Attachment Spec. Revision 3.1
· Compliant with Serial ATA Port Multiplier Spec. Revision 1.2
· Compliant with Serial ATA Port Selector Spec. Revision 1.0
· Compliant with Serial ATA PHY Electrical Spec. Revision 1.0
· Compliant with Serial ATA High Speed Serialized AT Attachment Spec. Revision 3.1
Tips:
1. This expansion card must support the PM (SATA PORT MULTIPLIER) function on the motherboard or the expansion card to recognize 5 hard disks. The general motherboard
1. This expansion card must support the PM (SATA PORT MULTIPLIER) function on the motherboard or the expansion card to recognize 5 hard disks. The general motherboard
SATA does not support this function. If not, only one card can be recognized.
2. Must be connect the SATA Power or DC2.5 power supply can normal use.
You'll receive:

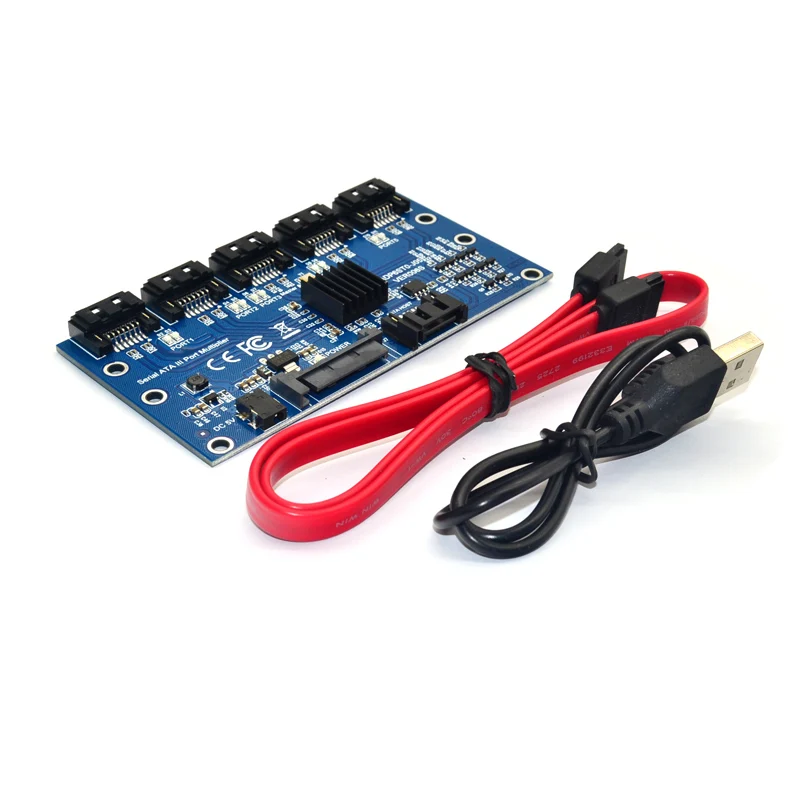

1pcs x 1 to 5 SATA3.0 Port Multiplier Card
1pcs x USB to DC Cable
1pcs x SATA Cable
- Please check pictures for more details.
Comprar Convertidor de adaptador de disco duro SATA de 1 a 5 puertos, concentrador PM, enrutador, multiplicador de Puerto SATA, divisor de tarjeta elevadora, almacenamiento
