4Port M.2 NVME to PCI Express X16 4.0 Bifurcation Raid Controller M KEY NVME PCIE Split Card for 2230 2242 2260 2280 NVME M2 SSD
About Description:
Important Tips:
dear friend, please make sure that the PCIe x16 slot of your motherboard supports PCIe signal splitting into 4 PCIe x4. If support, you need in bios setting “PCIEX16 Bifurcation” - “PCIE x4x4x4x4” . Otherwise only support one nvme. Thanks!
Feature:

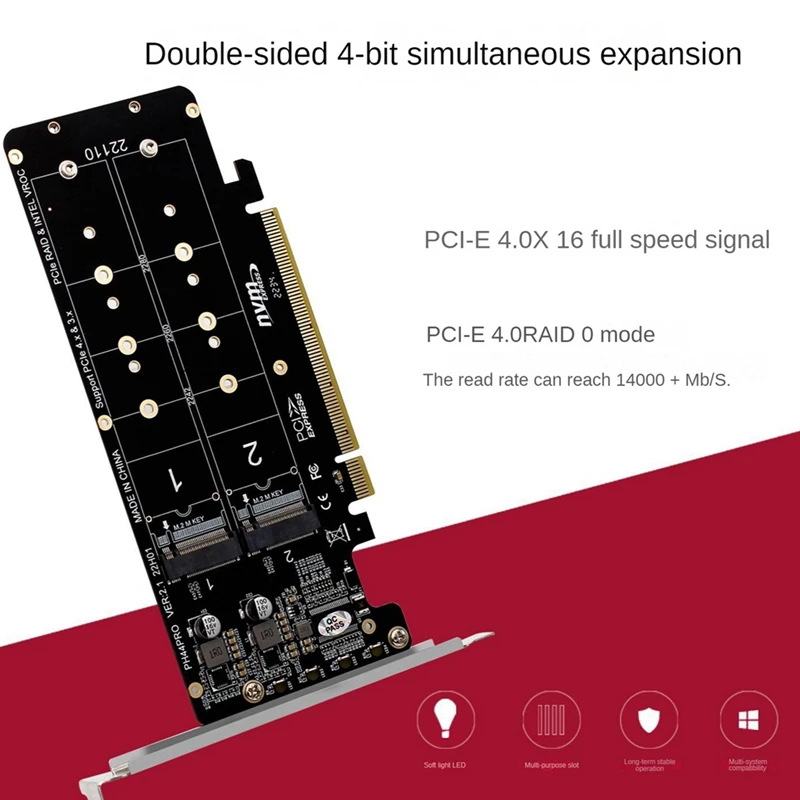

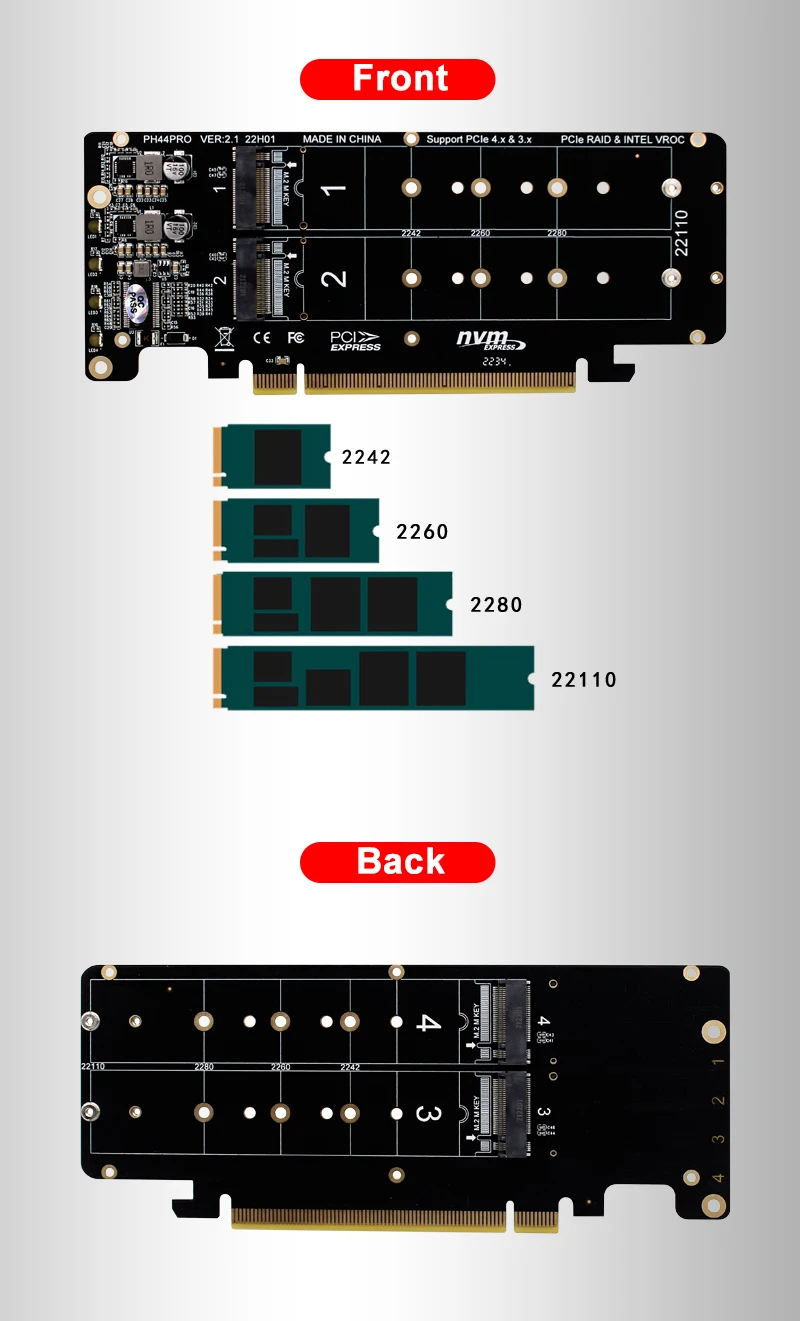

1. Front and back double-sided 4-disk expansion at the same time Compatible with 2242/2260/2280/22110 specifications Support M.2 M-KEY NVME protocol SSD and Optane support M.2 PCle protocol expansion cards and devices.
2. LED soft light indicator When the disk is plugged in and powered on, the green light is on, and the green light flashes when reading and writing.

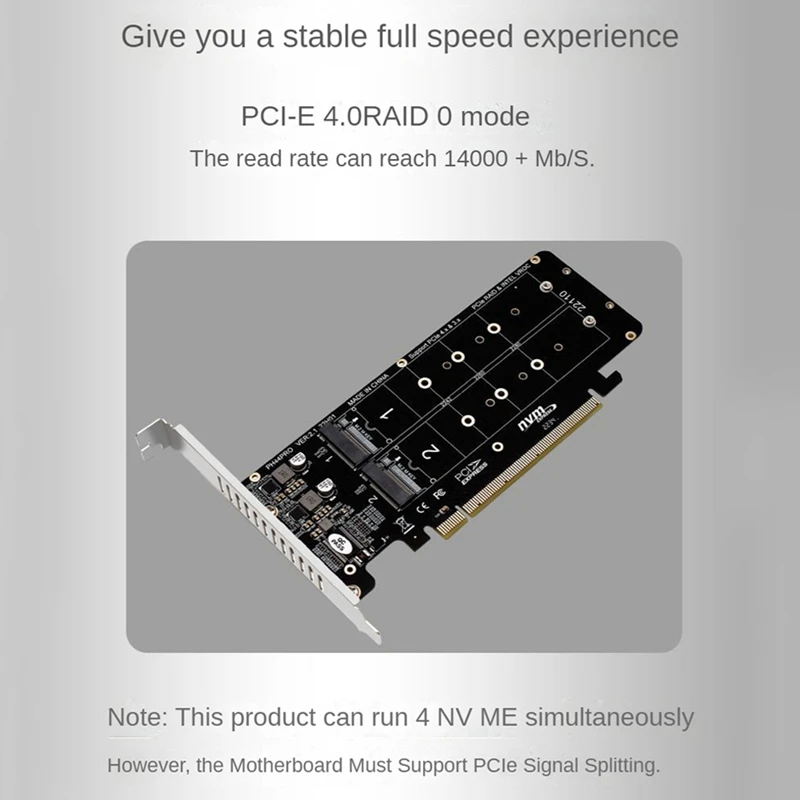

3. The read rate of PCI-E4.0 RAID O mode can reach 14000+Mb/S.
4. This product can run 4 NVMEs at the same time. But the motherboard must support PCIE signal splitting.
5. Using high-end PCB circuit board, surface gold plating process, good continuity, strong wear resistance, anti-oxidation, high fire rating.
Specifications:
Name: Double-sided 4-disk NVME raid PCI-E X16 split card
Model: NVME RAID Card
Support hard disk: M.2 NVME SSD, not support m.2 sata protocol ssd.
transfer speed: 4 x 32Gbps
Colour: Black
Material: PCB
Instructions for use:
The main board supports PCI-E split function and can set PCI-E X4X4X4X4 or 4X4 mode;
The main board supports PCI-E RAID function;
You'll receive:

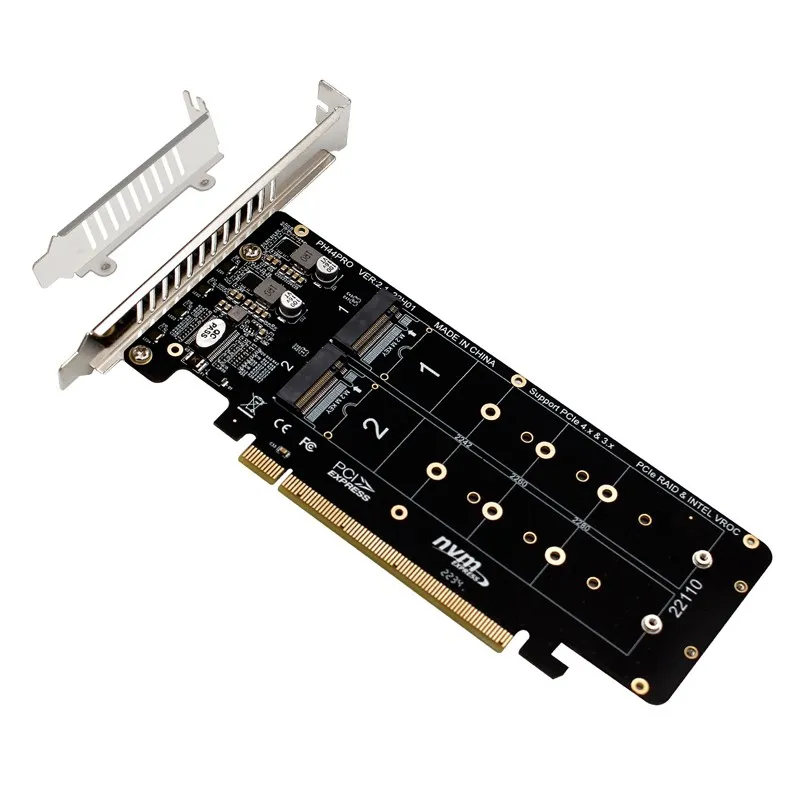

1 x PCI Express 4.0 X16 to 4-Port NVME RAID Card
1 x Screwdriver
1 x Set of Screws

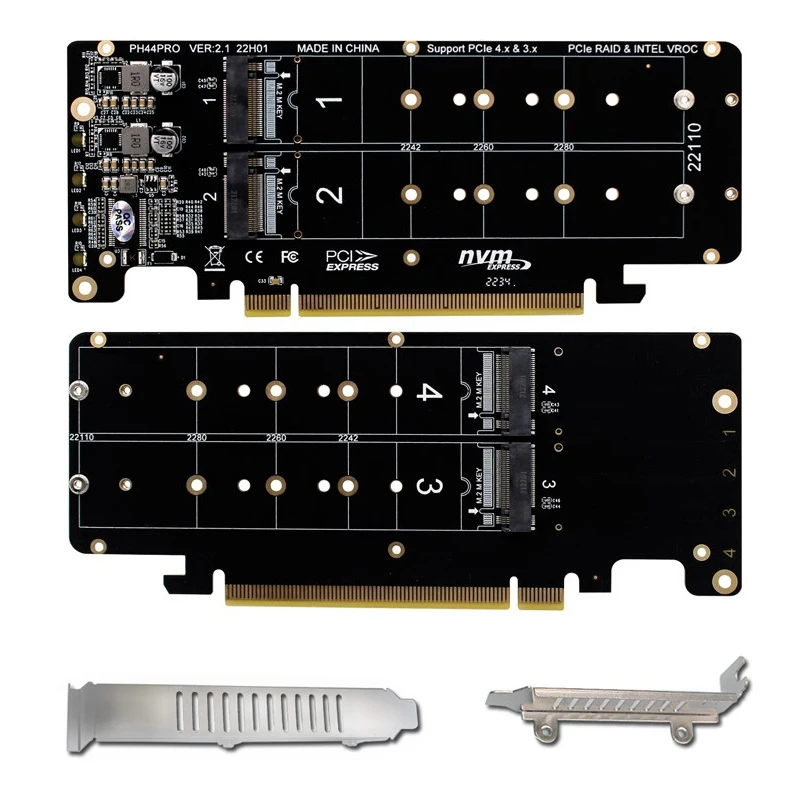

Please check pictures for more details.
