COMFAST 900Mbps 5,8G puente CPE para exteriores AP de largo alcance enrutador WiFi inalámbrico punto de acceso 26dBi antena repetidora extensor de señal

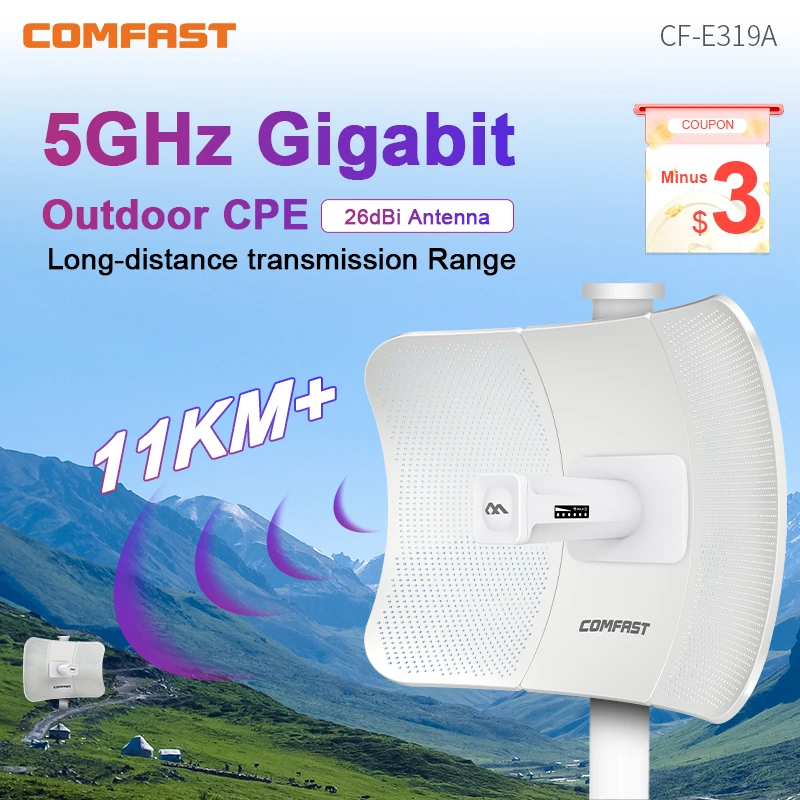

CF-E319A 11KM-25KM Long Range 5.8G 900Mbps Outdoor Wireless Bridge WIFI CPE Access Point 26dBi Antenna 1000mW Wi-Fi Nanostation

Package included:

1* CF-E319A

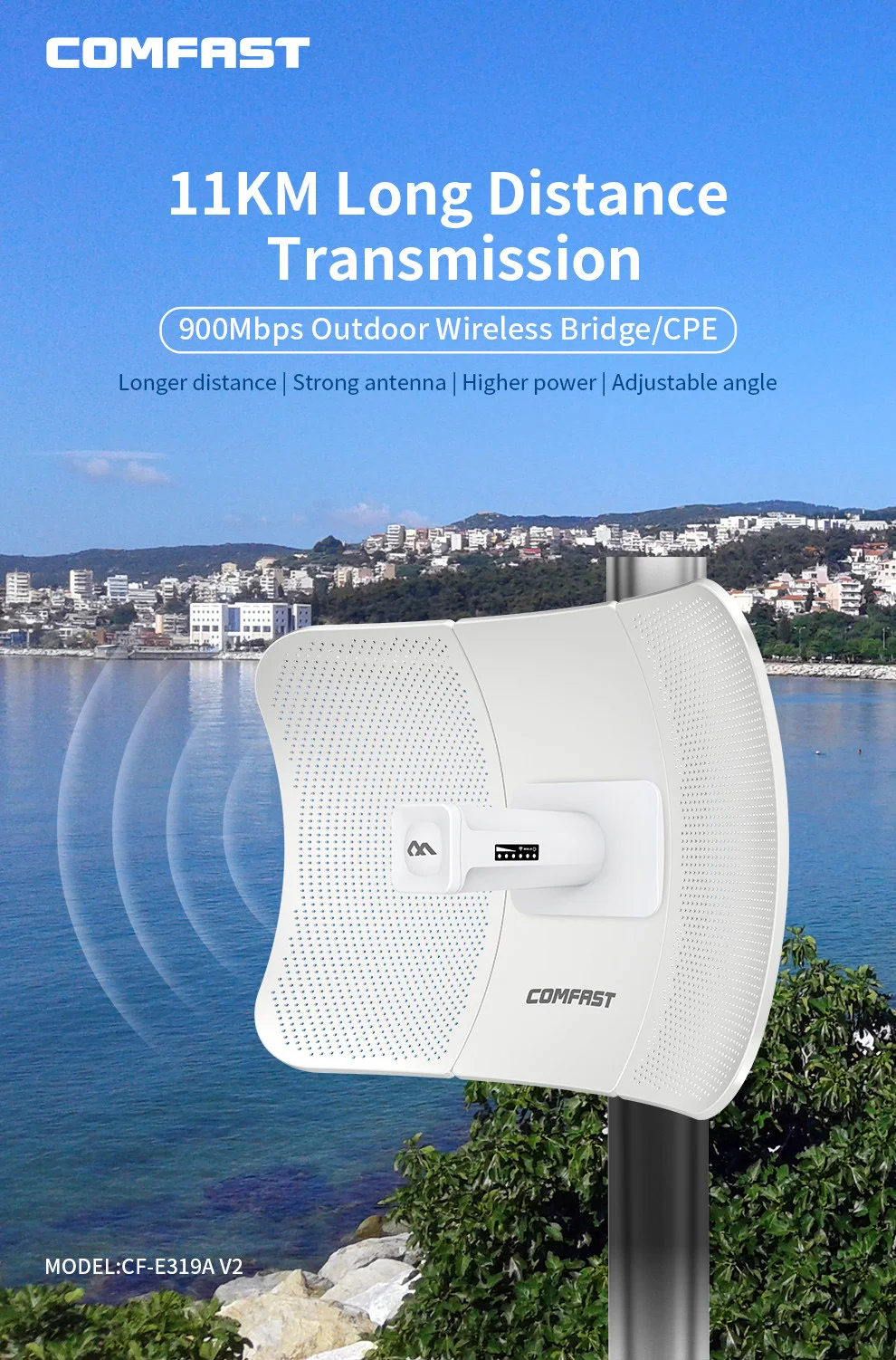

900Mbps Outdoor Wireless Bridge/CPE Longer distance | Strong antenna | Higher power | Adjustable angleExcellent performance, 9 Advantages11Km Long Distance Transmission26dBi Antenna30 dBm Transmit PowerIP65 Protection LevelPoE Flexible Power supply5.8GHz Anti-interferenceHide SSIDQualcomm ChipHigh Power PAEngineering Settings, Easy InstallationThe measured transmission distance of COMFAS reaches up to 11KM.

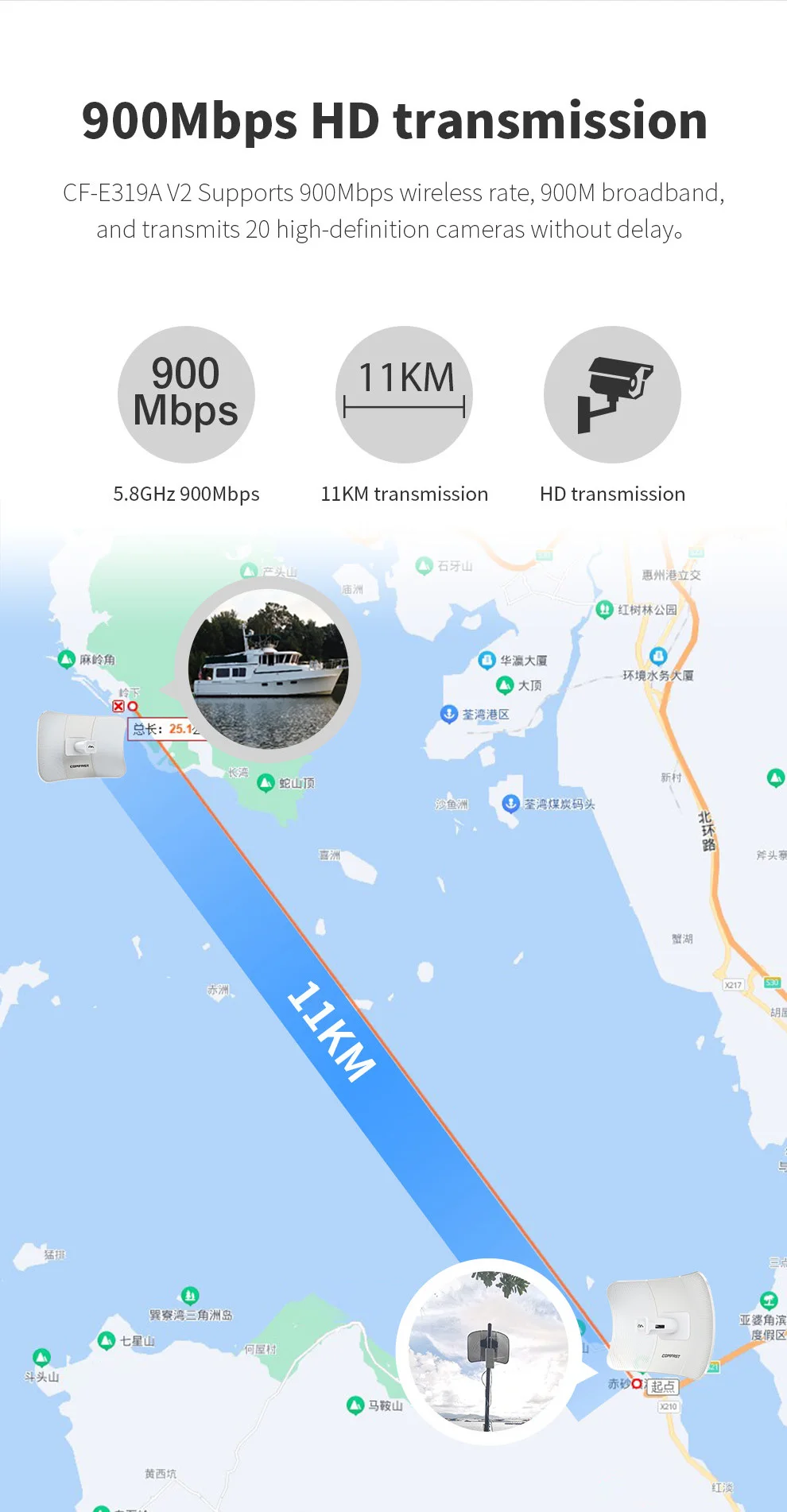

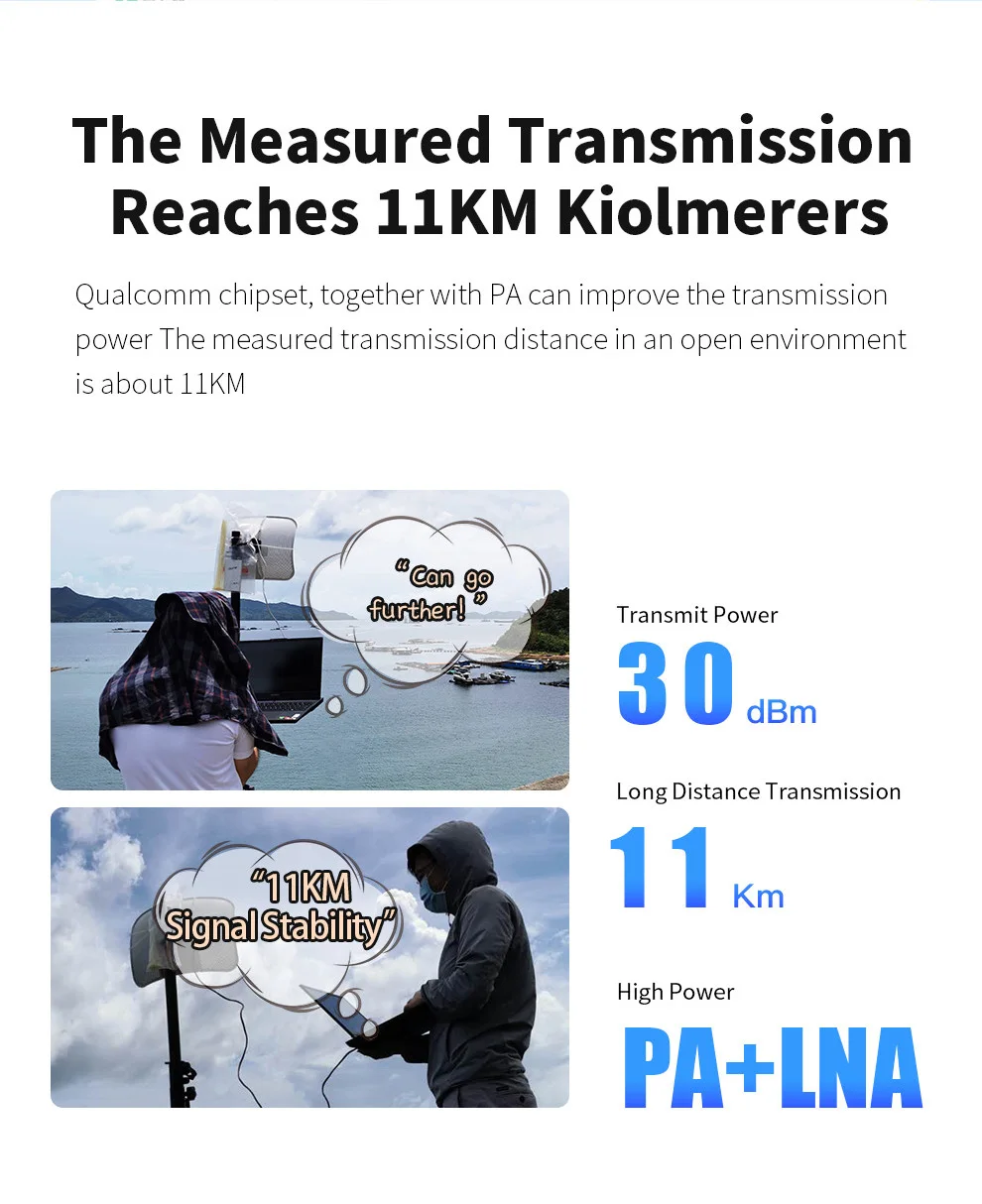

Qualcomm chipset, together with PA can improve the transmission power.The measured transmission distance in an open environment is about 11KM(30dBm Transmit Power; 11KM Long Transmission; PA+LNA High Power)900Mbps HD Transmission

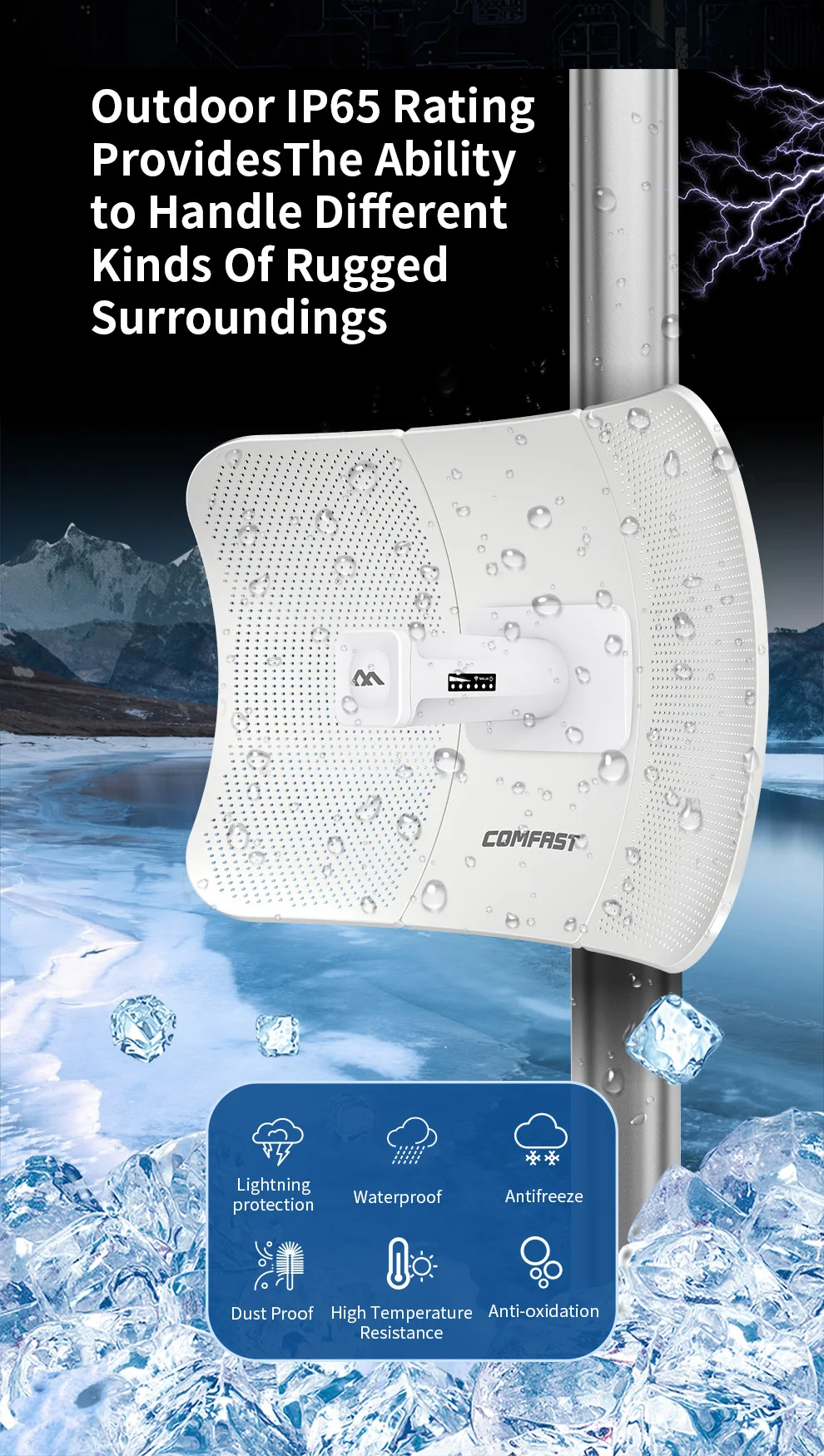

CF-E319A supports 900Mbps wireless rate, 900M broadband,and transmits 20 high-definition cameras without delay.Outdoor IP65 Rating Provides The Ability to Handle Different Kinds Of Rugged surroundings

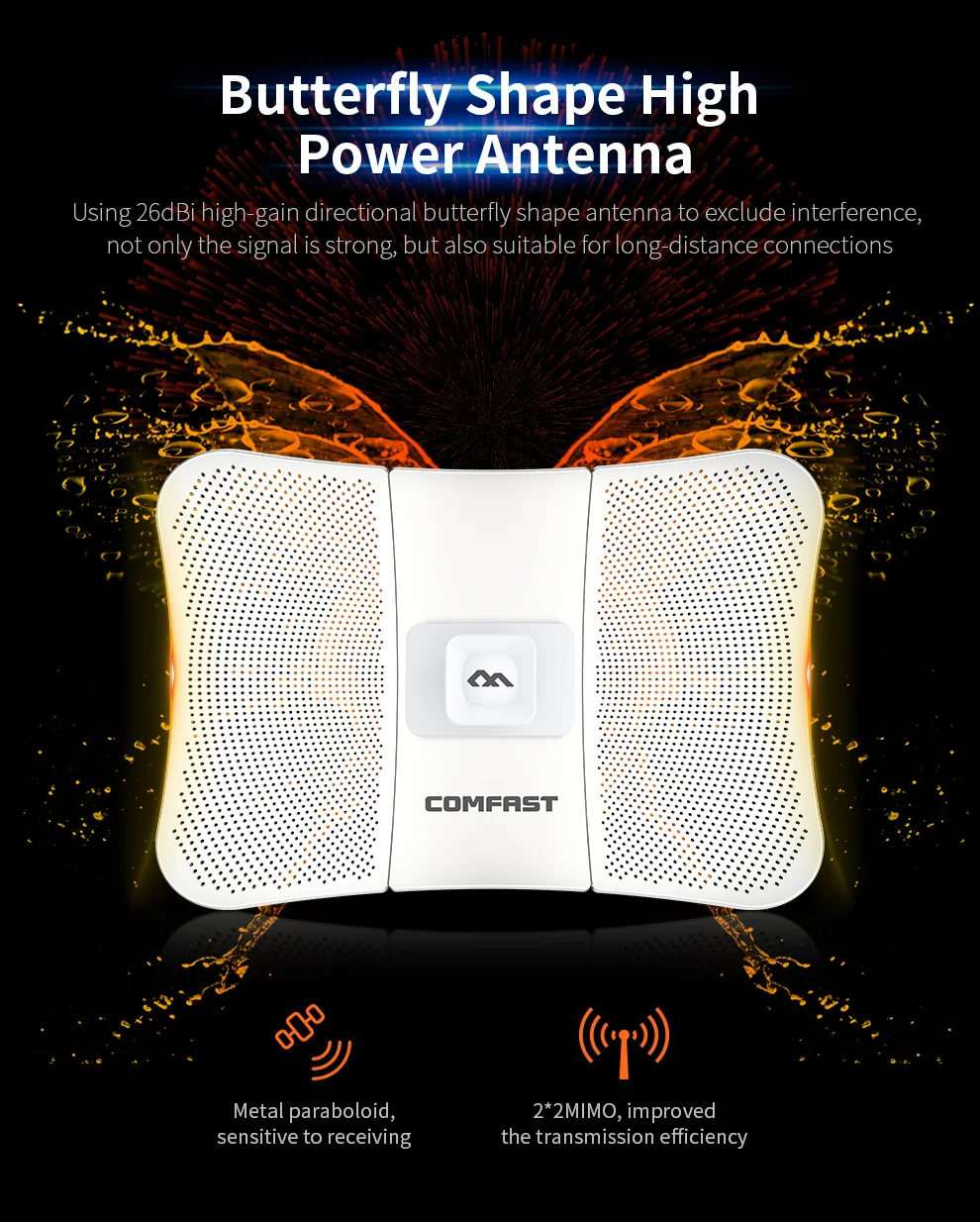

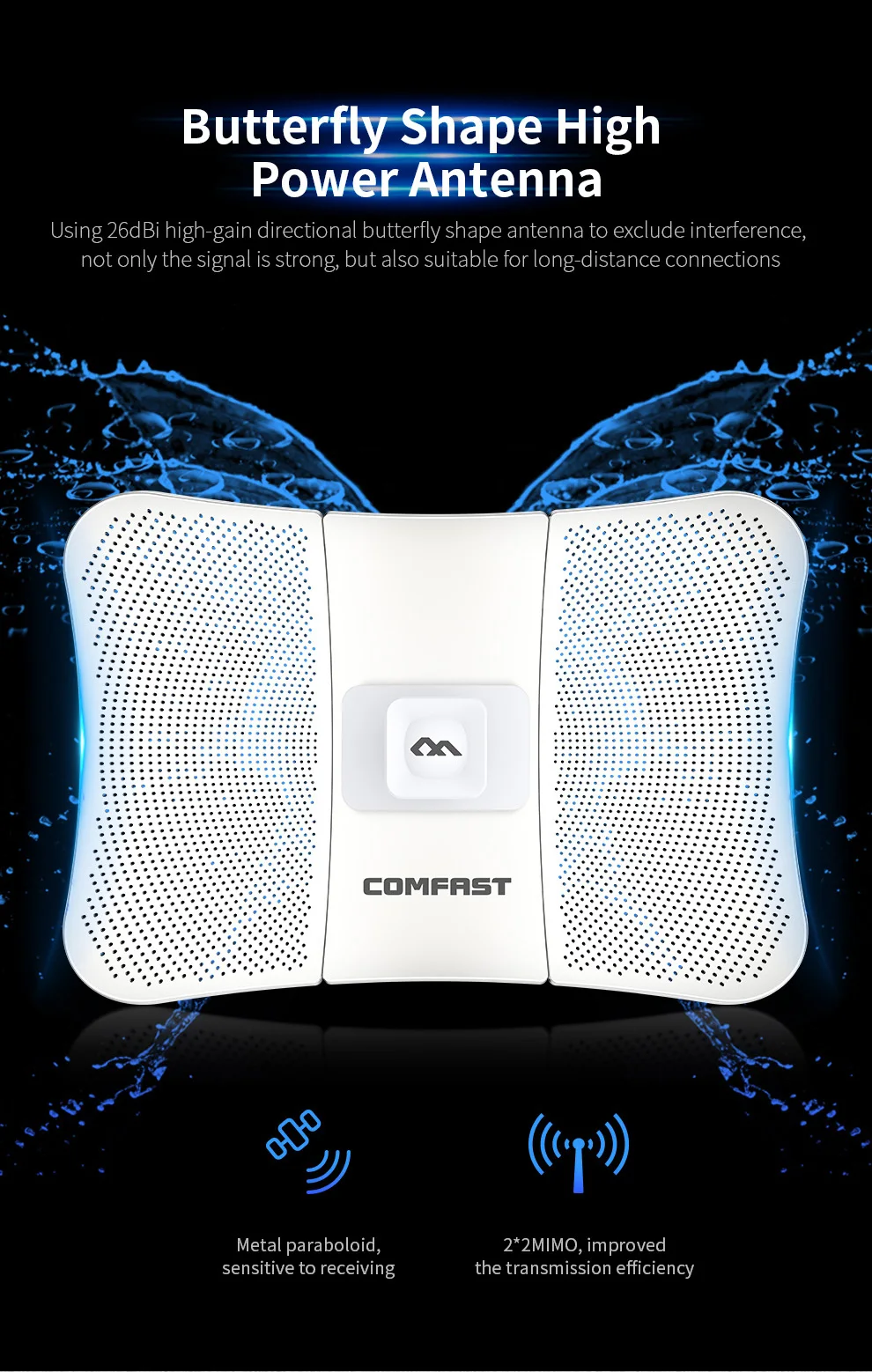

Lightning protection/ Waterproof/ Antifreeze/ Dust Proof/ High Temperature Resistance/ Anti-oxidationButterfly Shape High Power Antenna

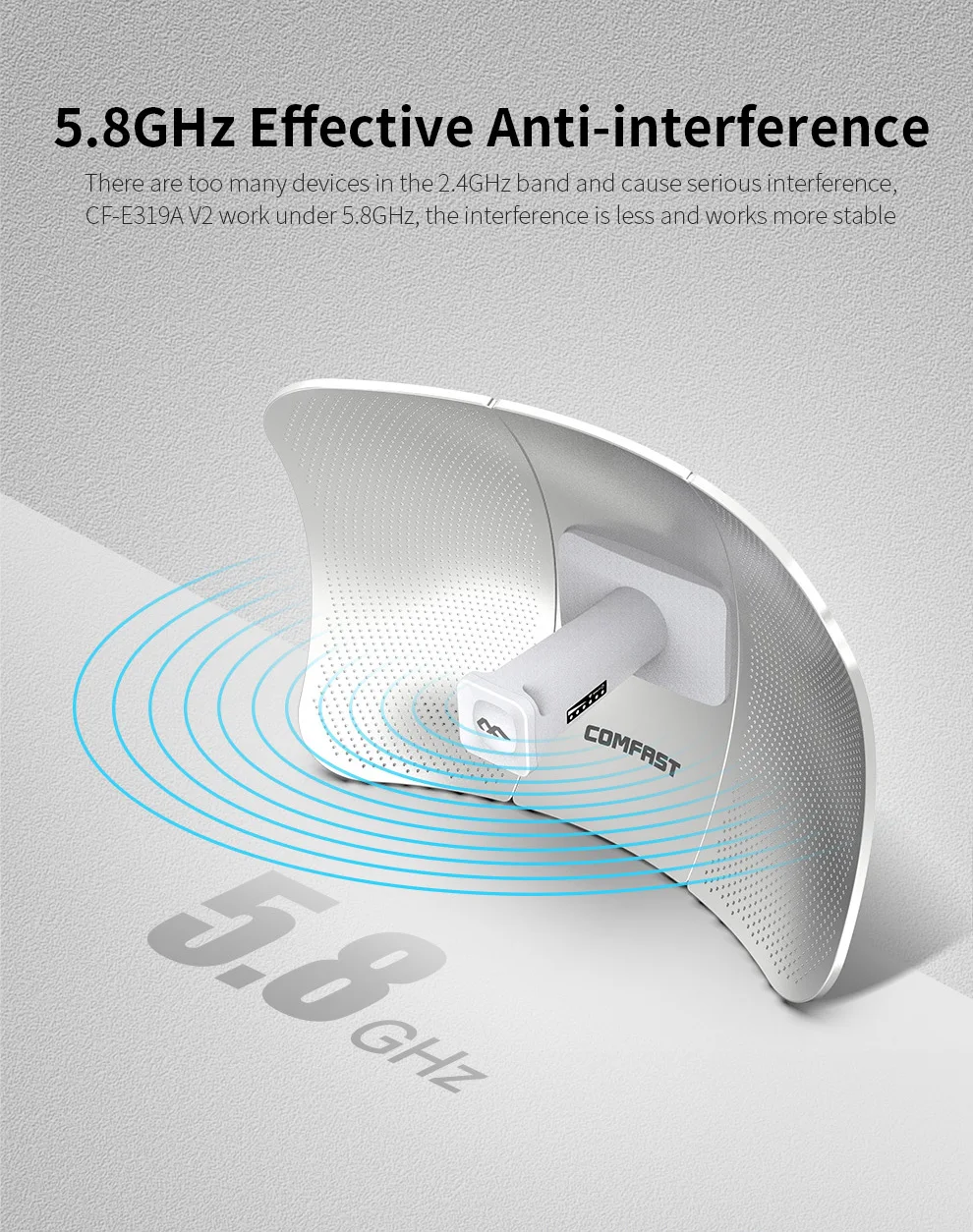

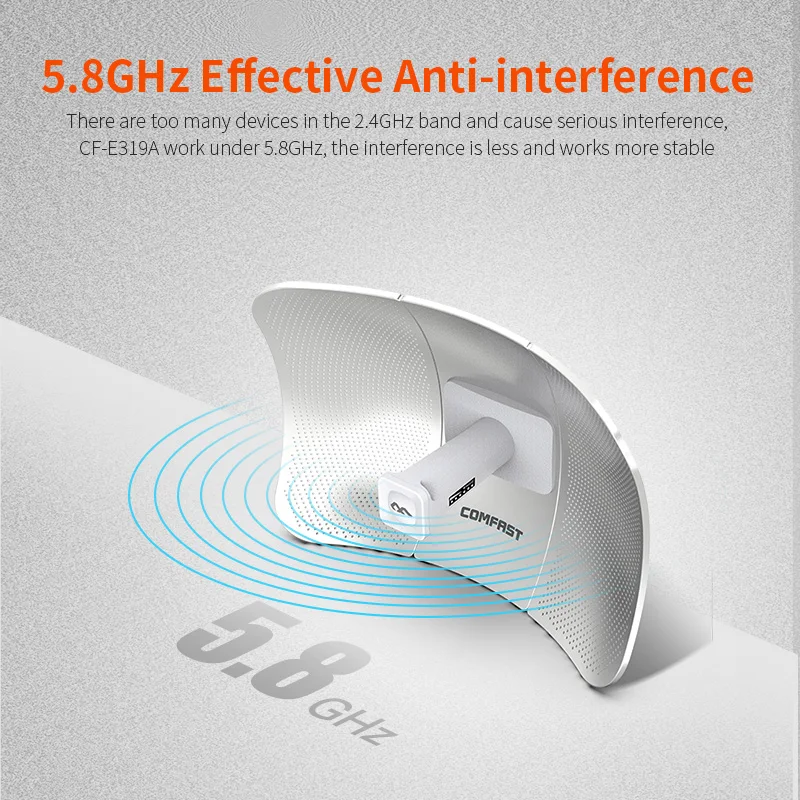

Metal paraboloid, sensitive to receiving; 2*2 MIMO, improved the transmission efficiency5.8GHz Effective Anti-interference

There are too many devices in the 2.4GHz band and cause serious interference, CF-E319A work at 5.8GHz, the interference is less and works more stableIndustrial design

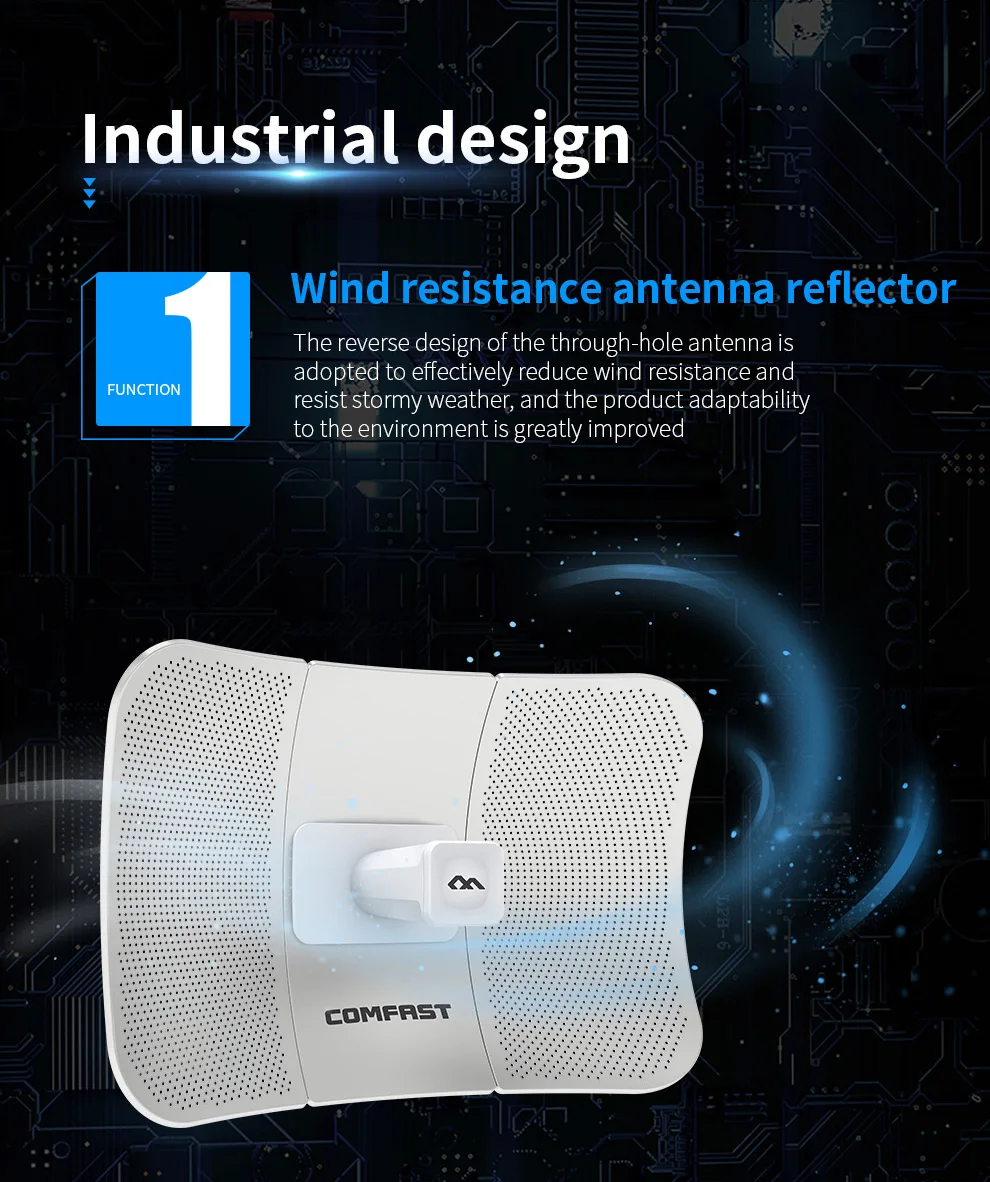

The reverse design of the through-hole antenna is adopted to effectively reduce wind resistance andresist stormy weather, and the product adaptability to the environment is greatly improvedFunction 2: Led indicator is easy to adjust

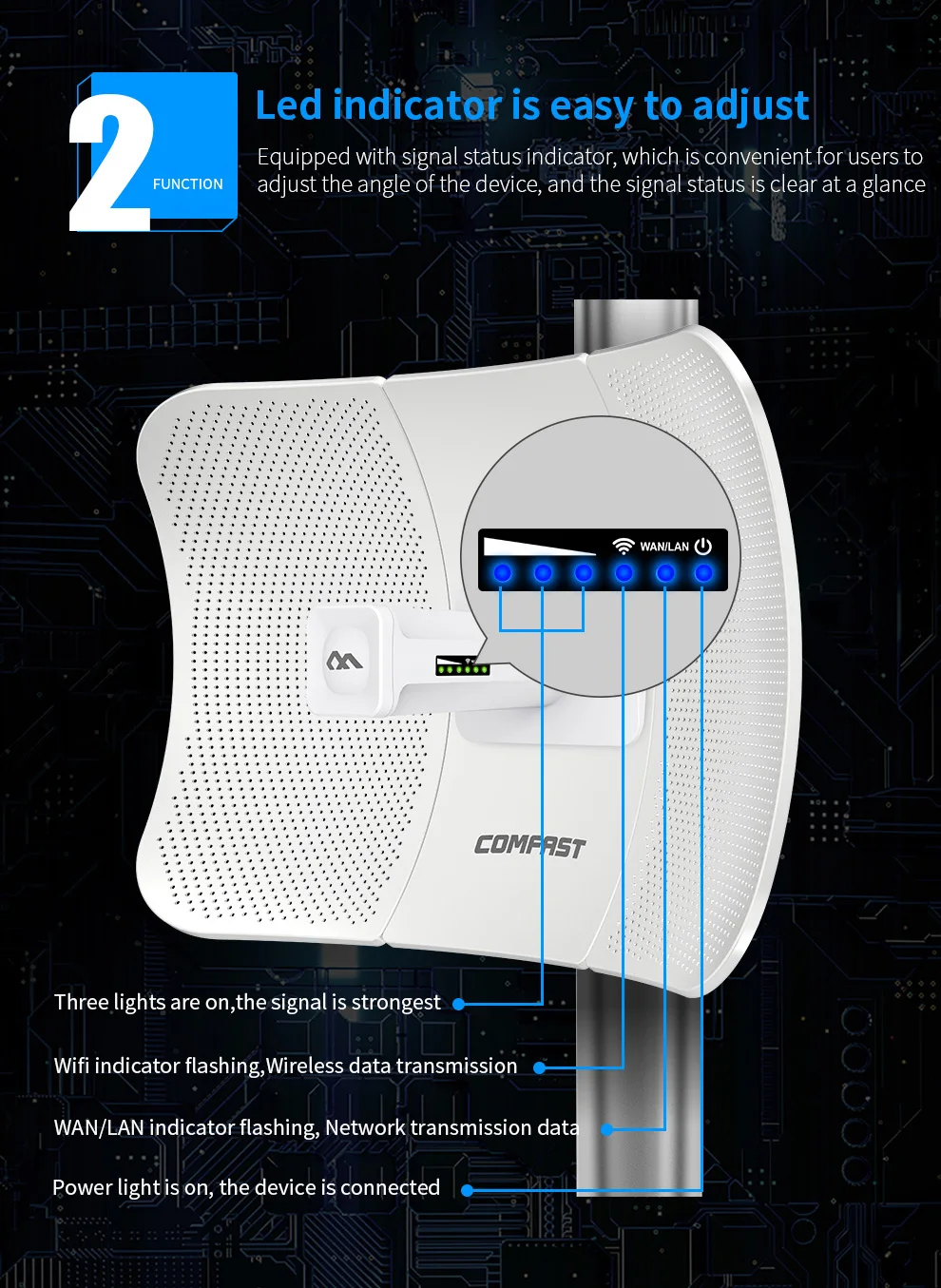

Equipped with signal status indicator, which is convenient for users to adjust the angle of the device, and the signal status is clear at a glanceThree lights are on, the signal is strongest--WiFi indicator flashing, Wireless data transmission--WAN/LAN indicator flashing, Network transmission data--Power light is on, the device is connectedFunction 3: The level design

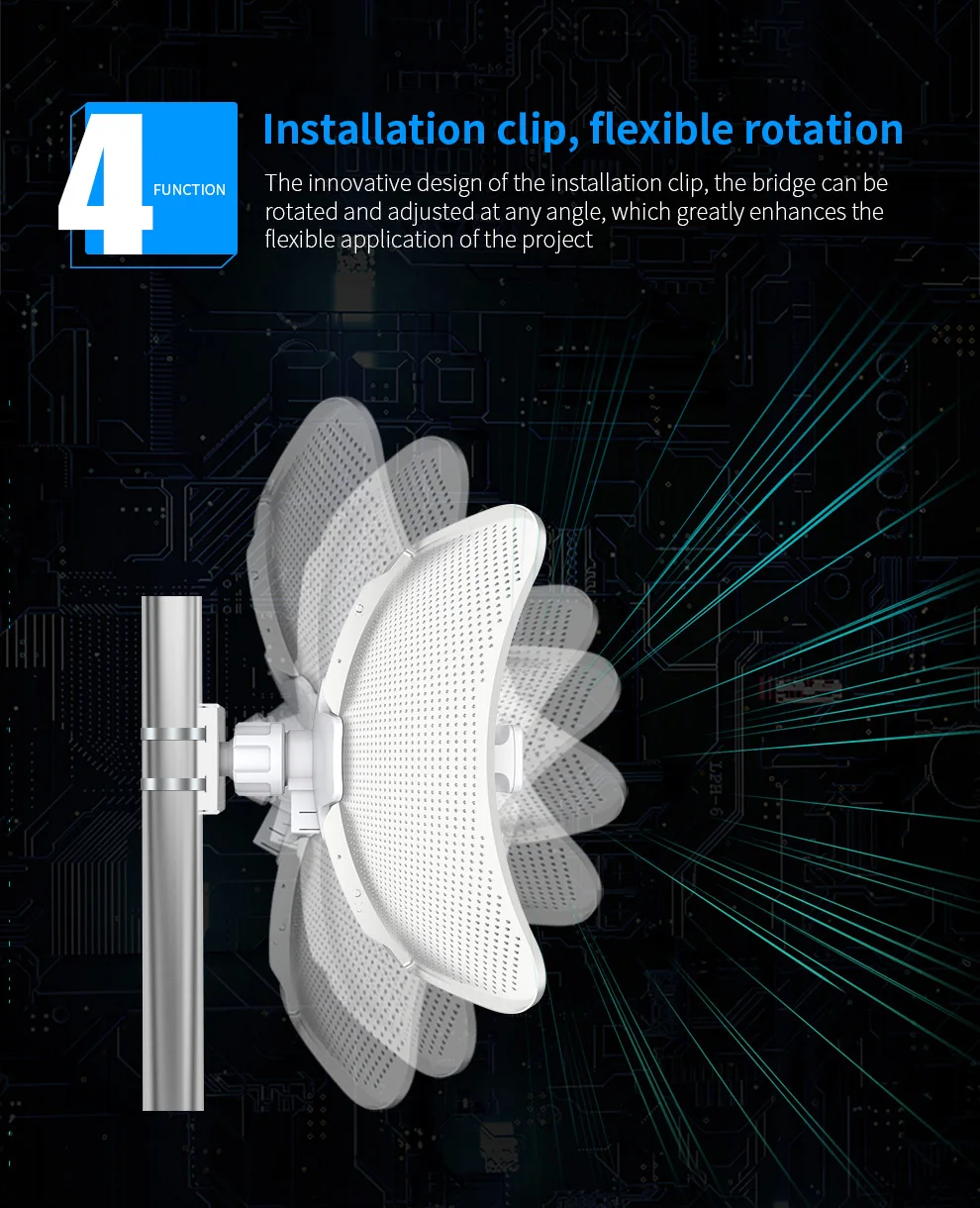

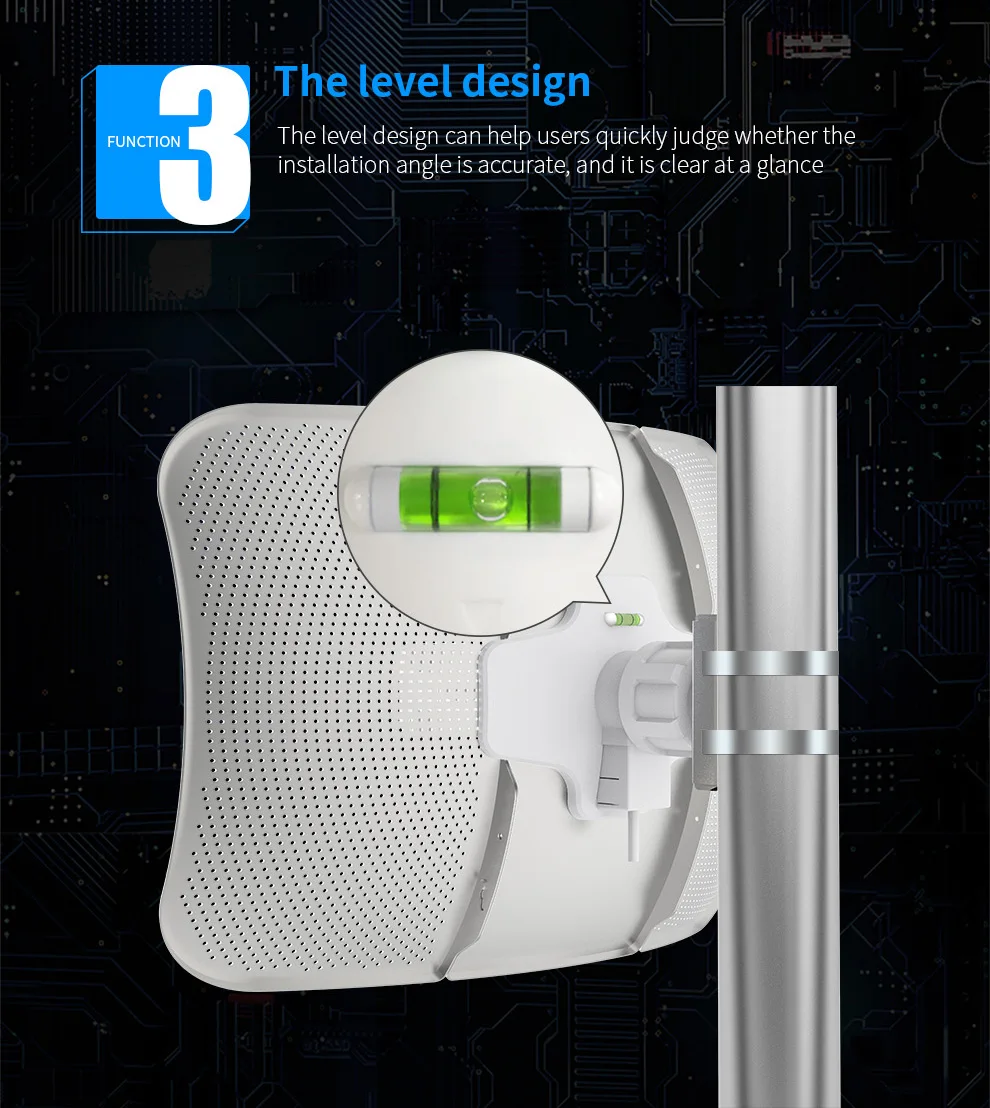

The level design can help users quickly judge whether theinstallation angle is accurate, and it is clear at a glanceFunction 4: Installation clip, flexible rotation

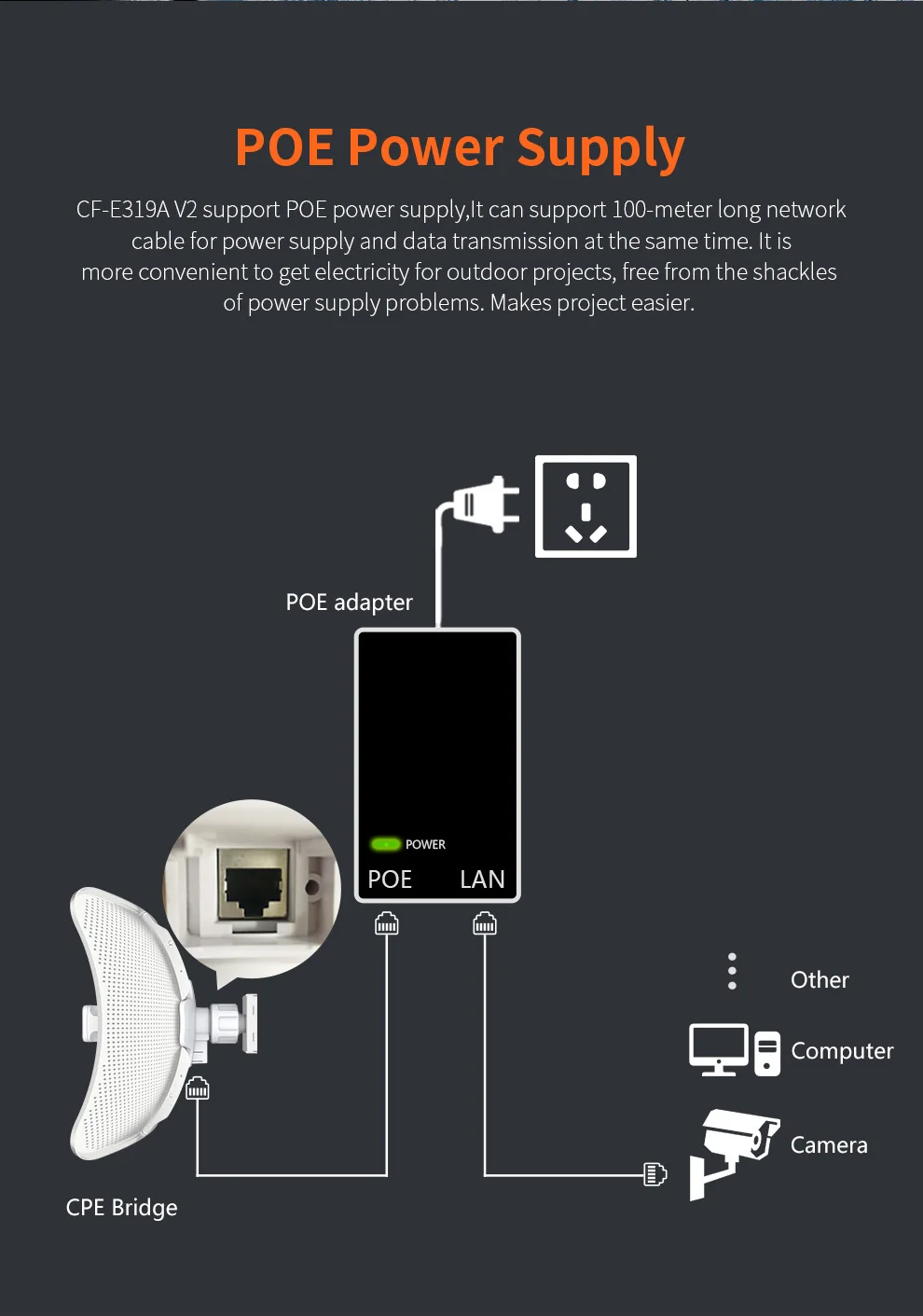

The innovative design of the installation clip, the bridge can berotated and adjusted at any angle, which greatly enhances theflexible application ofthe projectPOE Power Supply

CF-E319A support POE power supply,It can support 100-meter long network cable for power supply and data transmission at the same time. It ismore convenient to get electricity for outdoor projects, free from the shackles of power supply problems. Makes project easier.Hide SSID, Refuse to Backup The Network

The wireless bridge supports SSID broadcast hiding, which can easily solve the troubles of the backup network and ensure the stability of the projectMonitoring Applicable Scenarios

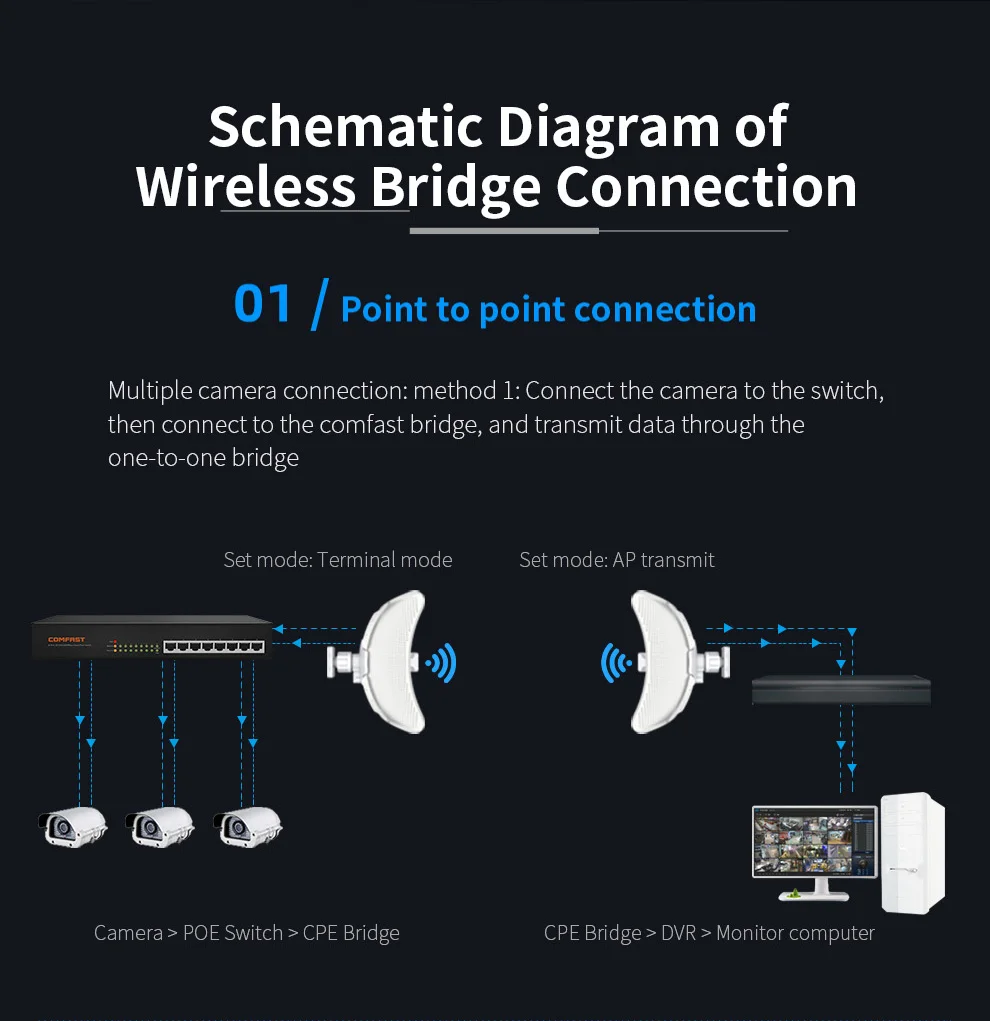

Cell network transmission/ Scenic network transmission/ Network transmission in remote areasSchematic Diagram of Wireless Bridge Connection

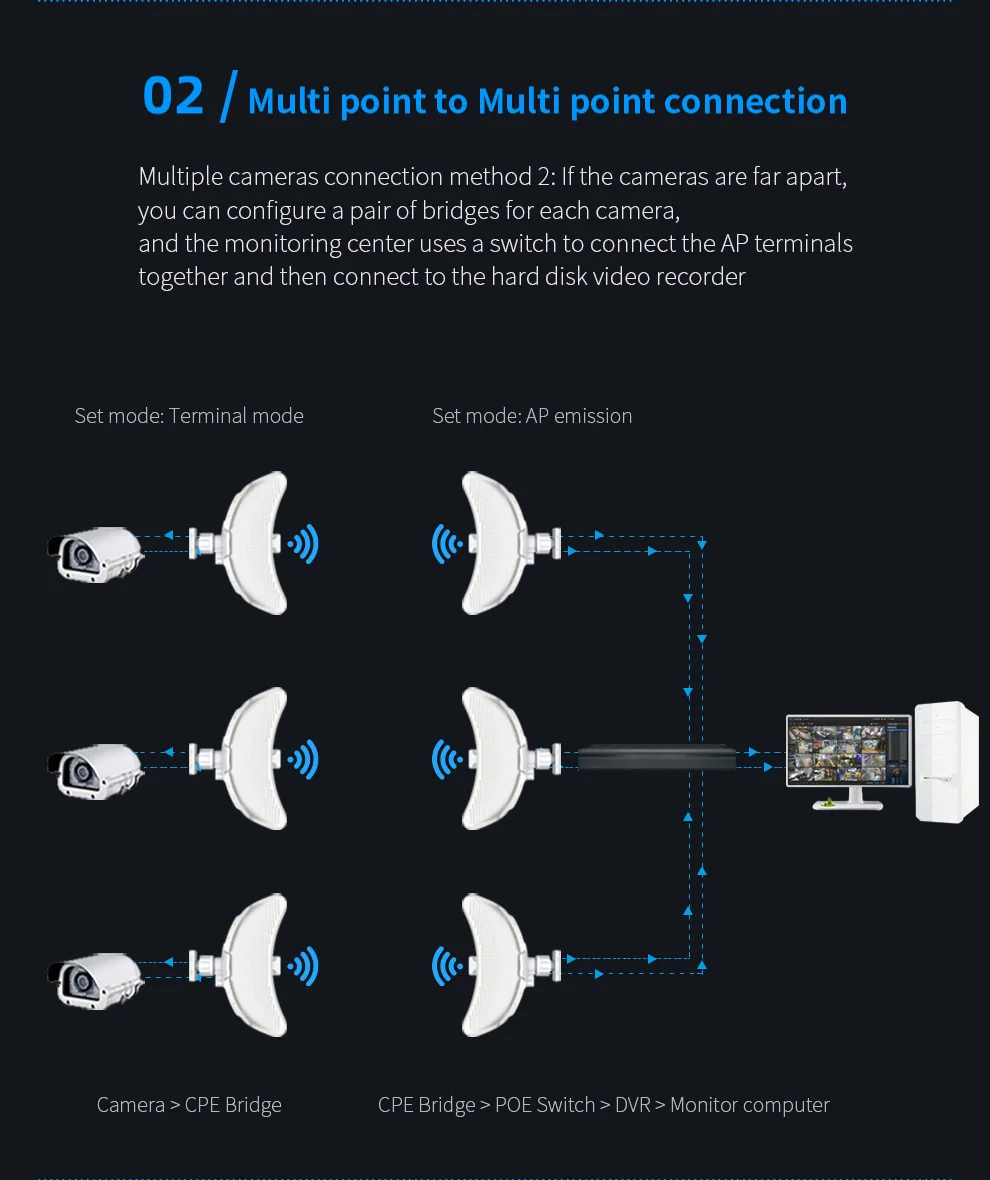

Multiple camera connection: Connect the camera to the switch,then connect to the comfast bridge, and transmit data through the one-to-one bridgeScene 2: Multi point to Multi point connection

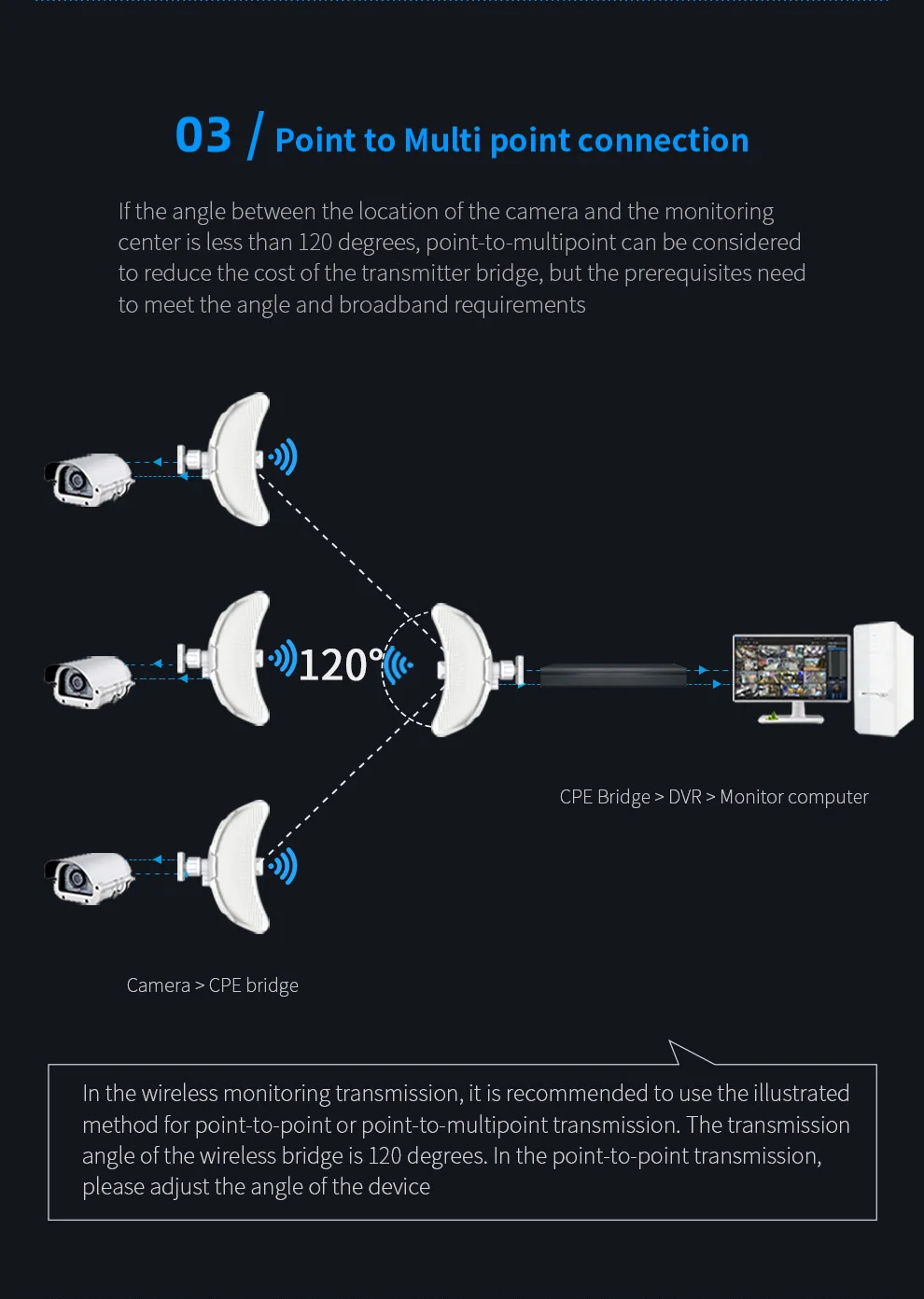

If the cameras are far apart, you can configure a pair of bridges for each camera, and the monitoring center uses a switch to connect the AP terminals together and then connect to the hard disk video recorderScene 3: Point to Multi point connection

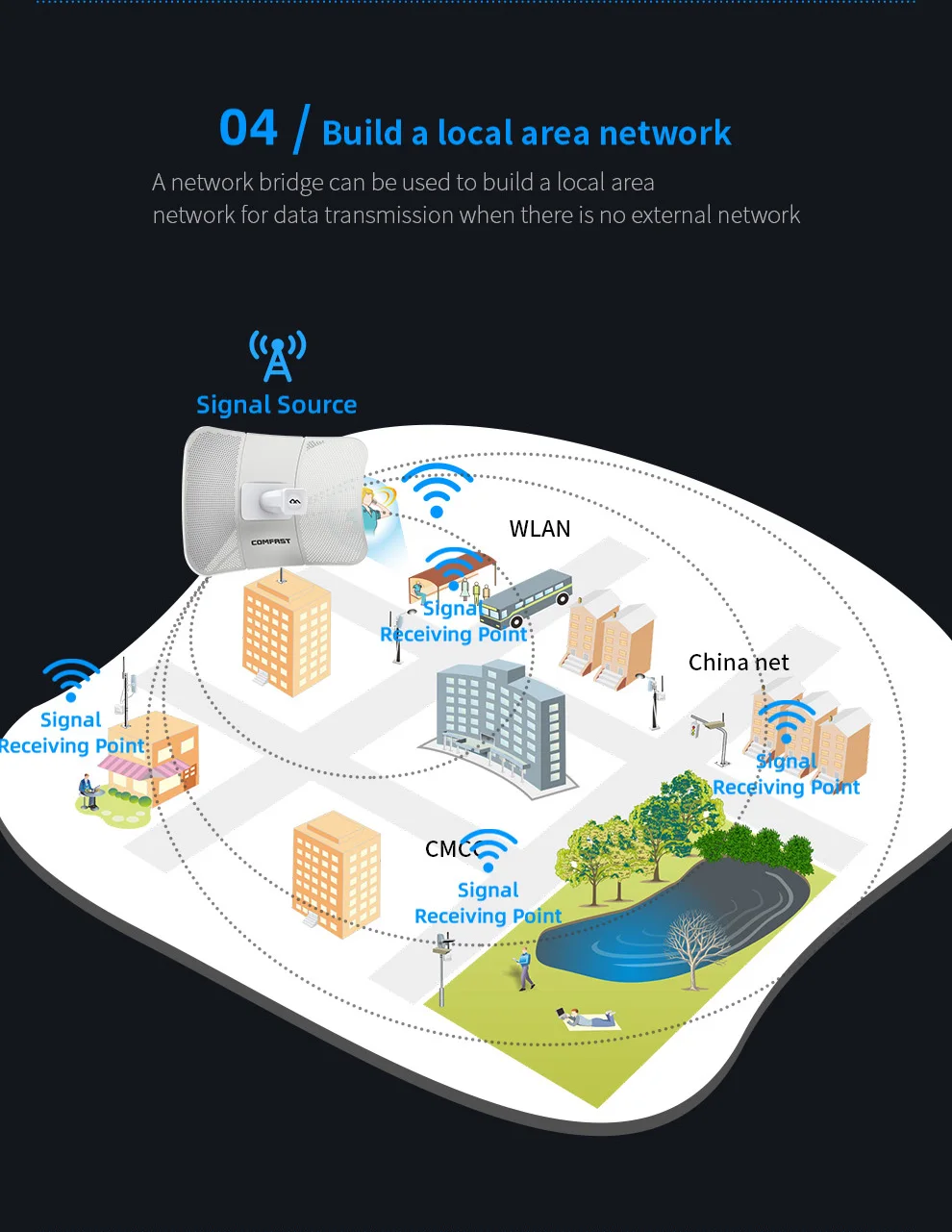

lf the angle between the location of the camera and the monitoring center is less than 120 degrees, point-to-multipoint can be consideredto reduce the cost of the transmitter bridge, but the prerequisites need to meet the angle and broadband requirementsScene 4: Build a local area network

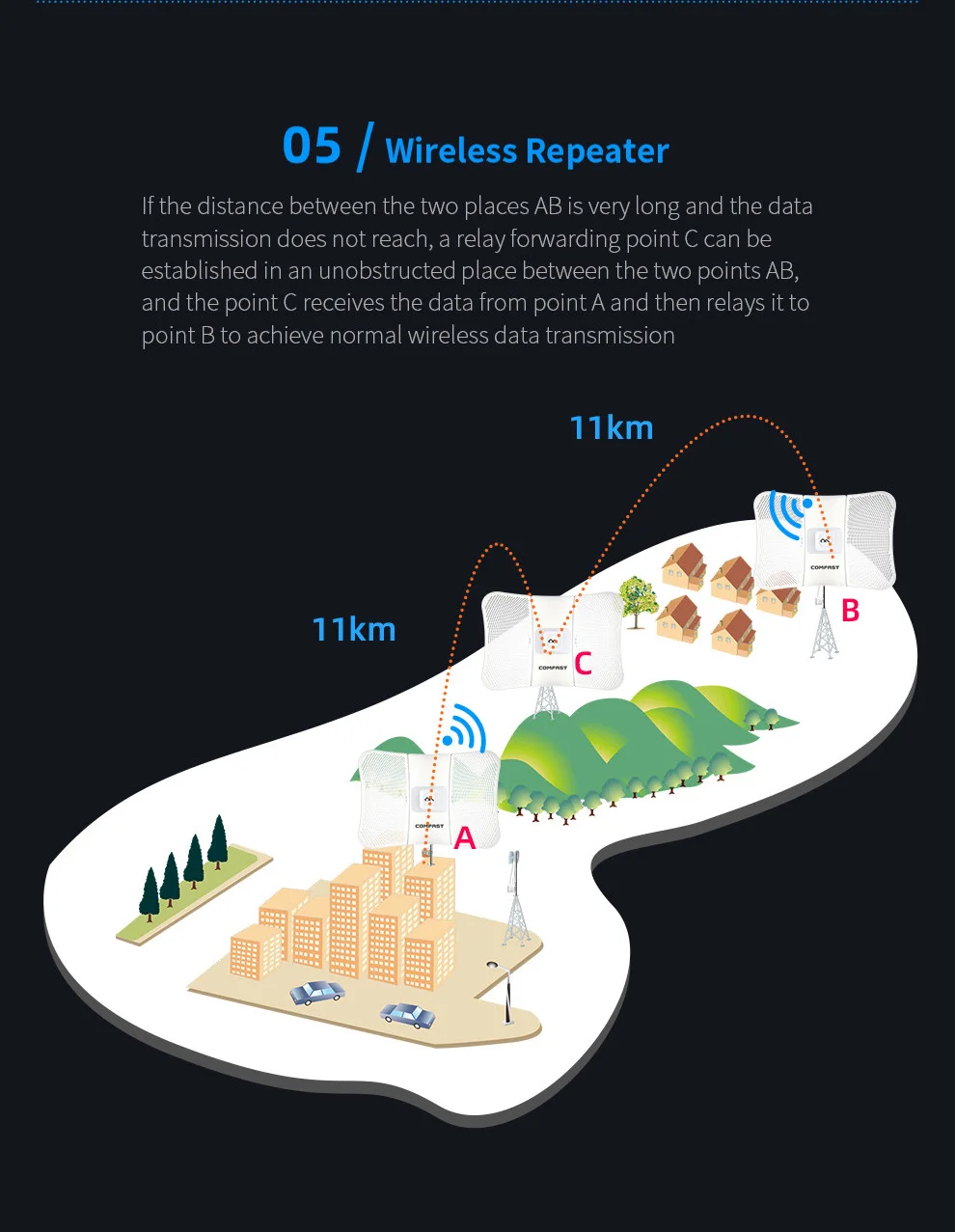

A network bridge can be used to build a local area network for data transmission when there is no external networkScene 5: Wireless Repeater (Note: point C requires 2pcs CPE)

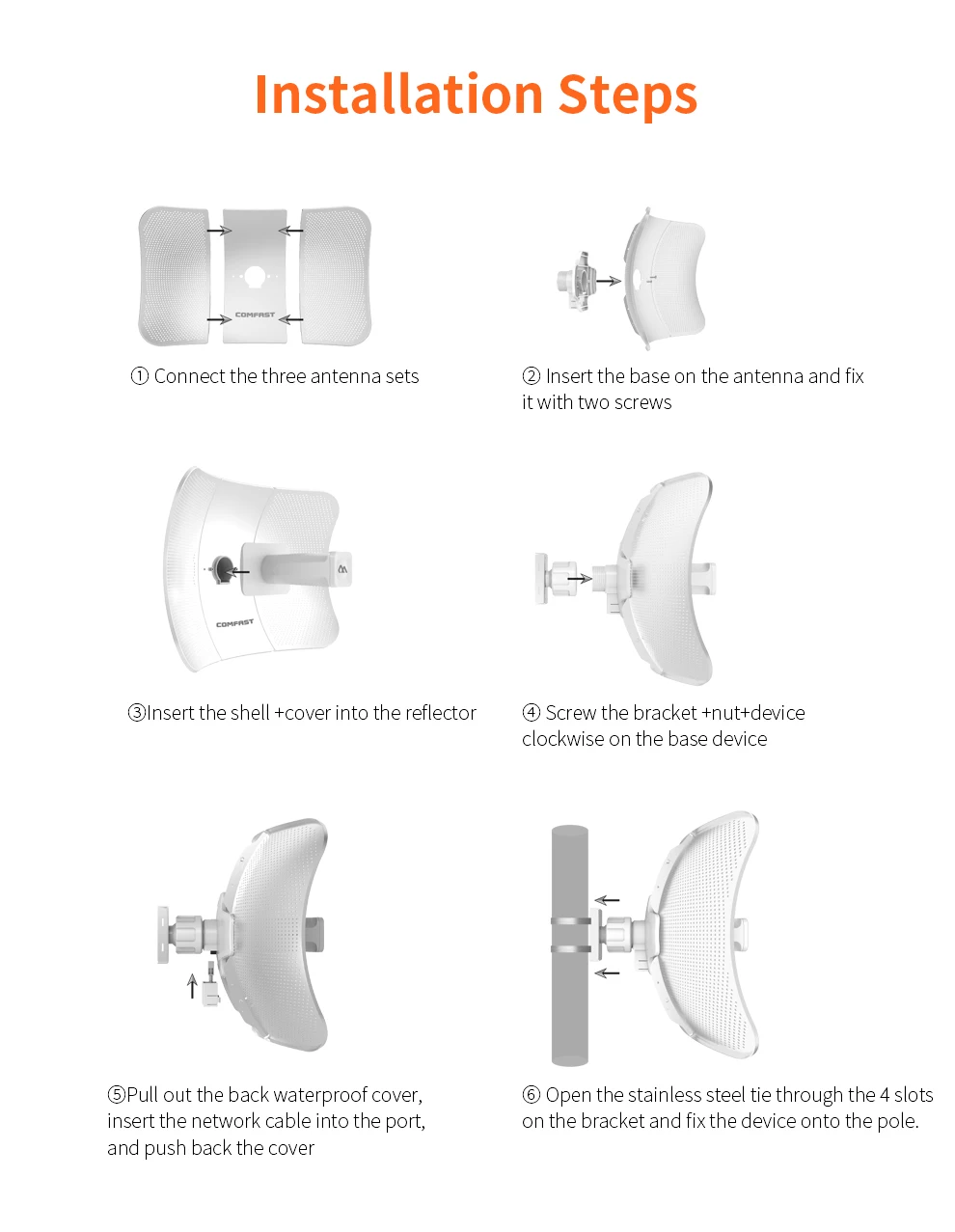

lf the distance between the two places AB is very long and the data transmission does not reach, a relay forwarding point C can beestablished in an unobstructed place between the two points AB, and the point C receives the data from point A and then relays it to point B to achieve normal wireless data transmissionlnstallation Steps

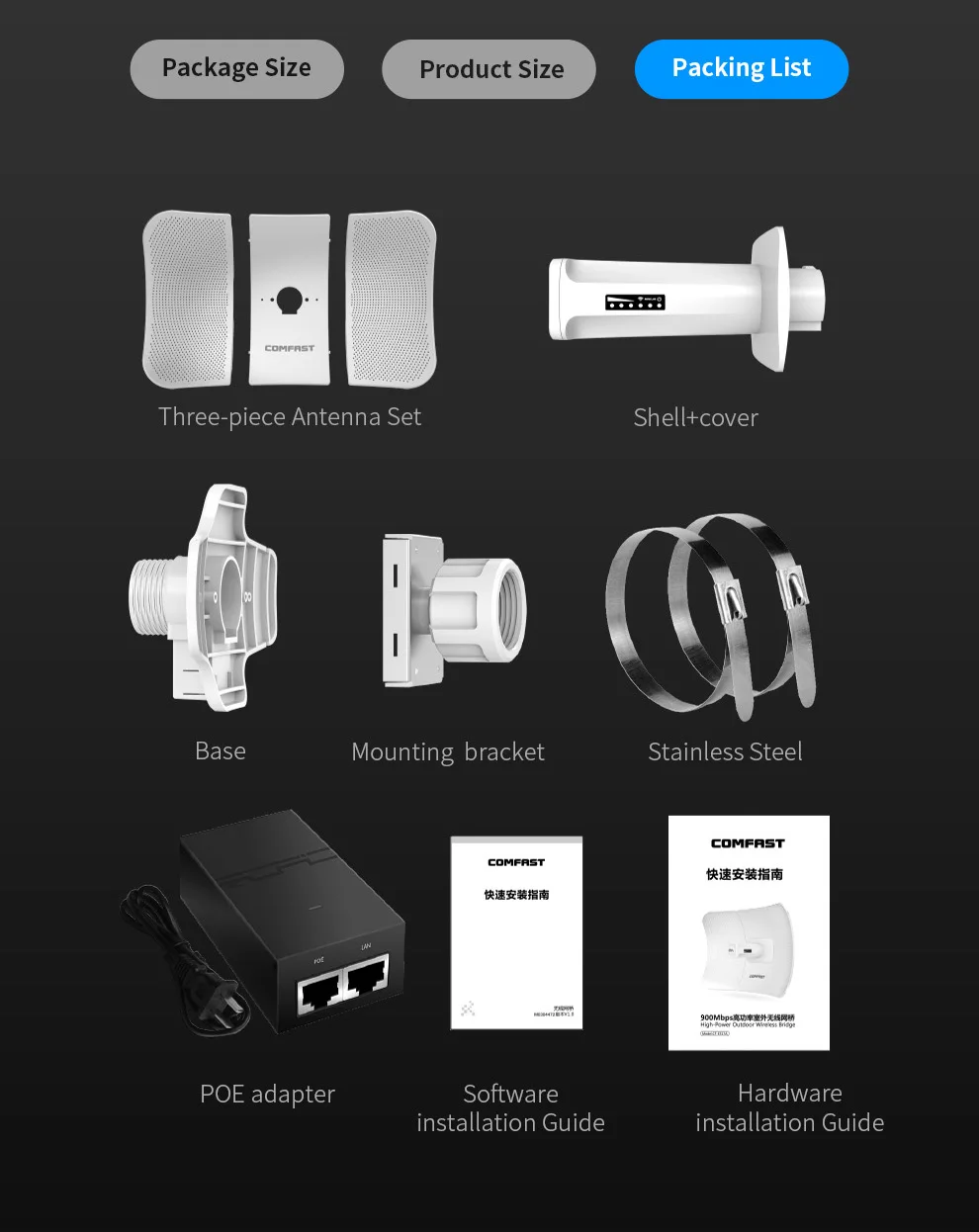

⑥Open the stainless steel tie through the 4 slots, on the bracket and fix the device onto the pole.Package Content

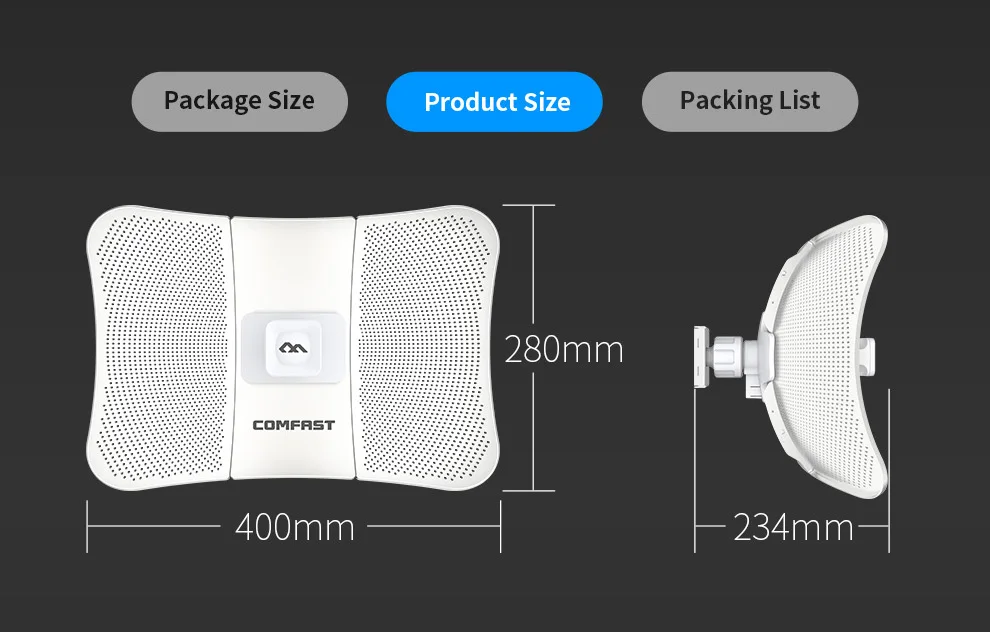

PS: Measured manually with slight deviation

Q1. How many pieces CPE are included in the package?

Q2. Does the antenna's coverage can reach 11KM? Can 1 device reach 5KM?

A: No, this is directional antenna, 11KM means directional transmission distance, and it can only achieve when 2pcs CPE set point to point as wireless bridge mode, and there is no obstacles in the middle. 1 device can not refer to this distance! The distance of one antenna may be only one or two hundred meters, depending on the actual environment.

Q3. Why can't the transmission distance reach 11KM?

Q4. Can it be used with a 48V POE switch?

A: No, this CPE requires a 24V POE power supply, and using it with a 48V switch will burn out the device

Q5: Does it support 2.4G?

A: No, only 5.8G is supported, if you need 2.4G CPE, please contact customer service to recommend it for you.
