Comfast 1300Mbps punto de acceso al aire libre 2,4G y 5,8 GHz Gigabit AP repetidor de largo alcance alta potencia 3*5dBi antena WiFi enrutador de calle

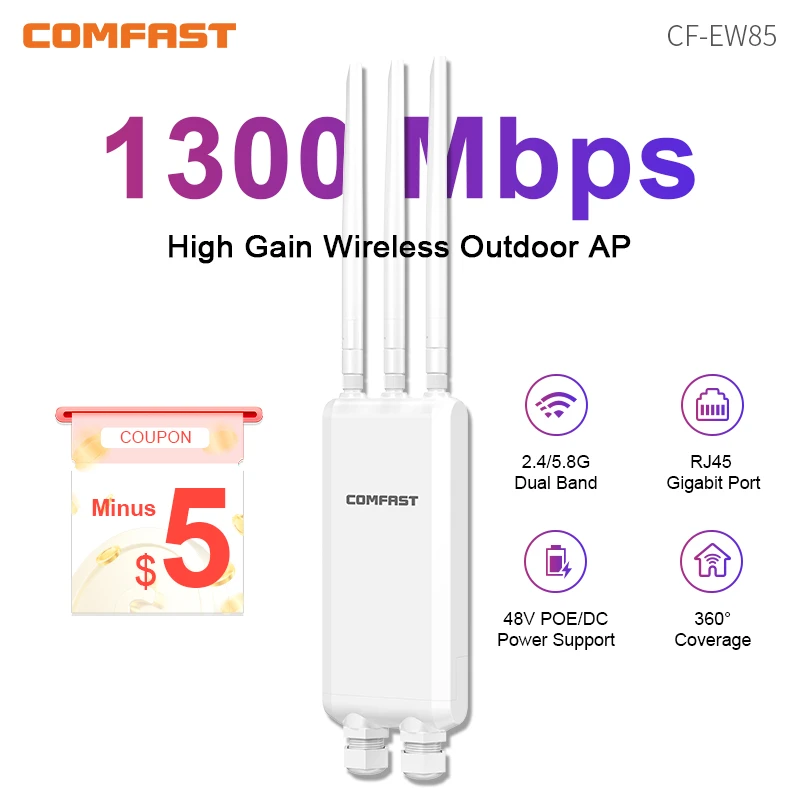

Comfast 1300Mbps Outdoor Access Point 2.4G&5.8GHz Gigabit AP Long Range Repeater High Power 3*5dBi WiFi Antenna Street Router

Description

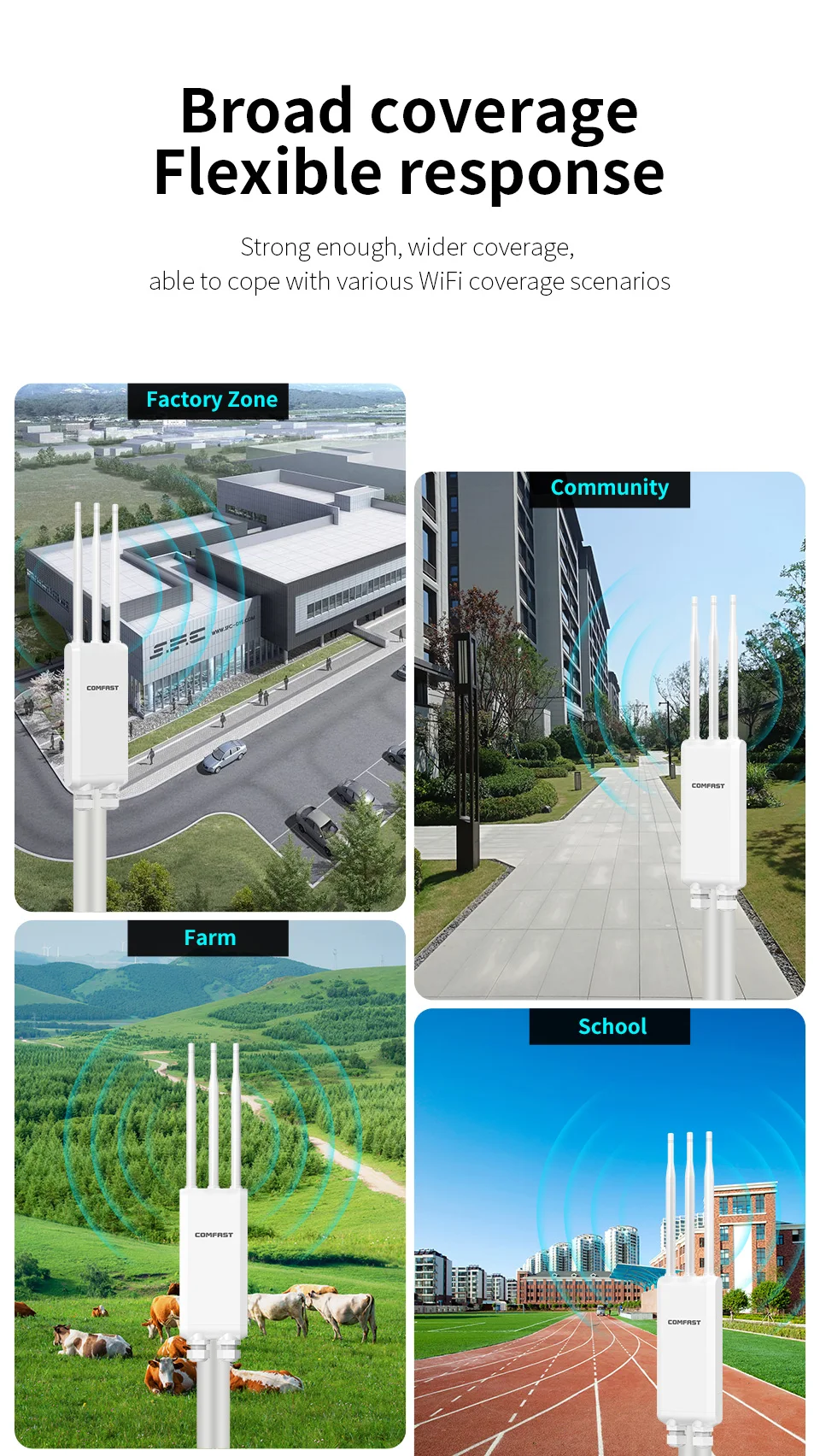

CF-EW85 is a high-power outdoor AP with dual-band 1300Mbps wireless transmission rate. It has IP66 professional outdoor design and an external waterproof antenna. Three high-gain omnidirectional antennas ensure 360° full coverage of the signal. Its high standards ensure that the equipment can be used in large outdoor places such as squares, resorts, and scenic spots.

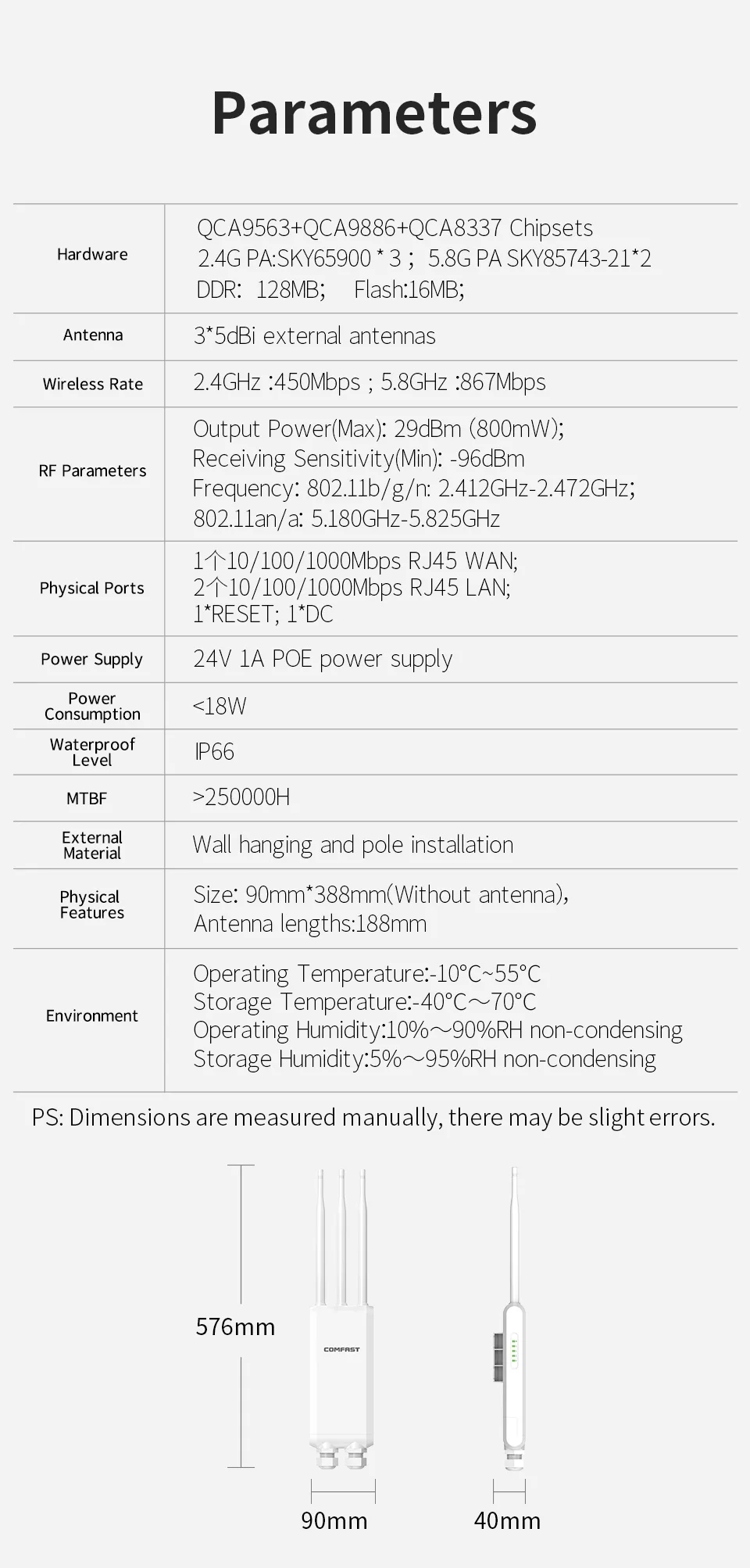

Specifications

1. Qualcomm three-chip solution with stable performance. (DDR: 128MB; Flash: 16MB)

2. Supports 2.4GHz&5.8GHz dual band signals for more stable and efficient anti-interference

3. 1300Mbps Wireless transmission rate, better Internet experience(2.4G: 400Mbps + 5.8G: 867Mbps)

4. Support IEEE802.11a/b/g/n/ac Wireless Standard

5. 3*5dBi dual-band Omnidirectional antennas, excellent receiving and sending performance

6. Equipped with 5 independent signal amplifiers, improve the transmit & receive ability

7. The coverage radius is about 100-200 meters(without obstacles)

8. IP66 Protection Level, Waterproof rubber plug and special waterproof interface.

9. AP/Repeater/ Router/ Dual AP working modes.

10. Support 160+ users(MAX)

11. 1* 1000M WAN Port+2* 1000m LAN Ports, Full Gigabit network ports

12. Support both POE/DC Power Supply for flexible deployment

Packing List

1* EW85 AP

1* 24V 1A POE Adapter

1* 1.5M Network Cable

2* O type fixing loop

1* User manual

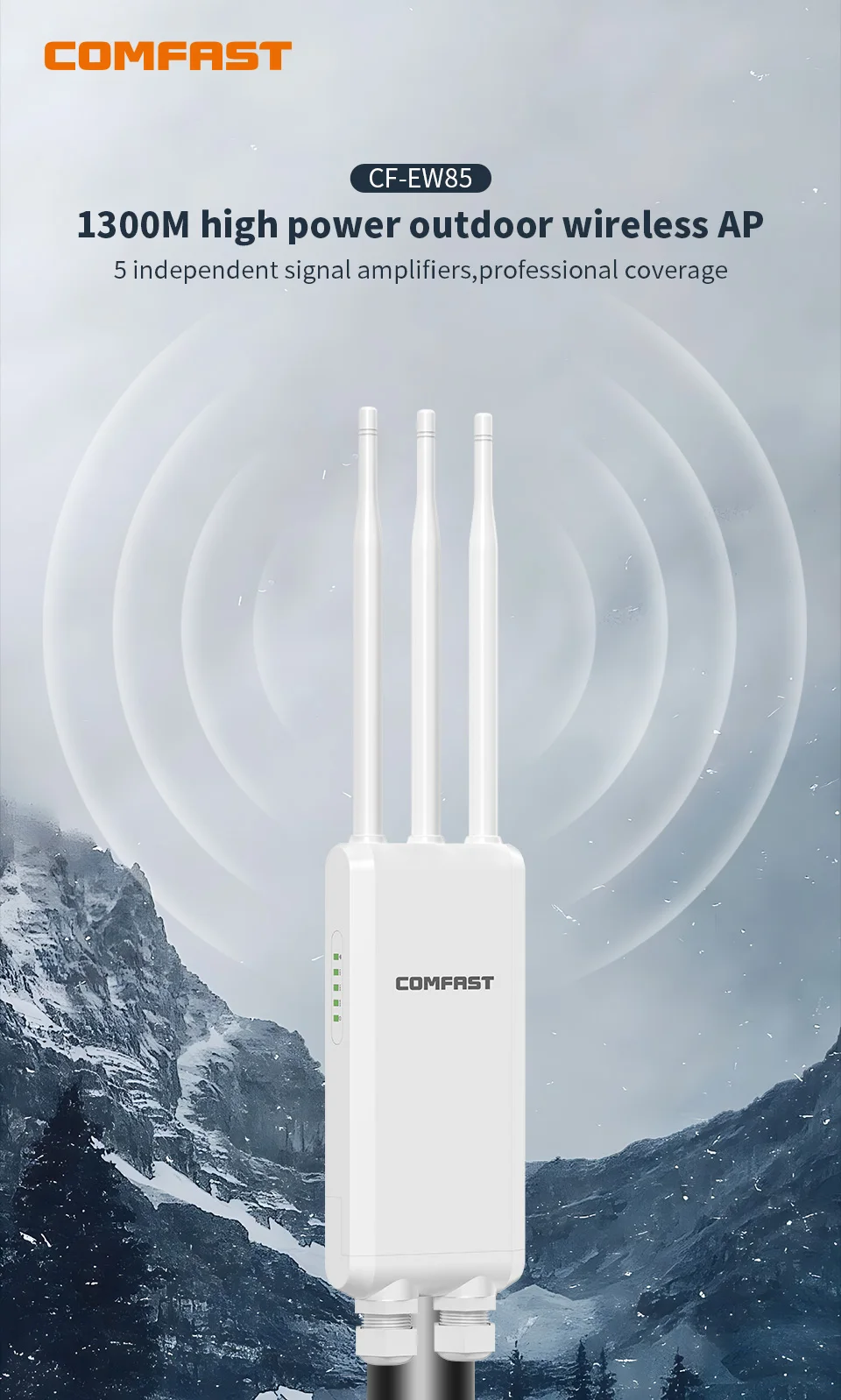

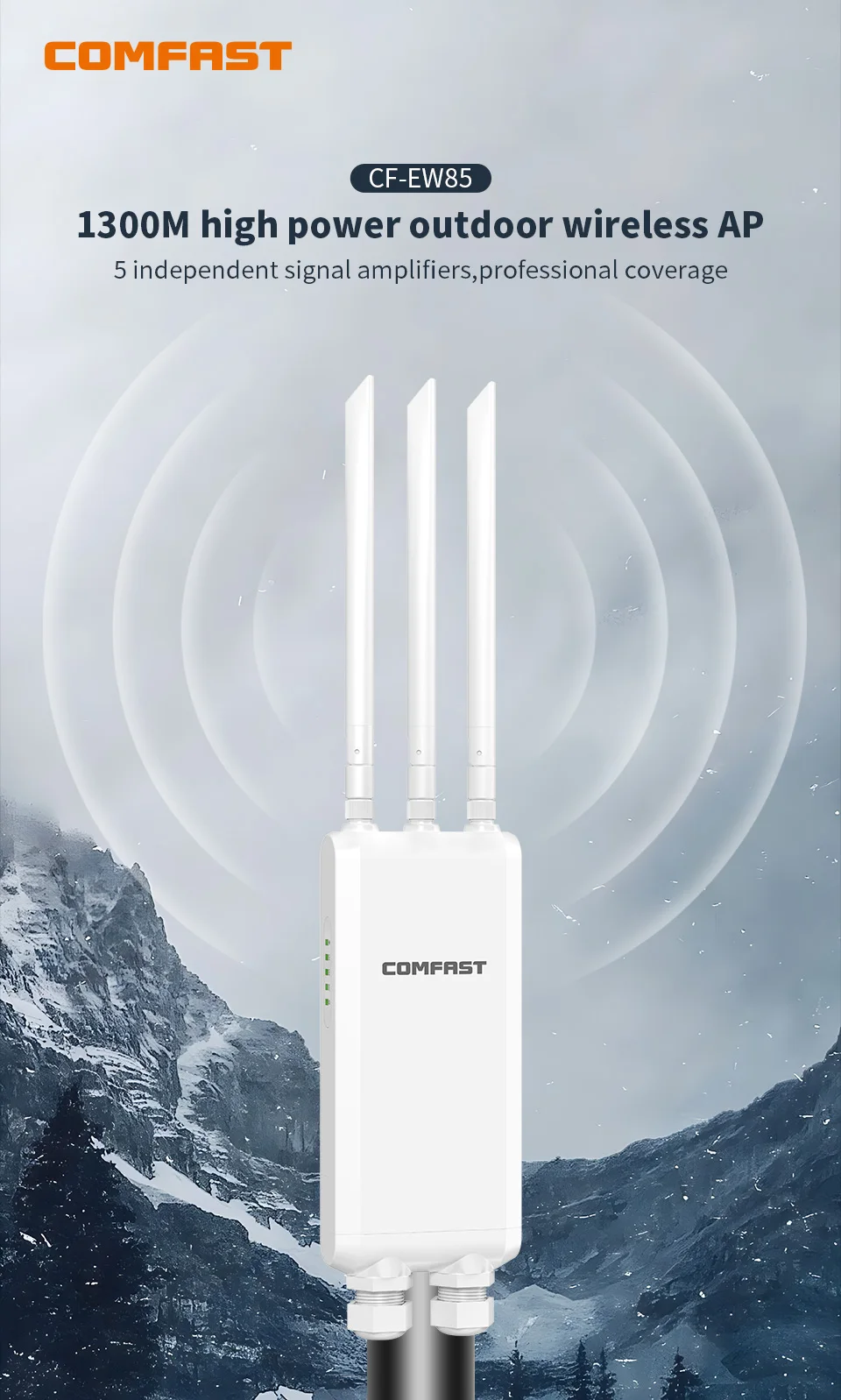

1300M high power outdoor wireless AP

5 independent signal amplifiers,professional coverage

Solve the following problems on outdoor projects

Small coverage area

Unstable internet speed

Too few concurrents

Installation trouble

Often disconnected

Rusty when exposed to waterReject hidden dangers, Ensure worry-free projects

Select COMFAST high-power outdoor AP, to cope with various complex scenarios

Three-cores CPU, Surging power

1300Mbps High speed

Built-in PA, Higher power

360 coverage, High gain three antennas

Full Gigabit network port, 1 WAN port+2 LAN ports

POE/DC power supply, Convenient project

Centralized management, Plug and play

More concurrents, 160+ concurrentsGigabit dual-band，High-speed transmission

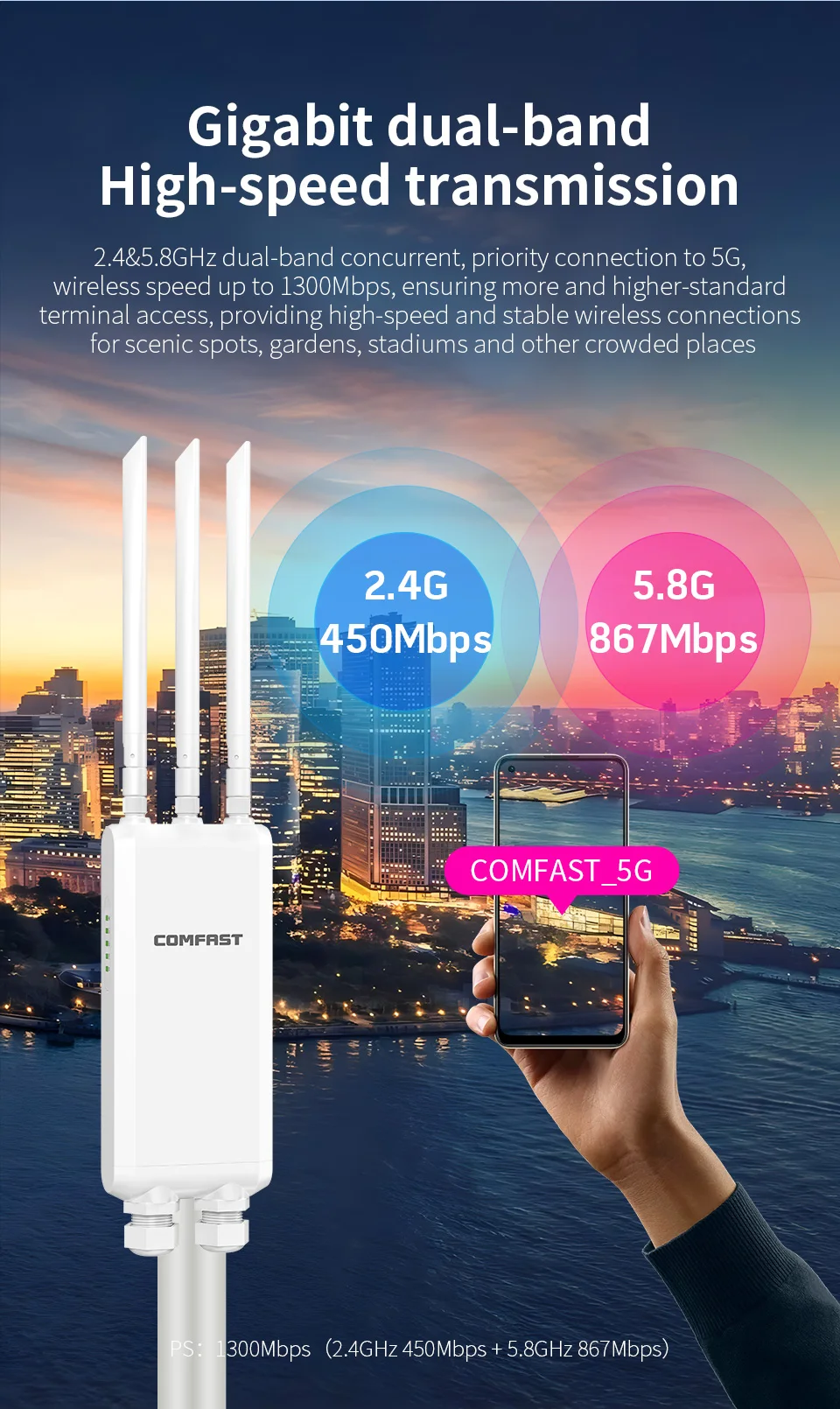

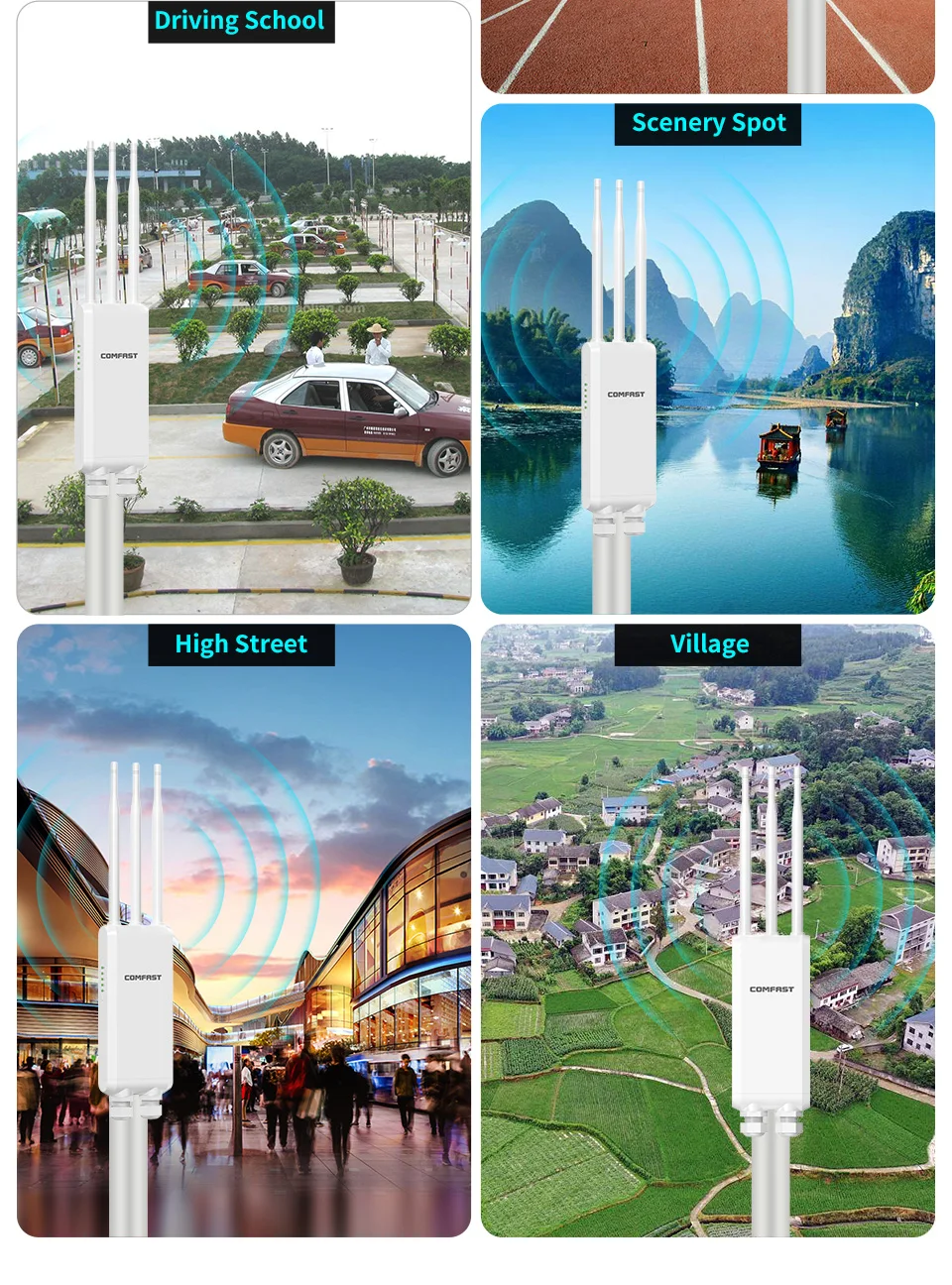

2.4&5.8GHz dual-band concurrent, priority connection to 5G, wireless speed up to 1300Mbps, ensuring more and higher-standard terminal access, providing high-speed and stable wireless connections for scenic spots, gardens, stadiums and other crowded places

PS: 1300Mbps (2.4GHz 450Mbps + 5.8GHz 867Mbps)Qualcomm three-coresPerformance guaranteed

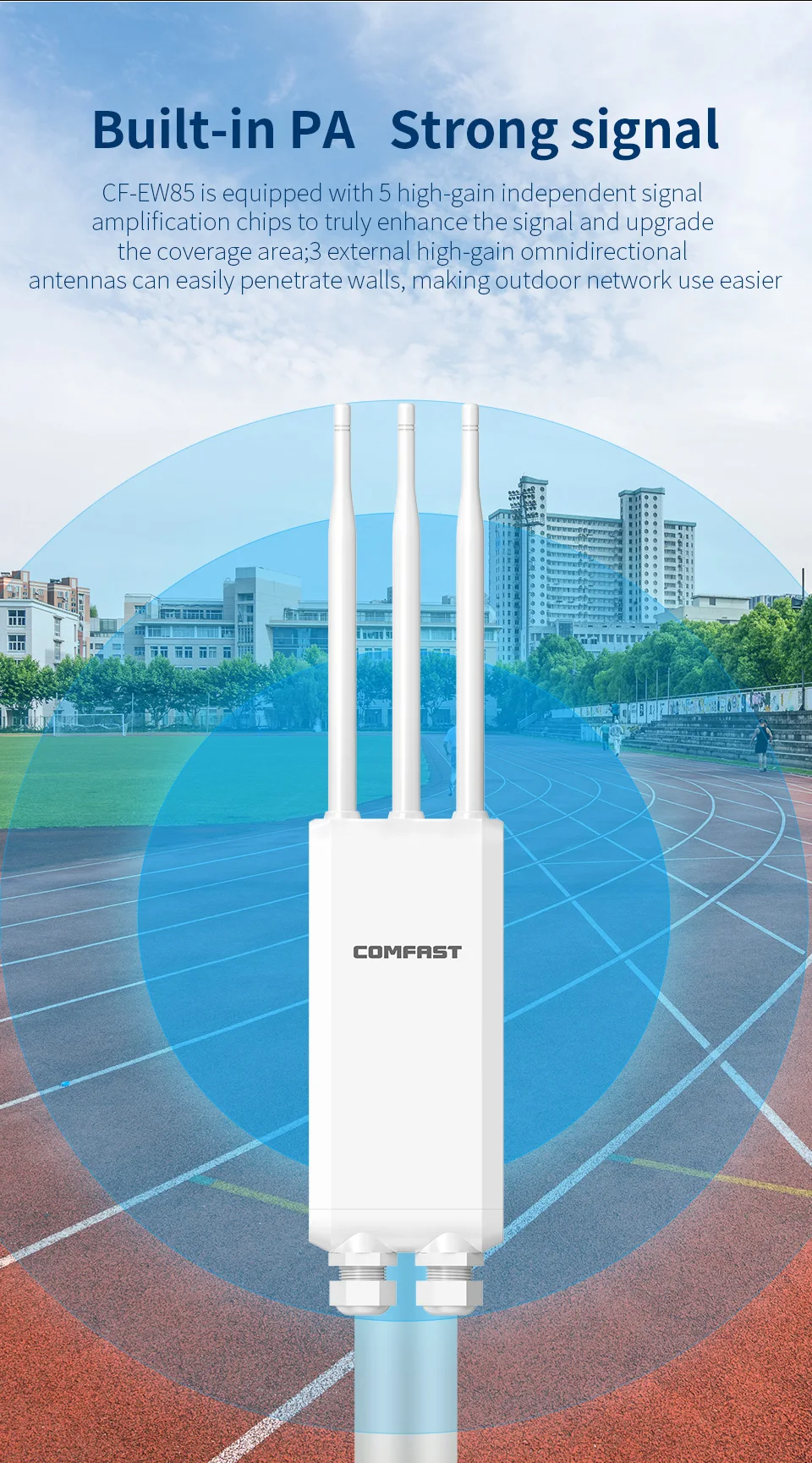

Adopting Qualcomm chip solution, powerful three-core CPU, stable signal, long-term engineering test, worthy of users' trustBuilt-in PA Strong signal

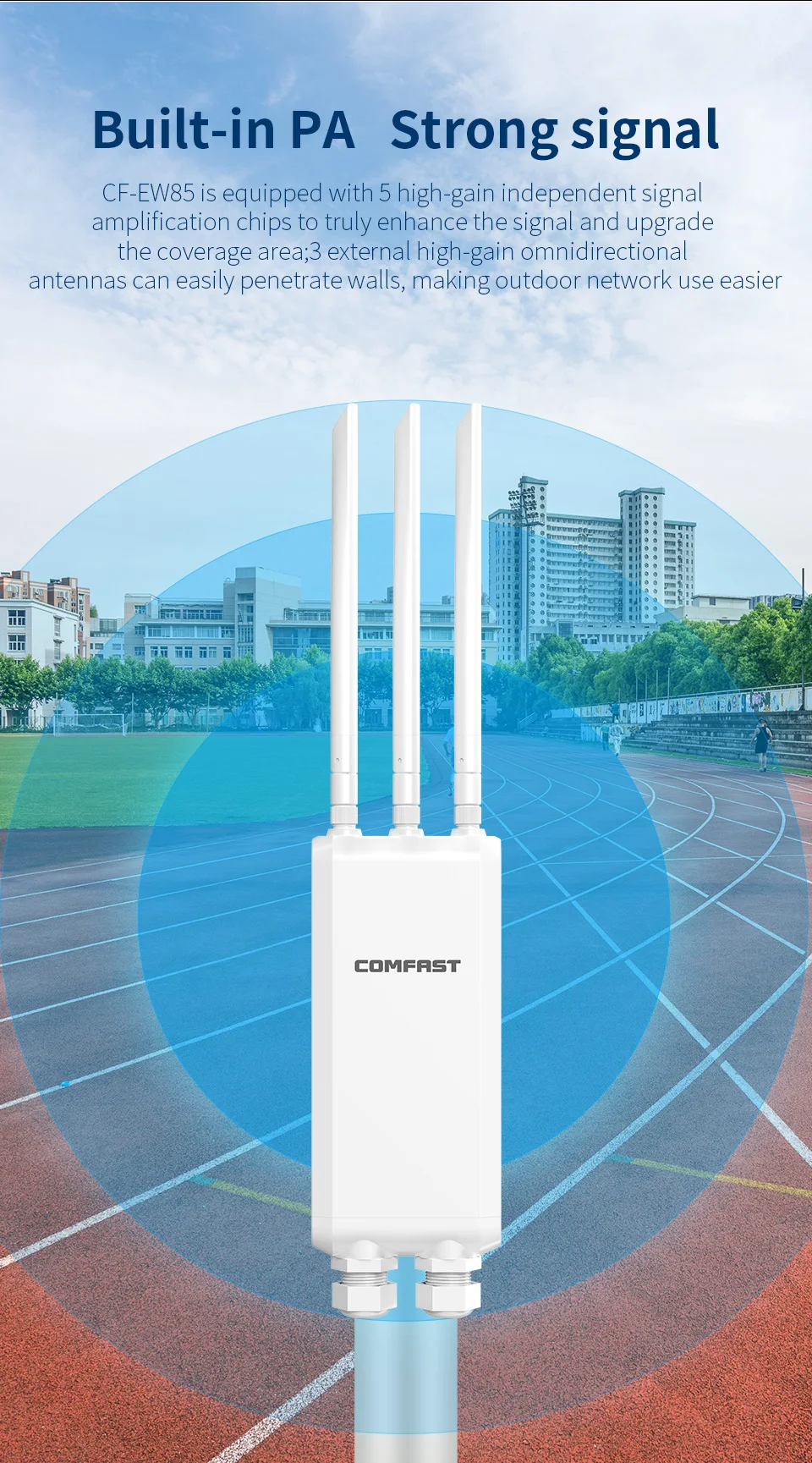

CF-EW85 is equipped with 5 high-gain independent signal amplification chips to truly enhance the signal and upgrade the coverage area, 3 external high-gain omnidirectional antennas can easily penetrate walls, making outdoor network use easierGigabit port One step faster

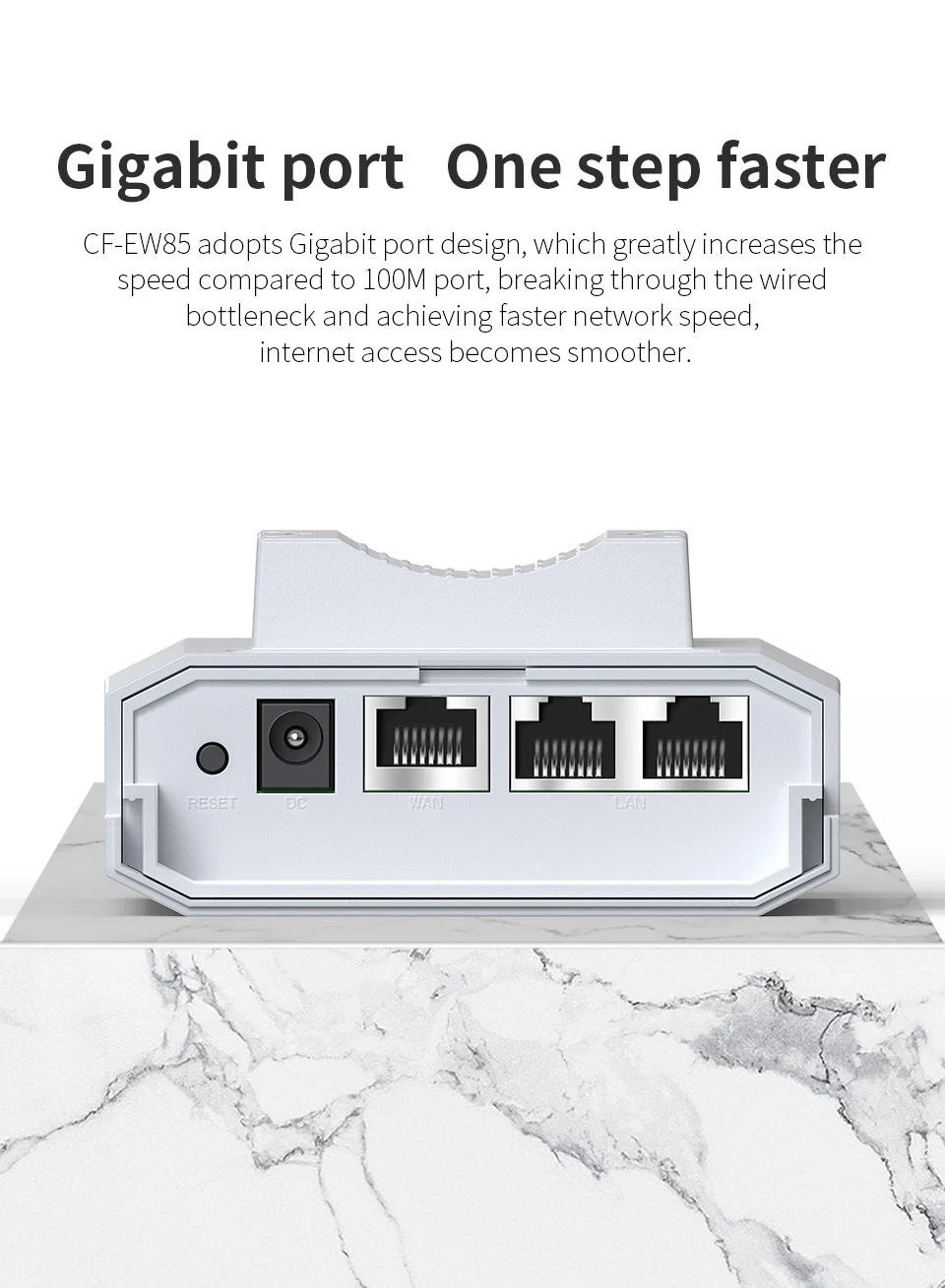

CF-EW85 adopts Gigabit port design, which greatly increases thespeed compared to 100M port, breaking through the wired bottleneck and achieving faster network speed, internet access becomes smoother.High-density access, Smooth network speed

A single AP can access160+ terminal devicesDual power supply modes , Flexible layout

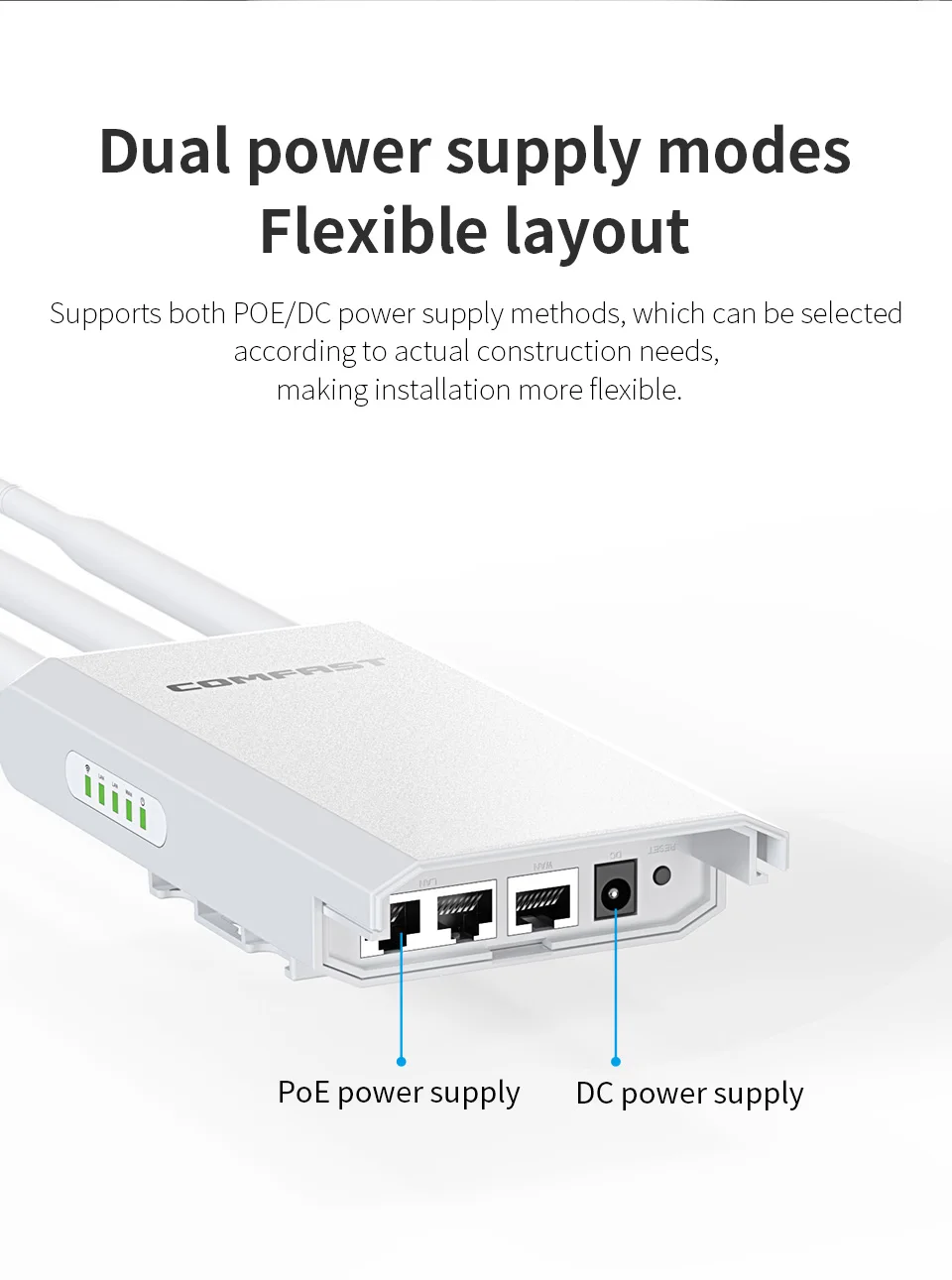

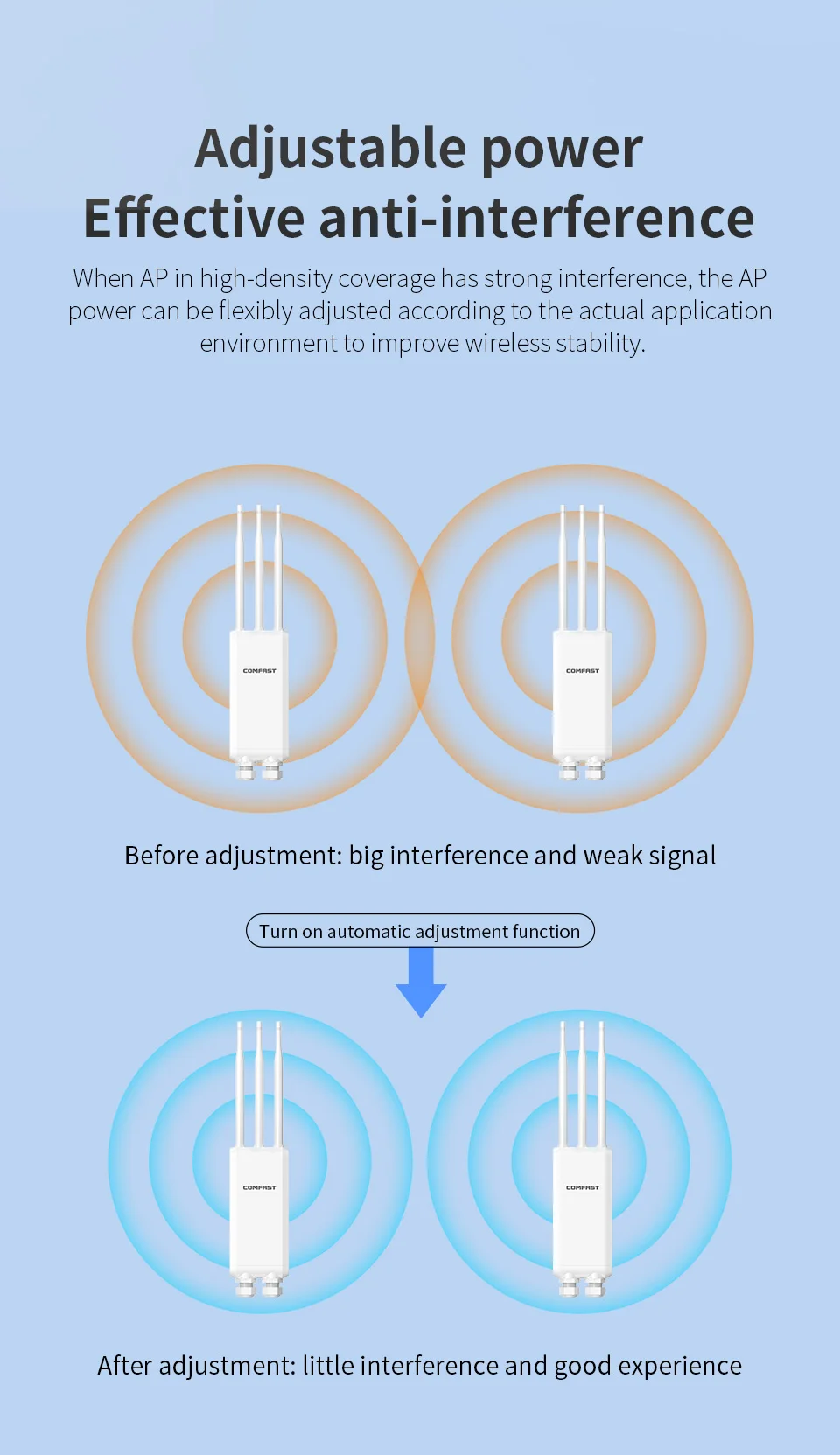

Supports both POE/DC power supply methods, which can be selected according to actual construction needs, making installation more flexible.Adjustable power , Effective anti-interference

When AP in high-density coverage has strong interference, the APpower can be flexibly adjusted according to the actual application environment to improve wireless stability.

Before adjustment: big interference and weak signal

( Turn on automatic adjustment function )

After adjustment: little interference and good experience

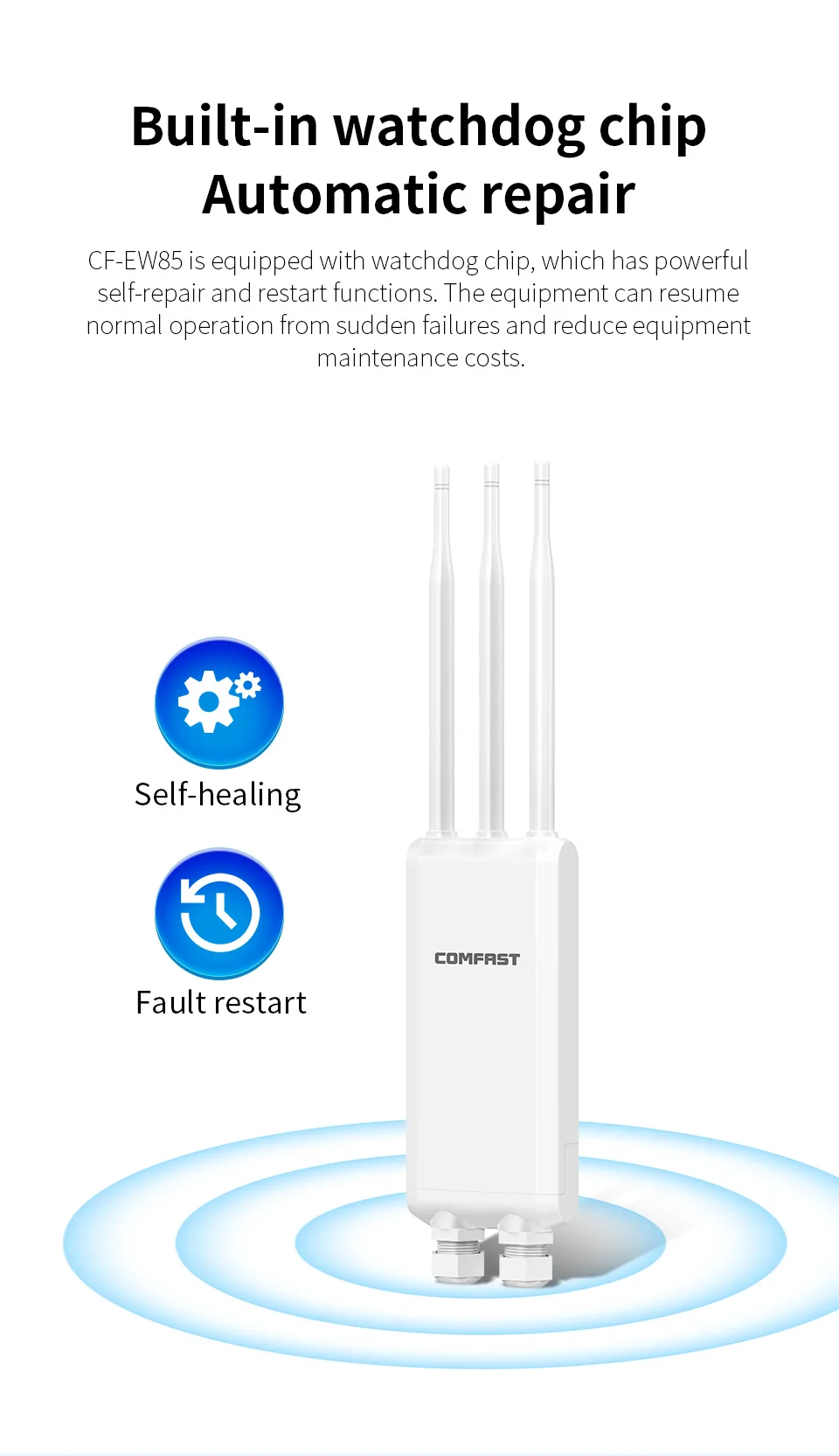

CF-EW85 is equipped with watchdog chip, which has powerful
self-repair and restart functions. The equipment can resume
normal operation from sudden failures and reduce equipment

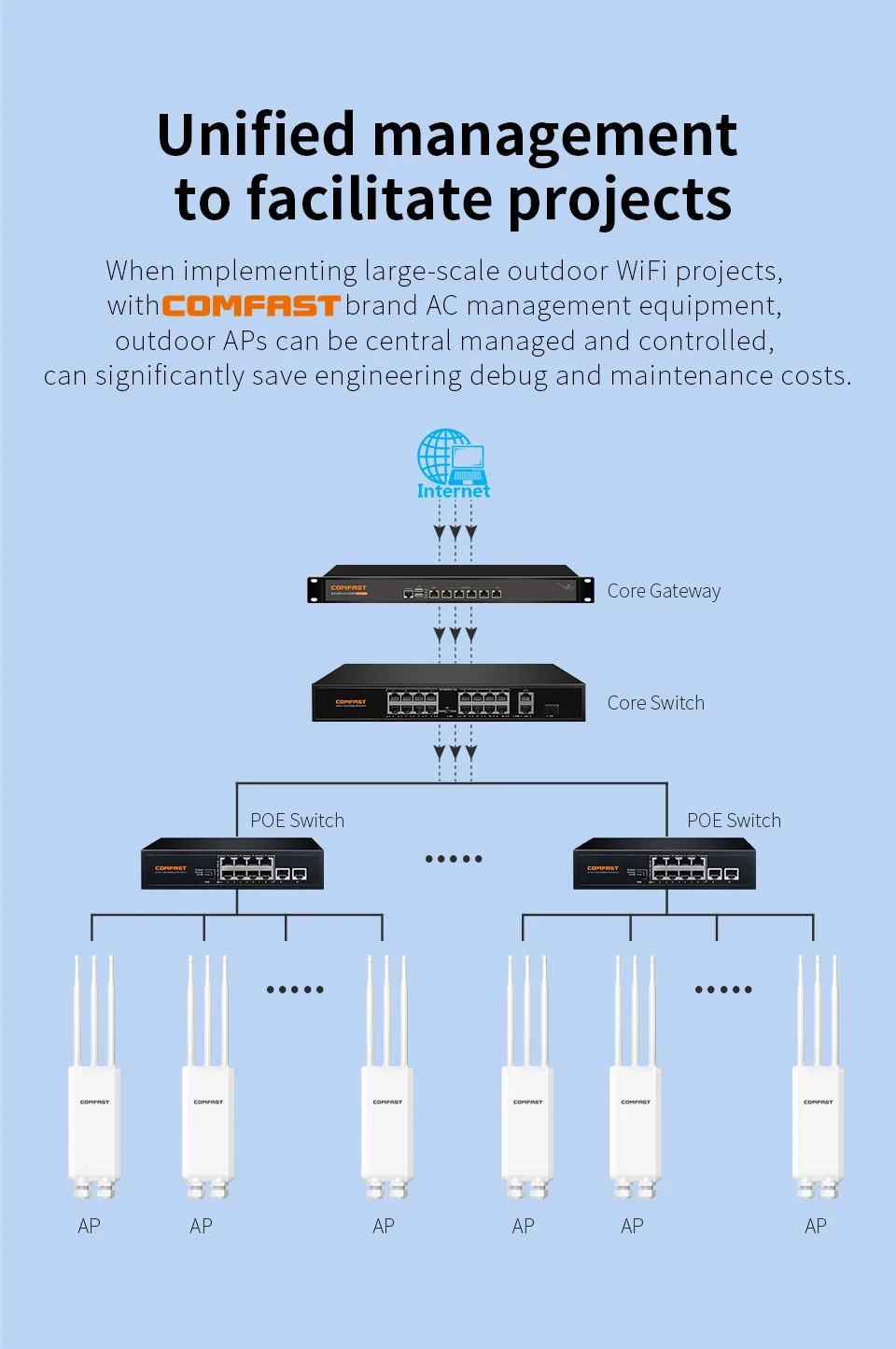

maintenance costs.Unified management to facilitate projects

Q1. What is the coverage of the access point?

A: The cover radius of AP is 100-150 meters in open area (360° Omnidirectiona)

Q2. How many users are supported?

A: Support up to 160 users

Q3. Does it support SIM card?

A: No, this AP it not a 4G router, it does not support LTE function, it can not inser SIM card.

Q4. Can it be used as a repeater?

A: Yes, this device has multiple working modes, Repeater/ Router/ AP, it can be used as a repeater too.

Q5. Can it be used indoors?

A: Supports both indoor and outdoor use.

Q6. Can it be powered by a power bank?

A: Support 24V POE Power Supply and DC Power Supply.

Q7. How many SSID are supported?

A: Supports 16 SSID.

Q8. How long is the warranty period?

A: We provide a one-year warranty (except for manual damage).

Q9. Can the antenna be replaced with a more powerful one?

A: Supported, as long as the antenna interface is consistent with our AP
