product introduction

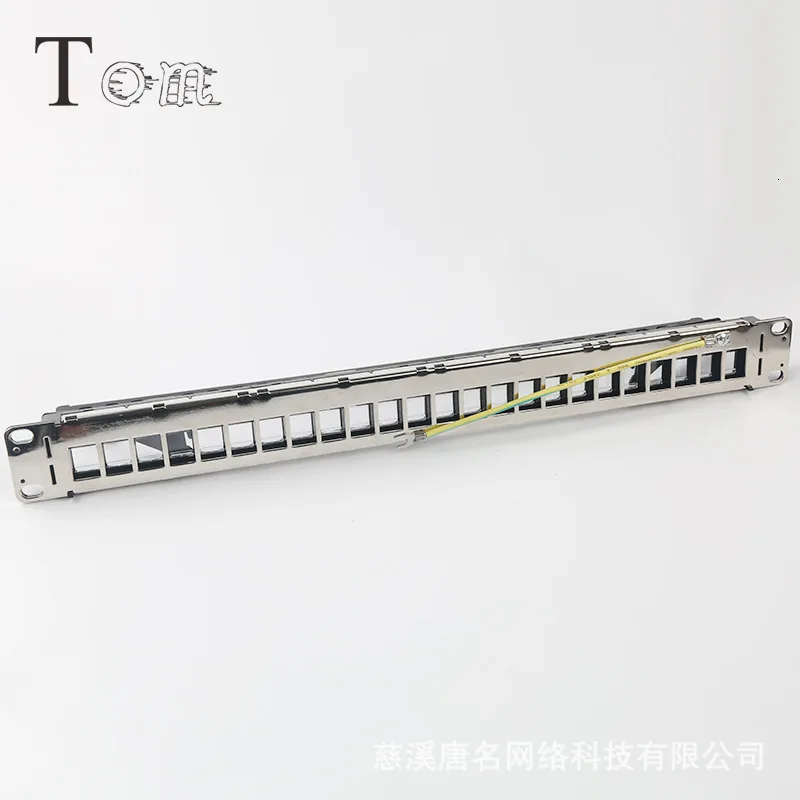

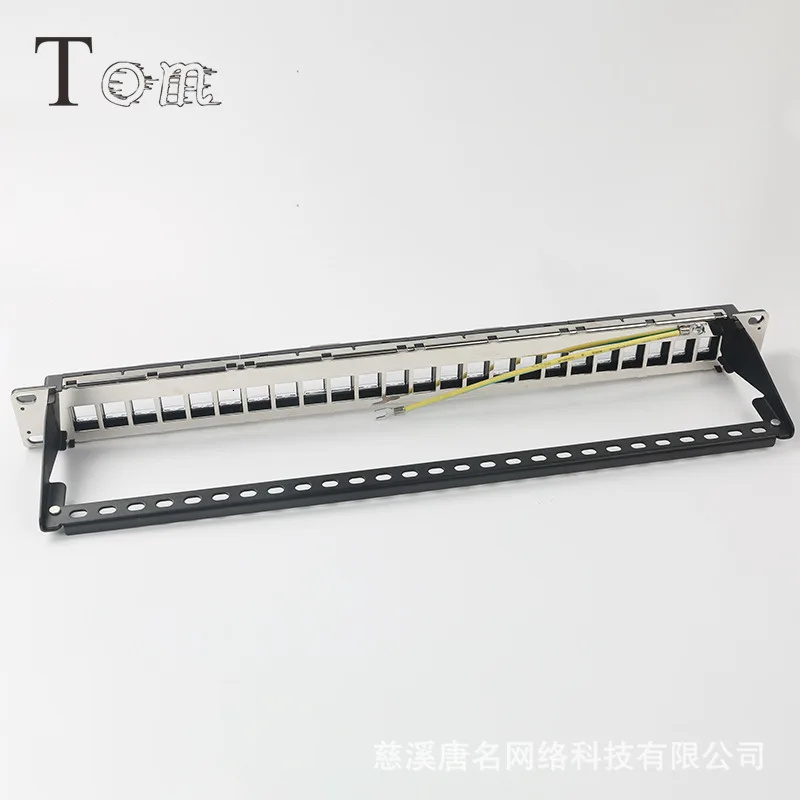

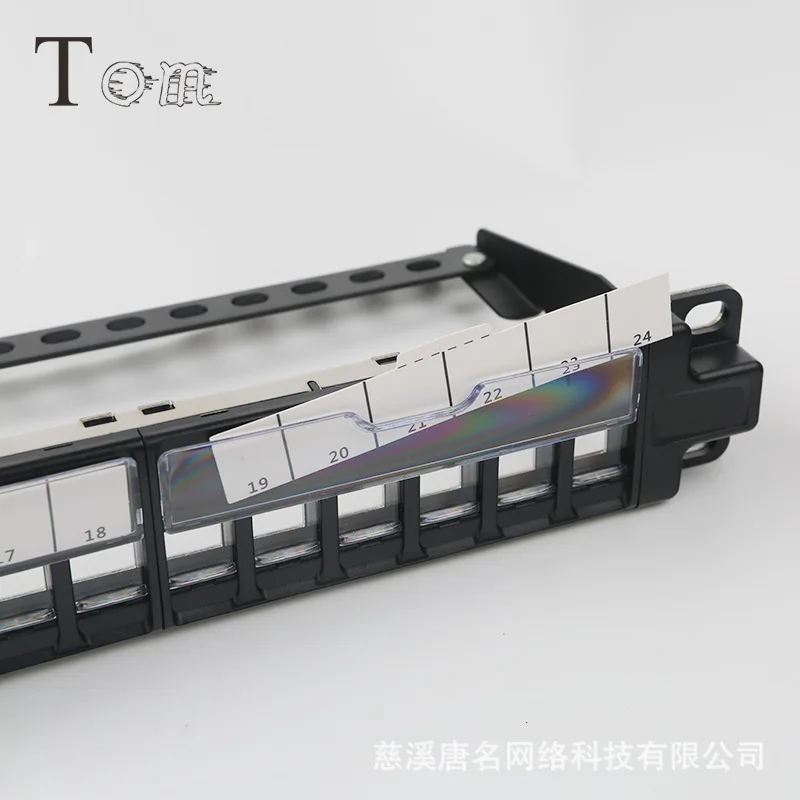

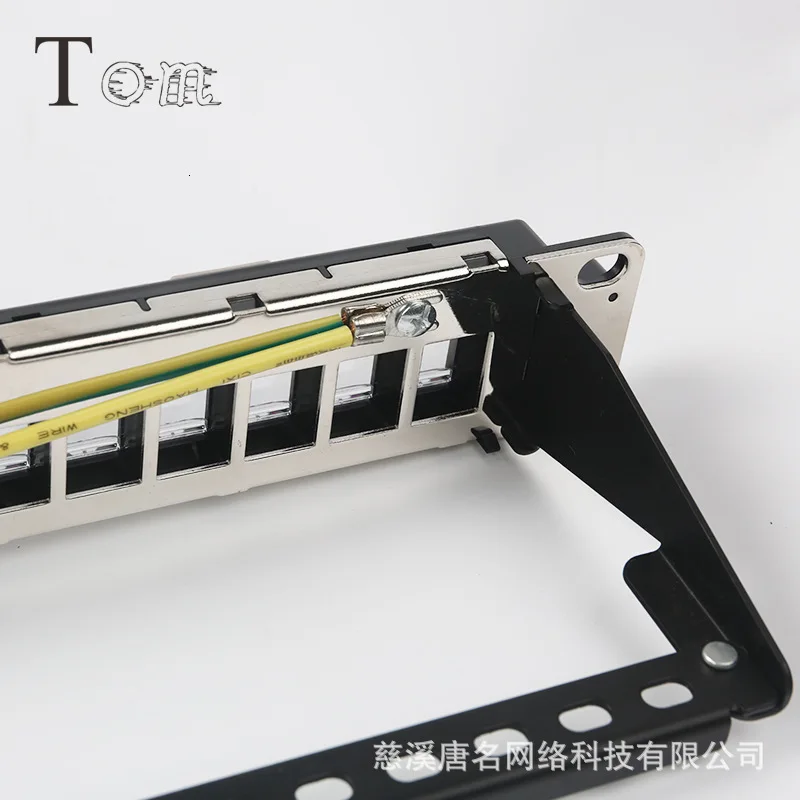

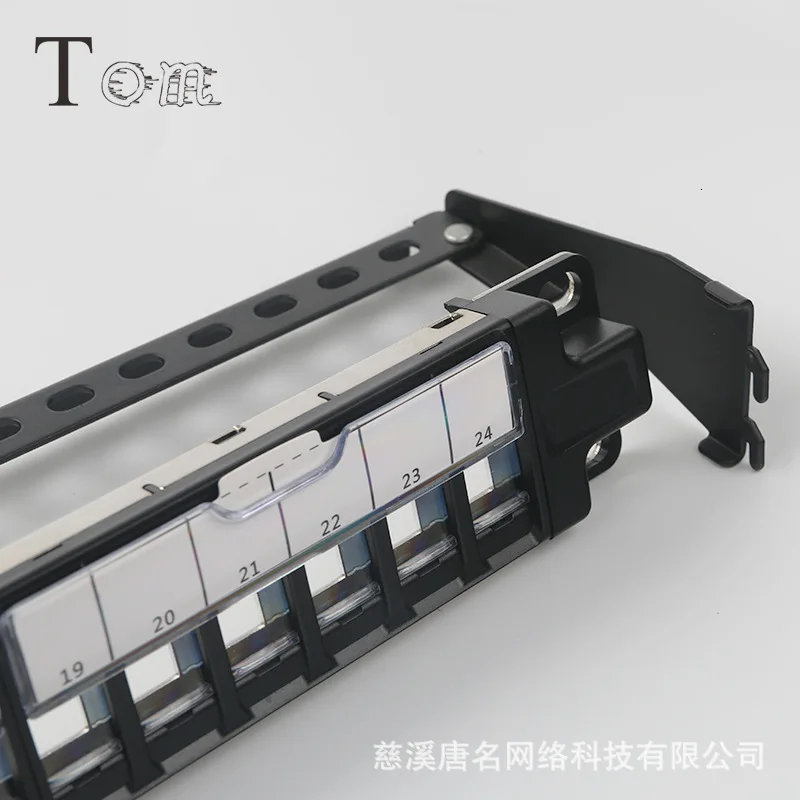

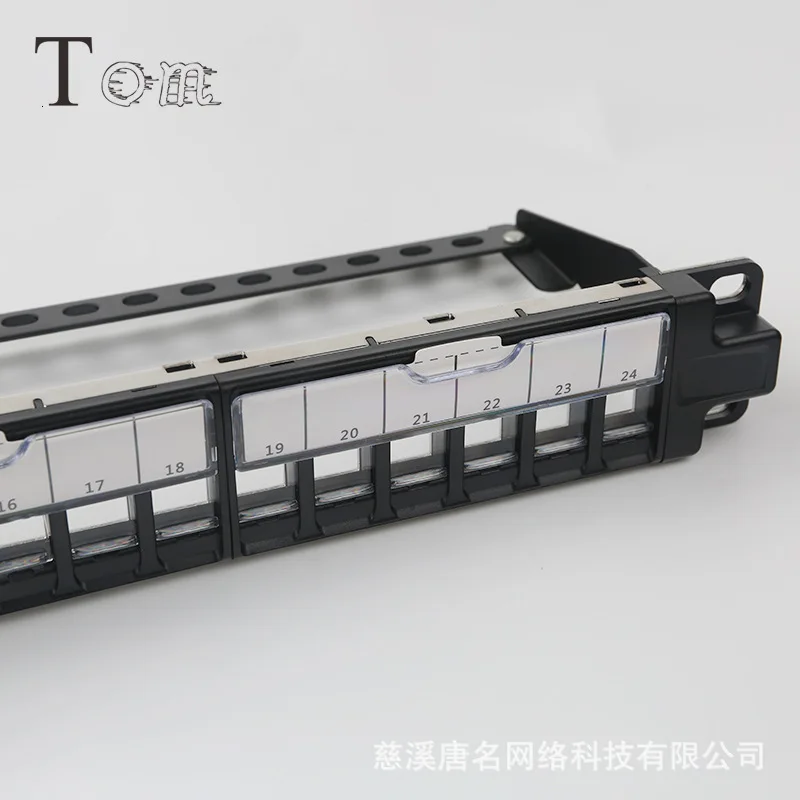

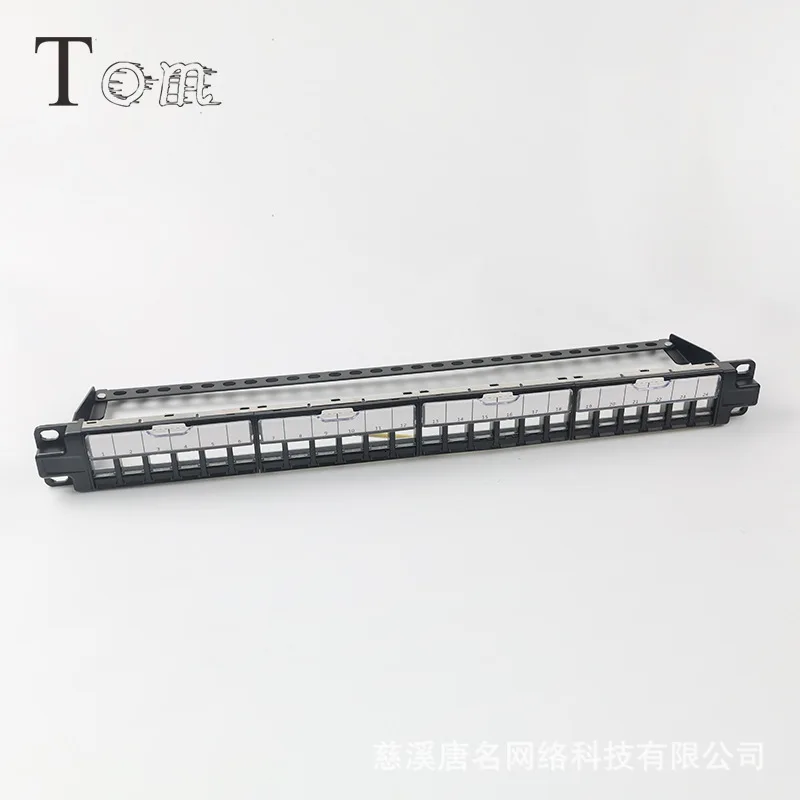

Product Name:Modular distribution frame
Product type:24 port distribution frame, shielding (excluding module)
Specifications:19& prime;Installation size, 24 ports, 4 groups, 6 modules can be inserted into each group
Material:Made of high quality cold rolled steel plate, phosphor bronze and PC.
Color:black
Main technical parameters
*IDC: phosphor bronze, silver plated (20 ~ 50uilzh), applicable cable is22, 24 and 26AWG (0.64, 0.5, and 0.4mm)The life span is not less than 250 times.
*8-wire pin: phosphor bronze, gold-plated (20 ~ 50uilzh), plug and socket can be repeatedly inserted and pulled no less than 750 times
*Flame retardant: made of PPO + PC injection molding, meeting international standards
*Contact resistance: not more than 2.5m & Omega under normal atmospheric pressure (excluding bulk resistance)
*Insulation resistance: not less than 1000m & Omega under normal atmospheric pressure;
*Electrical resistance: no breakdown and arc flashover within 1 minute of DC 1000V (AC, 700V)
*Standard: designed and manufactured according to international standard ISO / iec11801; TIA / eia568
