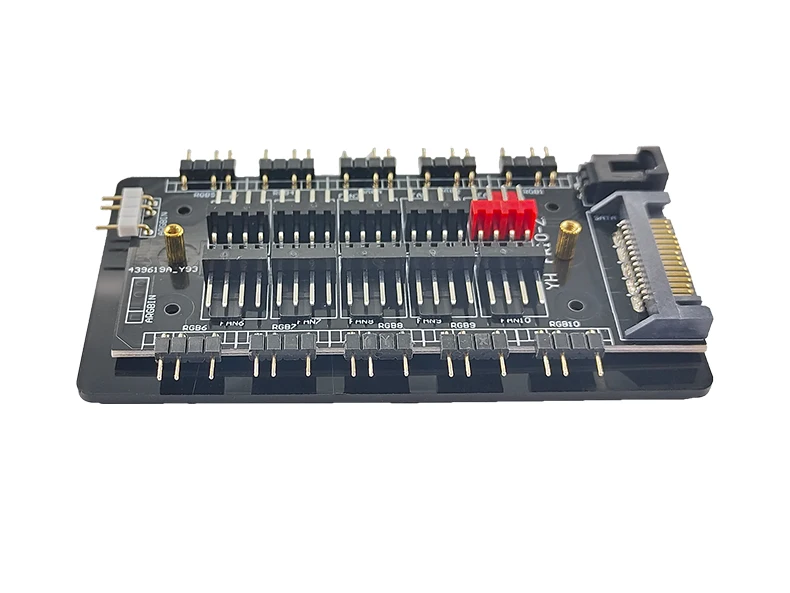

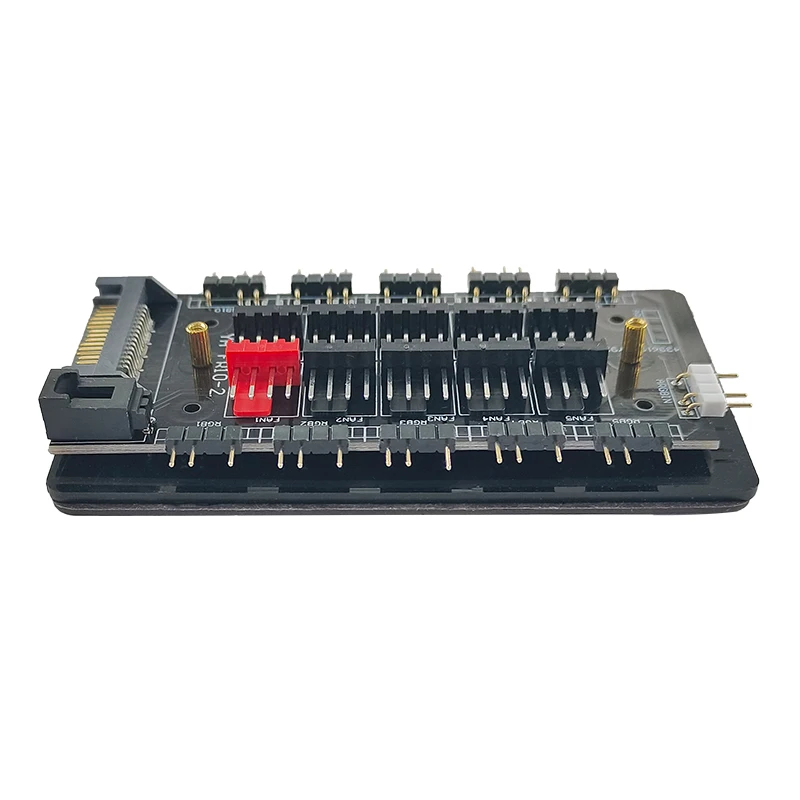

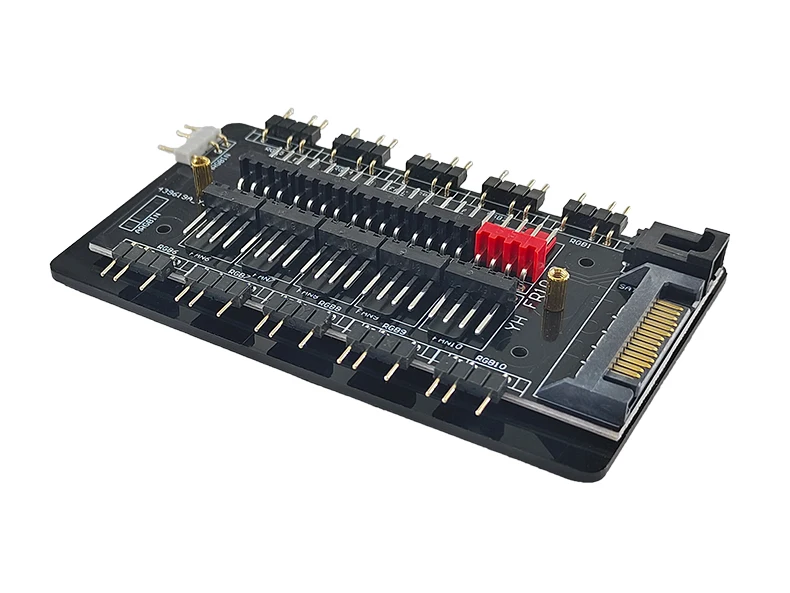

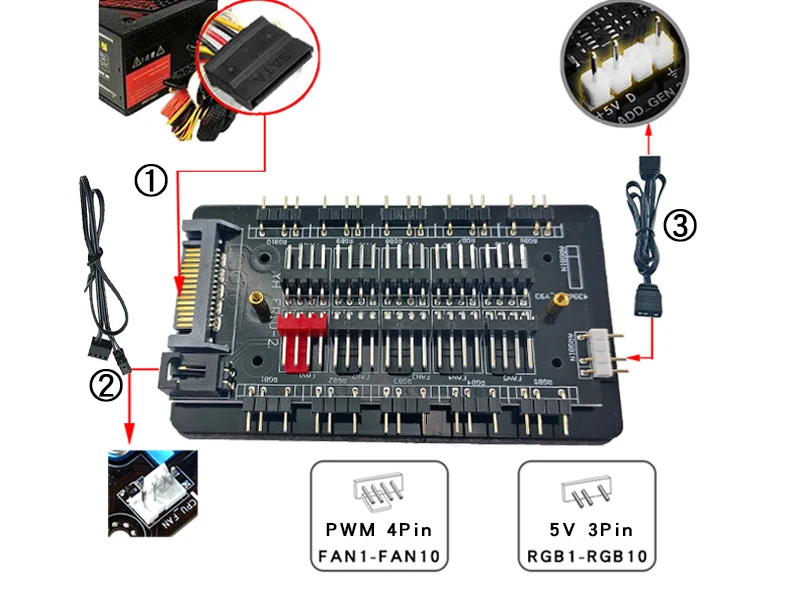

Hub Connection Diagram

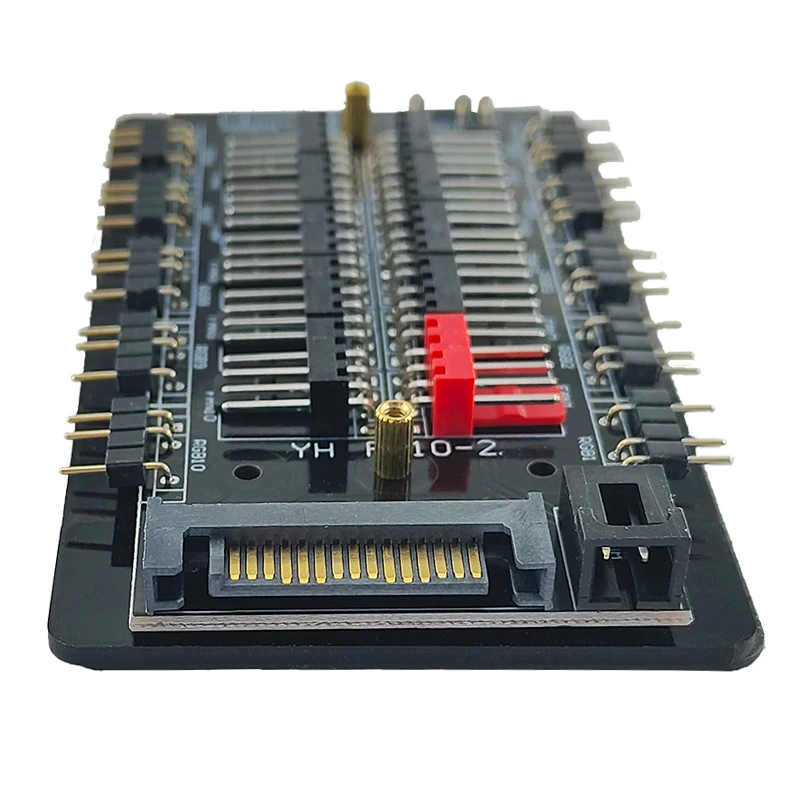

①Power SATA interface
②PWM input interface (connected to the main board CPU fan interface)
③Main board 5V 3-pin interface

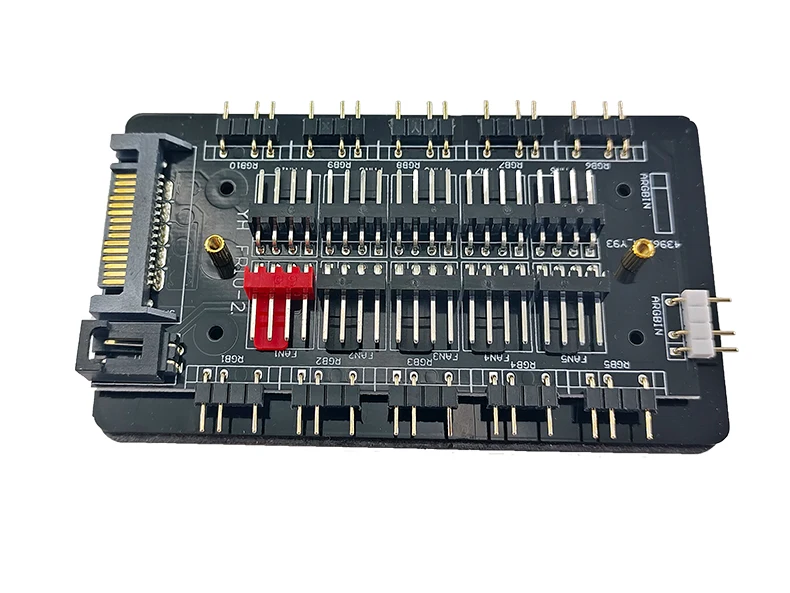

CPU heat sink fan, connect to the first interface (red PWM 4Pin interface)

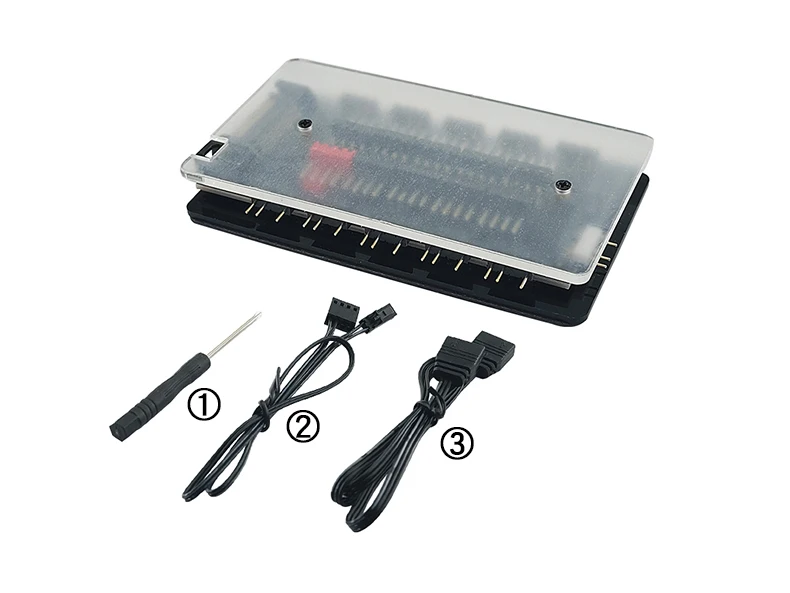

parts list
① Cover opening screwdriver x1
② PWM 4Pin signal line x1
③ Main board ARGB signal line x1

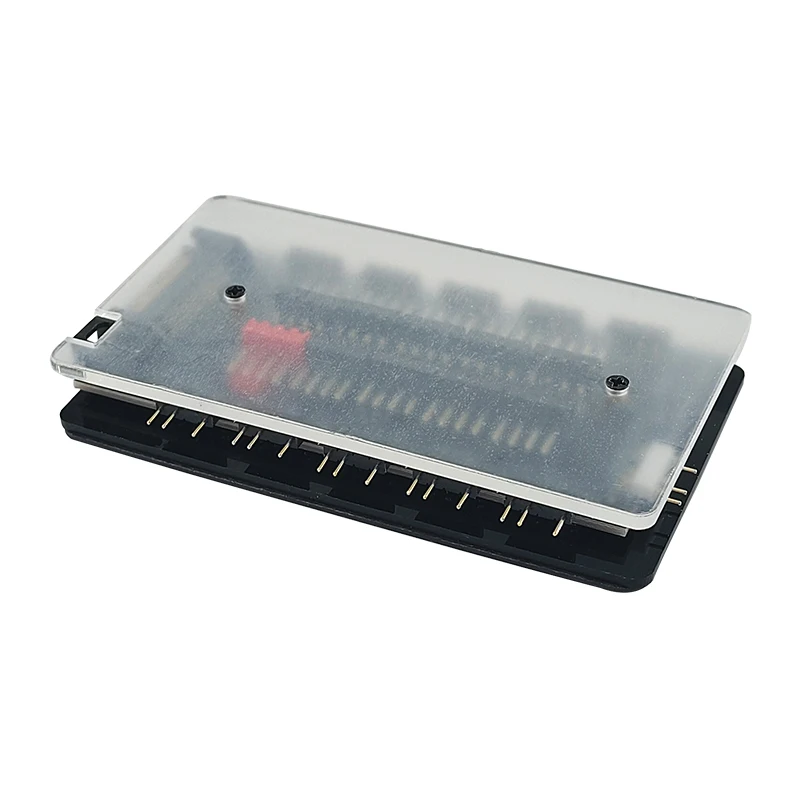

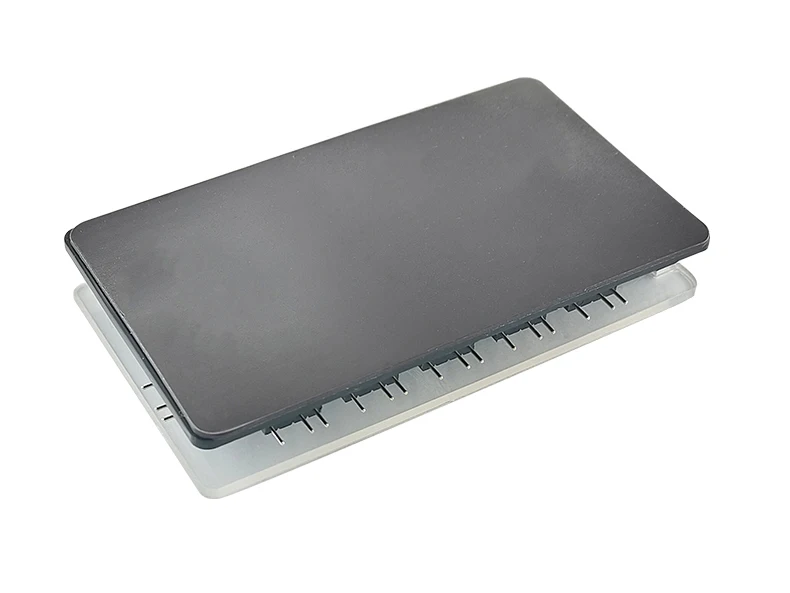

The magnetic iron block at the bottom of the controller can firmly adhere to the chassis iron plate, making installation simpler
