Company Brand: ADT-Link
Product model: K44 series goods

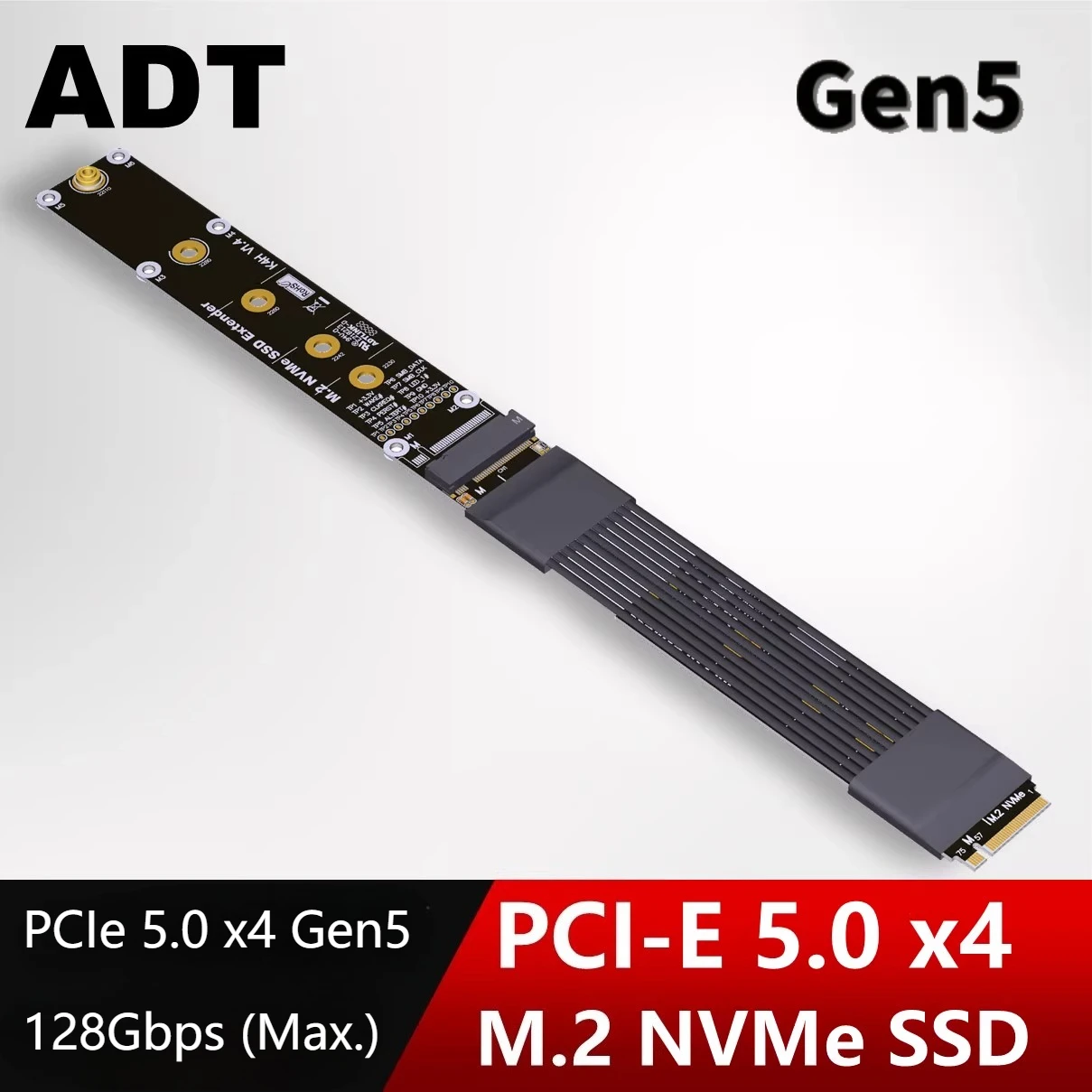

Product Name: PCIe 5.0 M.2 NVMe SSD Extension Cable
Bandwidth speed: PCIe 5.0 x4 Gen5; 128Gbps (Max.)
Wire length: 5cm-100cm (Customized wire length is supported)
Purchasing Tip: Be sure to purchase 1 to 2 samples for testing and verification before making large-scale purchases.
Models Description:
ModelsDescriptionsK44SF-BK-5.0 M.2 NVMe Extension Supports 2280 Sizes SSD BlackK44SH-BK-5.0M.2 NVMe Extension Supports 22110 Sizes SSD Black K44SF-SI-5.0 Extension Supports K44SH-SI-5.0Extension SupportsWire length description:
The length of the cables in our store refers only to the part of the cables and does not include PCBS and connectors. Refer to the line length dimension marking in the following figure.
Products Photos:

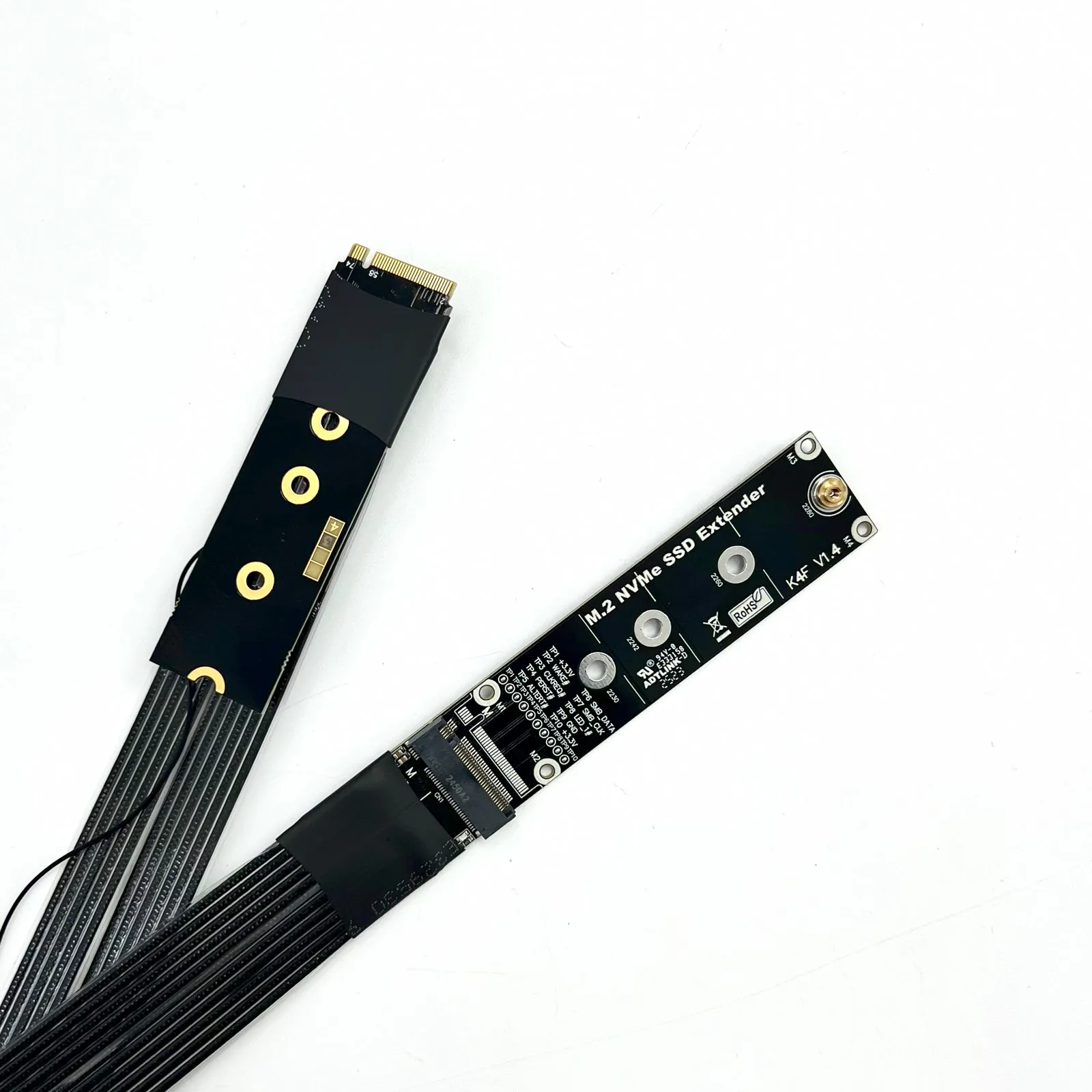

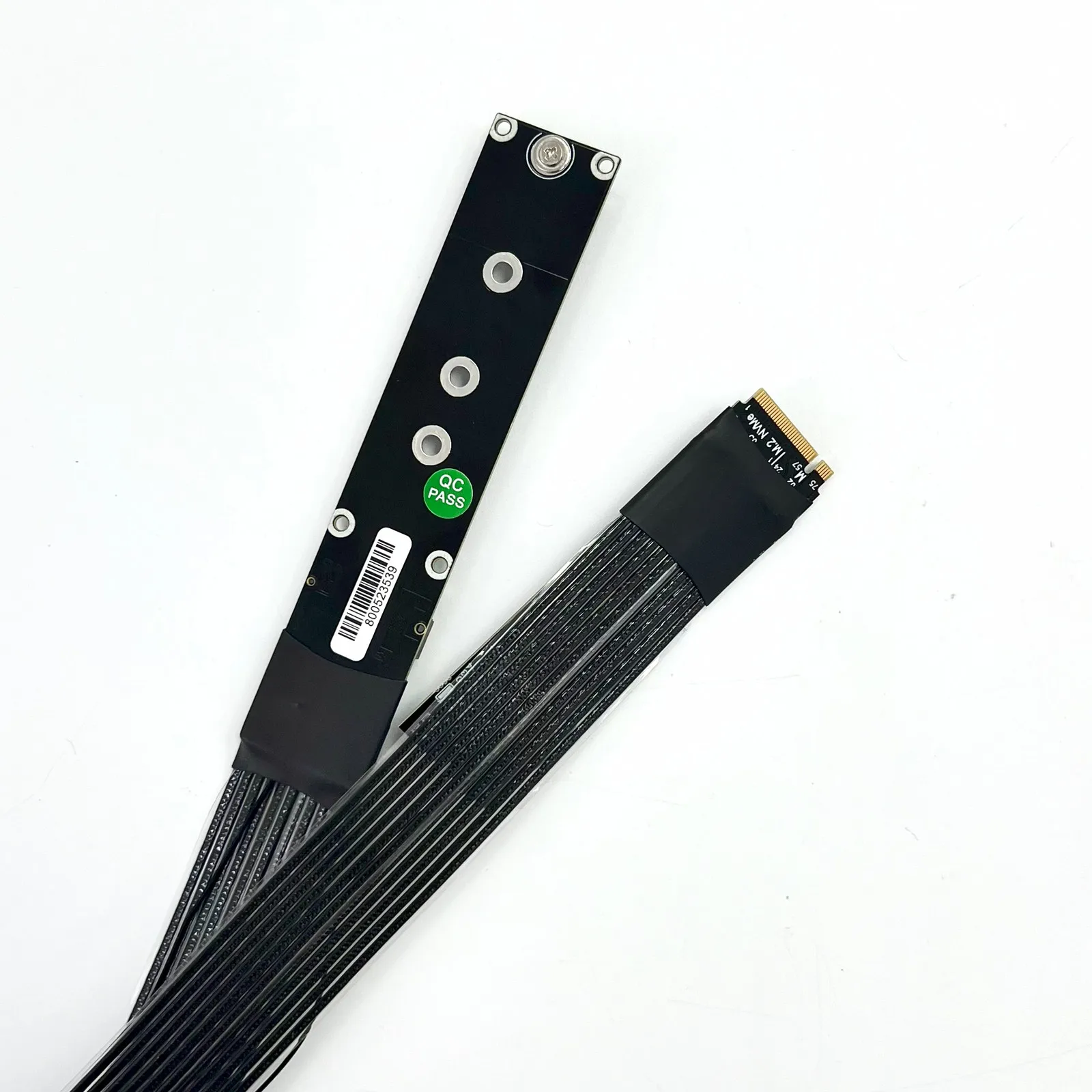

K44SF-BK-5.0:

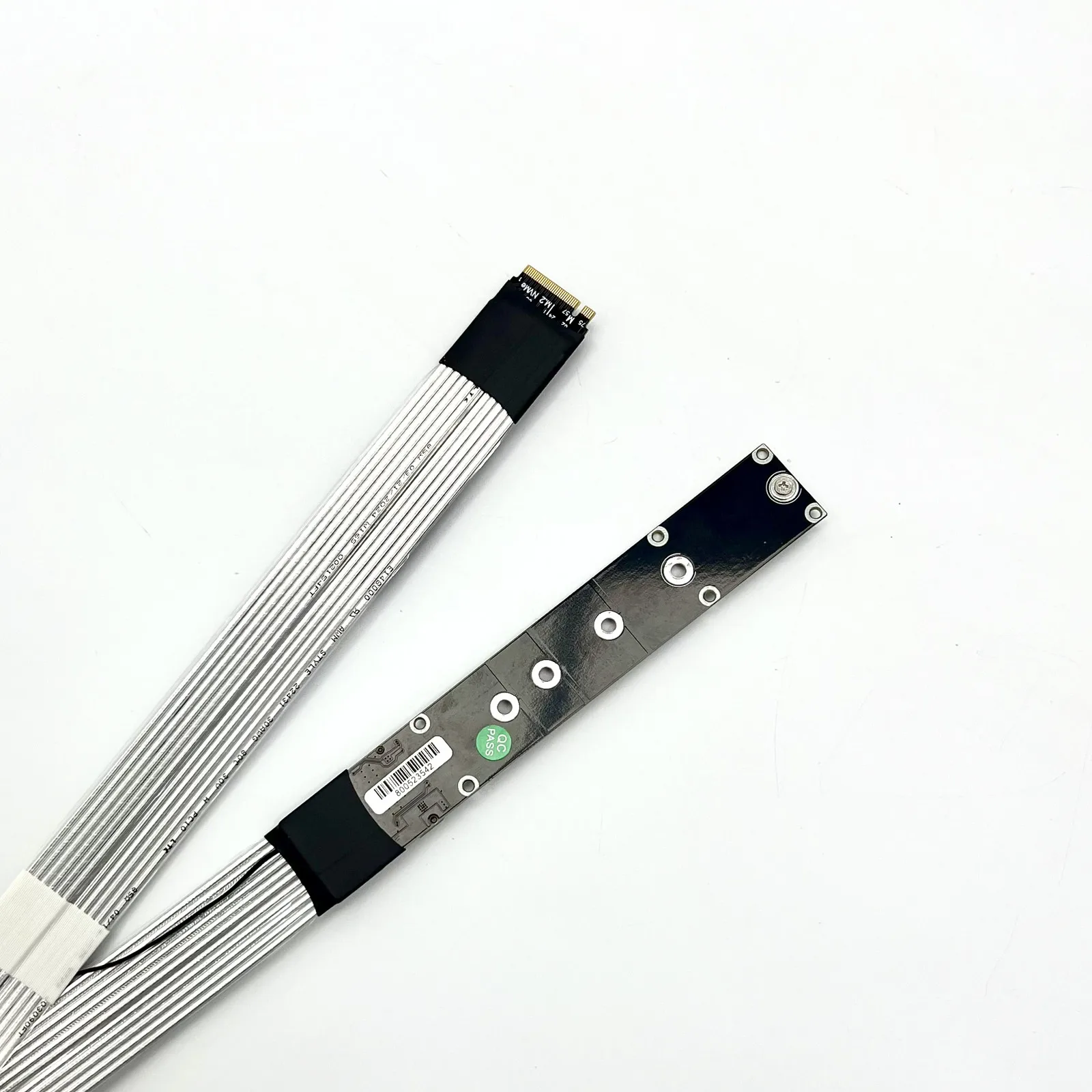

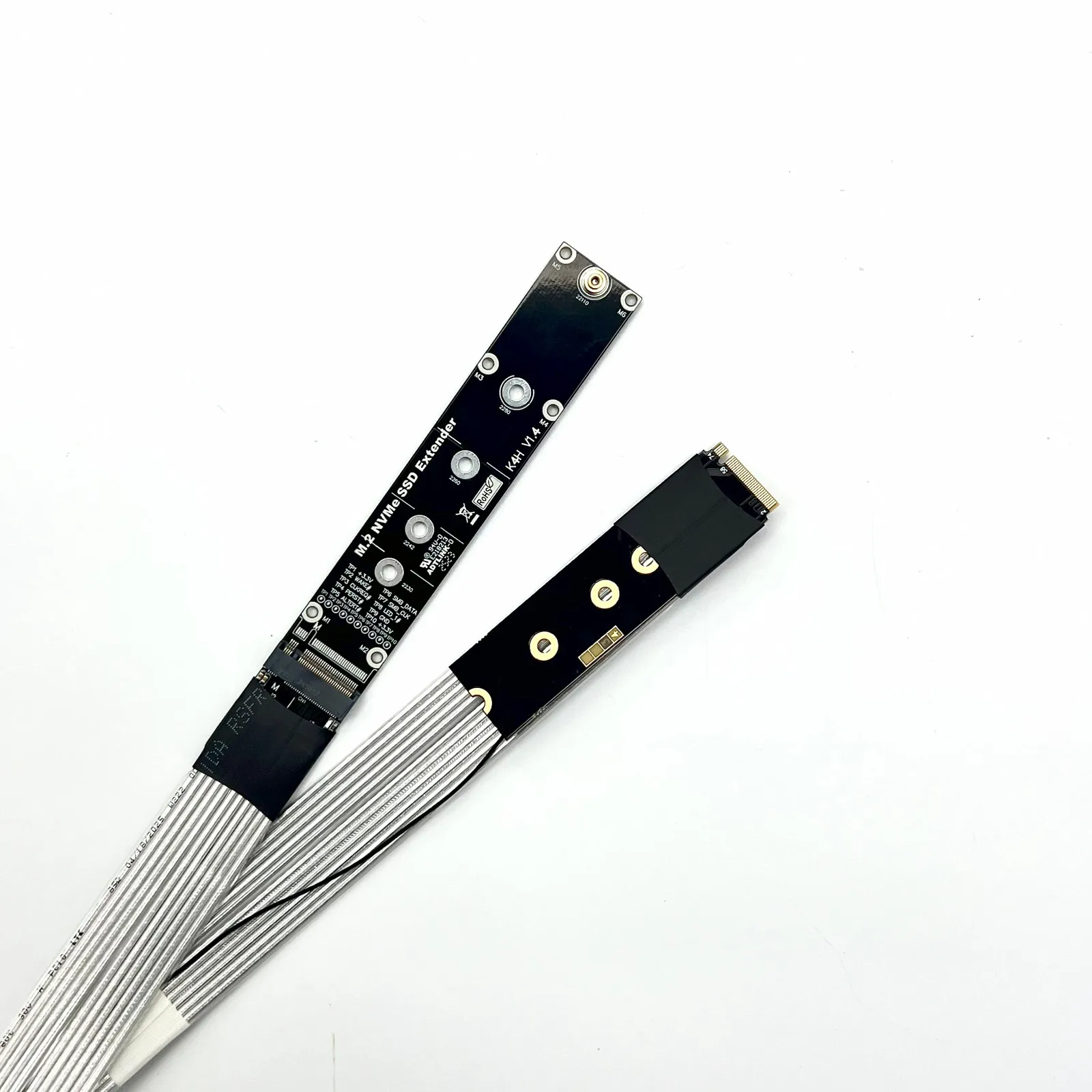

K44SH-SI-5.0:
Summary of Technical Issues
What are the differences between the ADT models K44SF-BK and K44SH-BK?
The K44SH-BK can support SSDS with a maximum size of 22110, and the K44SF-BK can support SSDS with a maximum size of 2280. The appearance dimensions are as shown in the following figure:
Can the ADT models K44SF and K44SH support PCIe 5.0?
How is the quality of the wire? Is there any blocking?
It features a metal layer shielding, advanced EMI shielding conductive polymers, new materials for EMI shielding, and a flat cable design. This technology enables each cable to be fully covered by electromagnetic interference shielding of conductive polymers to prevent incident or outgoing electromagnetic frequency emissions, minimize interference and performance degradation, and reduce the weight of the ribbon.
Is the wire soft? Can it be bent?
The cable is the fifth-generation PCIe dedicated cable independently developed by ADT, available in black and silver.
The black thin model is 0.8mm thick. The wire is very soft and can be bent, which does not affect its use.
Silver hard type, with a thickness of 1.1mm, relatively thick. The wire is hard but still bendable.
Can the PCB be shortened if it is too long?
The PCB can be cut according to the white line indicated by the arrow, and it has good structural compatibility.
Download link for technical materials
打开 3D PDF 文件。请使用 软件。
3D Step & 3D PDF files download
Cable specification files download
Purchase Notes
If your SSD is a two-notch SATA SSD and is incompatible, please do not purchase it
Support a notched M-key NVMe SSD; Two-notch BM-key SATA SSDS are not supported
