Note:
Starting March 7th, Option 1 and Option 2 will send an additional set of wires (30PIN wire +100K NTC B3950 thermistor)
Option 1 :

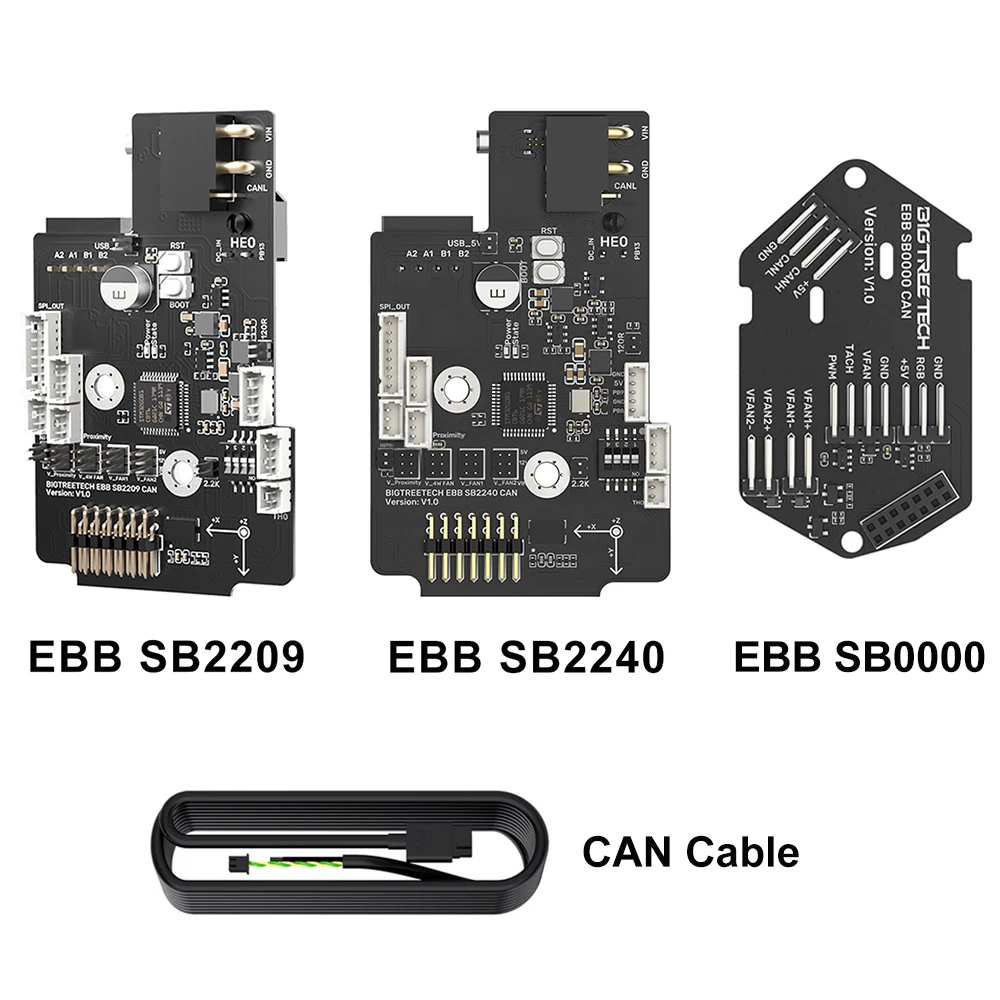

1PC EBB SB2209 CAN V1.0 ( with CAN cable )
1PC EBB SB0000 CAN V1.0
1Set Wire
Option 2 :
1PC EBB SB2240 CAN V1.0 ( with CAN cable )
1PC EBB SB0000 CAN V1.0
1Set Wire
Option 3 :

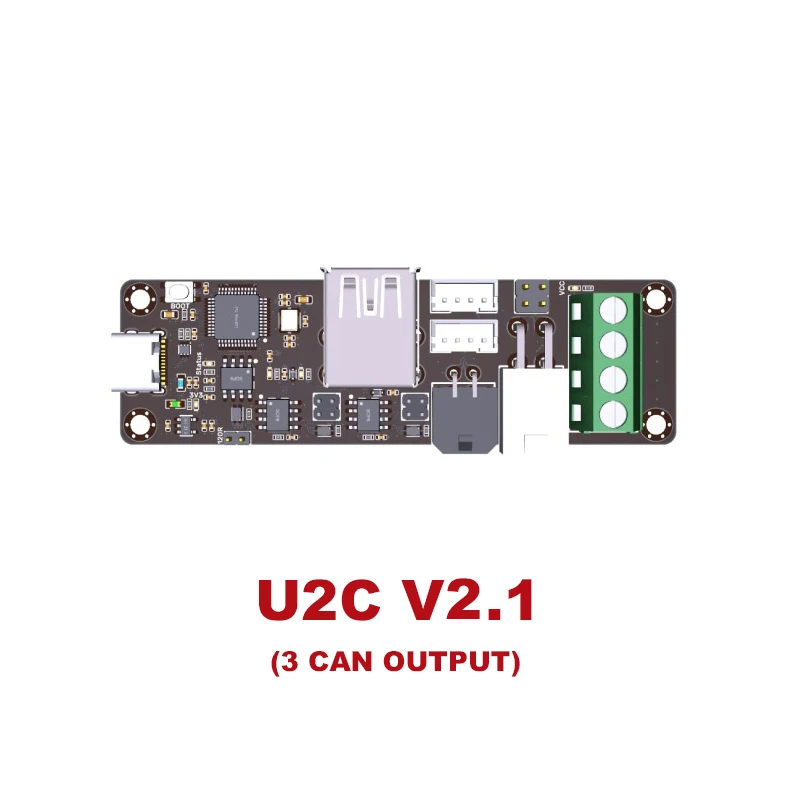

1PC U2C V2.1
Option 4 :
1PC CAN cable
Option 5 :
1Set wire
Why choose SB2209/SB2240 CAN V1.0 ?

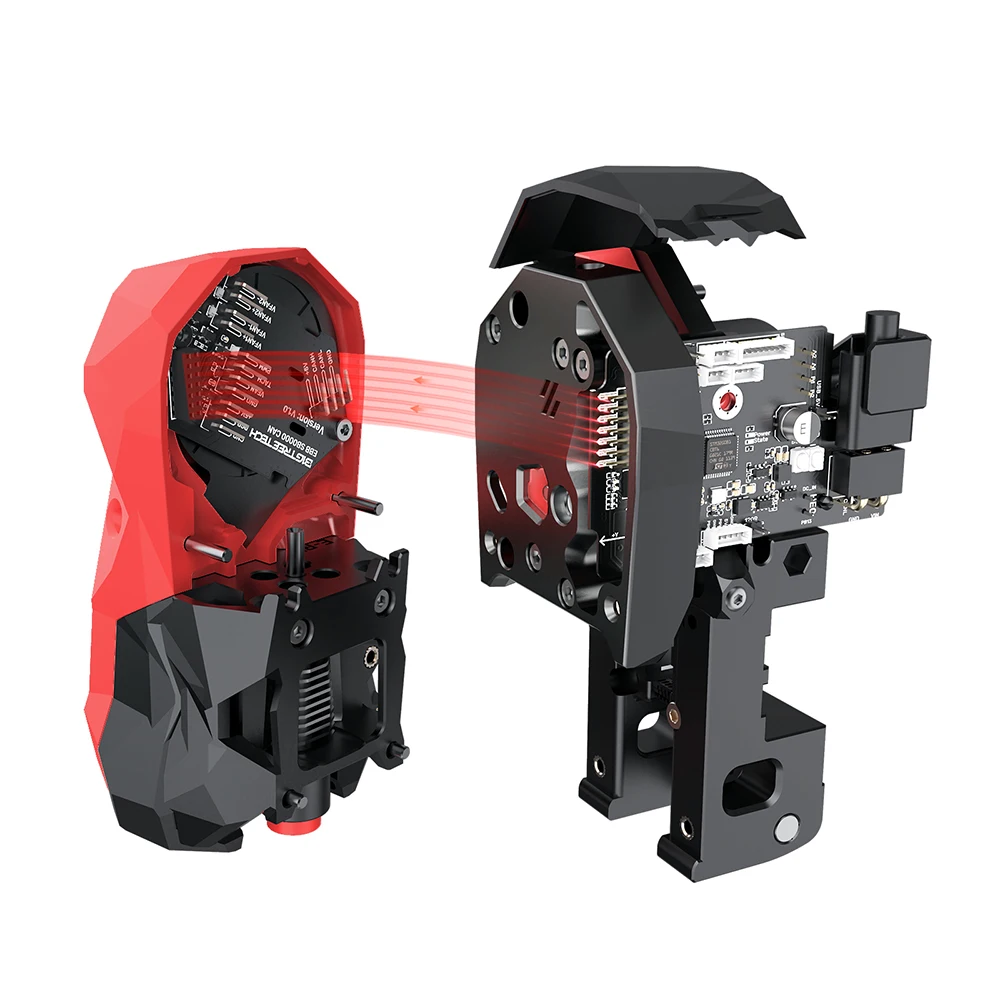

- Perfect fit for VORON StealthBurner installation position
- The commissioning position of ADXL345 accelerometer is consistent with the installation position
- Fan voltage 5V 12V 24V can be selected, support 4-wire fan, meet more DIY

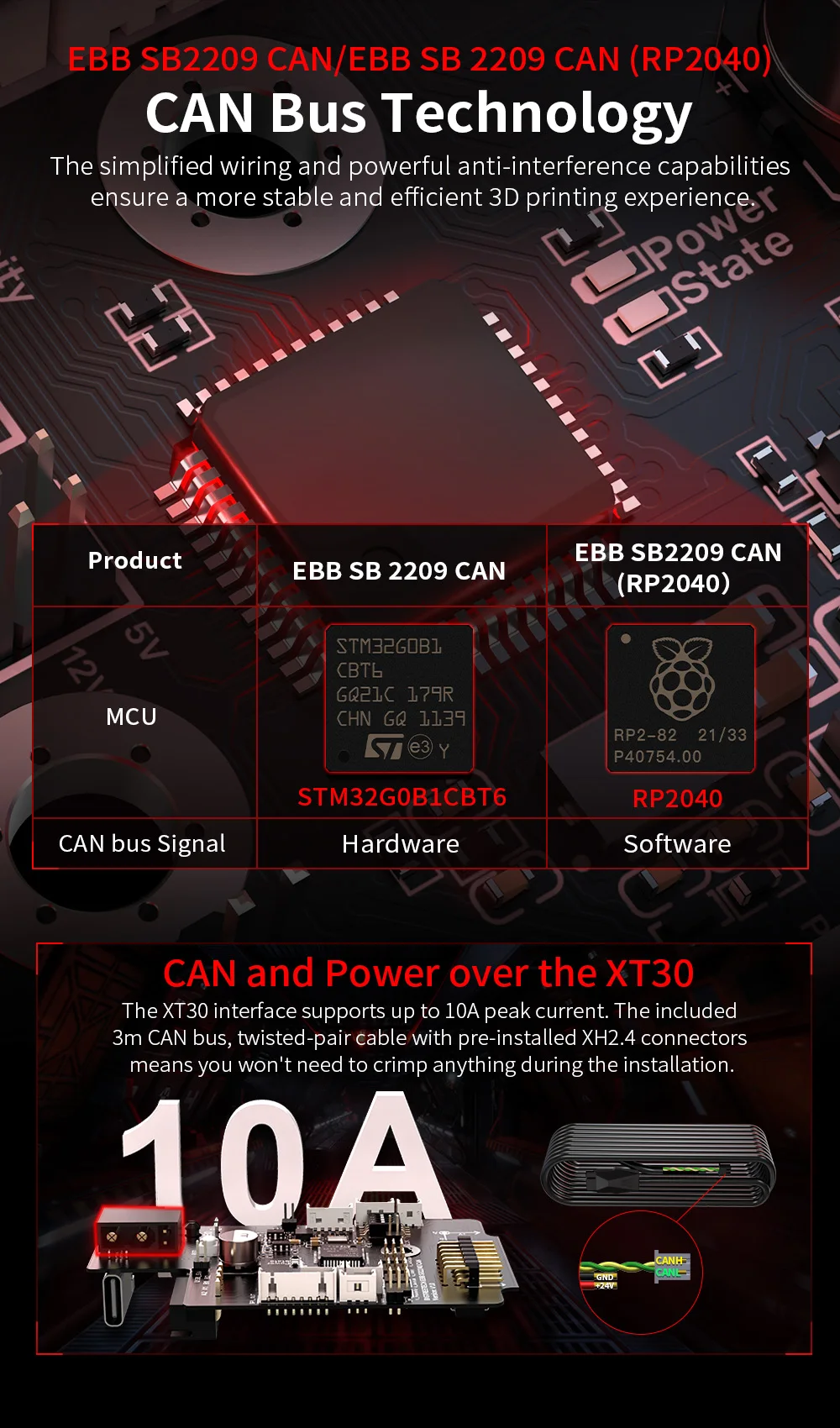

- The new XT30 model CAN bus is more stable and convenient

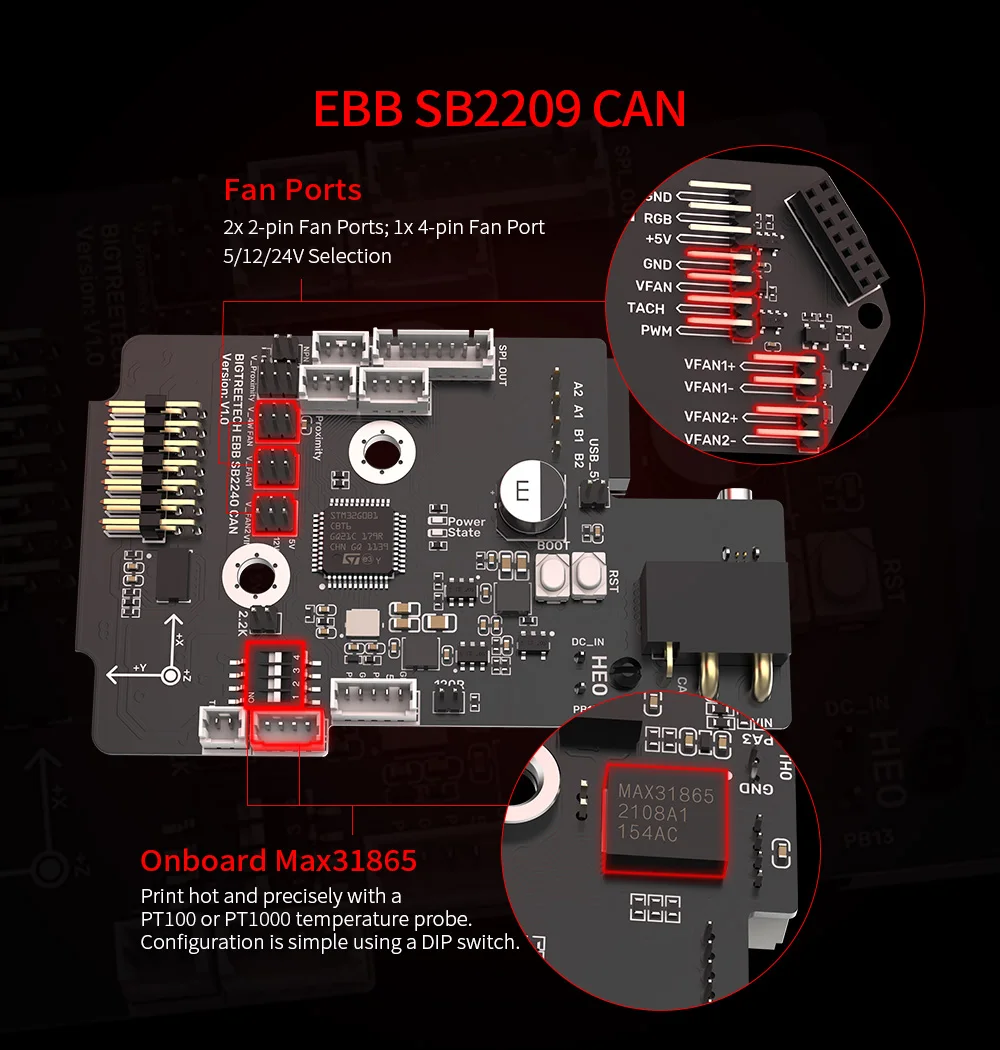

- Onboard Max31865, paddle switch selection, support 2 and 4 wire PT100 PT1000
Introduction

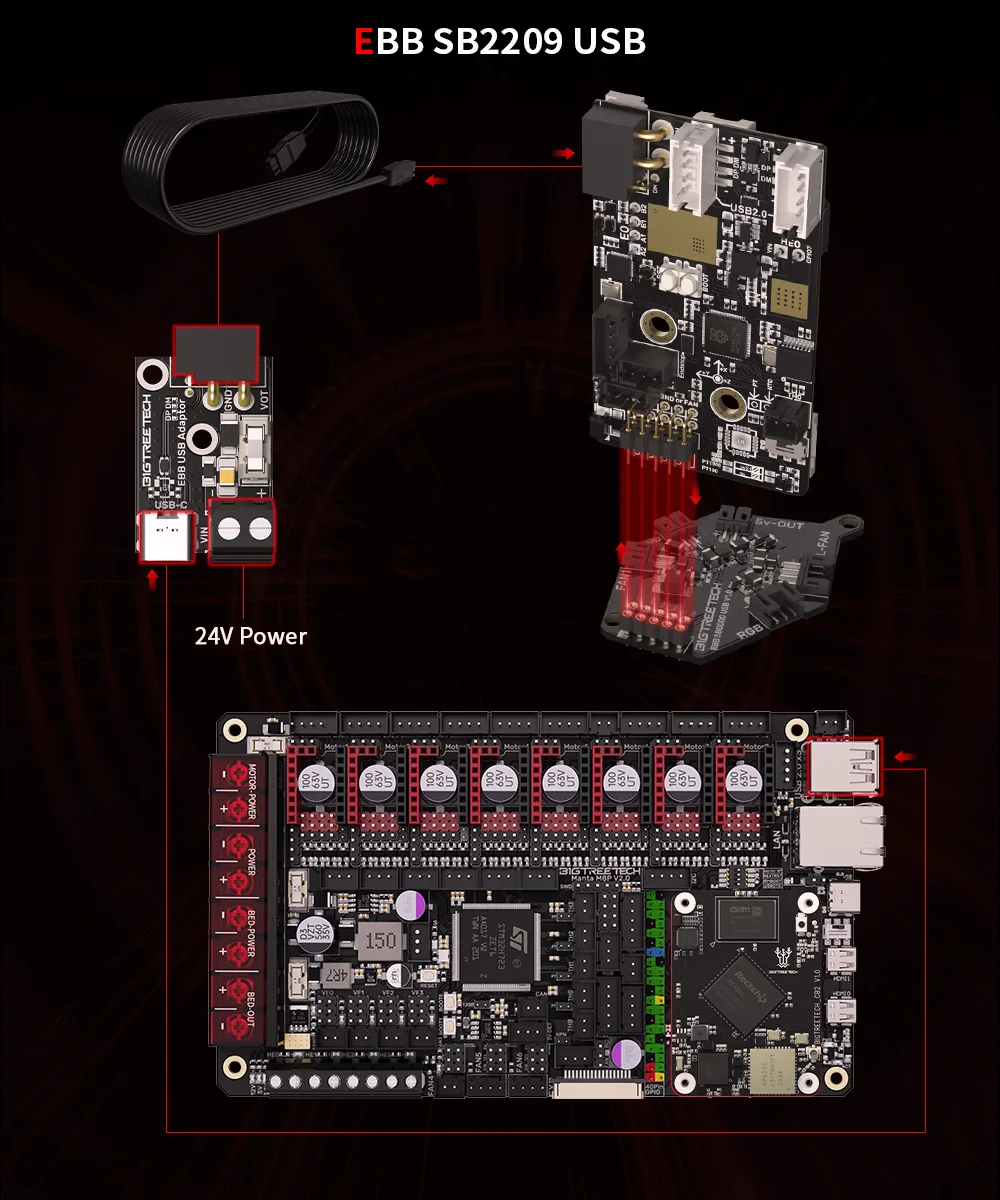

BIGTREETECH EBB SB2209/SB2240 CAN V1.0 is a tool board adapted to Voron StealthBurner by 3D printing team of Shenzhen Big Tree Technology Co., Ltd, it can communicate through USB or CAN, greatly simplifying connection.

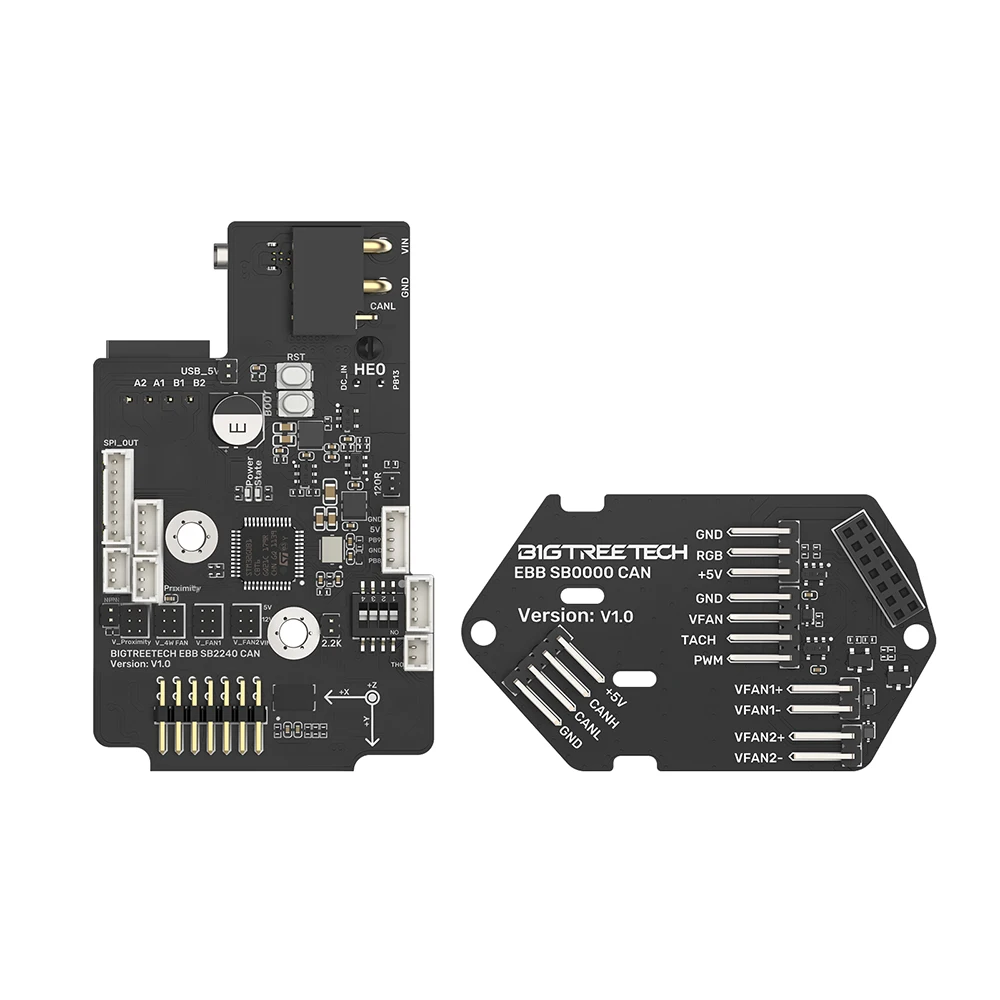

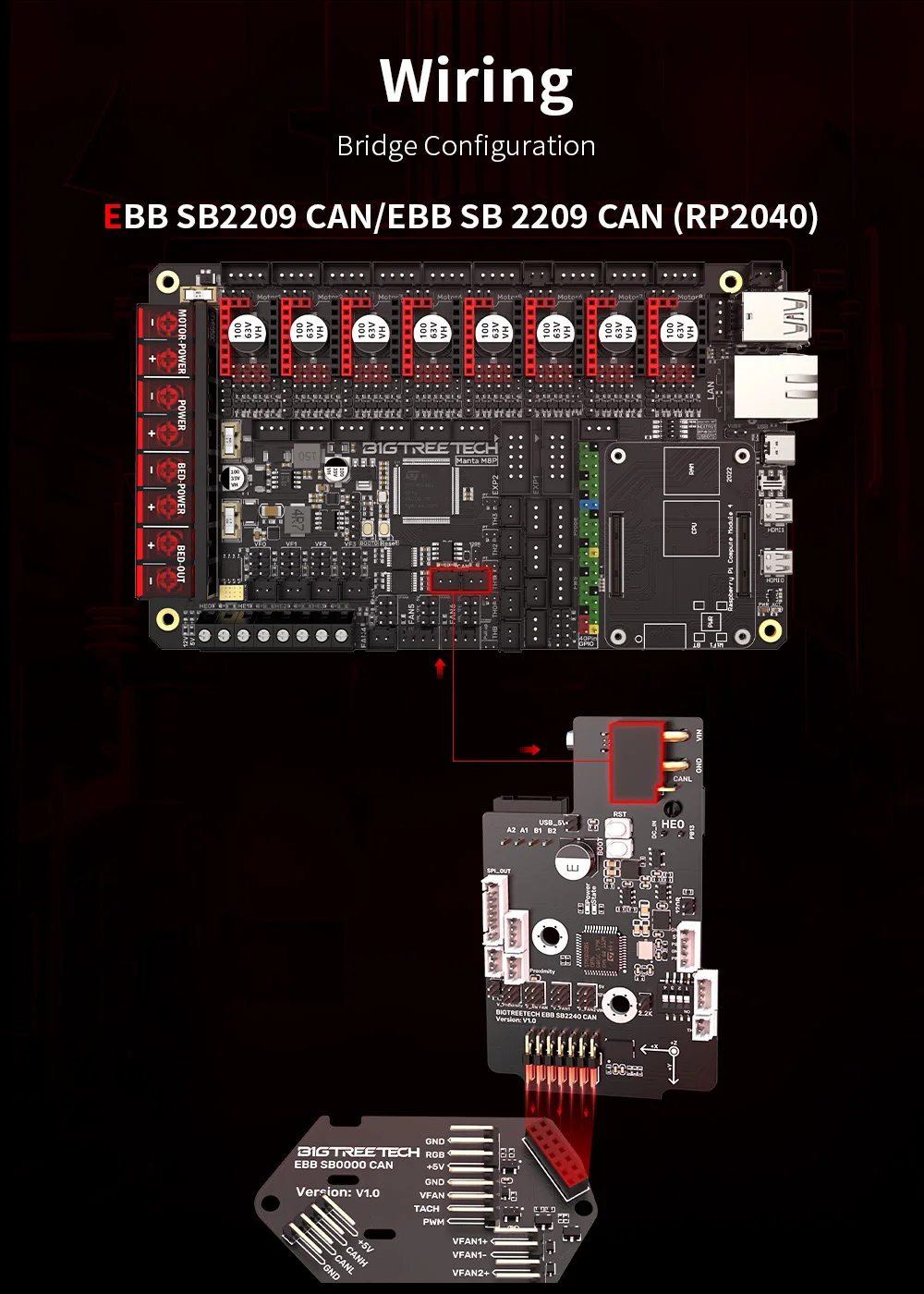

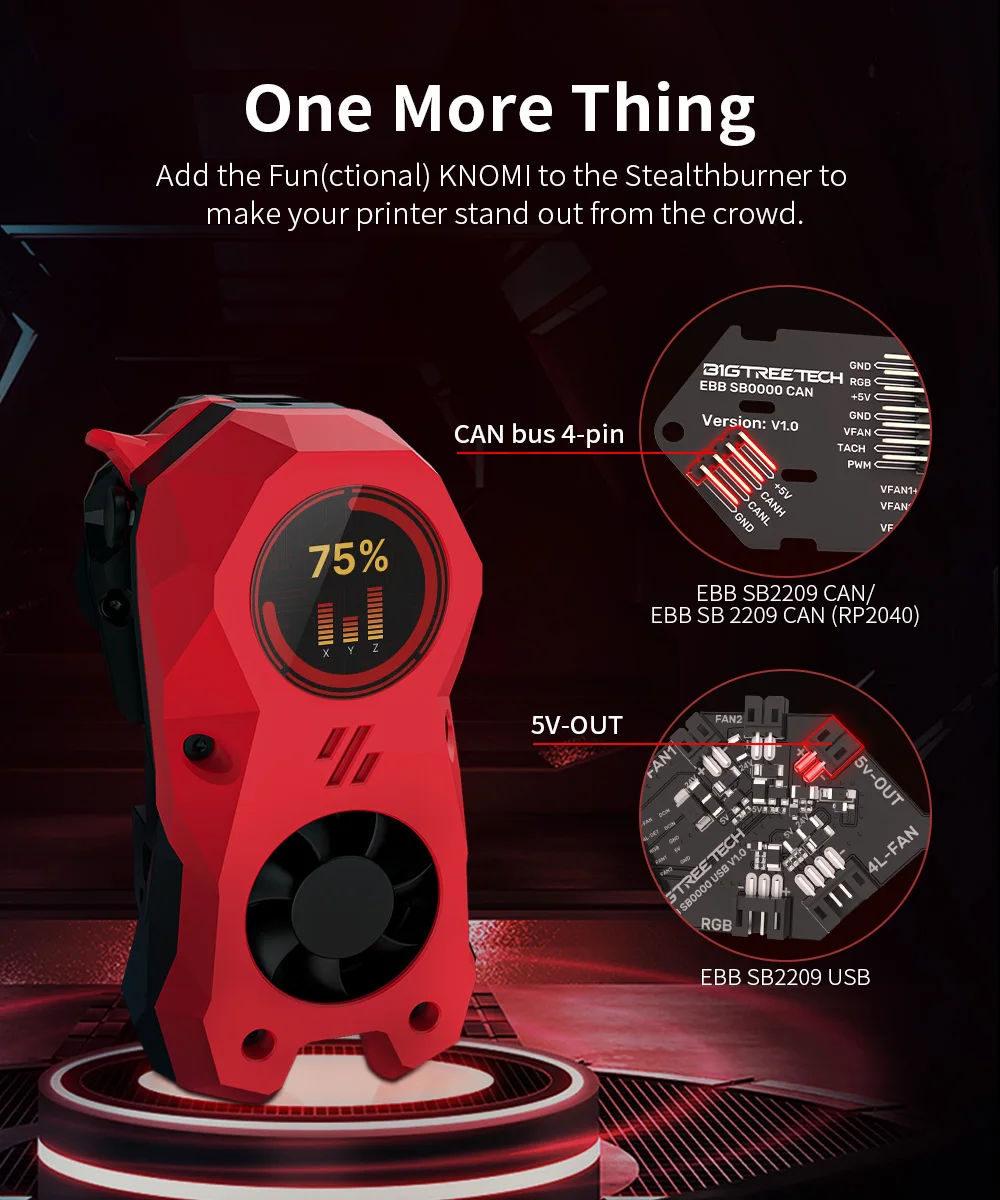

Use with BIGTREETECH EBB SB0000 CAN V1.0, perfect compatibility with Voron StealthBurner structure

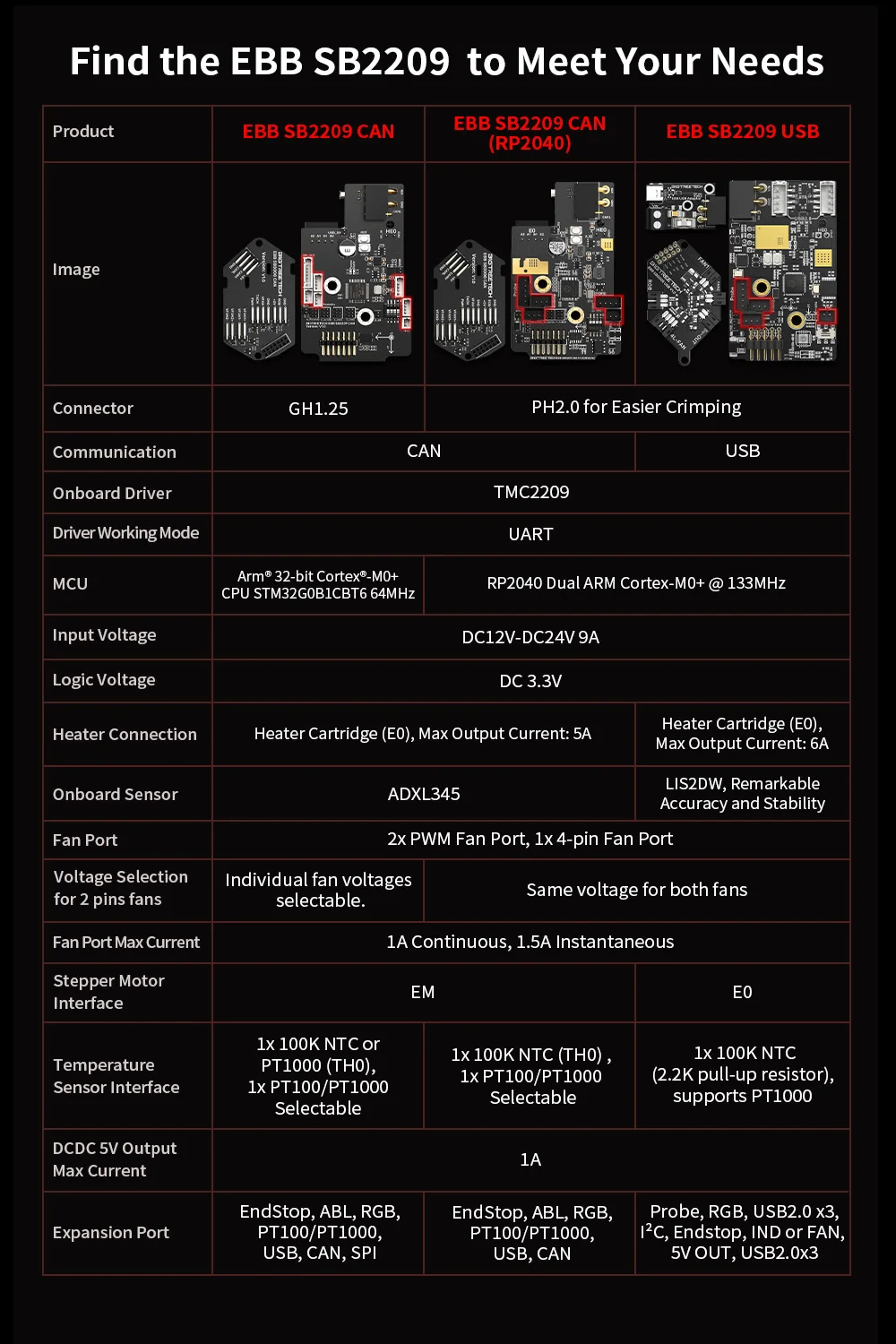

EBB SB2209 CAN V1.0
Parameter:
- Microprocessor: Arm® 32-bit Cortex®-M0+ CPU STM32G0B1CBT6 64MHz
- Input voltage: DC12V-DC24V 9A
- Logical voltage: DC 3.3V

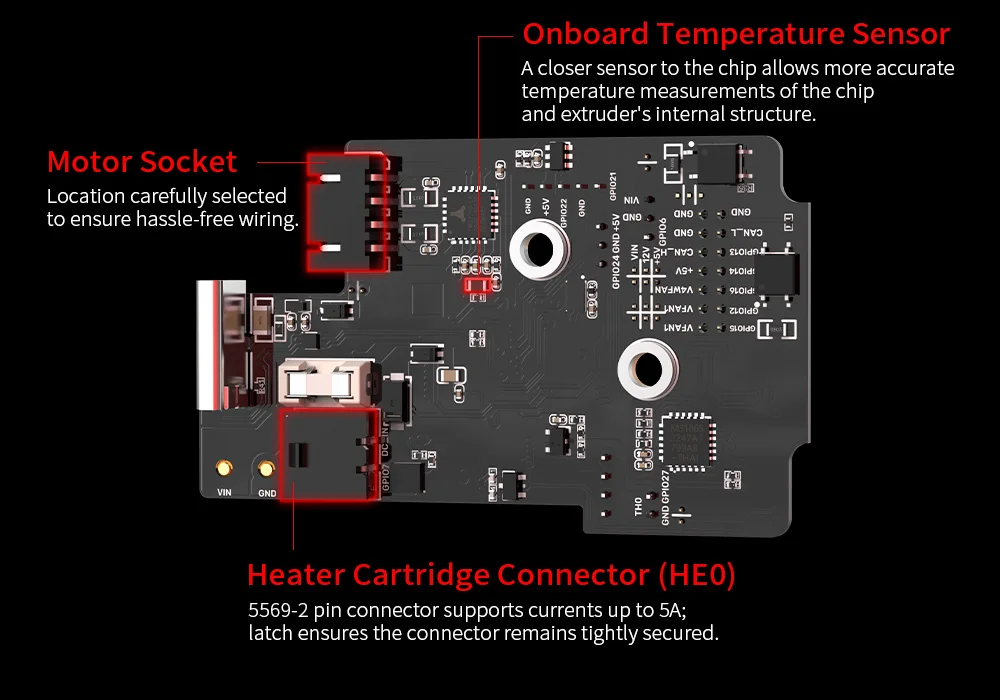

- Heating interface: heating rod (E0), maximum output current: 5A

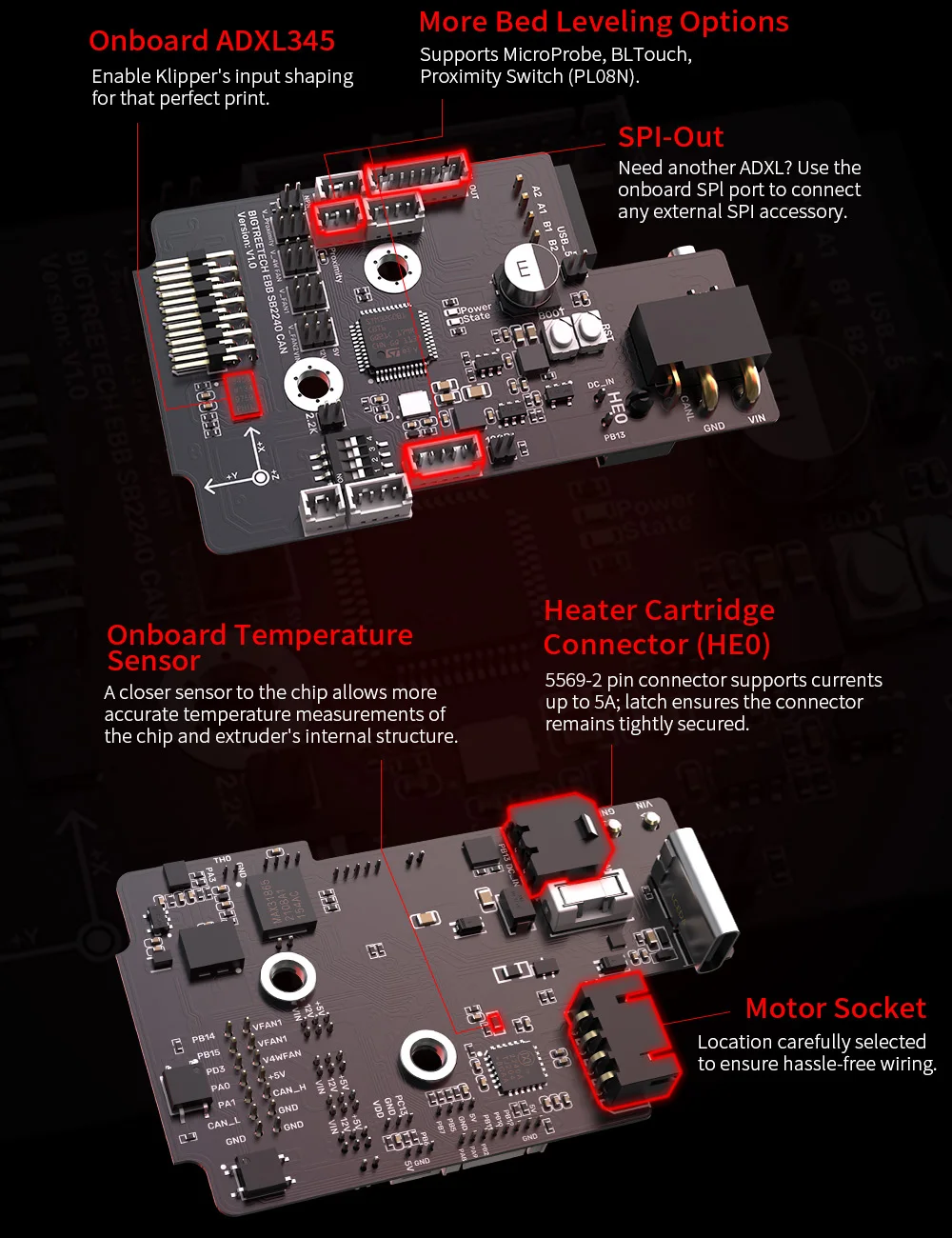

- Onboard sensor: ADXL345
- Fan interface: two CNC fans (FAN0, FAN1). One four-wire fan port.
- Fan port Maximum output current: 1A, peak value 1.5A

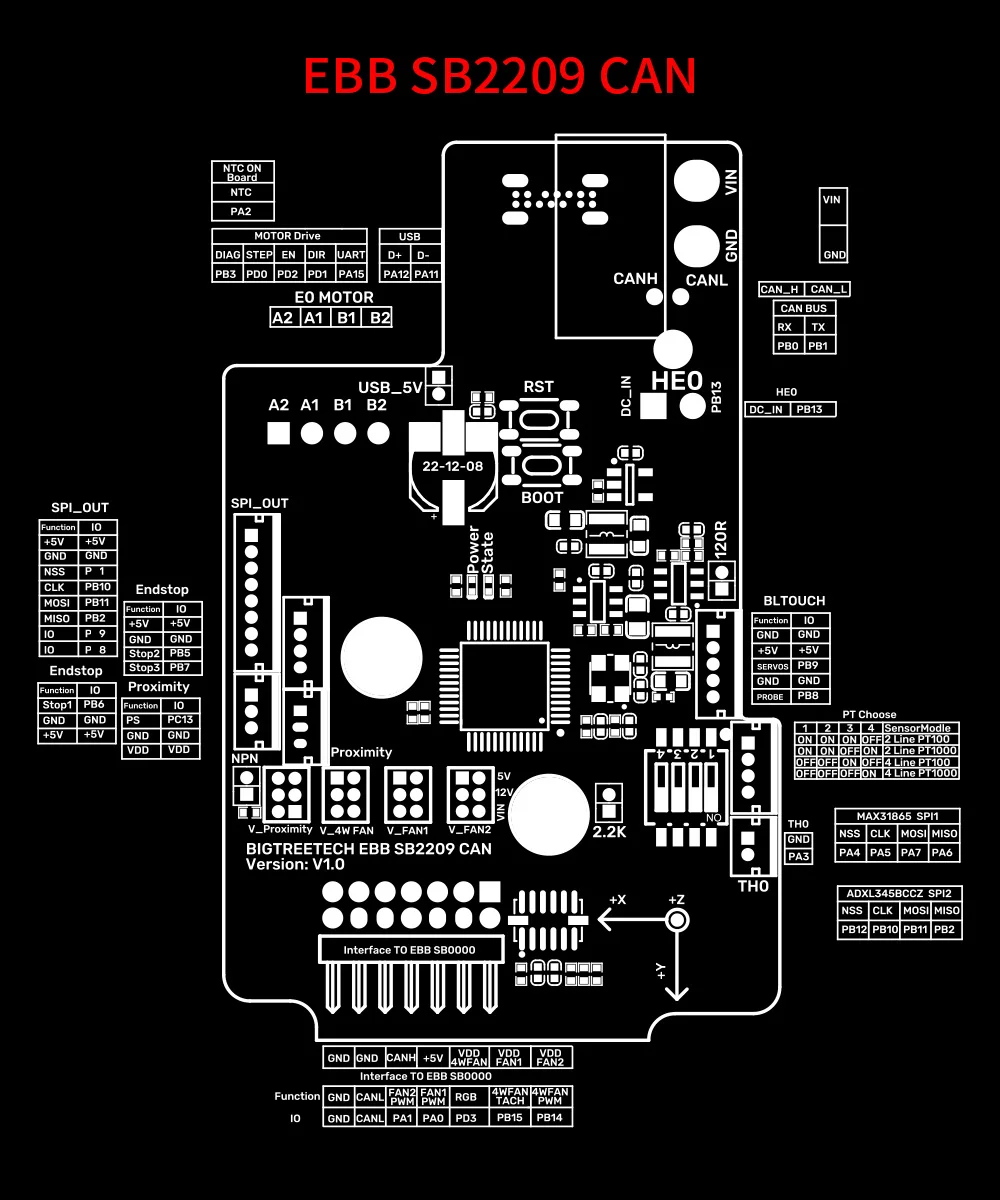

- Expansion interface: EndStop, ABL, RGB, PT100/PT1000, USB interface, CAN interface, SPI interface
- Motor drive: onboard TMC2209
Feature:

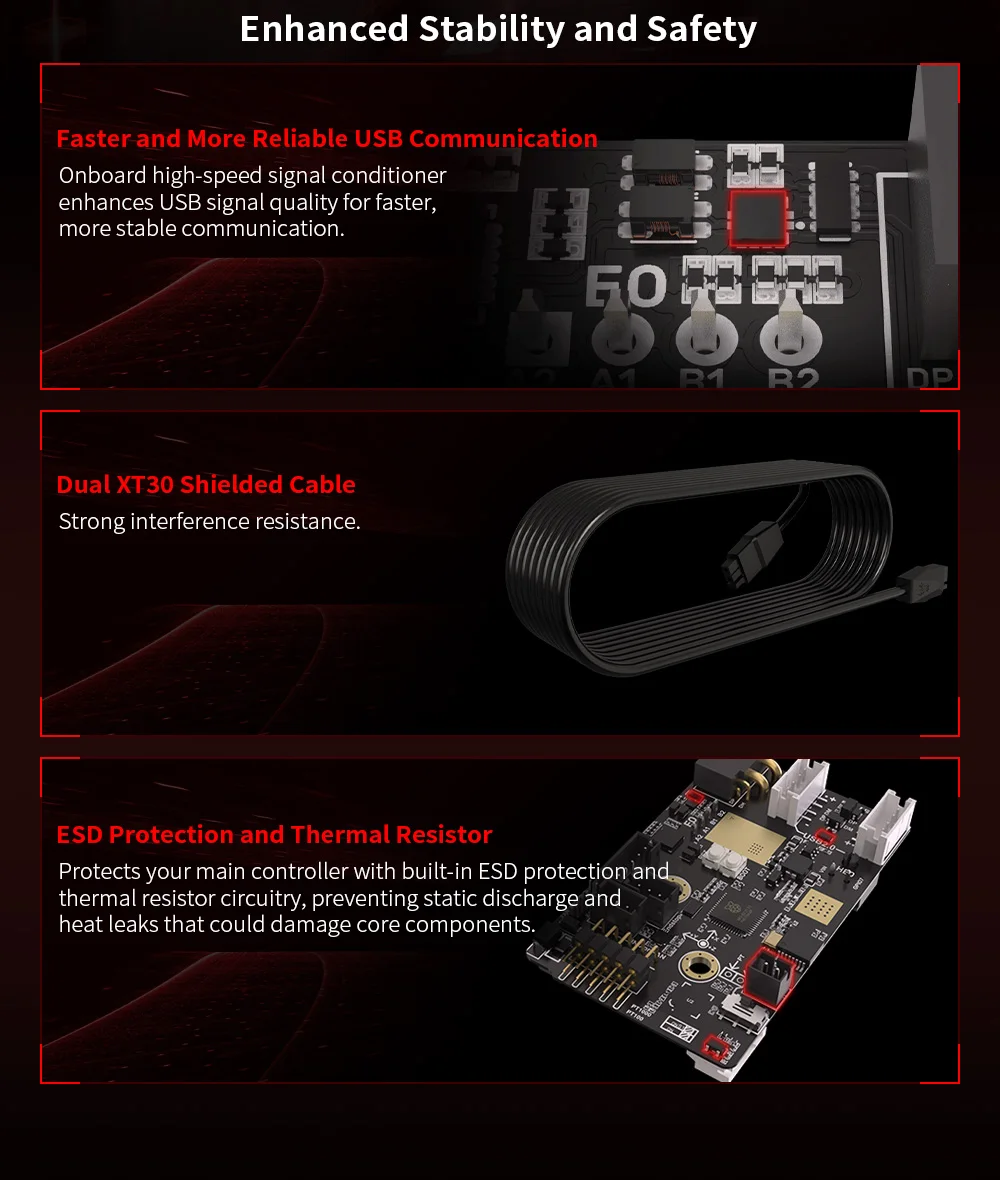

1. The board has reserved BOOT and RESET buttons. Users can use USB to enter the DFU mode to update firmware
2. Thermistor can select pull-up resistance value through jumper, in this way to support PT1000 (2.2K pull-up resistance), convenient for customers DIY use
3. Onboard 2-way CNC fan, 1 way 4-wire fan interface
4. Proximity switch, CNC fan, 4-wire fan support VIN/12V/5V voltage selection
5. Onboard SPI output interface, this port is reserved with two independent IO ports, which can be used for material cut off, material blocking detection, or DIY operation of other functions
6. Onboard MAX31865, supporting 2-wire / 4-wire PT100/PT1000 option
7. CAN or USB communication is supported. The 120R terminal resistance of CAN CAN be selected through the jumper cap, and CAN ports are reserved for expansion
8. Equipped with DIY terminals, female reeds, double-way studs and screws, which greatly meet customers' DIY needs
EBB SB2240 CAN V1.0
Parameter:
- Appearance size: 68.5mm*42.5mm
- Microprocessor: Arm® 32-bit Cortex®-M0+ CPU STM32G0B1CBT6 64MHz
- Input voltage: DC12V-DC24V 9A
- Logical voltage: DC 3.3V
- Heating interface: heating rod (E0), maximum output current: 5A
- Onboard sensor: ADXL345
- Fan interface: two CNC fans (FAN0, FAN1). One four-wire fan port.
- Fan port Maximum output current: 1A, peak value 1.5A
- Expansion interface: EndStop, ABL, RGB, PT100/PT1000, USB interface, CAN interface, SPI interface
- Motor drive: onboard TMC2240
- Driving mode: SPI
- Stepping motor interface: EM
- USB communication interface: USb-type-C
Feature:
1. More comprehensive circuit protection
2. Higher power and lower heat generation
3. The function is not easy to heat and damage, and the service life is longer
4. he mainboard has reserved BOOT and RESET buttons. Users can use USB to enter the DFU mode to update firmware
5. Thermistor can select pull-up resistance value through jumper, in this way to support PT1000 (2.2K pull-up resistance), convenient for customers DIY use
6. Onboard 2-way CNC fan, 1 way 4-wire fan interface
7.USB power-on through the jumper cap selection, effectively isolate the motherboard DC-DC and USB5V
8. Proximity switch, CNC fan, 4-wire fan support VIN/12V/5V voltage selection
9. Onboard SPI output interface, this port is reserved with two independent IO ports, which can be used for material cut off, material blocking detection, or DIY operation of other functions
10. Onboard MAX31865, supporting 2-wire / 4-wire PT100/PT1000 option
11. CAN or USB communication is supported. The 120R terminal resistance of CAN CAN be selected through the jumper cap, and CAN ports are reserved for expansion
If you need other resources for this product,please visithttps: //github.com/bigtreetech/

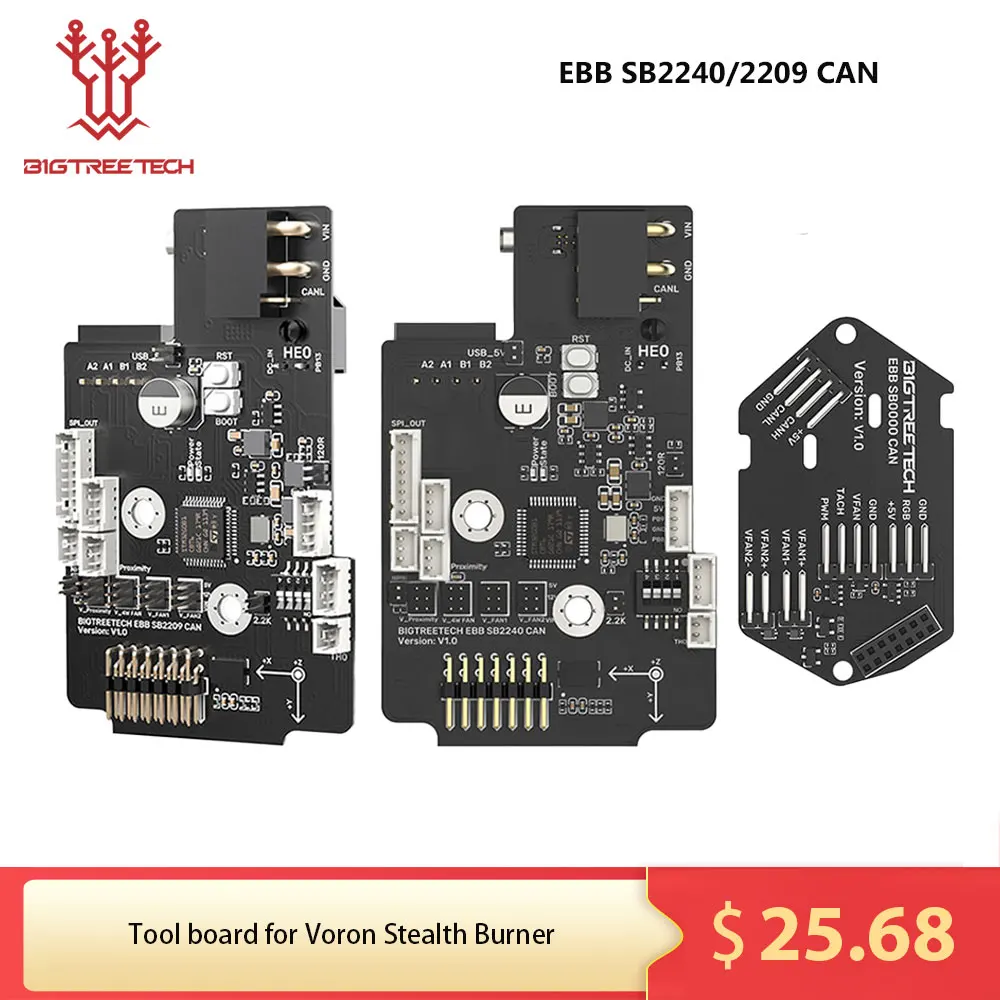

EBB SB2240/2209 CAN
CAN/USB-C Communicationl TMC2240/2209 Driver For VORON StealthBurner
