Descripción
USB cable Features:
Input:5V 2-4A
Output:7.4V-8.4V
Conversion efficiency:92% (DC-DC Efficient conversion rate)
USB plug Specifications:USB2.0
length:150cm
Note:
1.In order to make your camera work better,please use a high-quality mobile power, mobile power bank is output guarantee of at 5V 2A to 4A current. When the power isn't enough, will not start or can't shoot properly, recommended that a separate USB power supply interface current is 2.4A, 3A will be better.
2.Turn off the smart sleep mode of the power bank and camera, or extend the camera standby time setting to unlimited.
3.Don't use the computer USB supply for the camera,because most computer USB 2.0 output voltage is 5V.But the current is less than 500mA.
4.Since the camera itself does not support the fast charging function, some USB ports with quick charging function can't start the quick charging mode of 5V 2.4A-3A, resulting in insufficient power supply.It's not recommended to use a mobile phone USB charger and multi-interface USB charger.
Descriptions:
1.DC drive cable can't only play the role of power adapter,while also serving to effectively suppress harmonic current noise.
2.High-quality chips,DC-DC converter,high conversion efficiency.
3.Good stability,can output high current,quiescent current is small.
4.DC drive cable connected power bank supply for digital cameras, power bank capacity:8000-30000mAh,equal to the new battery in the camera's power many times.When you turn on the flash to take pictures or video,to provide uninterrupted power supply.
5.Using a wide range,suitable for all 7.2V-8.4V digital camera and video camera.Support part 9V digital products
Replace the camera battery handle grip or carry more batteries,camera insert battery grip will too heavy,is not conducive to taking pictures.
For Nikon COOLPIX P7000
For COOLPIX P7100
For COOLPIX P7700
For COOLPIX P7800
For D3100
For D3200
For D3300
For D3400
For D3500
For D5100
For D5200
For D5300
For D5500
For D5600
For Df
And more models Compatible with dummy battery EN-EL14
(Please check your original Power Adapter Charger model before placing an order)
Package Includes:

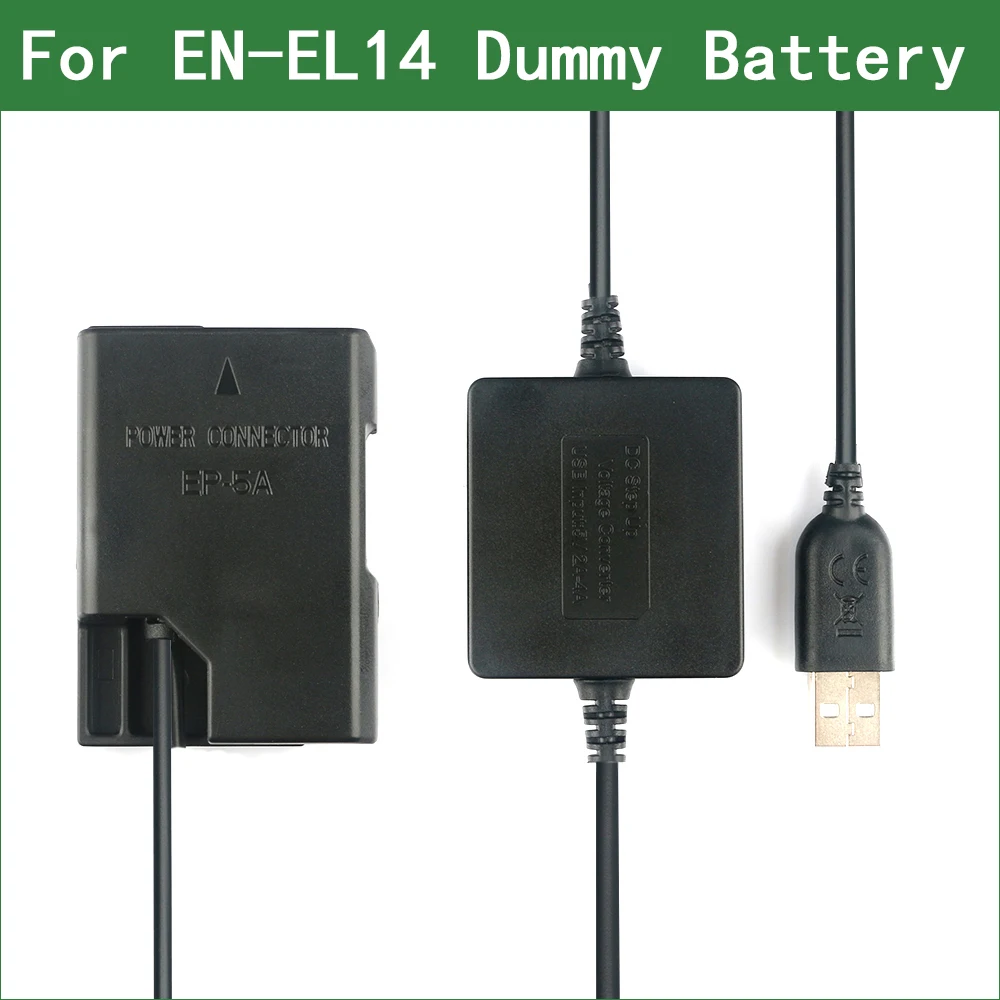

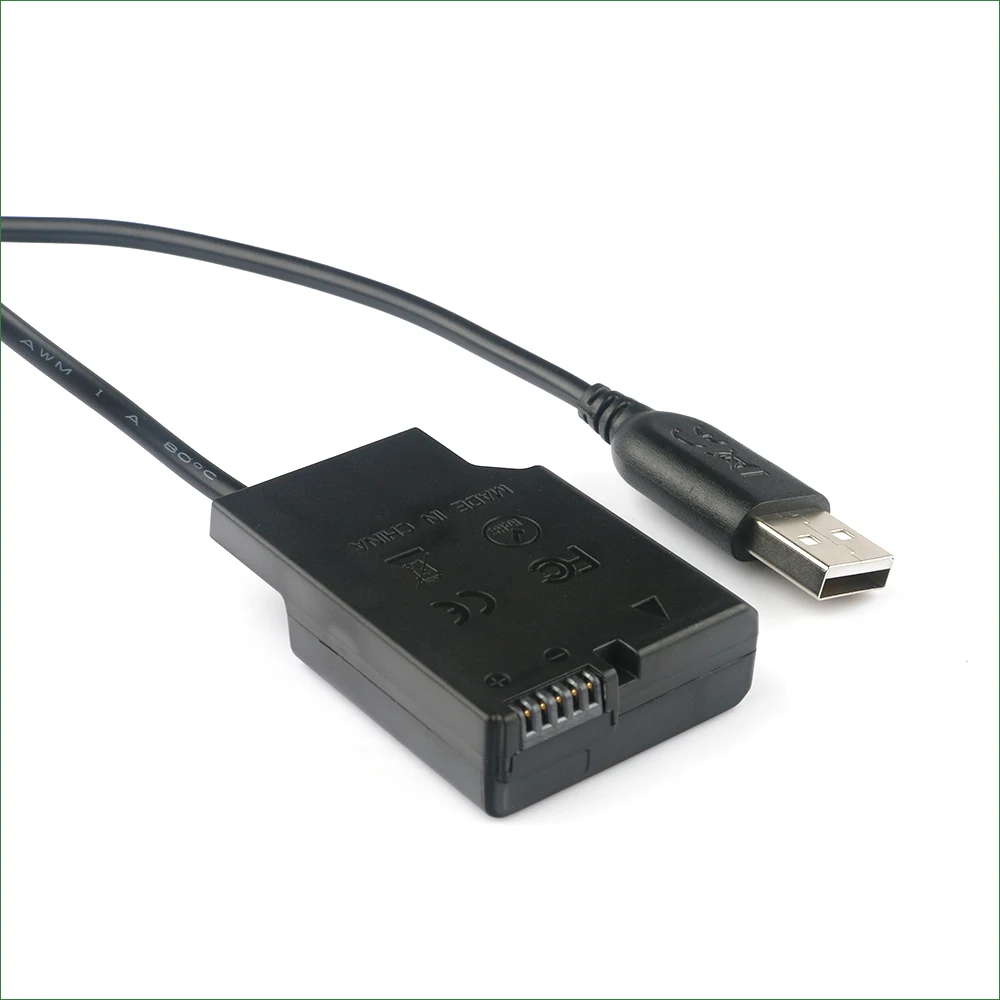

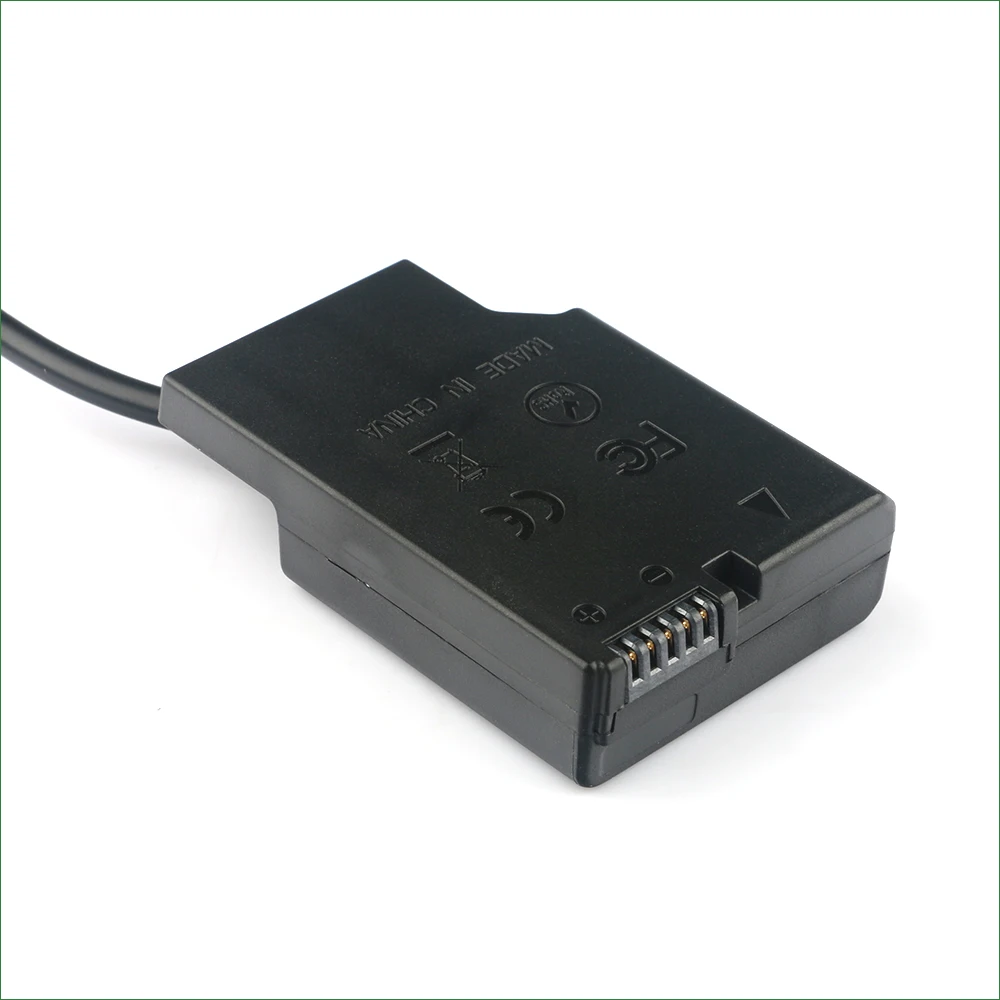

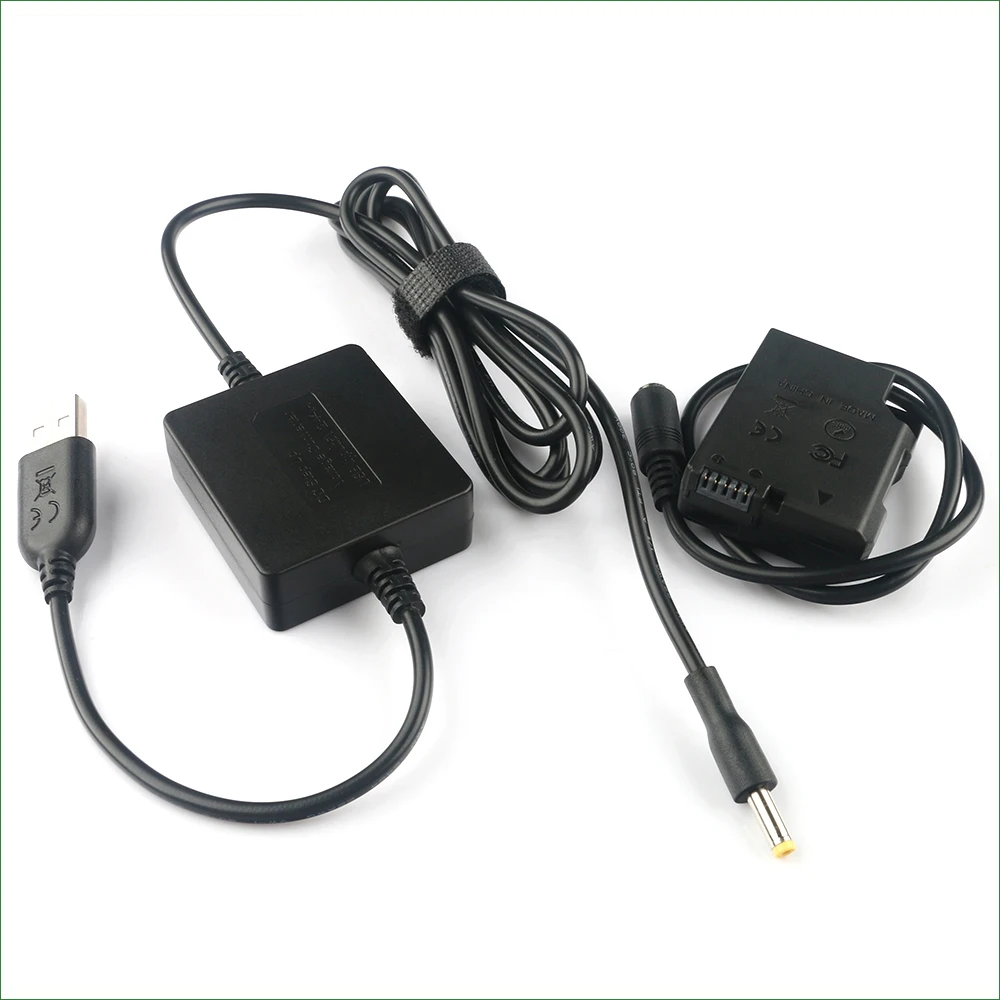

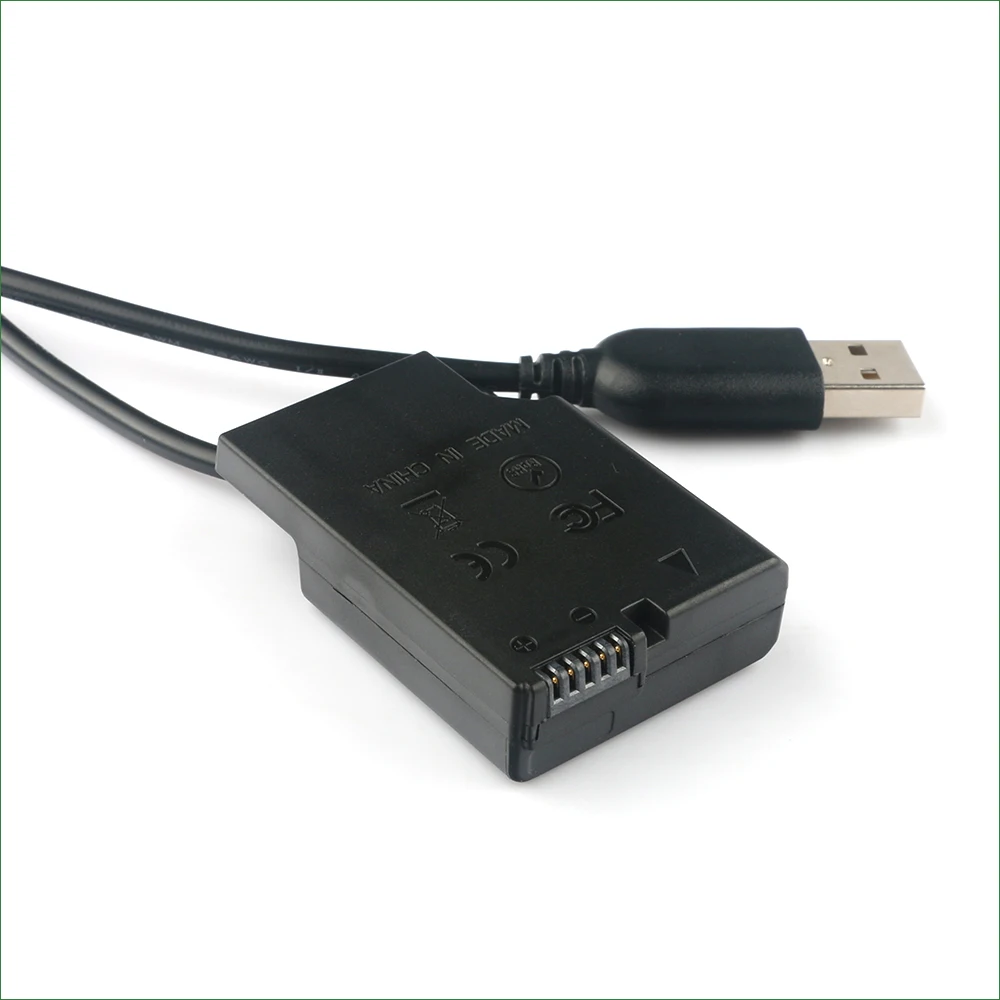

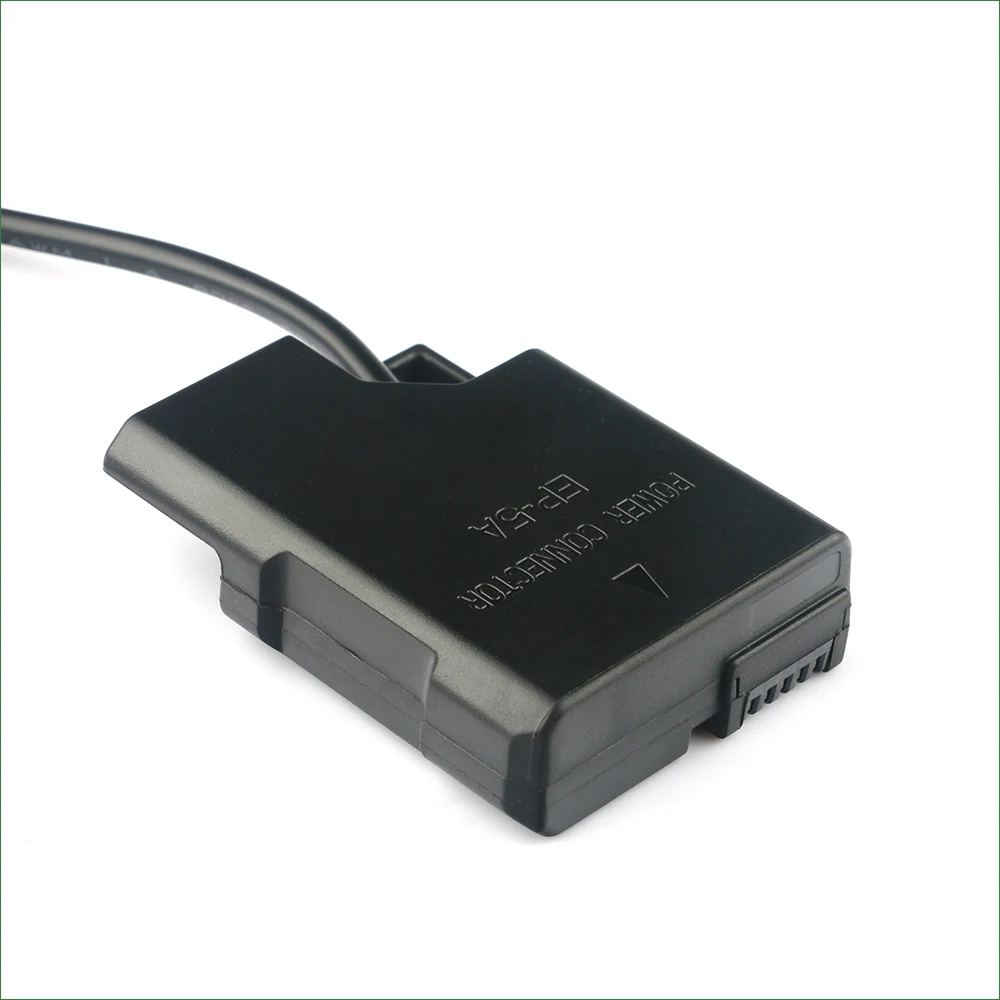

1x EP-5A DC Coupler(EN-EL14 fake battery)
1x USB Cable Built-in Voltage Improving Circuit Board,
If you use "DC drive cable" and Power Bank:
We notice a buyer feedback that, use our prodcuts can start his camera, but when shooting, the camera shut down. we'd like to explain here, we provide the the DC coupler and the USB cable adpater only. For this customer's case, proves our products can successfully connect the power, and the cable adapter successfully improves the voltage. But when shooting, the camera shut down, this the power source's problem.This situation,Please use a power source at least DC 5V 2.4A, DC 3A is better. To solve this problem, you just need to change a power source.
Choose a quality power bank, there are too many power banks on the market. There are some mobile power parameters that mark the fake output, they don’t allow to draw higher current, when you shoot, it's bond to draws higher power than you start the camera, then the power bank stop supplying the power, then the camera shut down. We recommend: such as the Xiaomi 20000mAh (model: PLM05ZM), which allows maximum DC output DC 5.1V 3.6A, Xiaomi 10000mah Pro (model: PLM03ZM) or Zmi 20000mah (model:QB820), CHOETECH 10400mAh (model:B618T) and other well-known and reliable brand. Recommended 5V USB power port current 2.4A and above, 3A is better. some power supplies use chips that support large current discharges, such as the 10A switching current of the TI chip TPS61088, fits instantaneous high power needs of the camera.
Tips: General digital battery printed above parameters 7.2V / 7.4V labeled battery, it is the camera's minimum operating voltage, these batteries need to use 8.4V charger, full of power, charger 8.4V said no-load voltage, operating voltage and no-load voltage are two different concepts. External power used in the camera, You need to have enough power to supply, the camera is a load,the operating voltage is far lower than the no-load voltage.Therefore, the Camera adapter's no-load voltage is usually between 8V-9V (Note: the multimeter test is no-load voltage).
(DC drive cable,customized production,strict inspection,High quality chip,efficient conversion rate.)
Low input costs, Replace battery grip , suitable for indoor and outdoor.
