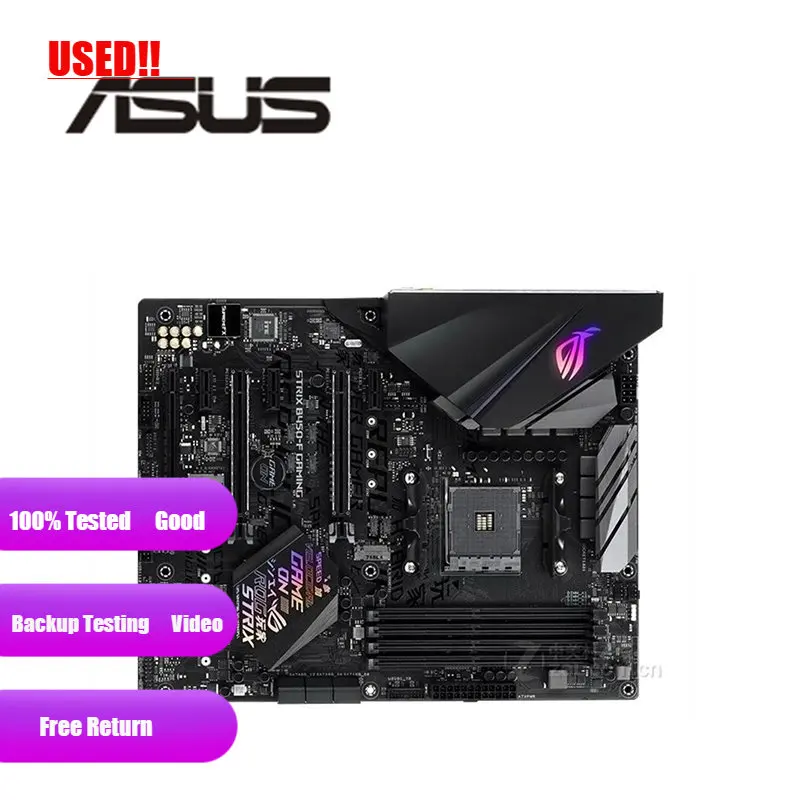

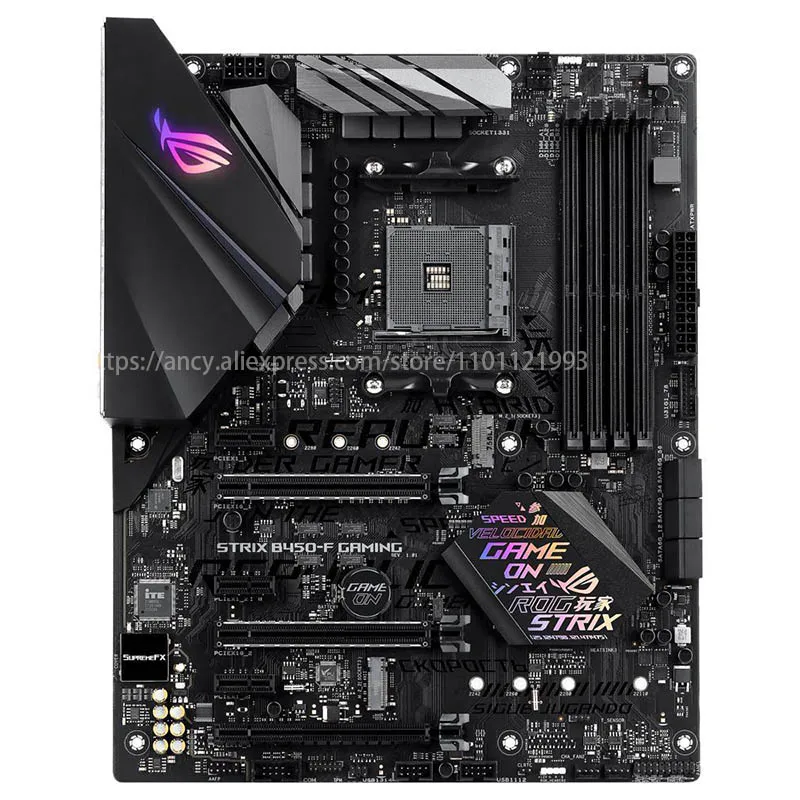

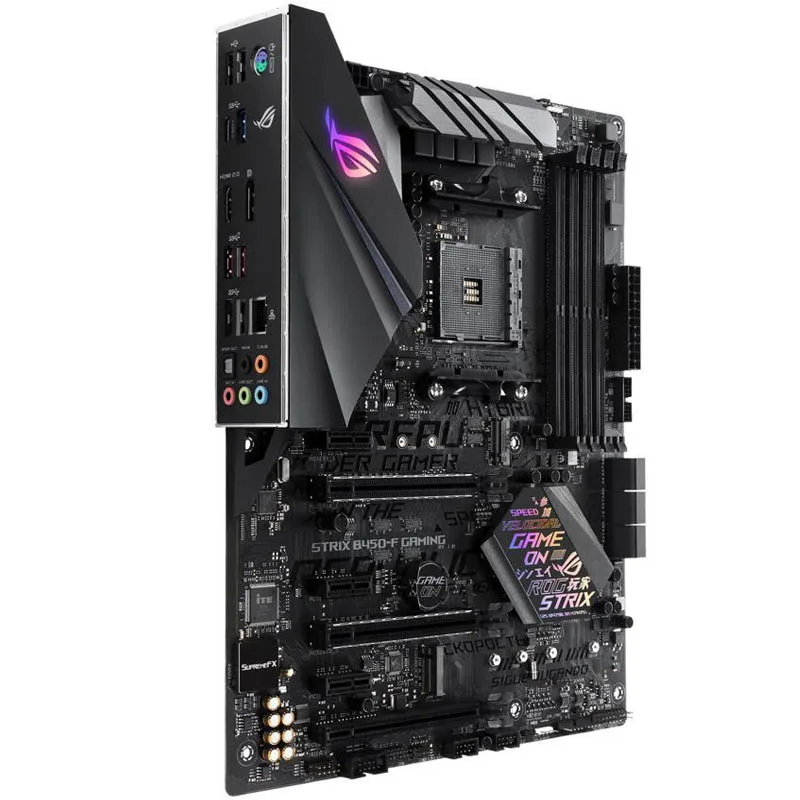

ASUS-zócalo de placa base para juegos ROG STRIX B450-F, AM4 DDR4 para AMD B450M B450, placa base de escritorio Original

AMD AM4 socket 3rd Gen/ 2nd Gen/ 1st Gen AMD Ryzen™/ 2nd Gen/ 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics/Athlon™ with Radeon™ Vega Graphics processor
chipset
AMD B450
RAM
4 x DIMM, support up to 128GB, DDR4 3600(OC)/3466(OC)/3400(OC)/3200(OC)/3000(OC)/2800(OC)/2666/2400/2133 MHz Non-ECC, Un-buffered memory
4 x DIMM, support up to 128GB, DDR4 3200(OC)/3000(OC)/2800(OC)/2666/2400/2133 MHz Non-ECC, Un-buffered memory *
Support dual channel memory architecture
* Please visit www.asus.com or refer to the user manual for the memory qualified supplier support list (QVL).
3rd Generation AMD Ryzen™ Processor
Graphic display
Integrated in AMD Ryzen™ processor with Radeon™ Vega Graphics
Support Multi-VGA output: HDMI/DisplayPort interface
-Support HDMI 2.0b: display resolution up to 4096 x 2160 @ 60 Hz
-Support DisplayPort 1.2: display resolution up to 4096 x 2160 @ 60 Hz
Multiple graphics display technology
Support AMD 3-way CrossFireX™ technology
AMD Ryzen™ 2nd Generation/Ryzen™ 1st Generation Processor
Expansion slot
2 x PCIe 3.0/2.0 x16 expansion card slots (x16 or x8/x4)
1 x PCIe 2.0 x16 expansion card slot (maximum x4 mode) *1
3 x PCIe 2.0 x1 expansion card slot
AMD Ryzen™ with Radeon™ Vega Graphics processor
AMD B450 chipset
1 x PCIe 3.0/2.0 x16 expansion card slot (x8 mode)
Storage function (depending on shipment)
1 x M.2 Socket 3, supports M key, 2242/2260/2280 type storage devices (SATA & PCIE 3.0 x 4 mode)*3
1 x M.2 Socket 3 slot,, support M key, 2242/2260/2280/22110 type storage devices (PCIE 3.0 x 4 mode)*4
2 x SATA 6Gb/s ports
AMD Ryzen™ with Radeon™ Vega Graphics processor: *2
1 x M.2 Socket 3 slot, support M key, 2242/2260/2280 type storage devices (SATA & PCIE 3.0 x 4 mode)*3
AMD Ryzen™ 2nd Generation/Ryzen™ 1st Generation Processors: *2
AMD B450 chipset:
4 x SATA 6Gb/s interface,
Support Raid 0, 1, 10
Internet function
Anti-surge LANGuard network security protection
ROG GameFirst game low latency technology
Intel® I211-AT, 1 x Gigabit LAN
Sound effect
-Sonic Studio III intelligent sound management software + Sonic Studio Link audio link
-Support up to 32-Bit/192kHz playback *5
ROG SupremeFX 8-channel high-definition audio codec S1220A
-Support: Audio interface detection (Jack-detection), multi-source independent output (Multi-Streaming) technology, custom front panel audio jack function
-Dual op amp
-Front and rear earphone output impedance sensing
-High-quality 120dB stereo playback output and 113dBSNR recording input
-SupremeFX audio protection cable
Audio function:
-The rear panel has an optical S/PDIF digital output connection port
-Sonic Radar III sound effect radar
USB interface
2nd Generation AMD Ryzen™ / Ryzen™ with Radeon™ Vega Graphics/ 1st Generation Ryzen™ Processor:
1 x USB 3.1 Gen 1 port (1 @back,, Type-C)
3 x USB 3.1 Gen 1 ports (3 @back, blue)
2 x USB 3.1 Gen 1 port
AMD B450 chipset:
2 x USB 3.1 Gen 2 ports (2 @back, red)
6 x USB 2.0 ports (2 @back,, 4 @front)
ROG function
ROG RAMCache II
GameFirst IV
ROG CPU-Z
Pre-mounted I/O Shield
Overwolf
other functions
ASUS features:
-ASUS Grid
Turbo APP network acceleration master
-ESD protection is suitable for LAN, audio, KBMS and USB3.1/3.0/2.0 interfaces
Digi+ digital power supply design
-Aura lighting effects are synchronized with compatible ASUS ROG devices
Fan Xpert4
TPU
-EPU
AURA:
-One-key system optimization! 5-fold optimization adjustment keys integrate TPU, EPU, DIGI+ digital power control, Fan Xpert 4, and Turbo App to provide better CPU performance, energy saving, accurate digital power control, system heat dissipation and control Usage rate of the application.
-Fan Xpert 4 adopts automatic fan adjustment function and multiple thermistor options to provide optimized system heat dissipation control
-Auto tuning, TurboV, GPU Boost
ASUS EPU intelligent energy-saving processor:
Player Guardian:
-Memory overcurrent protection
-Highly durable components
-SafeSlot high-strength security slot
ASUS features:
-Ai Charger charging technology
-AI Suite 3 (Smart Butler 3rd Generation)
ASUS EZ DIY:
-ASUS CrashFree BIOS 3
-ASUS EZ Flash 3
ASUS Q-Design:
-ASUS Q-Shield
-ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)
-ASUS Q-Slot
-ASUS Q-DIMM
-Aura lighting effect control
-Aura RGB light with header
5th generation dual intelligent processors, 5 optimizations

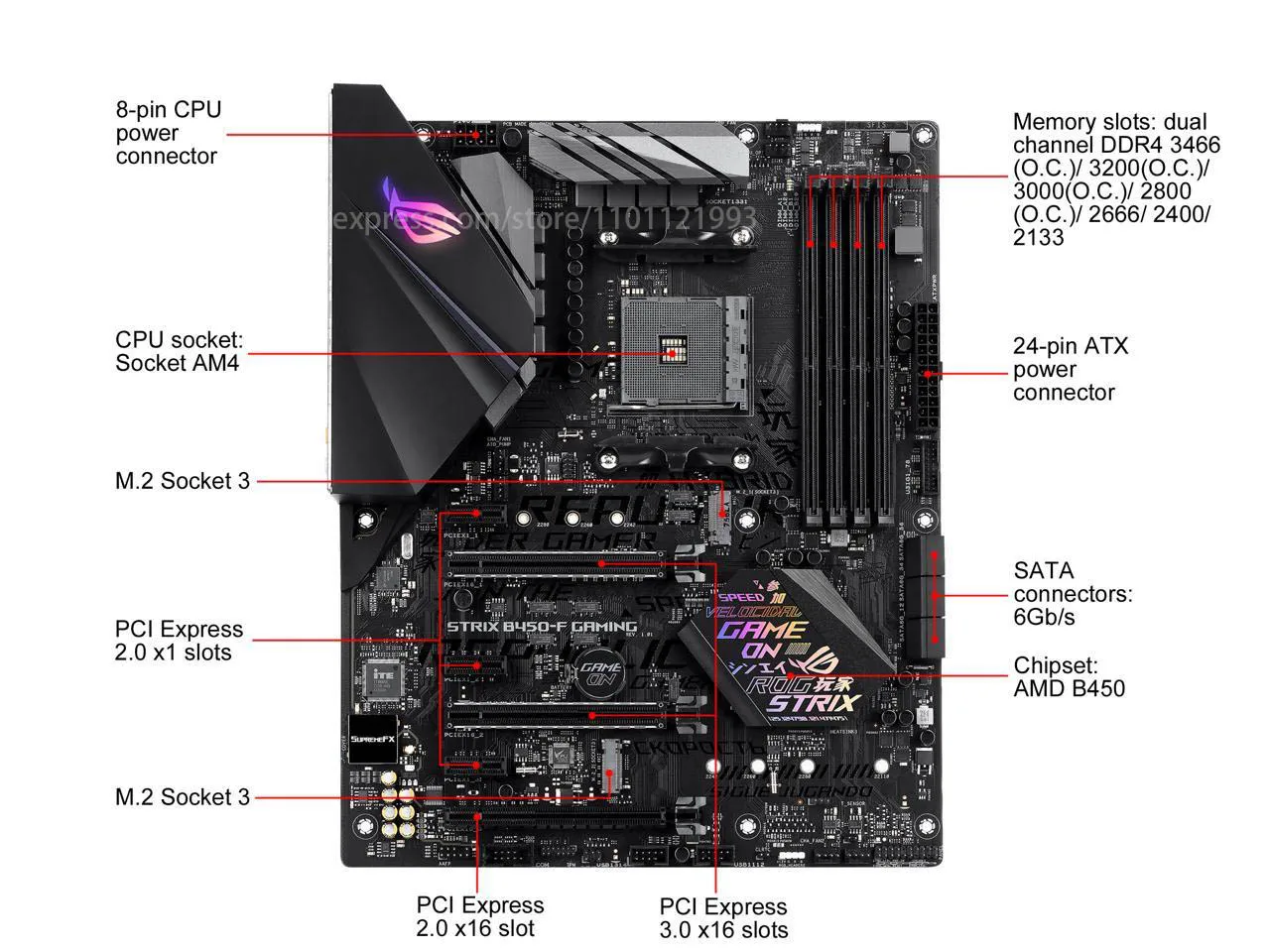

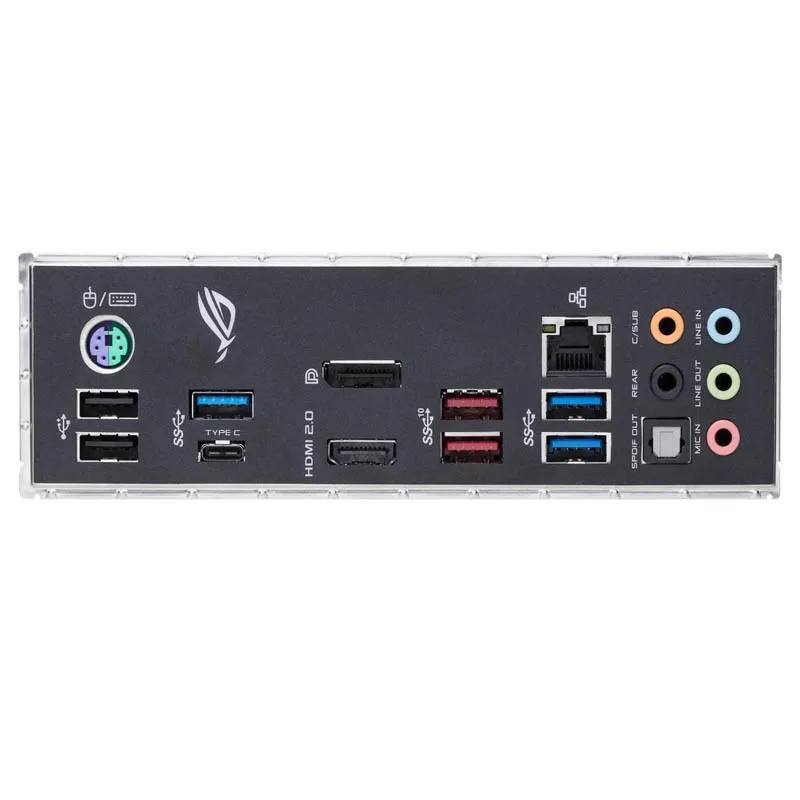

Backplane I/O interface
2 x USB 3.2 Gen 2 (red) Type-A,
4 x USB 3.1 Gen 1 (blue)
1 x DisplayPort interface
1 x HDMI port
1 x LAN (RJ45) port
2 x USB 2.0 ports
1 x optical S/PDIF digital audio output interface
5 x audio jack
1 x PS/2 keyboard and mouse interface
Internal I/O interface
1 x system panel socket
1 x USB 3.2 Gen 1 port, expandable to 2 sets of external USB 3.2 Gen 1 ports
1 x M.2 Socket 3 slot, support M key, 2242/2260/2280 type storage devices (SATA & PCIE 3.0 x 4 mode)
1 x M.2 Socket 3 slot, support M key, 2242/2260/2280/22110 type storage devices (PCIE 3.0 x 4 mode)
2 x Aura RGB light strip header
6 x SATA 6Gb/s device connection sockets
1 x TPM header
2 x USB 2.0 ports can expand 4 sets of external USB 2.0 ports
1 x serial port connection socket (COM)
1 x CPU fan power socket
3 x chassis fan connector
1 x CPU optional fan interface
1 x 24-pin EATX motherboard power socket
1 x 8-pin EATX 12V power connector
1 x front panel audio interface (AAFP)
1 x temperature sensor interface
1 x AIO_Water pump interface
1 x Clear CMOS jumper
