Overview
M12 Mount lens mainly for Arduino and Raspberry Pi cameras, please contact us for other platforms.
Why we need it: In case you’re disappointed with the fixed official cameras and want precise control of what gets into the frame of your image – like how wide and how close it is
What else is needed: It makes a perfect combo with “Arducam B0031 or B0103”, a more flexible and slightly larger camera module for Raspberry Pi that uses M12 lenses to frame up the best image. You can’t use this lens directly with the official Raspberry Pi Camera Module V2 because an M12 holder or 18/20mm hole spacing of the camera board is required
How to use it: Get a camera with an M12 lens holder, and screw one lens slowly into the M12 lens holder until you see a clear and sharp image on a video screen. Screw it out a little if you want to shoot objects close to the camera.
Specifications
Optical Format: 1/1.7”
Effective Focal Length: 8mm
BFL: 8mm
35mm equivalent focal length: 67mm
HFOV on 1/1.7” sensor: 55.6°
HFOV on 1/4” RPi Camera: 30°
F/NO: 1.8
Mount: M12
Length Holder Height: 13mm
Size: 17mm x 33mm
Weight: 9g
IR Sensitivity: sensitive to visible light, with 650nm IR filter
Package Including

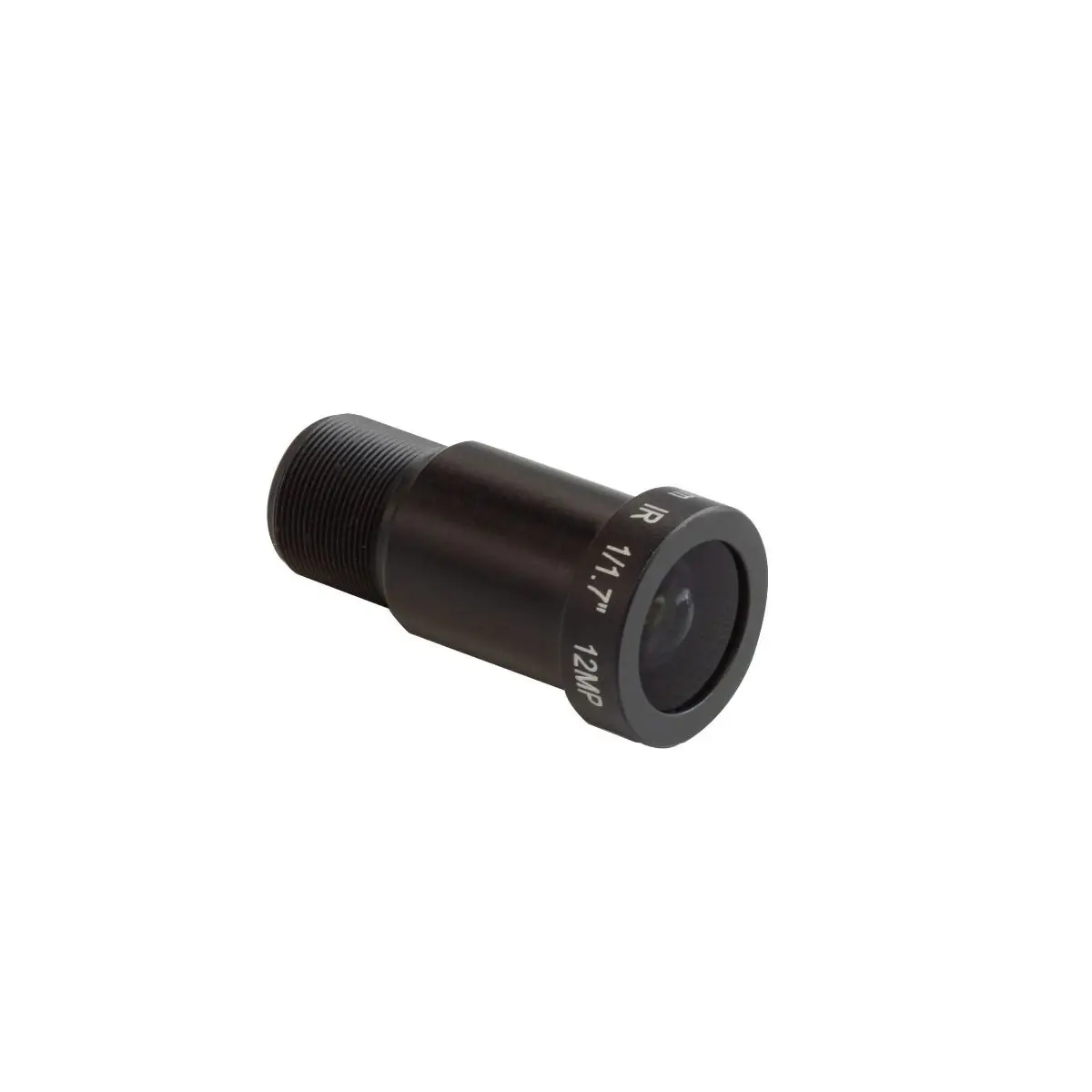

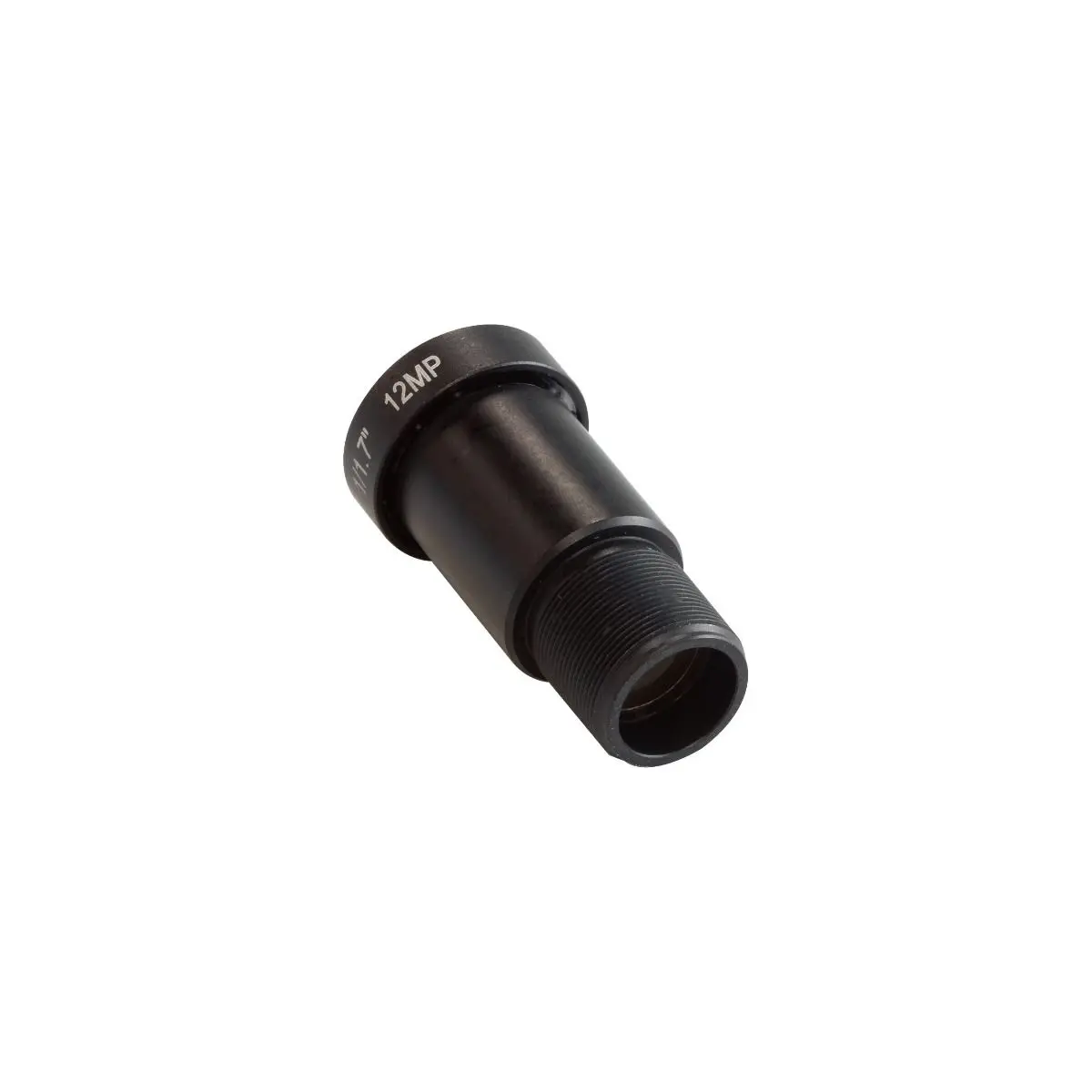

Arducam 1/1.7″ M12 Mount 8mm Focal Length Camera Lens M1708ZH03
Note
Lens Holder NOT included, you need to order it separately.
Typically lenses with a larger Field of View will require shorter holders, and that means you need to change the lens holder if the lens does not focus at all.
Lens holder options
SKU
Height
Hole Spacing
Material
16.5mm
20.0mm
Metal
14.5mm
20.0mm
Metal
13.0mm
20.0mm
Metal
12.0mm
18.0mm
Plastic
