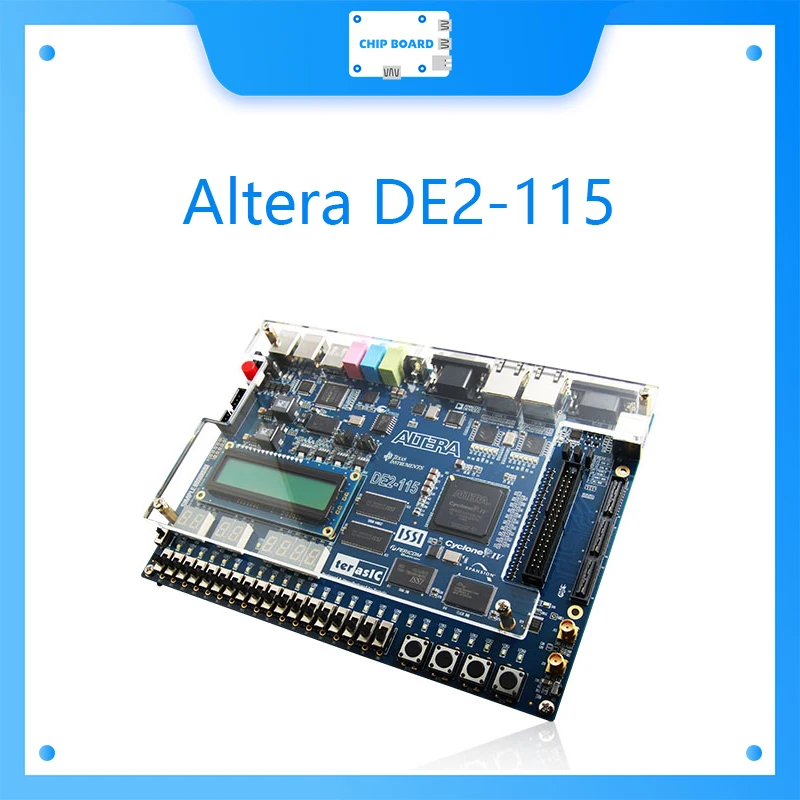

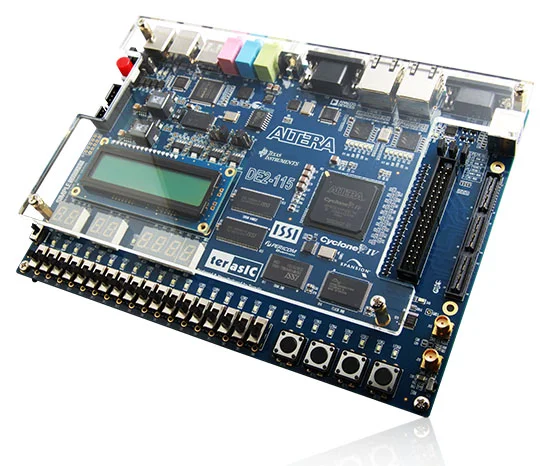

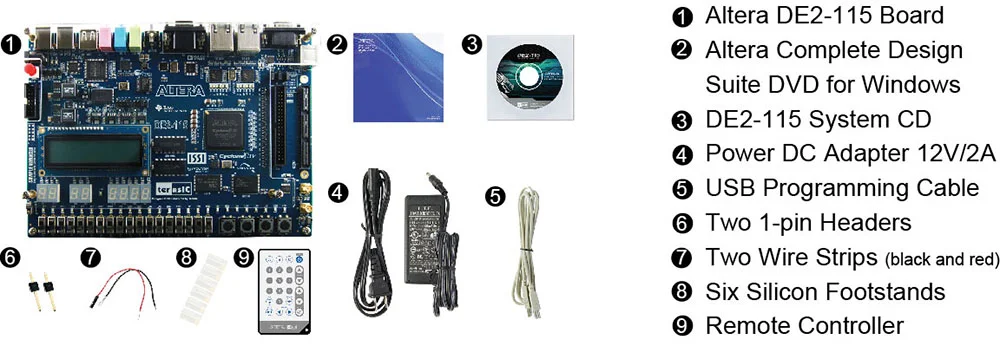

Altera DE2-115 Development and Education Board
The DE2 series has consistently been at the forefront of educational development boards by distinguishing itself with an abundance of interfaces to accommodate various application needs. Extending its leadership and success, Terasic announces the latest DE2-115 that features the Cyclone IV E device. Responding to increased versatile low-cost spectrum needs driven by the demand for mobile video, voice, data access, and the hunger for high-quality images, the new DE2-115 offers an optimal balance of low cost, low power and a rich supply of logic, memory and DSP capabilities.
The Cyclone EP4CE115 device equipped on the DE2-115 features 114,480 logic elements (LEs), the largest offered in the Cyclone IV E series, up to 3.9-Mbits of RAM, and 266 multipliers. In addition, it delivers an unprecedented combination of low cost and functionality, and lower power compared to previous generation Cyclone devices.
The DE2-115 adopts similar features from the earlier DE2 series primarily the DE2-70, as well as additional interfaces to support mainstream protocols including Gigabit Ethernet (GbE). A High-Speed Mezzanine Card (HSMC) connector is provided to support additional functionality and connectivity via HSMC daughter cards and cables. For large-scale ASIC prototype development, a connection can be made with two or more FPGA-based boards by means of a HSMC cable through the HSMC connector.

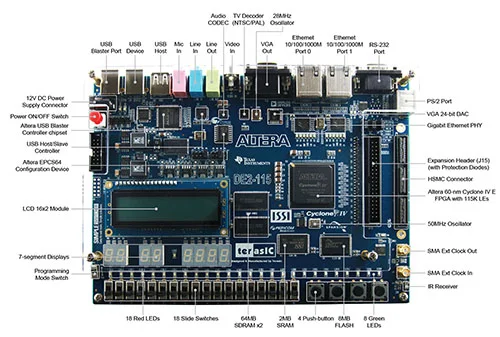

Cyclone® IV EP4CE115
114,480 logic elements (LEs)
3,888 Embedded memory (Kbits)
266 Embedded 18 x 18 multipliers
4 General-purpose PLLs
528 User I/Os
Configuration Device and USB-Blaster Circuit
EPCS64 serial configuration device
On-board USB-Blaster circuitry
JTAG and AS mode configuration supported
Memory Devices
128MB (32Mx32bit) SDRAM
2MB (1Mx16) SRAM
8MB (4Mx16) Flash with 8-bit mode

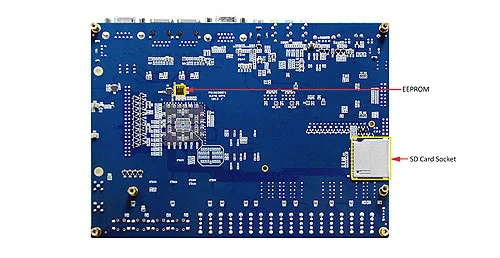

32Kbit EEPROM
Switches and Indicators
18 switches and 4 push-buttons
18 red and 9 green LEDs
Eight 7-segment displays
Audio
24-bit encoder/decoder(CODEC)
line-in, line-out, and microphone-in jacks
Display
16x2 LCD module
On-Board Clocking Circuitry
Three 50MHz oscillator clock inputs
SMA connectors (external clock input/output)
SD Card Socket
Provides SPI and 4-bit SD mode for SD Card access
Two Gigabit Ethernet Ports
Integrated 10/100/1000 Gigabit Ethernet
Supports Industrial Ethernet IP cores
172-pin High Speed Mezzanine Card (HSMC)
Configurable I/O standards (voltage levels: 3.3/2.5/1.8/1.5V)
USB Type A and B
Provide host and device controller compliant with USB 2.0
Support data transfer at full-speed and low-speed
PC driver available
40-pin Expansion Port
Configurable I/O standards (voltage levels: 3.3/2.5/1.8/1.5V)
VGA-out Connector
VGA DAC (high speed triple DACs)
DB-9 Serial Connector
RS232 port with flow control
PS/2 Connector
PS/2 connector for connecting a PS2 mouse or keyboard to the DE2-115
Remote Control
Infrared receiver module
TV-in Connector
TV decoder (NTSC/PAL/SECAM)
Power
Desktop DC input
Switching and step-down regulators LM3150MH
Connectivity

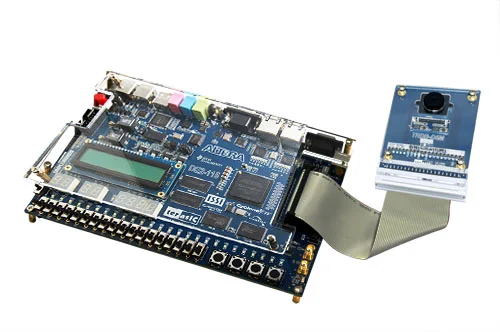

Connect D5M
Connect D5M with DE2-115

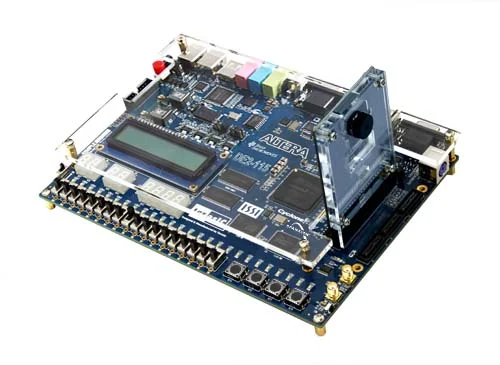

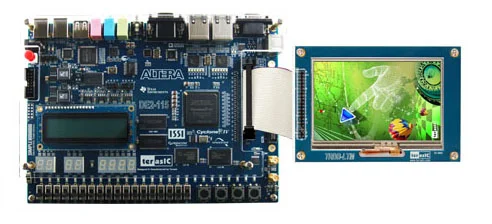

Connect LTM
Connect LTM with DE2-115

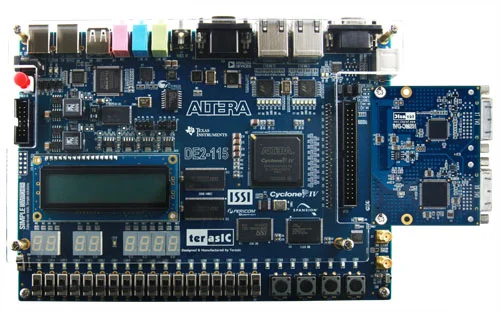

Connect DVI-HSMC
Connect DVI-HSMC with DE2-115

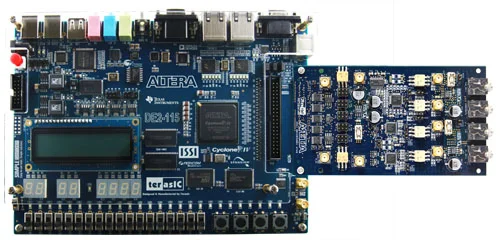

Connect ADA-HSMC
Connect ADA-HSMC with DE2-115

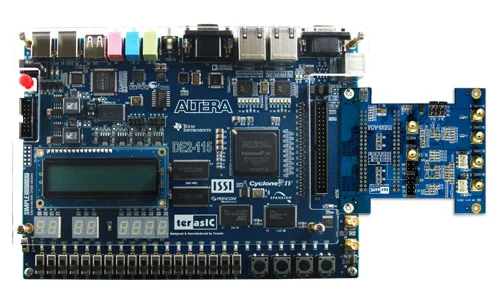

Connect DCC-HSMC
Connect DCC-HSMC with DE2-115

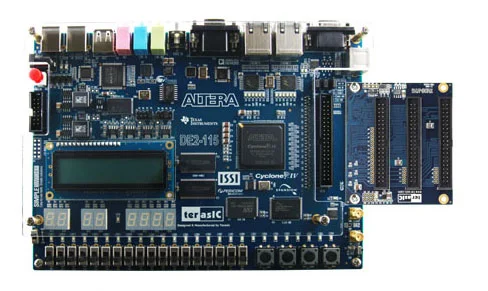

Connect HTG(M)
Connect HTG(M) with DE2-115

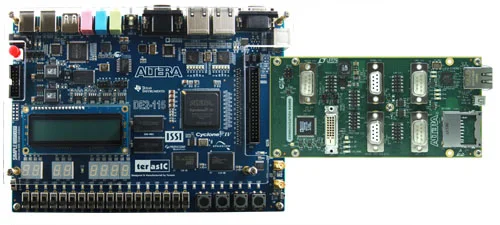

Connect COMM
Connect COMM with DE2-115
