Cable length
Color
Descripción
Brand name: ADT-LINK
Product name: USB 3.2 Type-E male to female flat cable
Product model: UFF3.2-FM-20P series
Transfer speed: USB3.2 Standard 10Gbps high speed(20Gbps within 50cm ; 10Gbps within 1 meter)
Wire length: 3~300 cm, the length can be customized,
Current capacity: 3A within 50cm ; 1.5A within 1 meter
Product application: USB3.0/3.1/3.2 internal 20Pin USB type-E front panel socket extension flat cable
S=USB-A ; C=USB-C ; W=USB-B ; F=USB-E
Cable length Description:
The length of the wire refers to the part of the visible wire. It does not include the PCB and the connector. For the wire length, please refer to the 5cm blue arrow in the figure below.
Product Model description:
Product Name
Product Model
speed bandwidth
type-E to motherboard built-in 19/20pin female extension cable
UF9T-UF1A
Gen 1x1 5Gbps
type-E to motherboard built-in 20pin type-e female extension cable
UF9T-UF6A
Gen 1x2 10Gbps
Note:
What is the hole spacing size of UF9T?

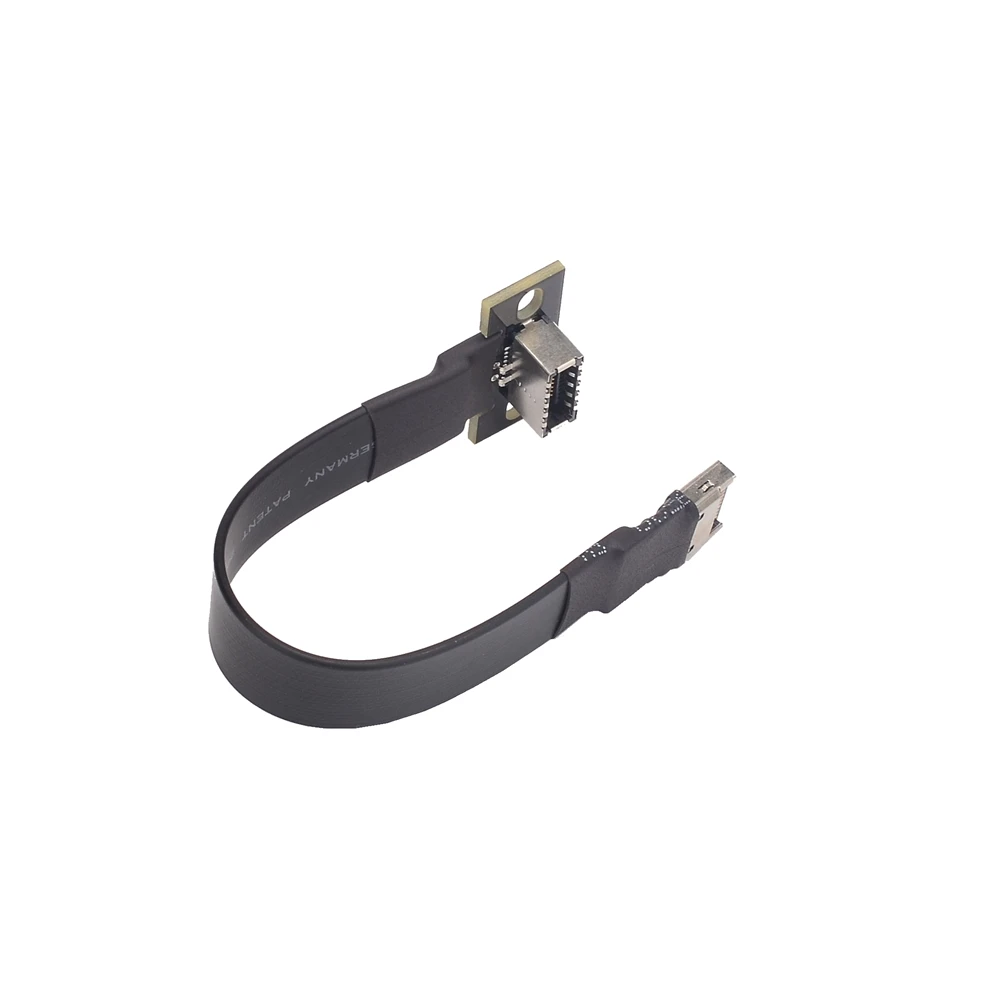

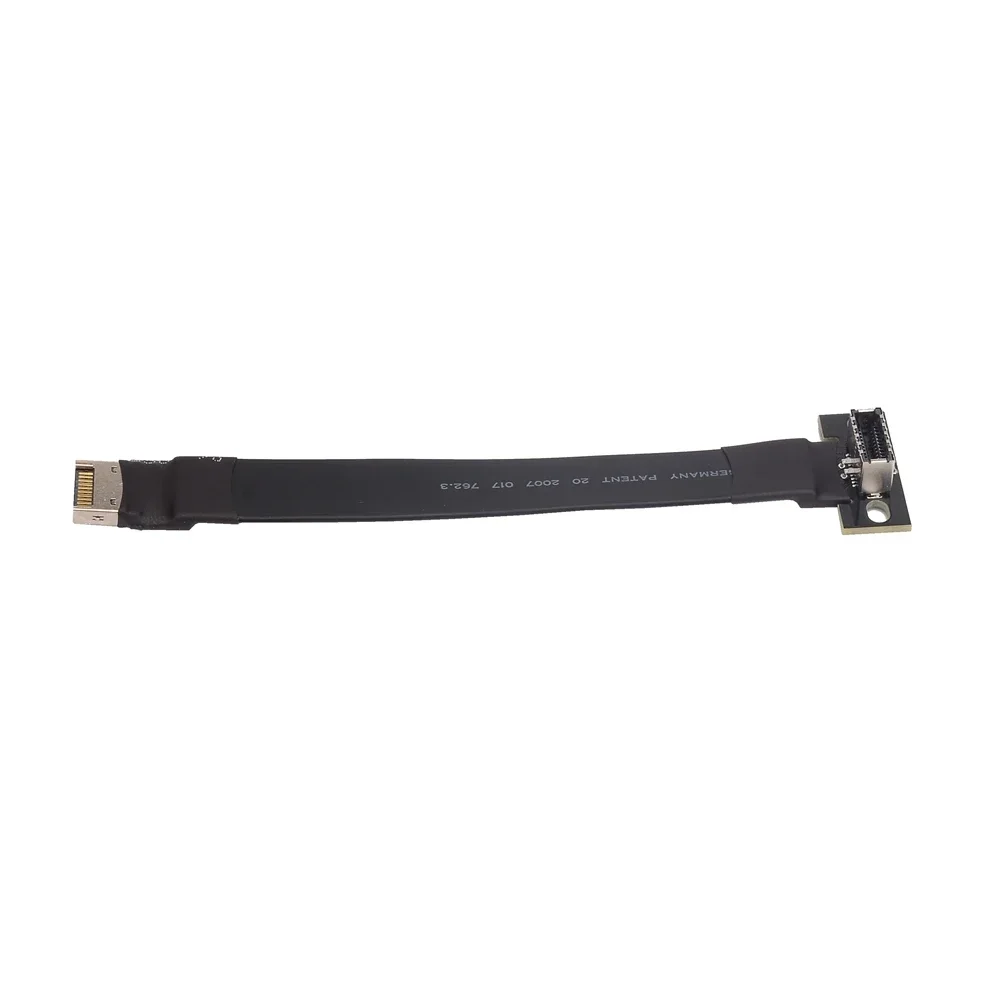

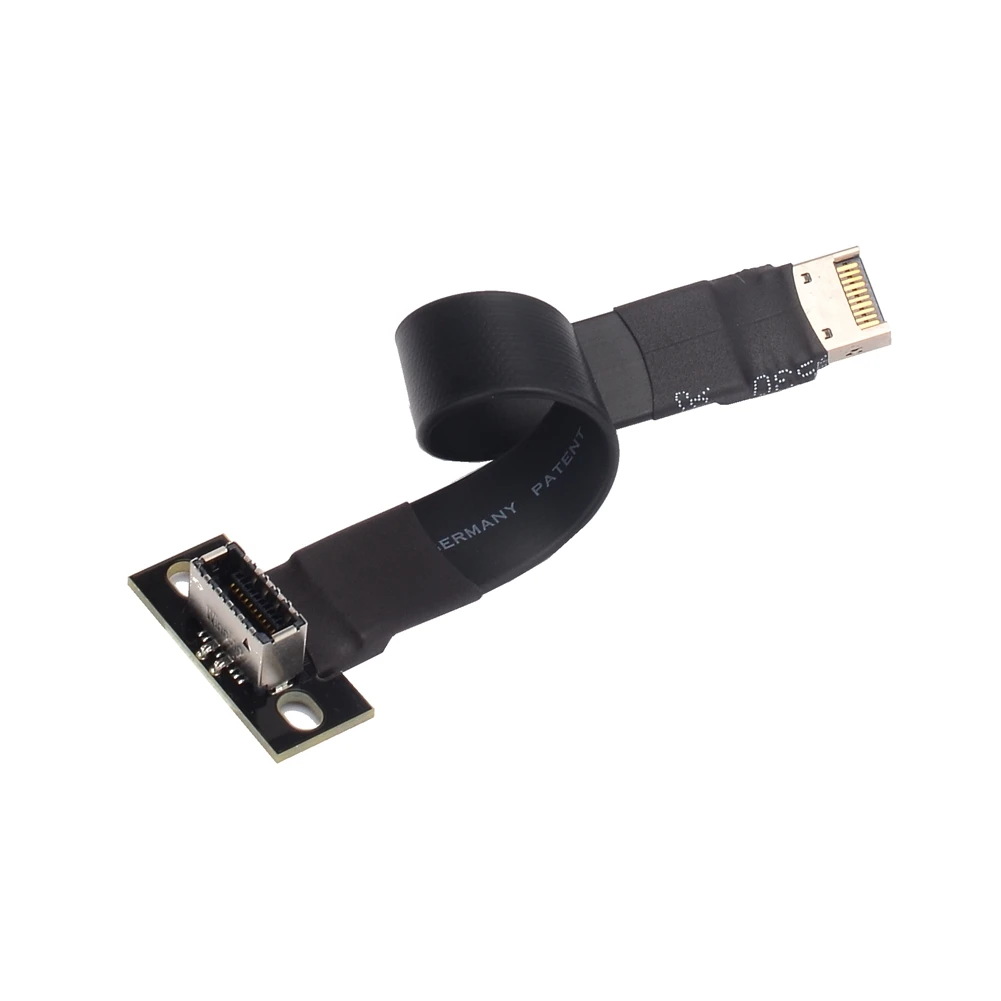

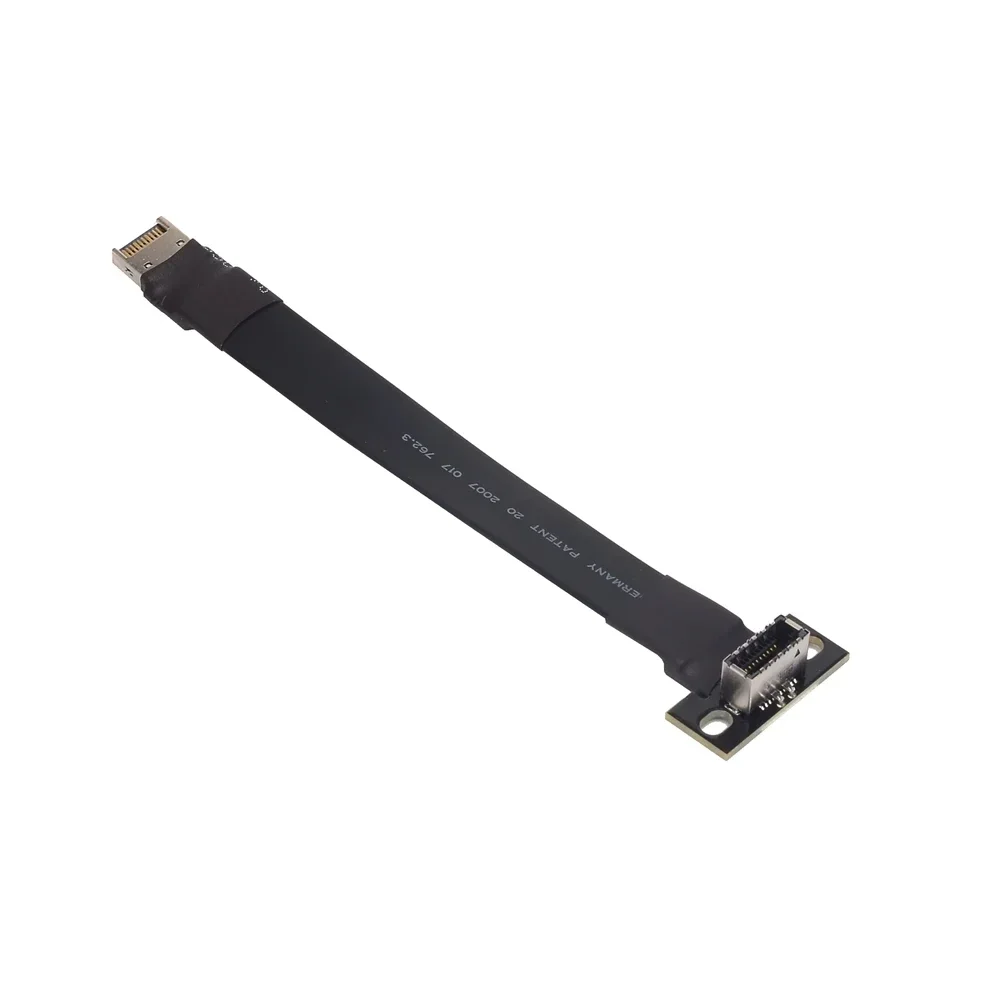

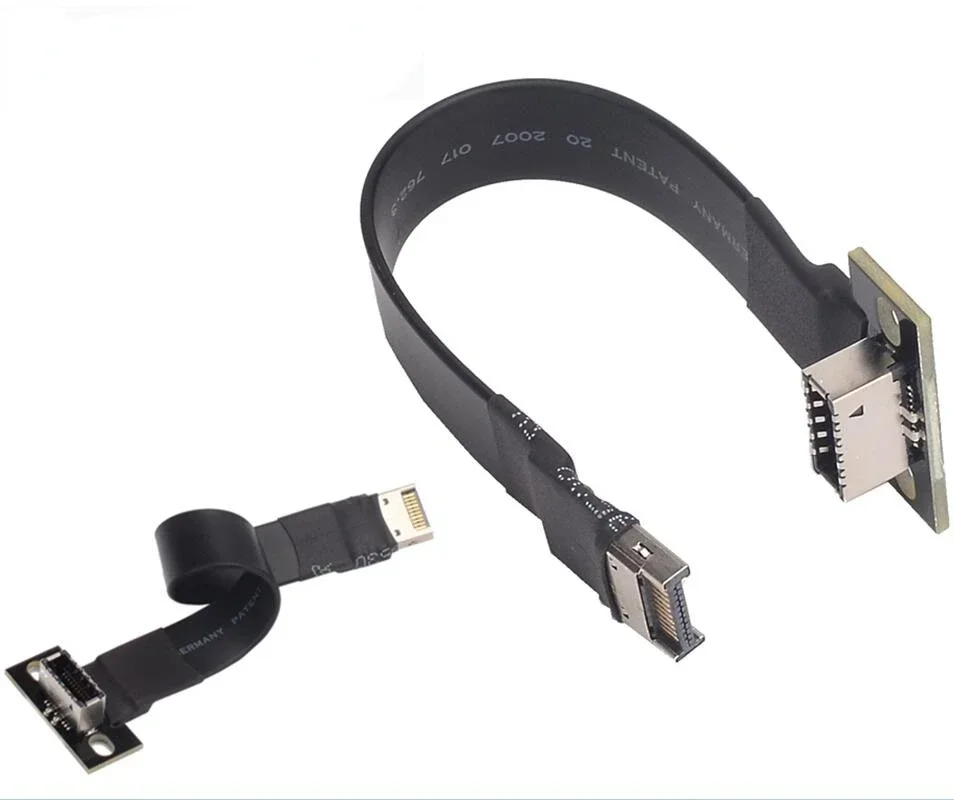

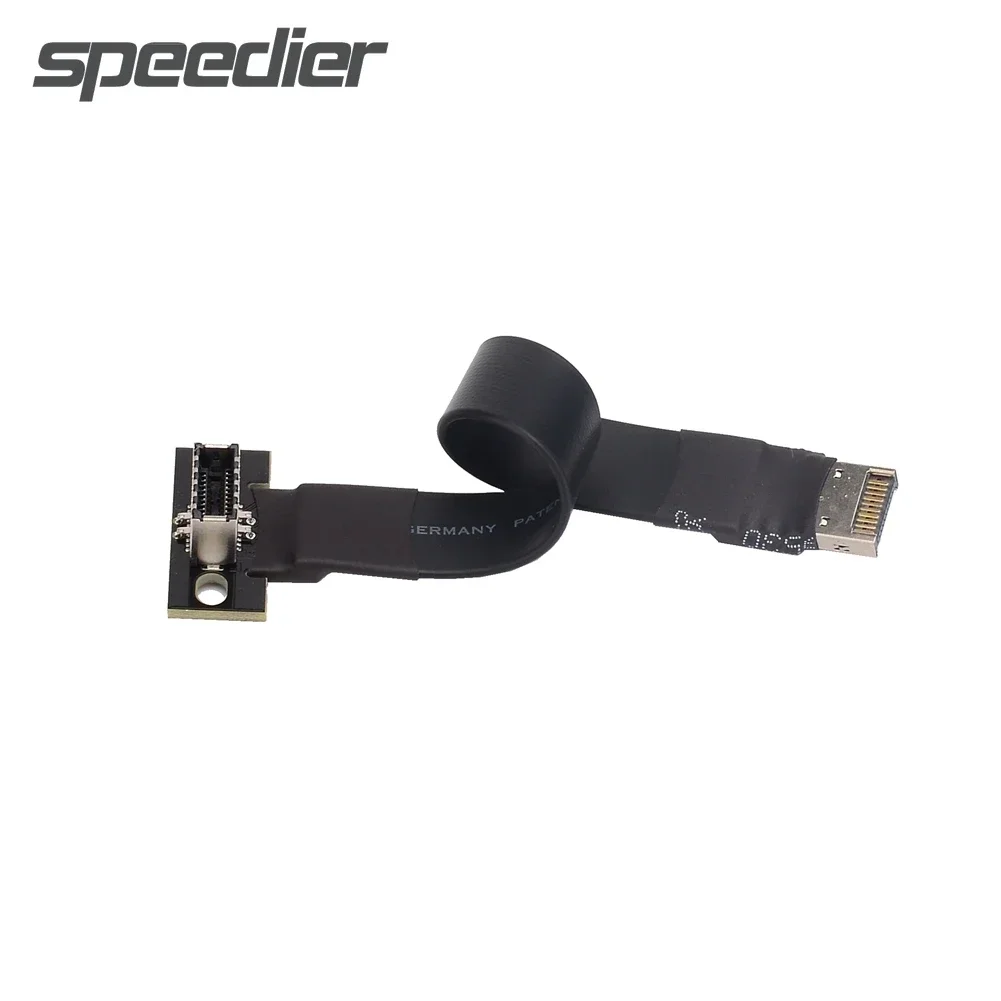

Product real shot:
Summary of technical issues:
1. Can wires and PCB connectors be split?
No, in order to purify the signal transmission and avoid the accident of wire falling off, our wire and PCB connectors is soldering and protected by the heat shrinkable tube sleeve, so the product can not be separated.
2. Cable thickness? Can it be bent?
The thickness of the wire is 1.4mm, and it can be bent and folded without affecting the use.
3. Is there any EMI shielding for Cable?
No metal shield. The extender utilizes the latest materials for EMI shielding with five sole flat cables design. This technique allows each cable to be fully covered by electromagnetic interference shielding with conducting polymer to guard against incoming or outgoing emissions of electromagnetic frequencies, minimize disturbance and degradation on performance, and reduce the weight of the extender.
