Note: If your purchase includes a power supply and you need to specify a power supply (EU, UK, US), please leave me a message with the power supply you need!

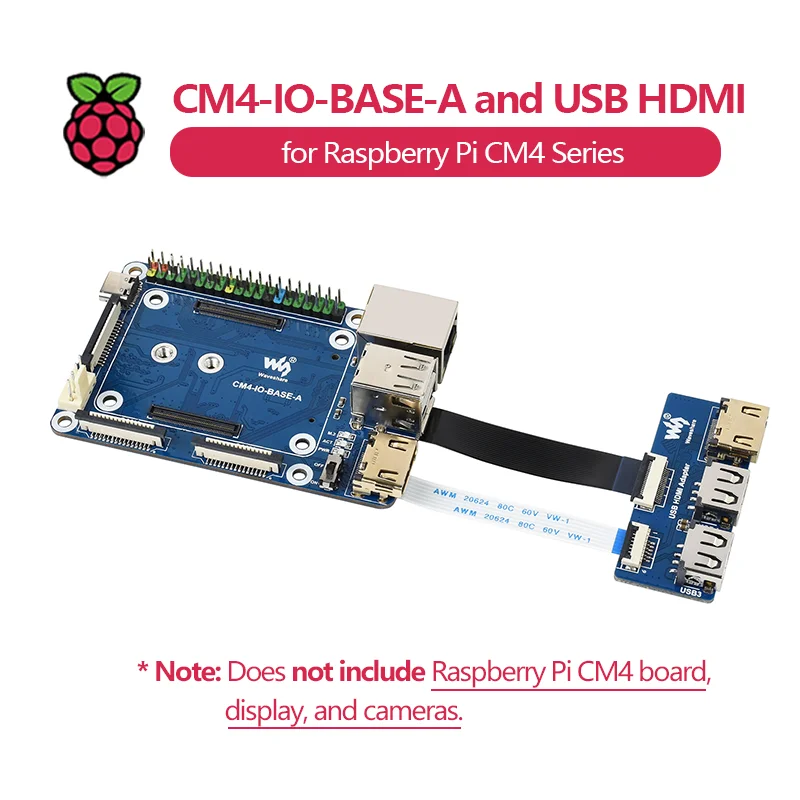

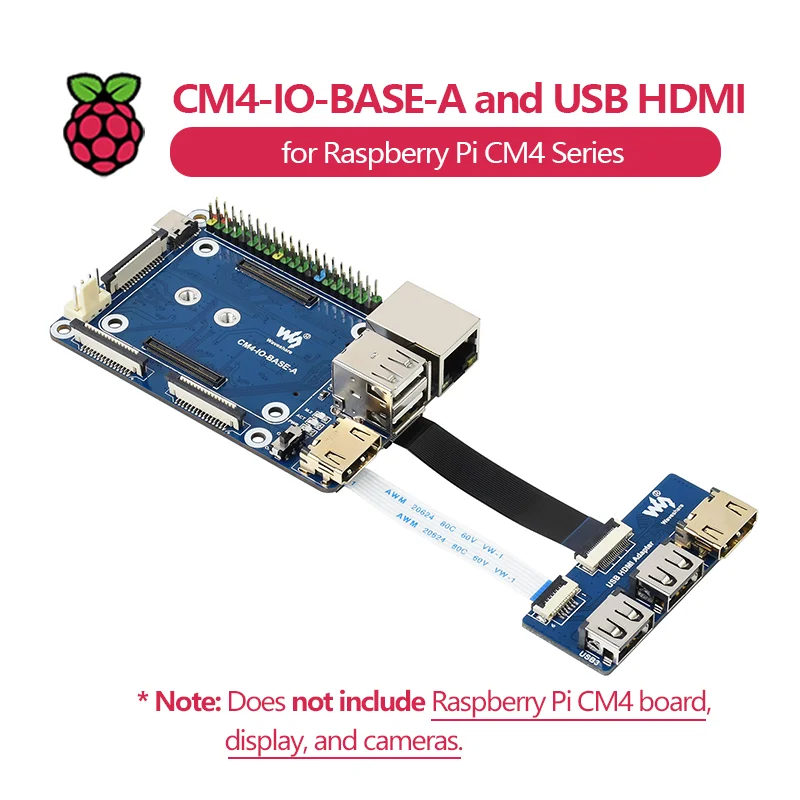

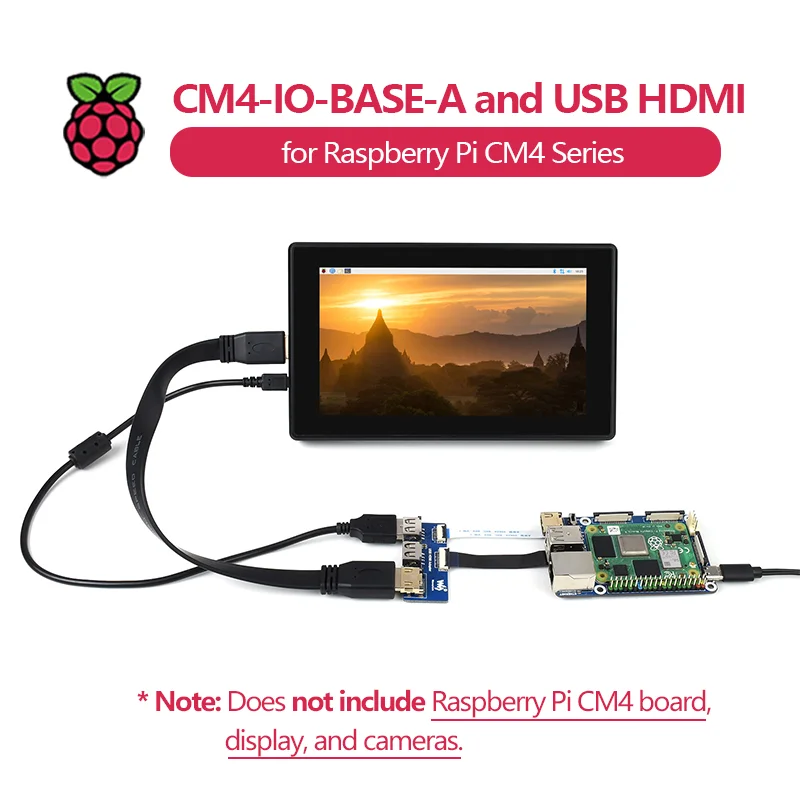

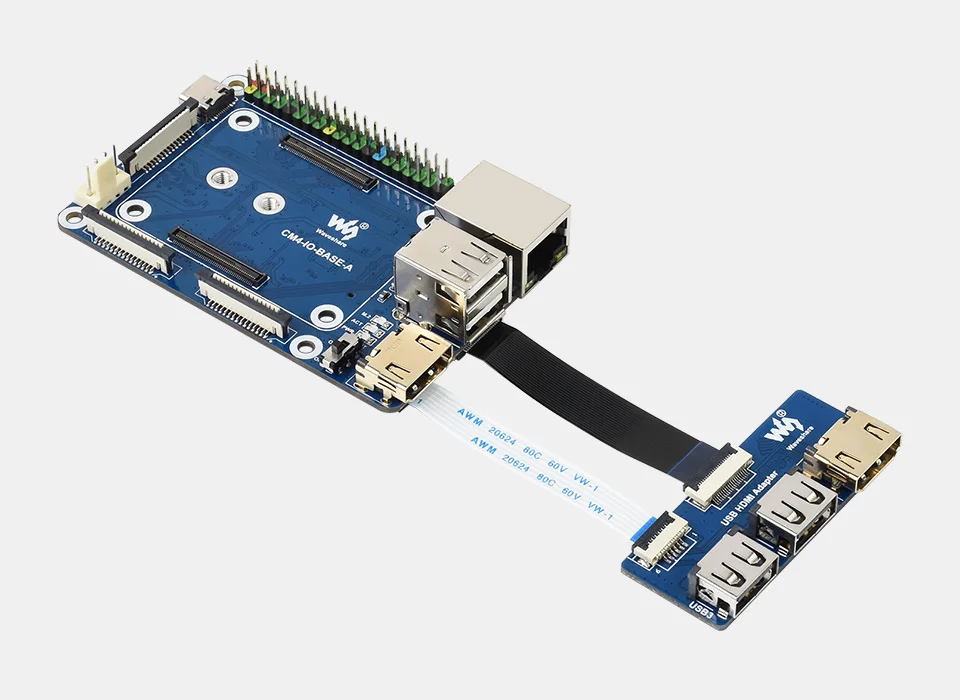

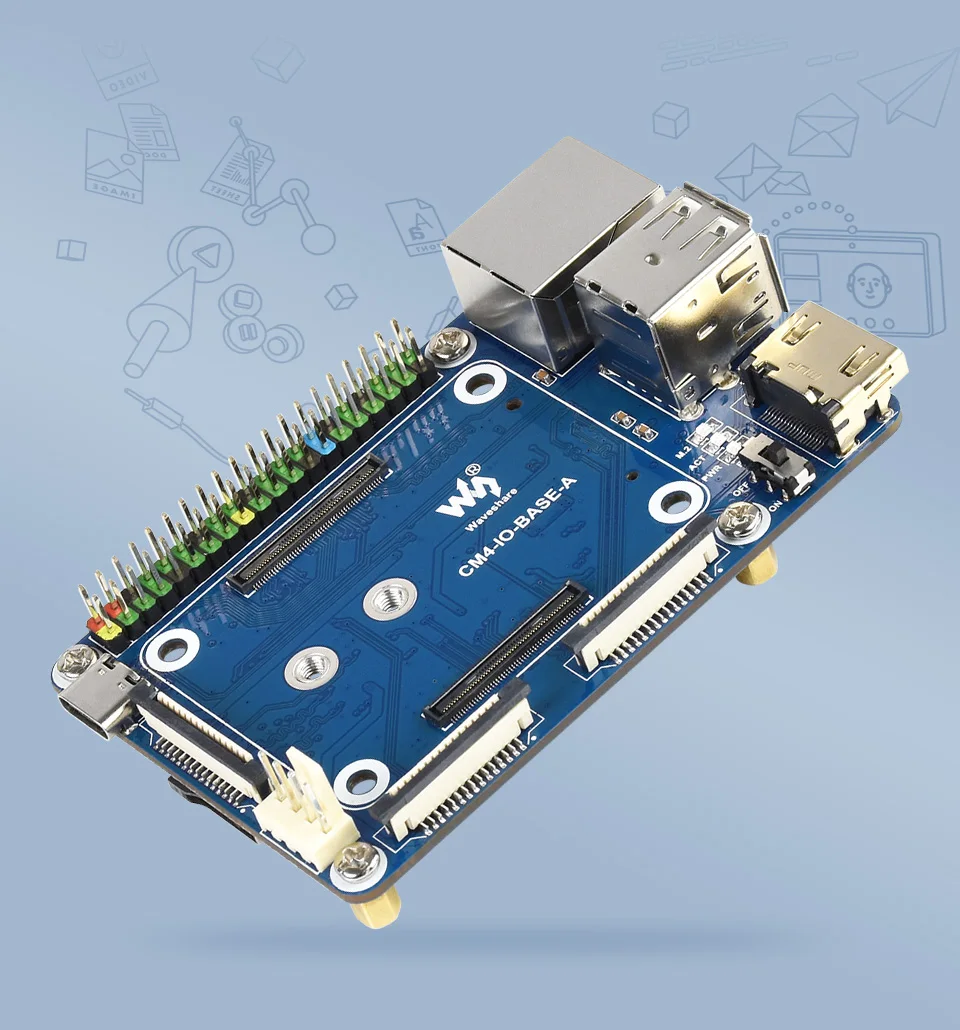

More USB And HDMI Connectors Via FFC
Suitable For Evaluating The Raspberry Pi CM4 Or Being Integrated Into End Products
CM4 IO BOARD
MINI BASE
DUAL GIGABIT ETH
POE BASE (B)
POE BASE
RASPBERRY PI OFFICIAL
LITE VER.
FULL VER.
POE
N/A
integrates 802.3af-compliant PoE circuit (5V/2.5A)
PoE header only
USB
USB 2.0 × 2
USB 2.0 × 2 (via FFC connector)
USB 3.2 Gen1 × 3
USB 2.0 × 4
USB 3.2 Gen1 × 4
USB 2.0 × 4
(2x via pin header)
GPIO
Raspberry Pi 40PIN GPIO × 1
HEADER
M.2 slot × 1
N/A
RS485 × 1
RS232 × 1
PCIe Gen 2 × 1
N/A
PCIe Gen 2 × 1
HDMI
HDMI × 2
(1x via FFC connector)
supports 4K 30fps output
HDMI × 2
supports 4K 30fps output
DSI DISPLAY
MIPI DSI × 1
(15pin 1.0mm FPC)
MIPI DSI × 2
(15pin 1.0mm FPC)
MIPI DSI × 2
(22pin 0.5mm FPC)
CSI CAMERA
MIPI CSI-2 × 2
(15pin 1.0mm FPC)
MIPI CSI-2 × 2
(22pin 0.5mm FPC)
POWER INPUT
5V
7V~36V
5V
7V~36V
12V
FAN
5V
5V / 12V
12V
no fan control
allows speed adjustment and measurement
RTC
N/A
Real-time clock with battery socket and ability to wake Compute Module 4
RJ45 ETHERNET
Gigabit Ethernet
Dual Gigabit Ethernet
Gigabit Ethernet
CM4 SOCKET
suitable for all variants of Compute Module 4
SD CARD SLOT
MicroSD card socket for Compute Module 4 Lite (without eMMC) variants

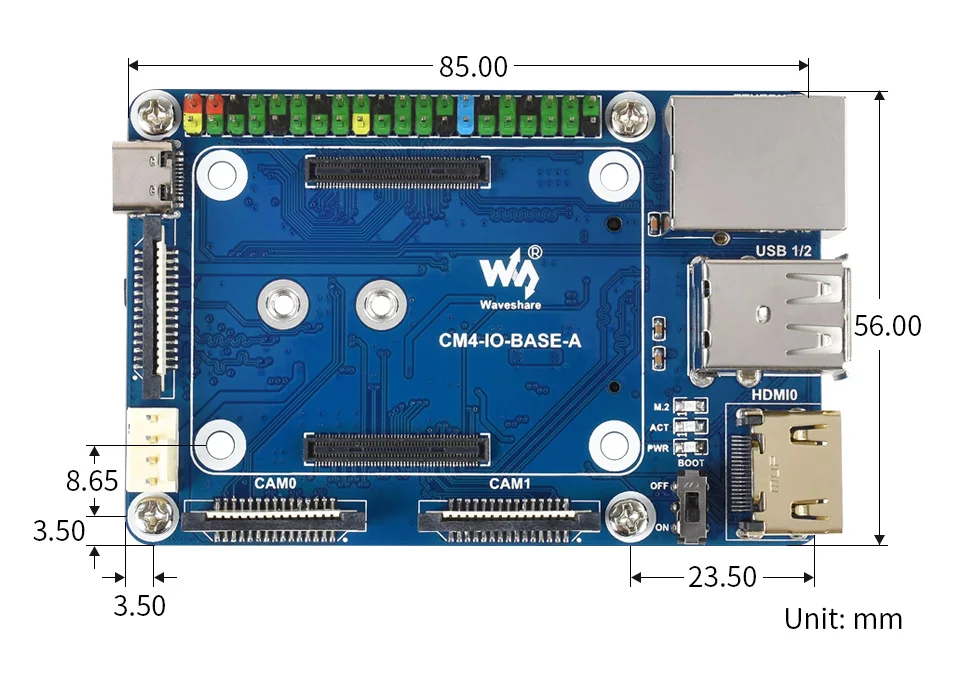

DIMENSIONS (MM)
85.0 × 56.0
109.0 × 91.5
124.50 × 108.80
160 × 90

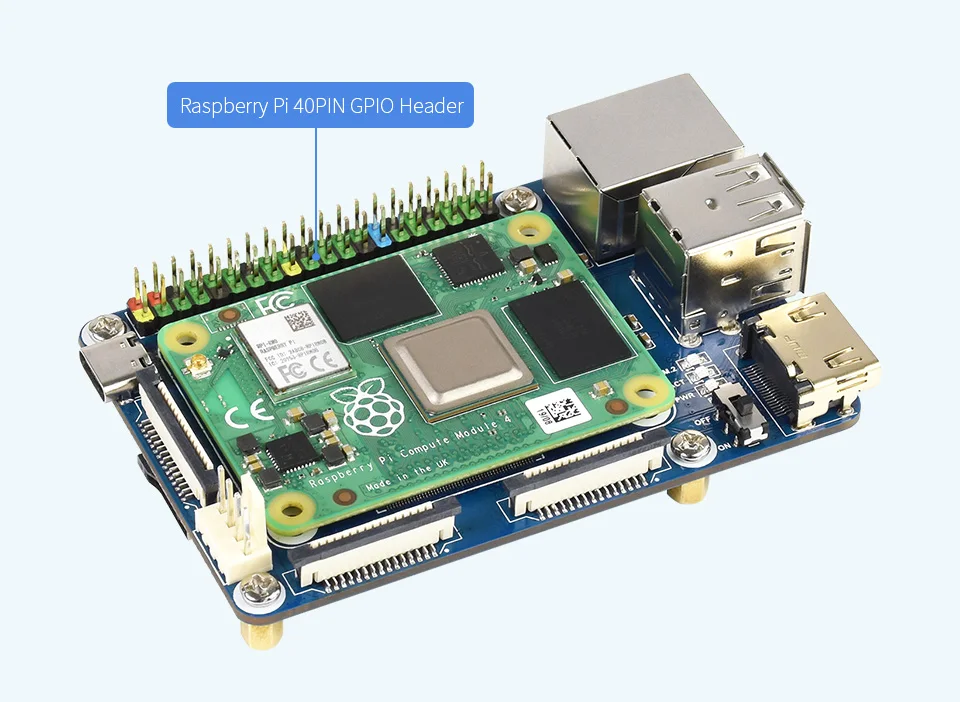

Standard CM4 Socket And Color-Coded Raspberry Pi 40PIN GPIO Header
Suitable For Compute Module 4 Lite/EMMC Series Module
Onboard Multiple Connectors Including:
CSI/DSI/FAN/HDMI/USB/RJ45 Gigabit Ethernet/Micro SD Card Slot/M.2 Slot

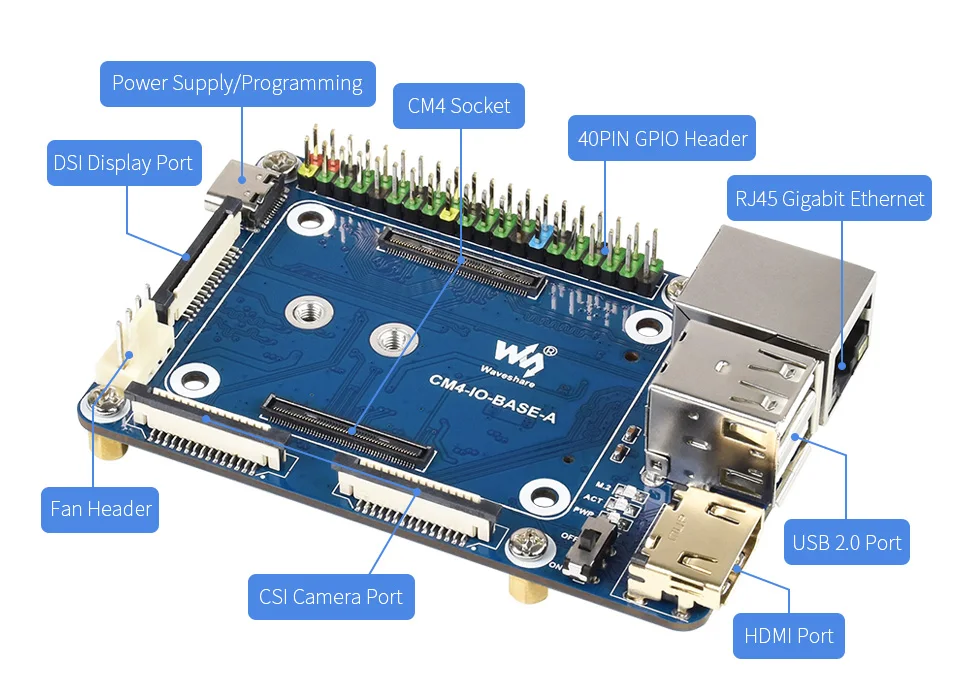

CM4 socket
suitable for all variants of Compute Module 4Power input/Programming
5V/2.5A power supply, or used for eMMC burningDISP
MIPI DSI display portFAN
for connecting cooling fan, allows speed adjustment and measurementCAM
2x MIPI CSI camera portsHDMI0 connector
HDMI0 port, supports 4K 30fps outputUSB 2.0 ports
2x USB 2.0 ports, for connecting sorts of USB devicesGigabit Ethernet connector
Gigabit Ethernet RJ45 connector, with 10 / 100 / 1000M network supportM.2 indicator
indicating the operating status of M.2 interfaceACT indicator
indicating the operating status of Raspberry PiPWR indicator
indicating the status of Raspberry Pi power supplyBOOT selection
ON: CM4 would be booted from USB-C interface
OFF: CM4 would be booted from eMMC or Micro SD card
40PIN GPIO header
Micro SD card slot

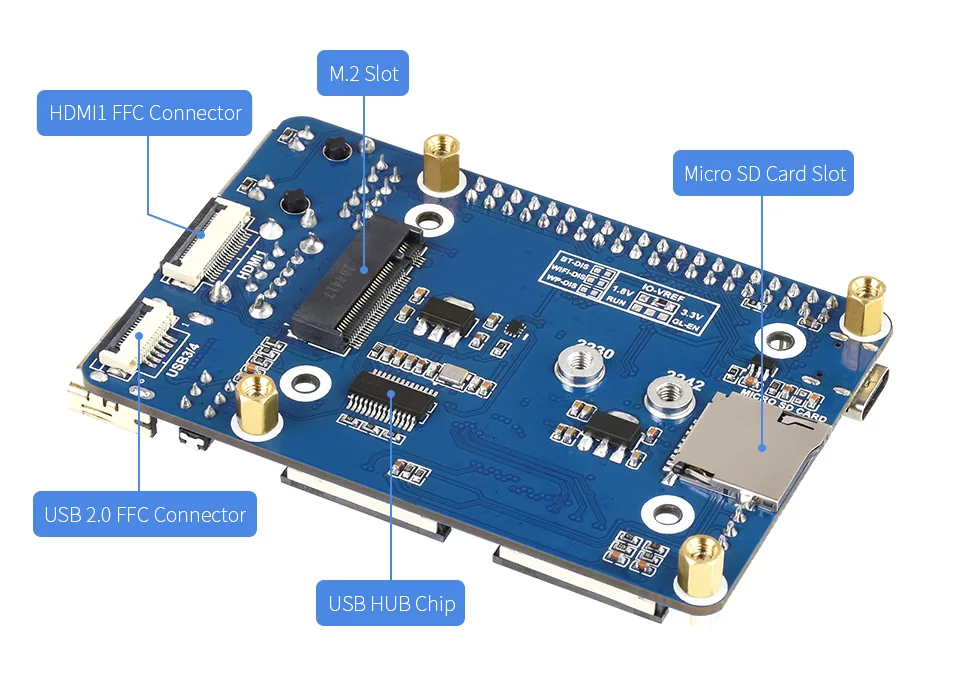

for connecting a Micro SD card with pre-burnt image (Lite variant ONLY)HDMI1 FFC connector
HDMI1 port, supports 4K 30fps outputUSB 2.0 FFC connector
can be connected through an adapterFE1.1S
USB HUB chip, expanding one USB port to 4x portsM.2 slot
supports sorts of NVME SSD, or communication modules with PCIE M.2 KEY-M interface

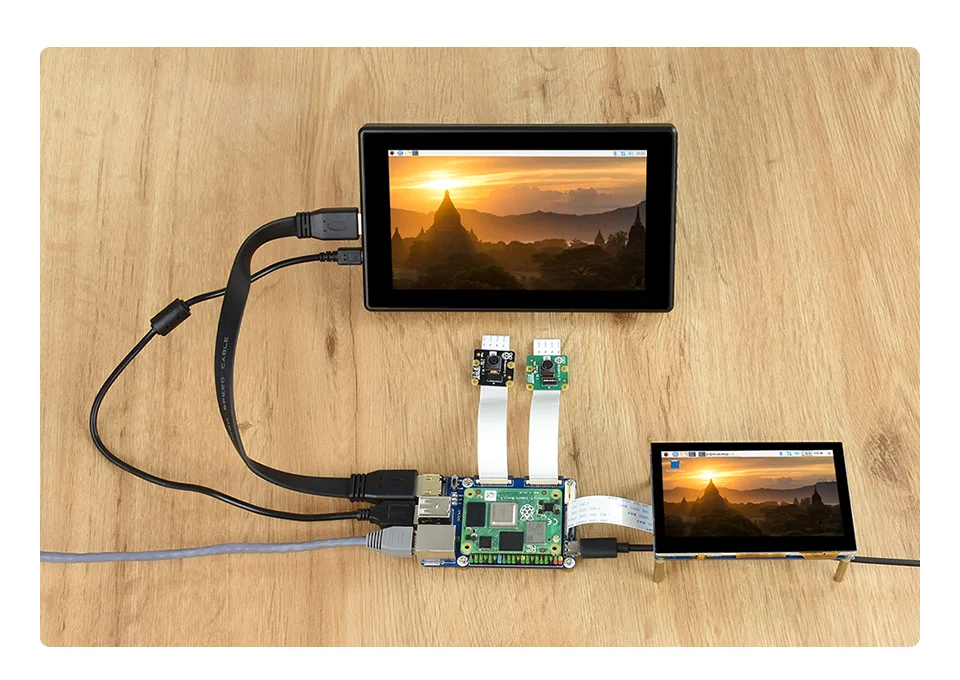

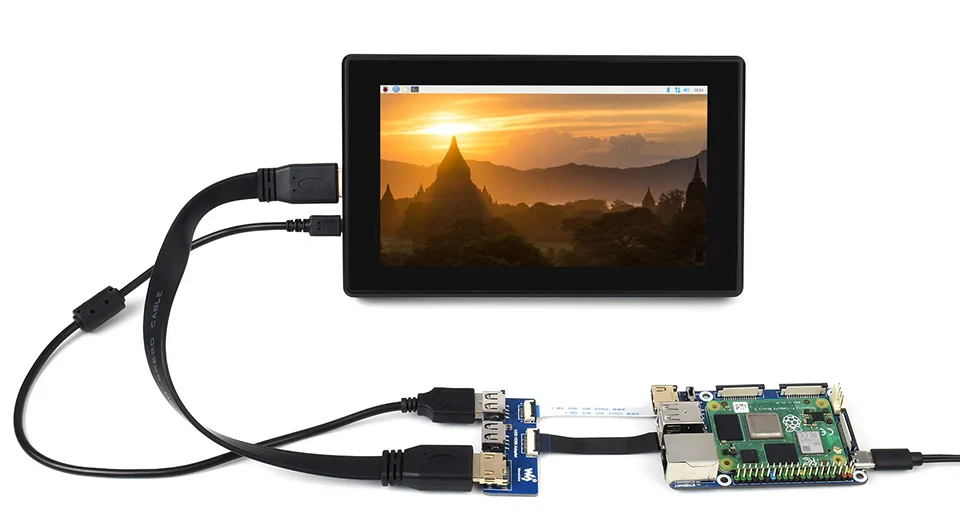

for reference only, CM4, display, and cameras are NOT included.
WIKI: http://www.waveshare.com/wiki/CM4-IO-BASE-A
* Resources for different product may vary, please check the wiki page to confirm the actually provided resources.

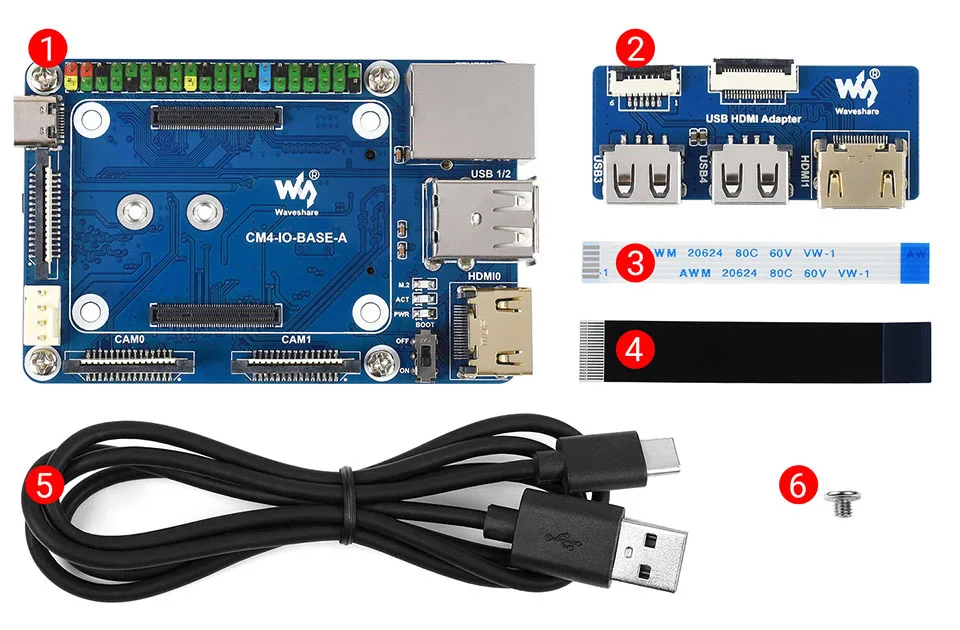

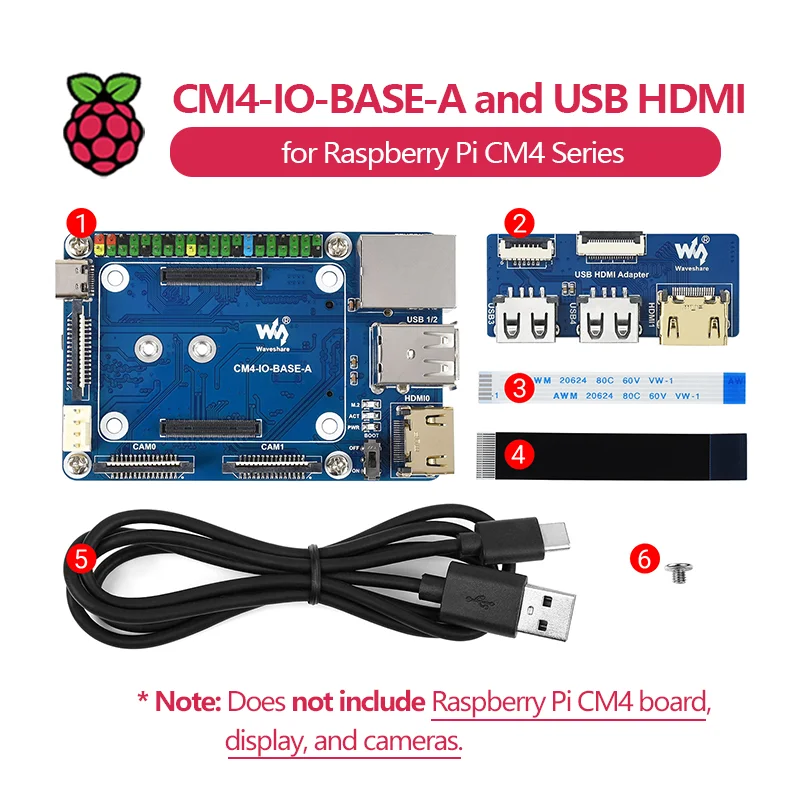

PACKAGE CONTENT
Weight:0.084 kg
CM4-IO-BASE-A x1
USB HDMI Adapter x1
FFC cable 6PIN 1.0 pitch 60mm x1
FFC cable 20PIN 0.5 pitch 60mm x1
USB-A to USB-C cable 1m x1
SSD mounting screw x1
