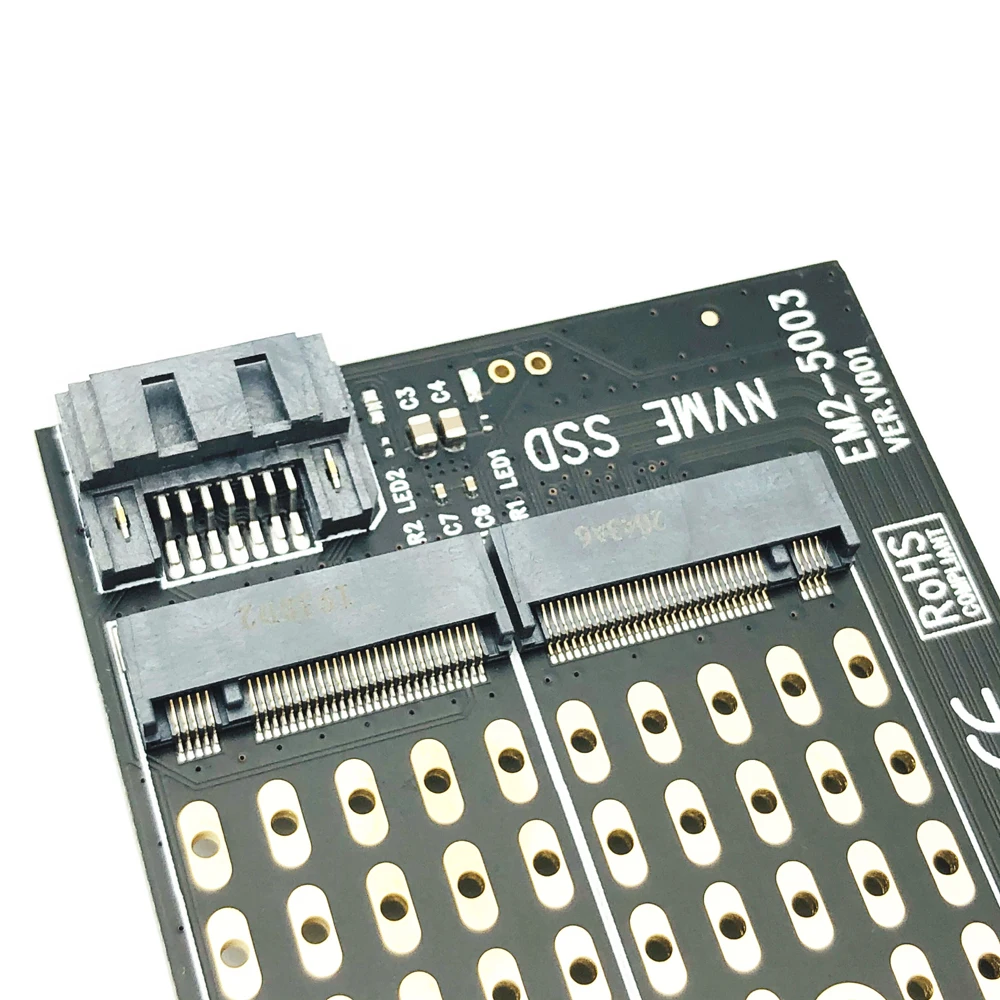

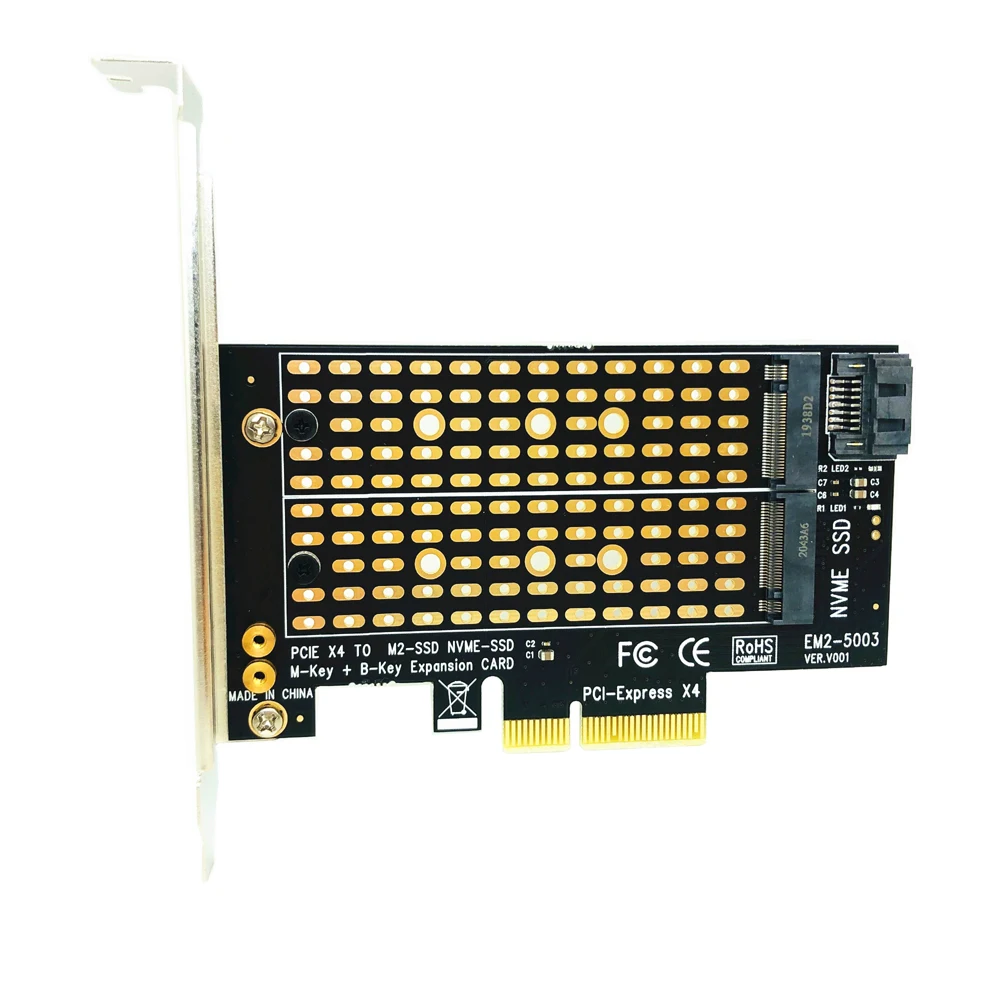

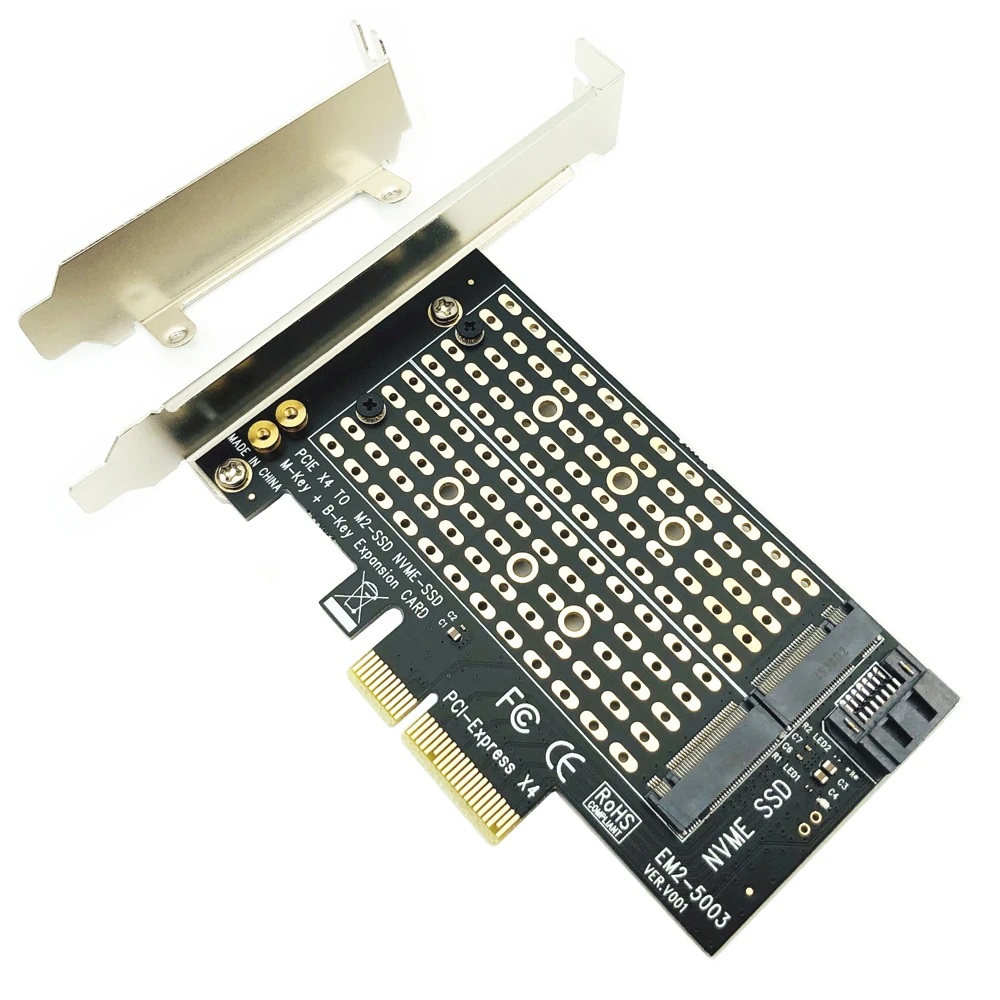

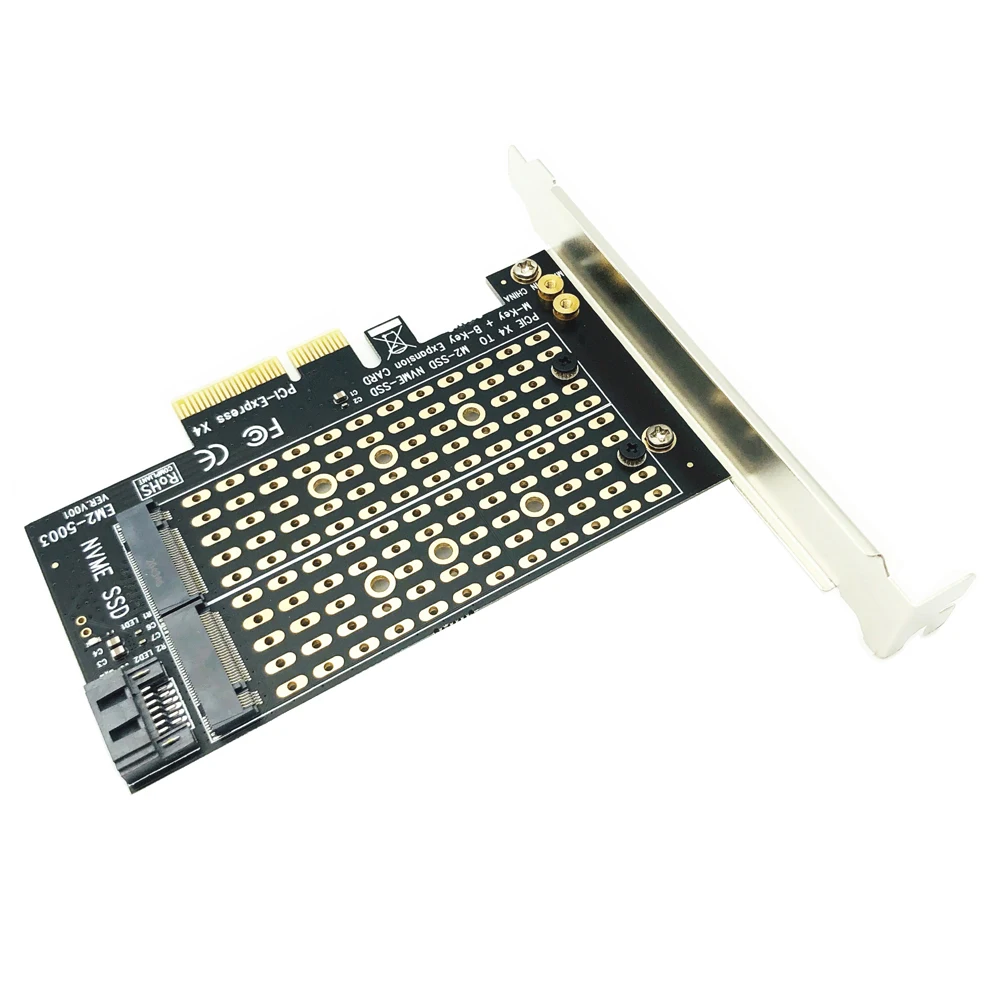

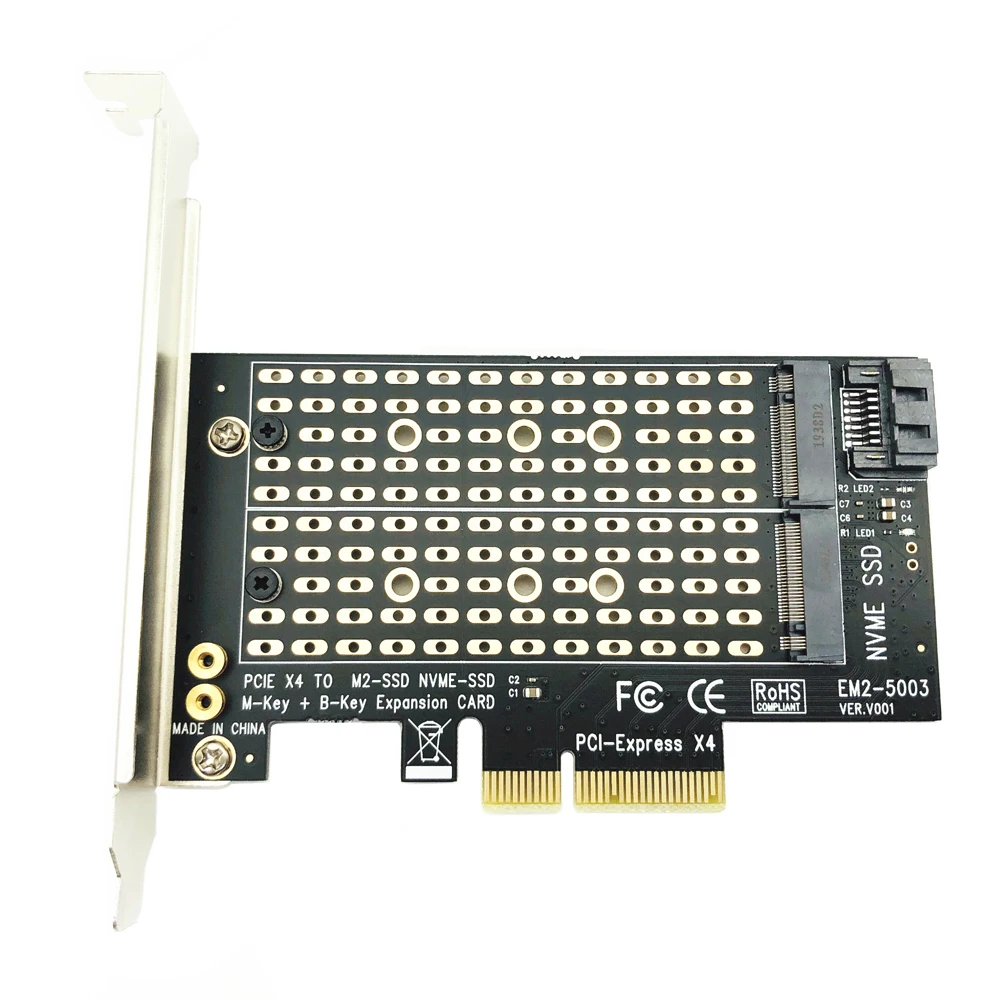

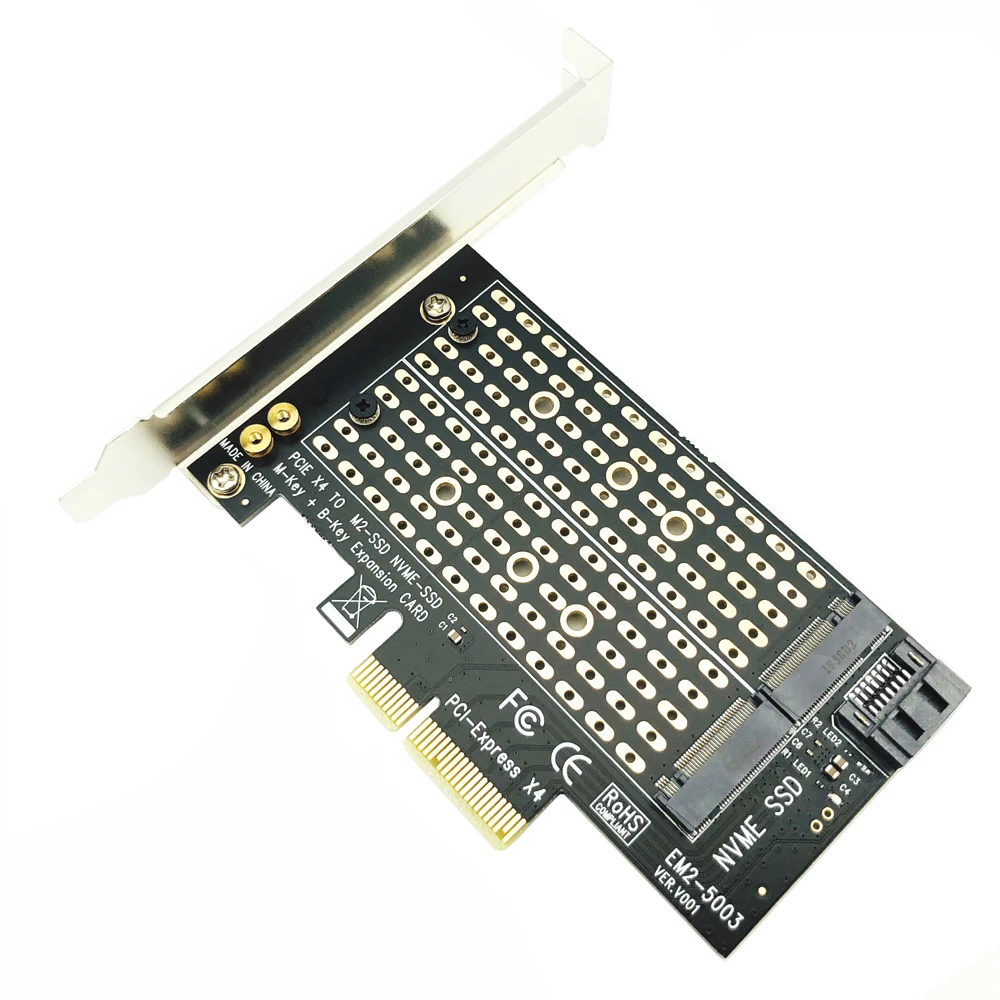

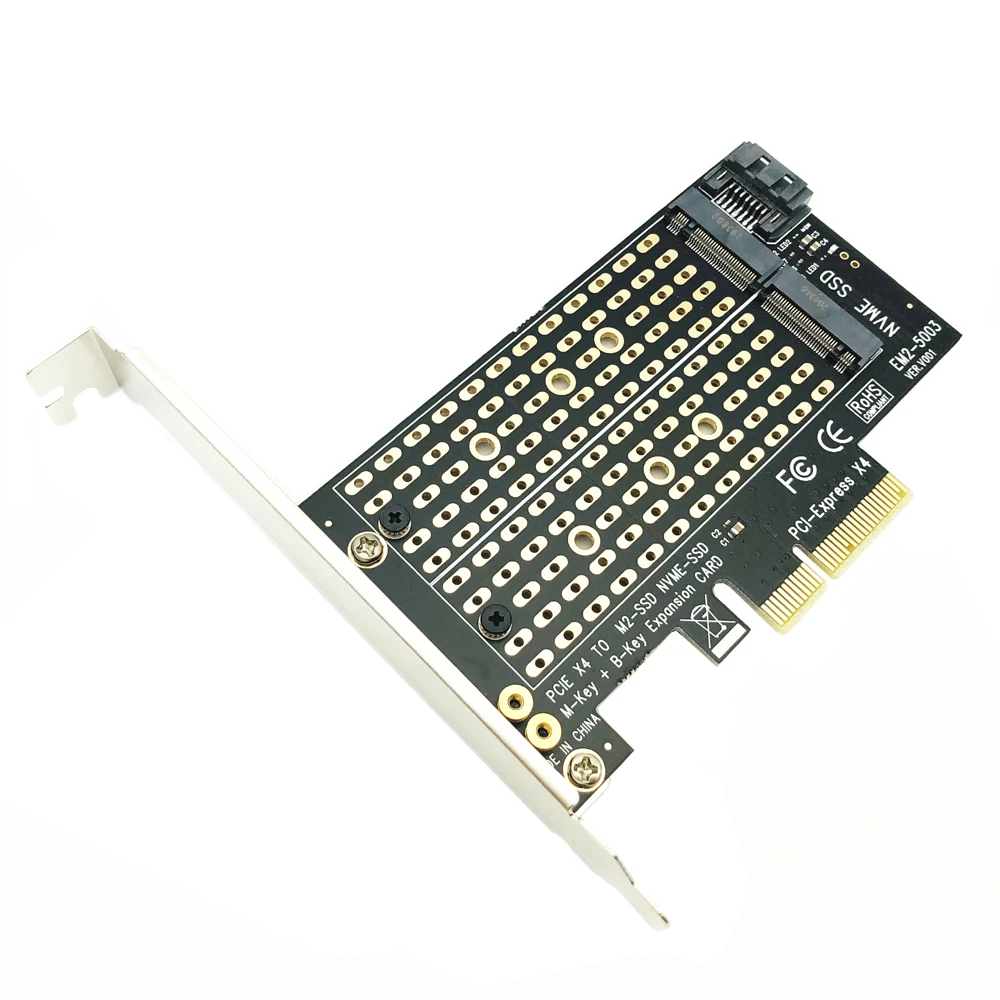

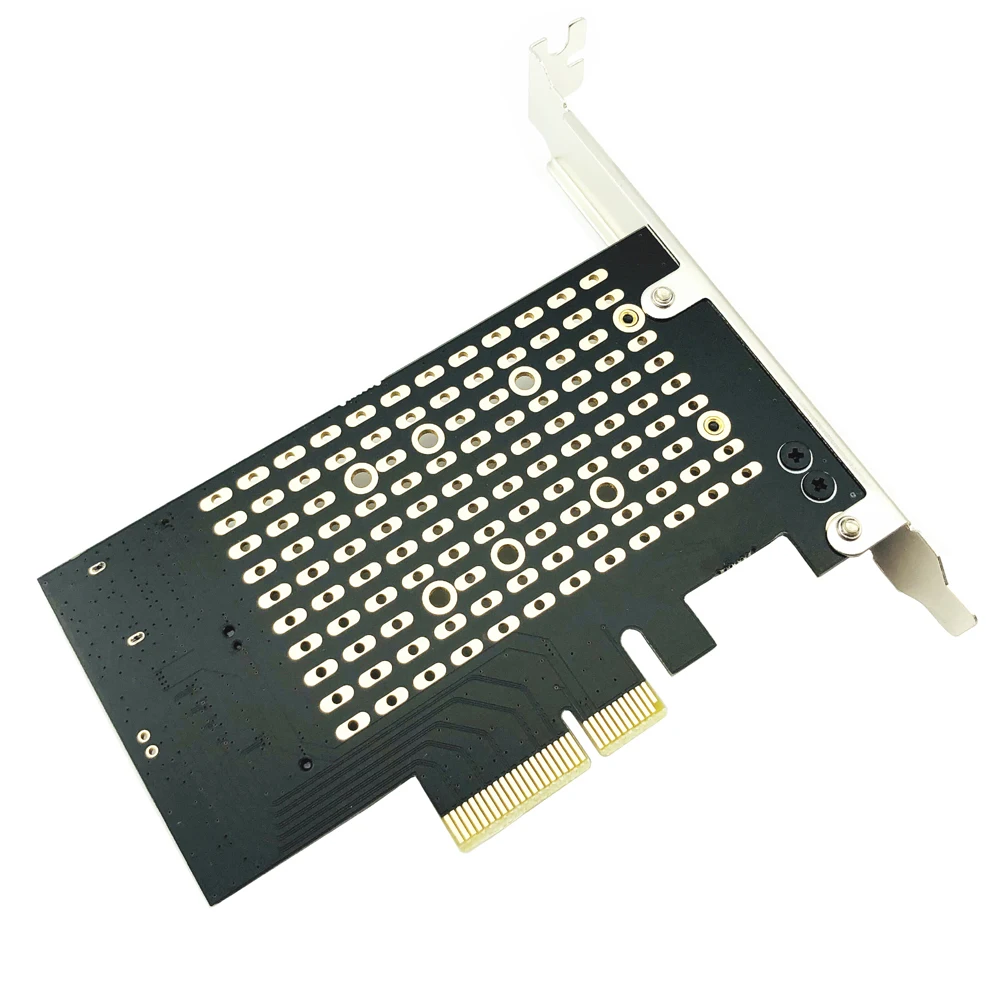

PCI Express PCIE to M2 Adapter NVME SATA M.2 SSD PCIE Adapter NVME/SATA M2 PCI E Adapter SSD M2 to SATA PCI-E Card M Key + B Key
About Description:
SpecificationProduct name: M.2 NVME to PCI-E 3.0 X4 Expansion CardType: PCIE to M2 AdapterInternal Interface: M Key + B Key Dual PortsSupport Slots: PCI-E 3.0 X4 GEN3 (Compatible with X4 X8 X16 slot)Support devices: PCI-E specification m.2 NVMe and SATA specification M.2 NGFF diskSupport system: Windows XP/Vista/7/8/10, Linux, Mac OS.FeaturesM key M.2 NGFF SSD to PCI-E X4 adapter or B key M.2 NGFF SSD to SATA adapter.The speed and other properties is not changed, only change the interface type and without any software or drivers.Support size: 22*30 mm, 22*42 mm, 22*60 mm, 22*80 mm M.2 NGFF SSD.Macth with two kinds of Metal sheet ( length: 8 cm, 12 cm )Compatible with any operating system ( On the premise of operating system must be compatible with your hard disk ).About M.2 NGFF SSD interface standardSocket 2(B key 2 LANE):there are SATA(such as THNSNH128G8NT/ THNSNH128GDNT/MZNTD256HAGM models of SSD) and PCI-E 2X(such as PX-AG128M6E/PX-AG256M6E/PX-AG512M6E/SD6PP4M models of SSD) two different transfer mode.Socket 3(M key,4 LANE):PCI-E 4X(such as MZHPU128HCGM MZHPU256HCGL and MZHPU512HCGL models of SSD) transfer mode.
You'll receive:
1 x PCI-E to M.2 NVME/SATA SSD Adapter
1 x Low Profile Bracket
2 x Screws
