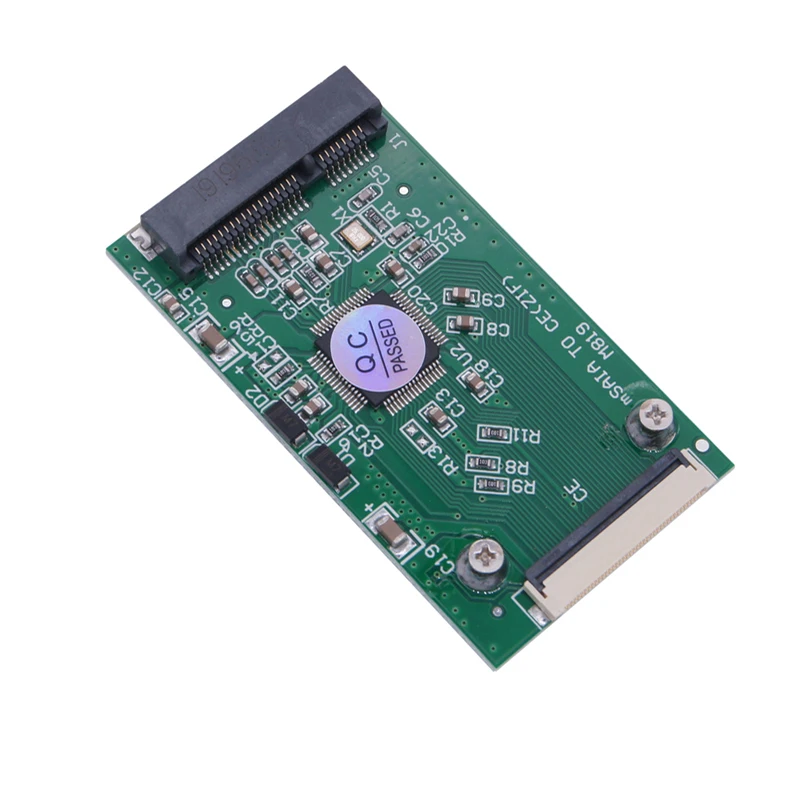

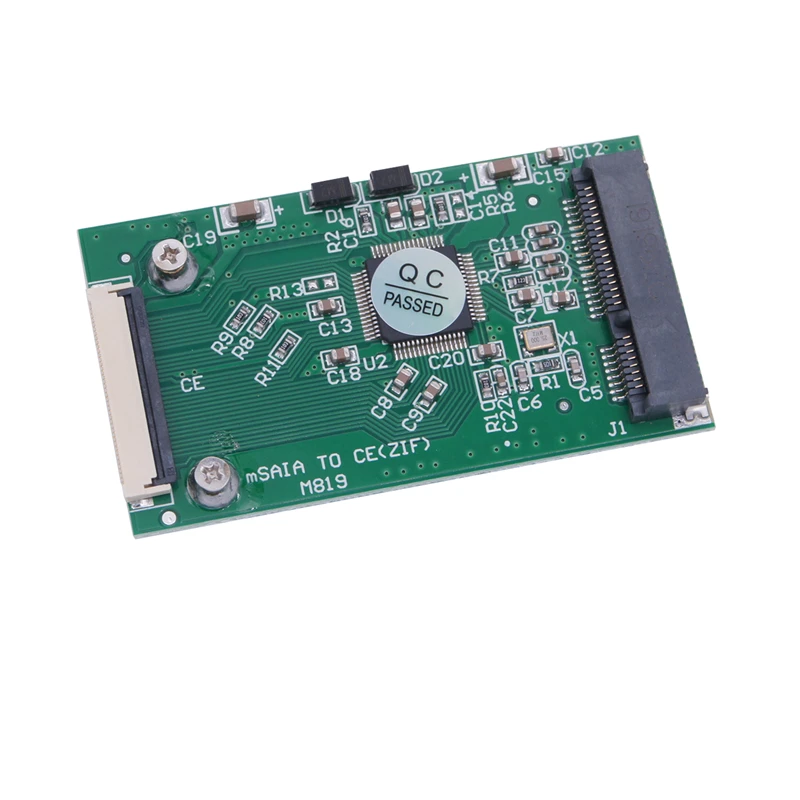

mSATA SSD to CE ZIF Adapter Mini PCI-E mSATA SSD to 40Pin 1.8" CE (ZIF) Converter Card for IPOD IPAD for Toshiba for Hitachi HDD
About Description:
Feature:
1. 100% brand new and high quality.
2. Fully compliant with ZIF specification.
3. 3.3V Mini PCI-e SSD (mSATA module) support.
4. Do not fit for Apple product.
5. No extra power adapter and drivers needed.
6. Support DOS, Win98/SE, 2000, Server 2003,Vista, 7, Sever 2008, Linux.

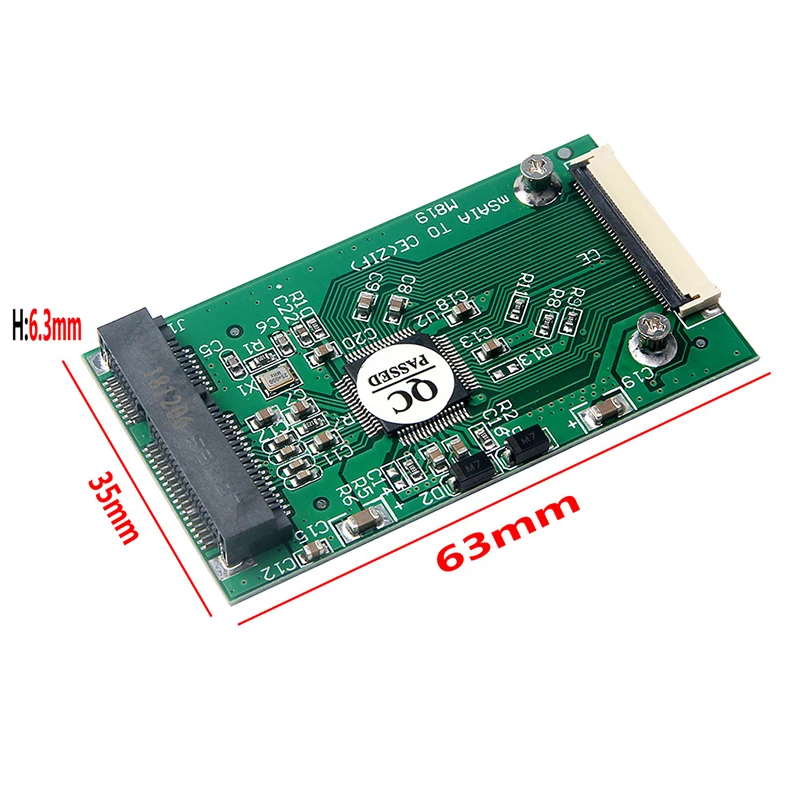

7. Size about 63x35x6.3mm.
2: There are three pin definitions for the mini PCI-E interface SSD. One is called msata, which is often found on Lenovo and thinpad machines, and can also be called Intel defined interface; the other is called SATA Mini PCI-E, which is commonly seen in ASUS EPC and some tablet computers, also known as ASUS defined interface; and the other is defined by PATA, which is an IDE interface in essence, which is commonly seen in Dell Mini 9. Wait for the machine. The three interface definitions look exactly the same and cannot be distinguished by the naked eye, so be sure to distinguish the interface definitions of your SSD!
3: Does not support any apple device to use!

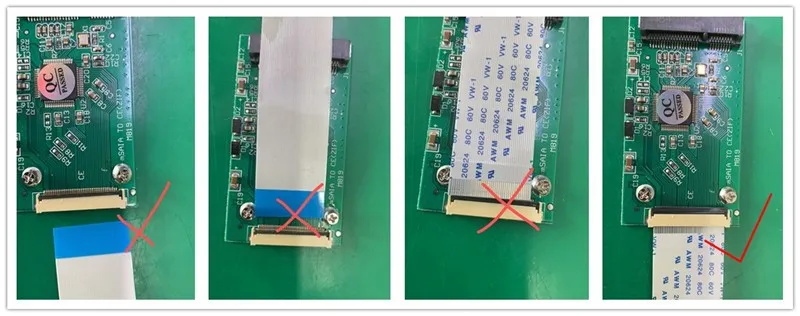

4: The connection direction of the cable is opposite to your original hard disk, as shown in the figure down. On the right is your original mechanical hard disk. If the contact surface (golden finger) of your computer hard disk cable is connected to your original hard disk, you should turn it over when connecting your original hard disk, and the contact surface of the cable should be inserted upward, as shown on the left of the figure above Words: it's the opposite of your original hard disk!
You'll receive:
1 x mSATA SSD To ZIF CE Card
Please check pictures for more details.
