En Stock
2,62 €
Con la garantía de
Color
Ships From
Última actualización: 2026-01-30T00:03:23.898Z
Descripción
Features:
OOTDTY
Small appearance easy to understand operation; several types available to meet different customer needs
Only need to be connection in series to the positive terminals of the circuit, no need to the negative terminals.
No input Voltages limitation. (Guaranteed reverse Voltages belows 40V)
300A high current tube, tube can pass 40A current, two tubes pass 60A current
1 milliohm on-resistance, small loss, low heat generation
Fast response to reverse polarity within 2US, input and output equivalent to diode. Detect the output Voltages is greater than the input immediately shut down the output, detection value of millivolt level, the corresponding speed is very fast
Specifications:

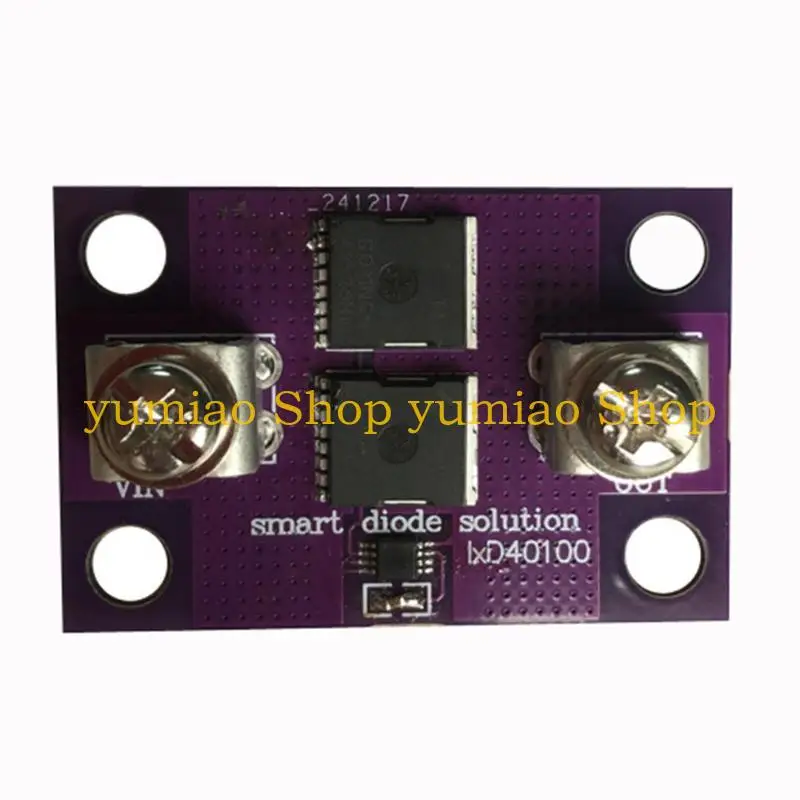

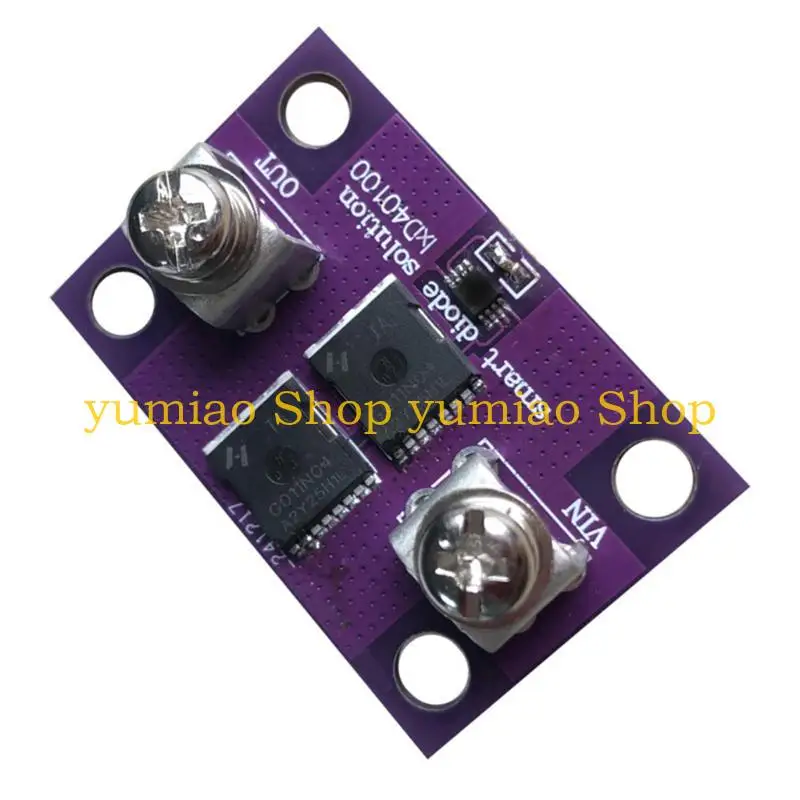

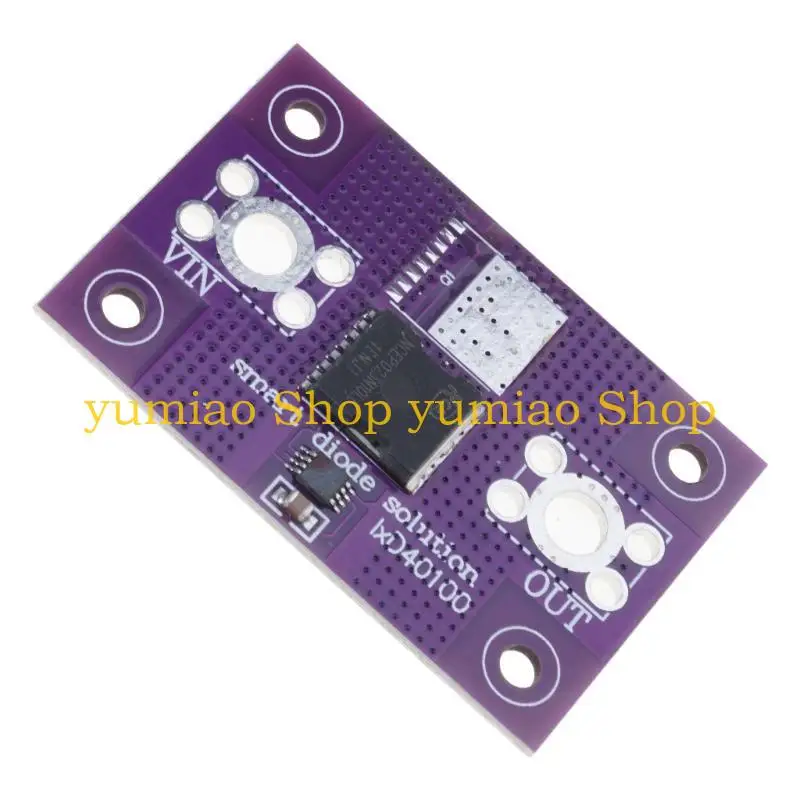

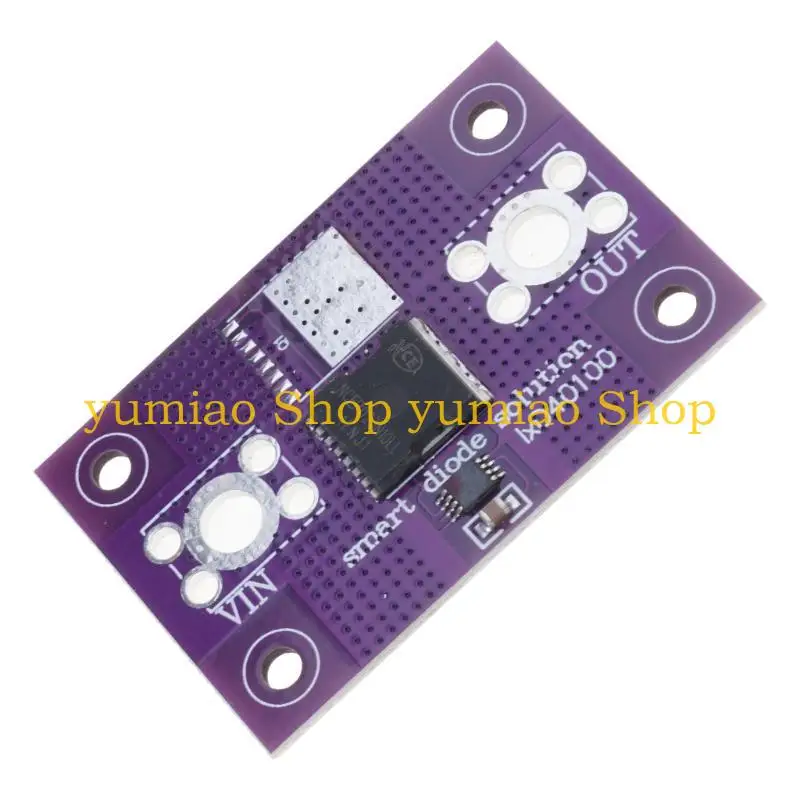

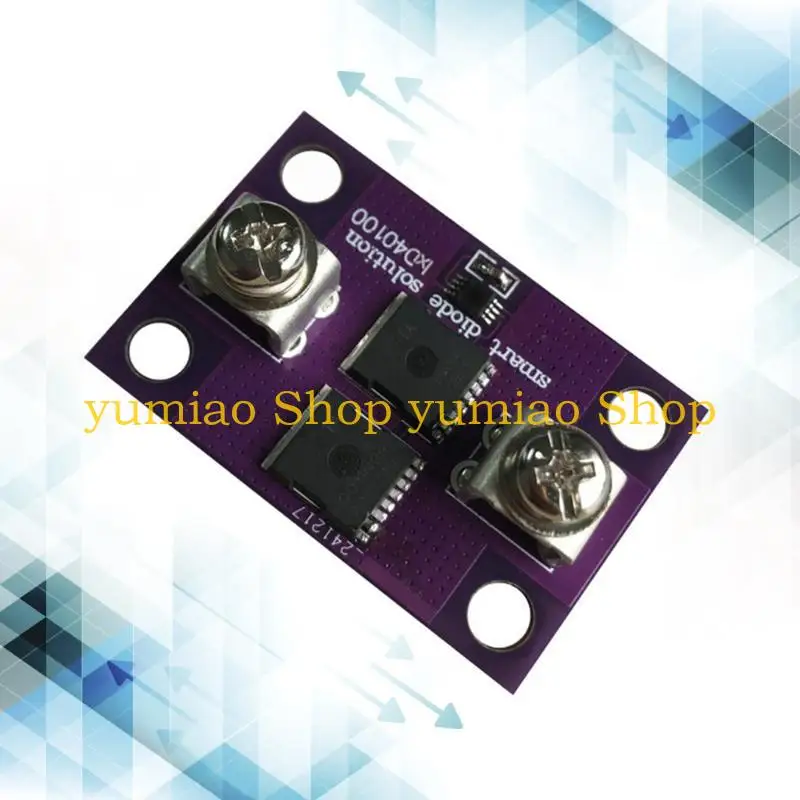

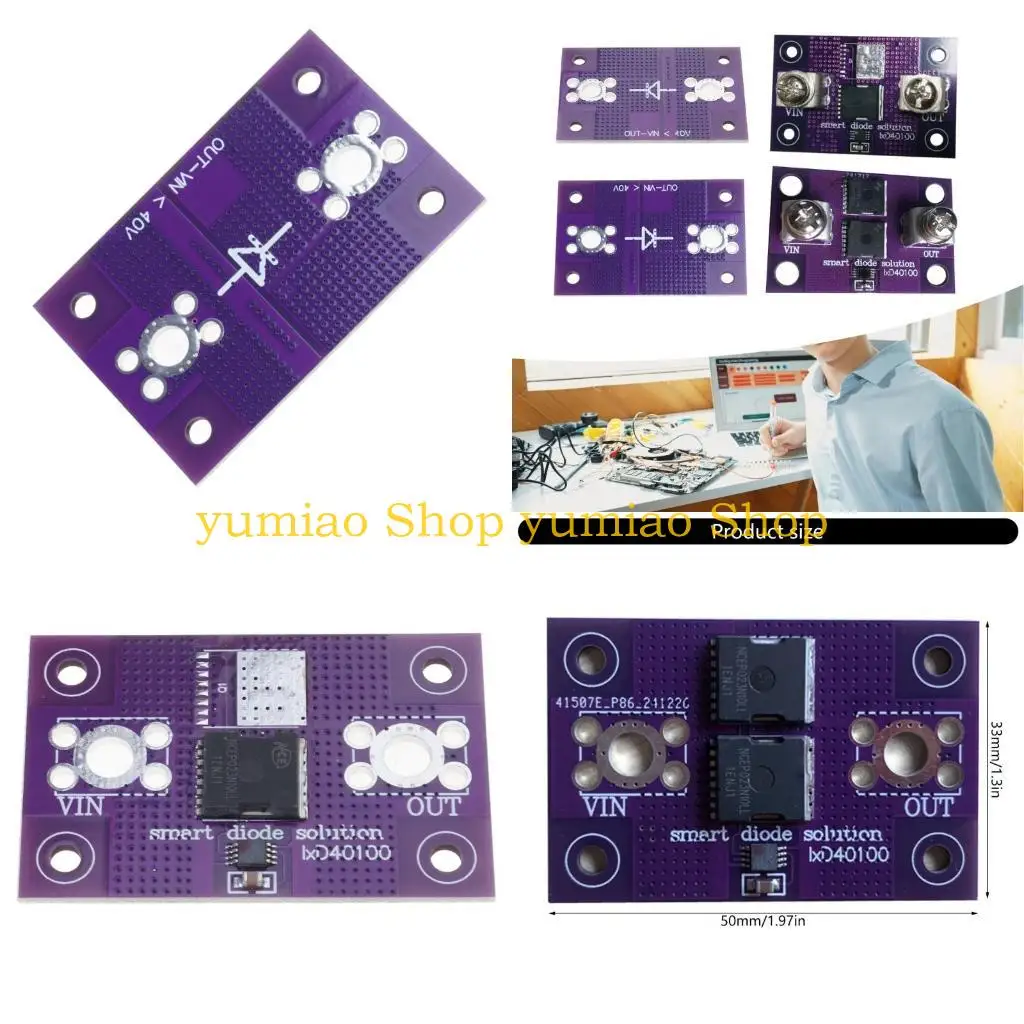

Model: LXD40100
Features:
40A 60A No Voltages Limitation Diode Module
Size: about 50x33x18mm/1.97x1.3x0.7in (with terminals); 50x33x4mm/1.97x1.3x0.16in (without terminals)
Working environment temperature:-40-125 degree
Component: PCBA

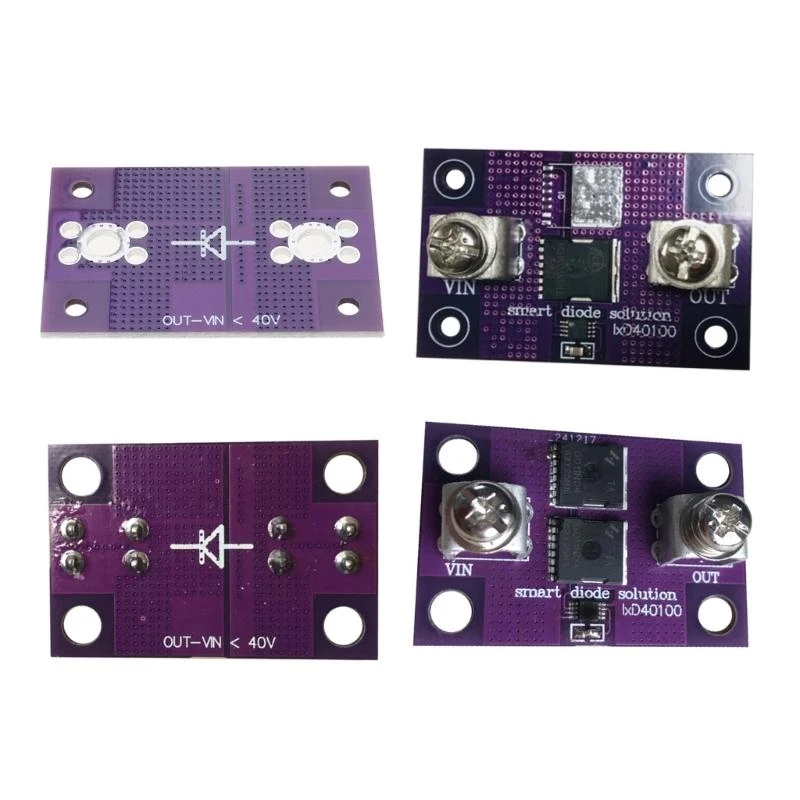

Optional：40D/40/60D/60
Functions:
1.Replacement of ordinary high current diode, storage batteries, solared panel, reverse flooding and reverse current resistant.
2. Series connection in the input of the power supply is for reverse poofed connection
Precautions:

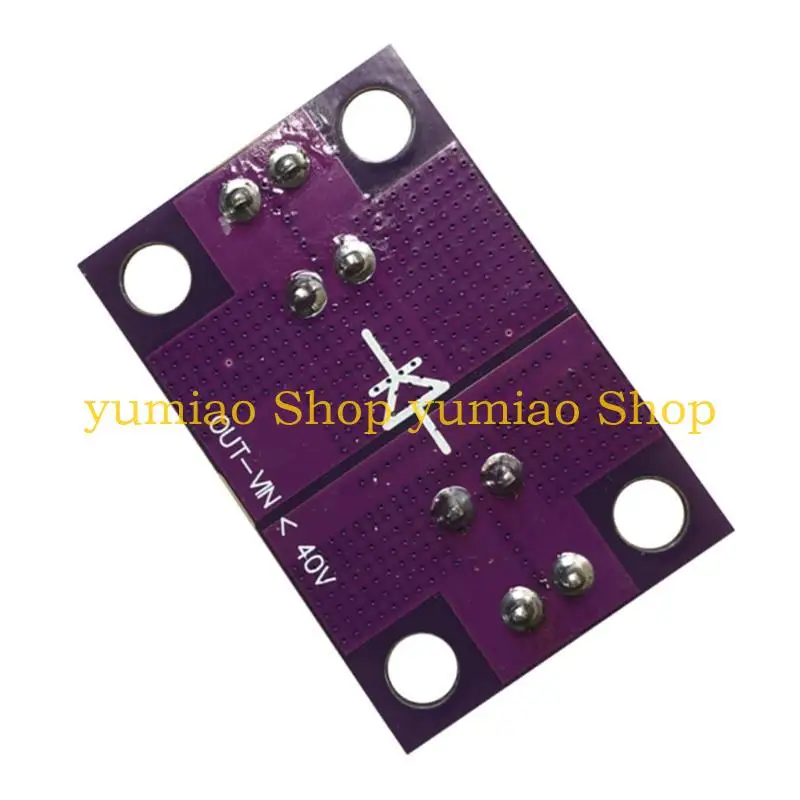

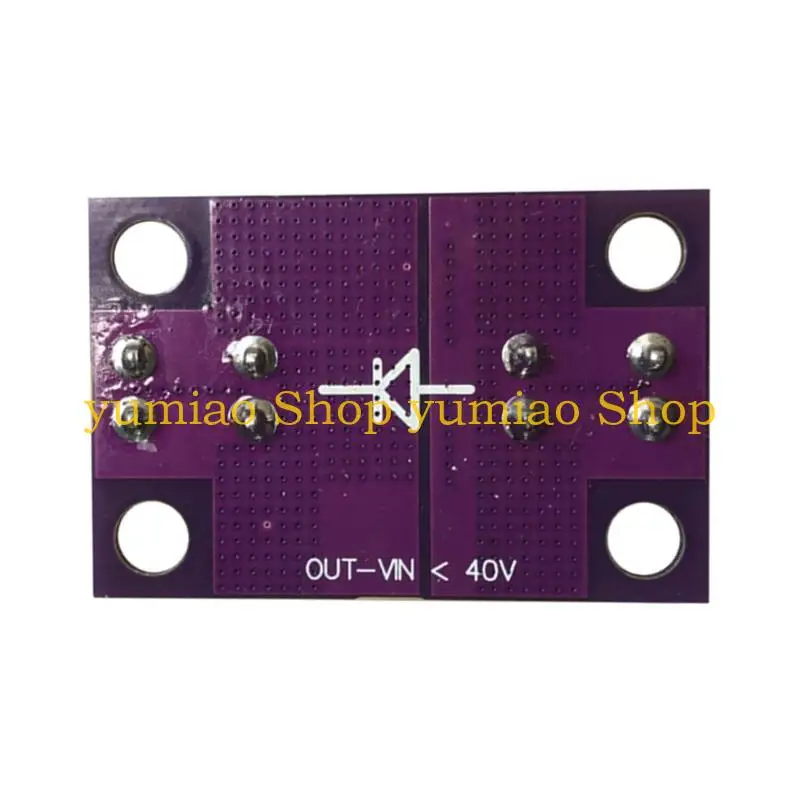

The input Voltages is unlimitedly, but there reverse Voltages requirements, the reverse Voltages is lower than 40V, the output Voltages can not be than the input Voltages of 40V, for example: the input is connection to the 24V power supply, the output is connection to the battery, can be connection to the 12V, 24V 36V 48 60V battery, can not be connection to the battery above 72V, (72V output 24V input=48Voltes) the reverse Voltages is than 40V.
Package Includes:
1PC Diode Module
Note:
There might be a bit color distortions due to different computer resolution
There might be size errors due to different computer resolution
