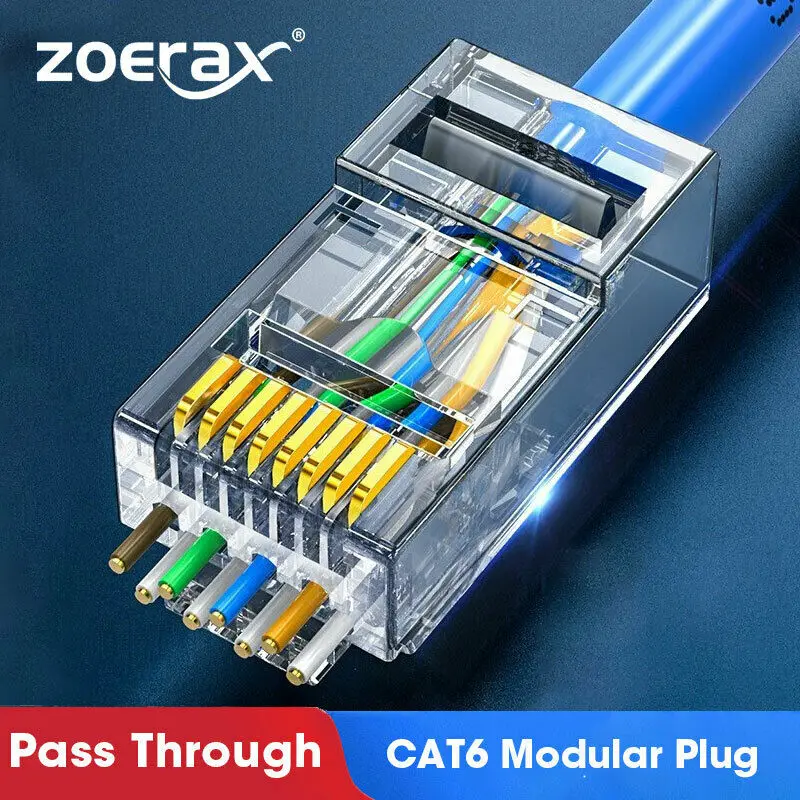

ZoeRax RJ45 Cat6a Cat6 Cat5 Connector 30μ Gold Plated 8P8C Ethernet Pass Through Plug

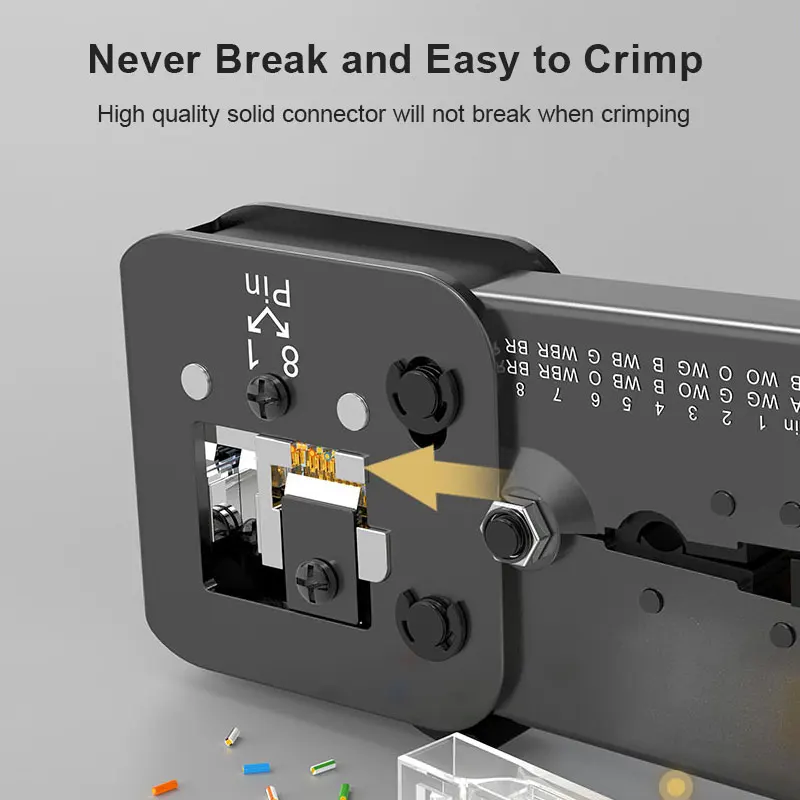

RJ45 Cat5/Cat6/Cat6a connectors not only let you make enternet cables in custom lenths without breaking the bank.in addition,but also can work effectively with every model of pass through crimper tool and 23awg cable.

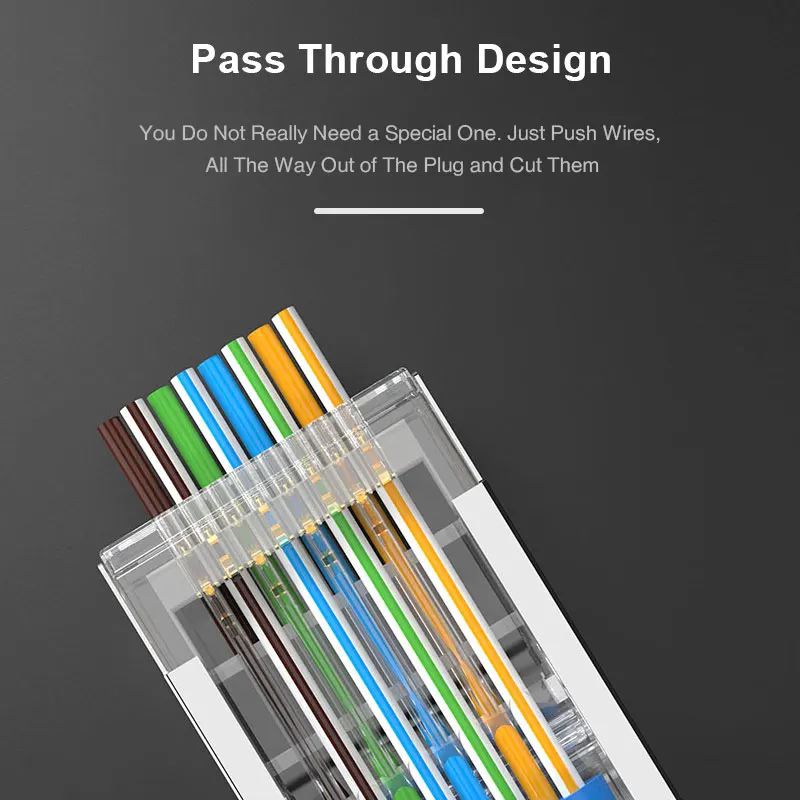

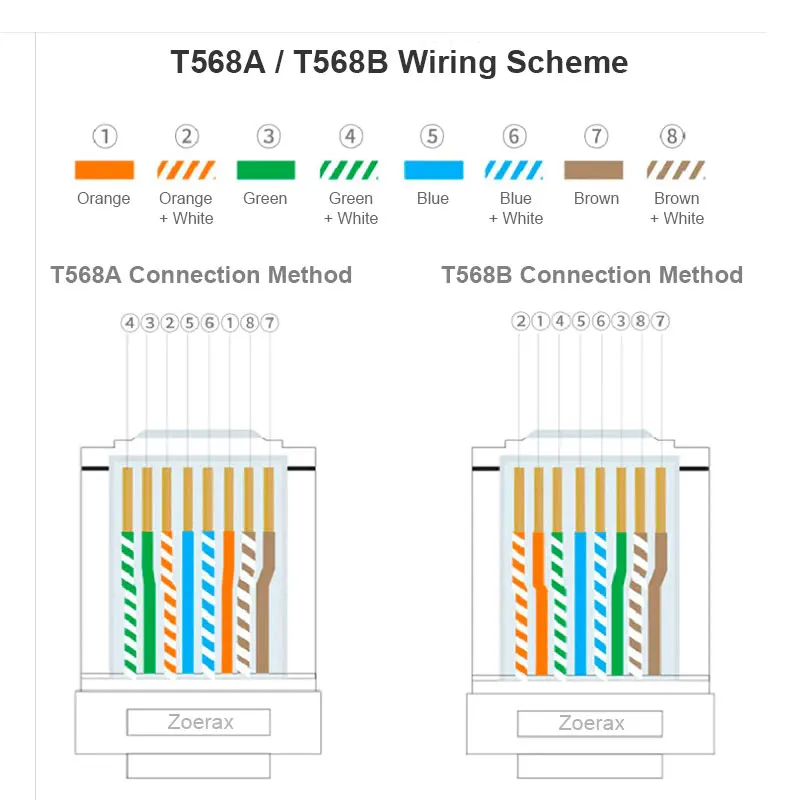

Pass through design simplifies teminations -- as wires are inserted through the connector and out the other side, making sequence verification easier.in addition, as the pass-thru design, the twists in each pair can be pulled closer to the contacts than conventional plugs.

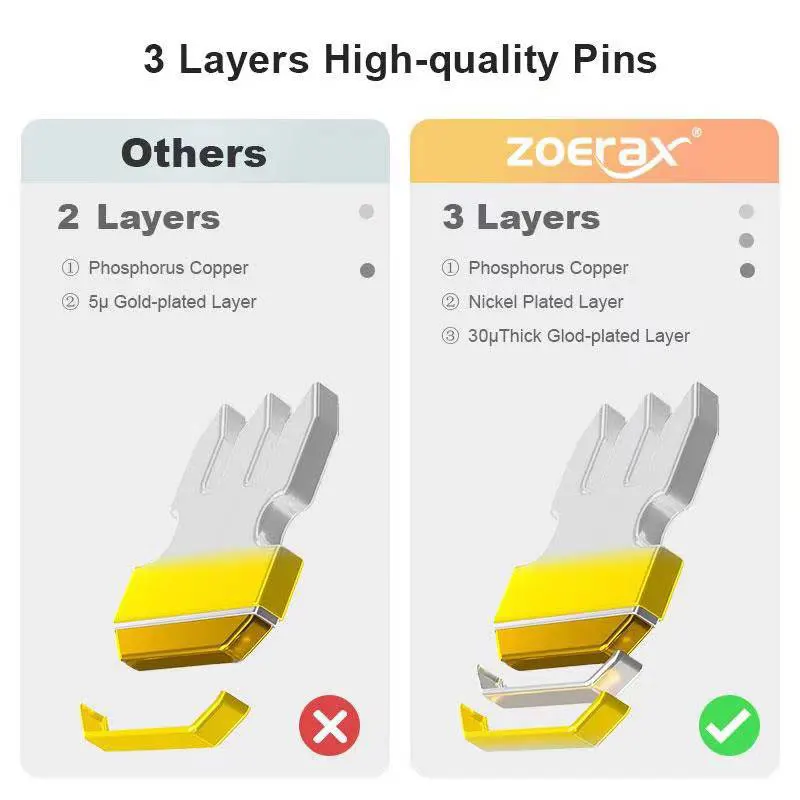

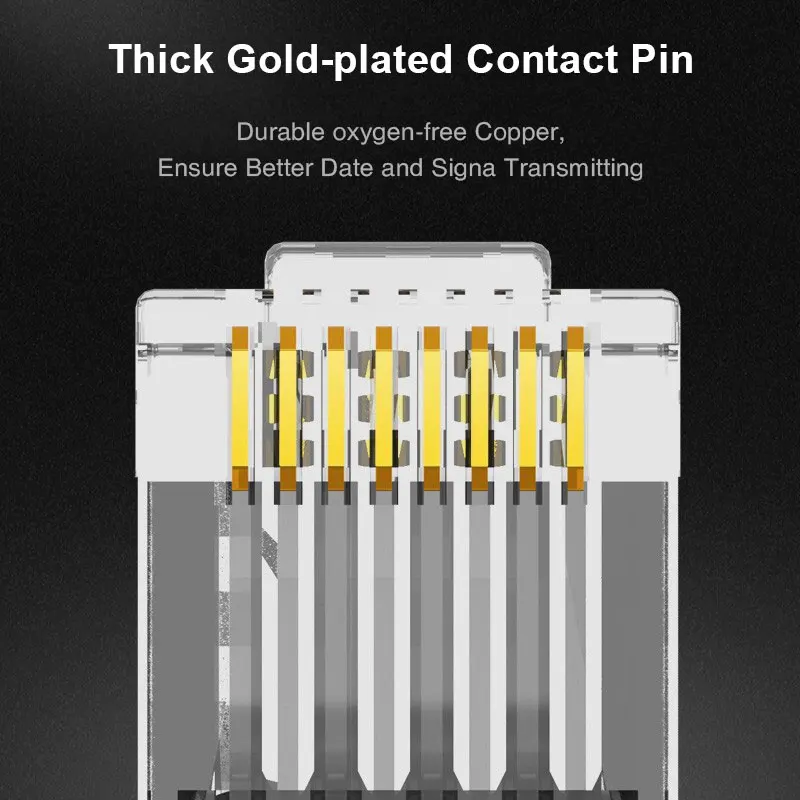

Enhances signal integrity and clarity by reducing the distance between wire twists and contacts. 30u gold plated 8p8c 3 prong makes the contact attach to the core closer and the data flow stable.

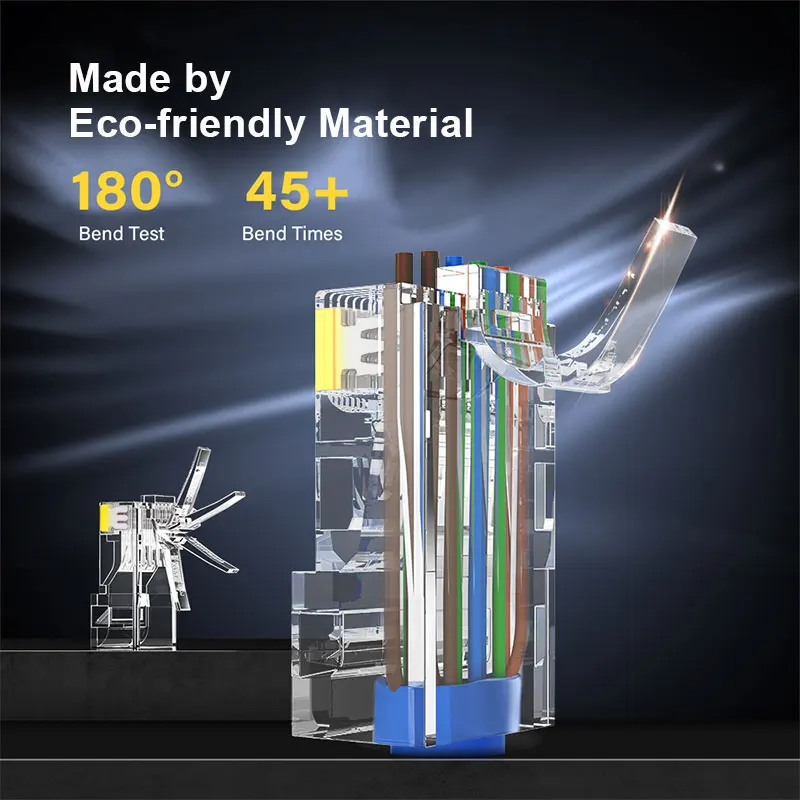

Environmentally Materials--These rj45 cat5 cat6 Cat6a connectors are made of environmentally materials, ensure reliability and quality assurance.
Package included-10/30/50/100 pieces rj45 Cat5/Cta6/Cat6a pass through rj45 connector

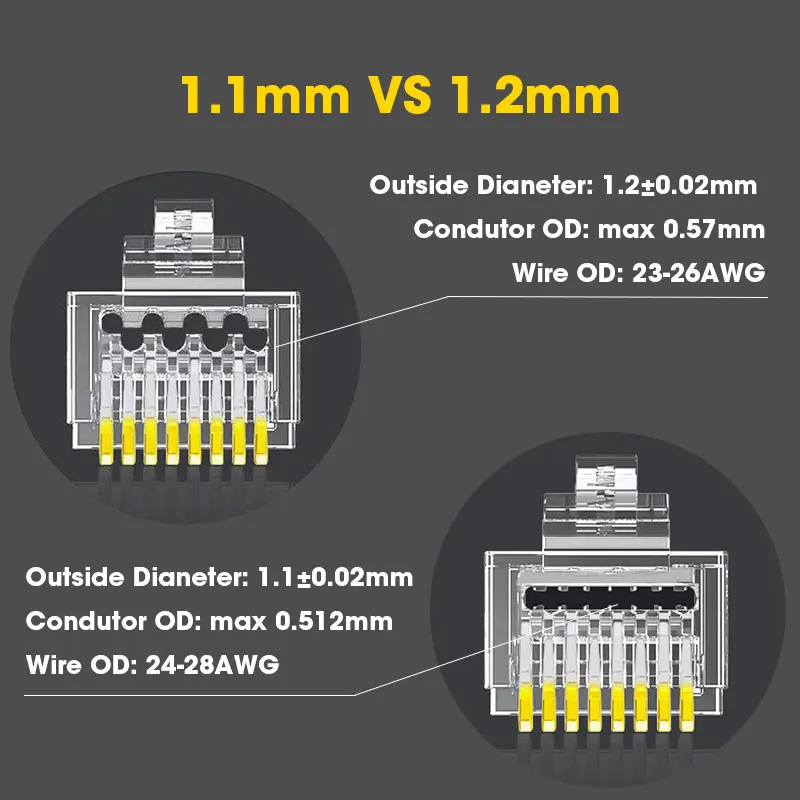

Cat6a
Outside Dianeter: 1.2±0.02mm
Condutor OD: max 0.57mm
Wire OD: 23-28AWG
Speed: 1000Mbps
Bandwidth: 550Mhz
Cat6/Cat5e
Outside Dianeter: 1.1±0.02mm
Condutor OD: max 0.512mm
Wire OD: 24-28AWG
Speed: 1000Mbps
Bandwidth: 250Mhz
