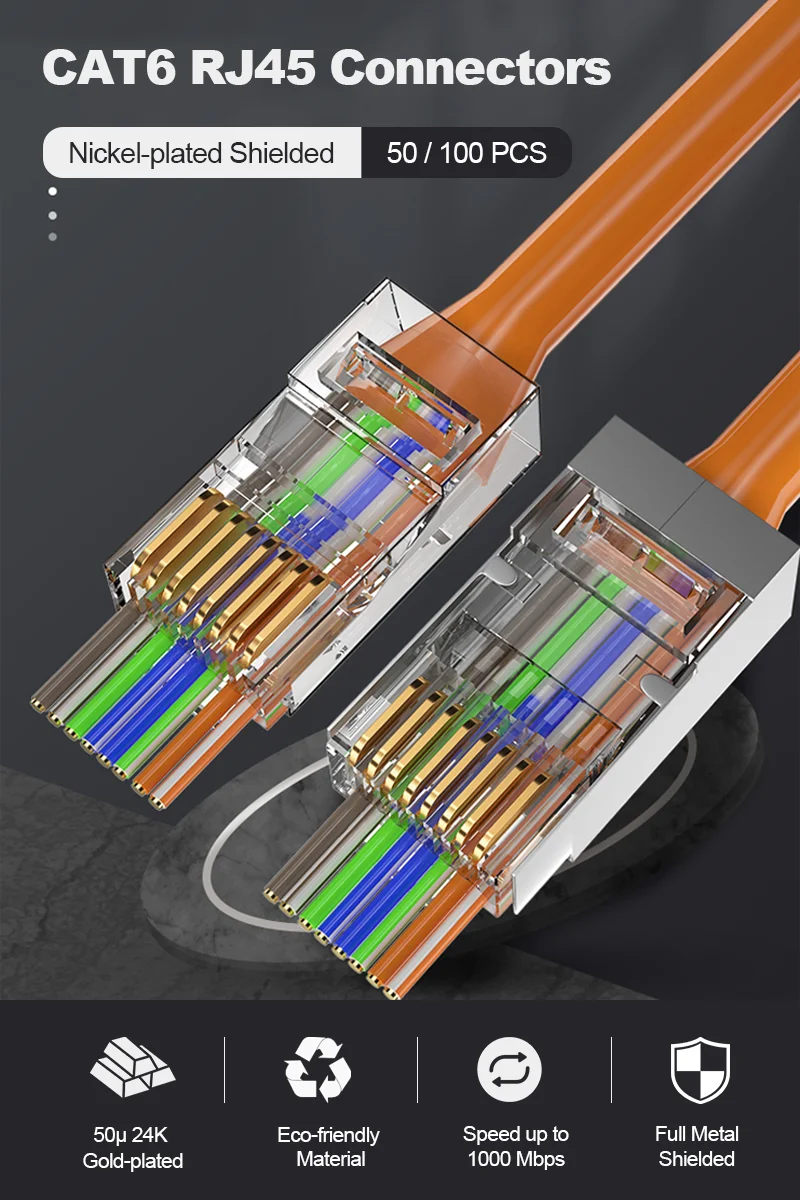

ZoeRax-Conector de paso a través de Cable Ethernet Cat6 RJ45, Conector de engarce de red RJ45, Conector de cabeza de 30 Ω chapado en oro Cat 6

Shielded RJ45 PassThrough Cat6 Connectors - ZoeRax Easy and Fast Termination STP Gold Plated 30 Micron 3 Prong Modular Plug 8P8C Ends for Cat6/Cat5E Ethernet Cable Stranded or Solid

💖 Termination Easy, Fast & Reliable - RJ45 Pass Through design allows the wires simplify to slide all the way to the slot after you arrange it in a 568A or 568B standard. Best for a not pro installer, let you quickly and easily create category 6 cables.

💖 Avoided Mistakes & Environmentally Friendly - Compared with traditional rj45 connectors, you can easily verify the proper wiring order by the pass through ends, reducing scraps and waste.

💖 Shielded Cat6/Cat5E Plugs - Fully shielded products provide reduced pair-to-pair crosstalk, alien crosstalk and considerably improved immunity to noise at all frequencies

💖 Compatible with 24 AWG - These 3-prong, 30µ gold plated CAT6 connectors work effectively with standard or solid cable conductor gauge between 24AWG, compatible with nearly every style or model of RJ45 crimp tools.

💖 How to Use - Trim off the ends of the wires after you straighten them and make them sequence, then insert cable through connector and out the front. These durable Passthrough Connectors are ideal for all Category CAT6 compliant data networks, like custom CCTV, security and network installations

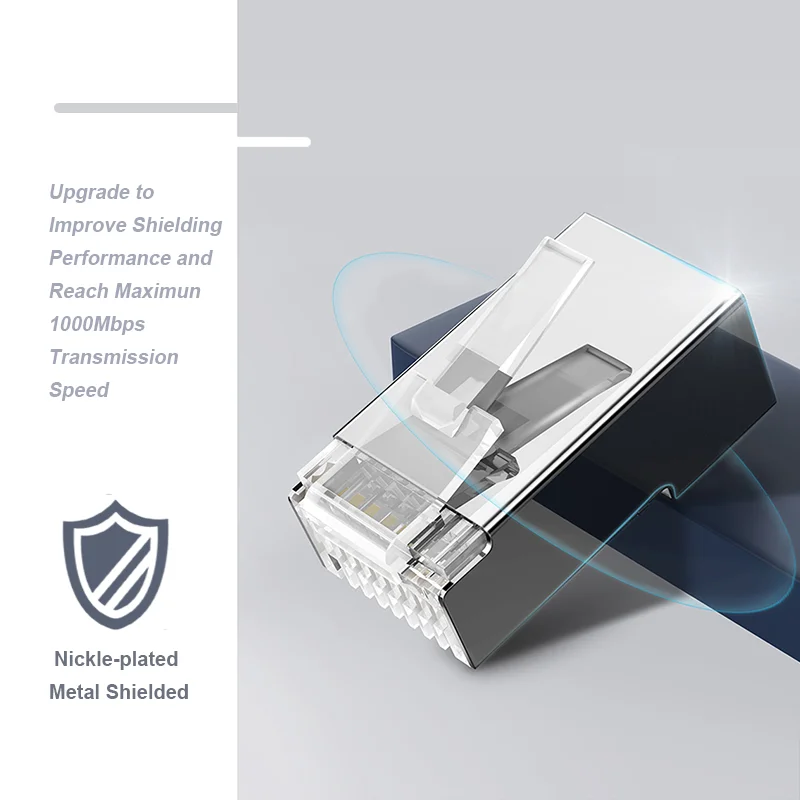

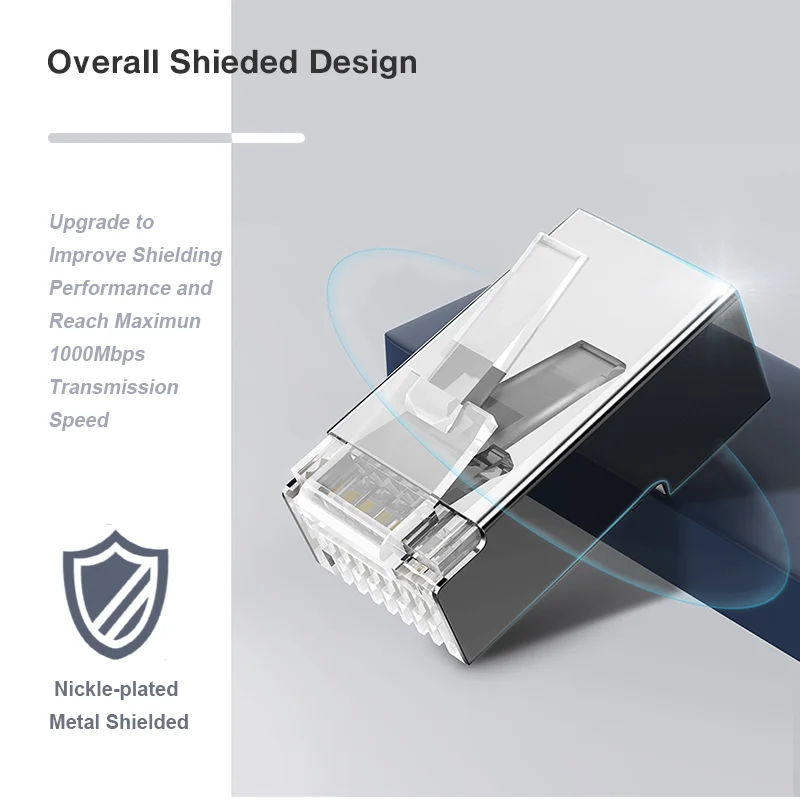

Upgrade to improve shielding performance and reach maximun 1000Mbps transmission speed

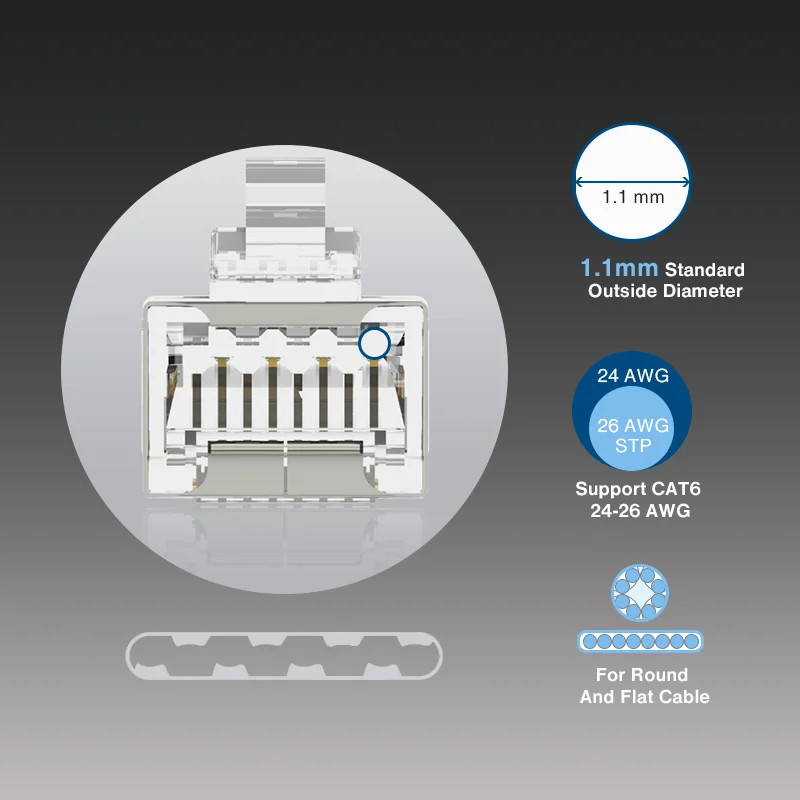

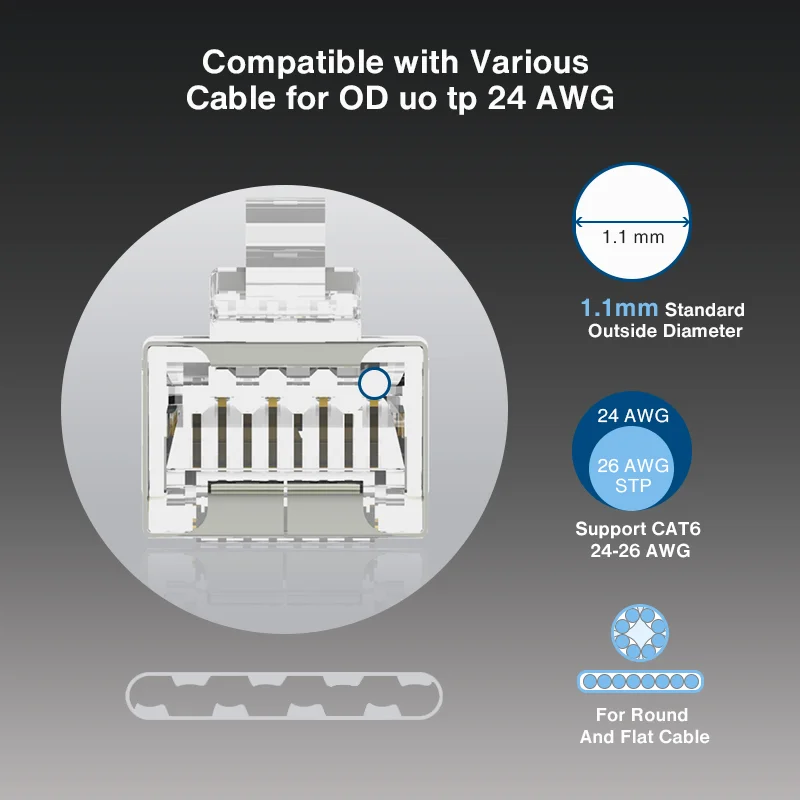

1.1mm standard outside diameter;

Support cat6 24-26AWG;

For round and flat cable.

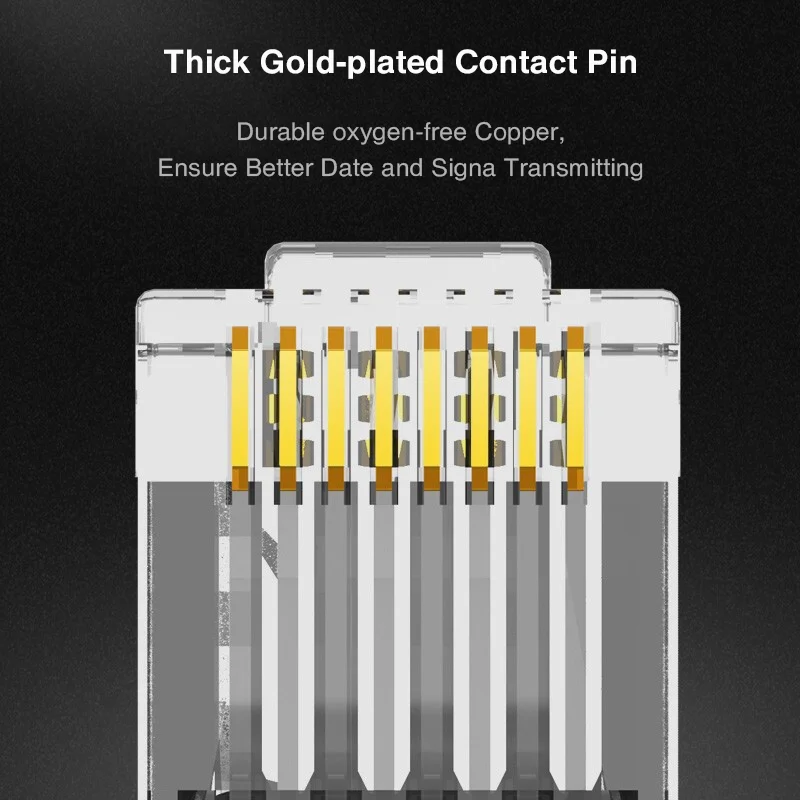

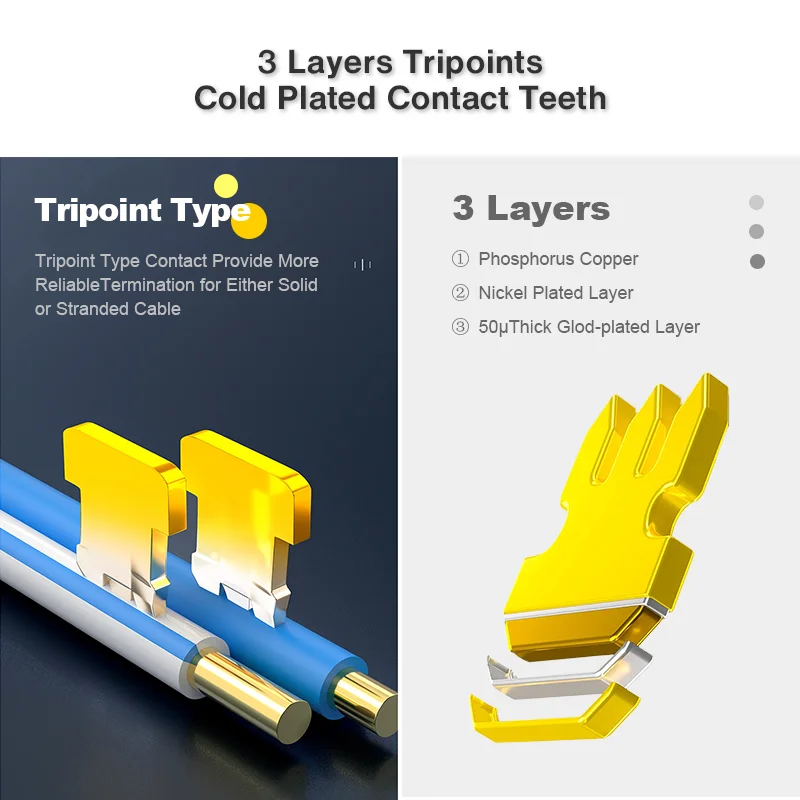

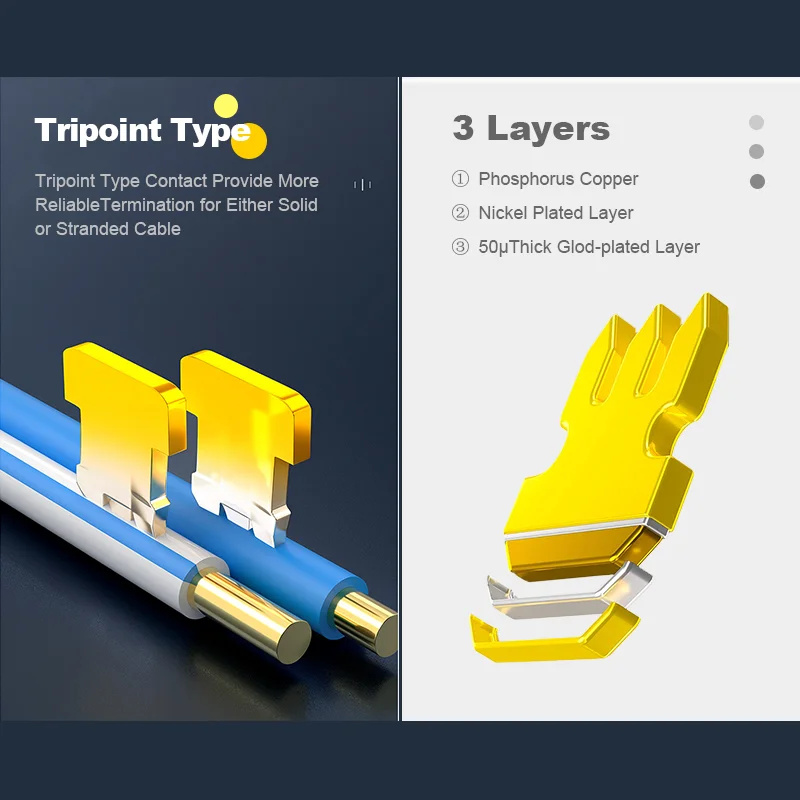

3 layers tripoints gold plated contact teeth

Durable oxygen-free copper, ensure better date and signa transmitting

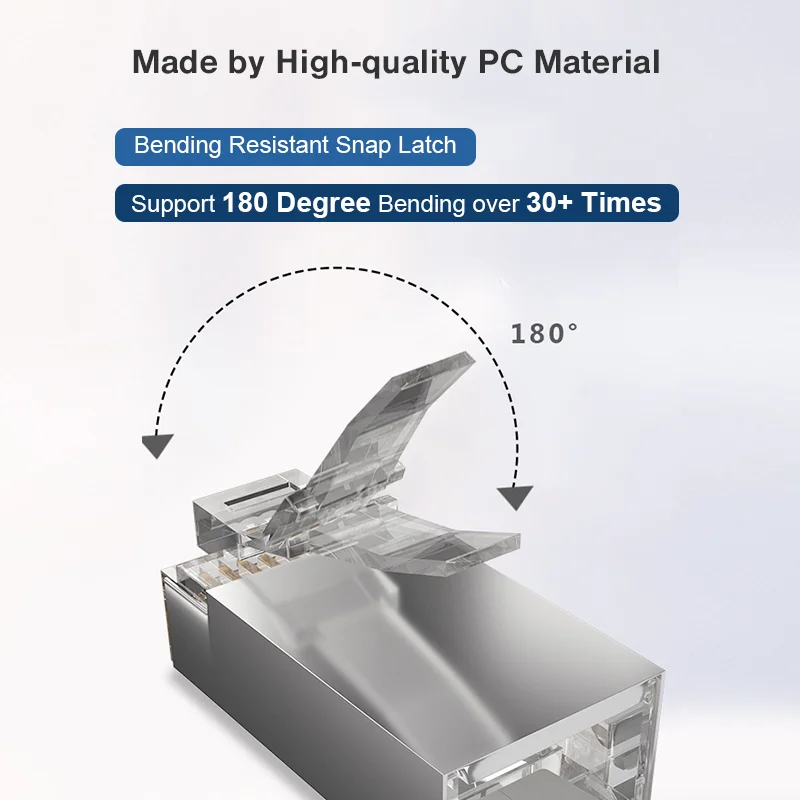

Support 180 degree bending over 30+ times

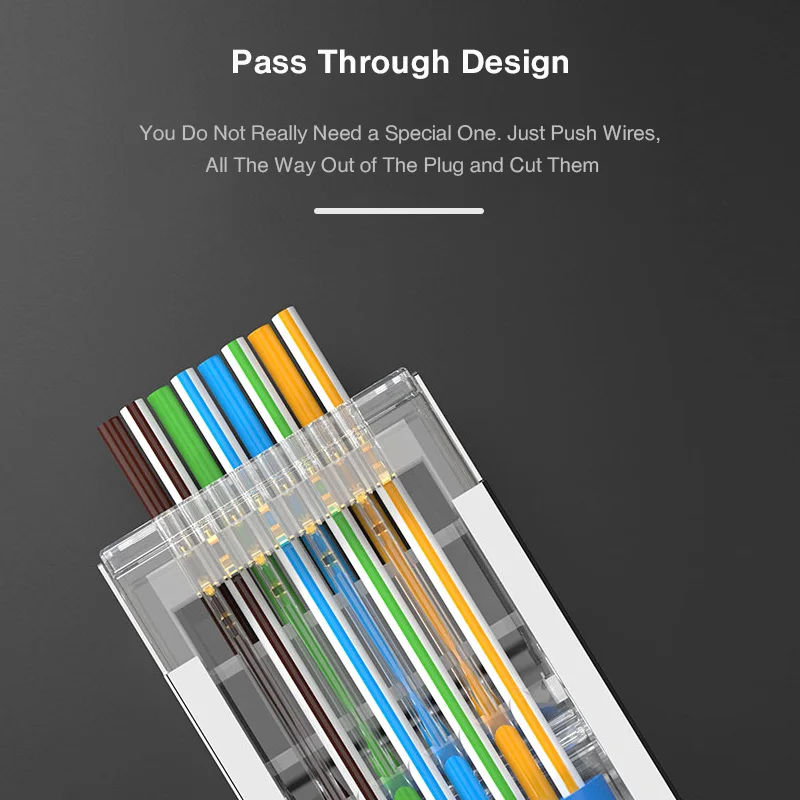

You do not really need a special one. Just push wires, all the way out of the plug and cut them

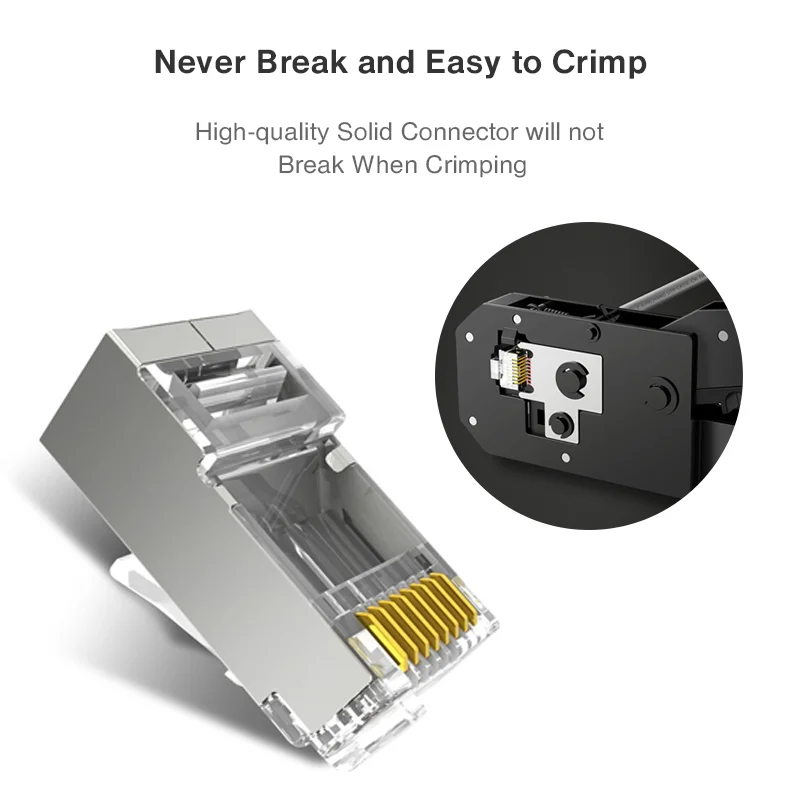

High-quality solid connector will not break when crimping

Wide compatible

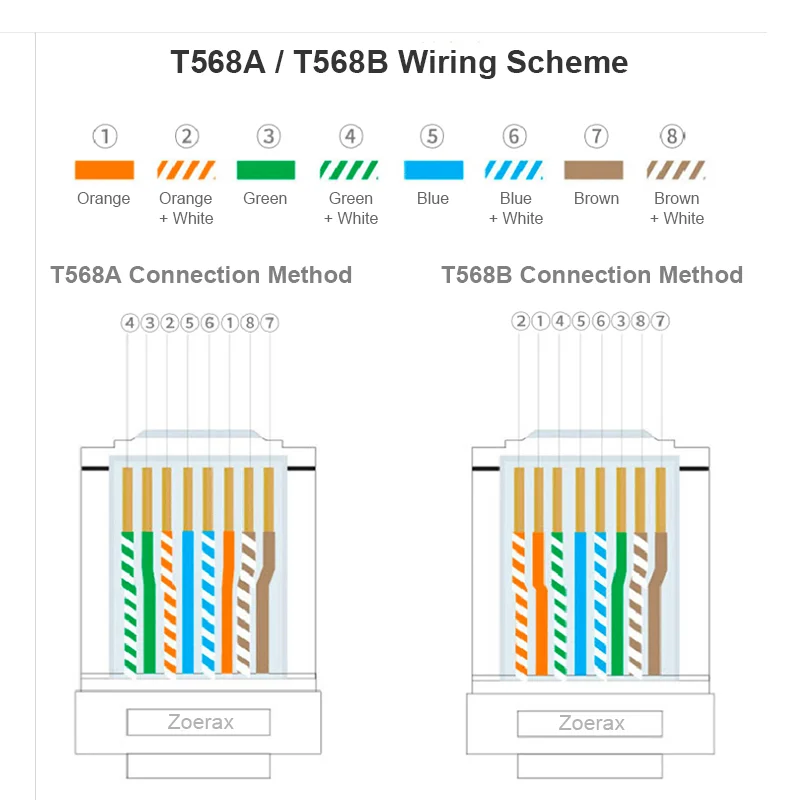

T568A /T568B wiring scheme

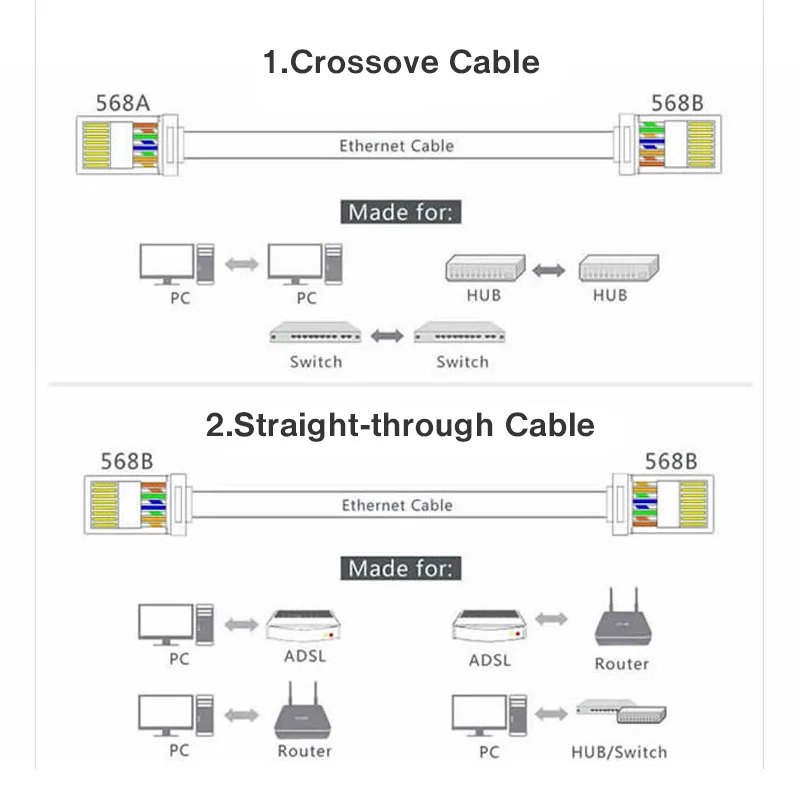

Crossove cable;

Straight-through cable;

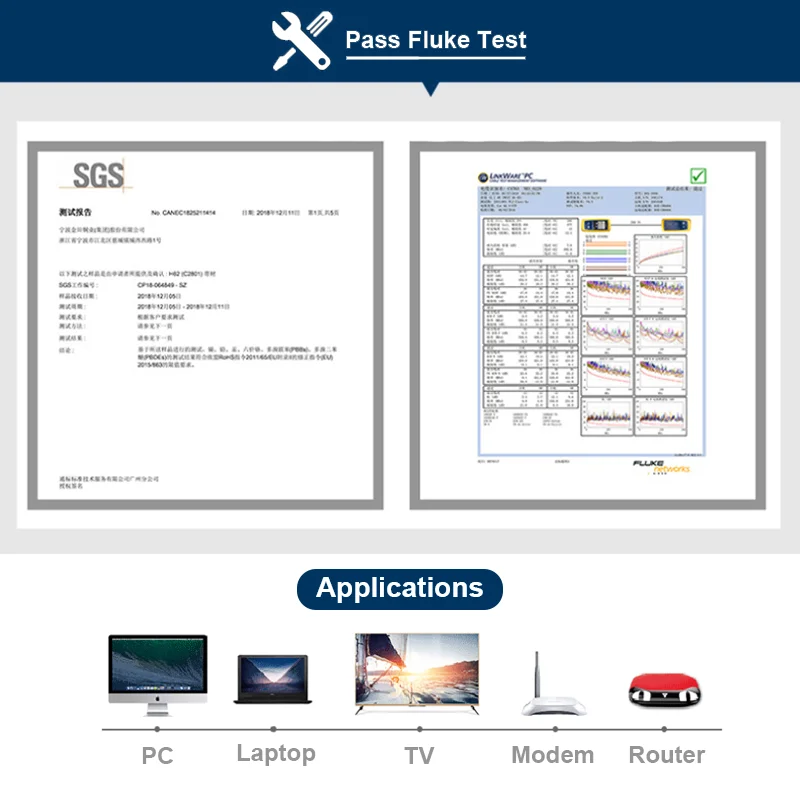

Pass fluke test

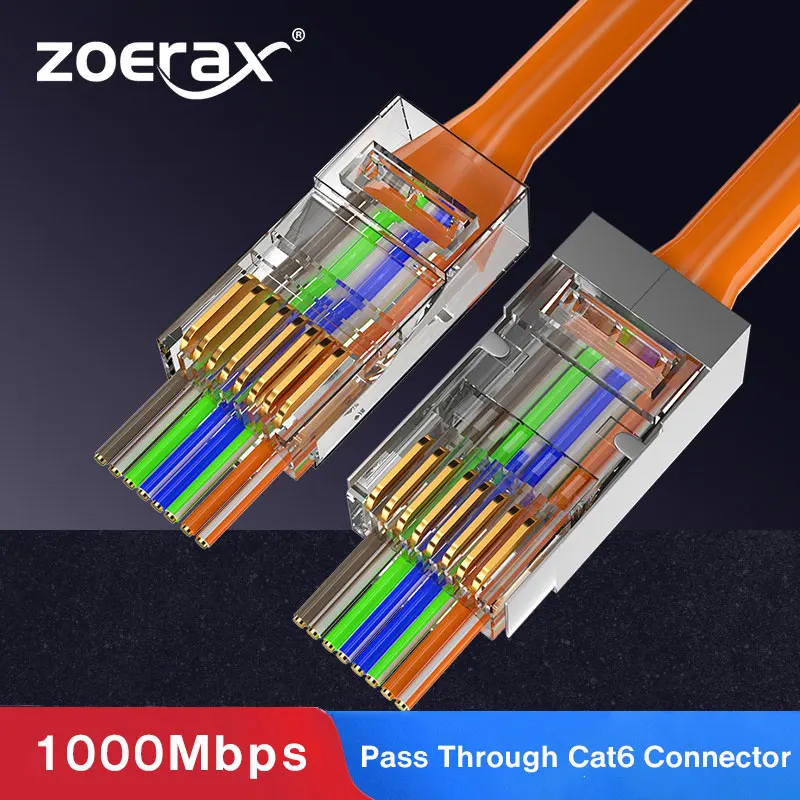

ZoeRax Cat6/Cat5E Pass Through Shielded 8P8C RJ45 Connector

STP Pass Through RJ45 Connectors
The pass through plugs use 3 Prong contact blade fit both stranded and
solid wire. The pass through design allow you to slide 4-pairs wires all
the way into the slot, can simplify termination of cables and save
time.

Simple 1-piece Pass Through Plugs
Easy to verify wire sequence and reduces scraps with a higher
performance. Pass-through holes allow wire pairs to be inserted through
front of connector for faster terminations

Supports 24-26 AWG Round Stranded or Solid Cable
Fully RoSH, UL and FCC compliant and are suitable for use in category 6
data networks. They work with virtually every model of RJ45 crimper tool
and 23-24AWG cable. Using the pass through crimping tool would cut the
excess cable more quickly.

Supports RJ45 CAT6 / Cat5E Cable
Data transmitting capability of up to 1000Mbps (1Gb), used for CCTV,
Security Cameras, Routers, Switches, Printers, and Servers.

90 Days Warranty
ZoeRax rj45 connectors are backed by our 15 Days Product Warranty and
you will always get friendly support.

Cable Parameters:
1. 24-26 AWG round
2. Solid or stranded wire
3. 3-prong, 30 µ gold contacts
4. Max cable OD: 6.5mm/0.255 in.
5. Max conductor OD: 1.1 mm/0.043 in.
