Descripción

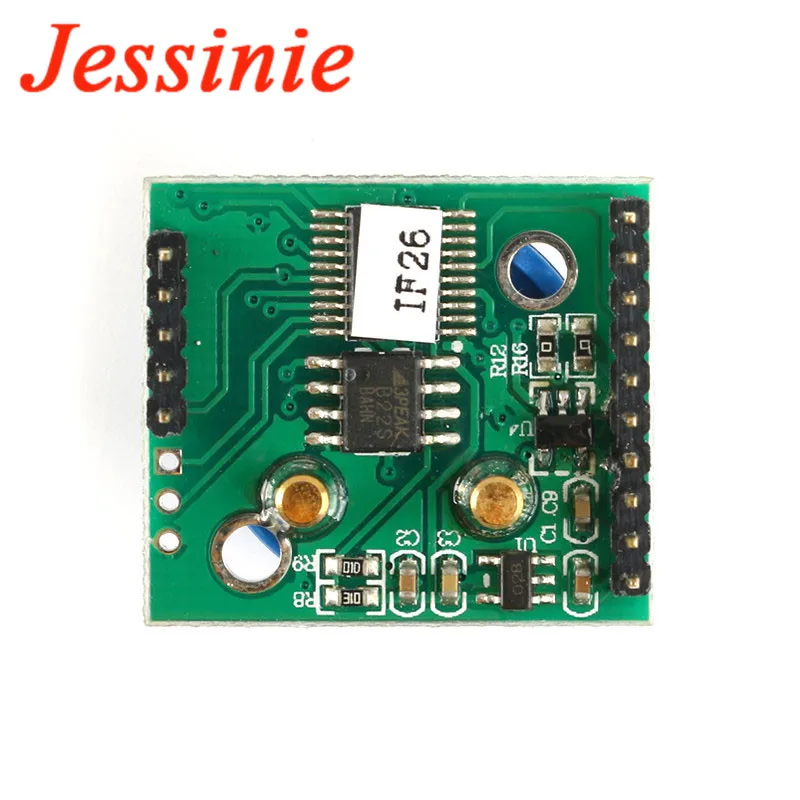

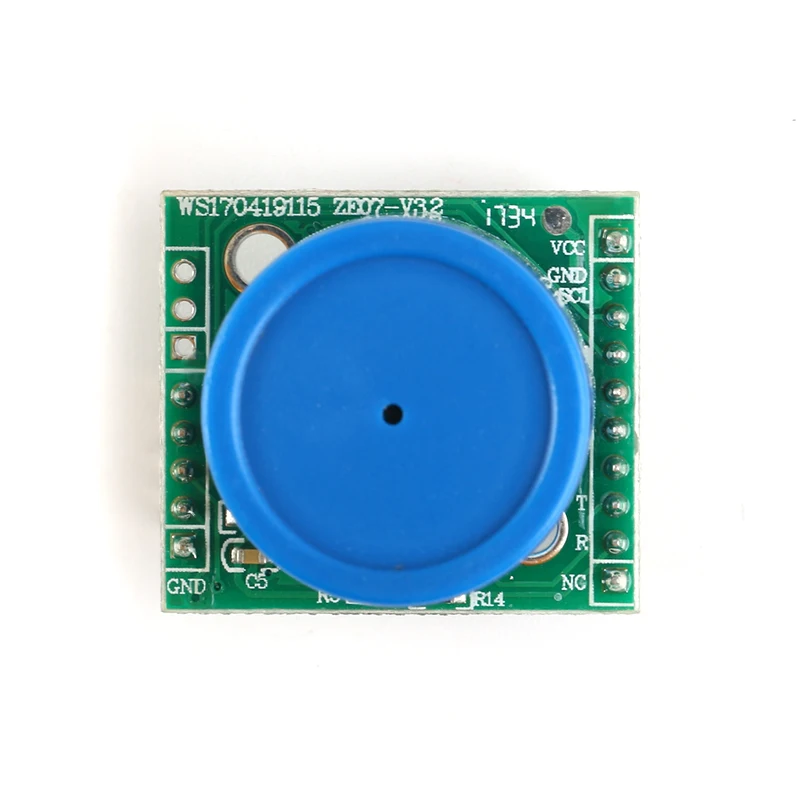

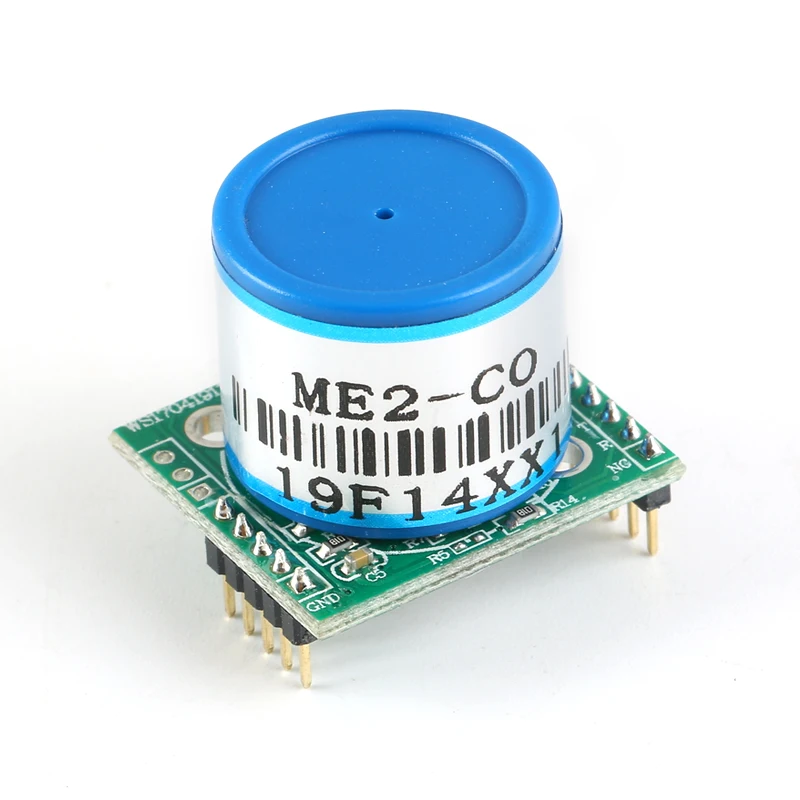

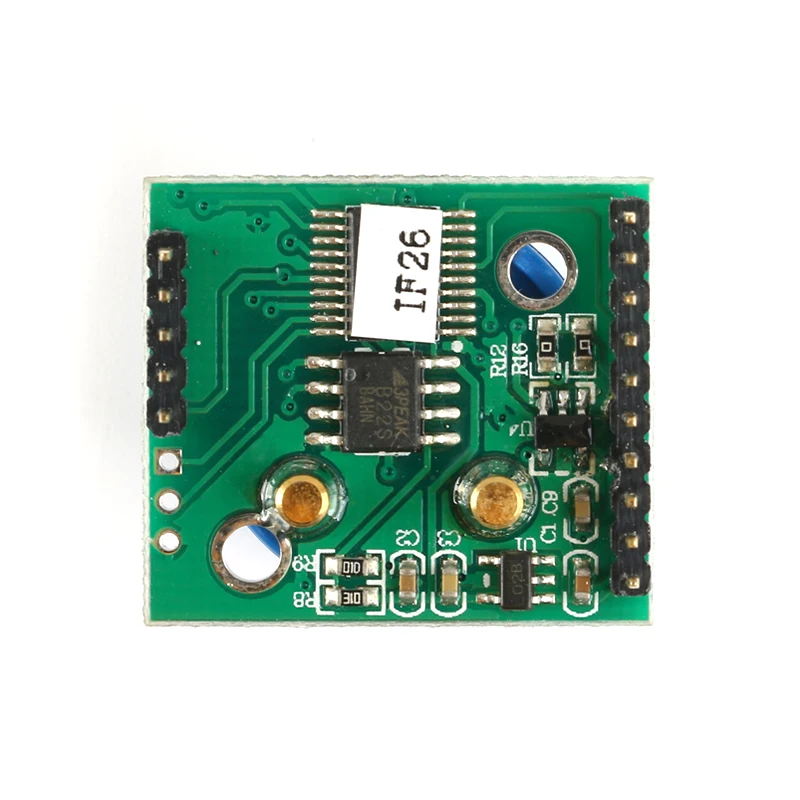

Descripción del producto: ZE07-CO electrochemical carbon monoxide module is a general-purpose, small modification module. The electrochemical principle is used to detect the CO present in the air, which has good selectivity and stability. Built-in temperature sensor for temperature compensation; digital output and analog voltage output for easy use. ZE07-CO is a universal gas module designed and manufactured by combining proven electrochemical detection technology with sophisticated circuit design. Features:1. High sensitivity, high resolution, low power consumption and long service life2. Provide UART, analog voltage signal, PWM waveform and other output methods3. High stability, excellent anti-interference ability, temperature compensation, excellent linear outputApplication:Portable instruments, air quality monitoring equipment, fresh air ventilation systems, smart home equipment and other places.Parameter:
Detection gas: carbon monoxide
Interference gas: gas such as alcohol
Output data: DAC (0.4~2V voltage signal corresponding; concentration: 0~ full scale); UART output (3V level)
Working voltage: 5V ~ 12V (no voltage reverse connection protection)
Warm-up time: ≤ 3 minutes
Response time: ≤60 seconds
Recovery time: ≤60 seconds
Range: 0 ~ 500ppm
Resolution: 0.1ppm
Working temperature: -10 ° C ~ 55 ° C
Working humidity: 15% RH-90% RH (no condensation)
Storage temperature : -10 ° C ~ 55 ° C
Service life: 3-5 years (in the air)
