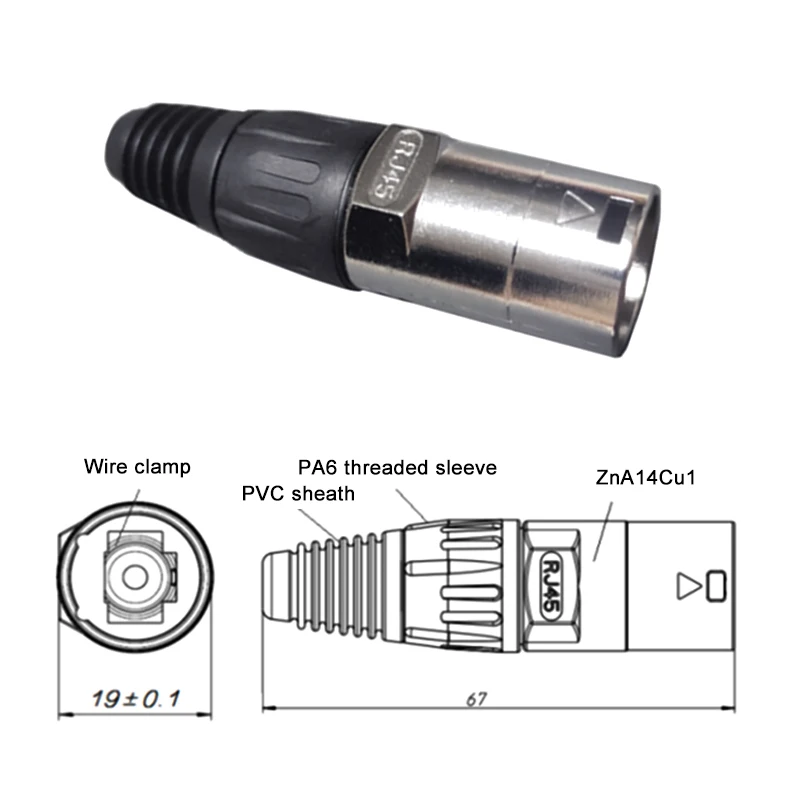

VL10 plug: This is a universal male plug (without crystal head and network cable when leaving the factory). Its structure and size are the same as YT10, with high cost performance. The wire entry hole at the tail can be reduced as the nut is tightened, so that the waterproof ring can hold the network cable tightly.

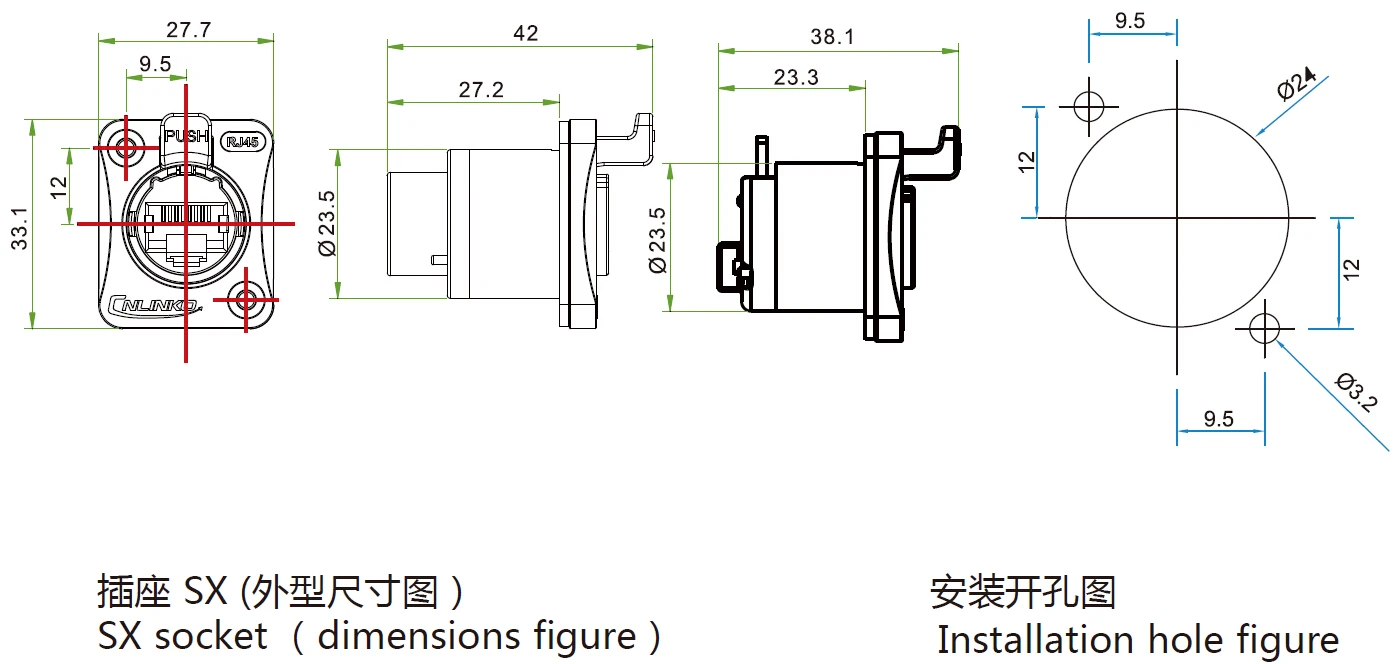

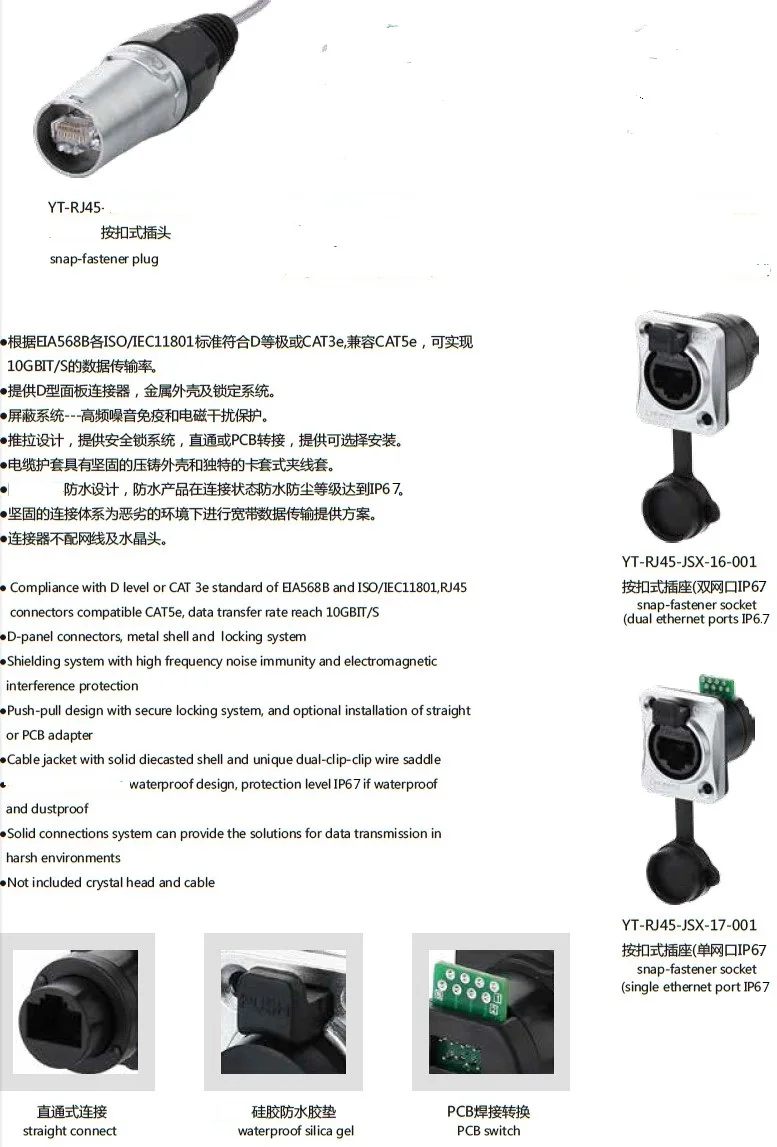

YT16 dual-port waterproof socket (just insert the crystal plug at both ends, no need to weld wires, standard waterproof cover, front and rear network ports are in a straight line at 180 degrees)

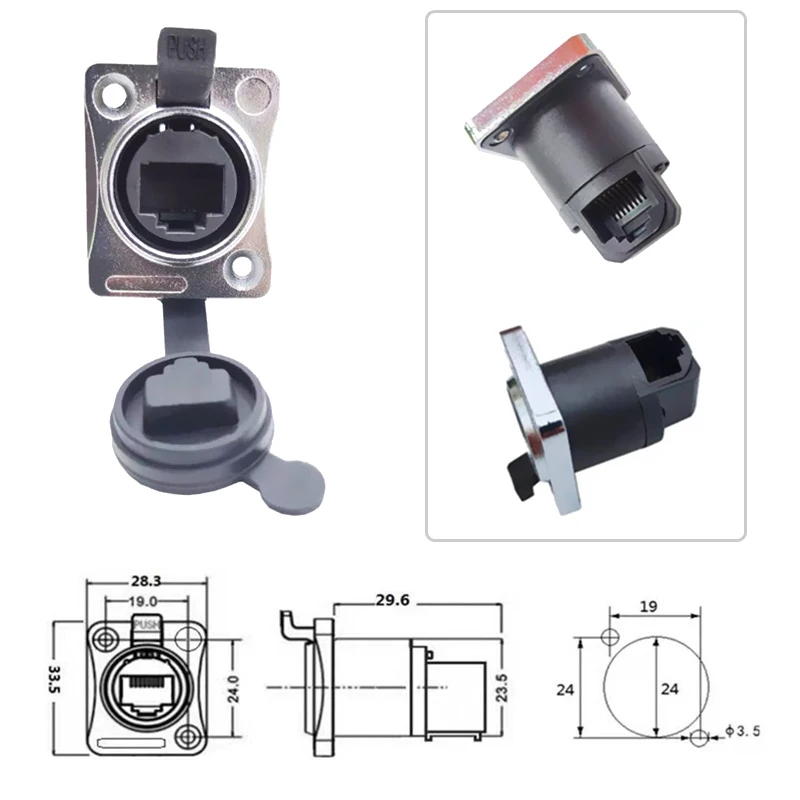

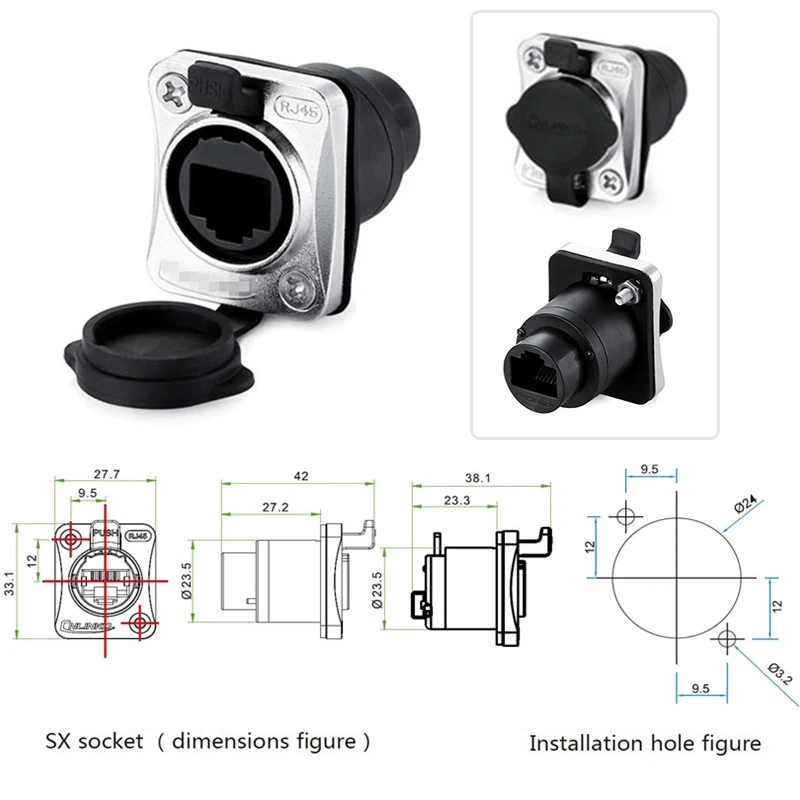

ZE8FD-R-WP 90-degree waterproof motherboard socket (just insert the crystal plug at both ends, no need to weld wires, standard waterproof cover, front and rear network ports are vertically 90 degrees, saving installation space)

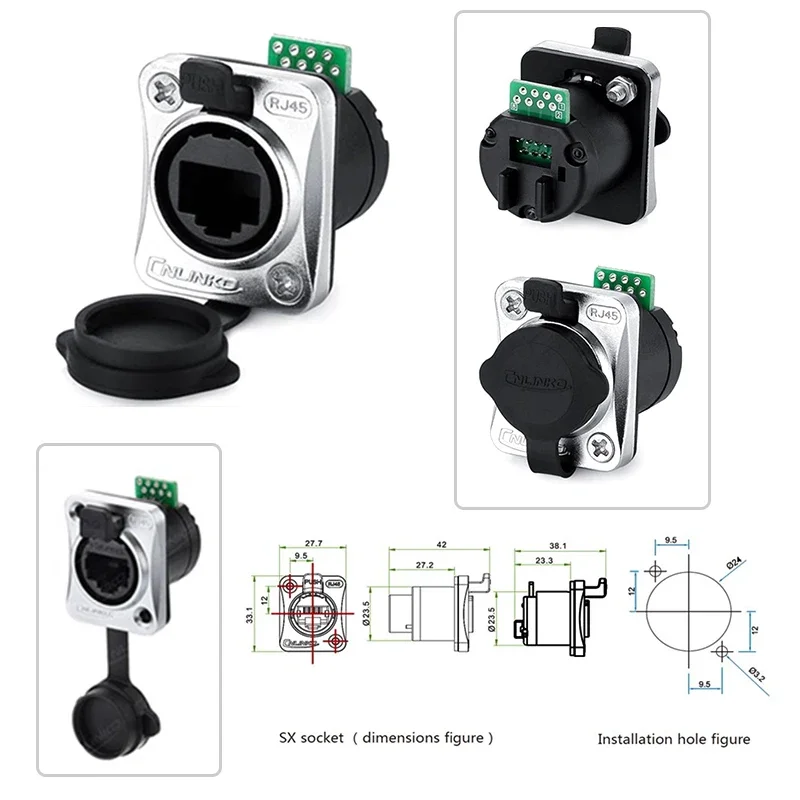

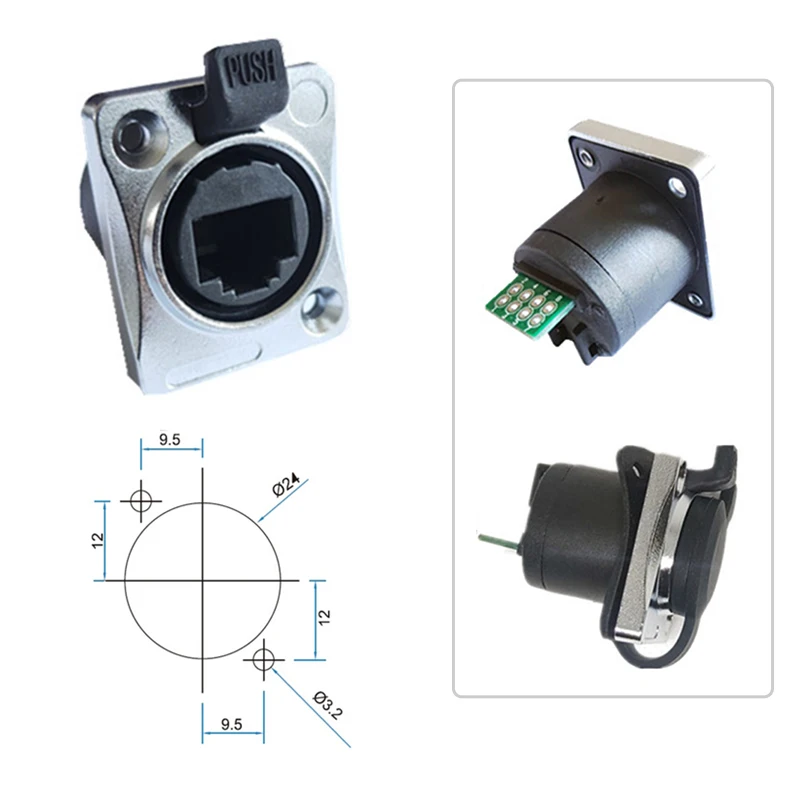

ZE8FD-PCB waterproof mother socket (one end of the network port is directly plugged into the crystal head, the other end has a PCB board for self-welding, and a waterproof cover is standard):
YT17PCB single network port waterproof socket (one end of the network port is directly plugged into the crystal head, the other end has a PCB board for self-welding, and comes with a waterproof cover as standard):
YT10 universal plug (without network cable and crystal plug, YT16 and YT17 can be used alone or with YT10 plug): It is recommended to use ZE8MC-WP instead, which has better waterproof effect

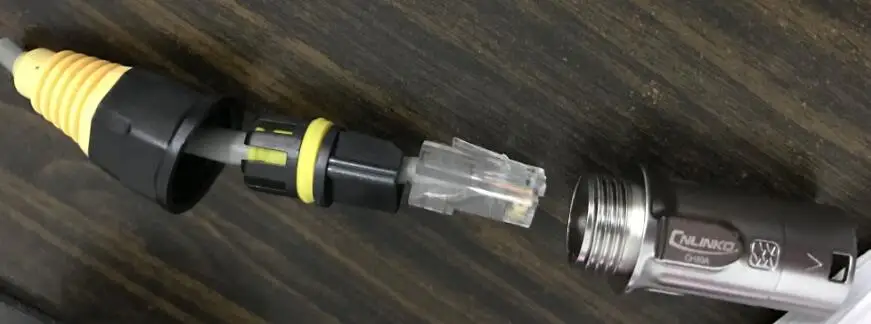

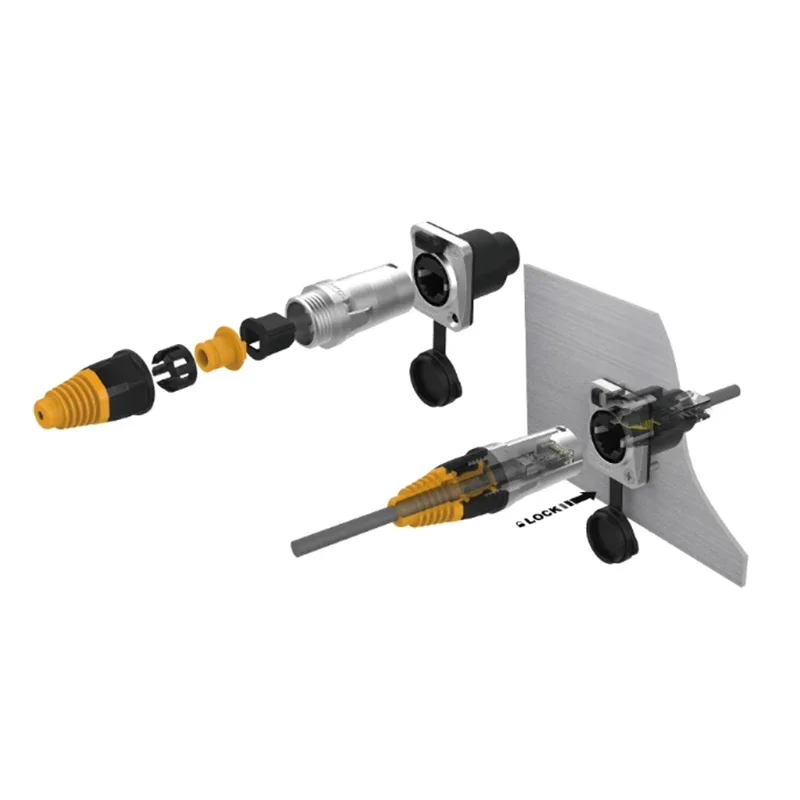

Wiring diagram (disassembled into three parts as shown below, two plastic parts pass through the network cable, then press the crystal head, and then insert the crystal head into the metal part, and then assemble the whole):
