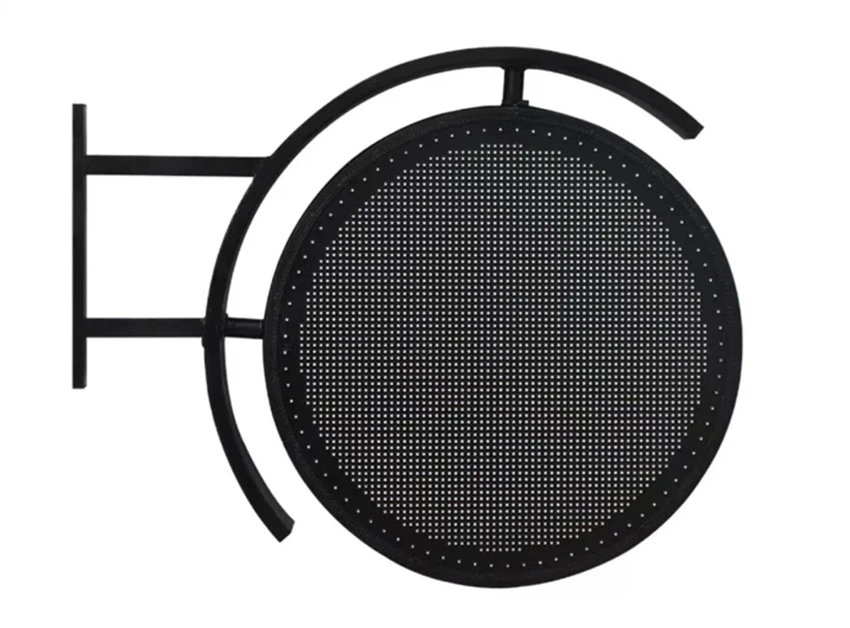

Yao Caixing DIY outdoor SMD logo circular screen double side full color shop store led display

Spcification

No

Items

Parameter

1

Pixel Composition

1RGB LED

2

Pixel Distance

4.68mm

3

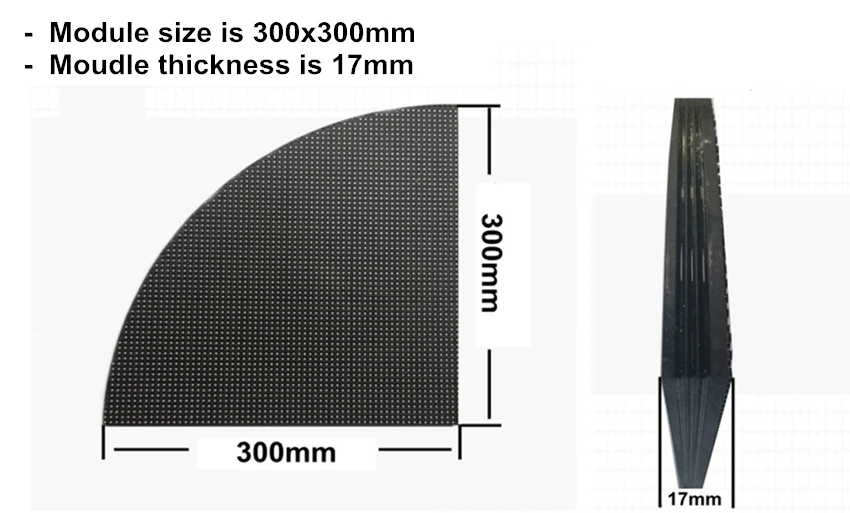

Module Size

300mm*300mm

4

Module Resolutions

64X64

5

LED Chips

Sanan

6

LED Encapsulation

SMD1921 Nationstar

7

Pixel Density

65536 dots/m²

8

Brightness

≥4500cd/m²

9

Gray level

≥256, max reach 65536

10

Display color

≥16.7M

11

Out of control level

≤0.001%

12

Best view distance

≥5m

13

View distance

H：≥120°, V≥120°

14

Scan method

1/8 scan

15

Brightness adjustment

256 levels adjustment

16

Frame change frequency

≥60HZ

17

Refresh

≥1920HZ

18

Control method

Asynchronous control

19

Waterproof Grade

IP65

20

Lifetime

≥100,000 hours

21

Continuous working time

＞72 hours

22

MTBF

＞1,000houys

23

Operation power

AC 220V±15%，50Hz±2 Hz

24

Temperature/Humidity

Temp：-20℃～+60℃，Hum：10%-95%

25

Watts

400W

26

Flatness

≤0.5mm

27

Maintenance method

Front maintenance

28

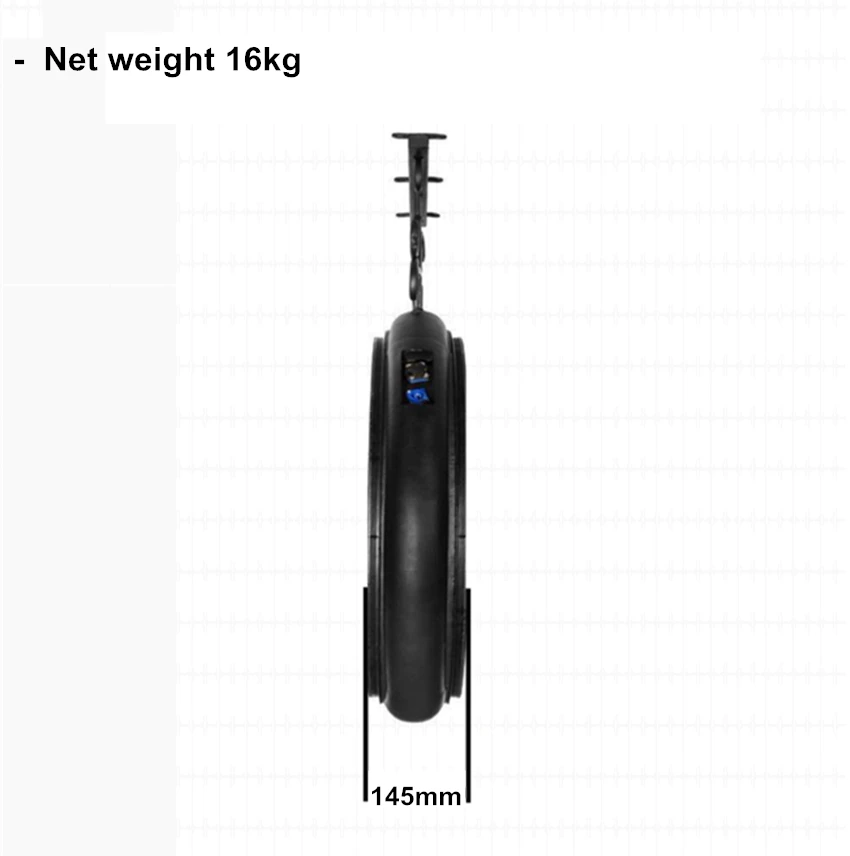

Screen weight

≤16Kg/set

29

Uniformity

Pixel light intensity, uniform module, single point correction per pixel

30

Power supply

3.8V/60A

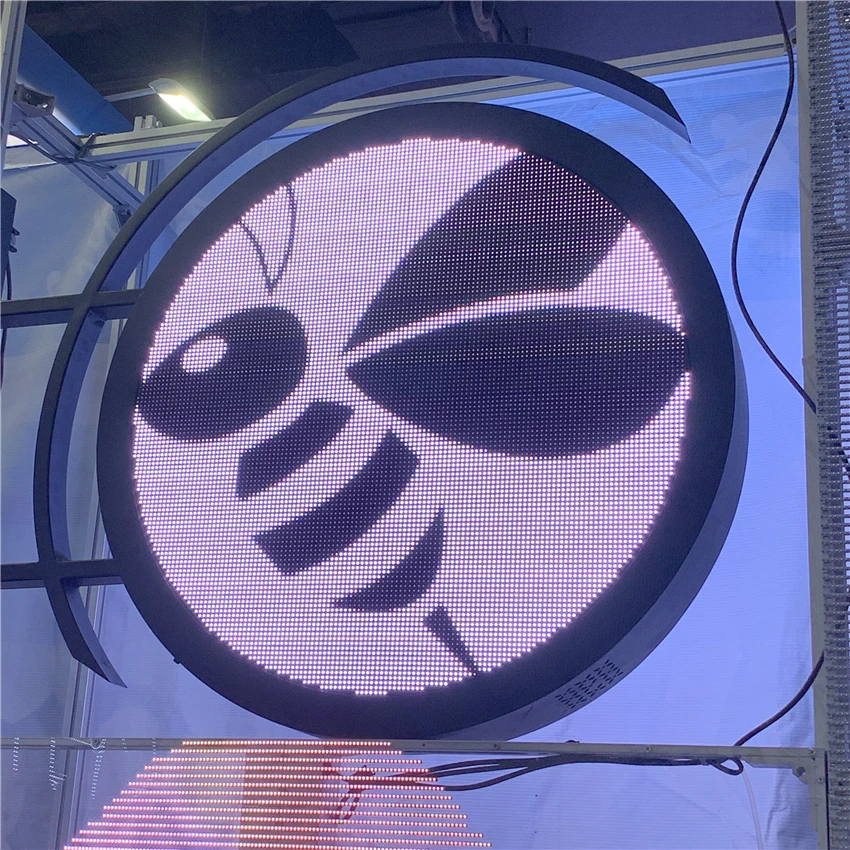

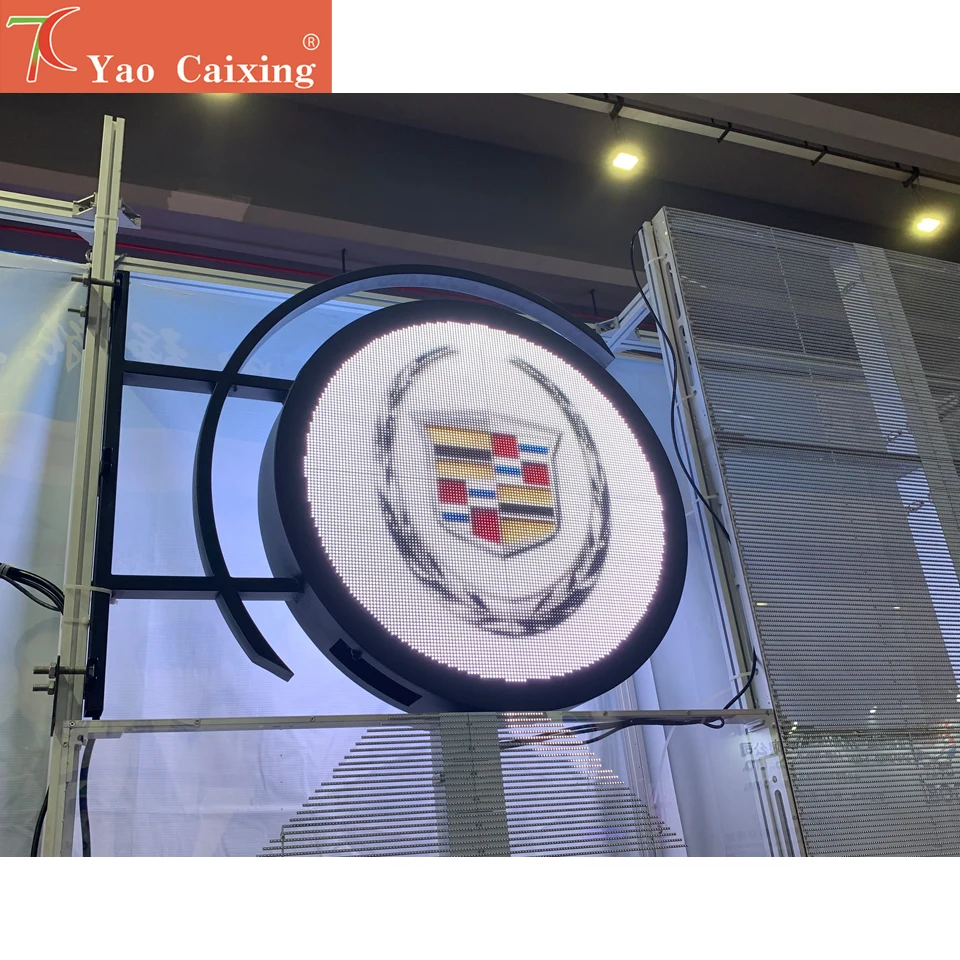

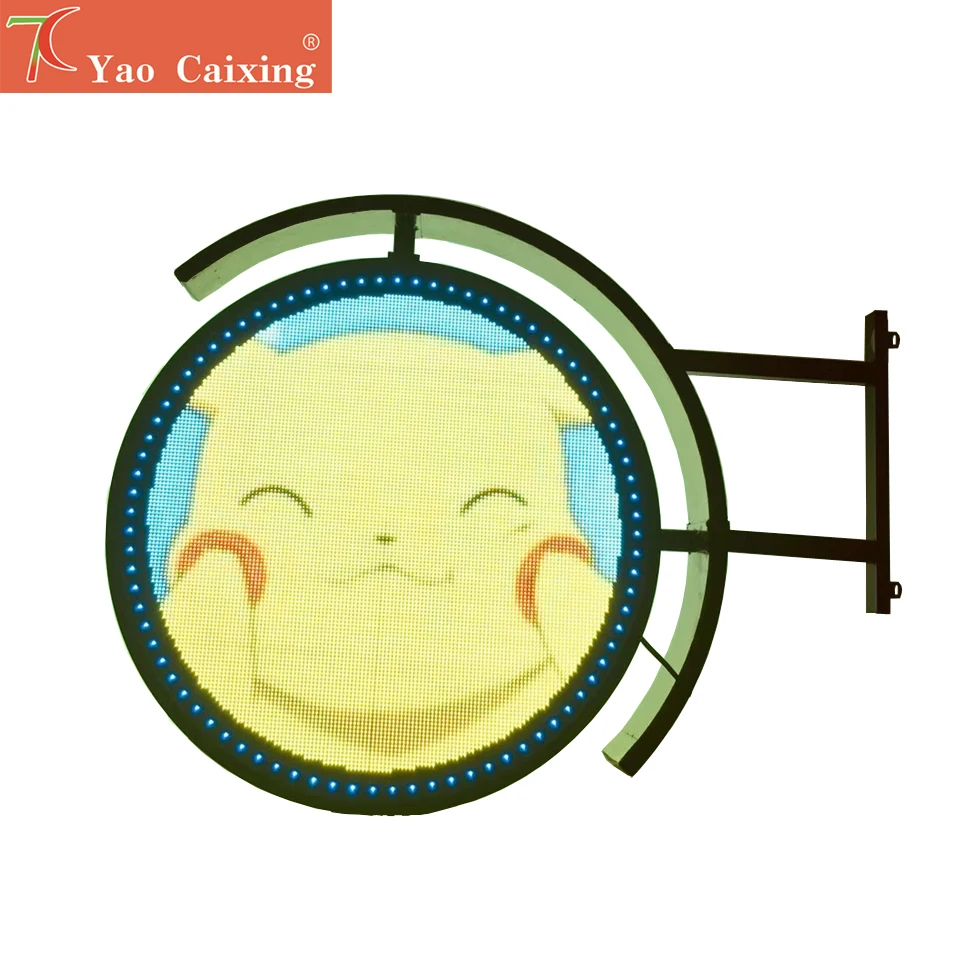

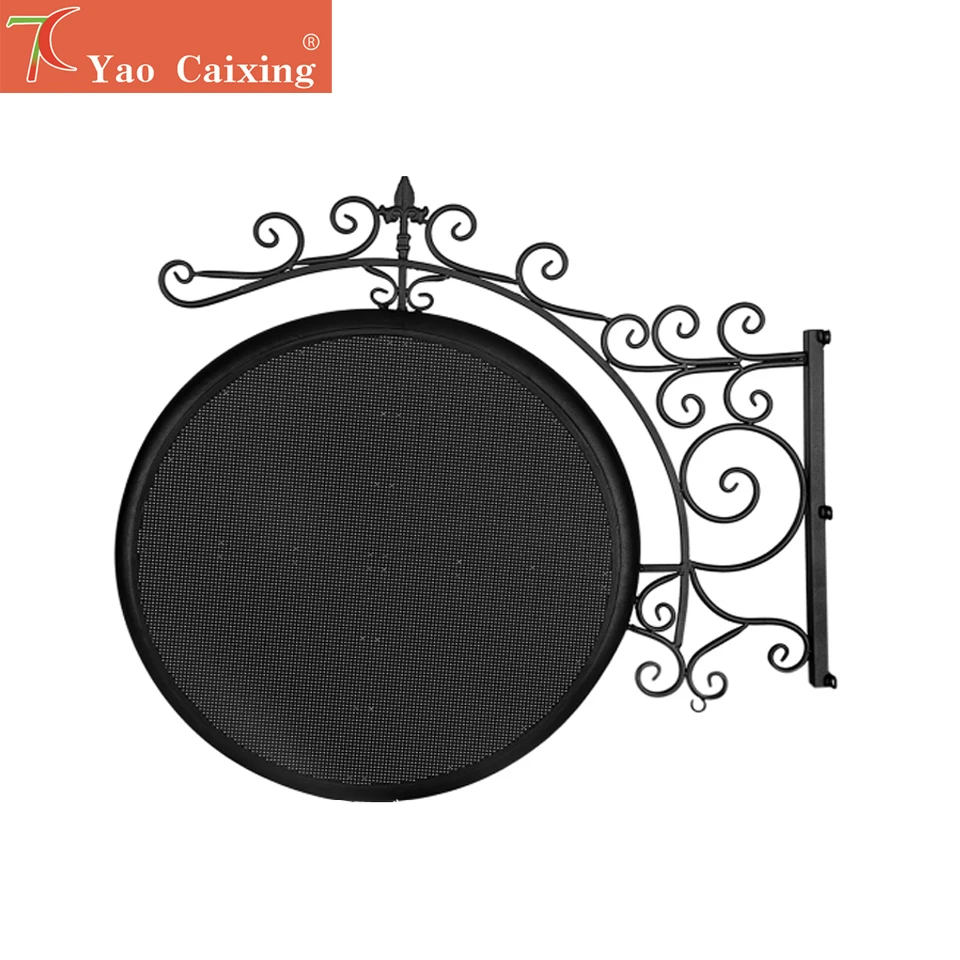

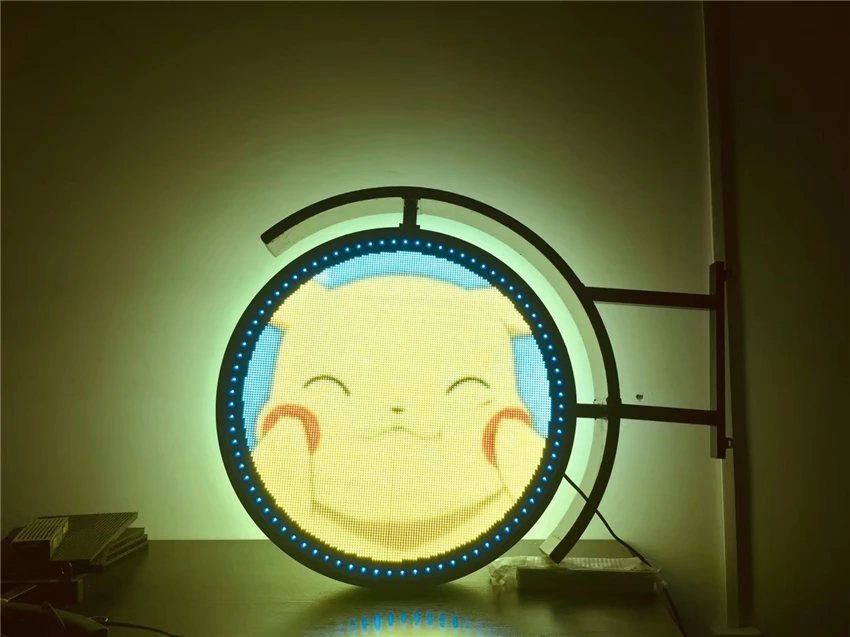

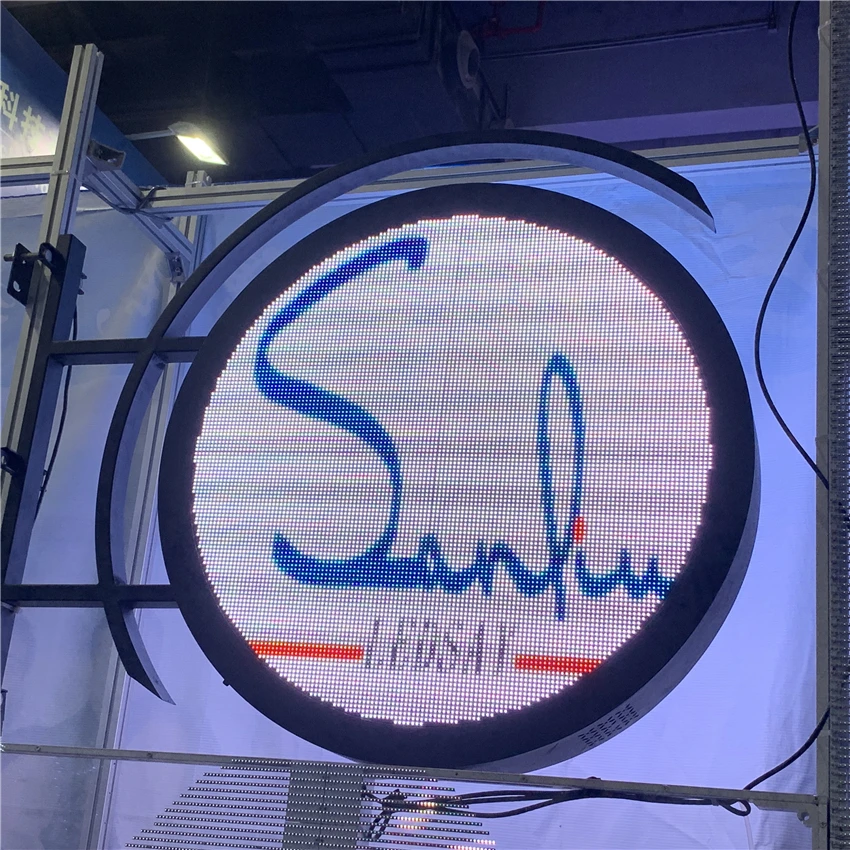

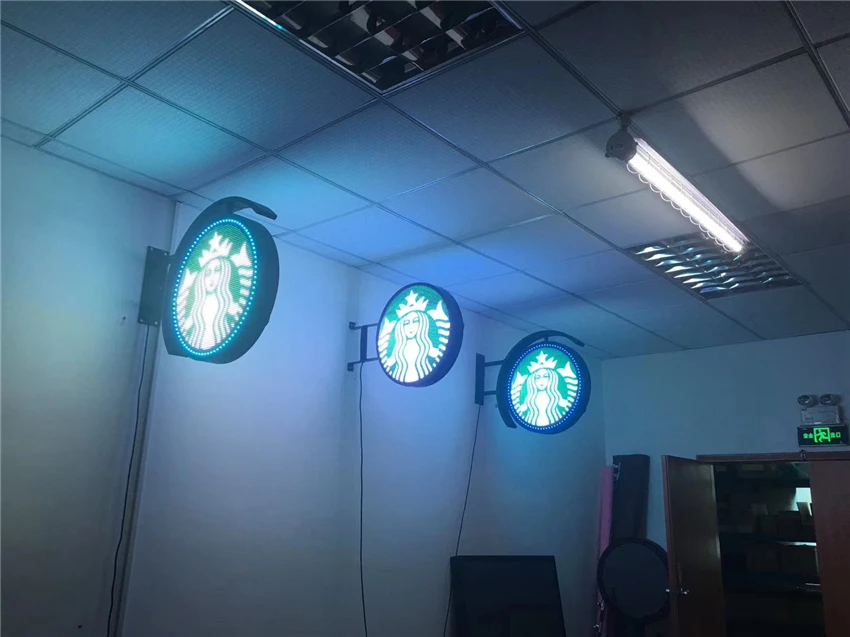

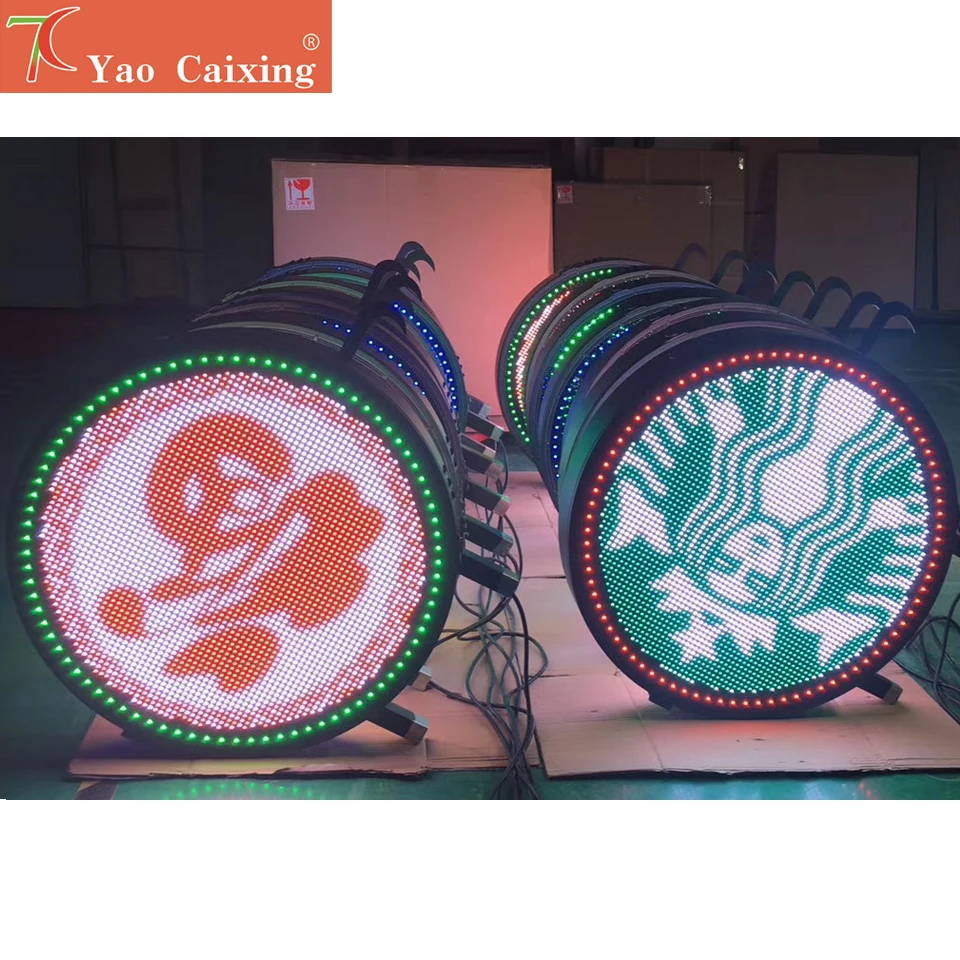

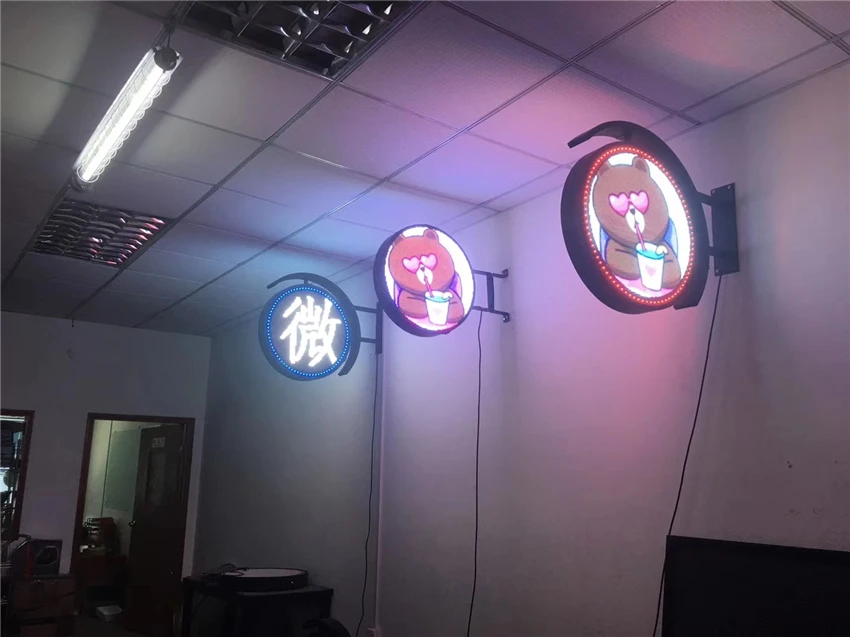

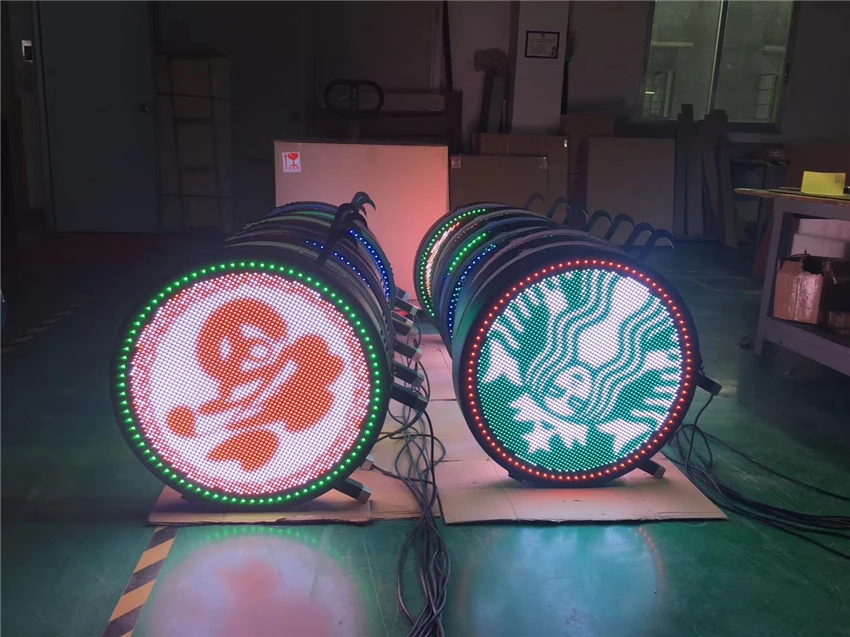

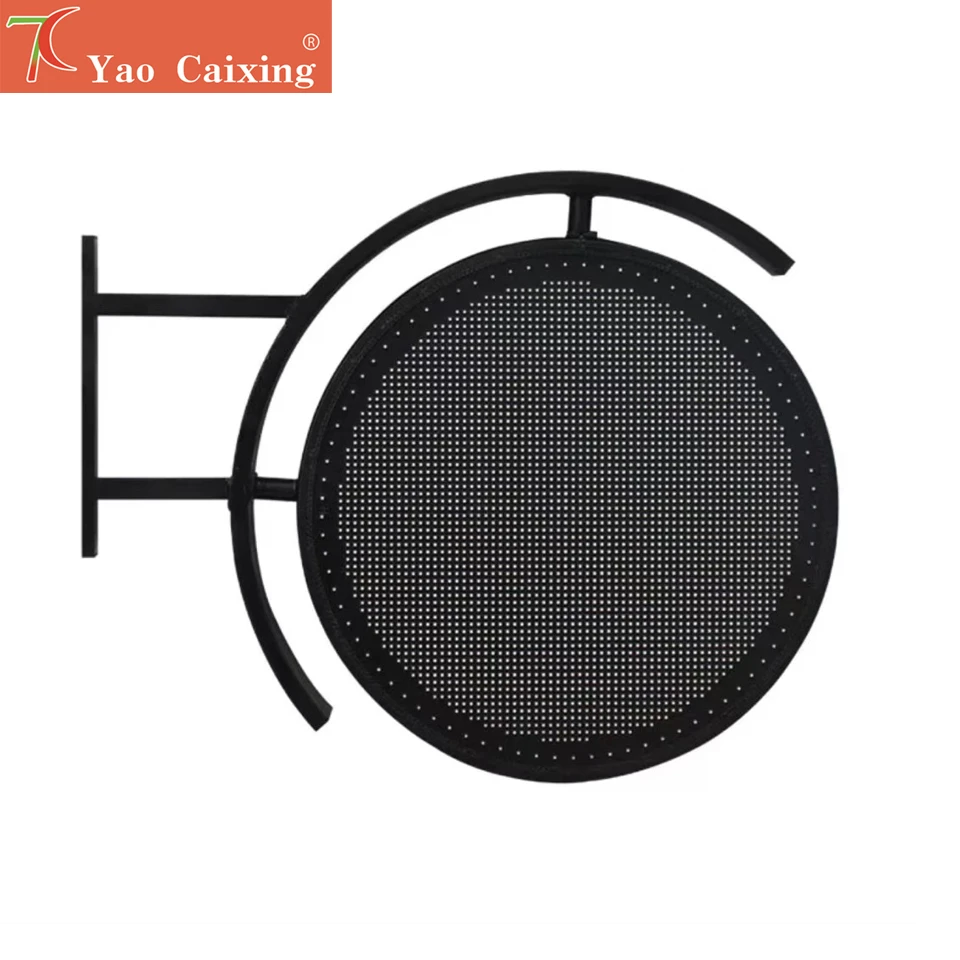

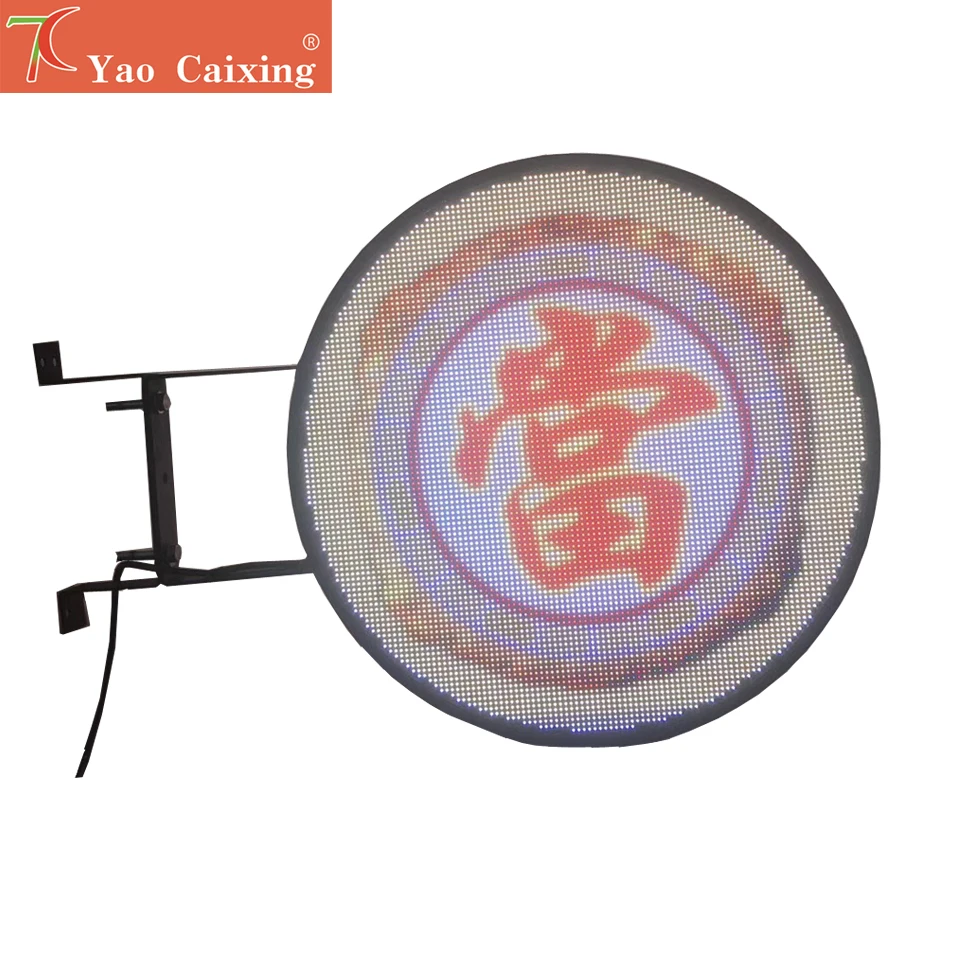

Pictures

Good products without too much explian!
