XGZP6847D Módulo de sensor de presión IIC digital, salida I2C 0 ~ 500kPa/1MPa, medidor de presión 5V 2,5-5,5 V

Features
·Measuring range -100kPa~～2.5kPa--1000kPa·Gage pressure type (positive pressure or negative pressure)
·Suitable for non-corrosive gases ·5V or 3.3V or 3.0V power supply optional -1IC digital output, wide temperature compensation
Application field
·Electronic sphygmomanometers, ventilators, oxygen generators, monitors and other medical fields
·Tire pressure gauge, steering assist, brake boost, MAP sensor and other automotive electronics fields·Sports fitness equipment fields such as massagers, massage chairs, air beds, etc.
·Water heaters, oxygen water machines, beer machines, coffee machines, air pumps, vacuum pumps, pressure meters, electric breast pumps, vacuum cleaners and other fields
Overview

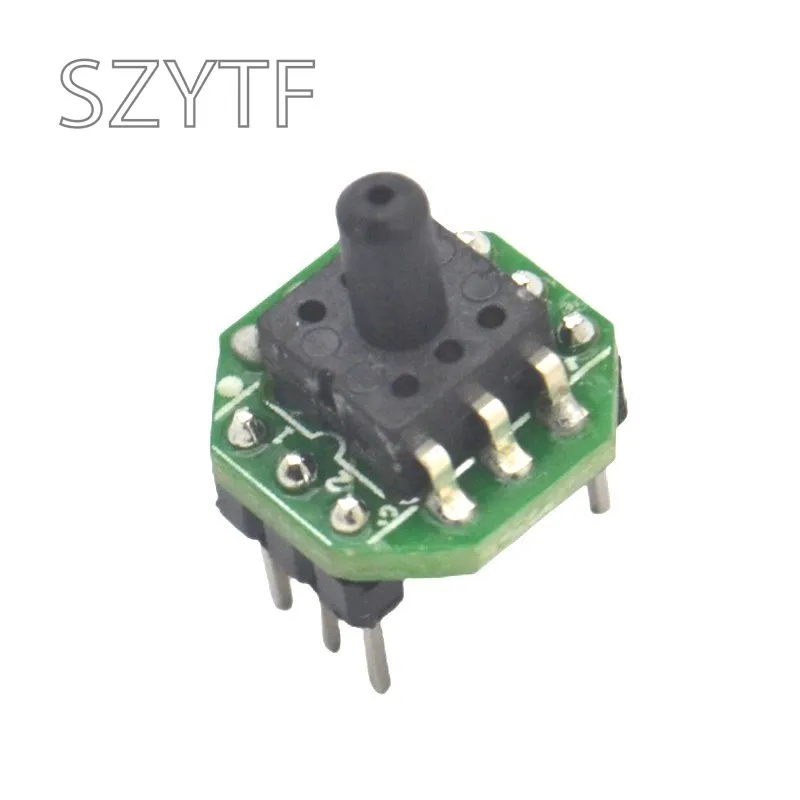

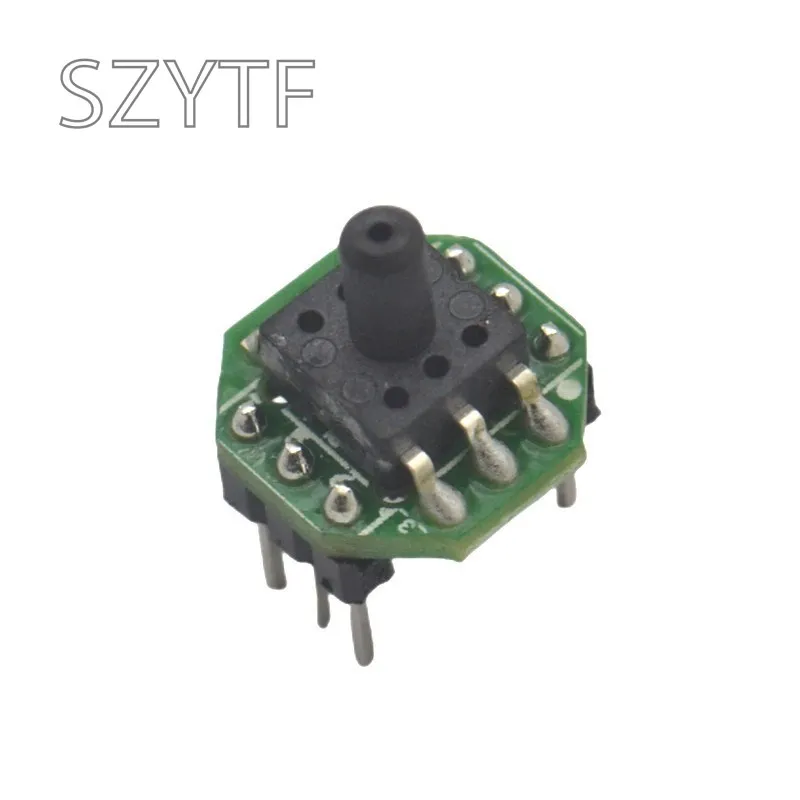

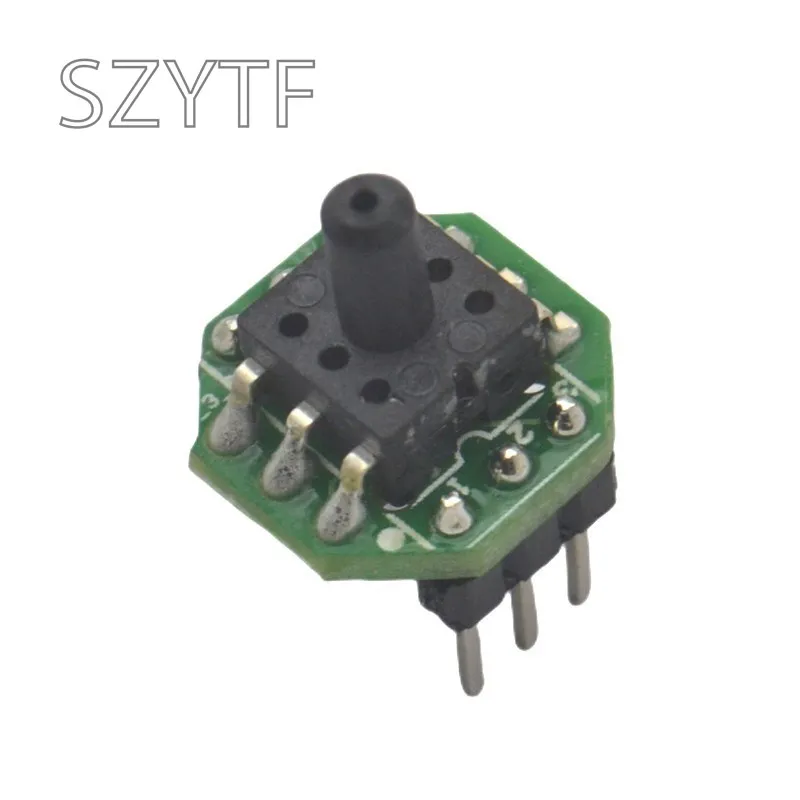

The XGZP6847D pressure module adopts a DIP-like package. The pressure sensor and signal processing circuit chip in SOP package are installed on both sides of the PCB. The offset, sensitivity, temperature drift and nonlinearity of the sensor are digitally compensated. The power supply voltage is For reference, generate a calibrated and temperature-compensated standard voltage signal.
The XGZP6847D pressure module is small in size and easy to install. The output signal can be calibrated according to user requirements. It is widely used in medical electronics, automotive electronics, sports and fitness equipment and other fields.
