Product Details:

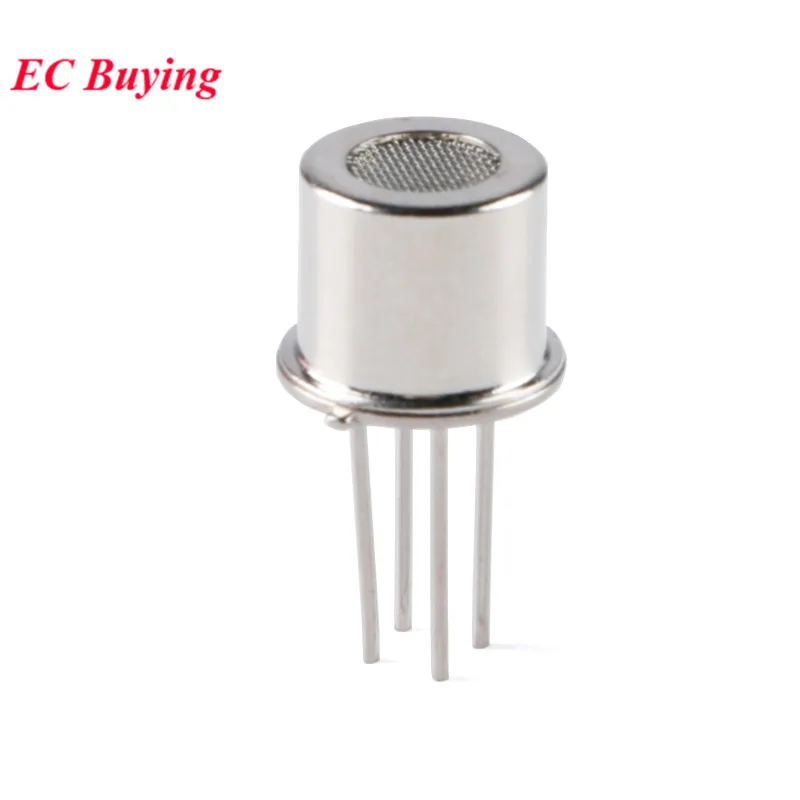

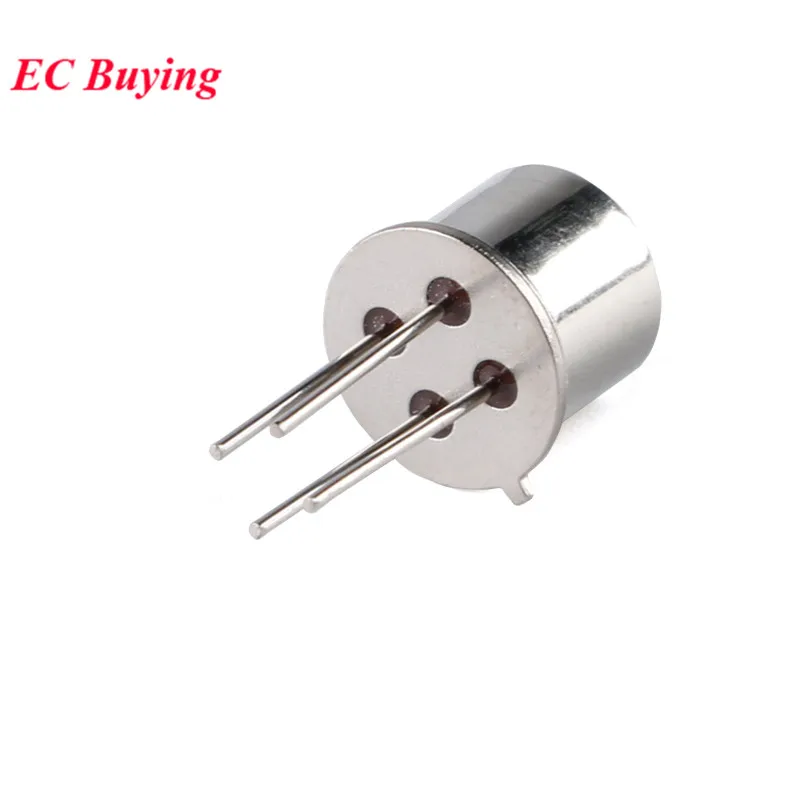

WSP2110 semiconductor organic vapor sensor adopts advanced plane production technology to form heaters and metal oxide semiconductor gas-sensitive materials on micro Al2O3 ceramic substrates, which are led out by electrode leads and encapsulated in metal sockets and caps. When the detected gas is present, the higher the concentration of VOC gas in the air, the higher the conductivity of the gas sensor. A simple circuit can convert this conductivity change into an output signal corresponding to the gas concentration.
Features:
High sensitivity to toluene, benzene, formaldehyde and other organic gases
Small component size
5V constant voltage, low power consumption
Fast response and recovery characteristics
Simple drive circuit
Excellent stability and long service life
Application:
The gas sensor can be widely used in the detection of harmful gases in the home environment, automatic exhaust devices, air cleaners, etc.
Product parameters:
Product model: WSP2110
Product Type: Planar semiconductor gas sensor
Detection gas: toluene, formaldehyde, benzene, alcohol, acetone, etc.
Detection concentration: 1～50ppm
Circuit voltage Vc: ≤24V DC
Heating voltage VH: 5.0V±0.1V AC or DC
Load resistance RL: adjustable
Heating resistance RH: 95Ω±10Ω (room temperature)
Heating power consumption PH: ≤300mW
Sensitivity S: Rs(in air)/Rs(in 10ppm toluene)≥3
Surface resistance of sensitive body S: 10KΩ～100KΩ (in 10ppm toluene)
Concentration slope α: ≤0.6 (R50ppm/R5ppm toluene)
Temperature and humidity: 20℃±2℃; 65%±5%RH
Standard test circuit: VC: 5.0V±0.1V; VH: 5.0V±0.1V
Warm-up time: no less than 48 hours
