D1200 Feature:
Tip: Sufficient output power will only be available if the auditory input is sufficient and the supply voltage/current is sufficient!
The higher the power supply voltage the higher the output power, the lower the speaker impedance the higher the output power! Please make sure that the adapt power supply is greater than the actual working power of the amplifier!
With over-voltage, under-voltage, overheating, circuit protecting.
For home entertainment, parties, performances, auditory-visual studios and other place that require strong bass effects.
Also suitable for outdoor activity, traveling and other occasions that require portable auditory.
Note:
There might be a bit color distortions due to different computer resolution
There might be size errors due to different computer resolution

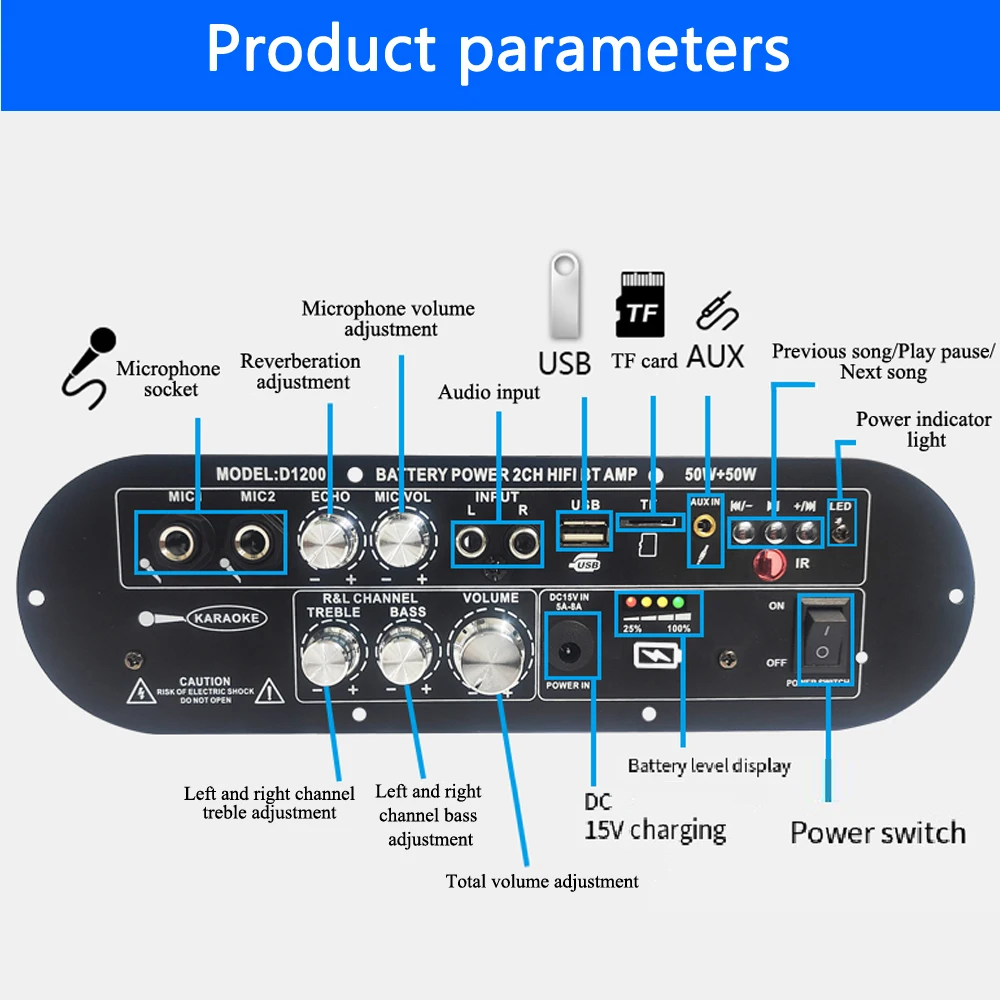

Specification:

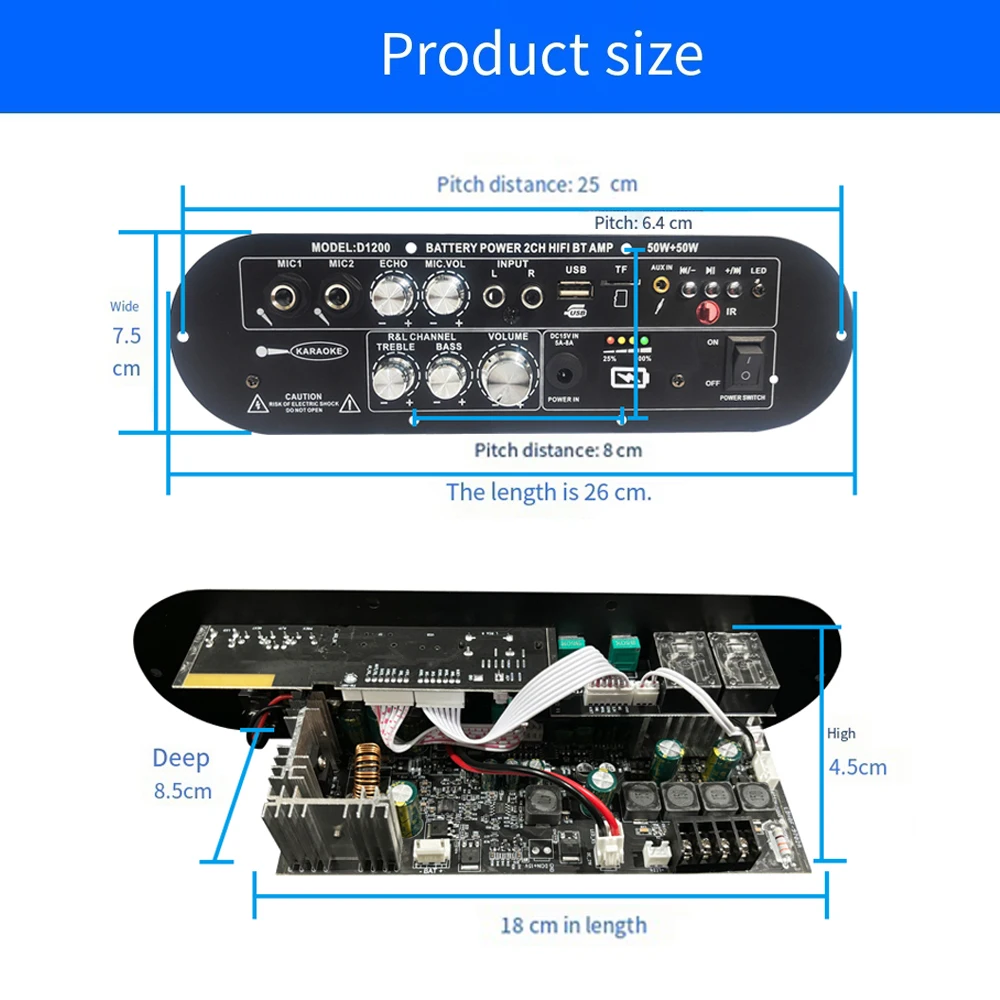

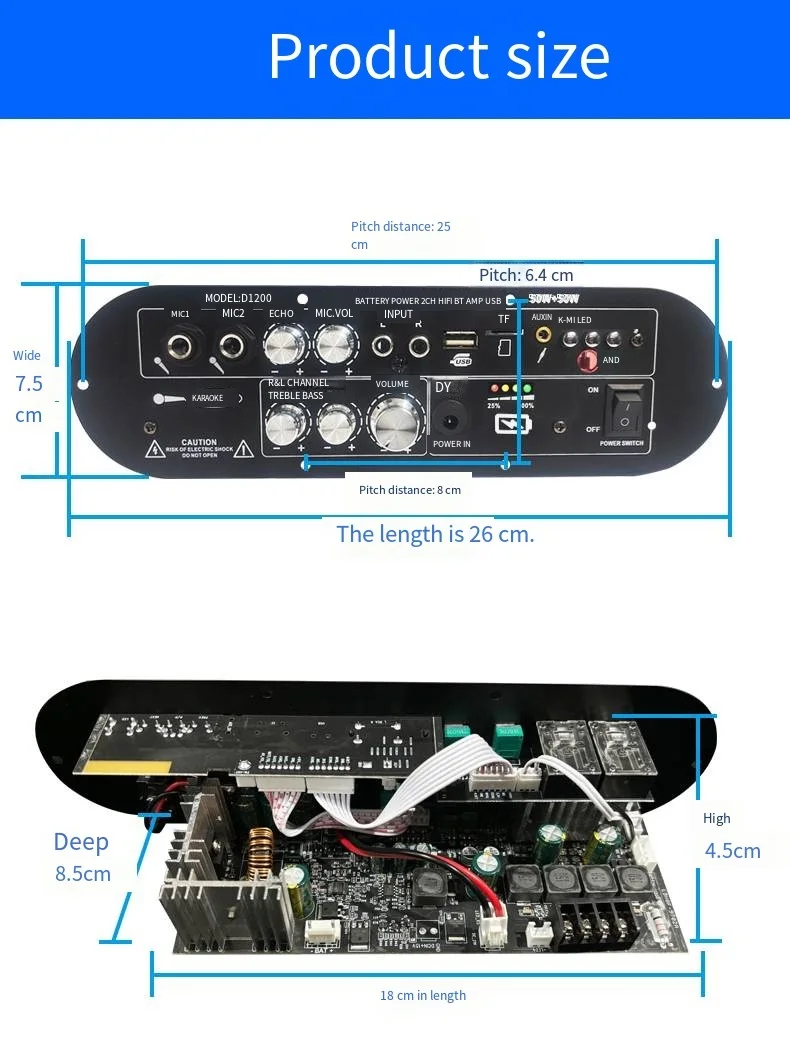

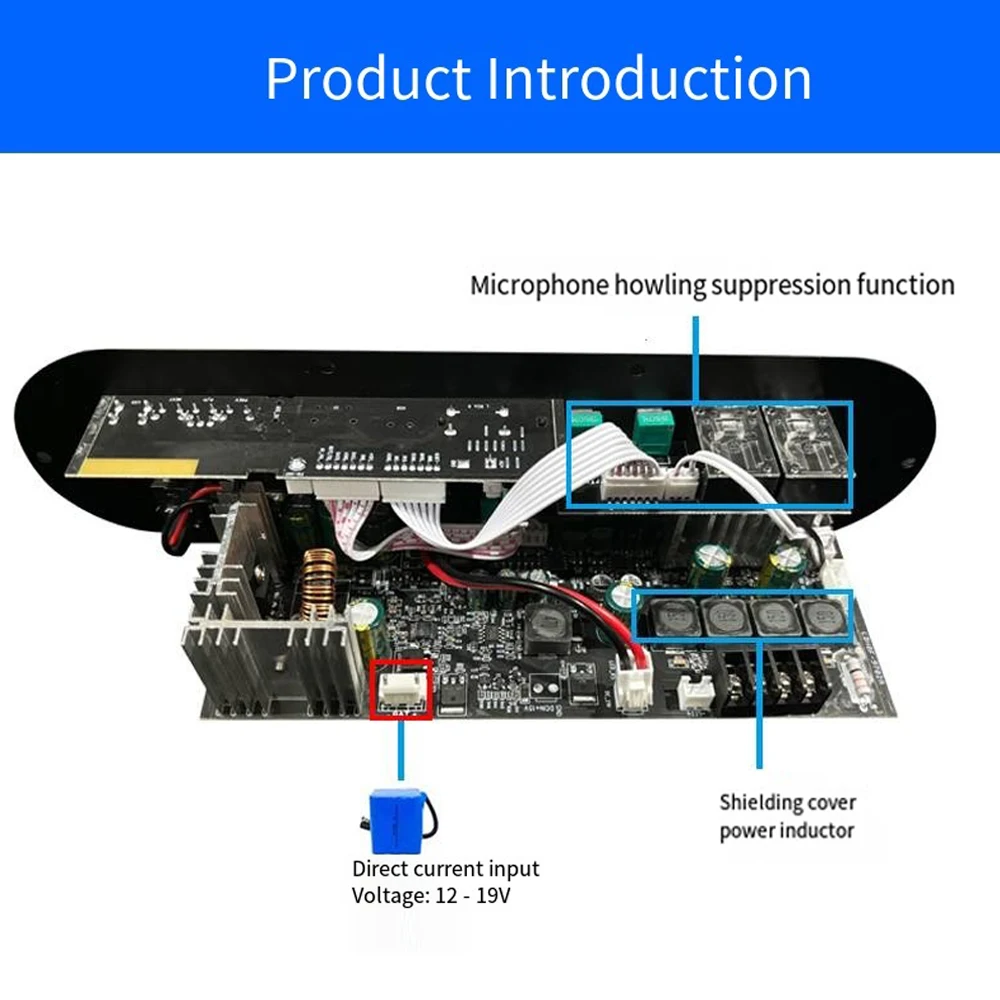

Model：D1200 Subwoofer Digital Amplifier Board
Channel: 2.0.
Support：BT5.0+AUX+MIC+FM+USB+TF Card
Power：50W+50W

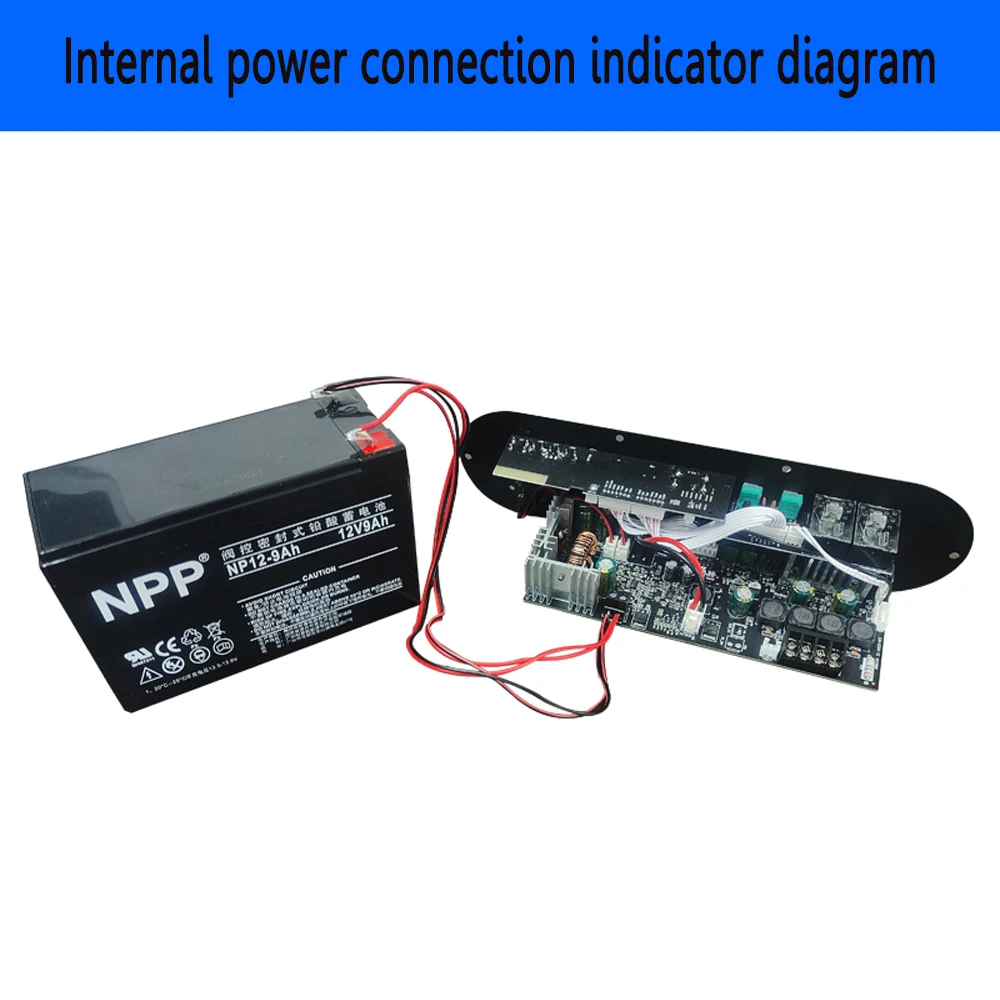

Adaptable power supply DC15~18V/5A or more rechargeable use.
Applicable speakers: 20~100W, 4~8ohms

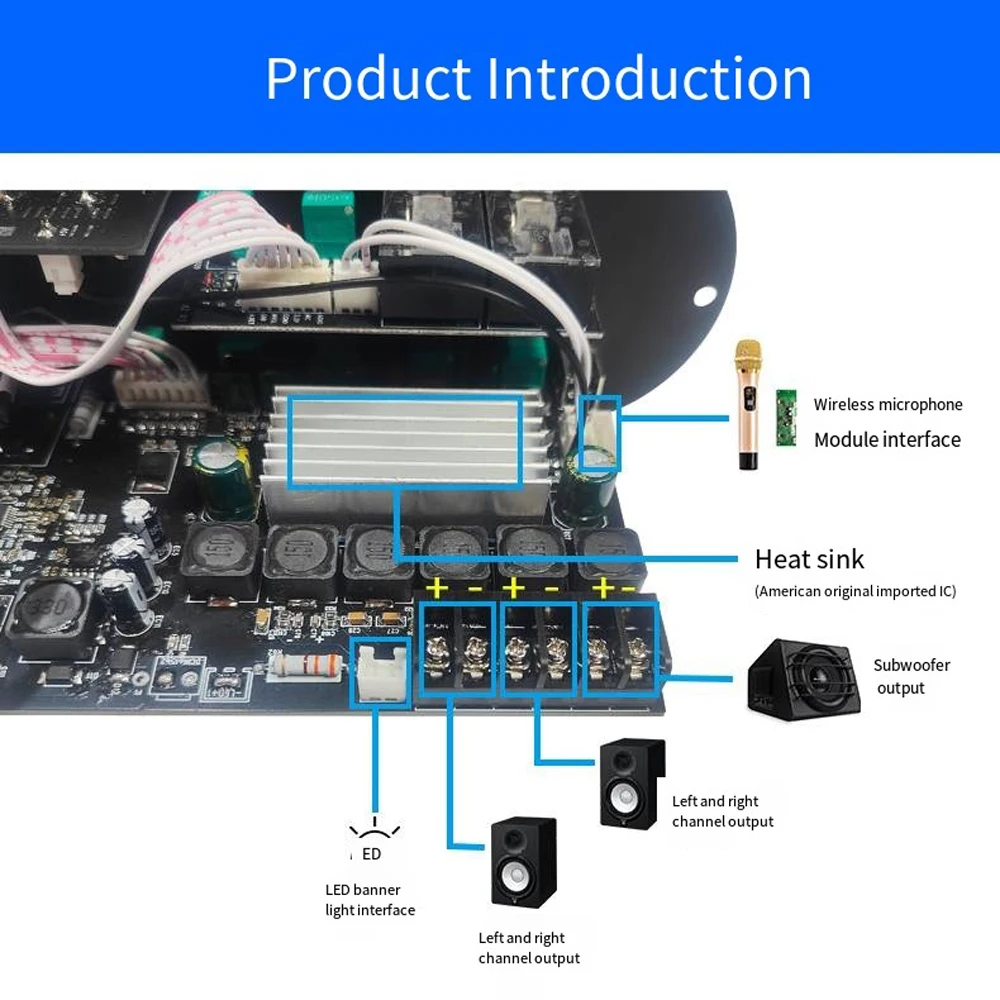

Output power: left and right channel less than 50w, subwoofer less than 100W
Support: over-voltage, under-voltage, overheating, circuit protecting

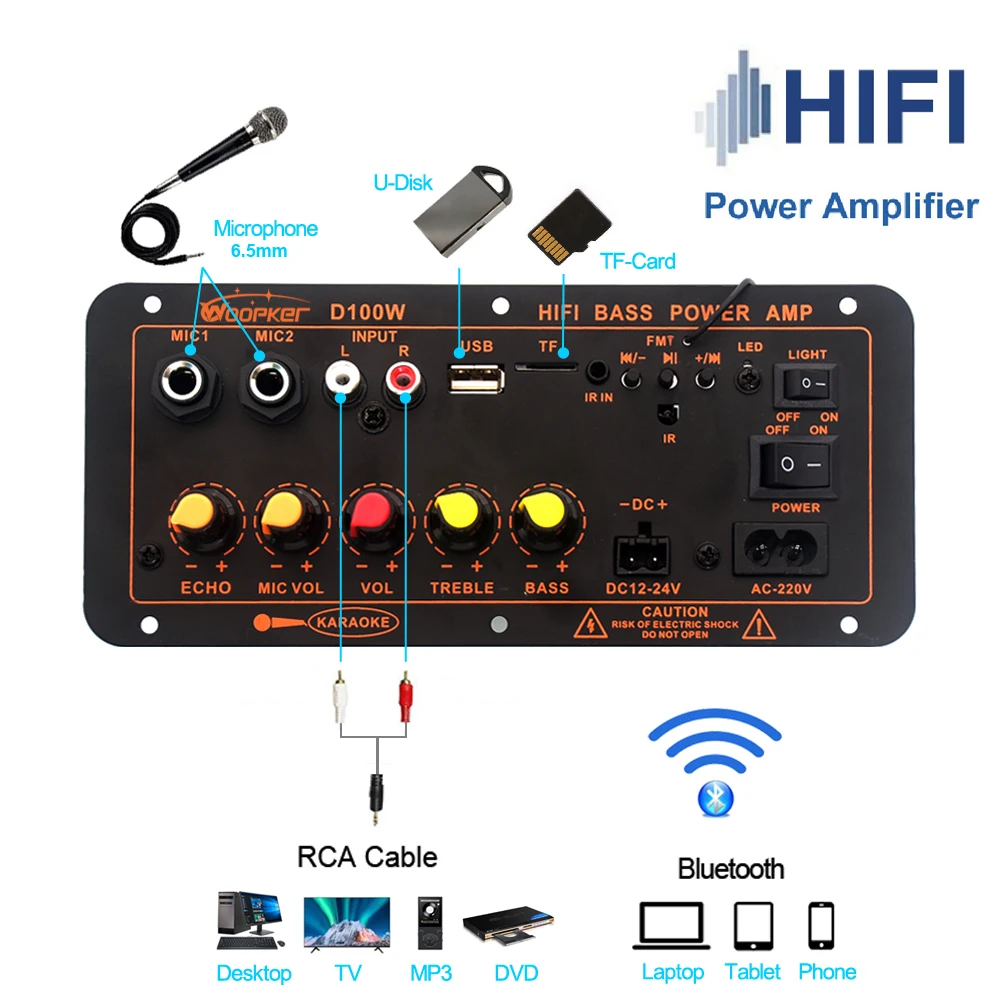

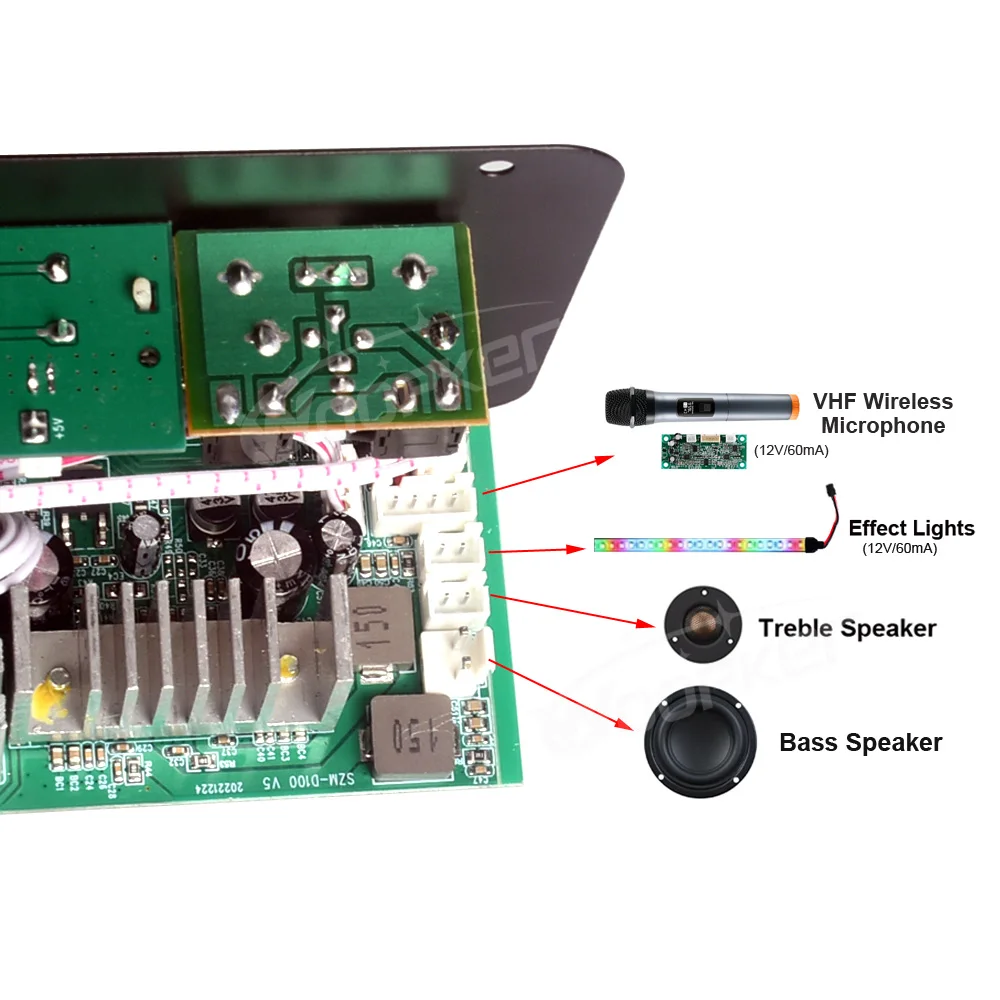

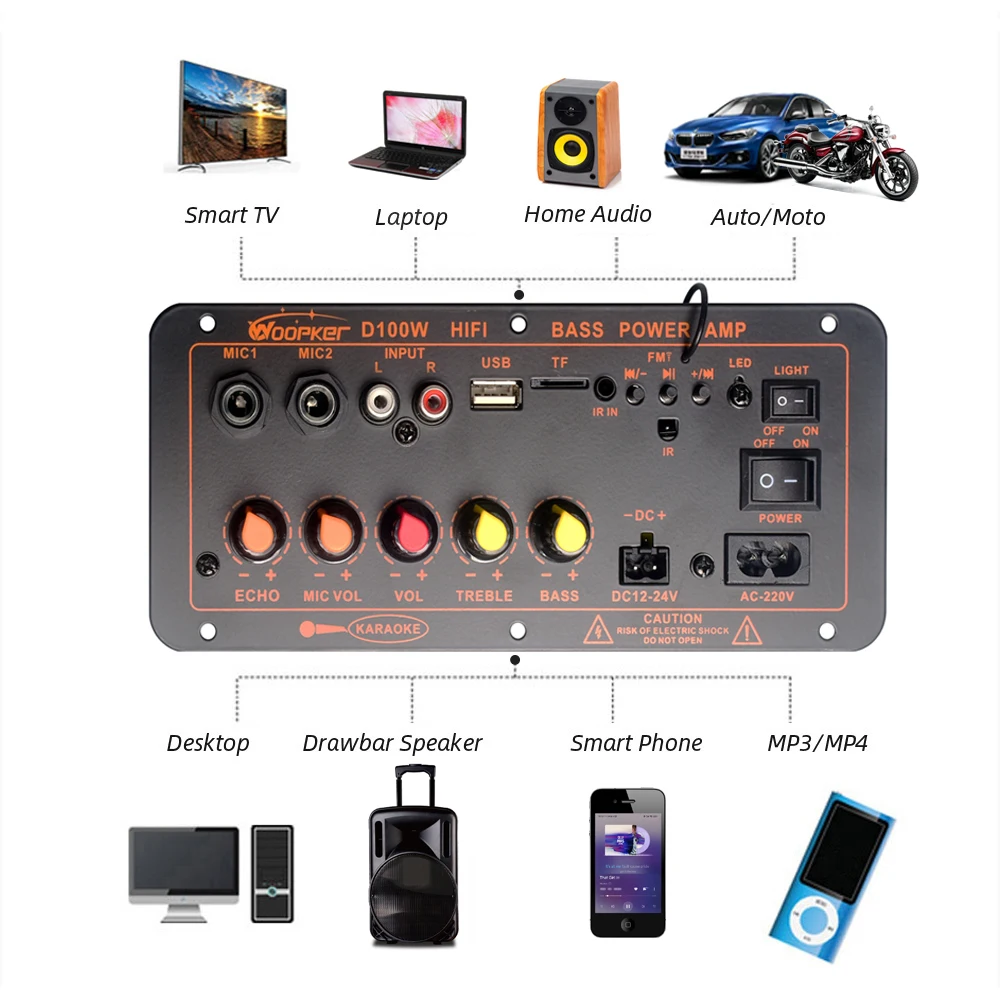

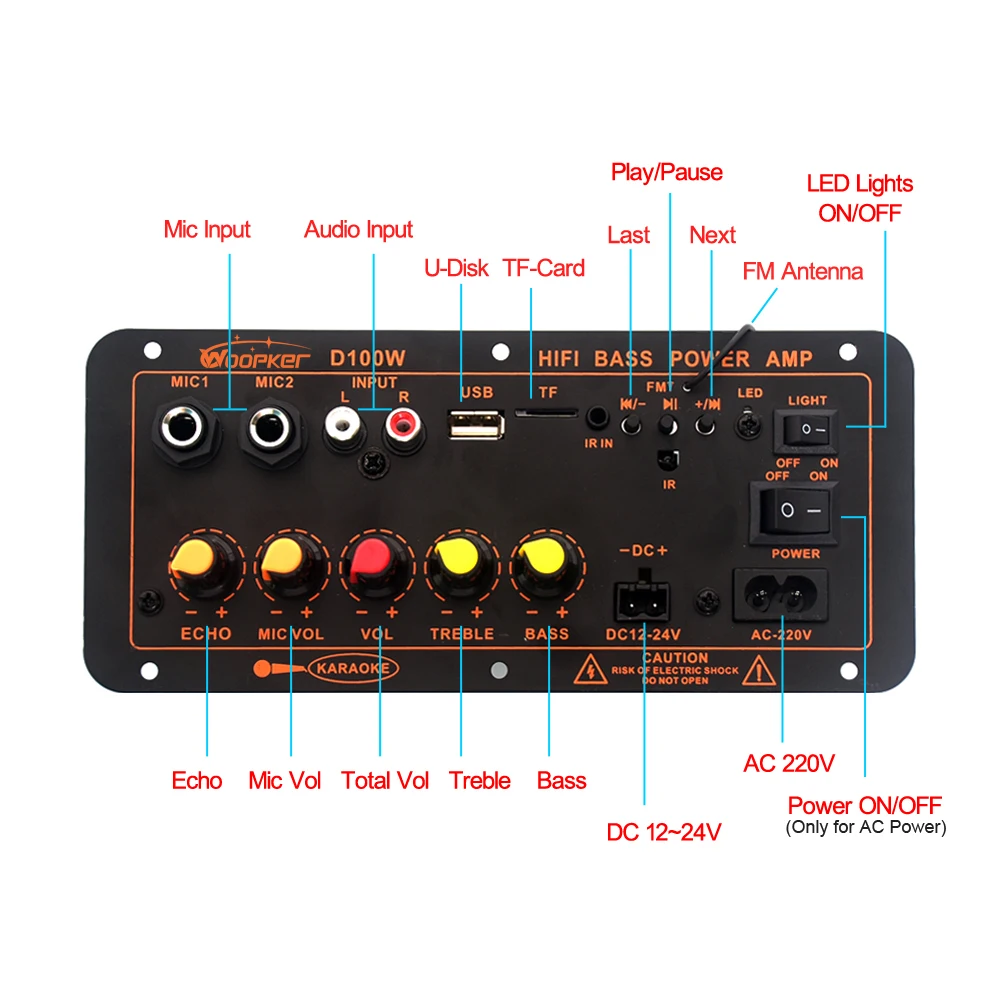

D100W Description:
Type: Amplifier Board
Model: D100W
Bluetooth Version: 5.0
Audio Channel: 1.0
Rated impedance: 4-8Ω
Rated Power: 100W
Power Range: 100-300W
Distortion: 0.03%
S/N Rate: 92db
Battery of Remote: CR2025 x1(Not Included!)
Feature: FM Radio / Treble / Bass
Voltage: AC 220V, DC 12V~24V

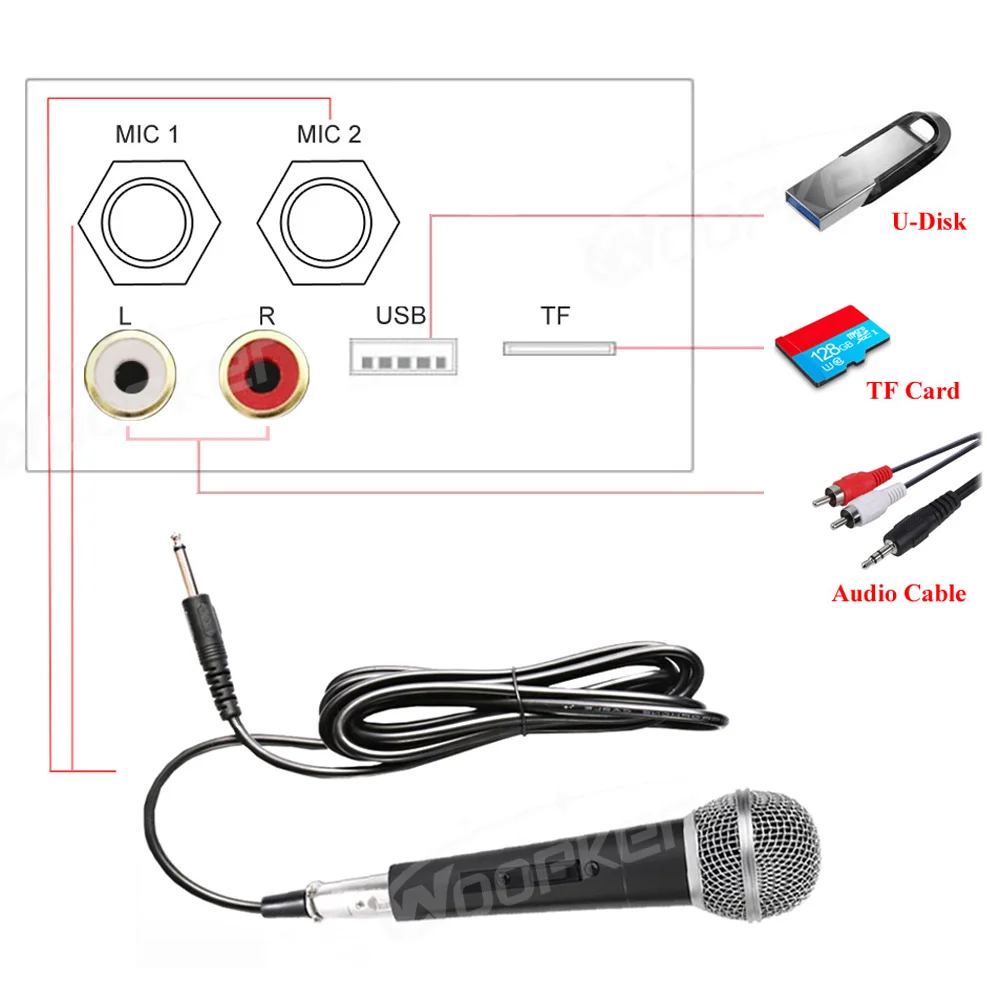

Input: Bluetooth/3.5mm AUX/U-Disk/TF/6.5mm MIC
;MODE; Button=Long Press ;Play; Button
About FM Function:
1. Expand the Radio Antenna.
2. Long press ;Play; button to switch it to the FM state.
3. Press ;Play; button to search the entire channel and save.
4. Press the previous / next track to switch to use.
TIPS: This is not professional radio, only a small number of channels can be listened to. For more channels, pls buy professional radios.
Package Included:
1x AMP Board D100W
1x Remote Control
2x Audio Cable
1x AC Power Cable
1X DC Connector
Note: Battery of Remote is Not Included !
D10 Description:
Type: BT Amplifier Board
Model: D10
Bluetooth Version: 5.0
Audio Channel: 1.0
Rated impedance: 4Ω
Rated Power: 40W
Power Range: 30-120W (Deponds on Voltage)
Fit for Speaker: 4 ohm / below 40W
Distortion: 0.03%
S/N Rate: 92db
Battery of Remote: CR2025 x1(Not Included!)
Input: Bluetooth/3.5mm RCA/U-Disk/TF/MIC
Feature: FM Radio / Treble / Bass
Voltage: AC 110V/220V, DC 12-24V
"MODE" Button=Long Press "Play" Button
How to Connect Bluetooth ?
1. Press ''MODE'' button to switch it to Bluetooth status.
2. Open phone Bluetooth, search the Bluetooth device and connect.
3. You can use it after pairing successfully.
About FM Function:
1. Expand the Radio Antenna.
2. Press "MODE" button to switch it to the FM state.
3. Press "Play" button to search the entire channel and save.
4. Press the previous / next track to switch to use.
TIPS: This is not professional radio, only a small number of channels can be listened to. For more channels, pls buy professional radios.
Package Included:
1x Bluetooth AMP Board
1x Remote Control
1x AC Power Cable
1x DC Power Line
2x Audio Cable
Note: Battery of Remote is Not Included !
