W1209 DC 12V termostato Digital frío y calor controlador de temperatura termostato en miniatura Panel de interruptor de Control de temperatura

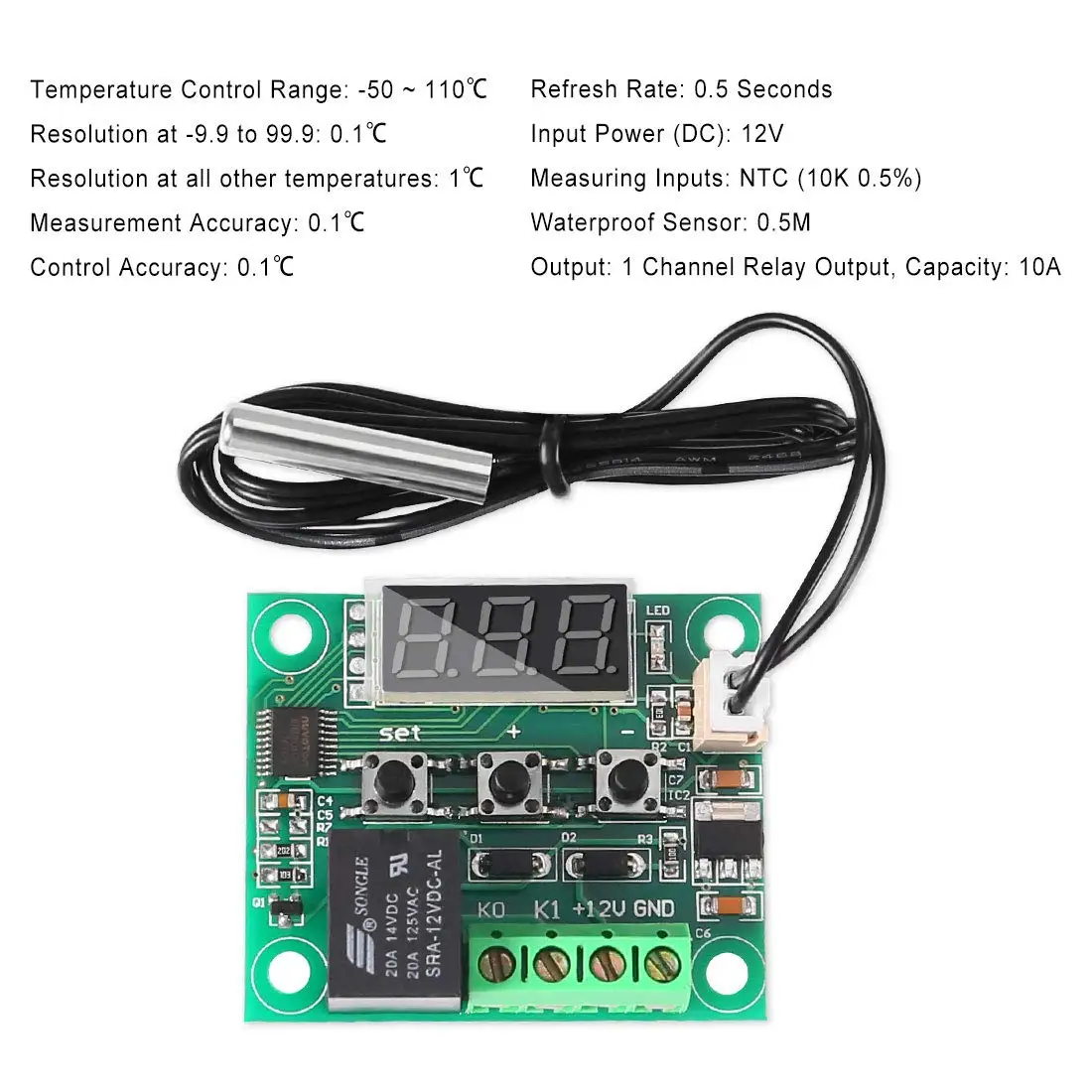

Specifications:

Model: W1209

Temperature Control mode: ON / OFF

Temperature Range :-50 - 110 degree centigrade

Resolution: When temperature is 0.1 degree, the resolution is -9.9~99.9, other temperature segment is 1 degree.

Control Accuracy: 0.1 degree，Hysteresis Accuracy: 0.1 degree

Refresh Rate: 0.5s

High Temperature Protection 0 - 110 degree centigrade

Supply Voltage: DC 12V

Static Current: Less than 35MA, attract current less than 65MA

Output Voltage: DC 12V

Output Power: 20A relay

Measurement Input: NTC (10K 0.5%) Waterproof Sensor

Environmental Requirements: -10 - 60 degree centigrade; Humidity 20% - 85%
