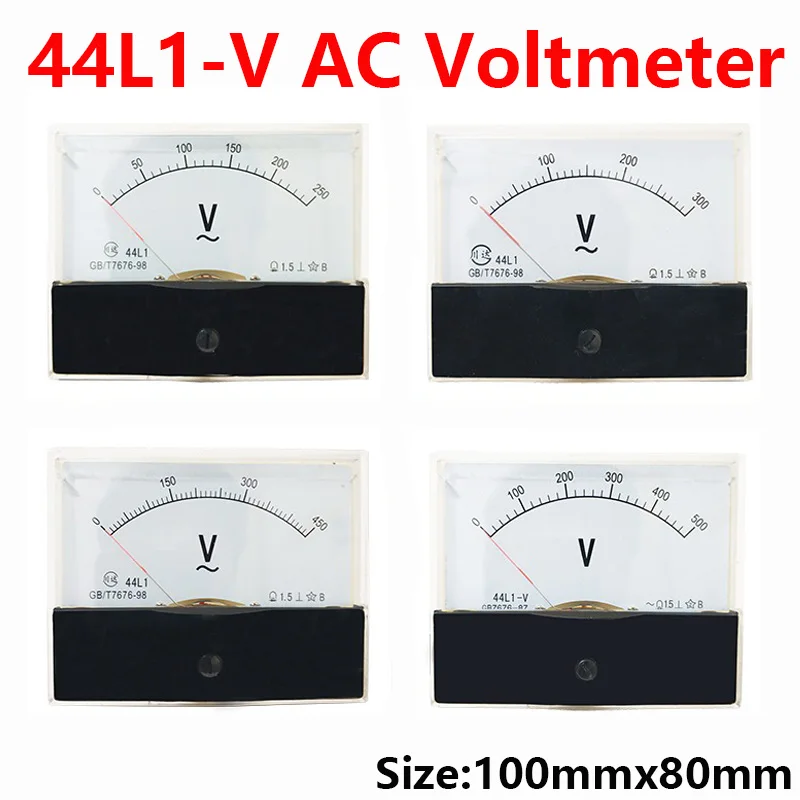

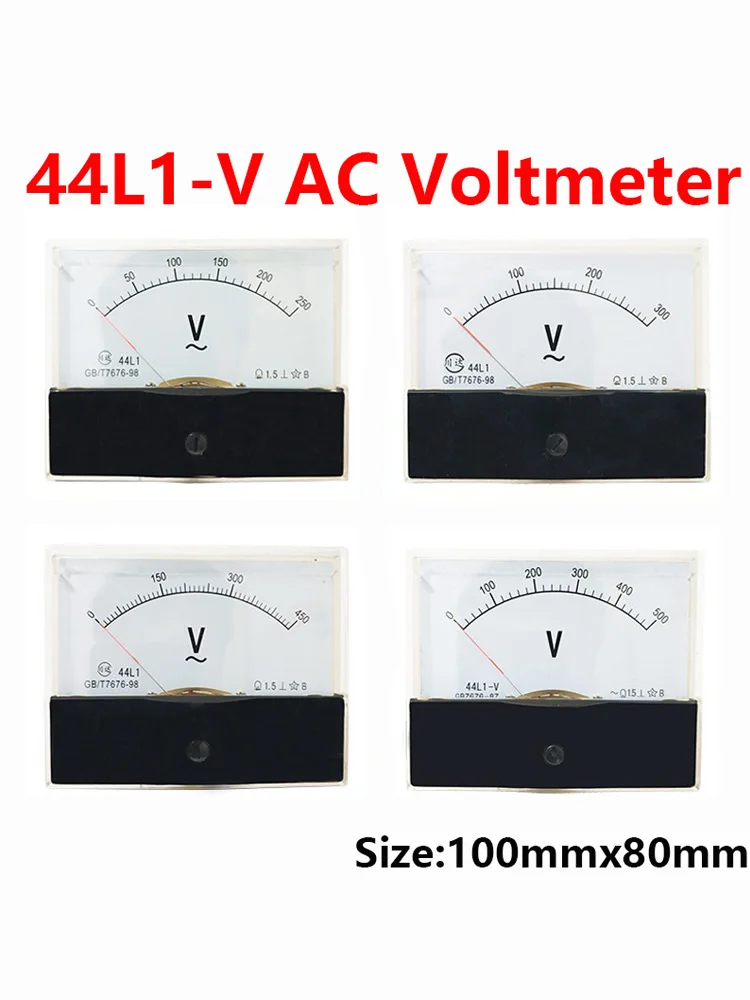

Voltímetro de CA 44l1-v ac10v 15V 20V 30V 50V 100V 150V 250V 300V 450V 500V 600V 750V voltímetro de puntero 80*100mm para medir un solo

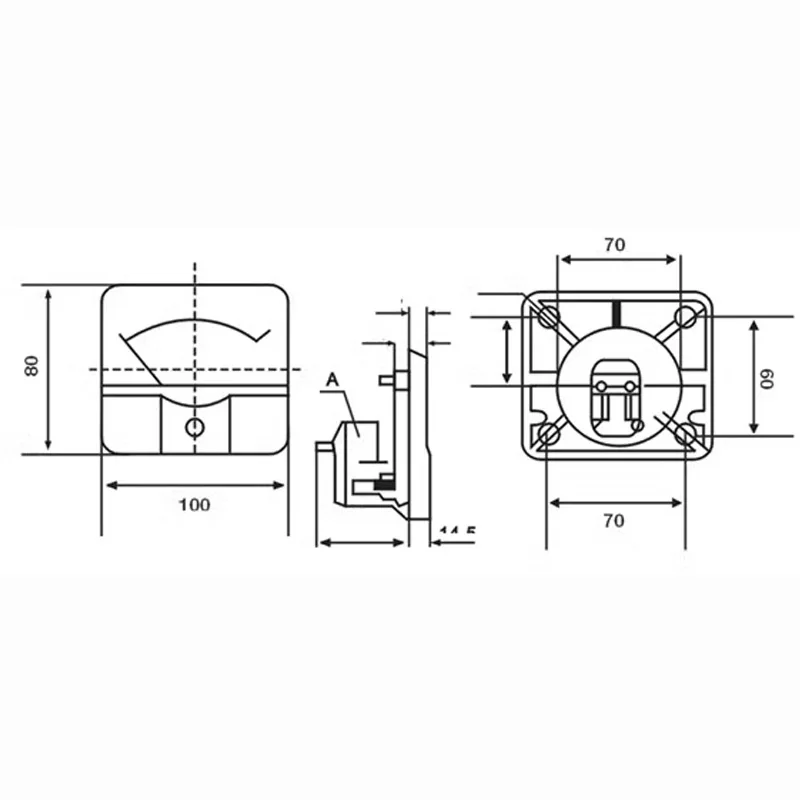

8064 1. Name: 44L1-V AC 2. shape size: 100*80mm 3. aperture size: 70*60mm 4. characteristics: the type 44 meter is a widely used direct action analog indicator instrument, suitable for DC circuit and AC circuit measurement: voltage, current, power, frequency and power factor. The advantage of the installed electric meter is that it can show the changing trend of the measured quantity of electricity: it is mainly used in industrial and mining enterprises, metallurgy, chemical industry, electric power, complete set of equipment and all kinds of electronic control devices. It is simple and elegant in appearance. The performance of the product conforms to the requirements of GB/T7676-2002 national standard. Main technical parameters: National standard: GB/T 7676-98 Installation position: the instrument is suitable for vertical installation, allowing inclination of + 5 degrees; unless otherwise specified. Pointer deflection angle: from left to right Storage temperature: -40 C -+70 C Damping time: less than 4S Working environment: temperature: -20~+40 C, relative humidity less than 85%, and no dust and corrosive gas in the air. Insulation strength: withstand voltage test of sine wave AC 2kV voltage that can withstand 50HZ for 1 minutes. Insulation resistance: greater than 20M Omega /DC500V Precision: 1.5
