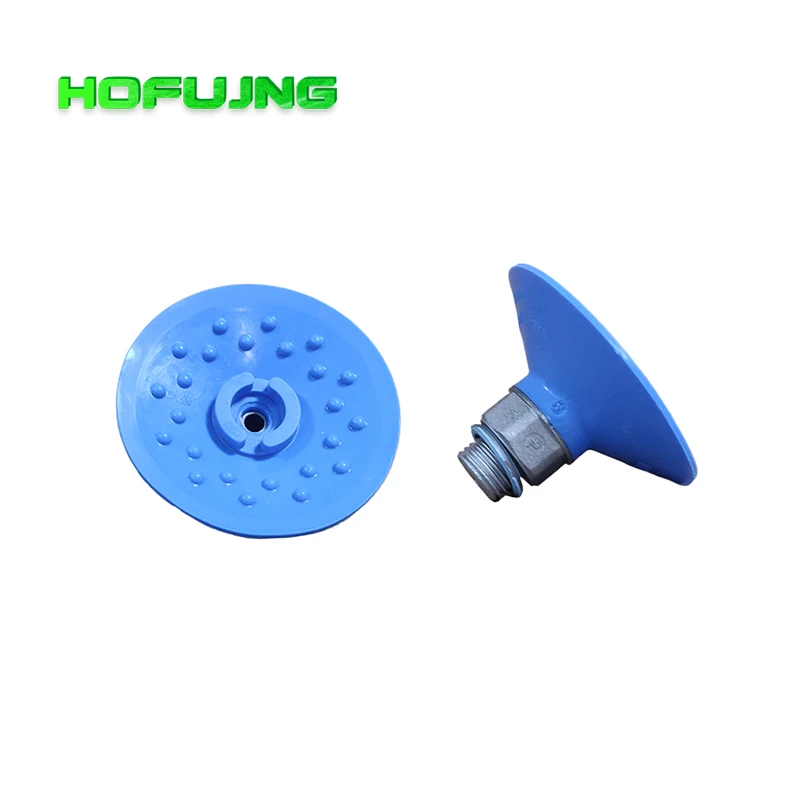

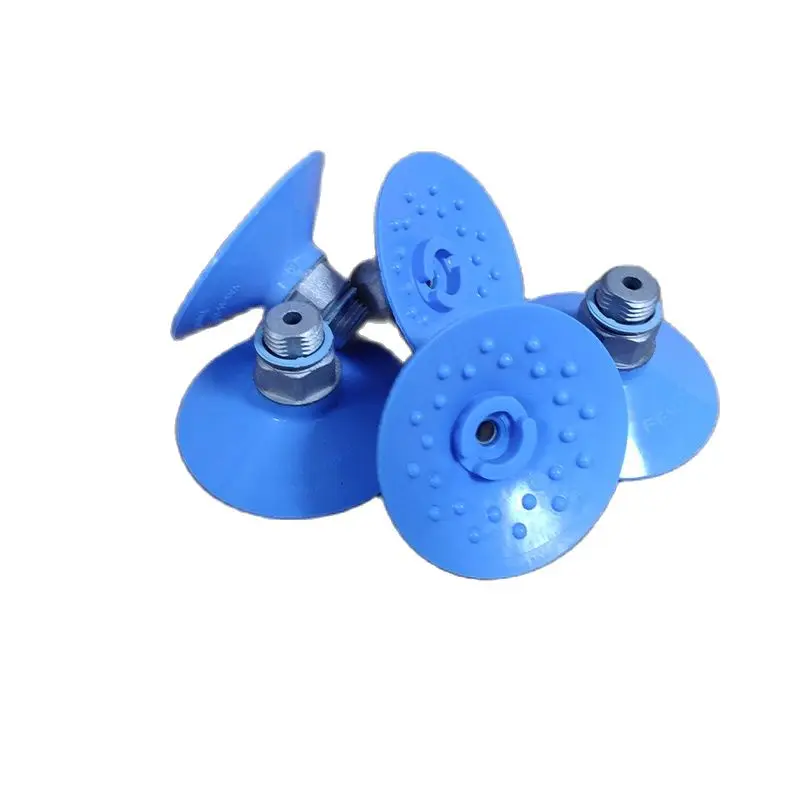

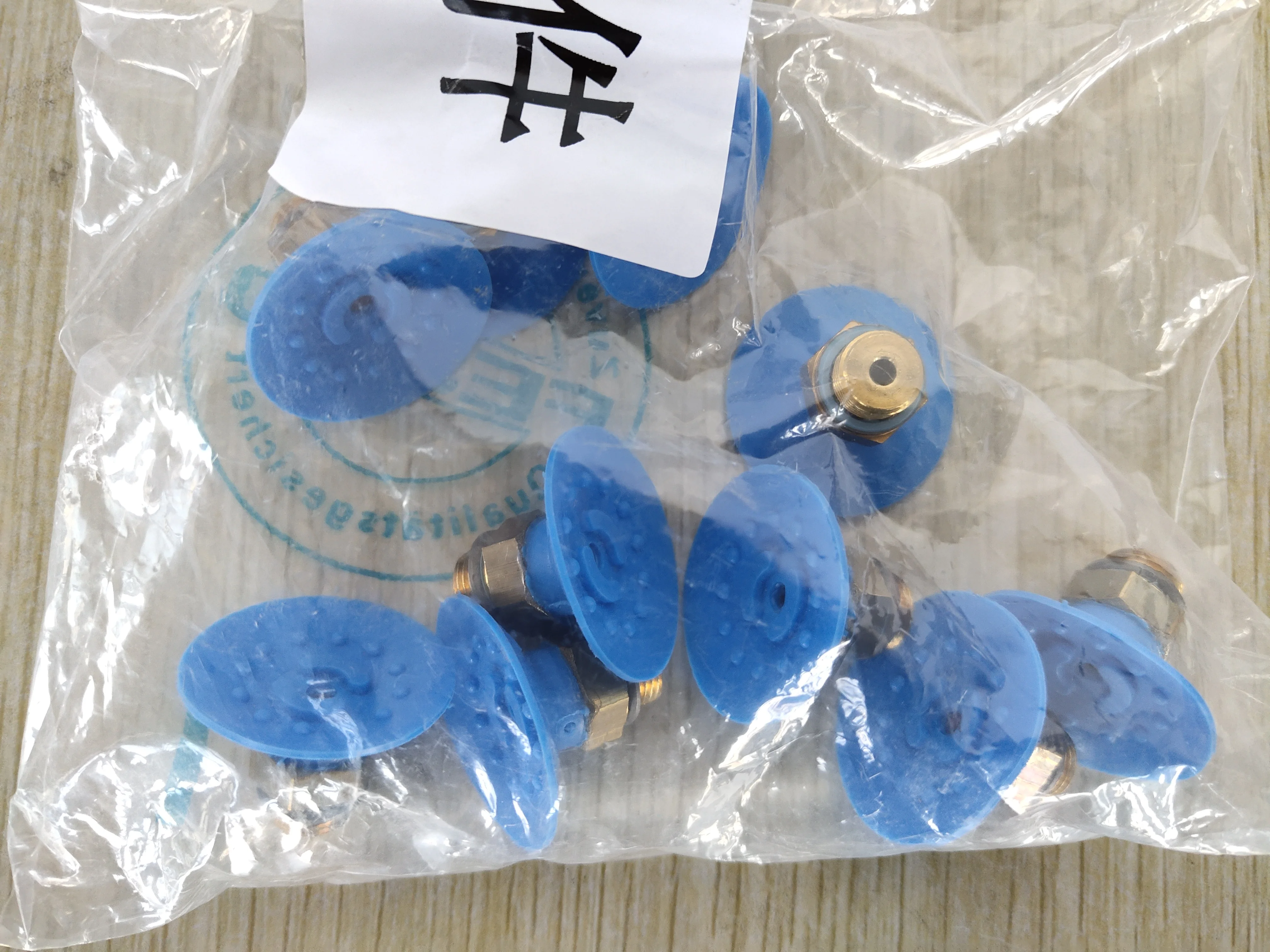

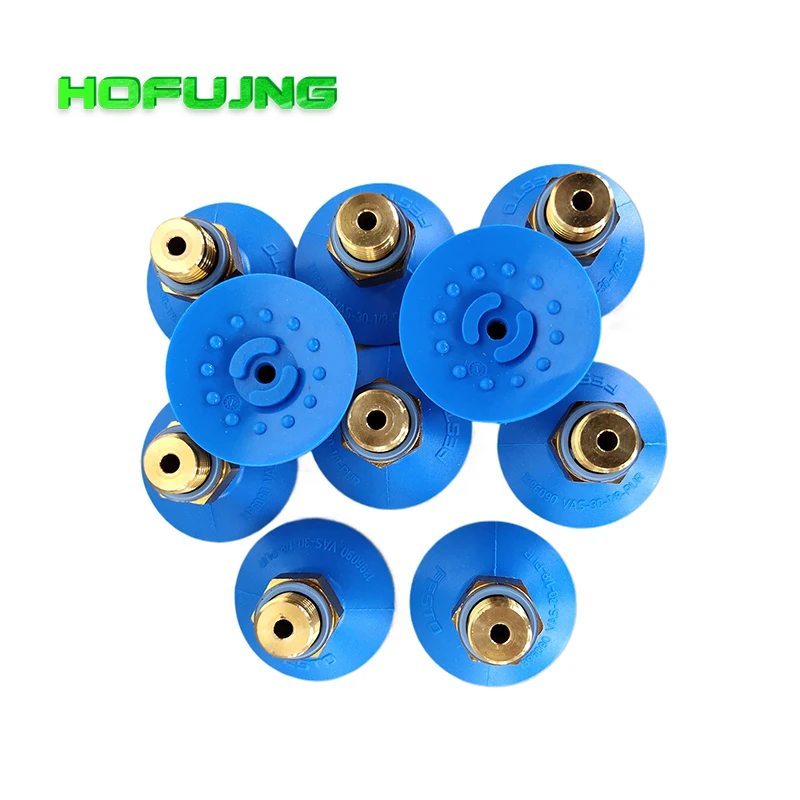

Ventosa de vacío FFSTOS VAS-30-1/8-PUR-B 1396090 hilo stock original VAS

Height compensator for suction cup1.9 mm

Nominal size3 mm

Suction cup diameter30 mm

Suction cup volume1.29 cm³

Effective suction diameter24.8 mm

Position of connectionTop

Mounting positionoptional

Symbol00991485

Suction cup shapeRound, flat

Operating pressure-0.095 MPa ... 0 MPa

Operating pressure-0.95 bar ... 0 bar

Operating pressure-13.775 psi ... 0 psi

Nominal operating pressure-0.07 MPa

Nominal operating pressure-0.7 bar

Nominal operating pressure-10.15 psi

Operating mediumAtmospheric air based on ISO 8573-1:2010 [7:-:-]

Corrosion resistance class CRC2 - Moderate corrosion stress

LABS (PWIS) conformityVDMA24364-A1-L

Ambient temperature-20 °C ... 60 °C

Holding force at nominal operating pressure34 N

Product weight12 g

Type of mountingVia vacuum port

Vacuum connectionG1/8

ColourBlue

Shore hardness60 +/- 5

Material screw-in studBrass

Note on materialsRoHS-compliant

Material suction cupPUR
