Descripción
The following is a tutorial on installing a CPU cooling fan. The product in the picture may be different from the one you purchased, but the installation method is the same.
Brand Name：QiuzAim
Fan size: 120 × 120 × 25mm
4Pin speed: 600-1800 RPM ± 10%
Maximum air volume: 68CFM
Maximum noise: 30dBA
Fan lifespan: 50000 hours
Fan bearings: hydraulic
Fan interface: 4pin (4-wire temperature control)
Rated voltage: 12V DC
4Pin current: 0.35A ± 10%
4Pin power: 4.1W ± 10%
The above data is for one fan, and if it is for multiple fans (air volume, noise, current, power), the data will increase.

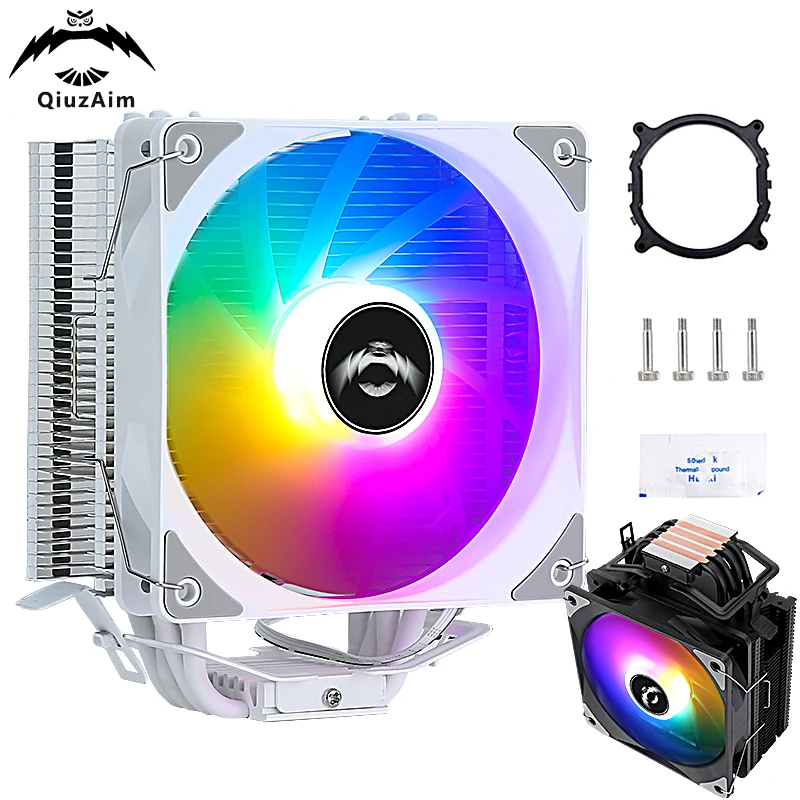

Package: Color Box (CPU cooler*1, fixing bracket*1 kit, silicone grease*1 )
Packing list（Sketch Map）：①②③
Product applicable platform
AMD full series of desktop universal：
AM5/AM4/AM3/AM3+/AM2/AM2+/FM1/FM2/FM2+/X2/X3/X4/A4/A6/A8/A10/FX...
(AMD series：Customers are required to keep the original bracket，If lost, please contact the Our customer service.)
LGA 2011 E5 X79 X99(Suitable for computer motherboards with square threaded bases)
Installation Steps Illustration
3Pin and 4Pin connectors are universally compatible;
installation is worry-free regardless of the interface type.

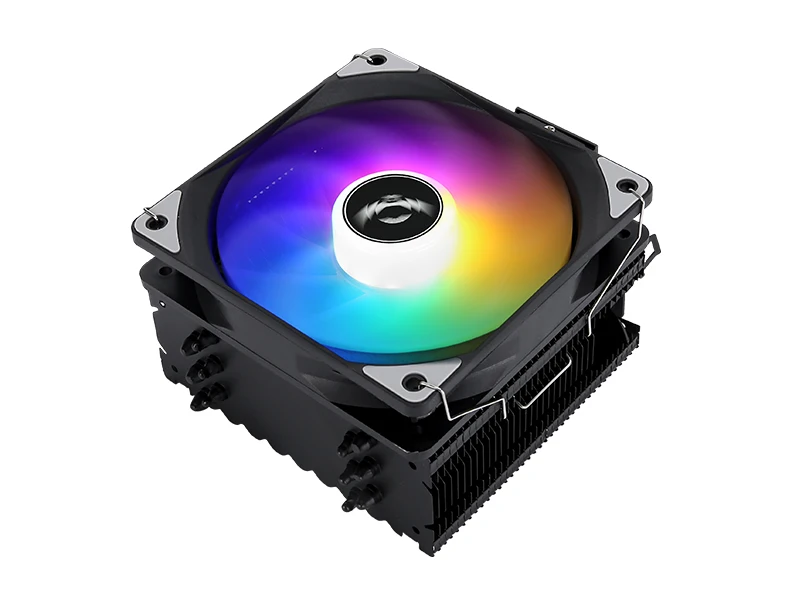

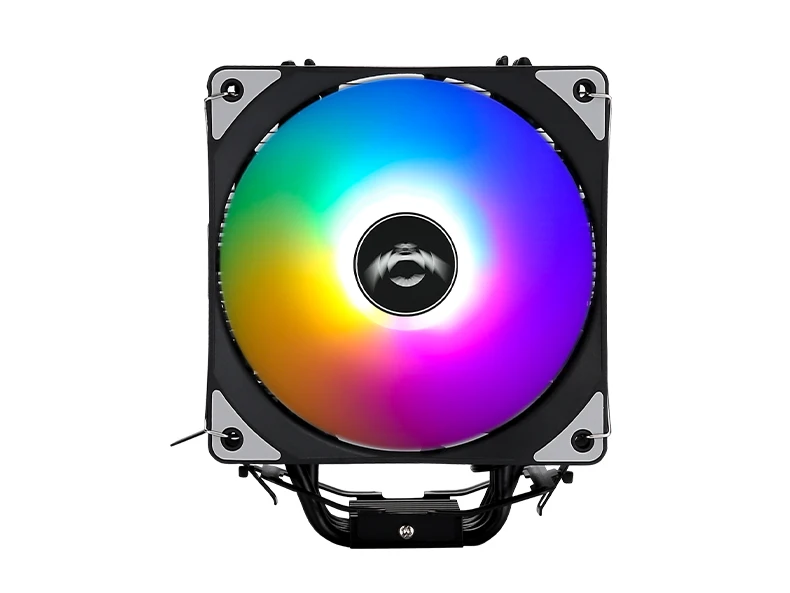

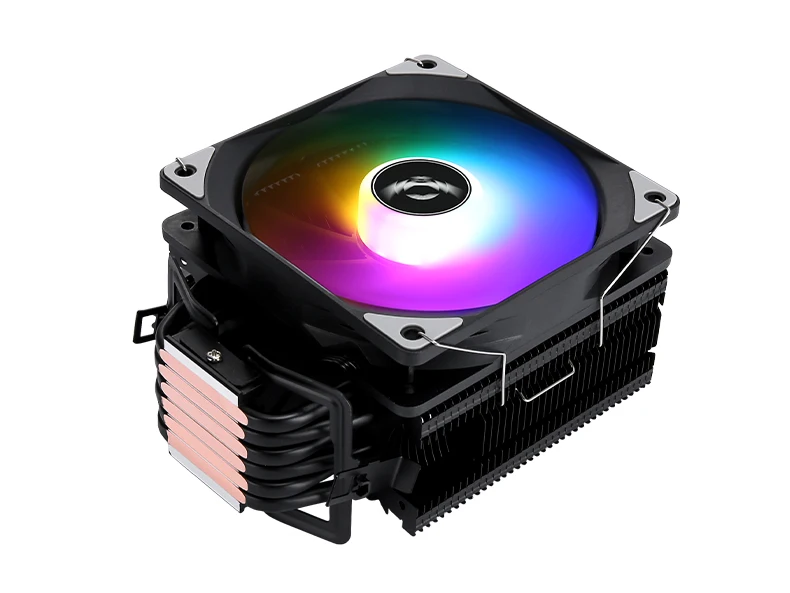

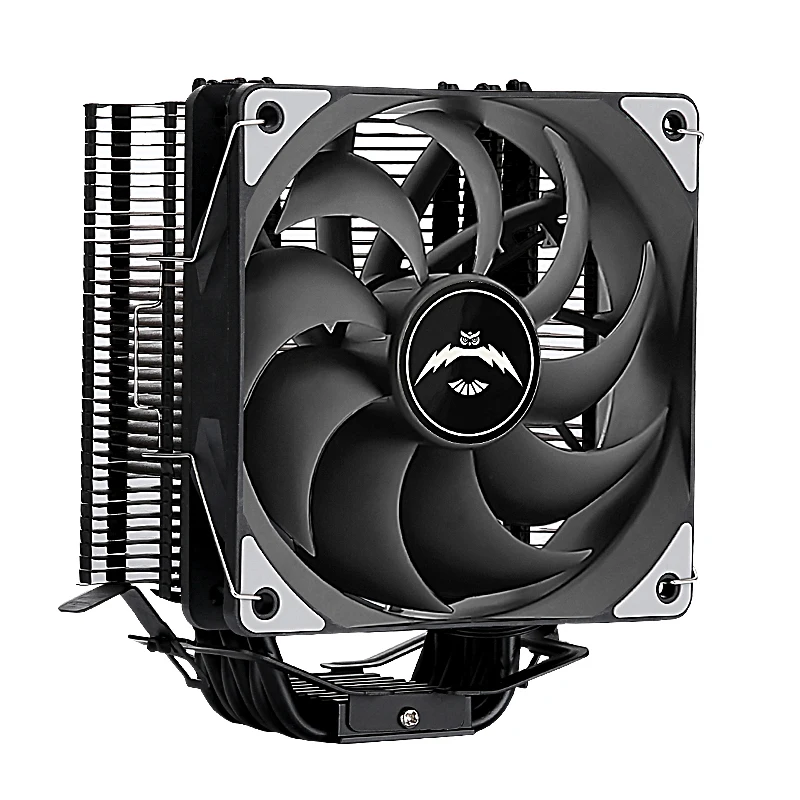

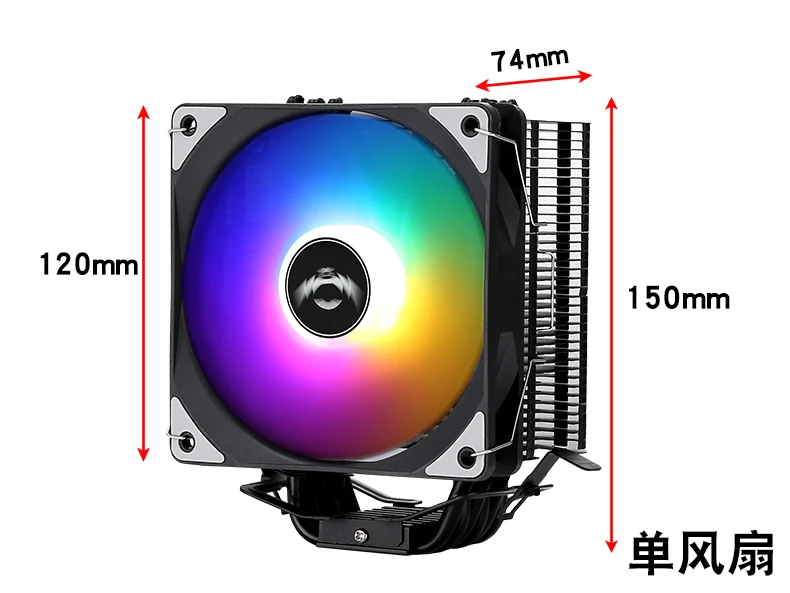

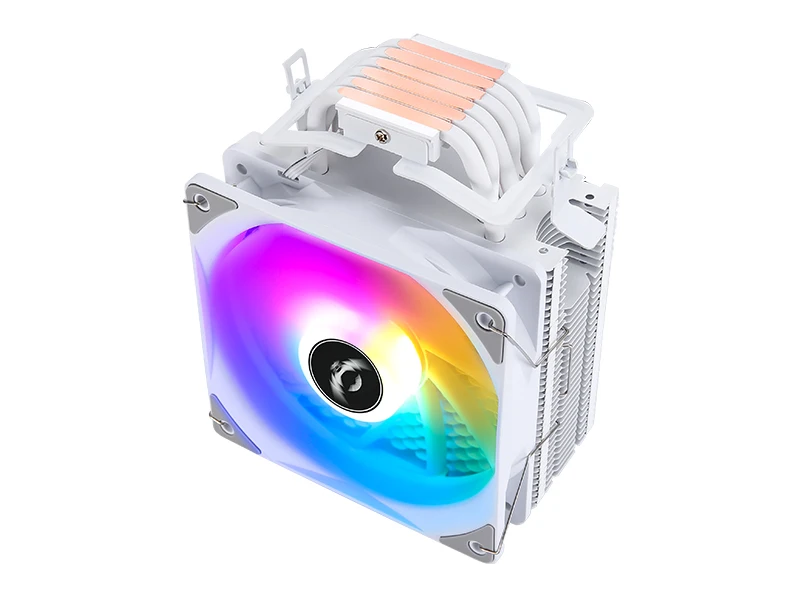

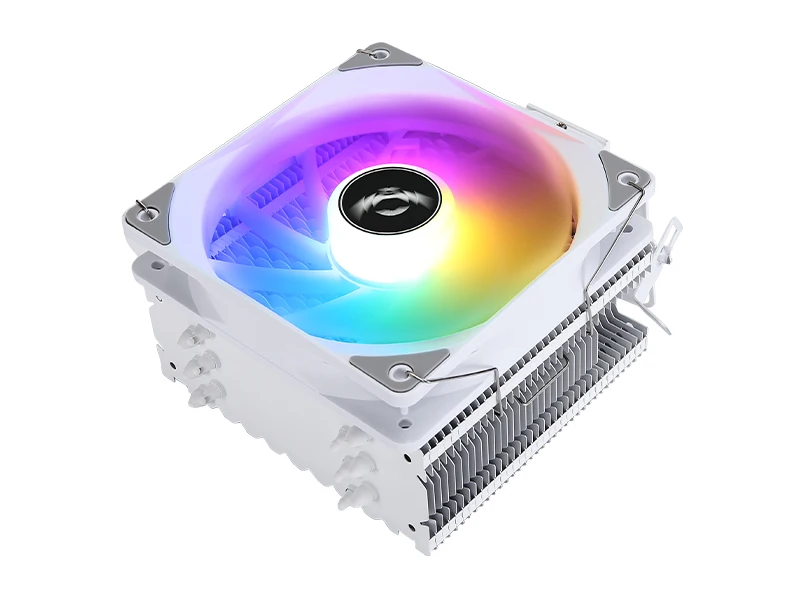

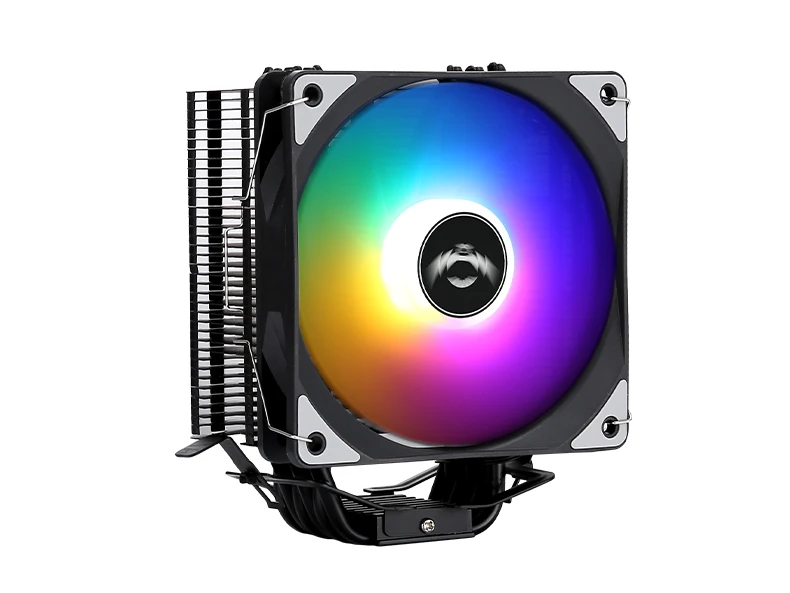

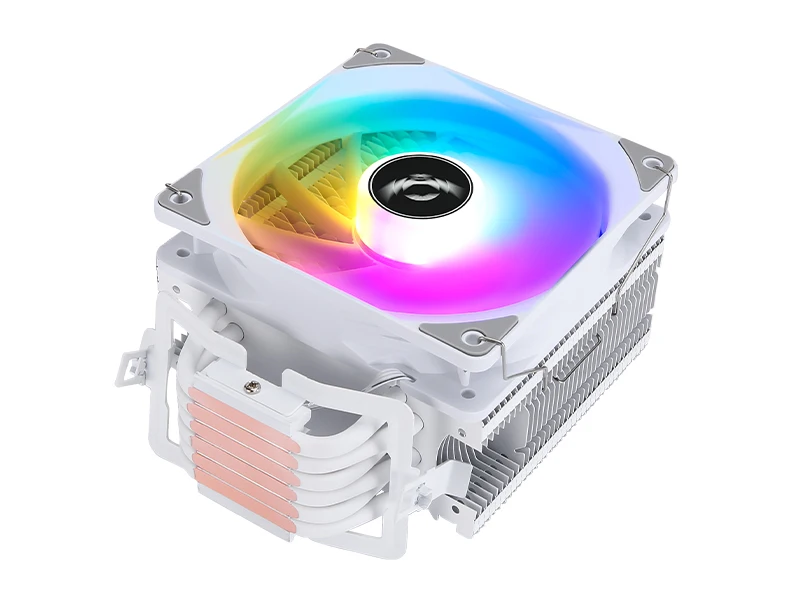

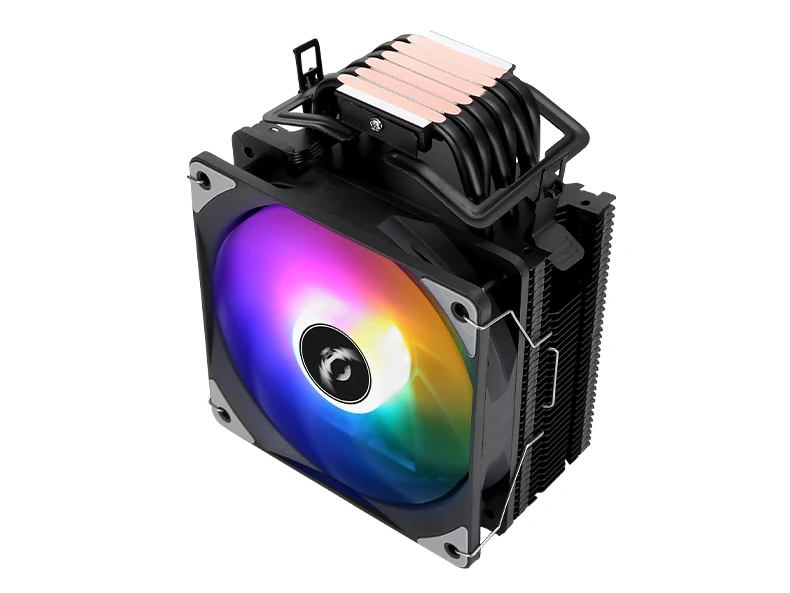

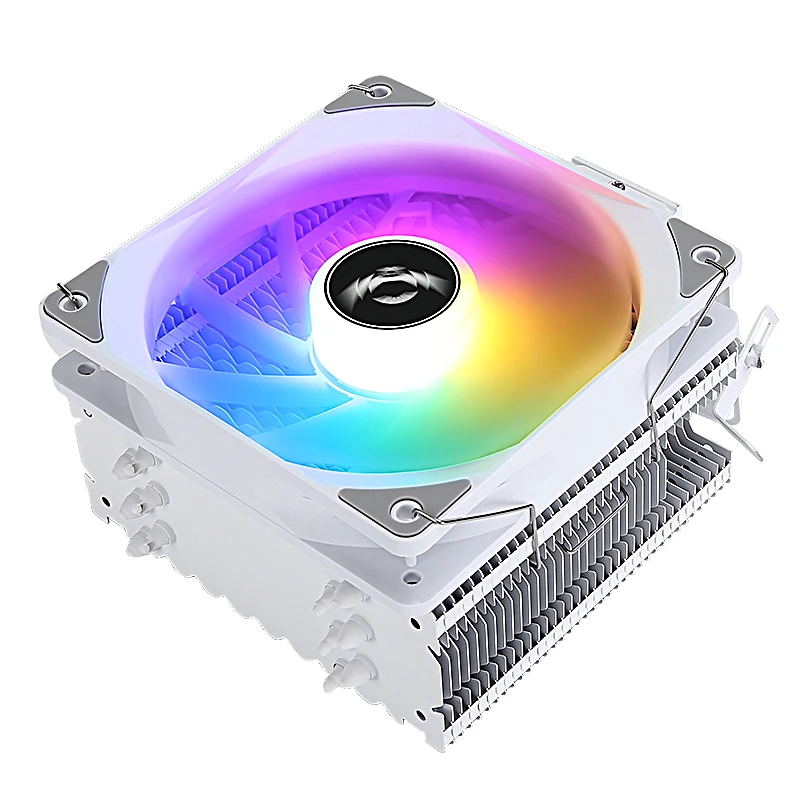

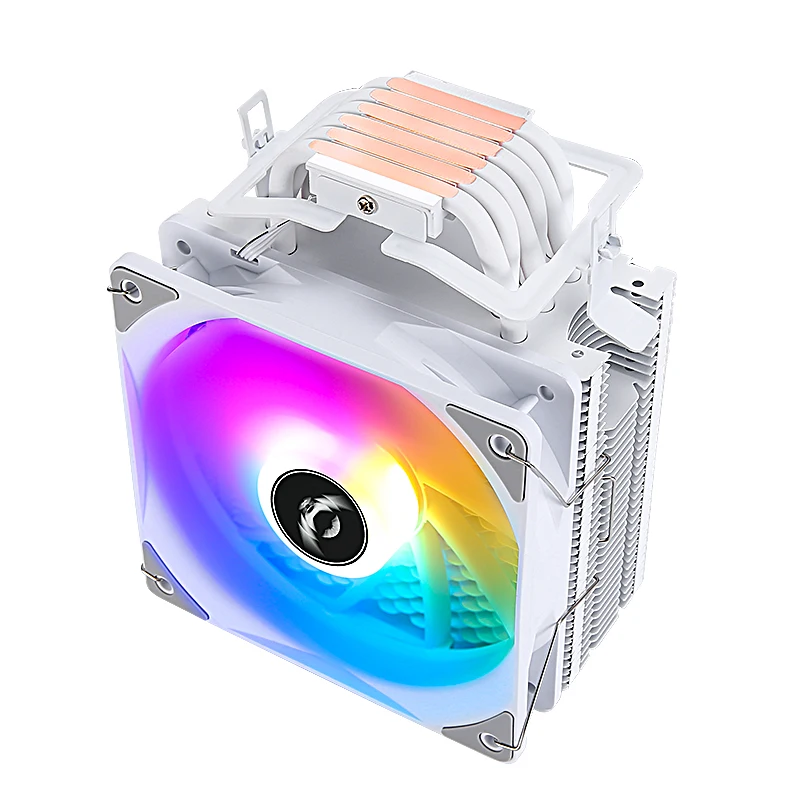

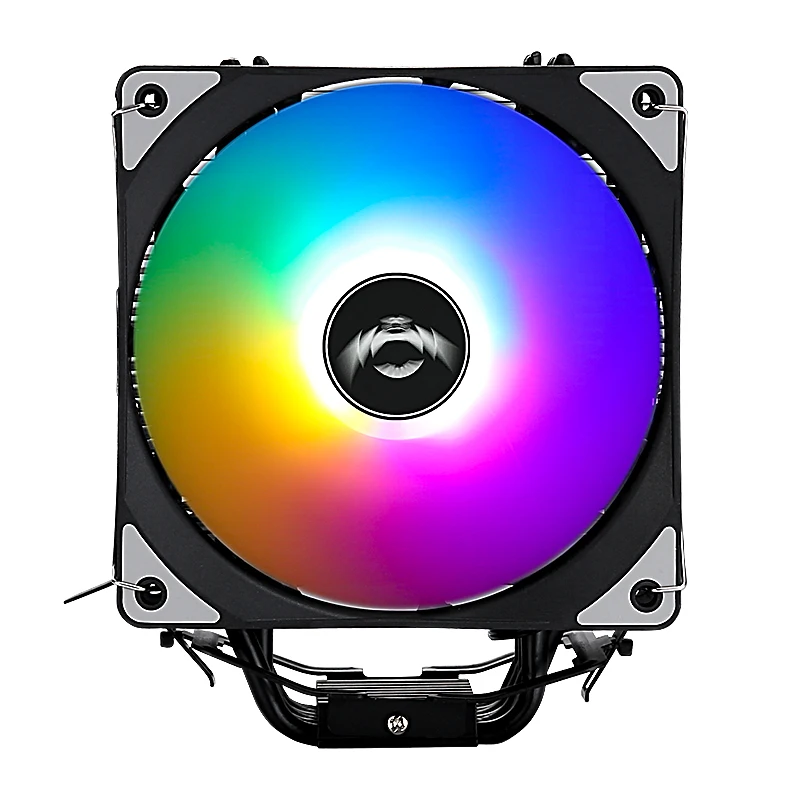

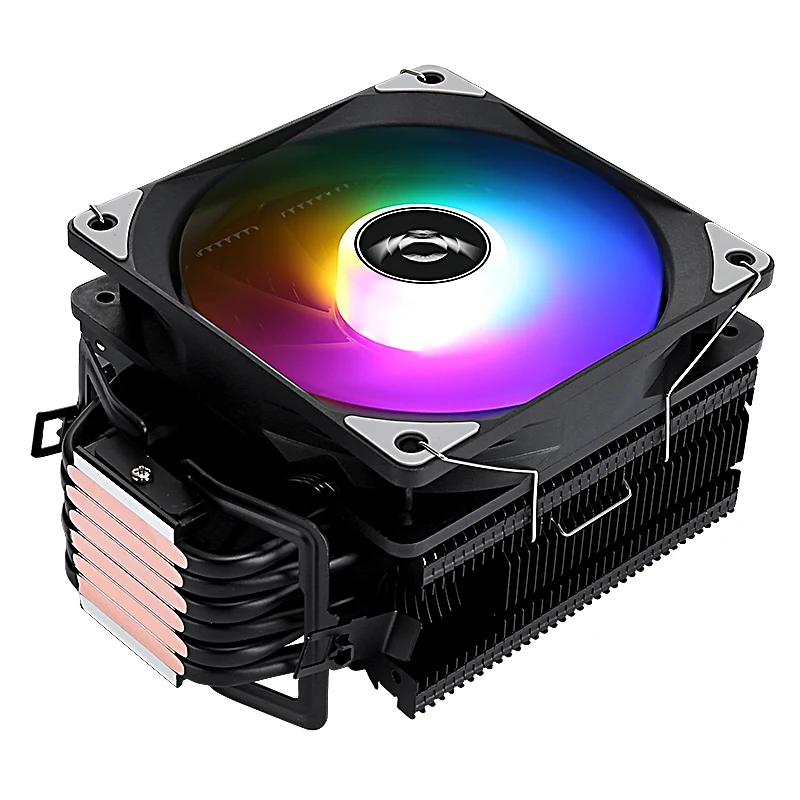

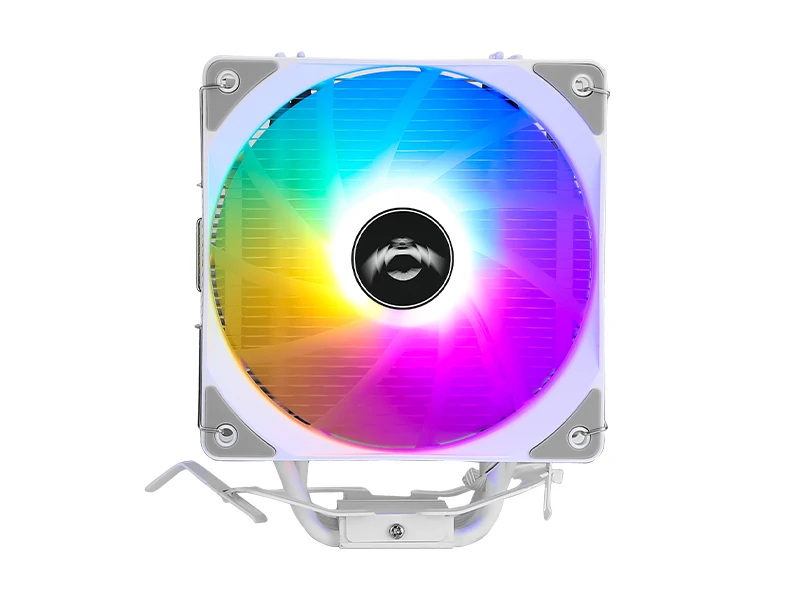

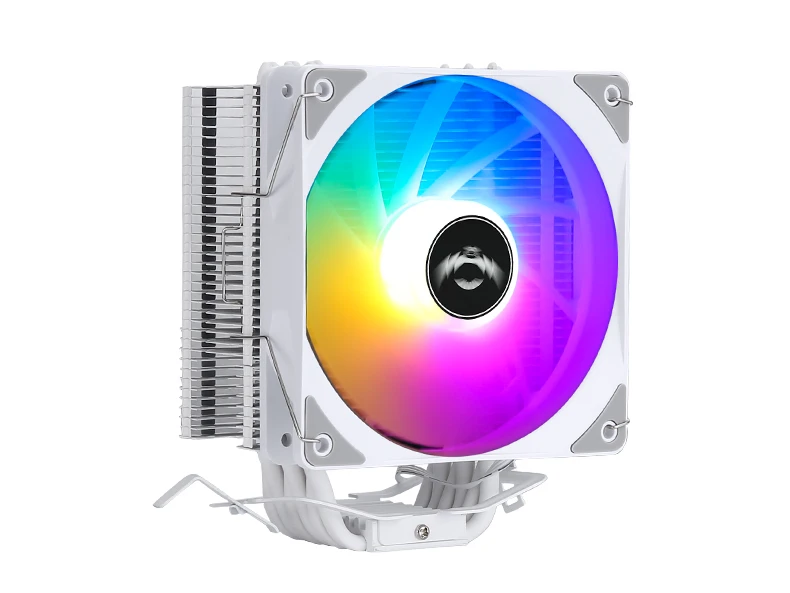

Product image display:
Statement:
As shown in the figure below, it is an inevitable production process, not a quality problem,
nor will it affect the product function and performance. Your successful purchase means
that you have approved the process. If there is any dispute or refund due to this process,
we will not accept it.
