Product description

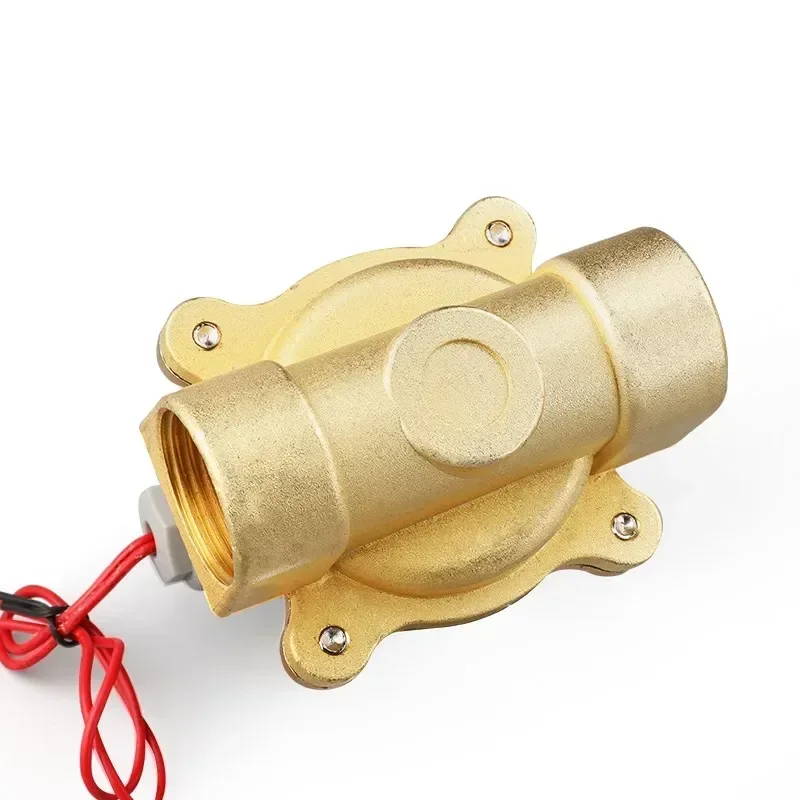

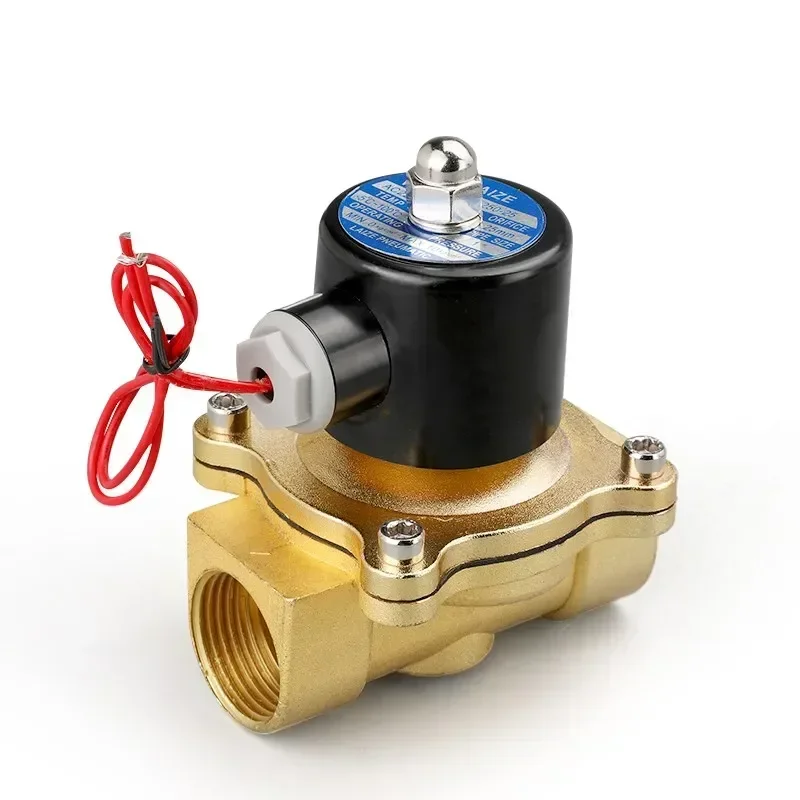

Name: Electric Solenoid Valve

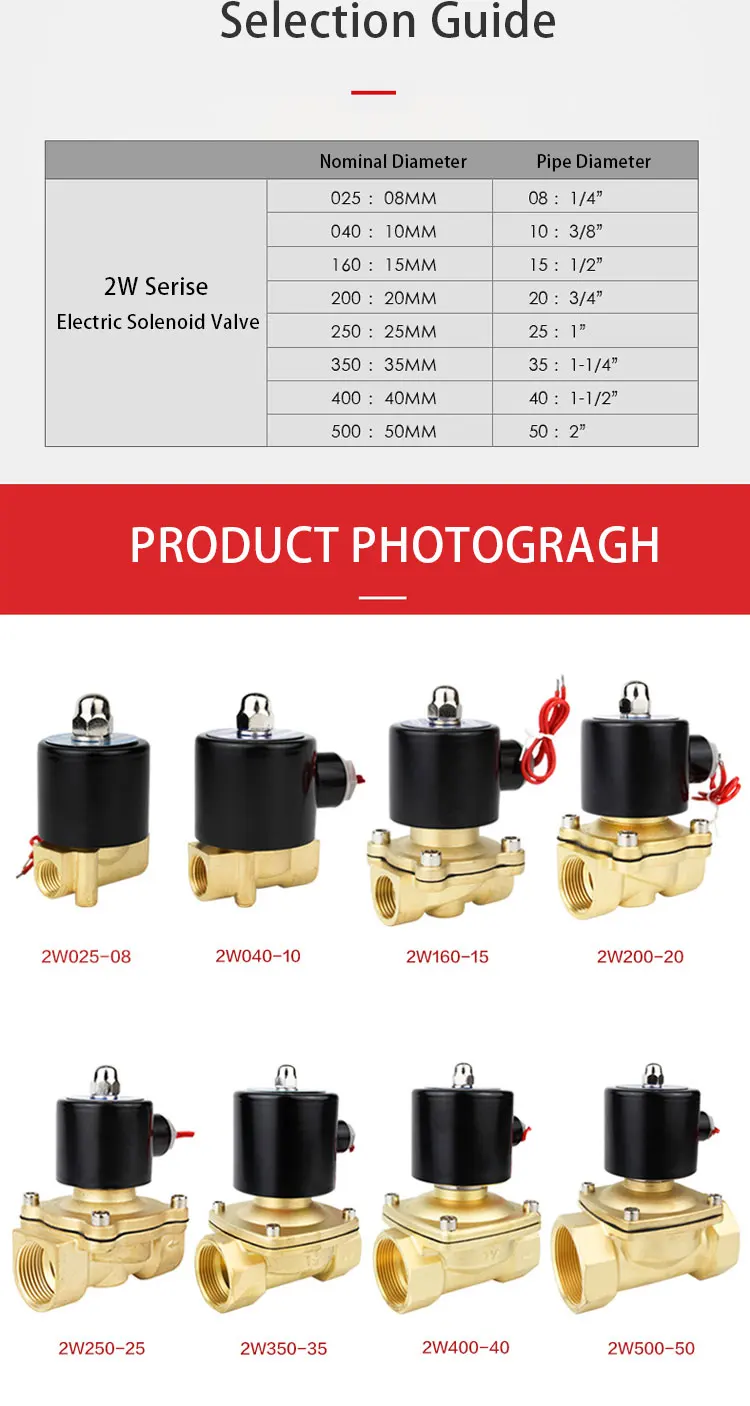

Model: 2W025-08,2W040-10,2W160-15,2W200-20,2W250-25
Material: Brass
Color: Black + Gold
Voltage: AC220V AC110V DC24V DC 12V
Type: Normally Closed type(N/C)
Acting Motion: Direct action
Connecting Format: Inside thread
Pipe Diameter: DN08(1/4" ) DN10 (3/8") DN15(1/2" ) DN20 (3/4") DN25(1").
Nominal Diameter: DN08(2.5MM) DN10(4MM) DN15(16MM) DN20(20MM) DN25(25MM)
Fluid Temperature: -5~80℃
Work Pressure: 0-10Kg/cm⊃2;
Protect Class: IP6
Oil Seal Material: NBR
Ports: 1/4" 3/8" 1/2" 3/4" 1" Inlet and Outlet Ports.
Working Medium: Air, Water, Oil
Features:
- Two-position, one-way, normal close switch, magnetic solenoid water valve.
- High-quality aluminum alloy gravity casting, hard and durable, non-corrosive, the product has the direction of water inlet and outlet.
- Can be installed at any angle, but it is a good choice when the horizontal tube keep upward.
- Easily replaces broken valves for use with pipelines in water, air and diesel-gas applications.
Note:this solenoid valve is not suitable for continuous opening for 24 hours,Or the coil maybe burn!!!
