Note:Poor compatibility for game handheld consoles, pls notice that, thank you!
2 kinds of optional, The Chip is ASM2464PD or ASM2464PDX. Please choose the product you need correctly.(The functions as the same.The PDX is specifically designed for use in graphics card docking stations)
(Don't worry, the main functions of these two versions are same. And V1.2-V1.5 marked on the board is just help us to distinguish production batches, no representative significance.)
Feature:
Brand name: ADT-Link

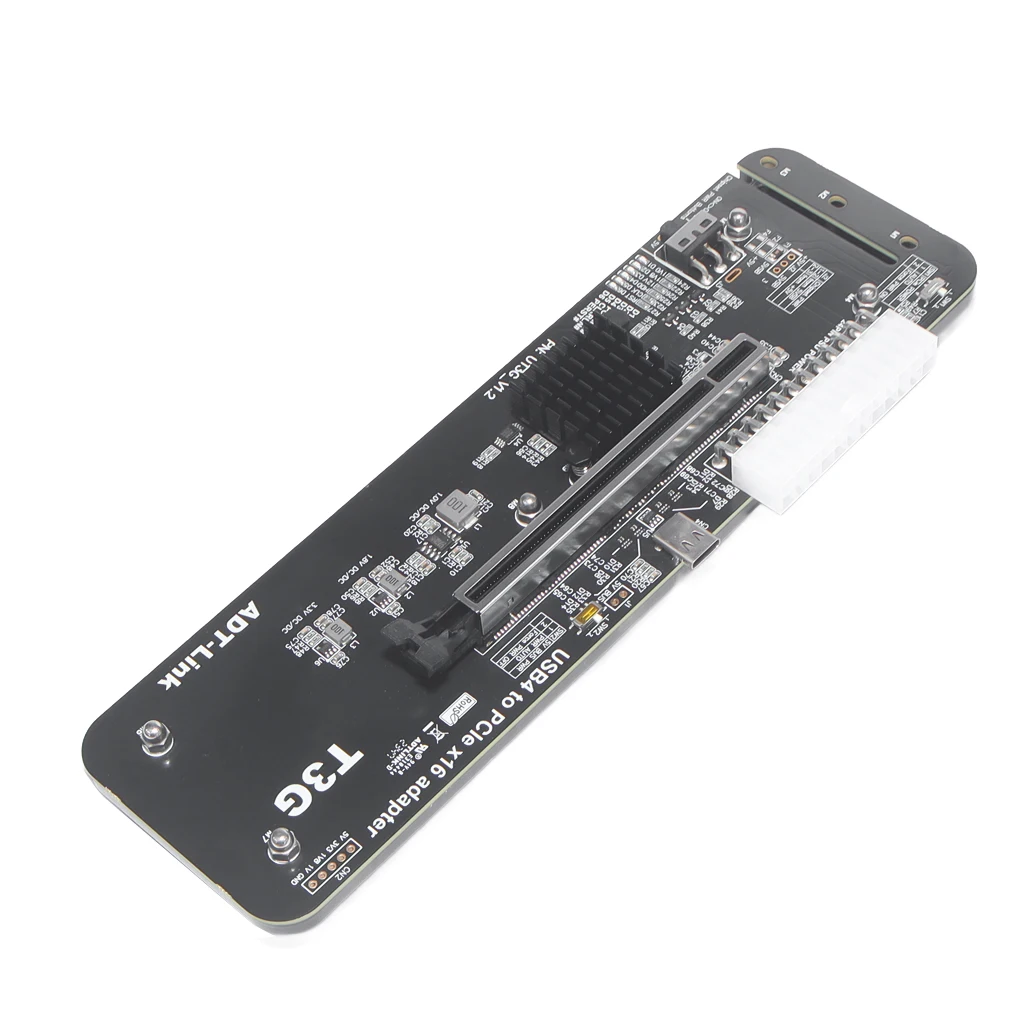

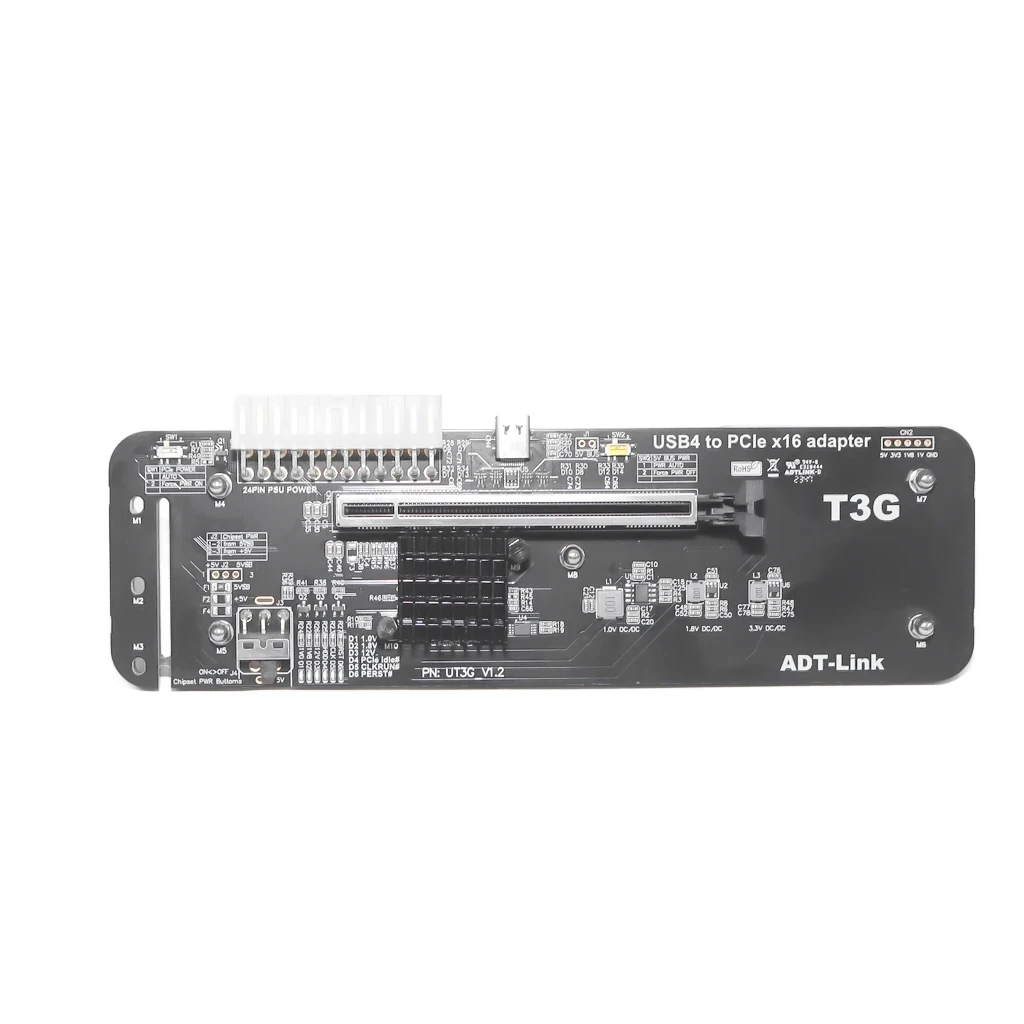

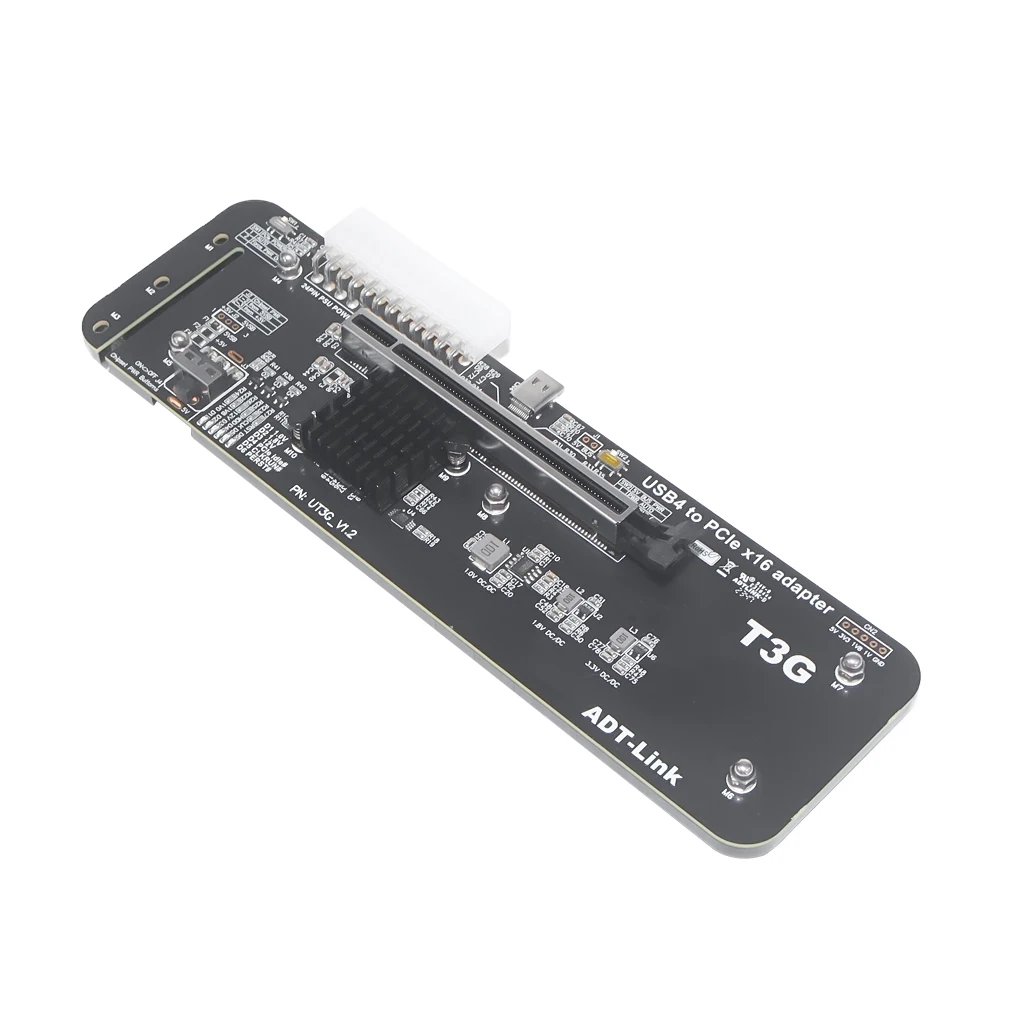

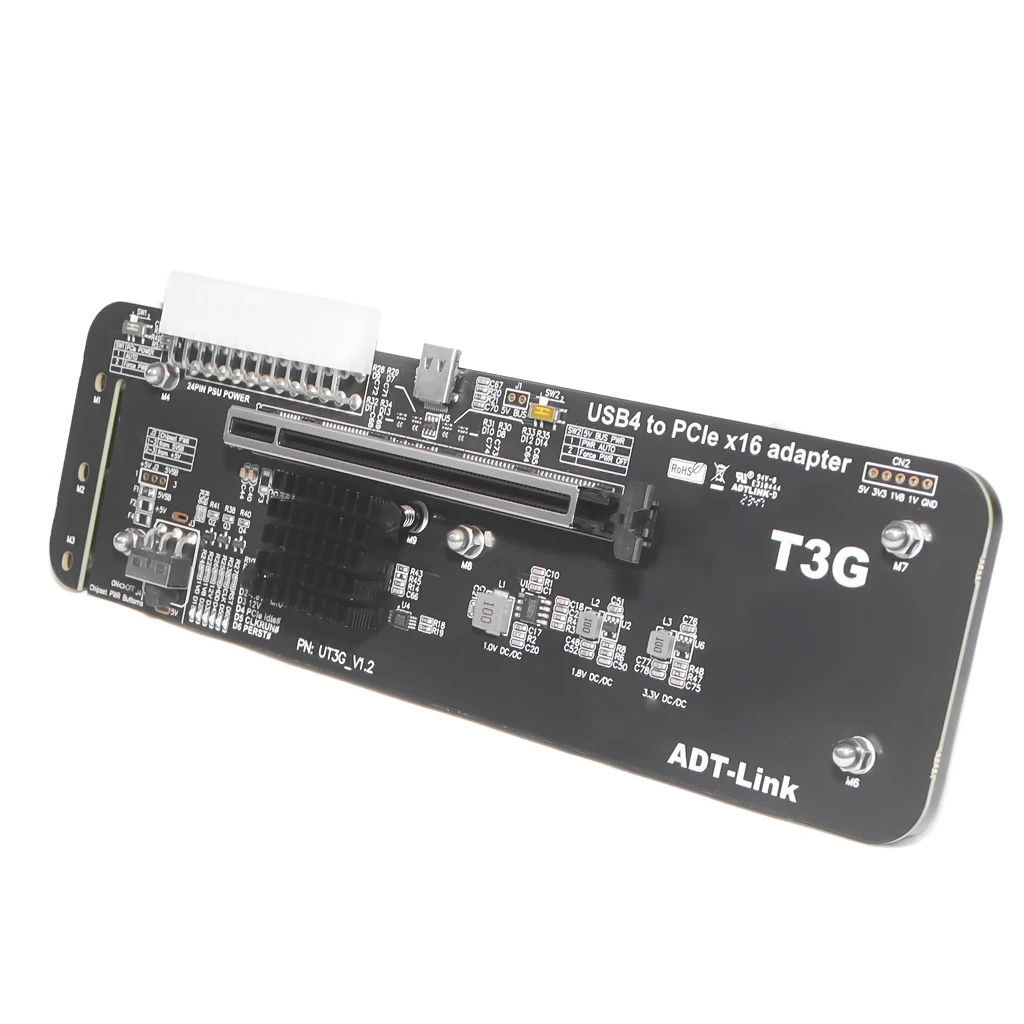

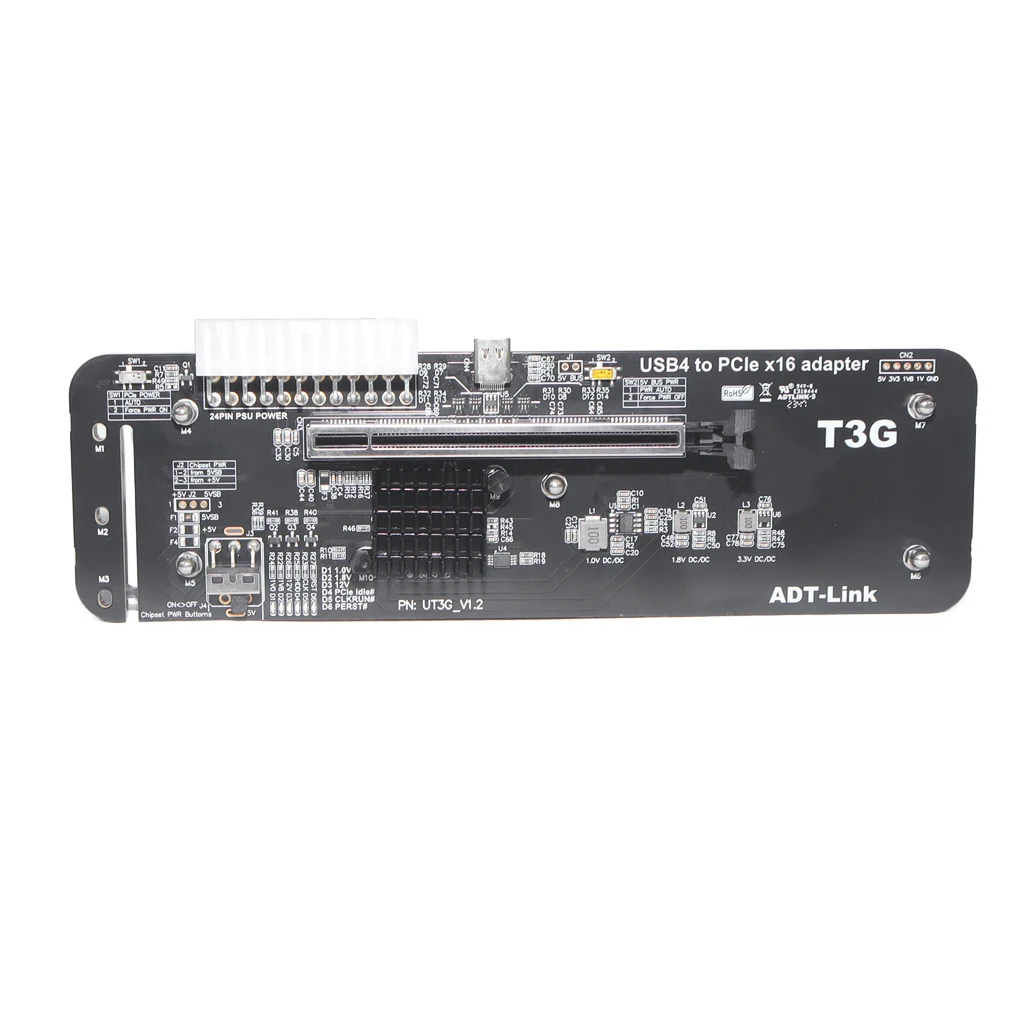

Product name: USB4 to PCIe x16 eGPU Adapter
Product model: UT3G
Transfer speed: Gen4 X2, 40G/bps (Max.)
Application: eGPU for NUC / ITX / STX / Notebook PC

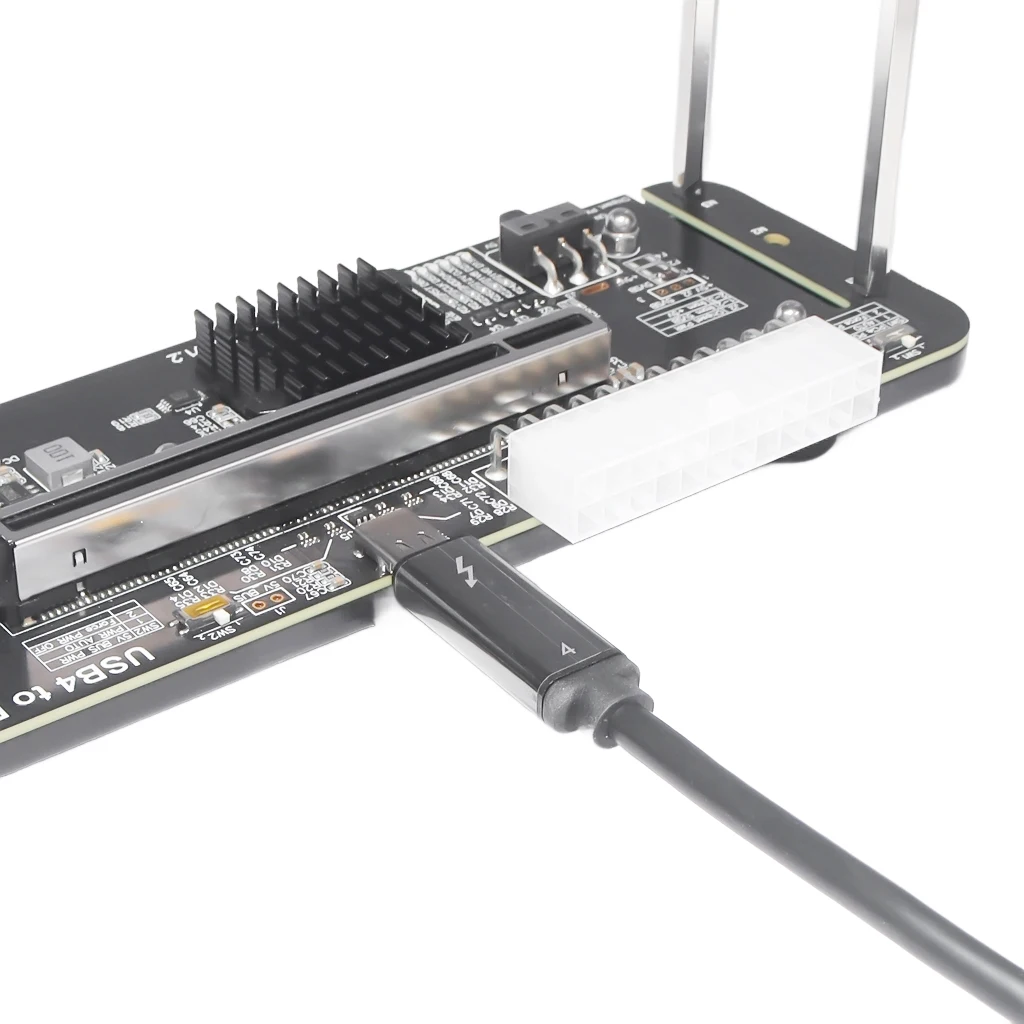

Interface: Compatible with TB3/TB4/USB4 interface, does Not support USB interface
Product improvement, added Heat sink (after testing, there will be less interference without a cooling fan), and optimization
Power instructions: Please prepare the power supply according to the power of the graphics card
Q&A

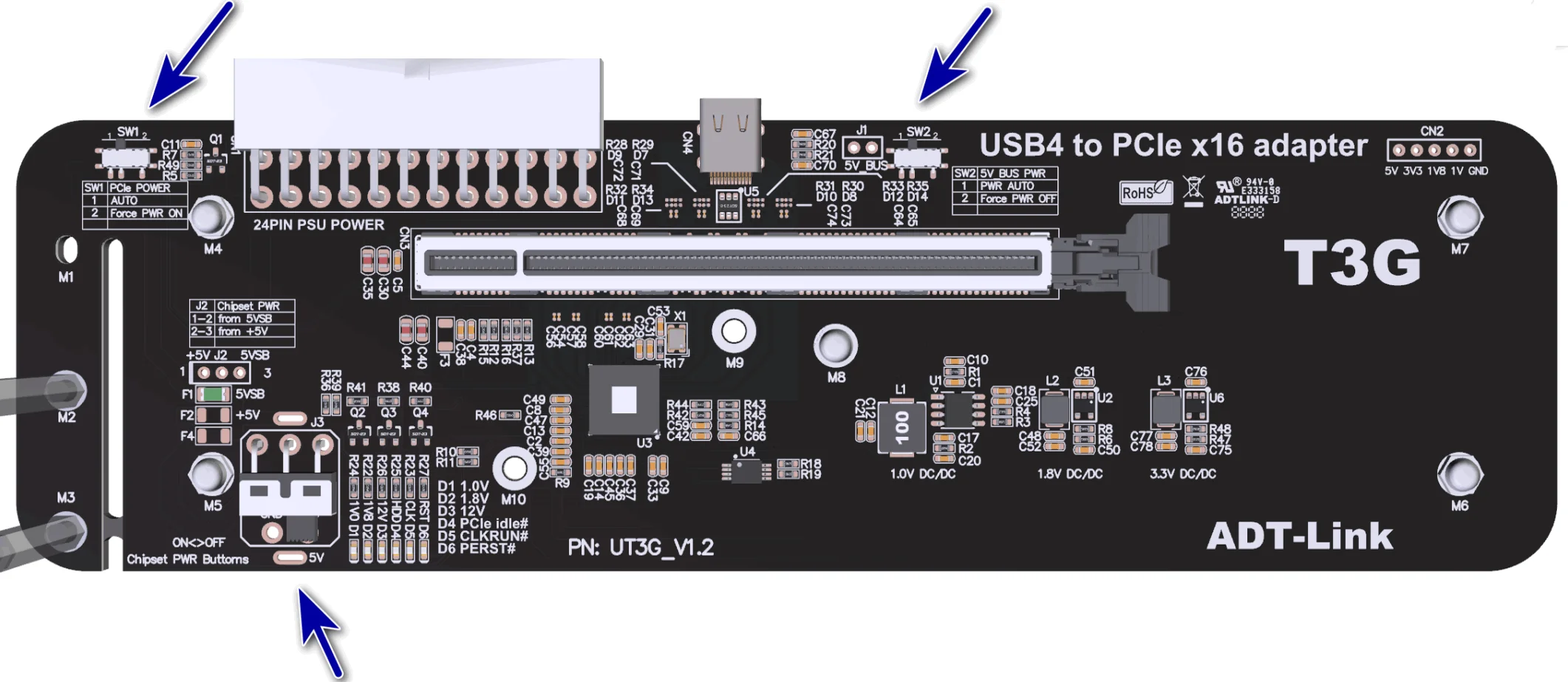

SW1: graphics card power forced start switch, 1 for automatic start, 2 for forced start, please switch to 1 for automatic start
SW2: USB5V power supply forced shutdown switch, 1 for automatic start, 2 for forced start, please switch to 1 for automatic start
J3: ASM2464PD chip power switch, ON for automatic start, OFF for off, please switch to ON for automatic start
Q2: What are the laptops supported by ADT UT3G? What methods can be used normally?
Q3:Does it support internal screens? Is there any loss?

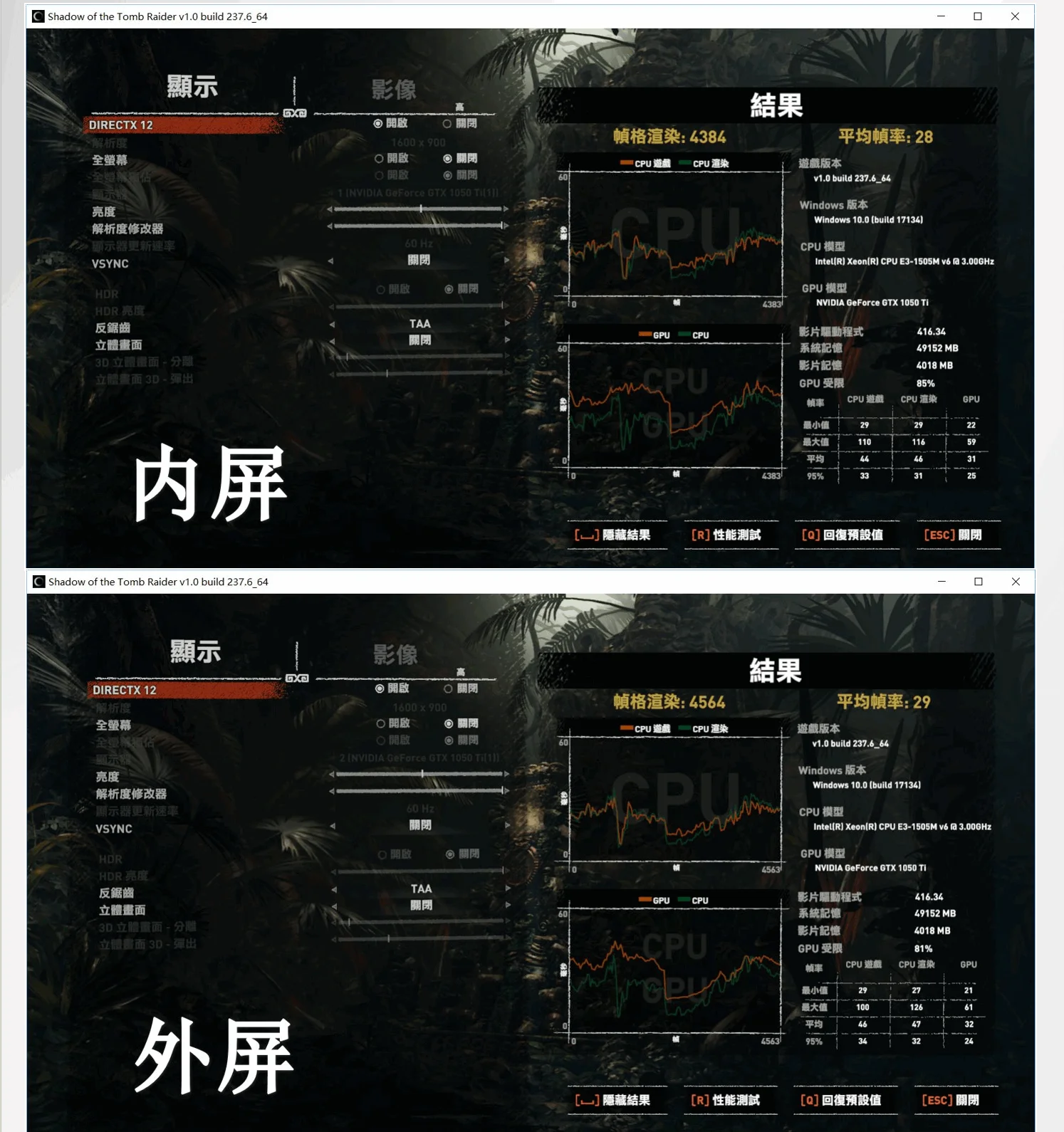

Only laptops with unique display function can support it. The measured internal screen loss is about 5%, and the comparison between internal and external screen tests is shown in the following figure.
