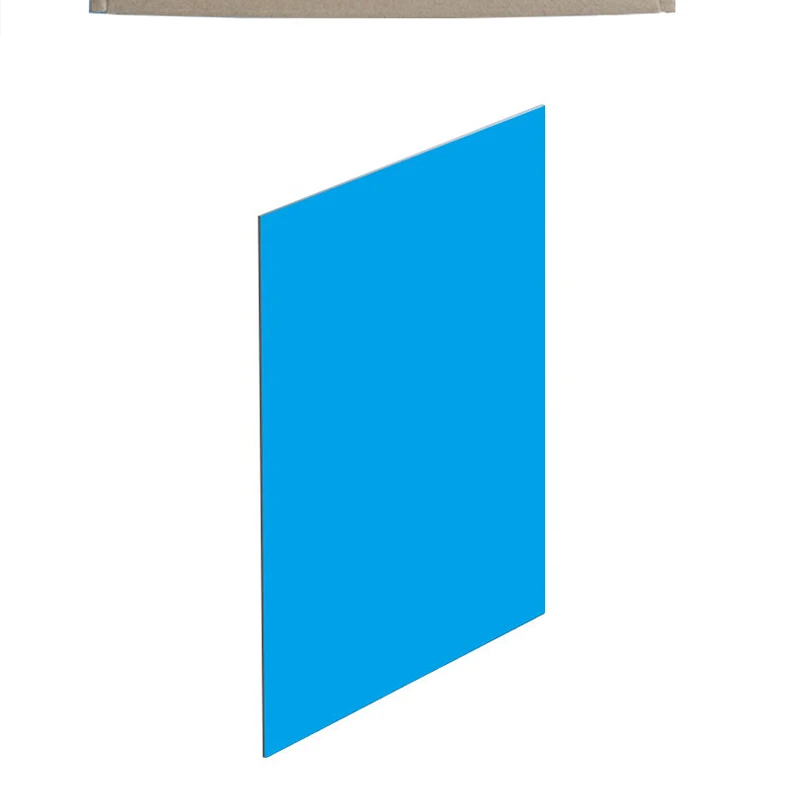

UPSIREN-almohadilla PCM conductora térmica, almohadilla PCM de silicona sólida con cambio de fase, 80x80 PCM

PRODUCT PROPERTY:

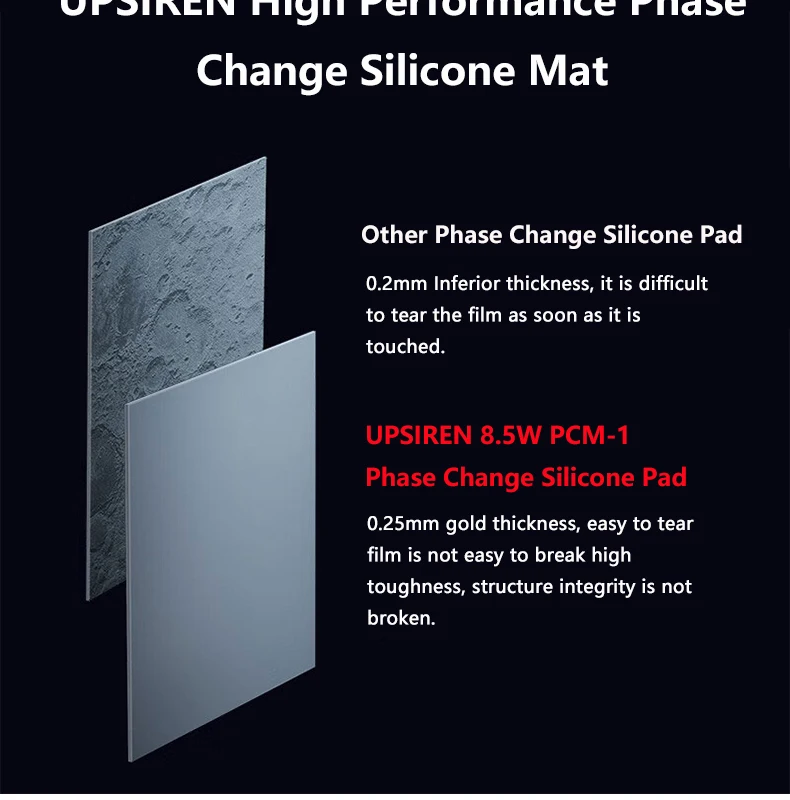

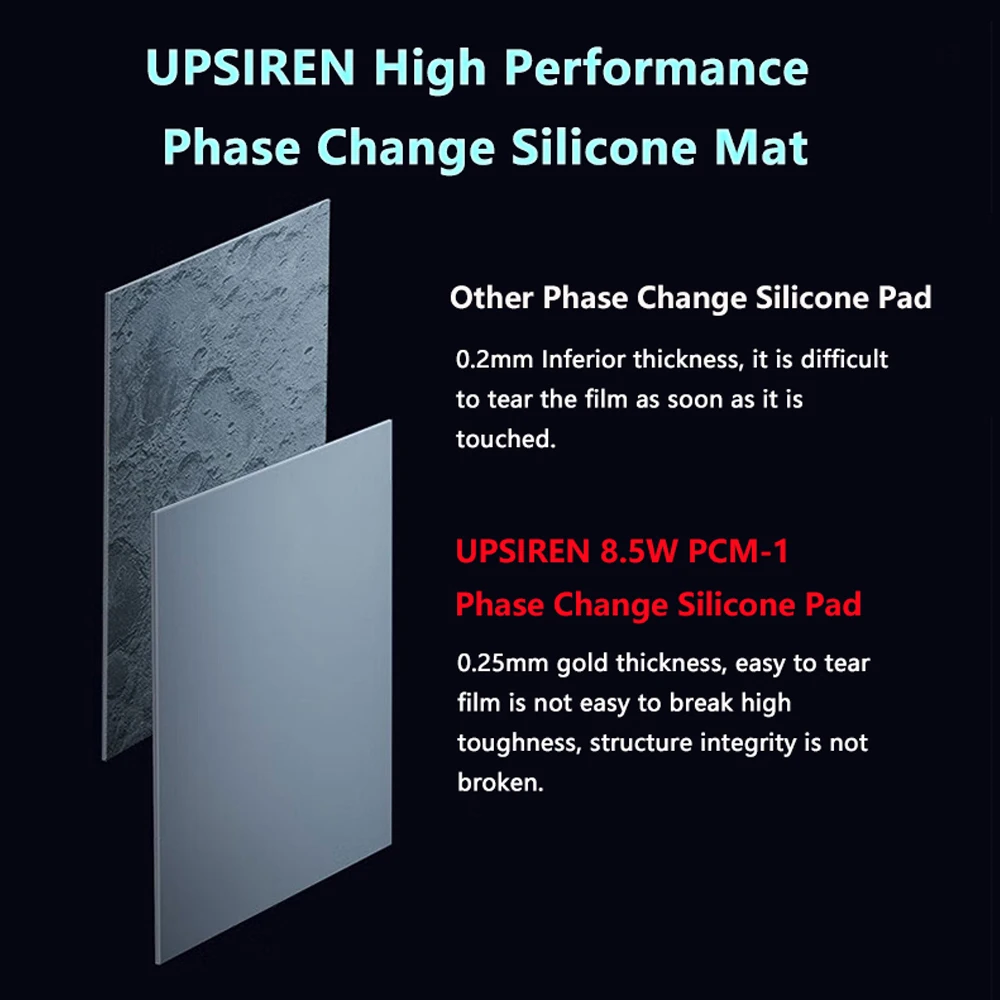

UPSIREN PCM-1 is a highly thermally conductive Phase Change Material (PCM) that lasts longer and is more effective than tradiational thermal paste.

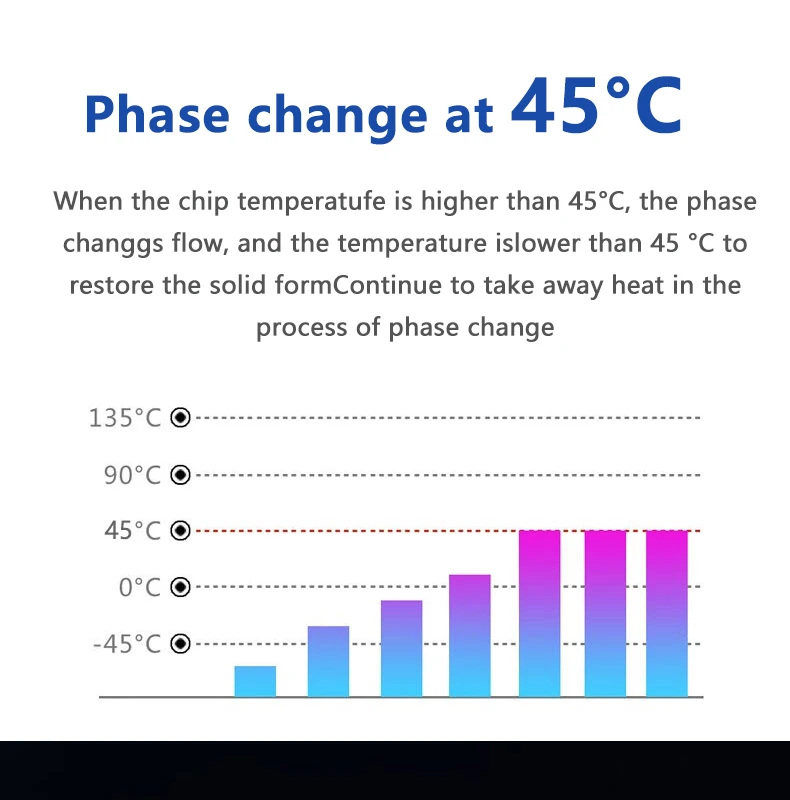

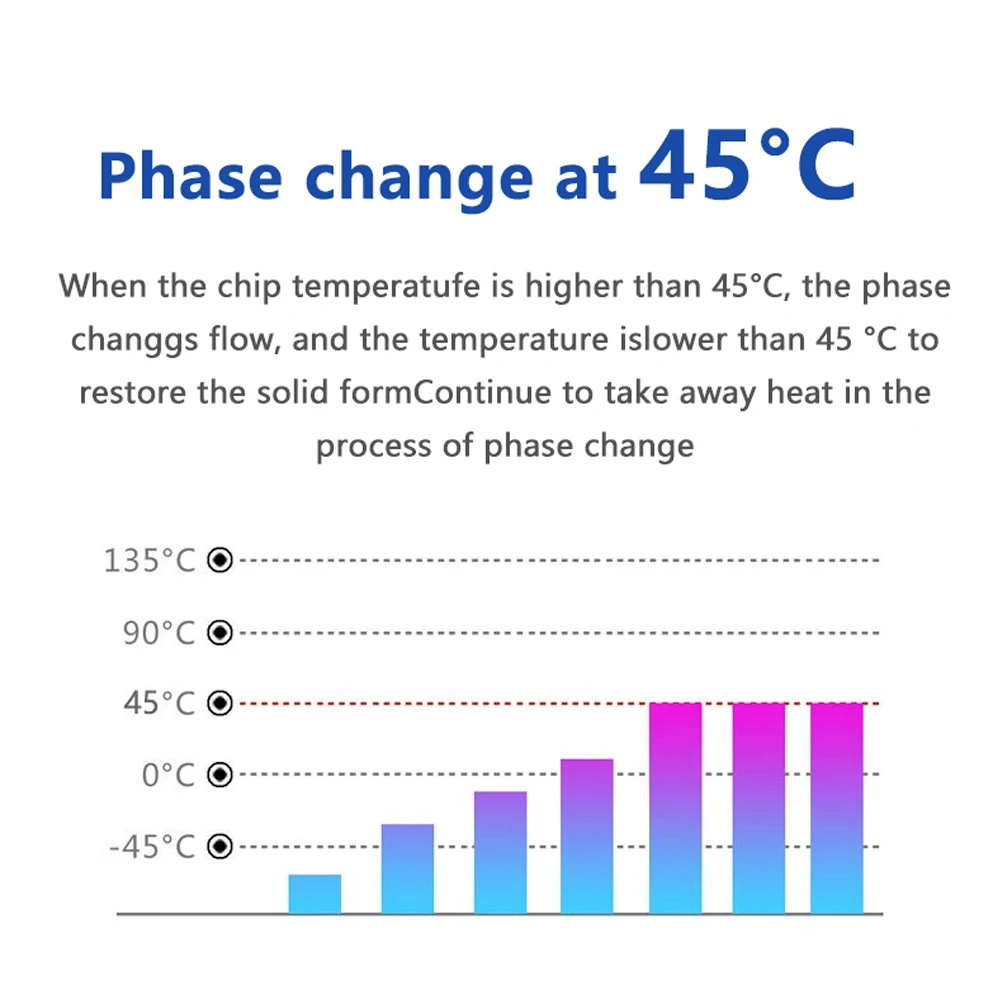

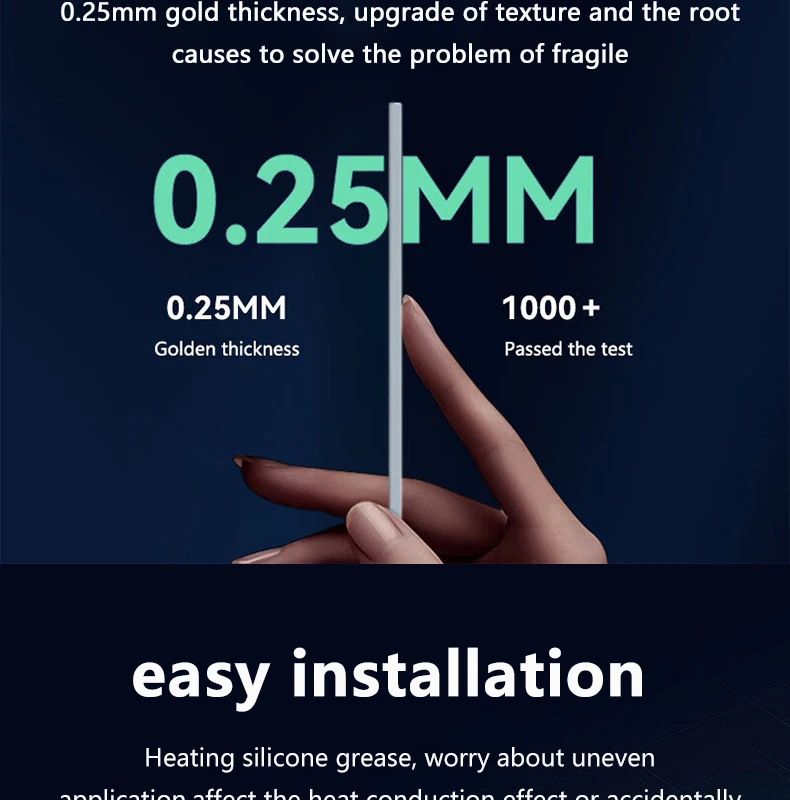

Size :50x31x0.25mm,40x80x0.25mm,80x80x0.25mm,Phase change at 45°C, Thermal Conductivity: 8.5 W/m.K

UPSIREN PCM-1 is a proprietary material that provides superior reliability (pass 150˚C baking 1000 hours, T/C-B 1000 cycles) and maintains low thermal impedance ( 0.04˚Ccm2/W @ no shim), making the UPSIREN PCM-1 desirable for high performance integrated circuit devices.

UPSIREN PCM-1, based on a novel polymer PCM system, exhibits excellent interface wetability during typical operating temperature ranges, resulting in extremely low surface contact resistance.

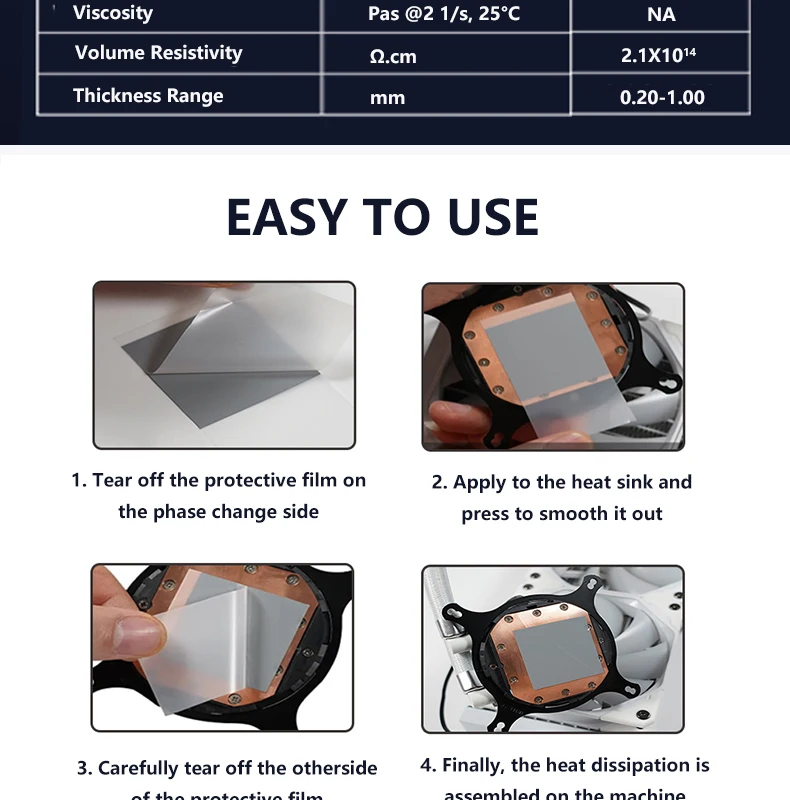

Product Use

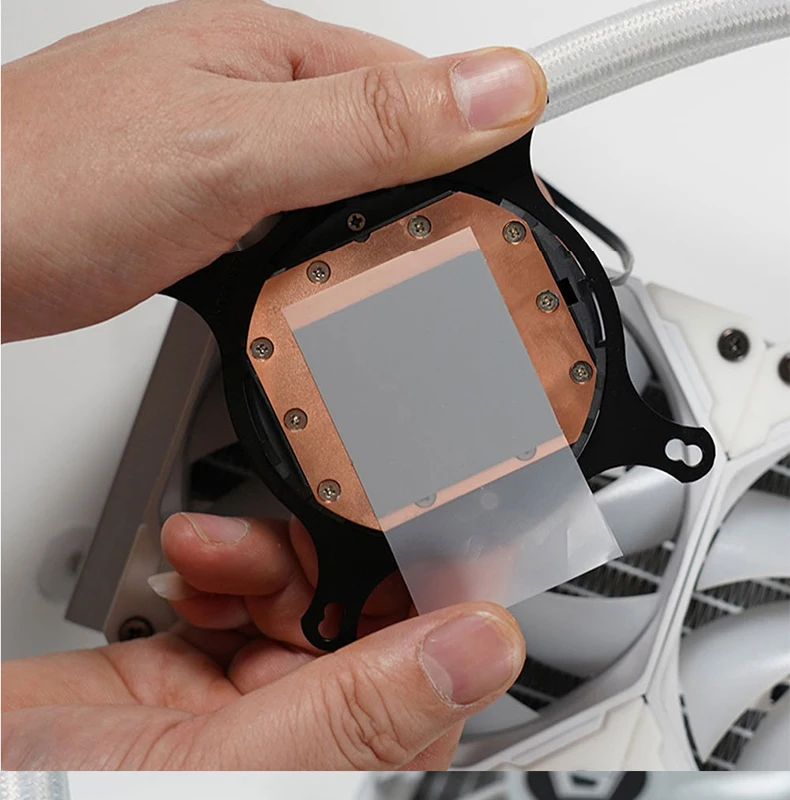

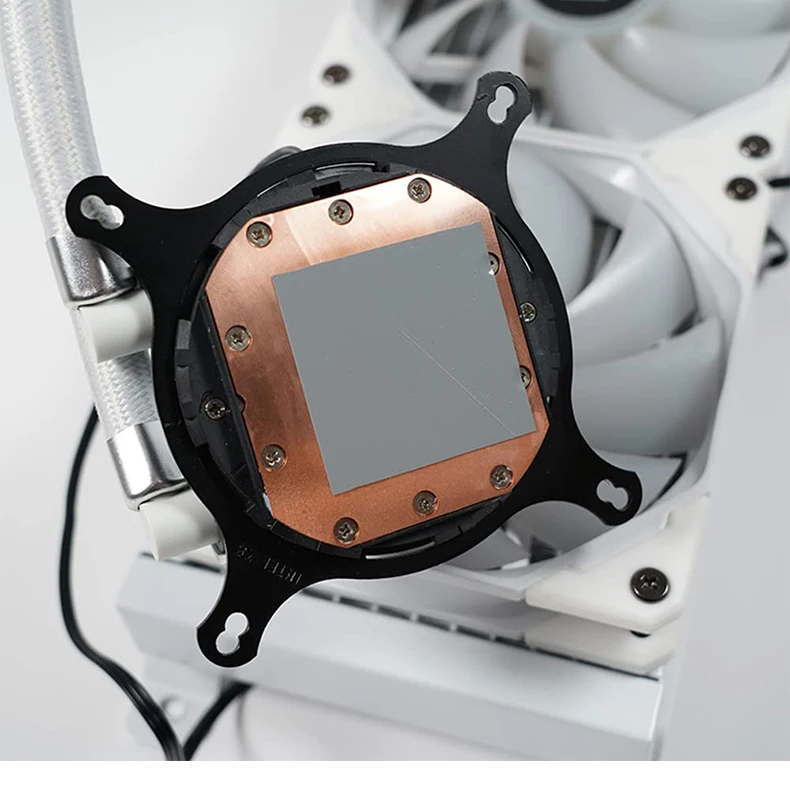

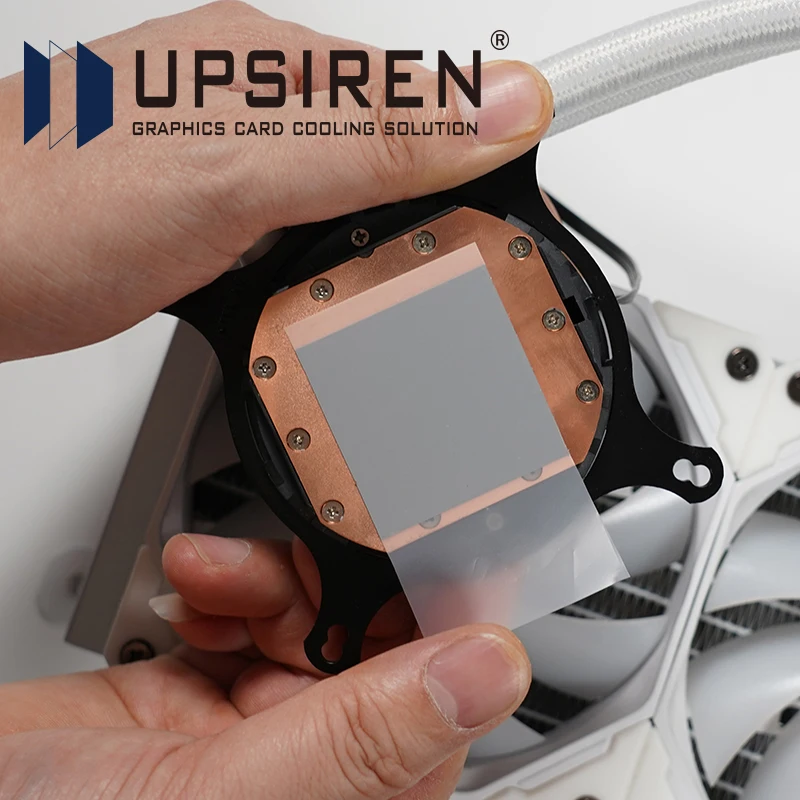

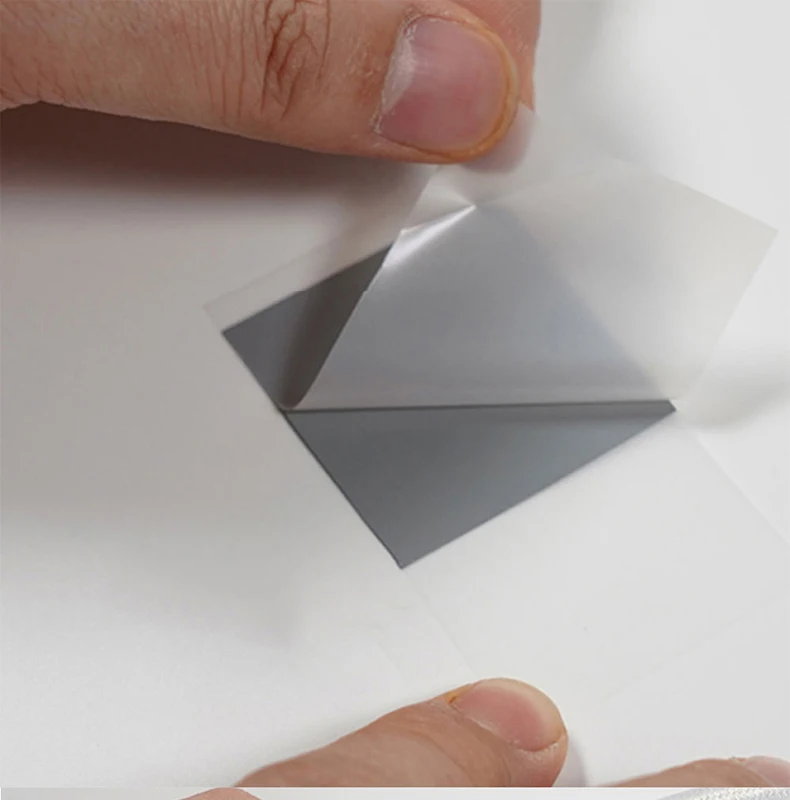

Clamping pressure and temperature are suggested to achieve a minimum bond line thickness of the thermal interface material, typically less than 1.5 mil (0.038mm) for best performance.

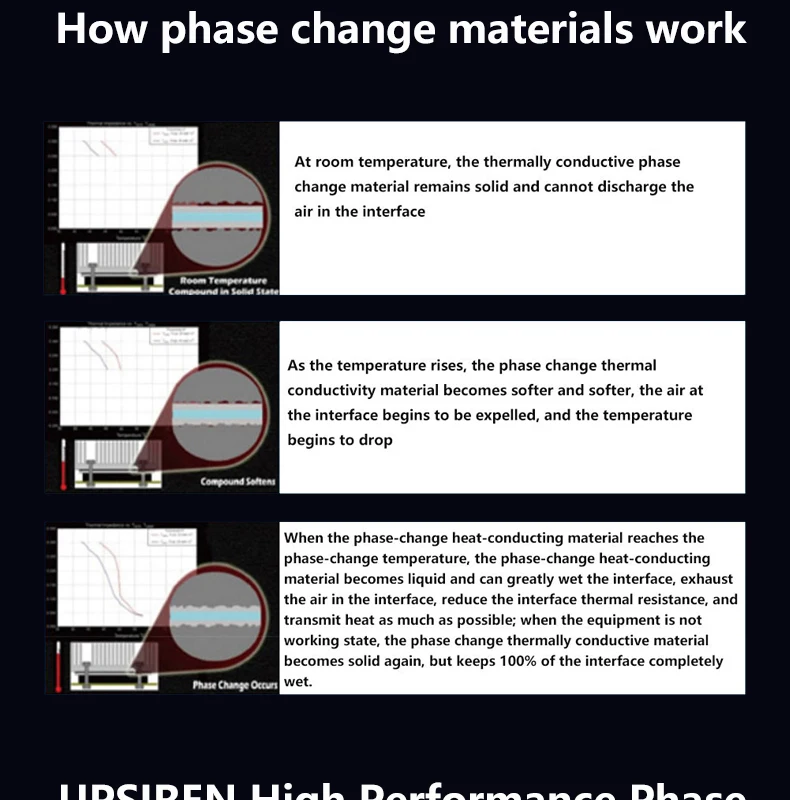

The material must go through the phase change temperature to exhibit entitlement performance.

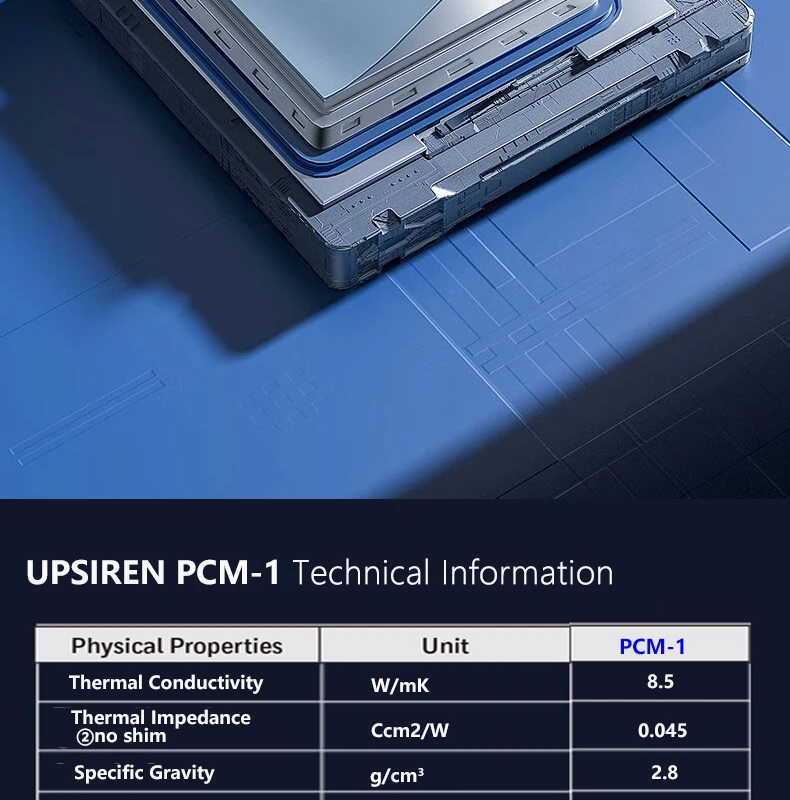

THERMAL IMPEDANCE POST RELIABILITY (ASTM E1461)
End of Line 0.04˚C-cm2/W
Bake 150˚C, 1000 h 0.04˚C-cm2/W
Double 85, 1000h 0.04˚C-cm2/W
Temperature Cycling ''B''(-55˚C to +125˚C, 1000 cycles) 0.045˚C-cm2/W

Product Description

Specifications:
Dimension：L90.3 mm x W23.7 mm x H43.8 mm
Weight：95g
Heat pipes：5 mm heatpipe x 4 units
Warranty：1 years

FAN Spec：
Dimension：L30 mm x W30 mm x H10 mm
Rated Speed：3500 – 6500 RPM±10% (MAX)
Rated voltage：12V DC
Ampere：0.05 A
Connector：4 Pin (PWM Fan connector)
