UOTEK TTL to RS-485 3.3V Module RS485 Anti-surge Protection Isolation Voltage 1000VDC UT-M3485

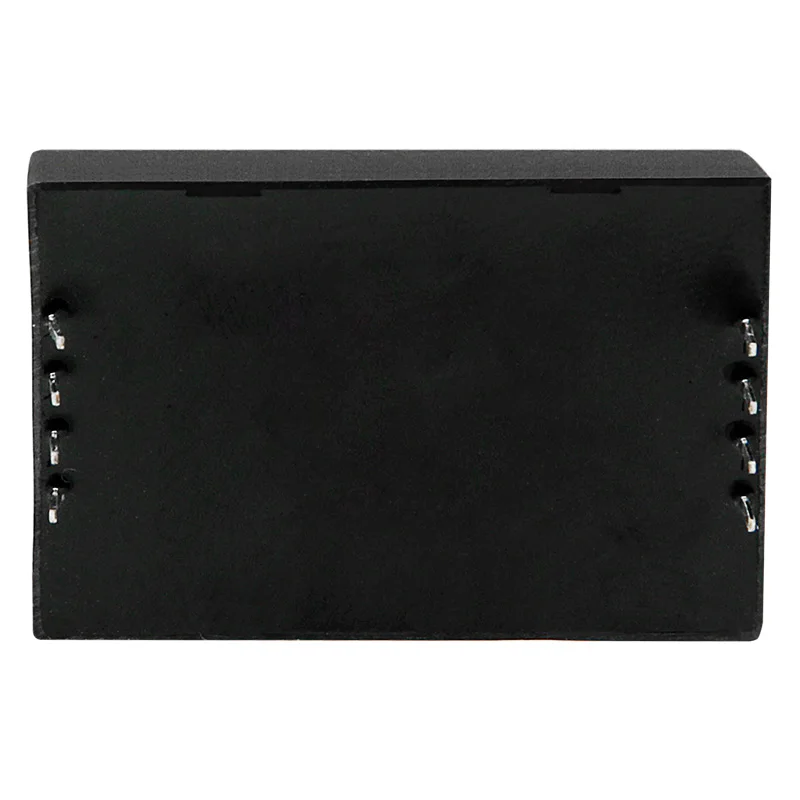

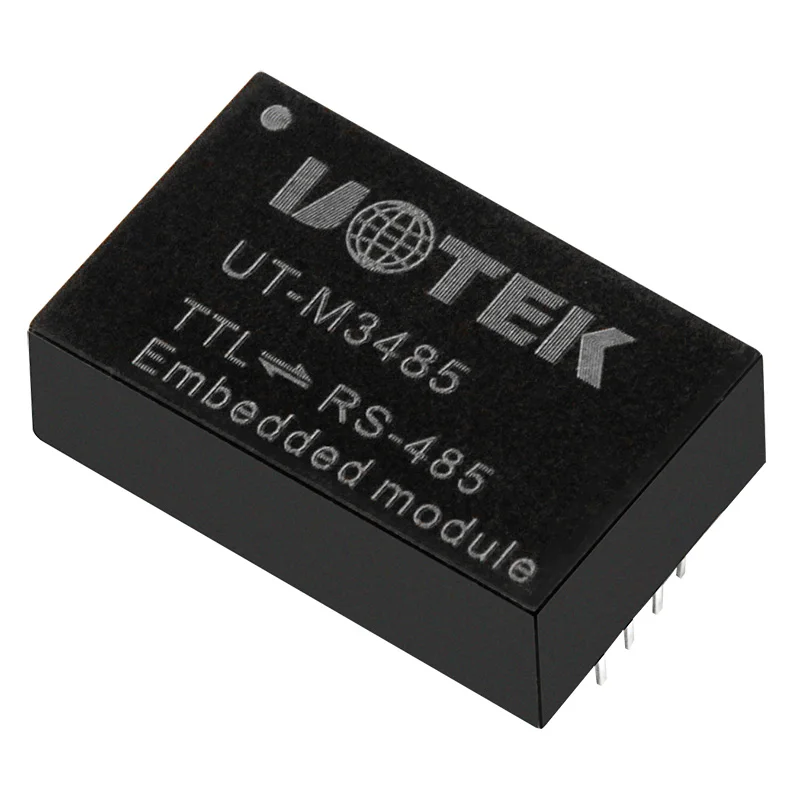

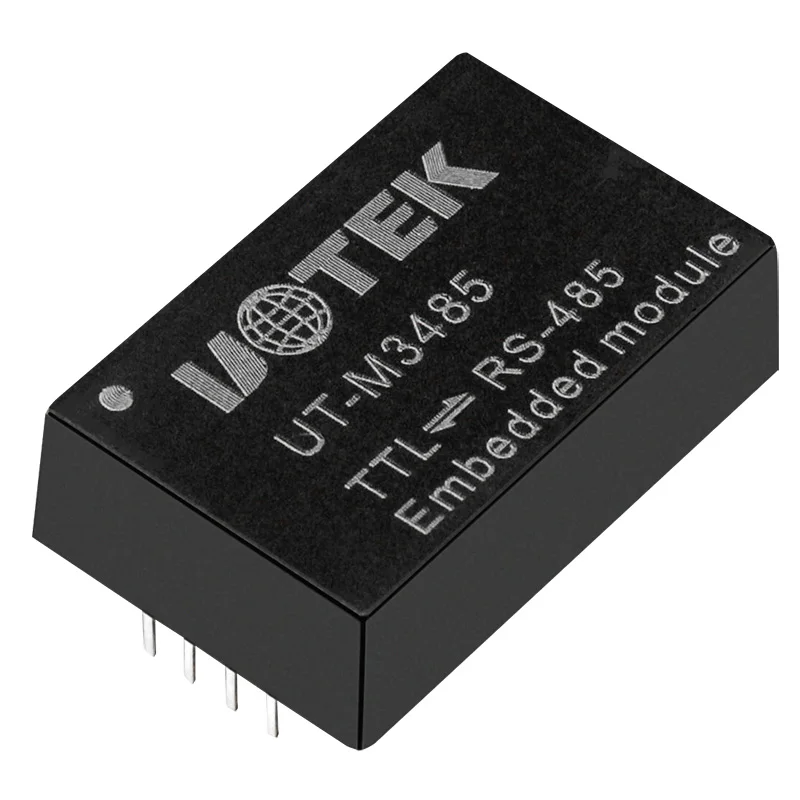

UT-M3485 series isolation transceiver module integrated with power isolation, electric isolation, RS-485, and interface chipset, which is
isolation and BUS protection in one. It is convenient to embed into the device, so as to get RS-485 connect function. This series is using
dosing technology, with great isolation function. The isolated voltage can be as high as 1,000V DC. It can be used in industrial communication, coal mine industry, power security, building automation, Petro/chemistry, PLC, and transducer.
UT-M3485 Parameters
● Connect 32 nodes at least in one LAN
● Single +3.3V power supply
● Transmission Rate: 300bps-115,200bps
● RS-485 signal: 485+, 485-
● TTL signal: RXD, TXD, GND
● RS-485: 600W surge protection
● Isolation voltage: 1,000V DC
● Operating humidity: 5%-95 %( non-condensing)
● Operating temperature: -40~+85℃
Voltage input: DC4.75～5.25V
Module quiescent current: ≤65mA
Module transmitting current: ≤80mA
RS-485 bus interface: standard RS-485 port, with ESD bus protection
built-in 4.7K up-down push resistance, twisted pair output,600W surge protection
Bus drive capacity: Allows each RS-485 to connect at least 32 sets device
Serial port: compatible +5V standard UART interface
Baud rate input: max115,200 bps
Data delay: from receiving data to sending data delay: min 30μs, max 100μs
