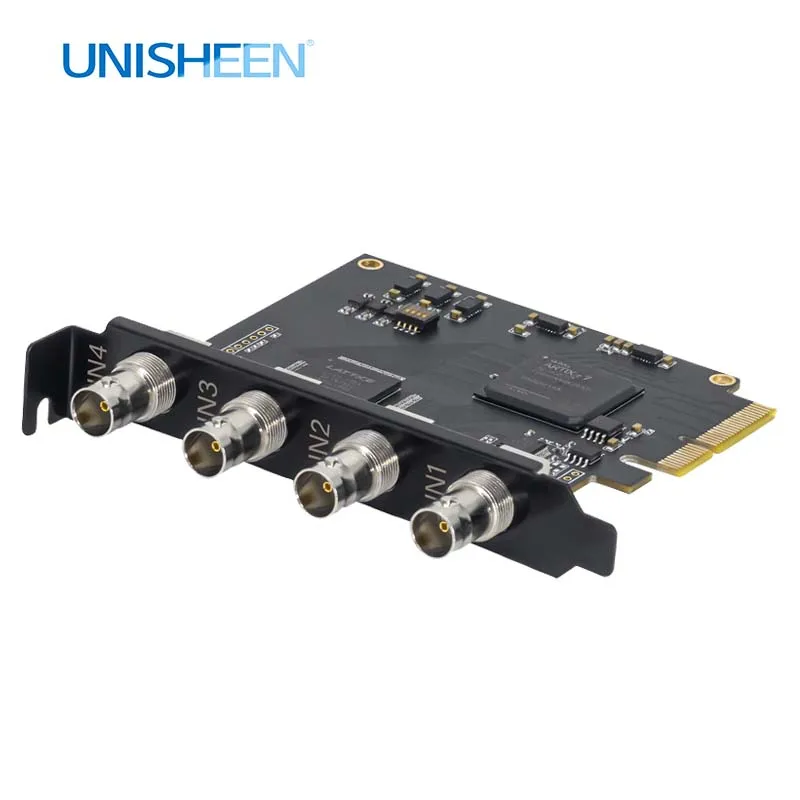

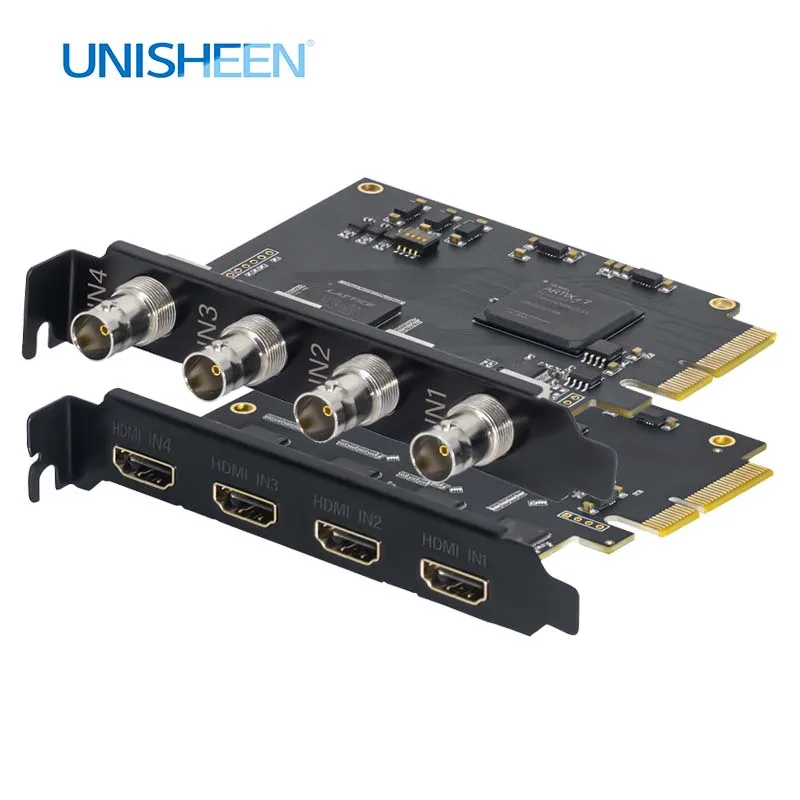

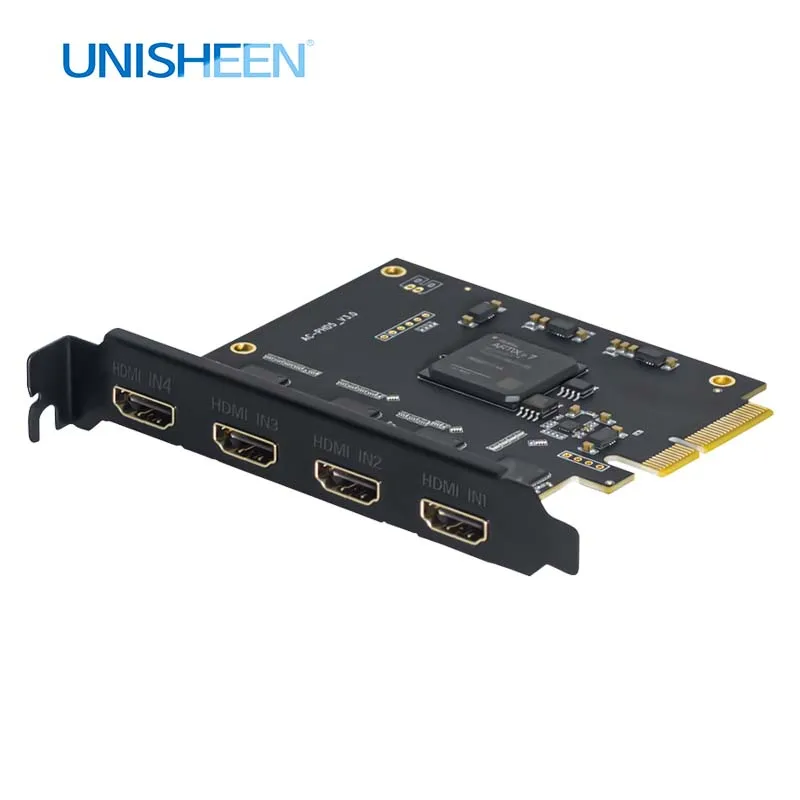

UNISHEEN-grabador 1080p OBS Vmix Wirecast Streaming, 4 canales, 60fps, Quad, HDMI, SDI, transmisión PCI Express, tarjeta de captura de vídeo HD

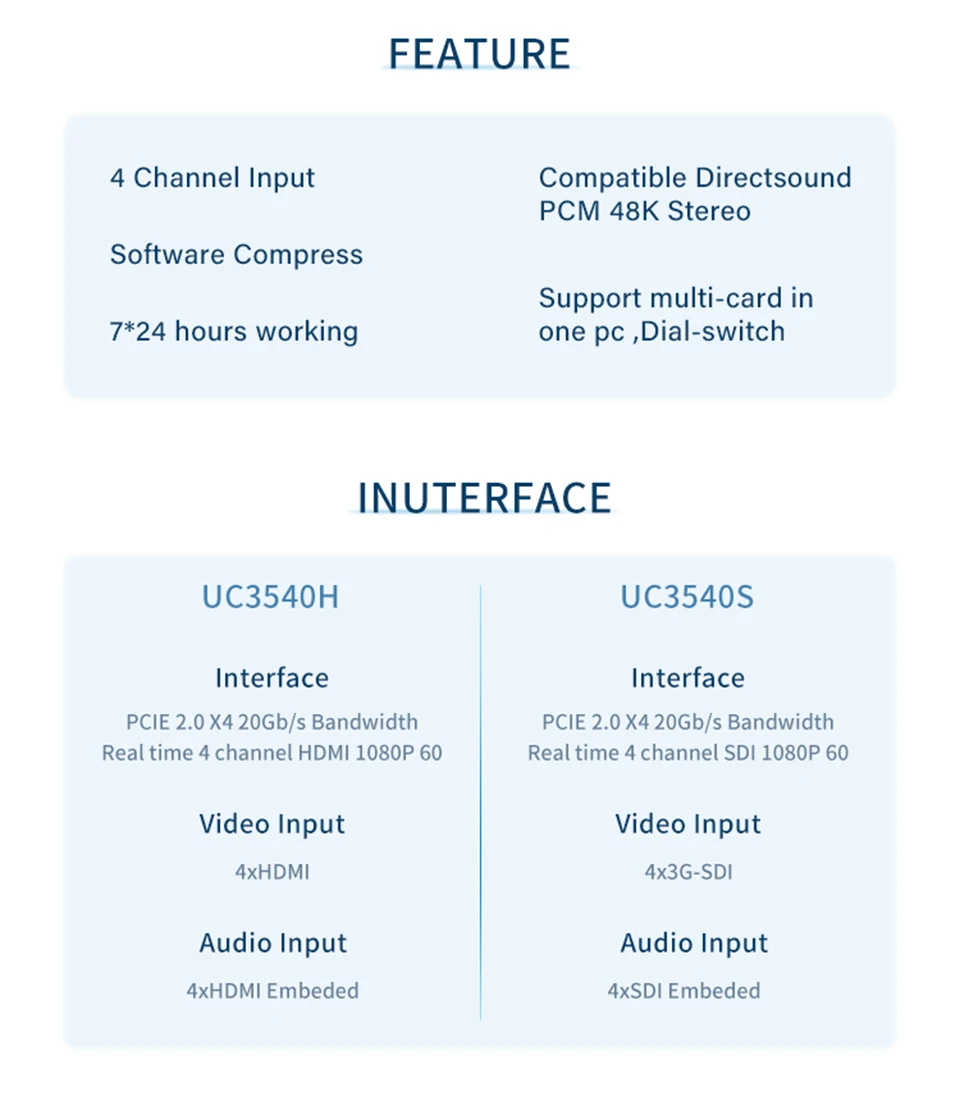

Feature

*4 Channel 1080p60

*Support Win7/8/10/Linux

*Zoom/Skype/Vmix/Wirecast/ManyCam/VLC/OBS etc

*Support Fiber HDMI Cable 50M

Interface

PCIe interface

PCIe2.0 X4

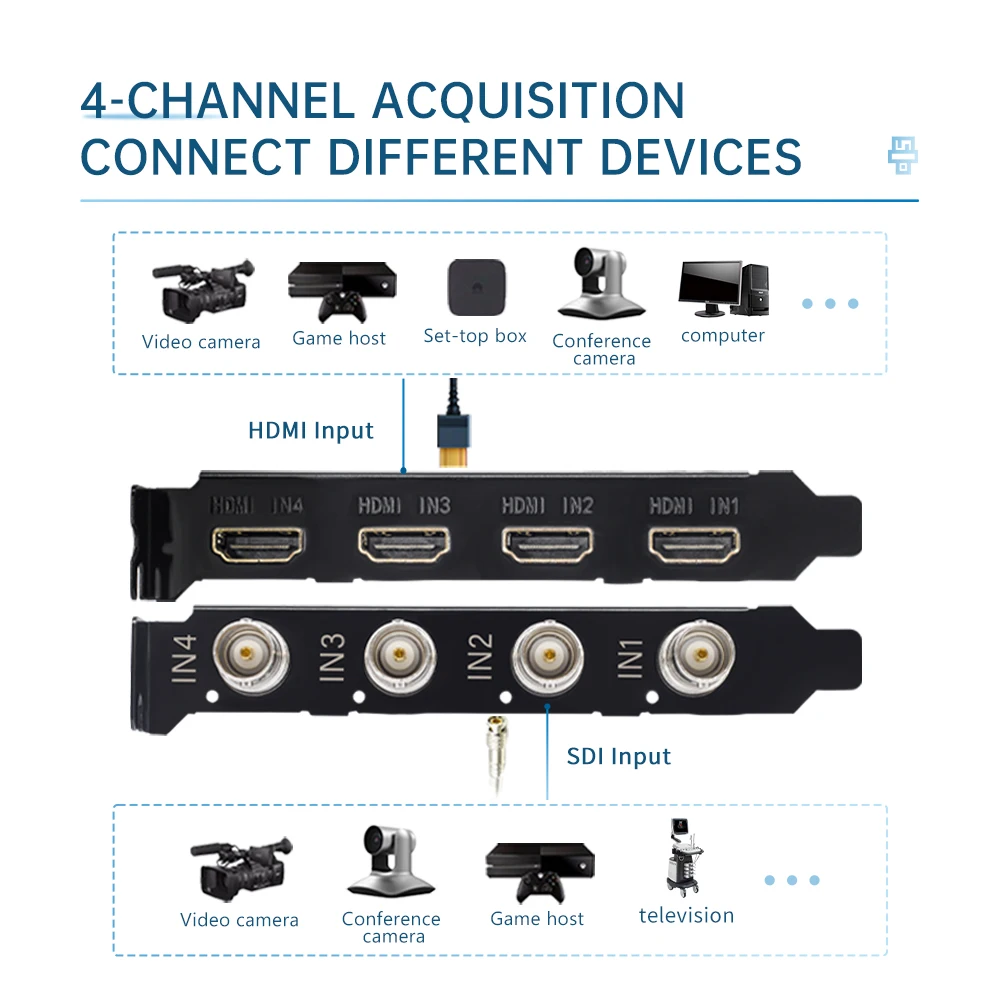

Input interface

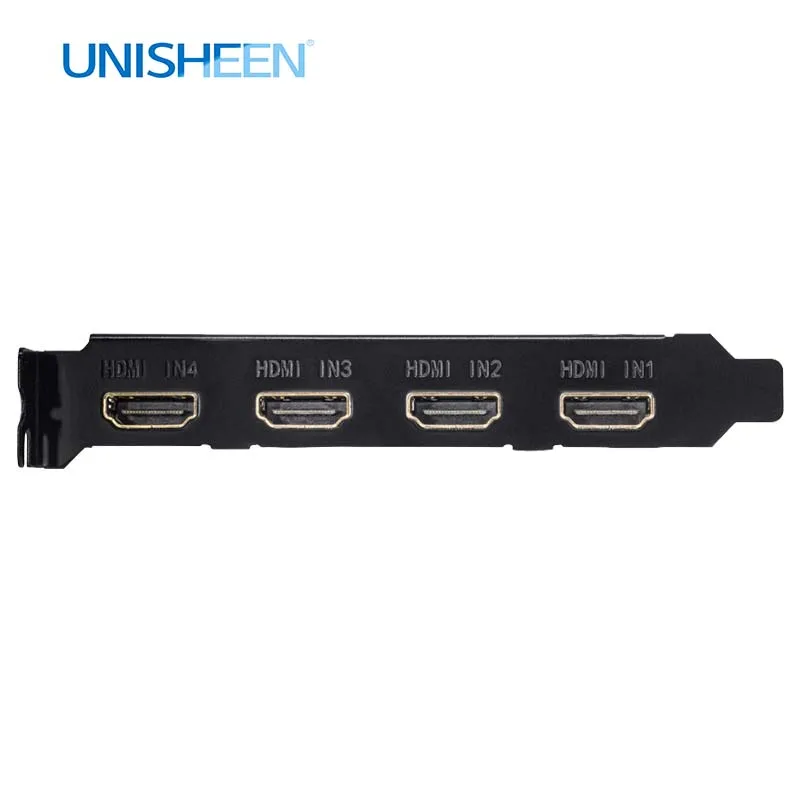

4xHDMI 1.4a

Output interface

PCIeX4(Compatiable PCIe X8 X16)

Video input

1080P50/60,1080I50/60,720P50/60,576P,576I,480P,480I

Audio input

HDMI Embeded

Standard

HDMI input format

HDMI 1.4a

Output color space

YUV2 4:2:2

Recording Mode

Software Compression, Real-Time Mode

General

Operation system

Windows (7, 8, 8.1,10), Linux (kernel version 2.6.38 and above),Windows Server 2008 R2

Compatible software

Vmix,Wirecast,OBS,VJ,Xsplit,Windows Media Encoder, ,Adobe Flash Media Live Encoder, Real Producer Plus, VLC, AMCAP etc.

Compatible SDK

DirectShow (Windows), DirectSound (Windows),V4L2

Update

Firmware can be updated

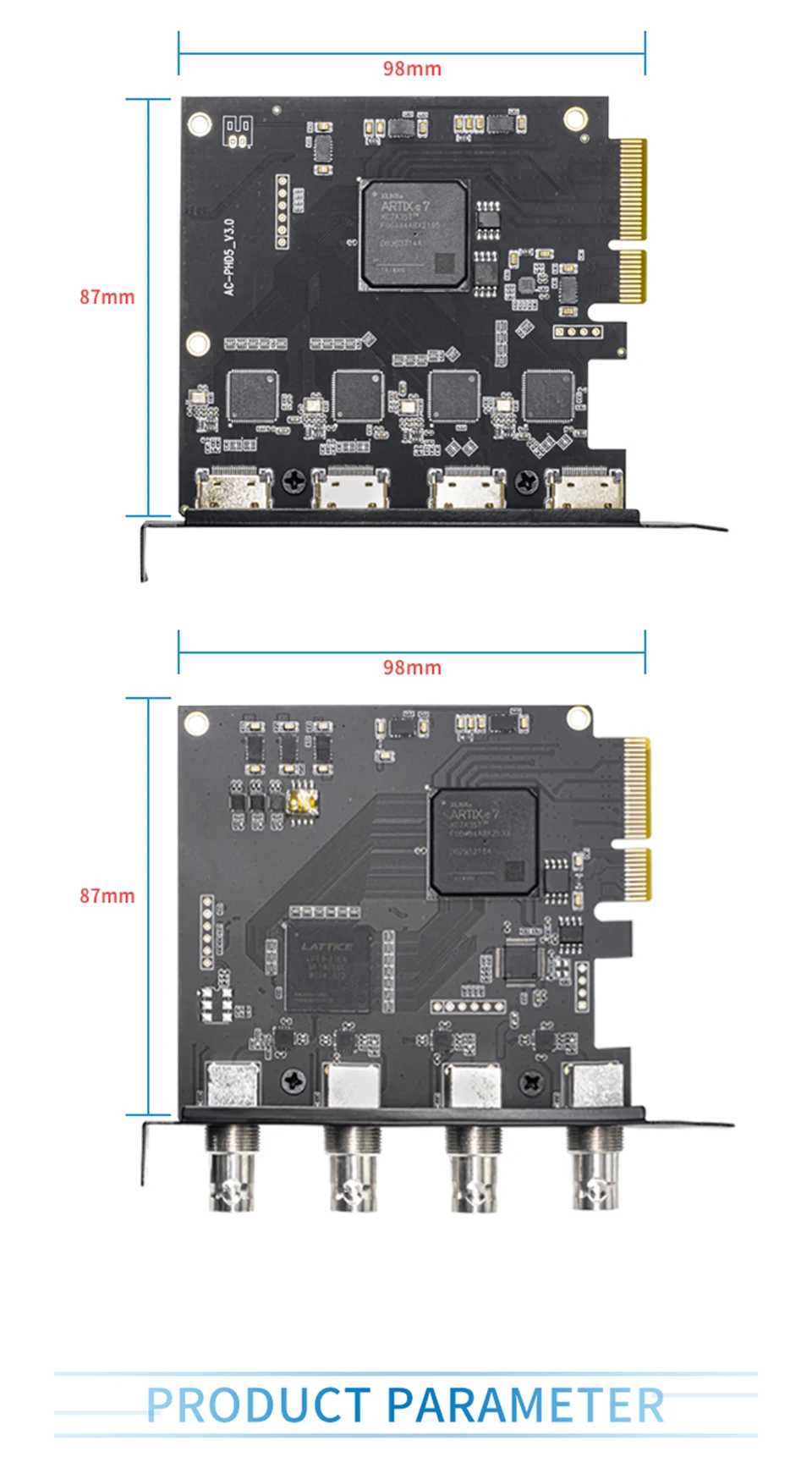

Dimension

98x87mm

Board Height

Full Height Bracket(Compatiable full Height Chassis)

Consumption

=2.0 W

Work/Storage Temperature

0-60 degree centigrade

Storage humidity

5%-90%
