Armor 20WT Specifications

Walkie-Talkie Function

● 10850mAh Powerful Battery

● 33WFast Charging

● Helio G99 Soc 6nm

● Up to 20GB RAM(=12GB+8GB Virtual Memory),256GB ROM

● 50MP Rear Camera,16MP Front Camera

● 5.65-inch FHD+ Display

● Android 12

● Face Unlock + Fingerprint ID

● Corning® Gorilla® Glass ,1080*2160 FHD+ Display

● NFC + Google Pay

● 4G Global Bands（Not compatible with AT&T or Cricket activations or with CDMA Networks like Verizon, Sprint）

GSM: B2/3/5/8
CDMA: 1X(BC0/BC1)
WCDMA: B1/2/4/5/6/8/19
LTE-FDD: B1/2/3/4/5/7/8/12/13/17/18/19/20/25/26/28A/28B/66
LTE-TDD: B34/38/39/40/41

● GPS + GLONASS + Beidou + Galileo Navigation

PTT (Push-To-Talk) over DMR

Communication Has No Limits

The perfect integration of a traditional DMR PTT and a rugged phone makes our glorious Armor 20WT. Its antenna is free to assemble and disassemble, thus carrying everywhere conveniently. Much longer battery life than common walkie talkie thanks to the 10850mAh mighty battery.

Real-Time Commmunication Like Face-to-Face

400-480MHz higher frequency range, the distance between you and your speaking partners can be wider. Intercommunicate with one or multiple intercom devices, you are always talking to your partners straightway like face-to-face communication, making team work with highly efficient.

Versatile Industry Solutions

Great communication handset for workers in areas of Subway or Rail Transit, Petroleum or Chemical, Fishery or Forestry, Warehousing and Logistics, Coal Mine, Building Construction, Emergency Rescue, Law Enforcement, Electricity or Energy.

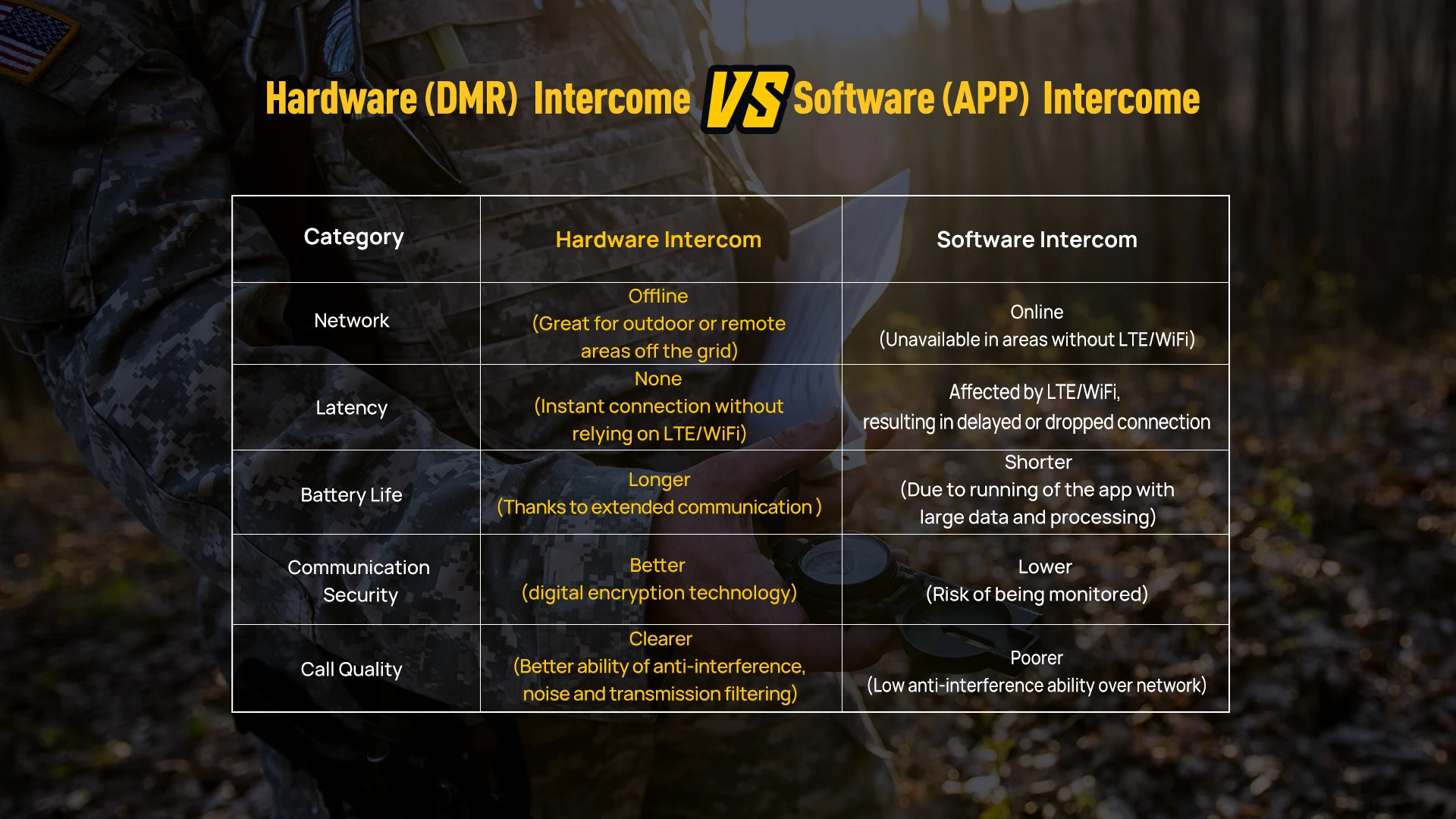

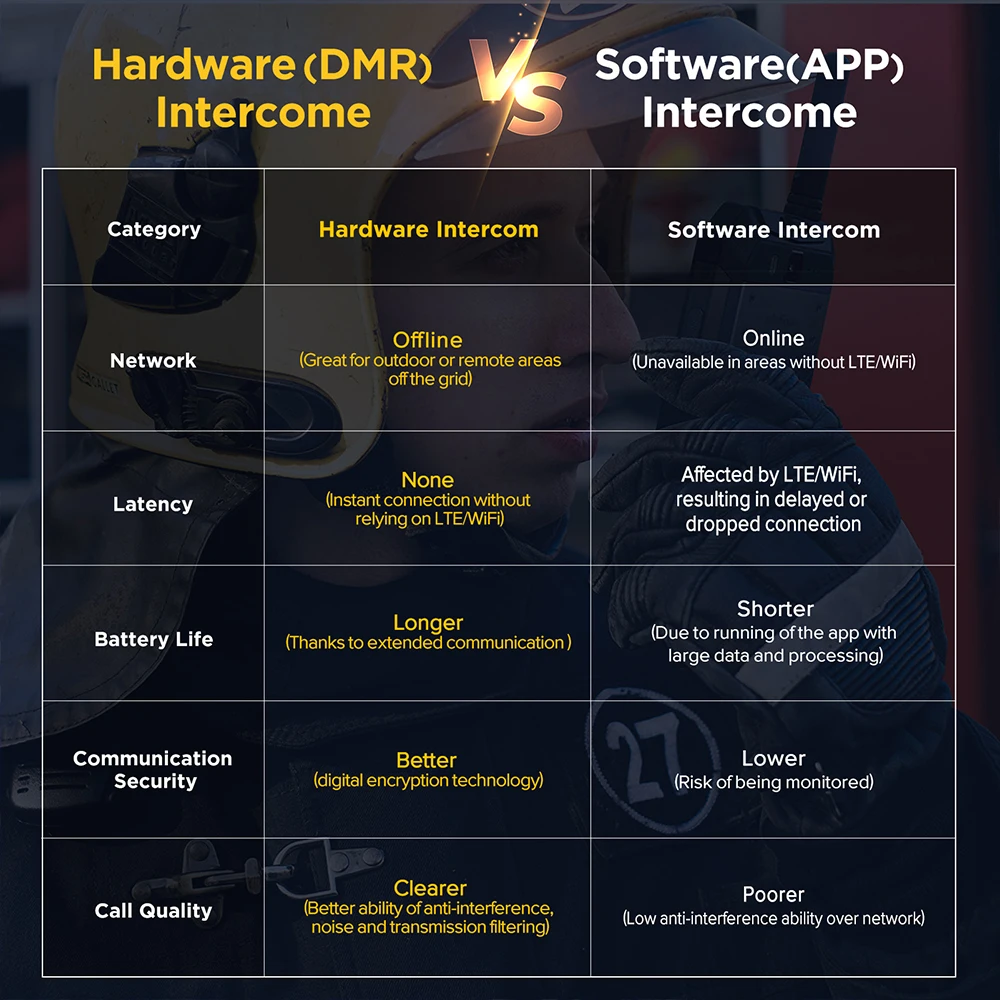

Hardware (DMR) Intercom VS. Software (App) Intercom

Front-Facing Dual Speaker

Twins Sound Powerhouse

Two bilateral speakers on the front won't be blocked by your gaming hands. With max 100dB lundness,

music and ringtone put out clear sound to cover wider range. Immersive impression would overwhelm you when you are playing games or watching movies.

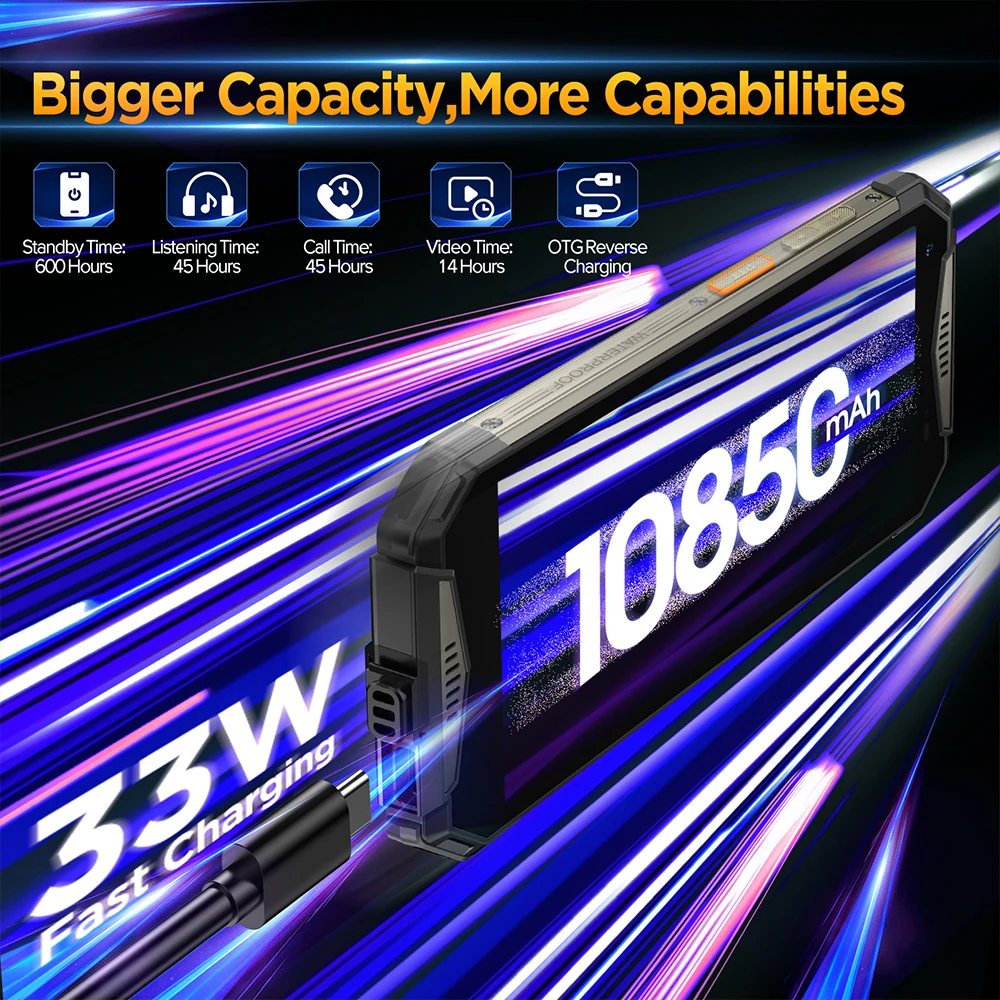

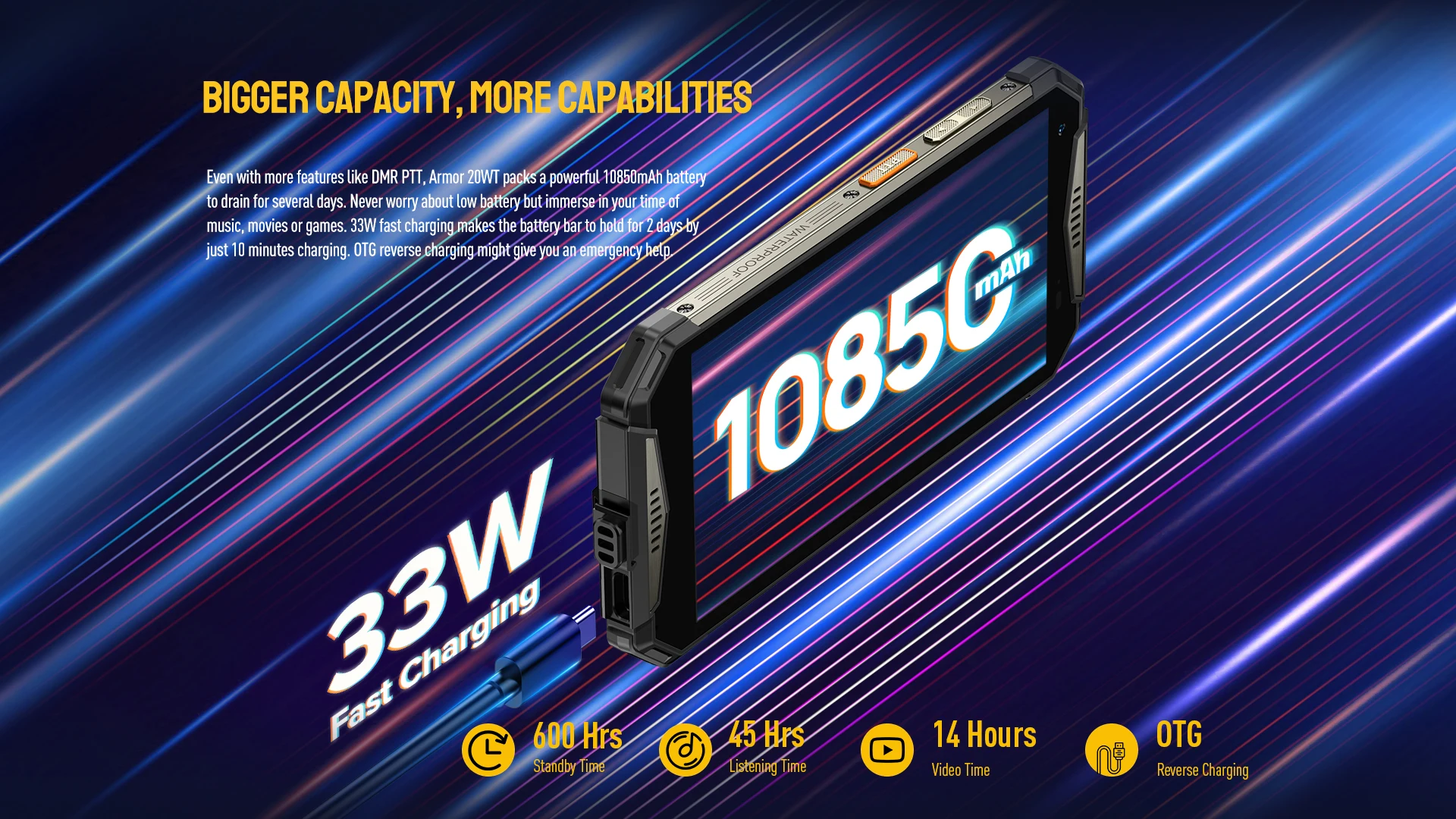

Bigger Capacity, More Capabilities

Even with more features like DMR PTT, Armor 20WT packs a powerful 10850mAh battery to drain for several days. Never worry about low battery but immerse in your time of music, movies or games. 33W fast charging makes the battery bar to hold for 2 days by just 10 minutes charging. OTG reverse charging might give you an emergency help.

* The battery is non-removable, removing it may cause damage to the device.

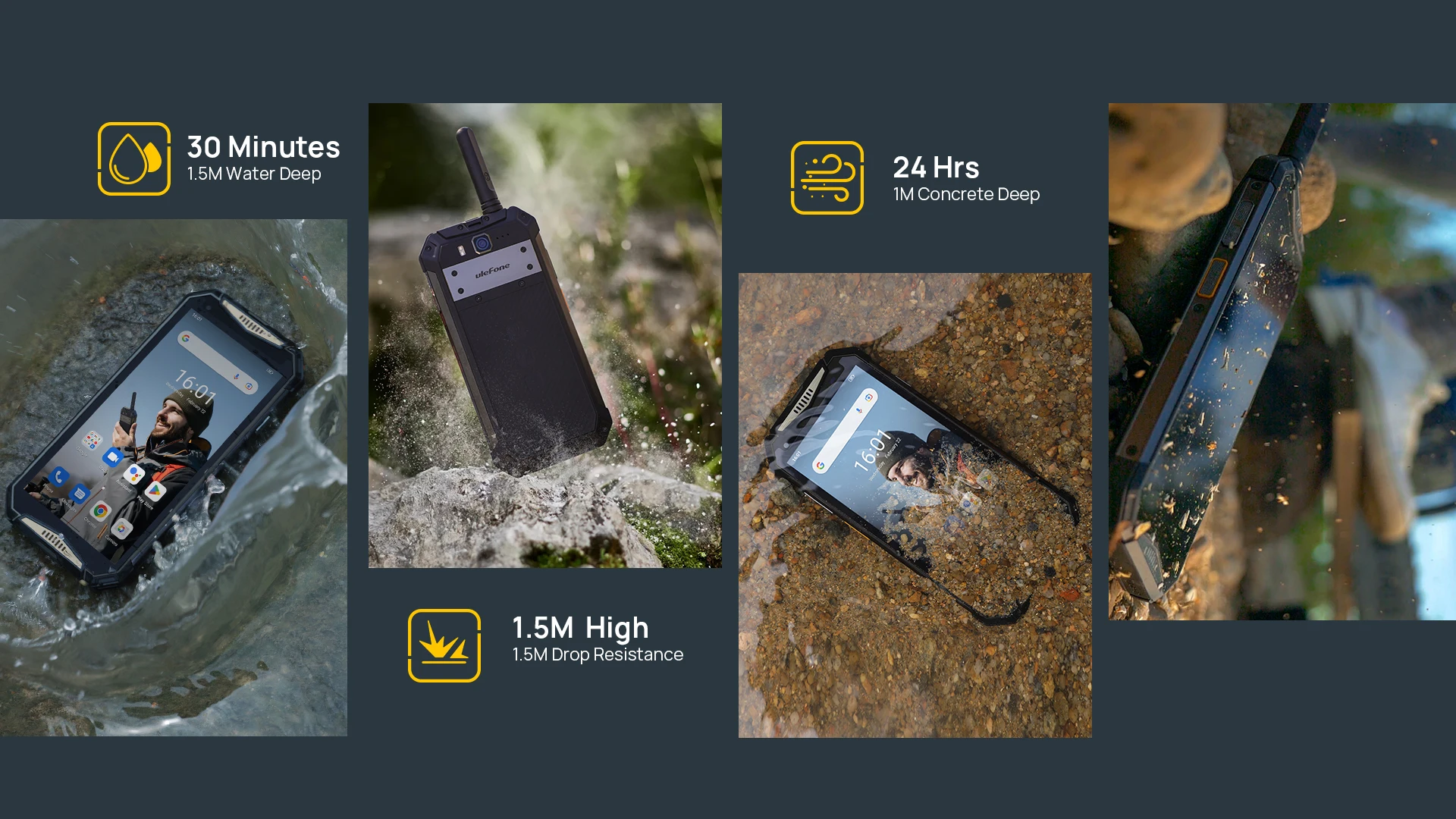

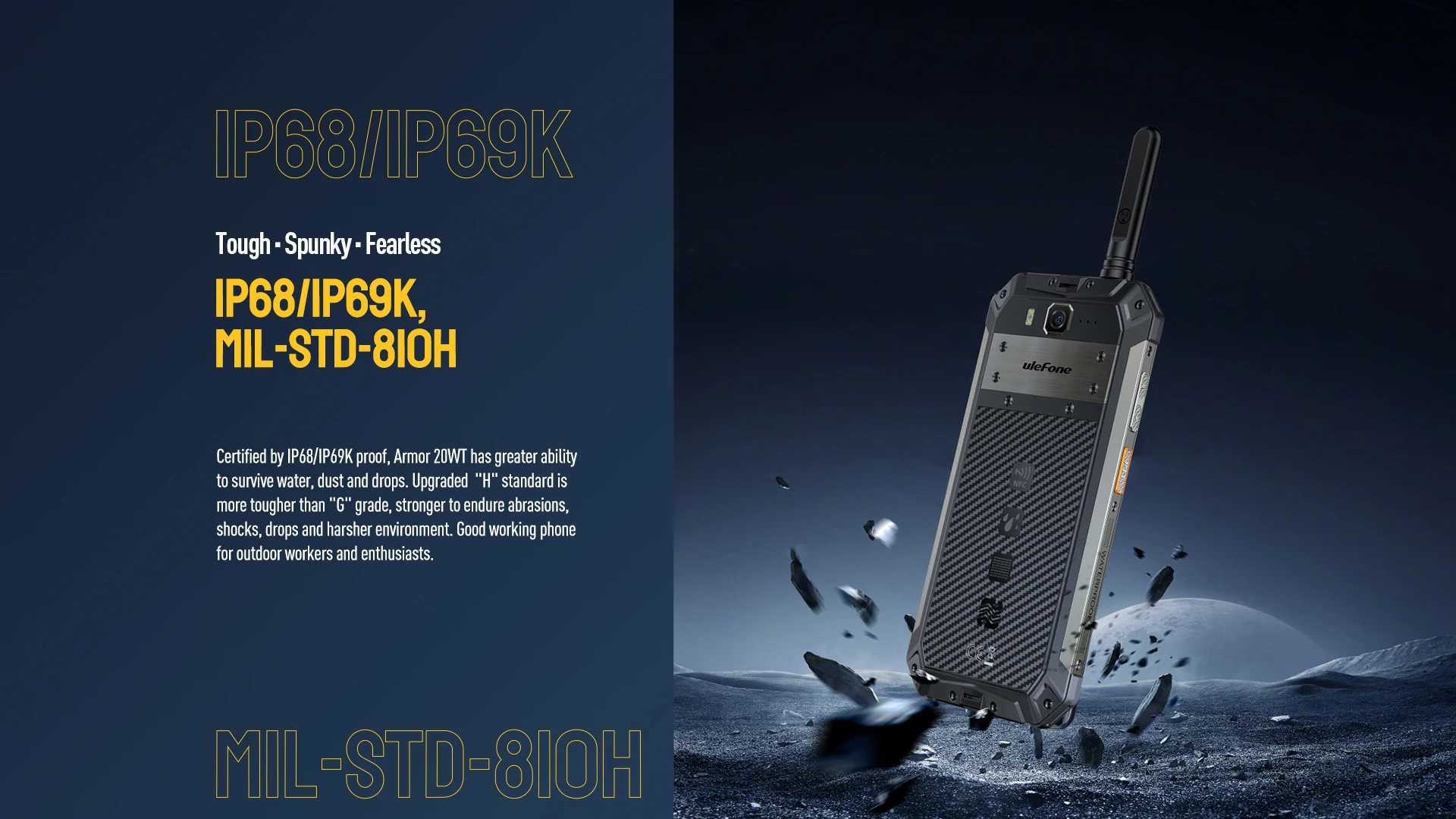

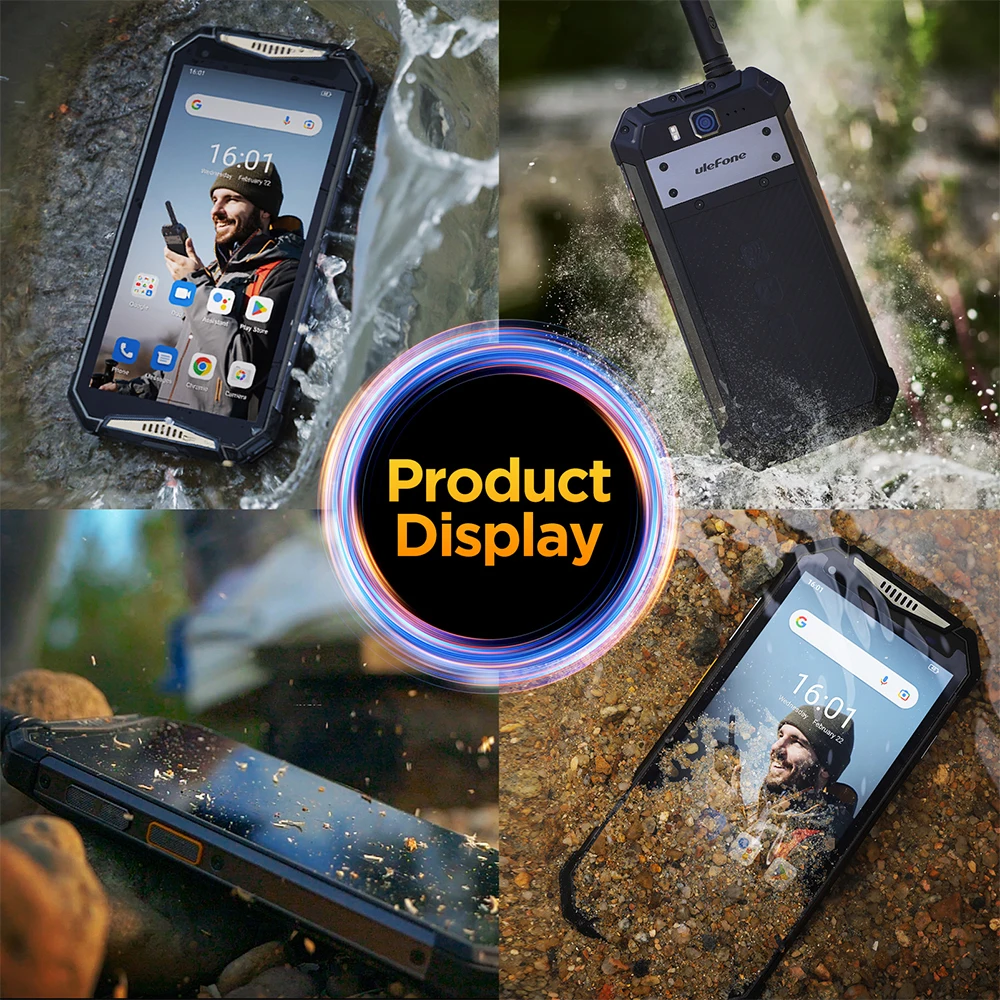

IP68/IP69K, MIL-STD-810H

Tough · Spunky · Fearless

Certified by IP68/IP69K proof, Armor 20WT has greater ability to survive water, dust and drops. Upgraded "H" standard is more tougher than "G" grade, stronger to endure abrasions, shocks, drops and harsher environment. Good working phone for outdoor workers and enthusiasts.

* Armor 20WT is splash, water, and dust resistant and was tested under controlled laboratory conditions with a rating of IP68 under IEC standard 60529 (maximum depth of 1.5 meters up to 30 minutes). Charger and accessories are not water-resistant. Splash, water and dust resistance are not permanent and might decrease as a result of normal wear. Do not attempt to charge a wet Armor 20WT. Liquid damage not covered under warranty.

Helio G99 Soc 6nm

A Nimble Brain Center

The Helio G99 brings the G-series to an upgraded 6nm production process with 2 x Cortex-A76 cores clocked at up to 2.2 GHz and 6 x Cortex-A55 cores clocked at up to 2 GHz. Such a high-performance CPU under the hood boost performance for gaming, streaming, multitasking and so on.

Up to 20GB RAM, 256GB ROM

All In, All Stay

12GB RAM + 256GB ROM is near the top level. If you activate the 8GB virtual memory, you get total 20GB of phone storage, making lightning browsing, multi-tasking and gaming on the go. Still 2TB expandable with a microSD. No storage anxiety for mass pictures, videos, files, music, etc.

*The 8GB Virtual Memory can be activated in Settings to top out at 20GB of RAM. Some software might not be compatible with this feature.

*The microSD card is not included and can be purchased separately if needed.

50MP Rear Camera

Incredible low light photography. Comes with Samsung JN1 CMOS sensor, the 50MP rear shooter takes super clear pictures which are still very clear if zoom in to see details. Full details endures no matter for capturing portrait or scenery.

16MP Front Camera

16MP Sony camera is quite a configuration for clear, bright selfies or video calls. Enhanced with the Portrait mode, getting some light filters and simple optimization, you look more clearer in the front camera.

5.65-inch FHD+ Display

Feed Your Visual Sense

Tipped with a 5.65 inches all screen, a single hand is in control. 1080*2160 FHD+ resolution offers wonderful color and splendid clarity. Fingertips flow with silky games. Corning® Gorilla® Glass screen has 2X the ability to survive drops and wear.

* 5.65 inches is the diagonal length of the display when the four rounded corners are taken to be pointed corners, the actual viewable area is slightly smaller.

Multi-Use Digital Toolkit

Versatile Outdoor Helper

Toolbox apps such as the Height Meter for building workers and other useful software tools for hiking, outdoor or home improvement make your life become easier without carrying physical tools to wear you out.

* The Custom Key and its ability to quickly access different functions work only when the phone screen is unlocked.

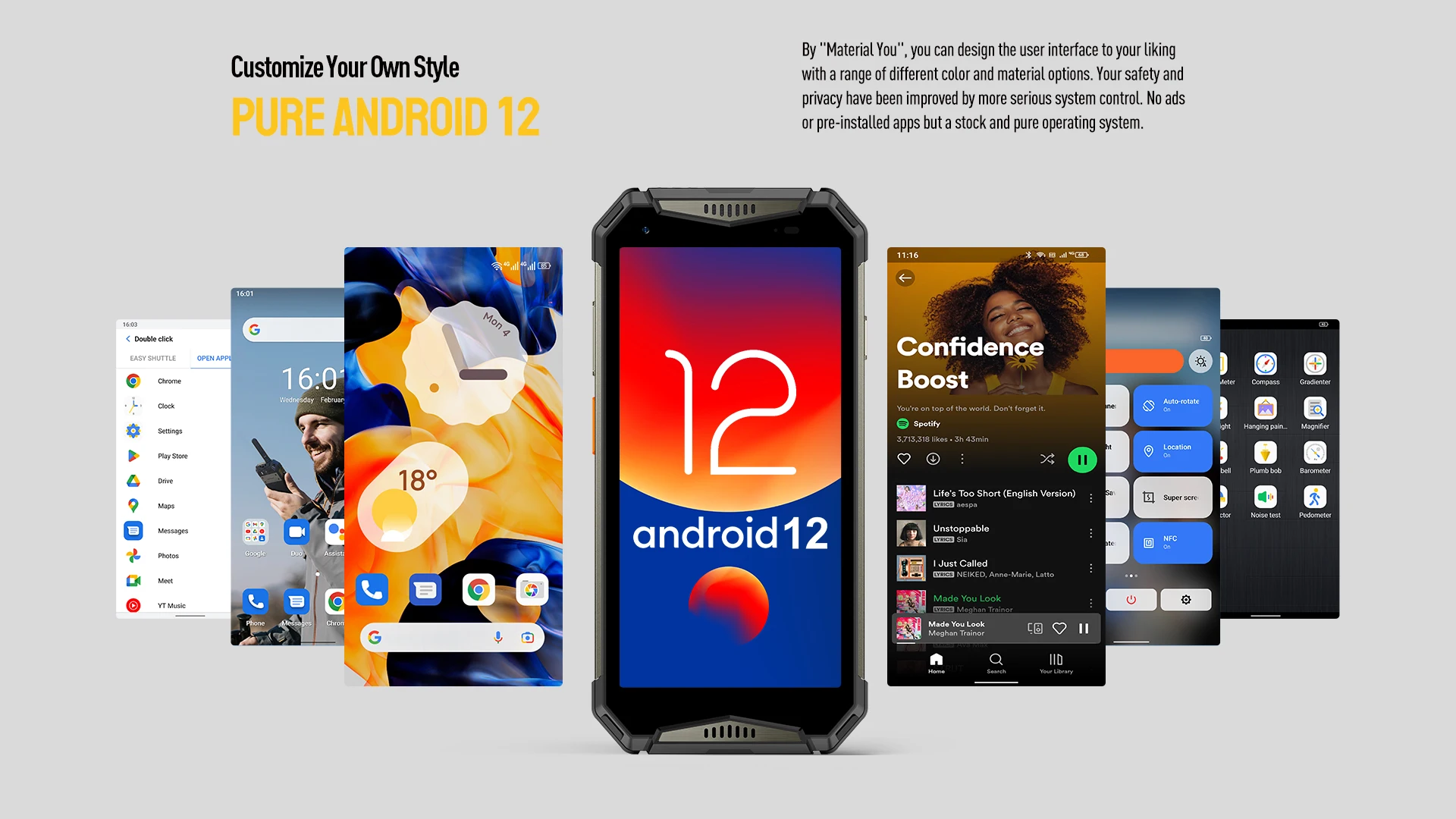

Pure Android 12

Customize Your Own Style

By "Material You", you can design the user interface to your liking with a range of different color and material options. Your safety and privacy have been improved by more serious system control. No ads or pre-installed apps but a stock and pure operating system.

4G Global Bands

Richer Online Experience

Off the grid often? Armor 20WT supports much wider frequency bands to settle the problem. Surfing the internet straightway and enjoying HD calls.

Global Network:

GSM: B2/3/5/8

CDMA: 1X(BC0/BC1)

WCDMA: B1/2/4/5/6/8/19

LTE-FDD: B1/2/3/4/5/7/8/12/13/17/18/19/20/25/26/28A/28B/66

LTE-TDD: B34/38/39/40/41

* Dual 4G SIM requires the support of local telecom operator services, it may not be available in all regions.

* NFC and Google Pay is supported, and you are suggested to download Google Pay to use it; the available countries and regions are for your reference: https://pay.google.com/about.

About Power charger

1： We will shipEuropean plug by default.

2： If you have any questions about the plug of the charger, please contact customer services in advance. Please note that the plug of the charger is not within the scope of After-Sales services.

*Gifts/premiums are not covered by the warranty and will not be compensated if they are damaged The specific gift is subject to the actual sales of the product.

Armor 20WT Specification

Appearance Design

Color

Black

Material

PC + Alloy

USB

Type-C, USB 2.0

Headphone Jack

No

Card Slots

3, 1 Nano-SIM+ 1 Nano-SIM+ 1 microSD

Keys

Right: Power button(Fingerprint, Left: PTT Key +Volume button

Size & Weight

Product Size

164.8*79.2*18.15 mm

Product Weight

382g

Package Size

100.5*196.5*63 mm

Package Weight

770 g

Product size and weight may vary by configuration, manufacturing process and measurements. All specifications are subject to the actual product.

Rugged

Waterproof

1.5M/30 Minutes waterproof

Dustproof

1M/24 Hours concrete deep

Shockproof

1.5M drop resistance

Working Temperature

-20℃ - 55 ℃ (-4℉ - 131℉)

Certification

IP68/IP69K/MIL-STD-810H

Display

Screen Size

5.65-inch

Screen Resolution

1080*2160 FHD+

Aspect Ratio

18:9

PPI

427

Color Depth

8bit, 16.7M

Refresh Rate

60Hz

Screen-to-Body Ratio

74%

Multi-touch

5

Processor

CPU Model

MediaTek Helio G99 6nm

Main frequency

2.2GHz

CPU Core

8, 2*Cortex-A76 2.2GHz+6 Cortex-A55 2GHz

GPU

Arm Mali-G57 MC2

RAM & Storage

RAM

20GB=12GB + 8GB expansion (The 8GB virtual memory can be activated in Settings at your will. )

Storage

256GB

Max. Expansion Supported

2TB

Rear Camera

Rear Camera Numbers

1

Main Rear Camera

Pixel: 50MP

Details: Samsung JN1 CMOS sensor, 1μm, 5 piece lens, FOV 79.2°, ƒ/1.8 large aperture

Flash

2

Video Recording Resolution

1080P@30fps, 720P@30fps, 480P@30fps

Front Camera

Pixel

16MP

Details

Sony IMX481 sensor, 1μm, 5 piece lens, FOV 81°, ƒ/2.2 large aperture

Video Recording Resolution

1080P@30fps, 720P@30fps, 480P@30fps

Battery & Charging

Capacity

10850mAh

Watt Hours Per Battery

41.77 Wh

Battery Type

lithium-ion polymer battery

Charging Details

33W，11V/3A

Standby Time

600 Hours

Talk Time

45 Hours

Network & Connectivity

Card Type

Nano+Nano+microSD

Cellular

4G/3G/2G( Not compatible with AT&T or Cricket activations or with CDMA Networks like Verizon, Sprint)

4G: FDD-LTE: B1/2/3/4/5/7/8/12/13/17/18/19/20/25/26/28A/28B/66 TDD-LTE: B34/38/39/40/41

3G: WCDMA: B1/2/4/5/6/8/19

2G: GSM: B2/3/5/8 CDMA: 1X(BC0/BC1)

Standby Mode

Dual sim dual standby

VoNR

Whether you can use VoLTE depends on the local carriers, because not all of the the local carriers can support this function.

VoLTE

Support

WiFi

2.4G/5G, 802.11 a/ac/b/g/n

Bluetooth Version

BT5.2

Navigation

GPS/GLONASS/Beidou/Galileo

Audio

Speaker Numbers

2

Speaker Model

1325 BOX

Speaker Power

1W

Smart PA

AW88394

Loudness

97 dB ± 3dB

Security

Fingerprint ID

Support

Face Unlock

Support

System & Features

Android Version

Android 12

Language

Indonesian, Malay, Catalan, Czech, Danish, German, Estonian, English, Spanish, Filipino, French, Croatian, Italian, Latvian, Lithuanian, Hungarian, Dutch, Norwegian, Polish, Portuguese, Romanian, Slovak, Finnish, Swedish, Vietnamese, Greek, Turkish, Bulgarian, Russian, Serb, Ukrainian, Armenian, Hebrew, Urdu, Arabic, Persian, Hindi, Bengali, Thai, Korean, Burmese, Japanese, Simplified Chinese, Traditional Chinese and others, 200 Android languages in total.

Blinking Notification Light

Support, red/green/blue light

Battery Status Light

Support

Audio Format Supported

MID/FLAC/MKA/MP3/M4A/AAC/AMR/OGG/MP2

Video Format Supported

MOV/FLV/MKV/AVI/3GP/MP4

Image Format Supported

GIF/JPEG/PNG/BMP

Text Format Supported

TXT/HTML

FM Radio

Support,Wired FM radio

Sensor

Proximity Sensor, Light Sensor, Gravity sensor, Acceleration Sensor, Geomagnetic sensor, Gyro sensor, Coulomb counter, Pedometer, Air pressure sensor, Infrared sensor

Special Features

Underwater Camera

Support

Gloves Mode

Support

Digital Toolbox

Height Meter, Compass, Gradienter, Flashlight, Hanging painting, Magnifier, Alarm bell, Plumb bob, Barometer, Protractor, Noise test, Pedometer

OTG Function

Support

NFC

Support

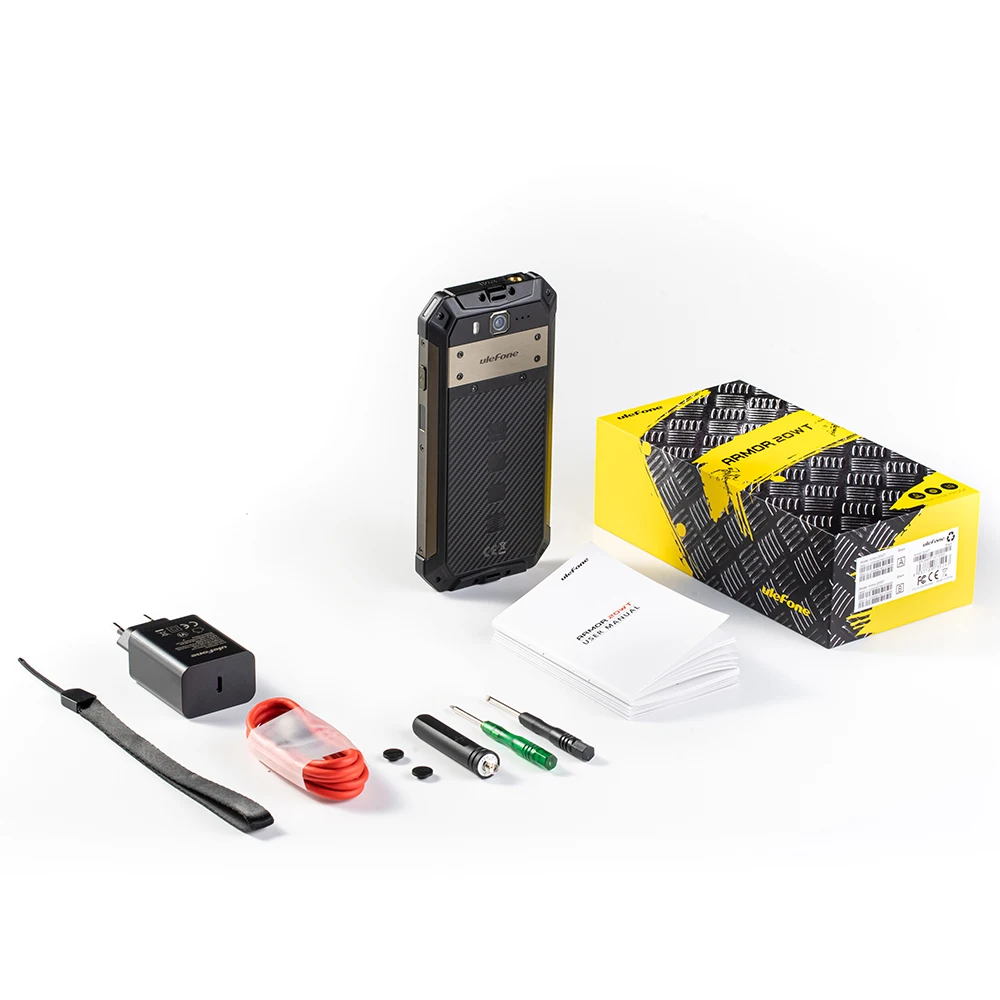

Packing List

1 x Phone
1 x AC power charger(EU plug)
1 x Data cable (100cm)
1 x Protective Film (Pre-installed)
2 x Screwdriver
2 x Antenna Port Cover
1 x Lanyard
1 x Multi-language user manual
1 x Intercom User Guides
1 x Multi Function Instruction card
1 x Charging Instruction card
1 x Safety Prompt card
1 x Warranty card
