【MORE $2 OFF For First 50 Orders】
Hello, dear UGREEN customer,
UGREEN New4K@60HzVideo Capture Cardarrives!
GetMORE $2 Couponand buy it at a super low price.
First come, first Enjoy~
UGREEN
◎ Brand Newest Release
◀◀ Video Capture Card▶▶
4K Dual Ports and $2 OFF
———————————————————————————————————————————————————
Overview
Ugreen video capture card is connected to the input device(signal source) through the HDMI port, and transmitted to the output device(display) with the USB-A/Type-C interface for living broadcast and capturing. It is widely used in HD acquisition, teaching recording, live streaming, medical imaging, online meetings, etc.
Features
【Dual interface design】
USB-A & USB-C dual interface design. Compatible with most current laptops, tablets, mobile phones and other devices
【Plug & Play】
Driver-free and no external power supply, compact and portable
【1080P/30Hz Video Recording】
Up to 4K/60Hz High Definition Input, output max resolution 1080P@30Hz.
The audio-video capture card is very suitable for live streaming , Recording, editing and transferring video in high resolution of 1080p/30fps on OBS, XSplit, Potplayer, QuickTime Player and more.
【Widely Use】
Input Devices: (HDMI Port) Phone, Computer, Camera, Web Camera, Video Recorder...
Output Devices: (USB/Type-C dual ports) All-in-One PC, Computer, Tablet, Phone...

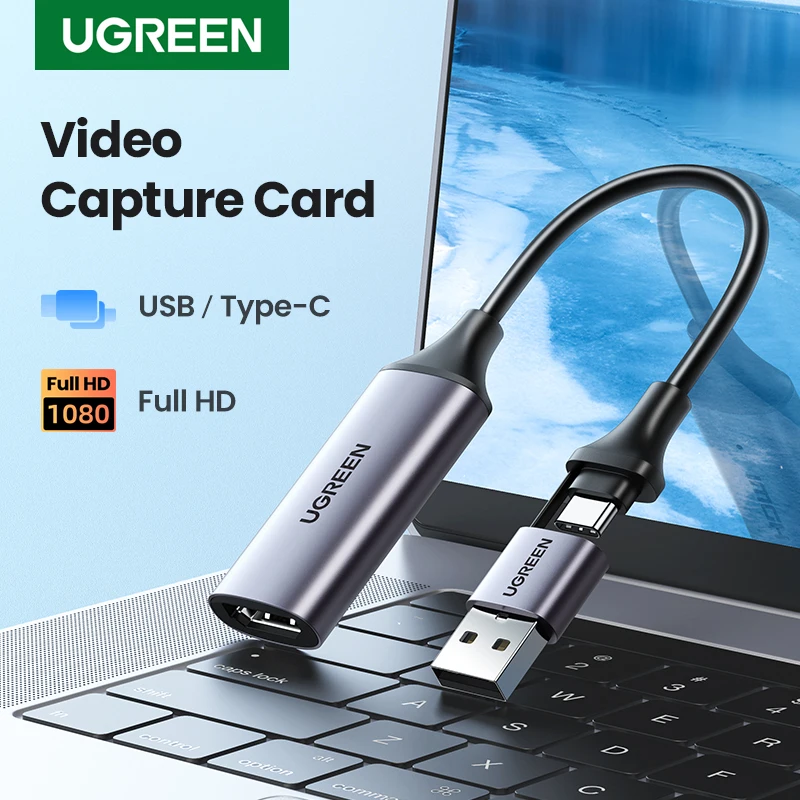

Video Capture Card
Dual Ports: USB / Type-C
USB/ Type-C Dual Ports
1080P Full HD Display
Use at Live Streaming
Capture real-time HD live images , increase interaction
Use Phone to Display
Turn your phone/tablet into a portable screen, easily connect cameras, video recorders and other devices to watch/record videos anytime, anywhere
Use at Online Course
Real-time recording and collection of important meetings 1 online courses for easy review

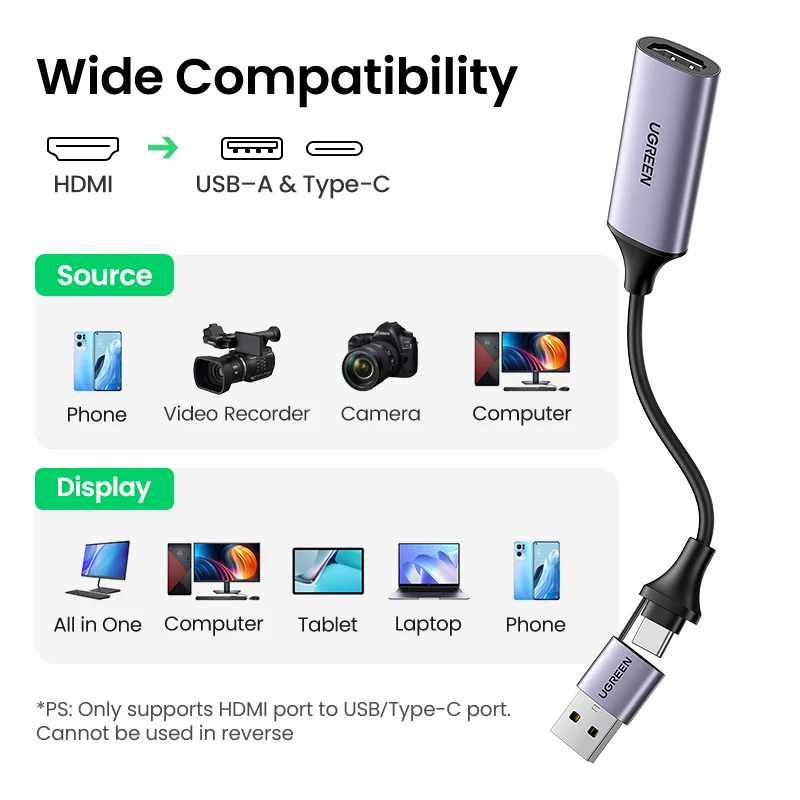

Widely Use
(Please note that this item only supports HDMI port to USB/Type-C port. Cannot be used in reverse.)
*PS: Does not support the use of devices with HDCP signals, does not support Switch, Xbox, PS5/4.
Portable & Durable
Take it anywhere, use it anytime
Aluminum-alloy shell, make sure a longer use life
Smart Chip
transmission rate 480Mbps
high-speed decoding
low latency and no caton
Plug & Play
Driver-Free, no external power supply
Support System: Window8.1/10 , Mac OS，Linus，Android
Support Record App: OBS，Potplayer, QuickTime , XSPlit...
Recording Software
Operating Instructions
1. Click "+" in the lower left corner of "Sources"
2. Click "Video Capture Device"
3. Create a new Video Capture Device
4. Select "USB Video / USB3.0 Capture" in Device, check "Use custom audio device" at the bottom, and other parameters are the same as those in the picture
5. Click the Settings button in "Desktop Audio" and then click "Advanced Audio Properties"
6. "Video Capture Device" and "Desktop Audio" all select "Monitor and Output", after these operations can be used
Product Specifications
Brand Name：
UGREEN
Product Name：
USB-A / Type-C Video Capture Card
Model No.：
CM489
Clip：
MS2109
Input Port:
HDMI (4K/60Hz)
Output Port：
USB-A / Type-C (1080P/30Hz)
Shell Material：
Aluminum Alloy
Audio：
Audio and Video Synchronization
Package Size：
85mm * 145mm * 17mm
Product Weight：
47g
Package:
UGREEN Retail Box
Package Display
Ugreen video capture card is connected to the input device through the HDMI port, and transmitted to the output device with the USB/Type-C interface for living broadcast. It is widely used in HD acquisition, teaching recording, live streaming, medical imaging, online meetings, etc.
Important Note
1. It does not support IOS mobile phones or tablets, because there is no corresponding acquisition software.
2. When the computer prompts "The video format is abnormal, please press the reset button", you need to poke the reset hole on the product with a hard object, and the screen will display normally.
3. The item supports the use of multiple devices on the same computer simultaneously, but the smoothness depends on the computer's performance, and there may be a carton.
4. Why can't the capture card software capture the picture and display color bars?
Follow the steps below to exclude:
1) Check the abnormality of the signal source end and try to directly connect the signal source and display device without using this item.
2) Turn on the computer's camera function and select the device with the name ' USB Video ' when adding a camera. If it can be displayed normally, it means that this product is normal.
3) Check whether the acquisition software settings are normal, and reopen the software to try.
4) Please use popular software such as OBS and Potplayer to see if it is normal and check the software compatibility.
