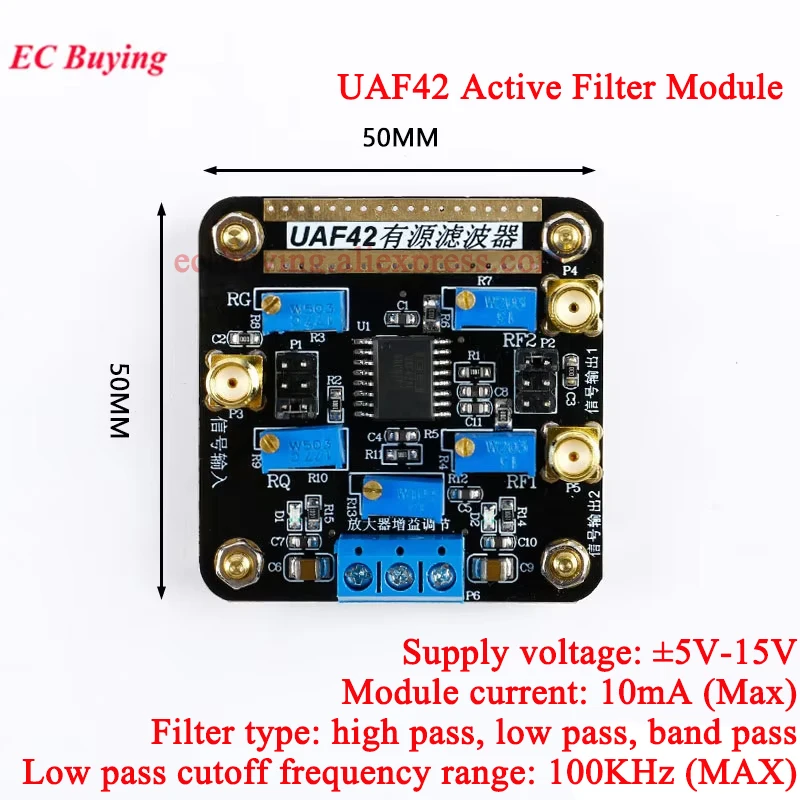

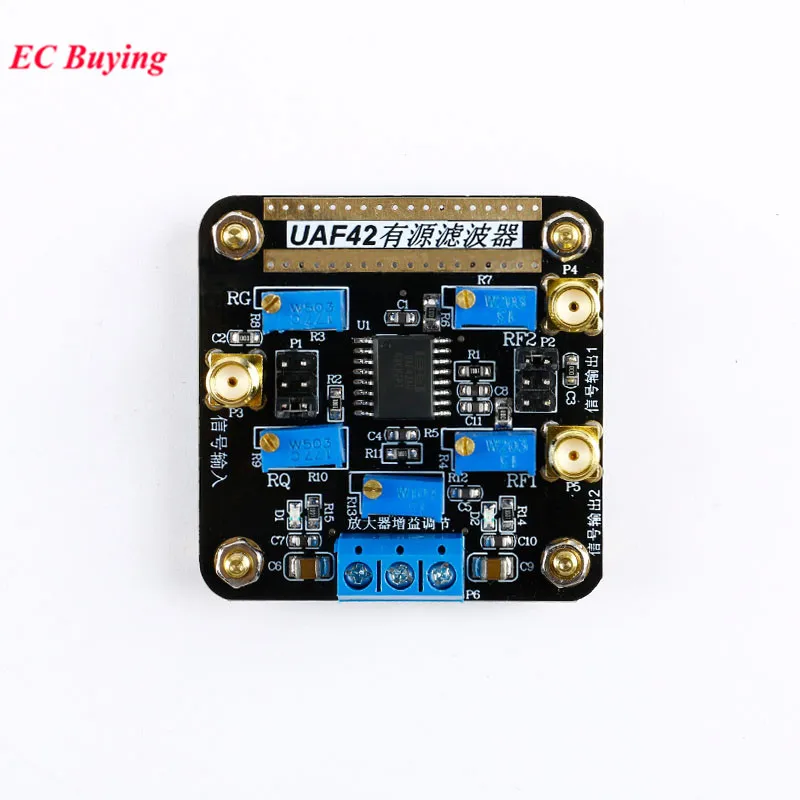

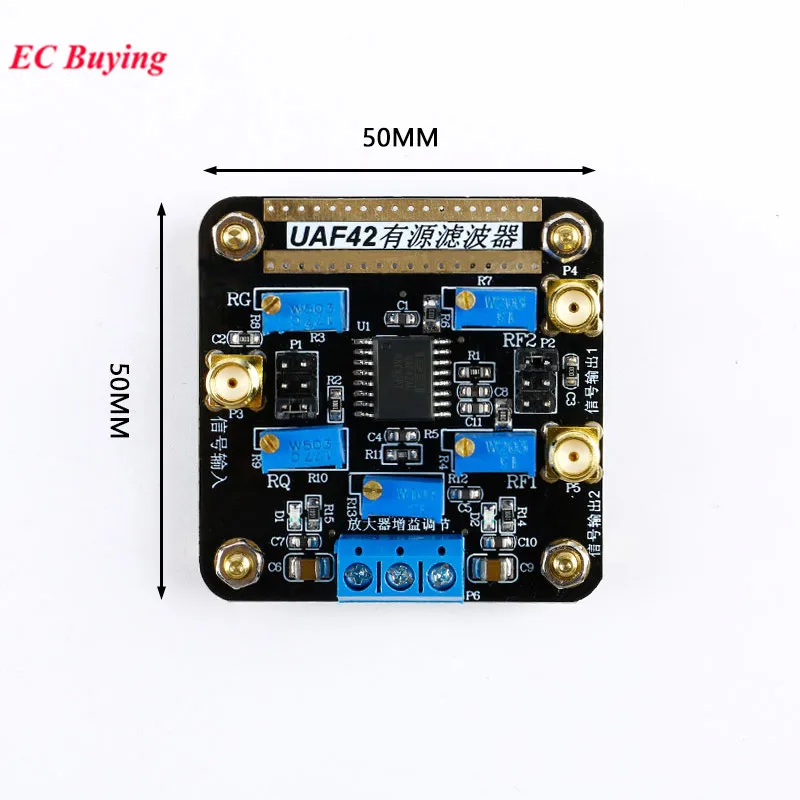

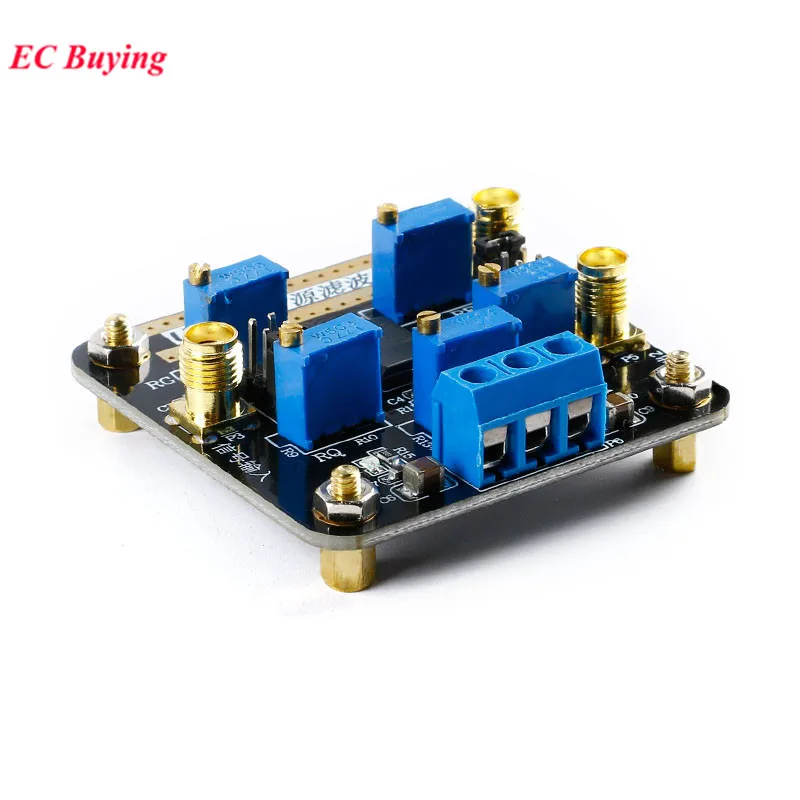

UAF42 High Pass Low Pass Band Pass Universal Active Filter Module Adjustable Bandpass Filtering Board PCB

Module parameters:

Module model: UAF42

Module type: universal adjustable filter

Supply voltage: ±5V-±15V

Module current: 10mA (Max)

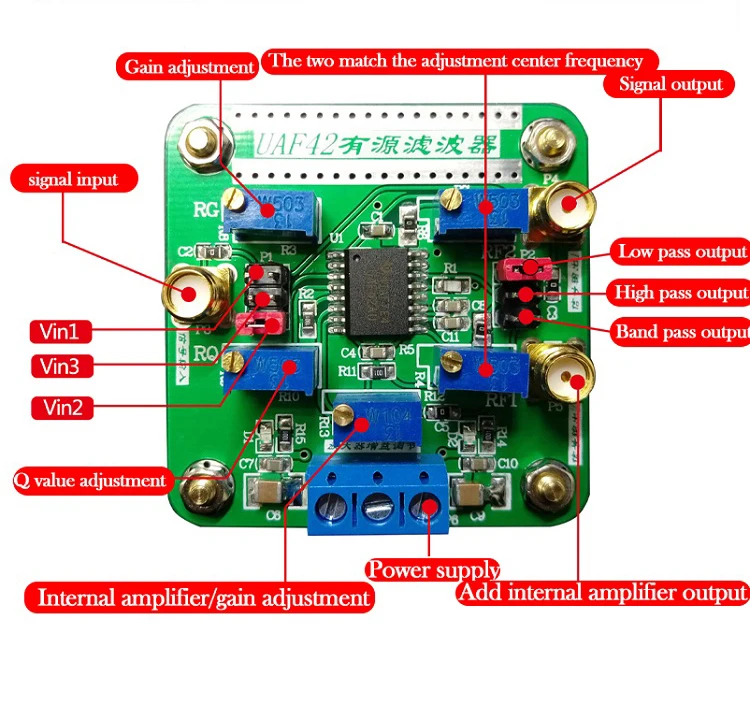

Module control mode: potentiometer

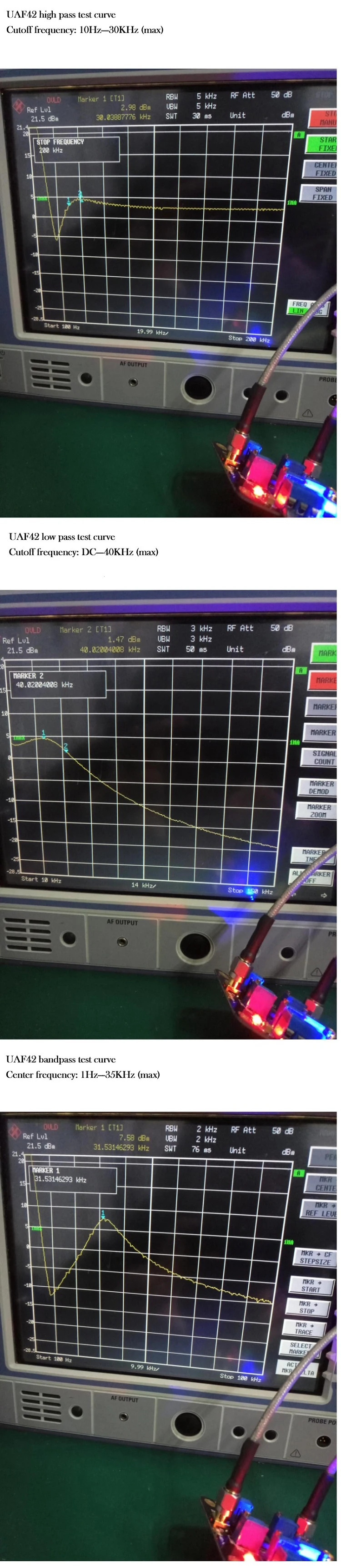

Filter type: high-pass, low-pass, band-pass; the center frequency can be customized according to customer requirements

Low-pass cut-off frequency range: 100KHz (MAX); the default potentiometer cut-off frequency range is within 5K; the maximum cut-off frequency is not supported, users need to replace the RF1 and RF2 potentiometers according to their own needs

Qualcomm cut-off frequency range: 30KHz (MAX); the default potentiometer cut-off frequency range is within 2K; the maximum cut-off frequency is not supported, users need to replace RF1 and RF2 potentiometers according to their own needs

Bandpass center frequency range: 50Hz-40KHz; the default potentiometer cut-off frequency range is within 500Hz-5KHZ; the minimum and maximum center frequencies are not supported, users need to replace the RF1 and RF2 potentiometers according to their own needs

Input signal form: single-ended; default VIN2 input

Input signal voltage range: less than positive and negative power supply

Input frequency range: DC-1MHz

Module gain range: 40dB (MAX)

Quality factor Q value adjustable range: 20 (MAX)

Input and output signal characteristics: DC input and output; output with DC component, please add DC blocker to the radio frequency equipment, or directly use oscilloscope

Module input and output interface: SMA; 24-hour salt spray anti-oxidation

Module protection: none; no reverse connection protection, unlimited current protection

Customized parameters: yes

Module features: multi-function filter, universal adjustable filter

Module application: power system, sensor signal processing, transmitter and receiver, signal generator
