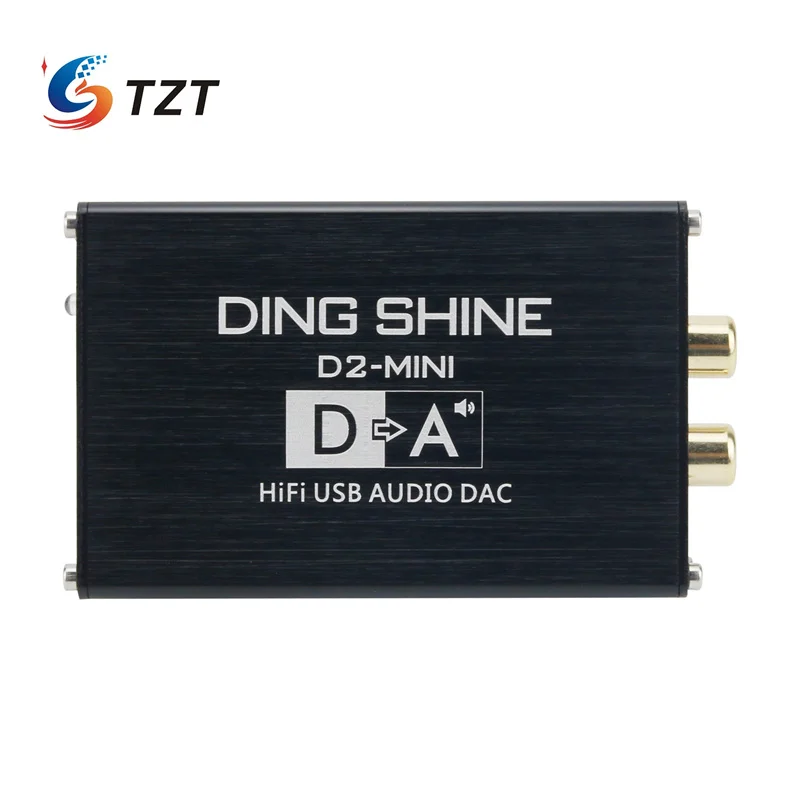

TZT DING SHINE D2-MINI HIFI USB DAC Decoder USB Sound Card ES9018K2M for Active Speakers Amplifiers
Features:
- External USB sound card and USB decoder
- Its DAC part adopts American ES9018K2M decoding chip. It supports 32bit/384kHz and DSD, with excellent DNR of 127dB; low distortion THD+N 120dB
- USB part uses Taiwan's decoder chip, supporting up to 24bit 96kHz
- Multiple groups of LDOs avoid interference between different circuits, and its ground wire is separated from digital and analog to reduce interference

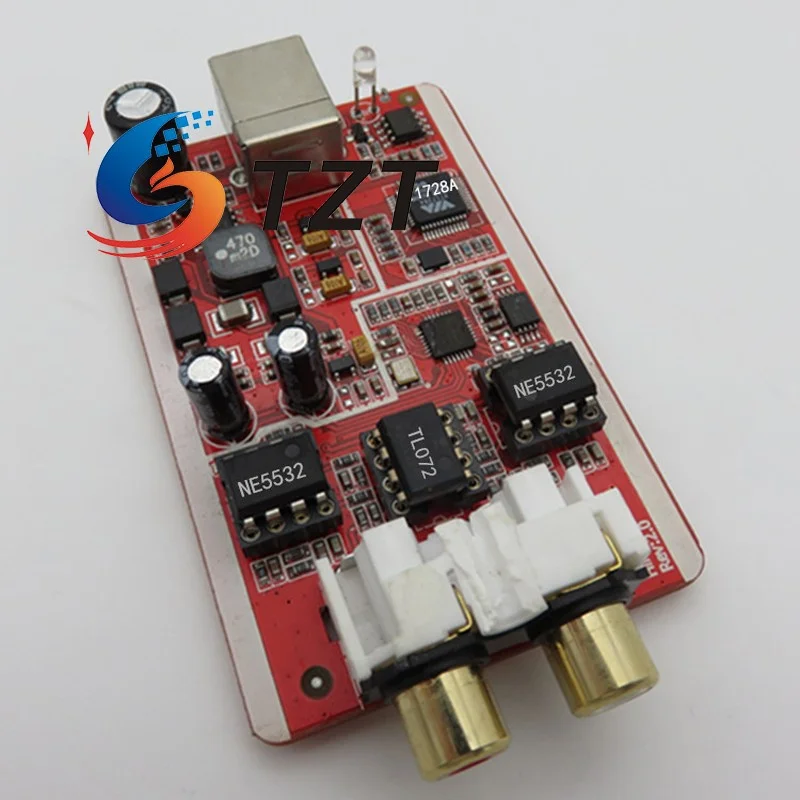

- Op amp part adopts positive and negative voltage power supply. Three op amps are used, two of which (NE5532 for TI) are responsible for I/V conversion and LPF, and one of which (TL072 for TI) is responsible for differential conversion to single-ended. The bottom of the op amp uses sockets for Nextron, which not only ensures good contact performance, but also facilitates audiophiles to replace the op amp
- Power supply mode: USB power supply
- Support for Windows XP/VISTA, Windows 7/8/10, and MAC OS; plug and Play
- All aluminum alloy chassis adopts wire drawing process. Gold-plated RCA output ports are used. They can be connected to active speakers or power amplifiers, but cannot be connected to passive speakers

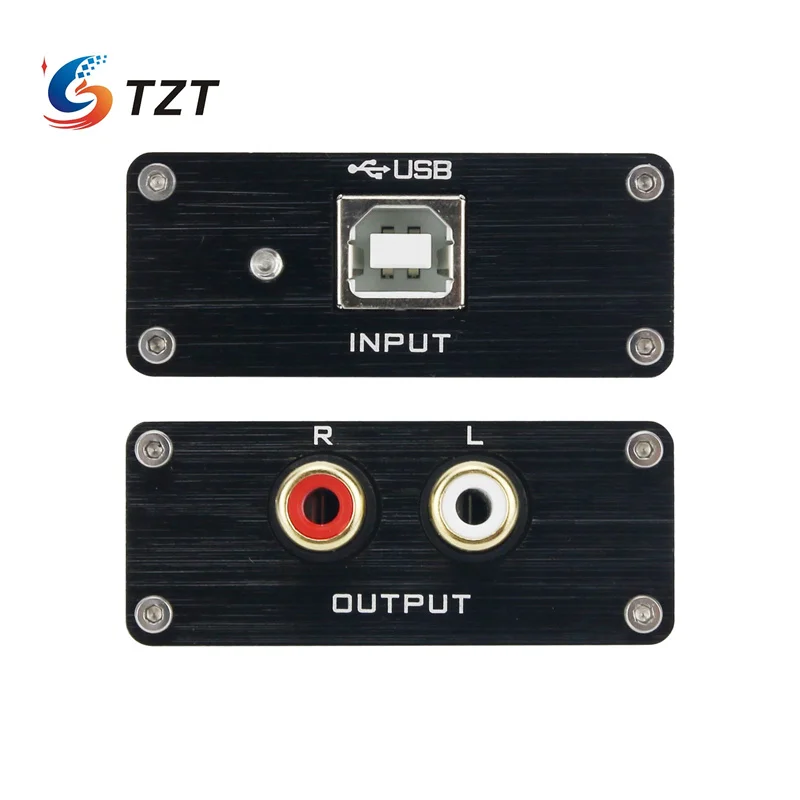

- Input: USB interface; output interface: dual RCA
- Compact size (LxWxH): 78 x 51 x 21mm/3.1 x 2 x 0.8" (without the size of protrusions)
- Net weight: 99G/0.2LB

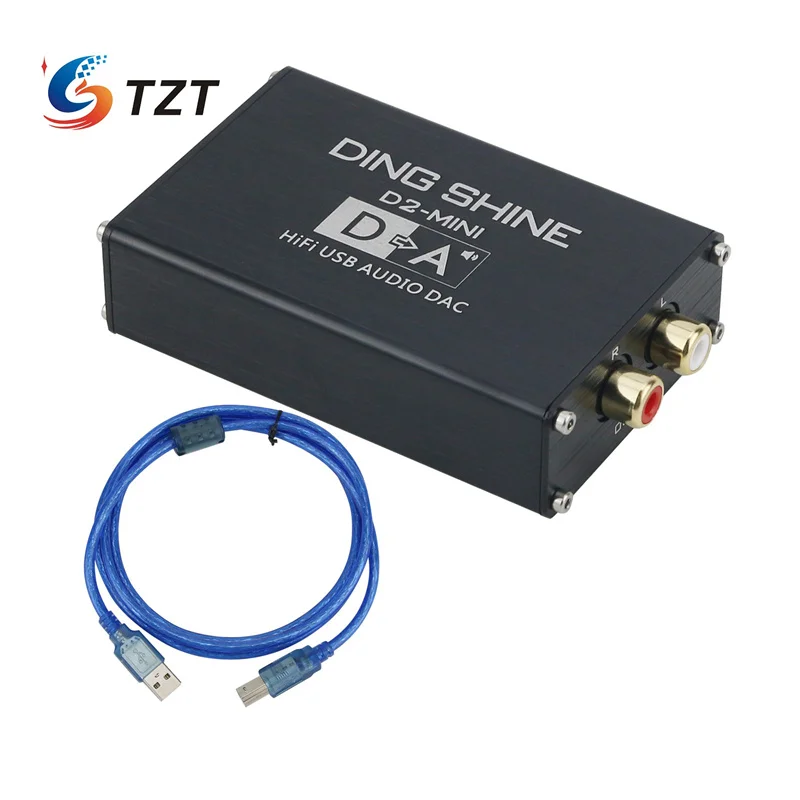

Package Included:
- 1 x USB DAC
- 1 x USB Cable
