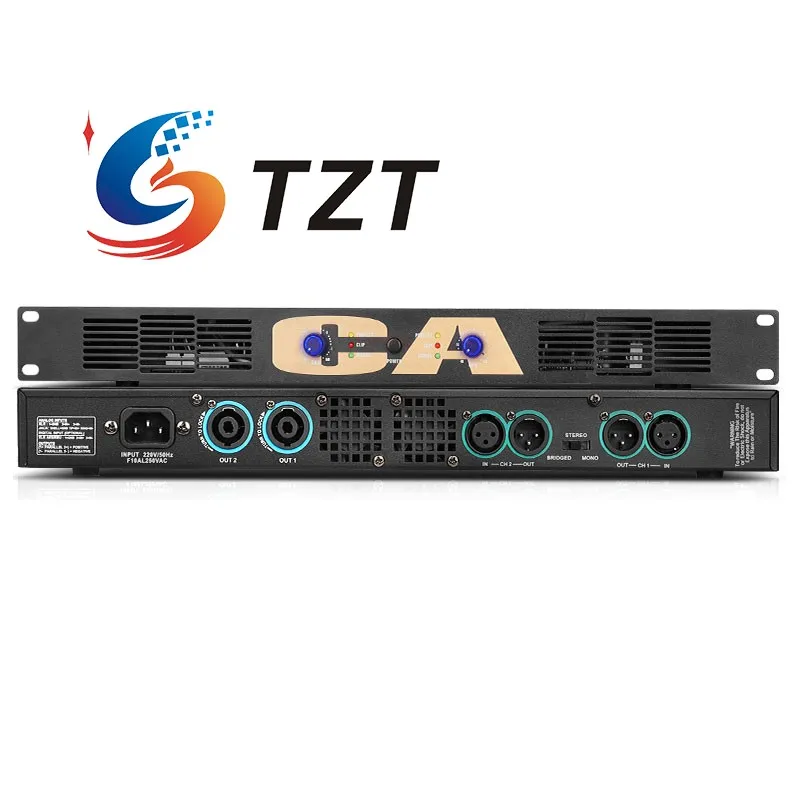

TZT 600Wx2 Professional Rear Stage Power Amplifier Stage Performance KTV High Power Digital CA Dual Audio Amplifier
Description:
- Professional imported components, precise internal structure, built-in two left and right cold air radiators, effectively dissipating core heat.
- The original imported high-density filtering capacitor has a large filtering capacity built-in, and the limiting energy-saving circuit distortion will not burn the speaker. The low frequency is soft, the middle frequency is full, and the high frequency is clear.
- Built in multiple digital protection facilities ensure that the machine has very reliable stability.
- Strong heat dissipation, intelligent air cooling system, multi-channel heat dissipation aluminum block layout to reduce component loss caused by heat, ensuring the temperature of the amplifier for continuous operation.
- The amplifier chassis is made of thick aluminum alloy, which is sturdy and durable. The surface is sandblasted to create a unique and iconic visual sensation.
- It can easily drive dual 12-inch linear arrays or single 15-inch speakers, ensuring higher reliability of the amplifier and meeting the requirements of various performance stages and other occasions.
- Cold air enters through the grille, passes through various components, and is carried away by the fan to remove heat.
- Amplifier series connection, coordinated management: Through the XLR cable, multiple amplifiers can be connected in series, and cooperation is only for your performance effect.
- Multi scenario use, open design.
Specification:
- Power: 600W x 2
- Distortion: 0.005%
- SNR: 112dB (A-weighted)
- Frequency response: 20Hz - 20kHz±0.25dB
- Damping ratio: 1000
- Conversion speed: 50V/us
- Input impedance: 30kohms balanced
- Input sensitivity: 0.775V
- DC residual: 5mV
- Working voltage: 90V - 264V±10%, 50Hz
- Maximum output voltage/current: 100V/50A (peak value)
- Power supply: standard switch mode with PFC technology
