Color
Descripción
Feature
*Support 4G/LTE*Support Battery*Support One Key to Start/Stop Stream*Support RTMPS/SRT Protocol
Video
Input
1x HDMI( 1.4)
Resolution
1920x1080@60P/50p,1920x1080@60i/50i/1280x720@60p/50p 720x576i/720x480i
Encoding
H.265/H.264
Output
Up to1080P60
Bitrate
0.16Mbps~32Mbps
Bitrate Control
Bandwidth Priority(CBR)/Image Quantity Priority(VBR)
GOP
5-300
Advanced
Flip,Mirro,Rotate,Clip
Chip Lantency Time
100ms
Audio
Input
1xHDMI/1xLine In
Encoding
AAC/AAC+/AAC++/MP3
Resample
44100/48000 Hz
Audio Channel
Stereo
System
Ethernet
1000M/ WIFI 2.4/5.8G (802.11n/11g/11b),4G LTE*
Protocol
UTP SRTRTSP RTMP RTMPS
Management
Website/CGI Command
SimCard Slot
one slot
Gerneral
Dimension(W×L×H)
115x104x33mm
Packing Box(WxLxH)
217x145x58mm
Net/Gross Weight
0.3kg/0.8kg
Temperature
0-45(work),-20-80(storage)
Power
12V DC 2A or Battery F750/F970(don't including in package)
Consumption
8w
Included in the Package
BM3380G-H
1pcs
HDMI Cabel 1.2M
1pcs
Power Supply
12V DC 2A

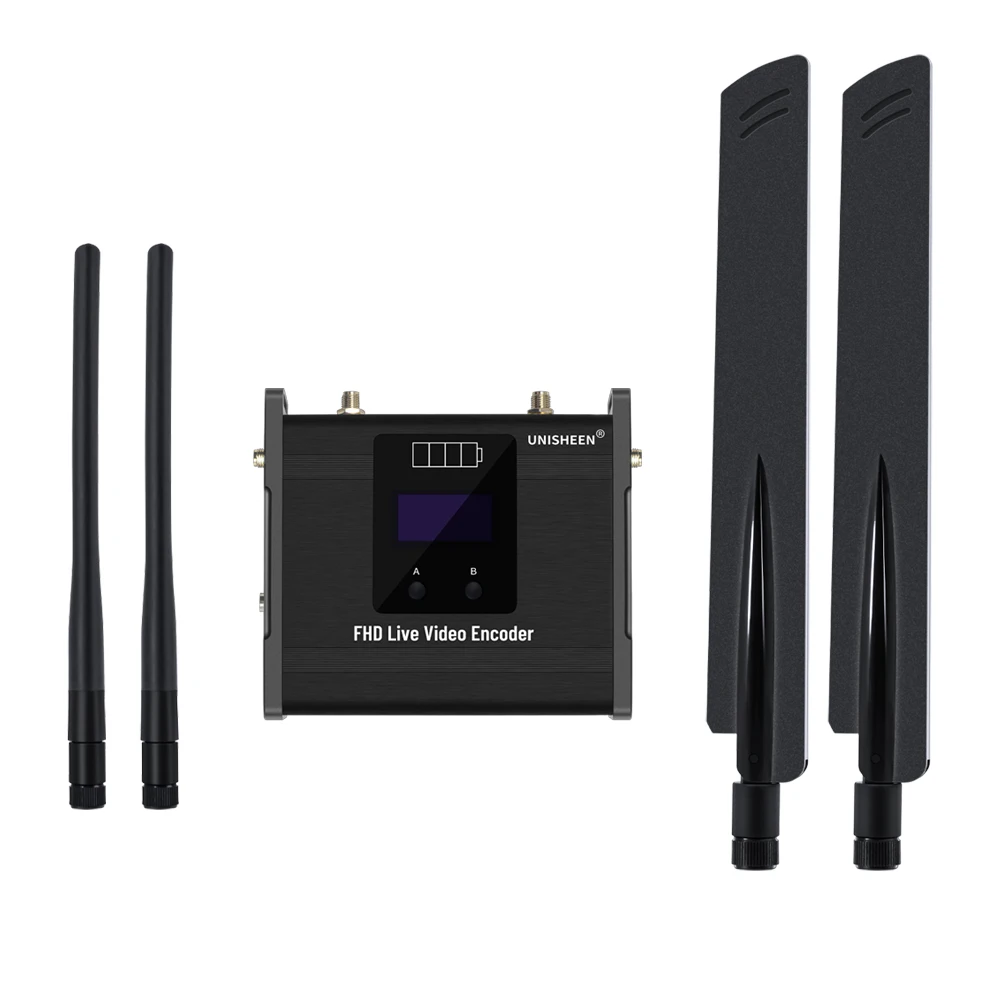

WIFI Antenna
2pcs
4G Antenna
2pcs

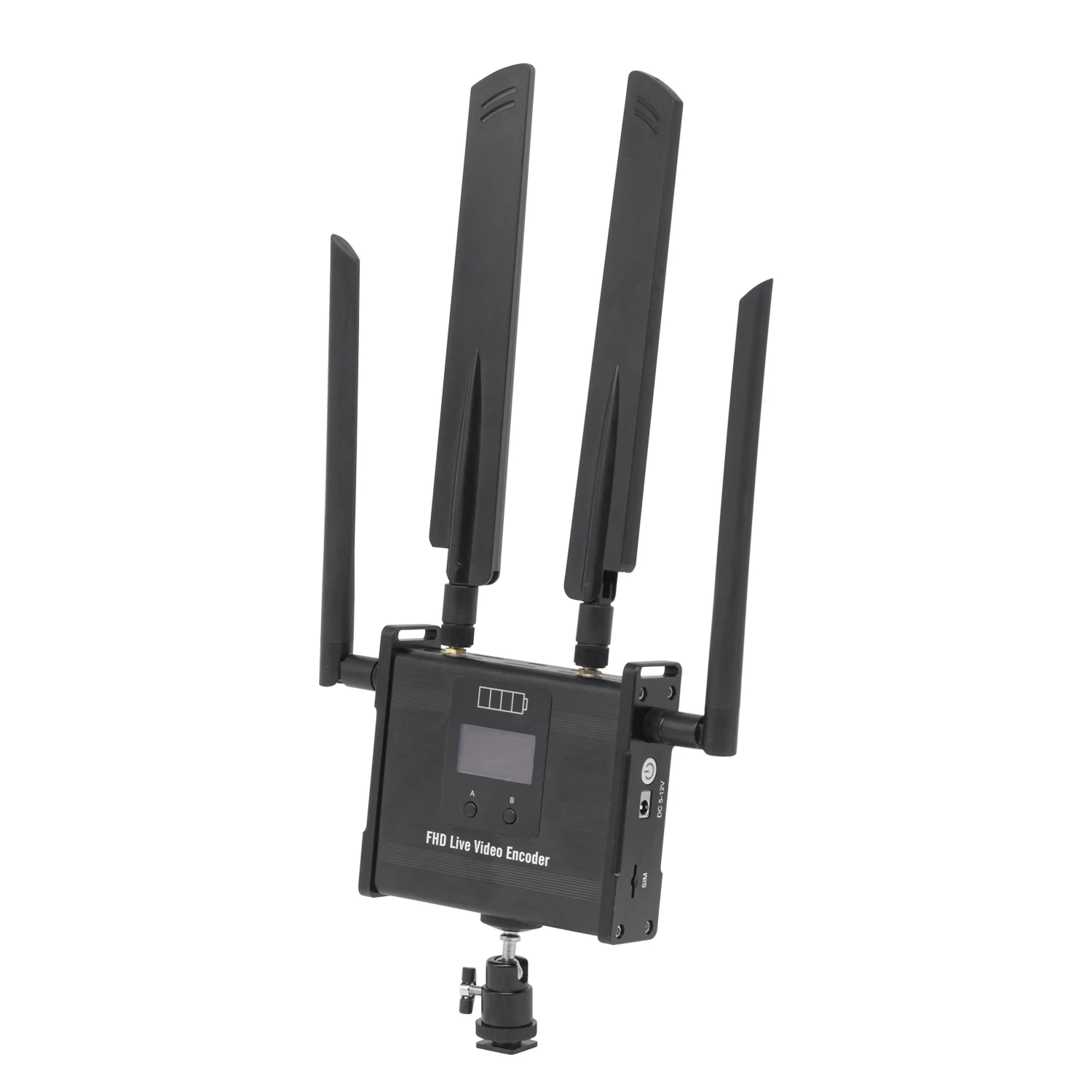

Hot-shoe Screw
1pcs
Ethernet Cable 1M
1pcs
*TDD-LTE: B38/B40/B41
FDD-LTE:B1/B3/B5/B7/B8/B20
