Descripción
Purchase instructions:
Option description:
PCB: without any electronic components, only board
EOVE capacitor: finished product, using EOVE gold audio capacitor, 50v 10000uf*8
ELNA capacitor: finished product, using ELNA audio capacitor, 80v 10000uf*8

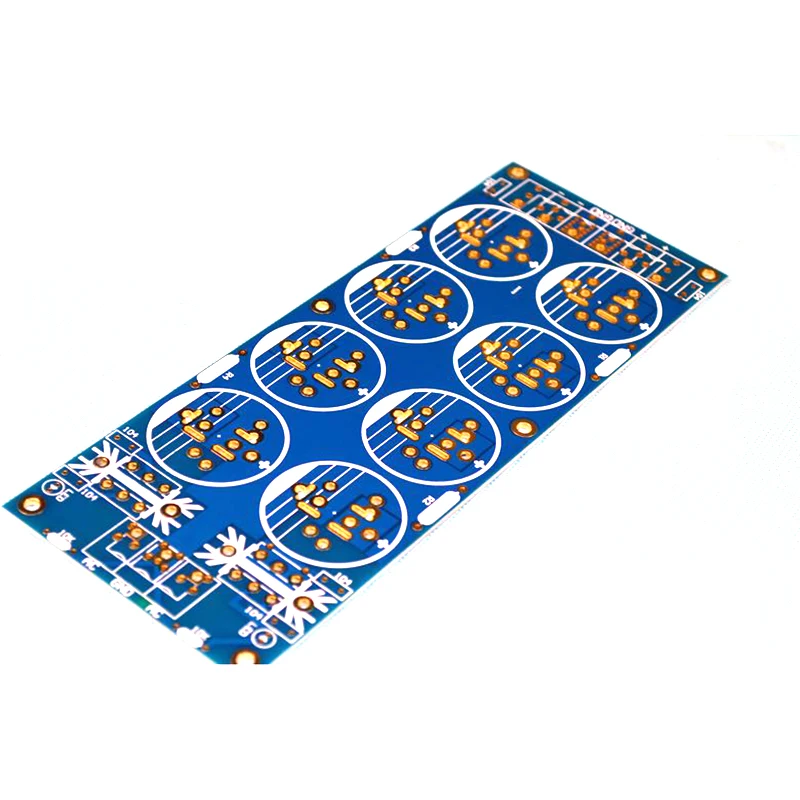

PCB: without any electronic components, only board

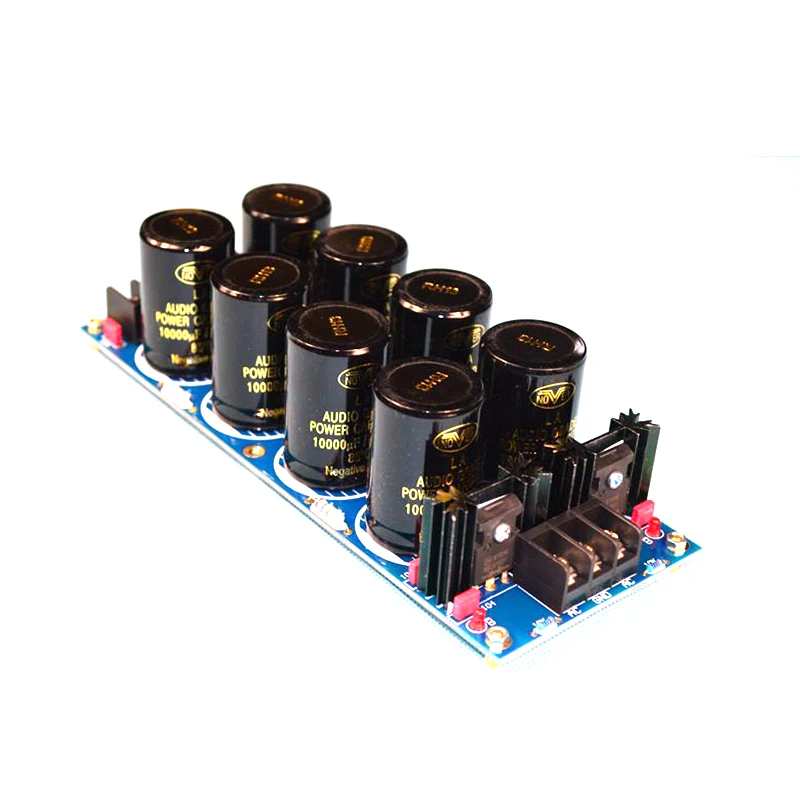

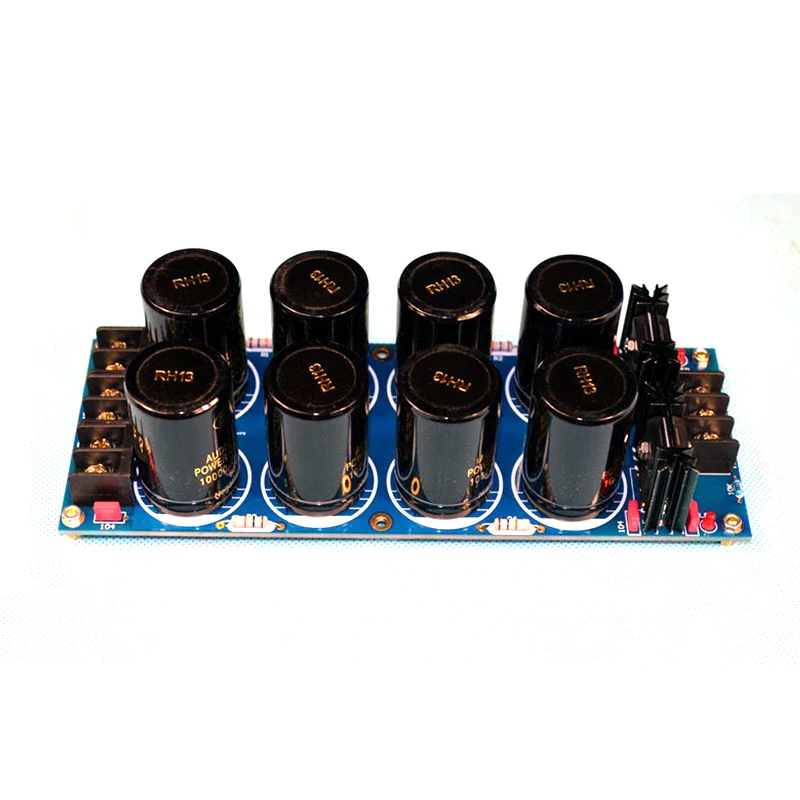

EOVE capacitor: finished product, using EOVE gold audio capacitor, 50v 10000uf*8

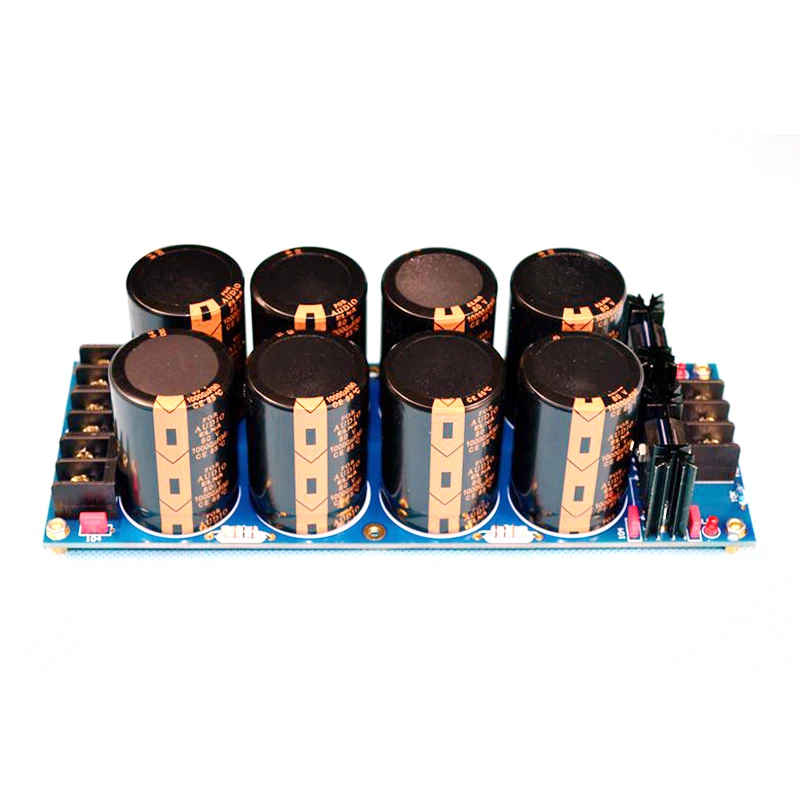

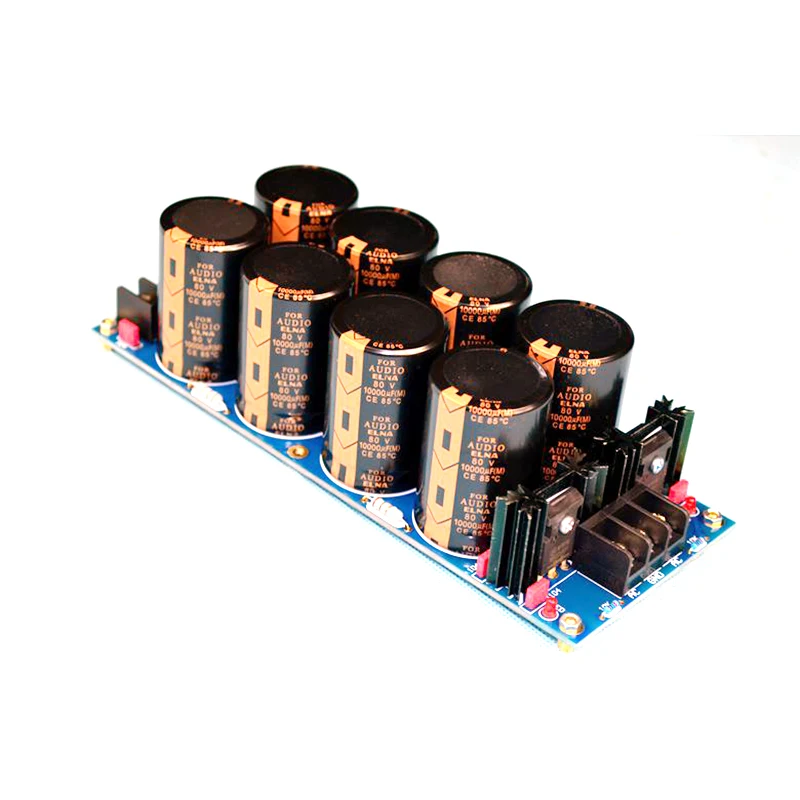

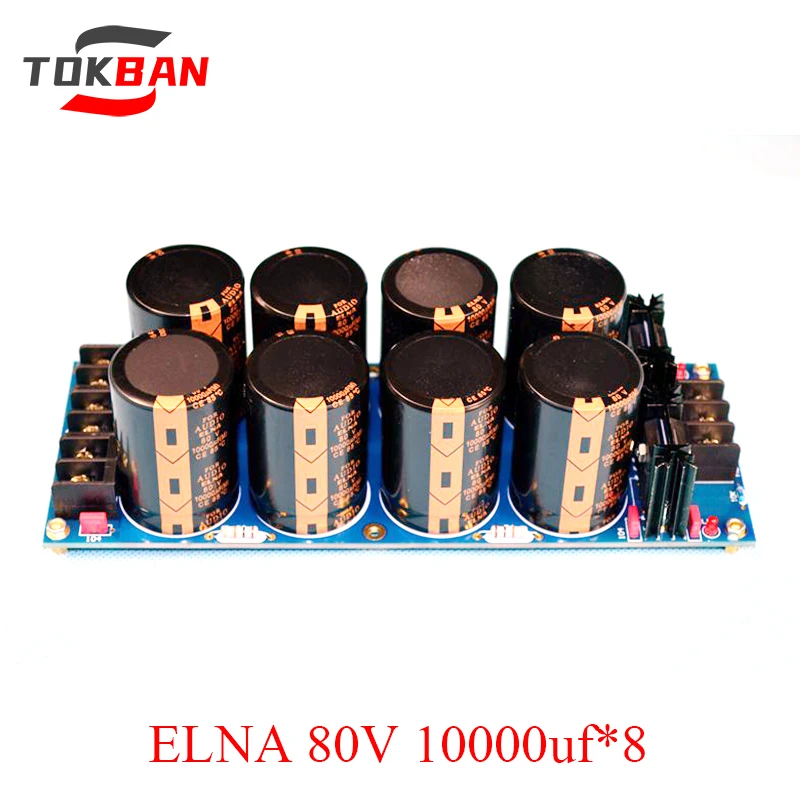

ELNA capacitor: finished product, using ELNA audio capacitor, 80v 10000uf*8
Product introduction:
1: With high-speed Schottky machine rectification as the core, taking into full consideration the characteristics of large current discharge of the power board, the PCB adopts double-sided wiring design, which can effectively discharge large current.
2: The power board has reasonable wiring, dual power output, convenient and practical, suitable for DIY upgrade power amplifier and various power supply rectification and filtering.
3: Using 4 original imported Schottky 30A150V equivalent to 120A bridge pile, fast speed, small internal resistance, and the actual load can exceed 2000W.
4: PCB is designed with multiple holes, which can be well compatible with various capacitor pins. A board can hold 8 in total. The board uses double-sided gold immersion technology, which has good conductivity, but the cost is high.
5: PCB size: length: 207MM; width: 79MM
6: Large capacitor pin spacing: supports a variety of special capacitor pins, the maximum diameter of the capacitor that can be installed is 35MM
7: Input voltage: theoretically, it does not exceed 150V of the Schottky rectifier bridge; it does not exceed the capacitor voltage installed on the board.
1: With high-speed Schottky machine rectification as the core, taking into full consideration the characteristics of large current discharge of the power board, the PCB adopts double-sided wiring design, which can effectively discharge large current.
2: The power board has reasonable wiring, dual power output, convenient and practical, suitable for DIY upgrade power amplifier and various power supply rectification and filtering.
3: Using 4 original imported Schottky 30A150V equivalent to 120A bridge pile, fast speed, small internal resistance, and the actual load can exceed 2000W.
4: PCB is designed with multiple holes, which can be well compatible with various capacitor pins. A board can hold 8 in total. The board uses double-sided gold immersion technology, which has good conductivity, but the cost is high.
5: PCB size: length: 207MM; width: 79MM
6: Large capacitor pin spacing: supports a variety of special capacitor pins, the maximum diameter of the capacitor that can be installed is 35MM
7: Input voltage: theoretically, it does not exceed 150V of the Schottky rectifier bridge; it does not exceed the capacitor voltage installed on the board.
