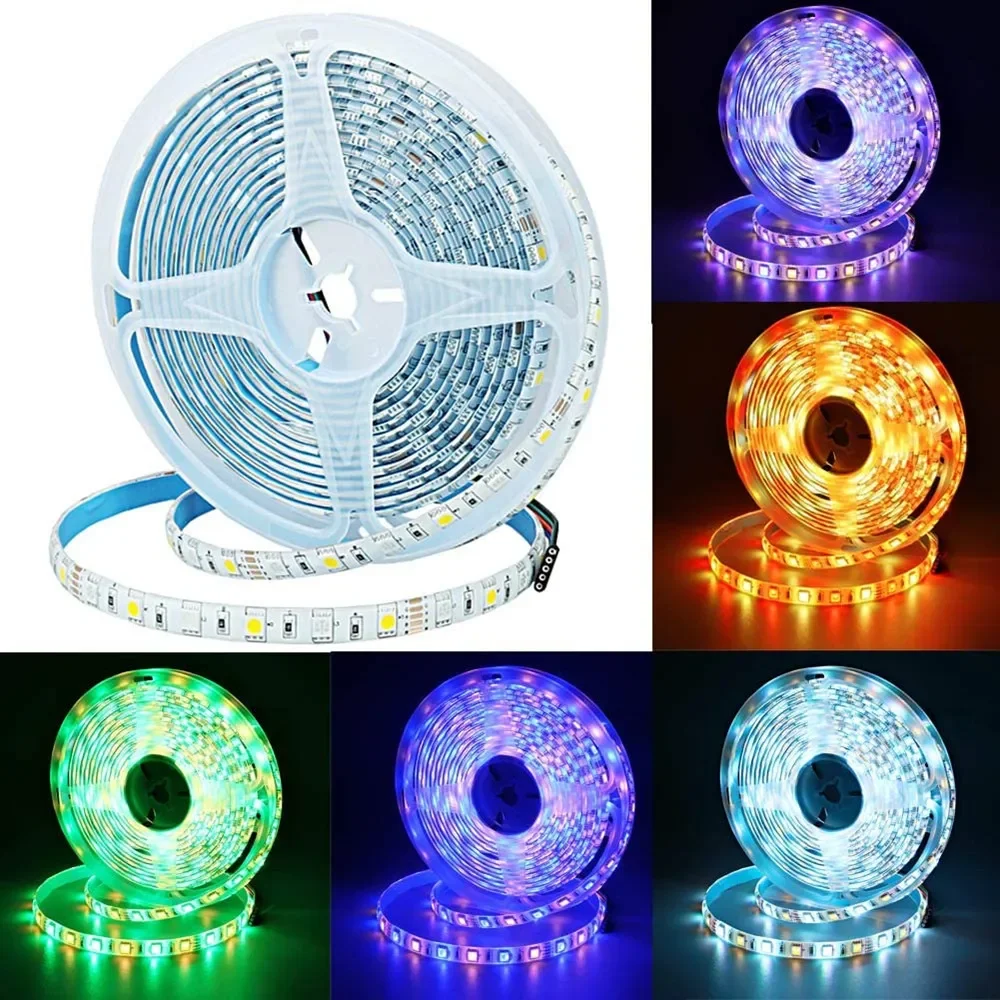

5050 RGB LED Strip Waterproof 5M 300LED DC 12V 24V RGB RGBW WHITE WARM WHITE LED Light Strips Flexible
NOTE : IP20 Non waterproof (3M adhensive back)
IP65 Waterproof (3M adhensive back)
CCT--White+Warm white (only 10mm PCB)---4pin

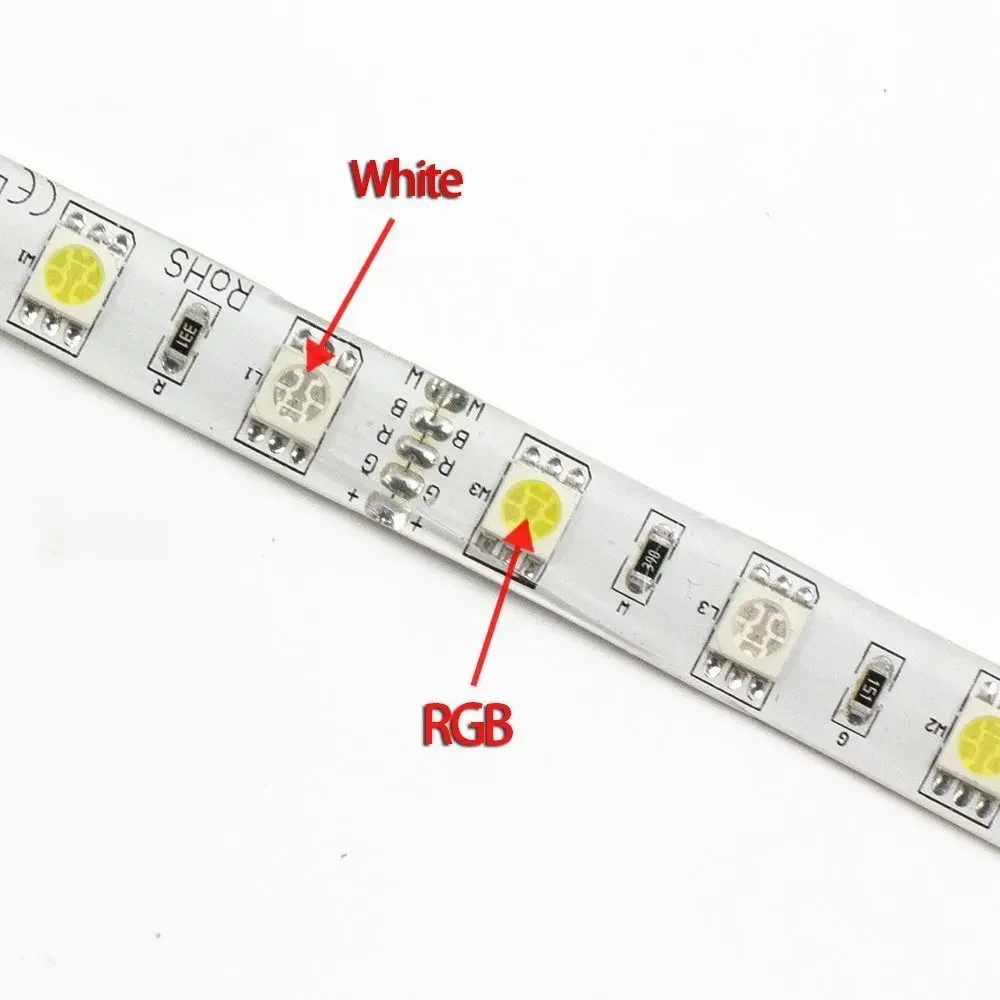

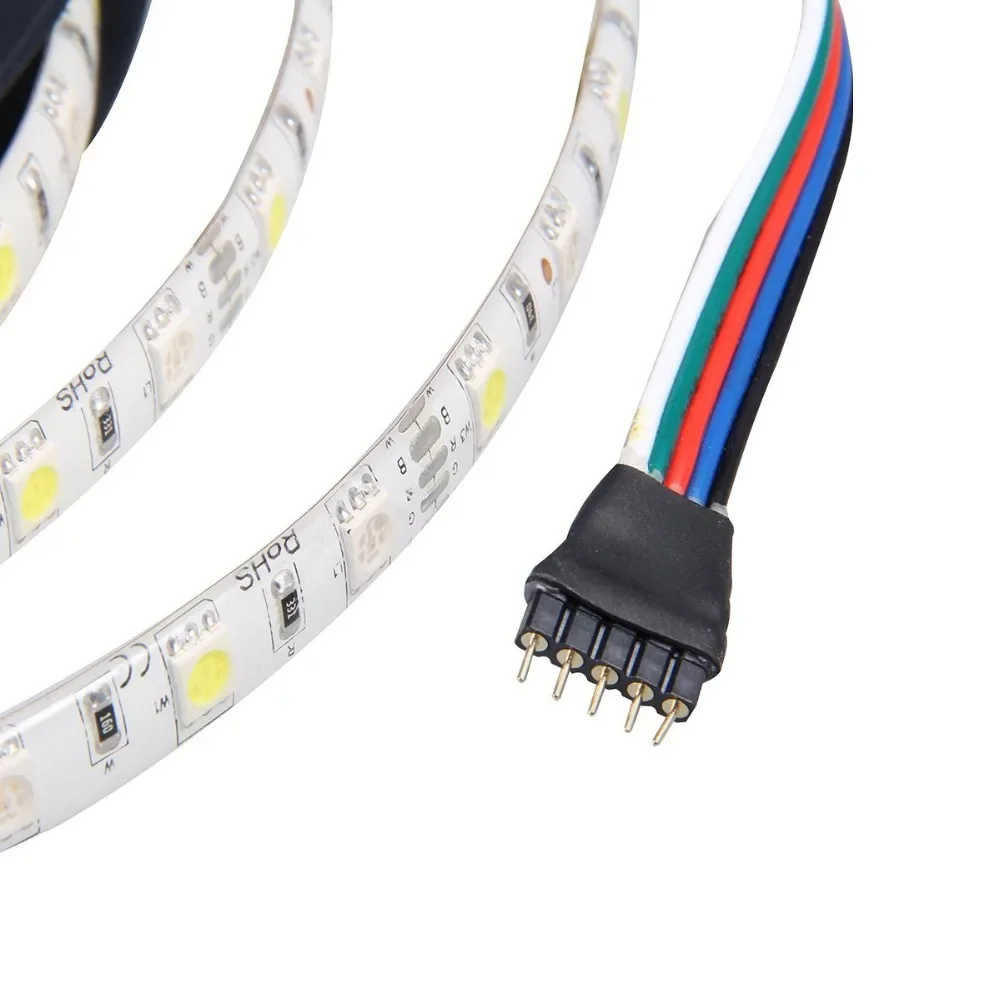

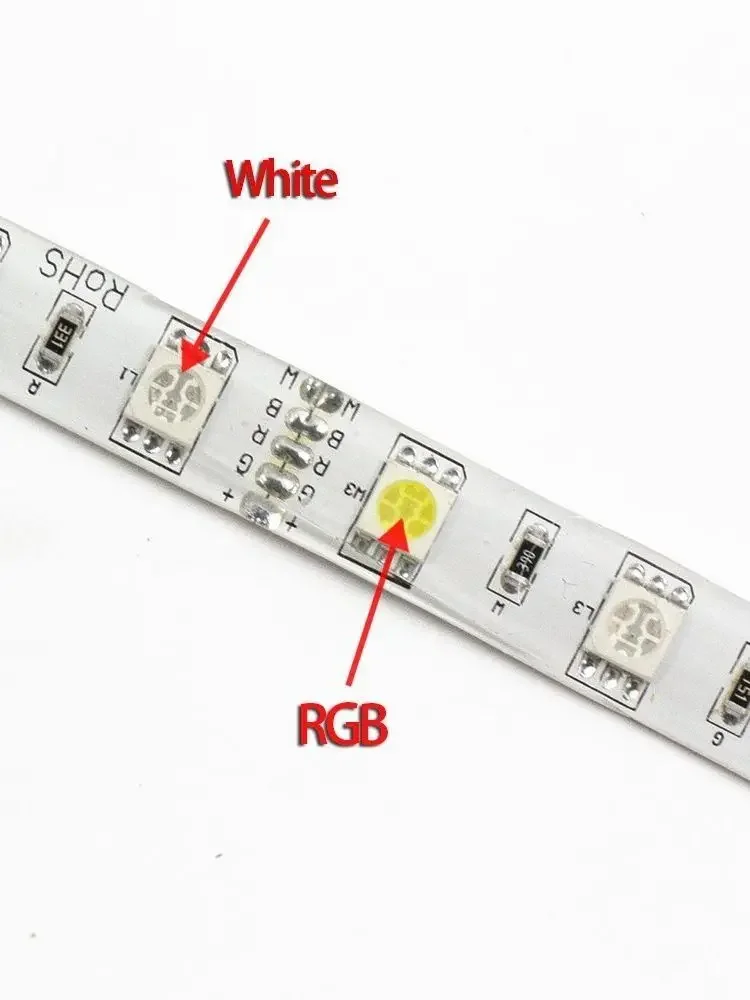

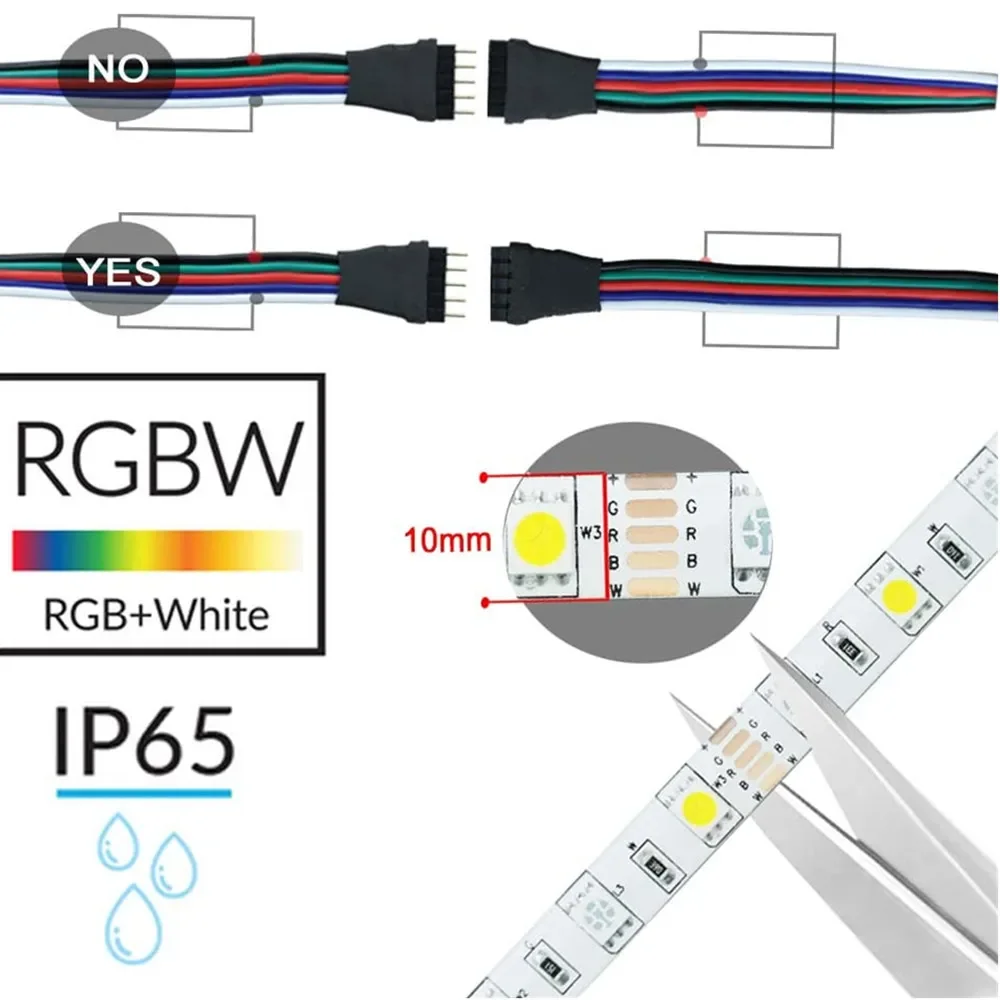

RGBW --RGB+White (12V is 10mm PCB)(24V is12mmPCB)---5pin
RGBWW --RGB+Warm white (12V is 10mm PCB)(24V is 12mmPCB)---5pin
RGBCCT --RGB+White+Warm white(only 10mm PCB)---6pin
Product Features:
1. Superb right 5050 SMD LED, high intensity and reliability.
2. Long life span 50,000 hours
3. Continuous length, packed with 5 meter.
4. Flexible ribbon for curving around bends
5.Completely smooth and even light spread, solving the uneven luminous problem
6.Ultra-bright but running at low temperature
7.Low power consumption
Specifications:
1.Size: L500cm (5M) x W1cm x T0.1cm ( 24V RGBW and RGBWW 12mm PCB )

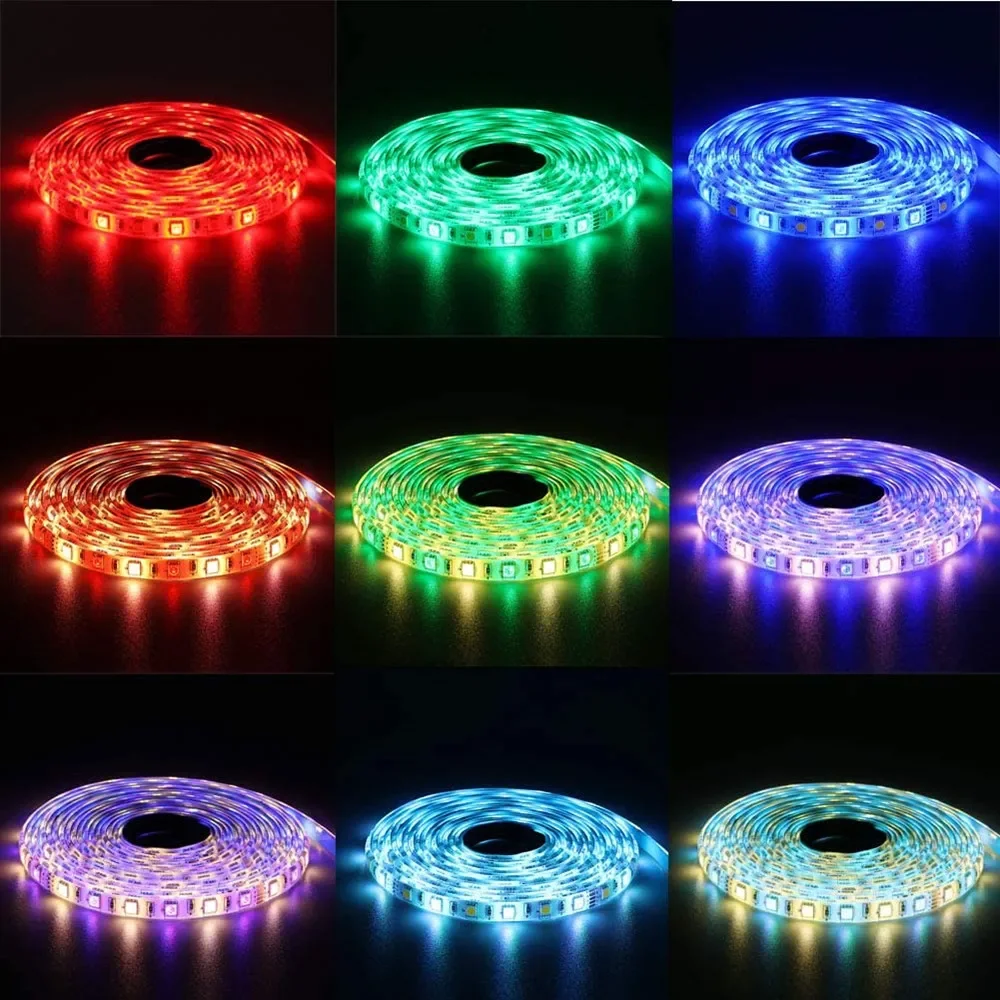

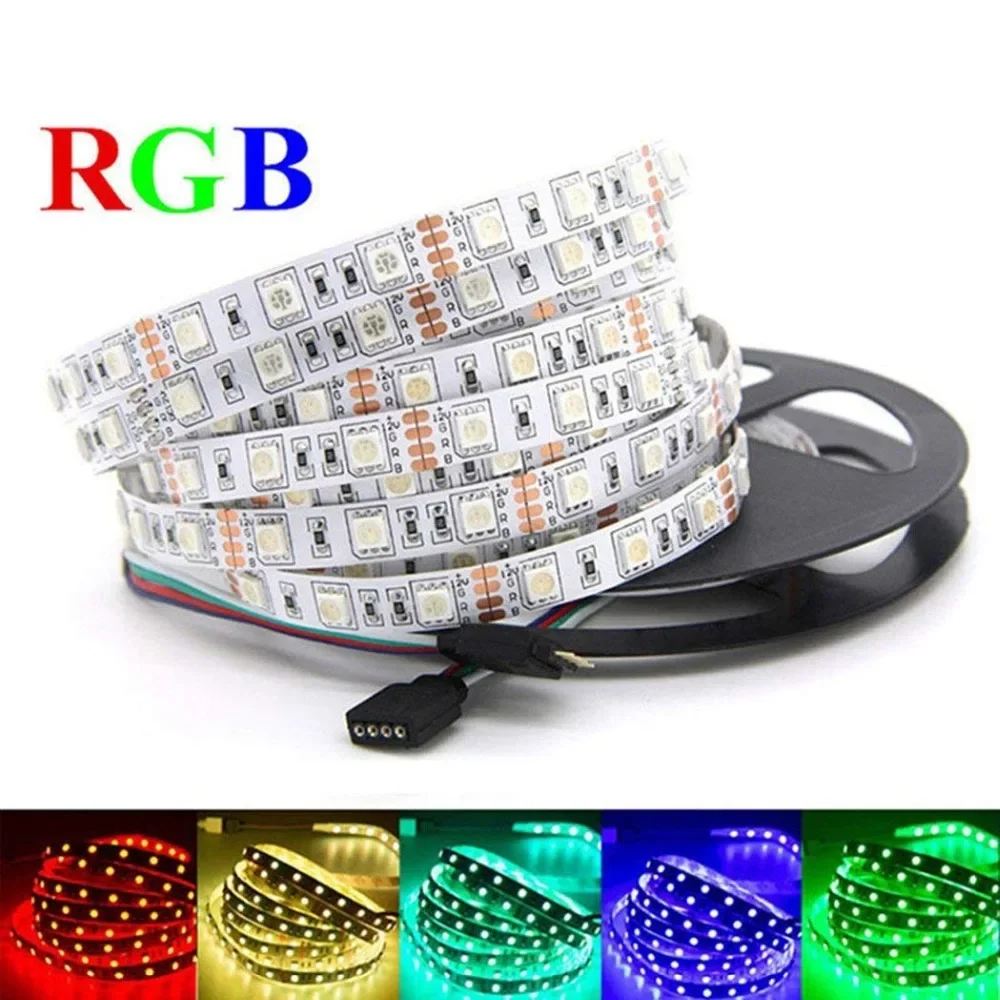

2.Emit Color: RGB/RGBW
3.Protection Rate IP20 for NO Waterproof IP65 for Waterproof
4.Working Voltage: 12V / 24V
5.LED Quantity: 60leds / m, 5meter / roll
6.View angle: 120 ° ~ 140 °
7.Working Temperature: -20 ° to 50 °
8.350-450mcd/led
9.Wattage: max 12W/meter,
10.Color Temperature:
warm white:3000-3200k
white: 5000-5500K
Cool White:6000-6500k

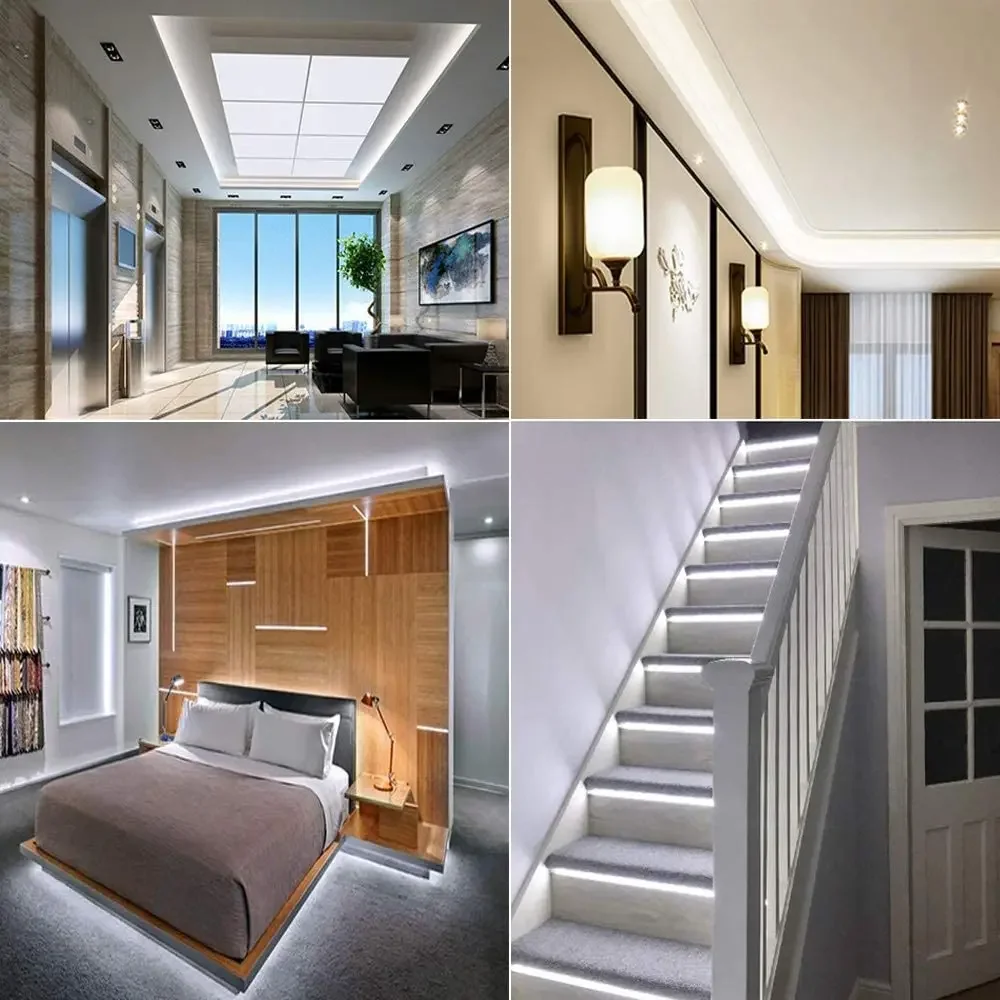

Application:
1.Ideal for decoration of building outlines, landscape illumination, amusement themes,
2.Holiday light sculpture, decorative figure, active signs, displays, shop windows
3.And storefronts, bar, nightclub, street, sidewalk, deck, park, porch, staircase, railing, ceiling, or driveway.
Package Content :
5meters/1 Roll 5050 Strip (Do not contend controller and power supply)
