Tira de luces LED COB de 220V IP67, resistente al agua, 288LEDs/M, control remoto táctil de pared, WiFi, Bluetooth, cuerda de neón regulable, luz cálida/Natural/blanca

Must avoid the high voltage 220V Led strip curled or stacked(Must spread them out)!

Otherwise it will melt or not work, then may cause serious safety accidents!!!

together and continue to light for a long time, be sure to do a good job of heat dissipation treatment.

Specification:

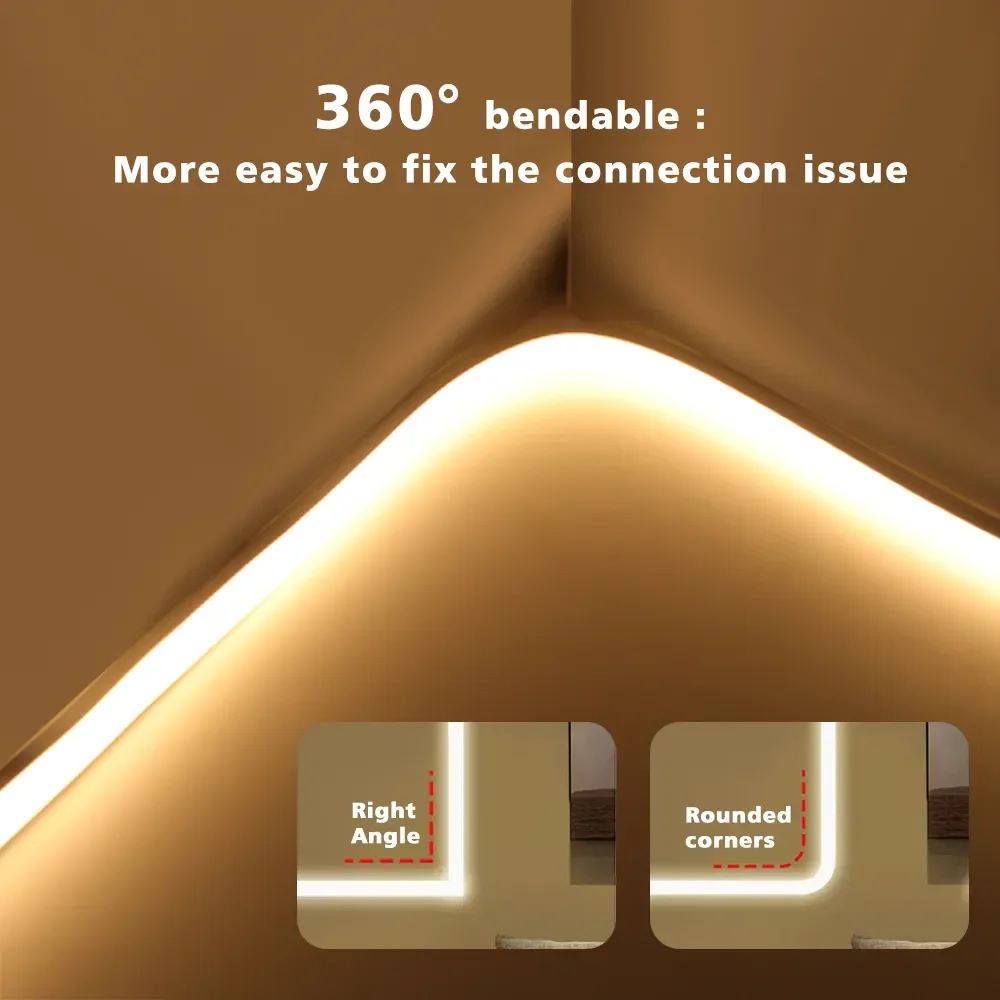

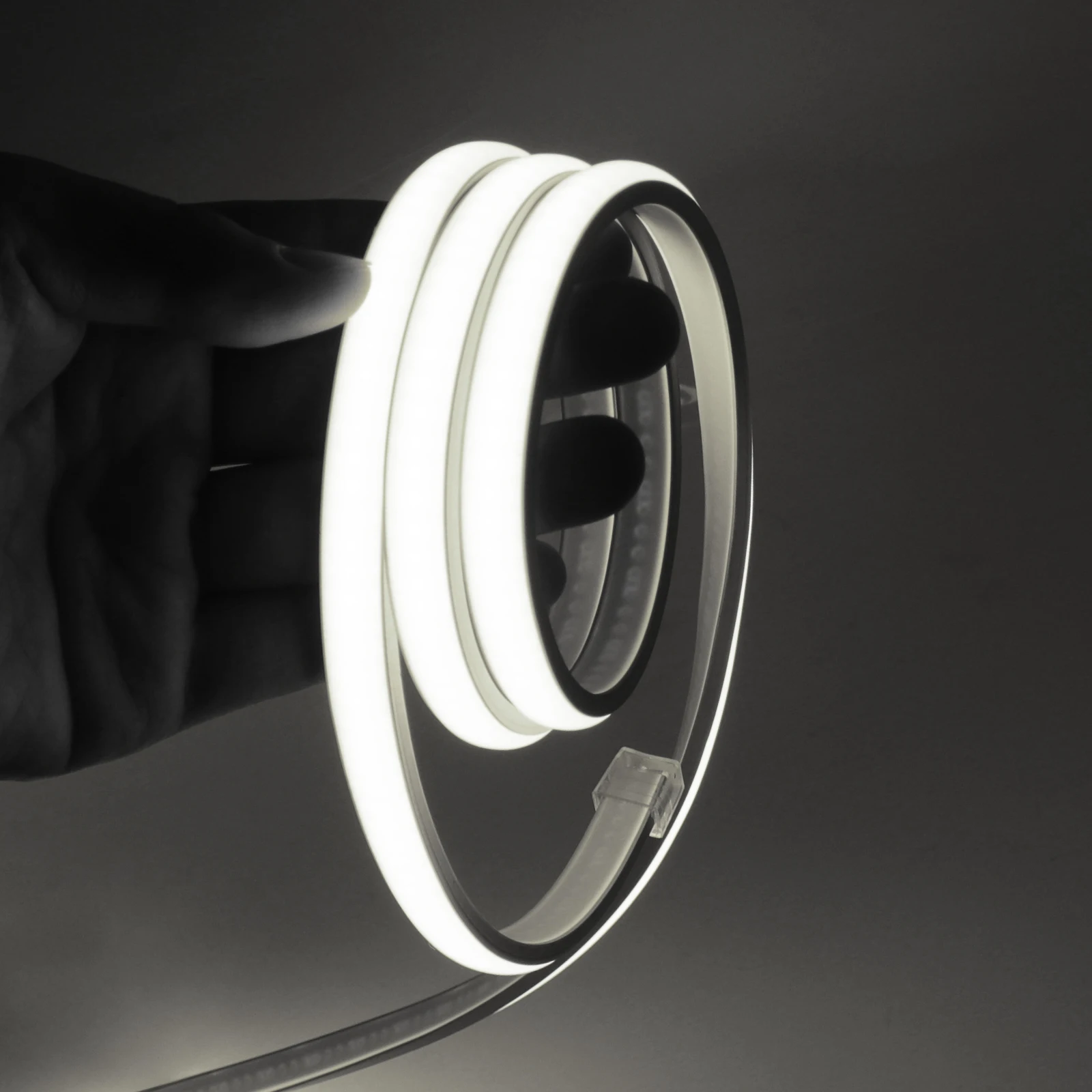

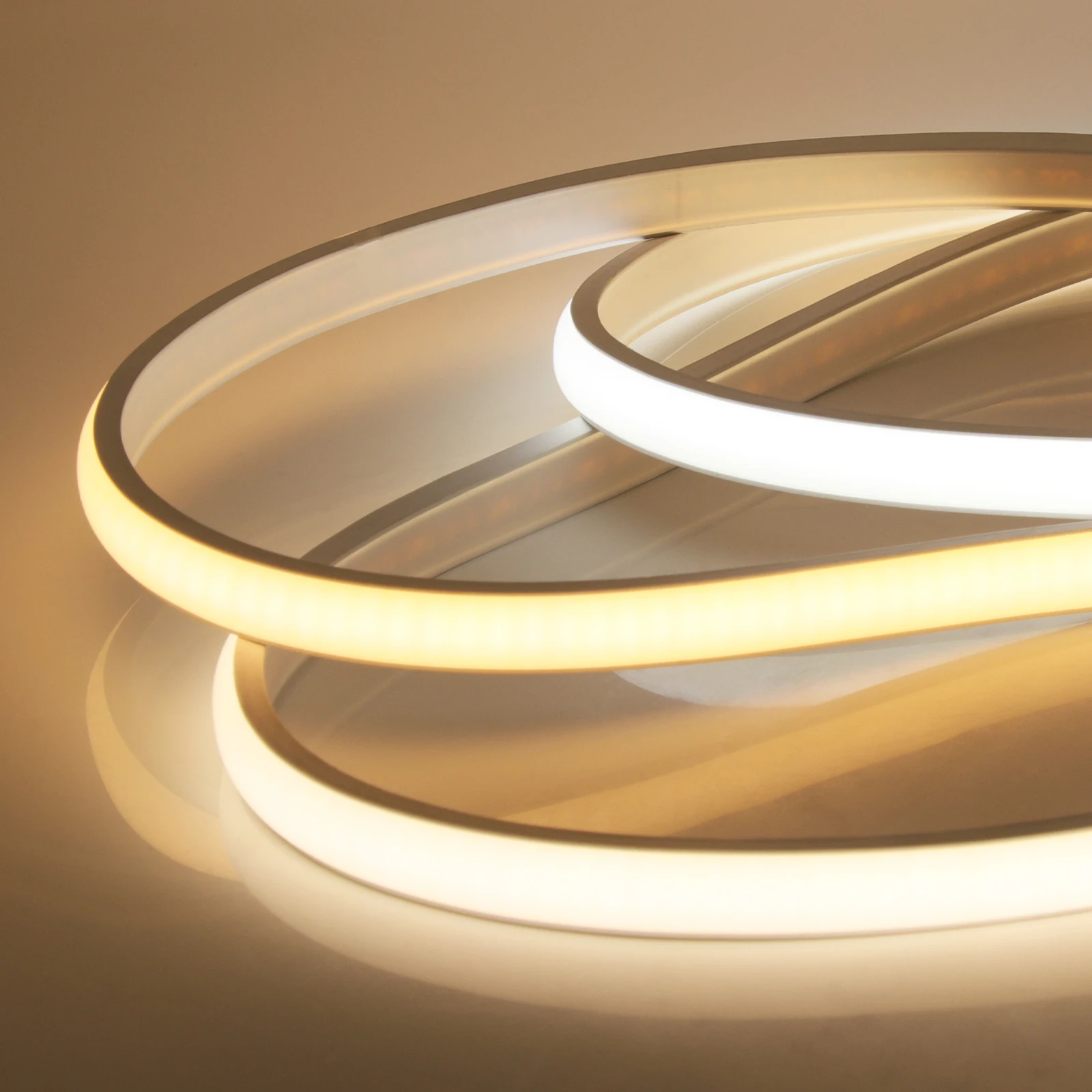

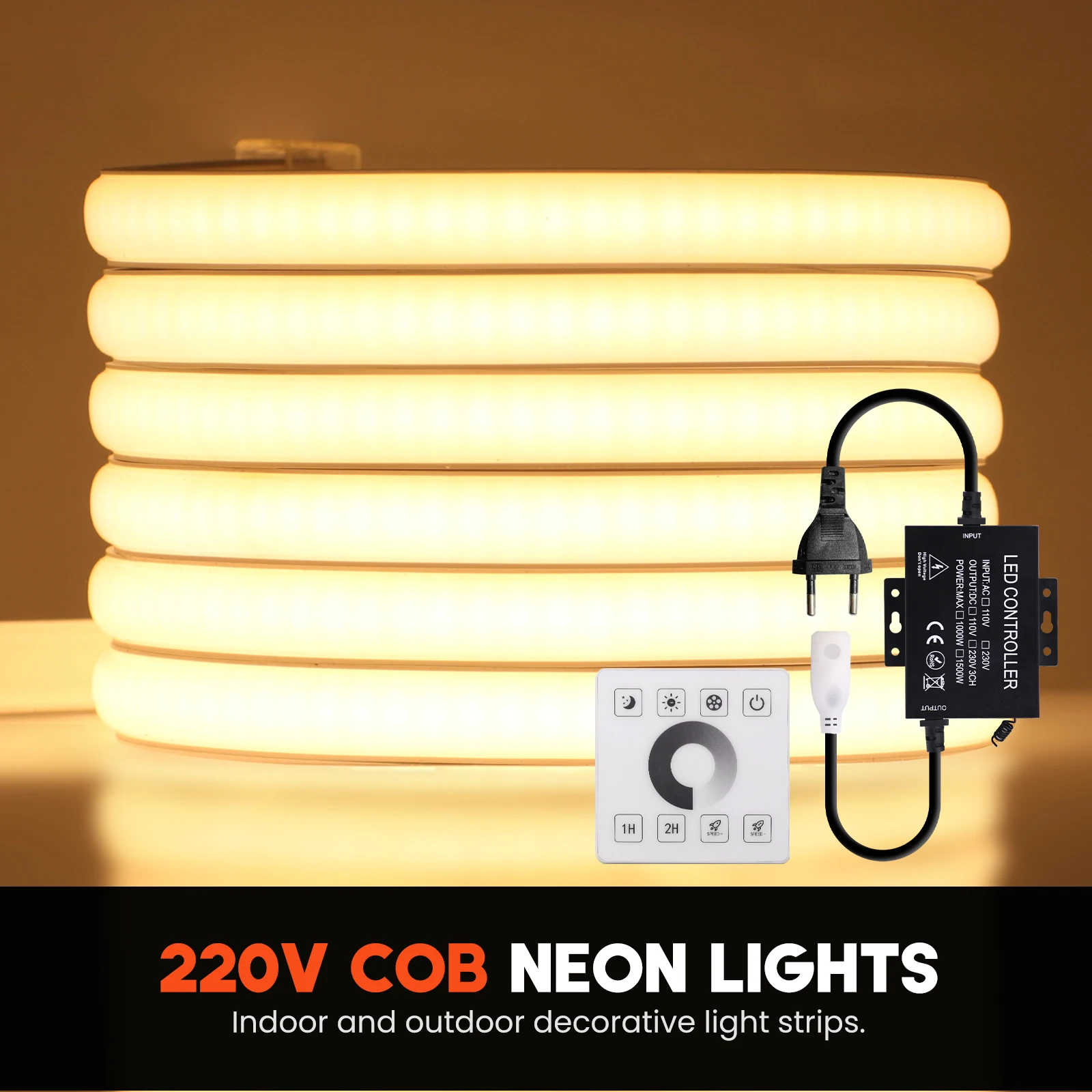

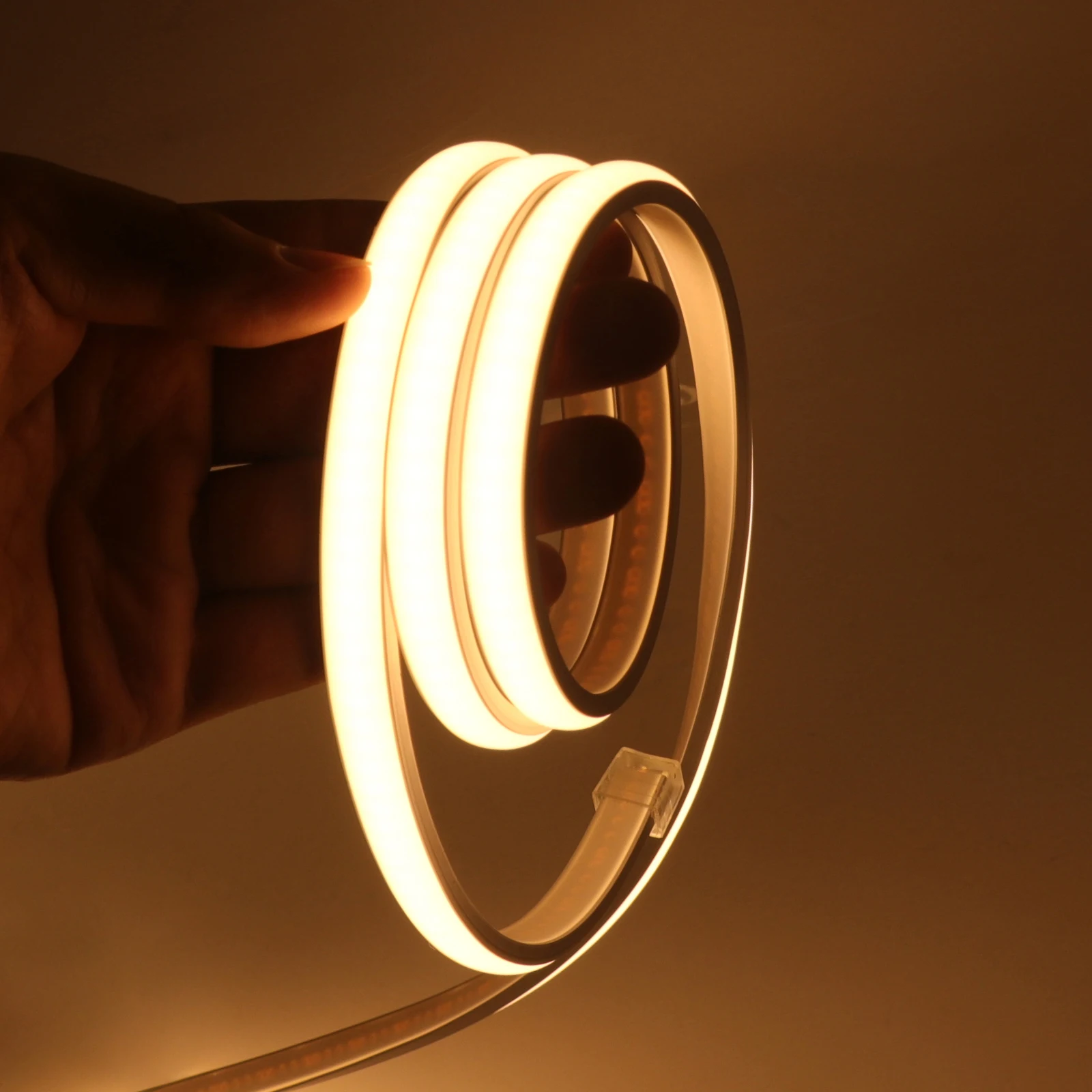

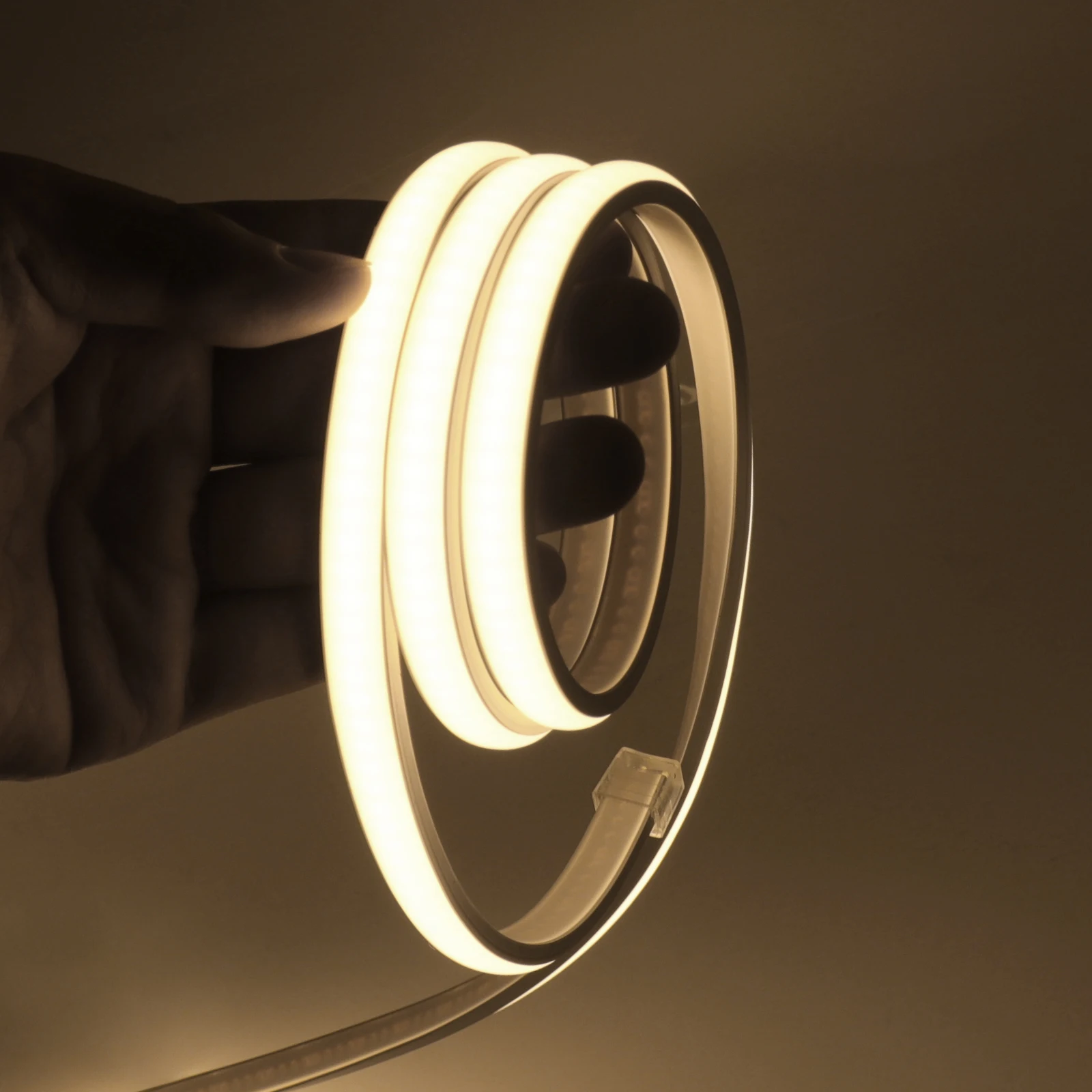

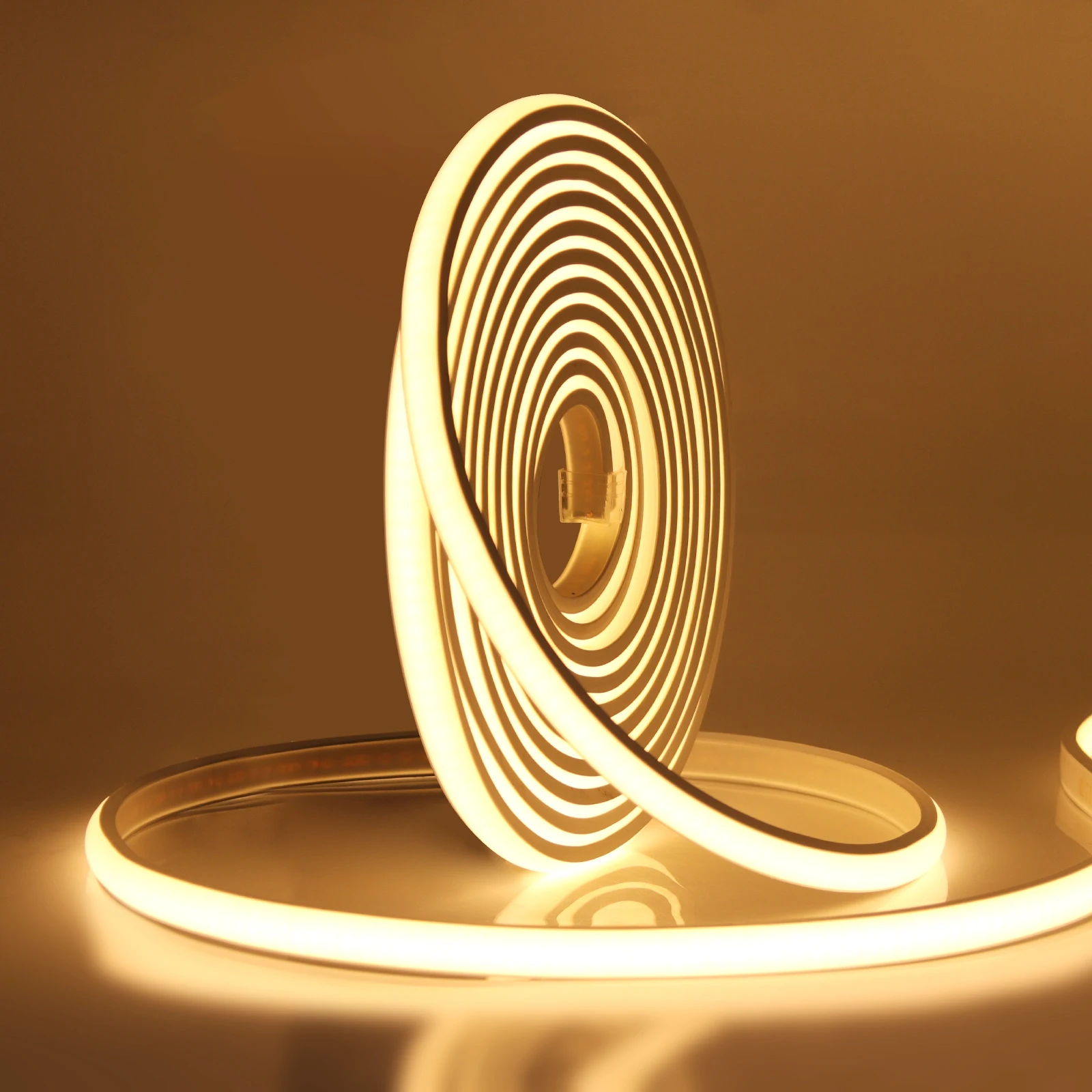

1. This is the 220V COB flexible neon strip light with white silicone backing, easy to bend, with high brightness, uniform color, high CRI, no dark area and stable quality, suitable for engineering decoration, 1 controller 1500W can control up to 100 meters!

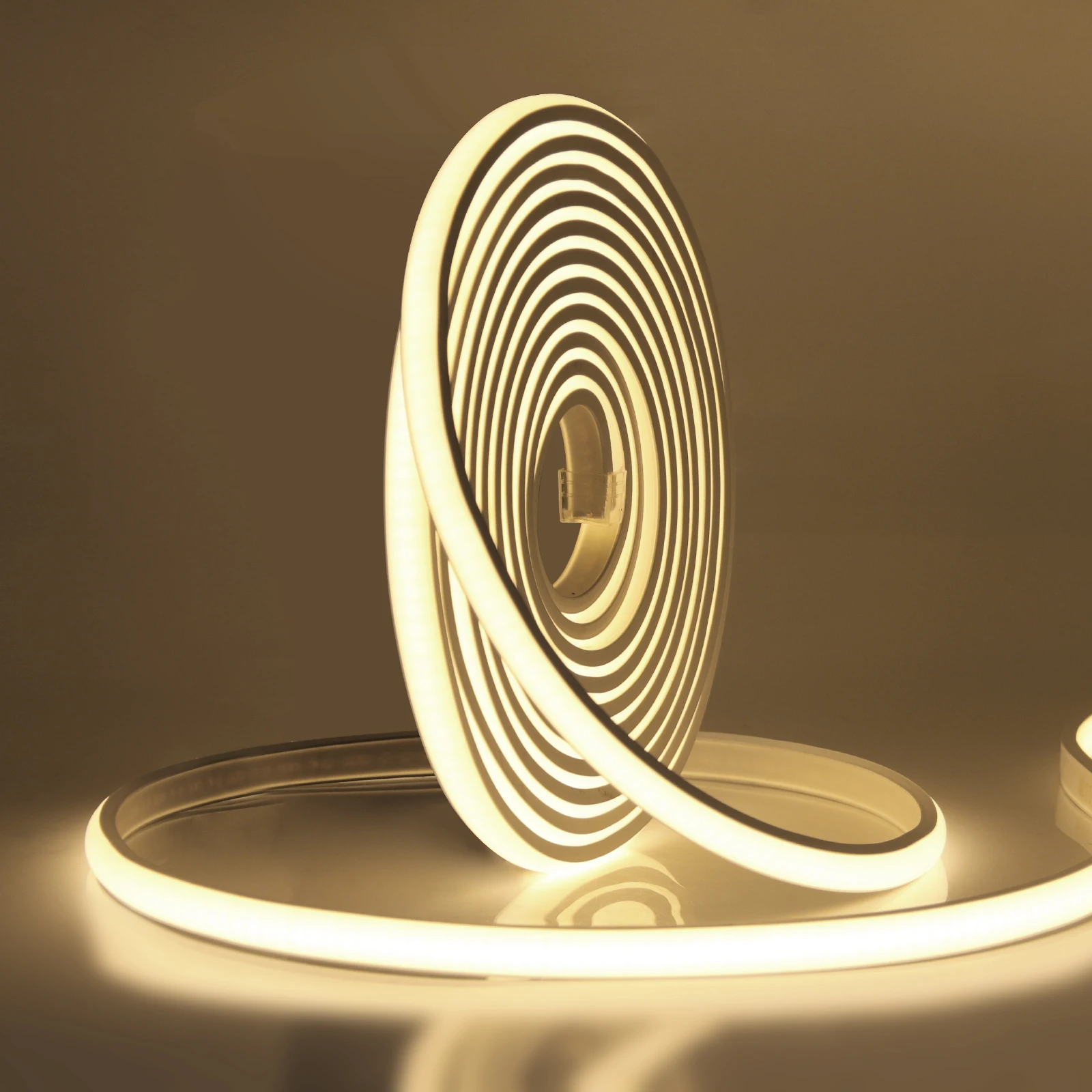

2. Type: Soft COB LED Neon Rope lights

3. Material: PVC+Silicone (Soft and bendable)

4. Input Voltage: AC220V-240V(With EU Power plug)

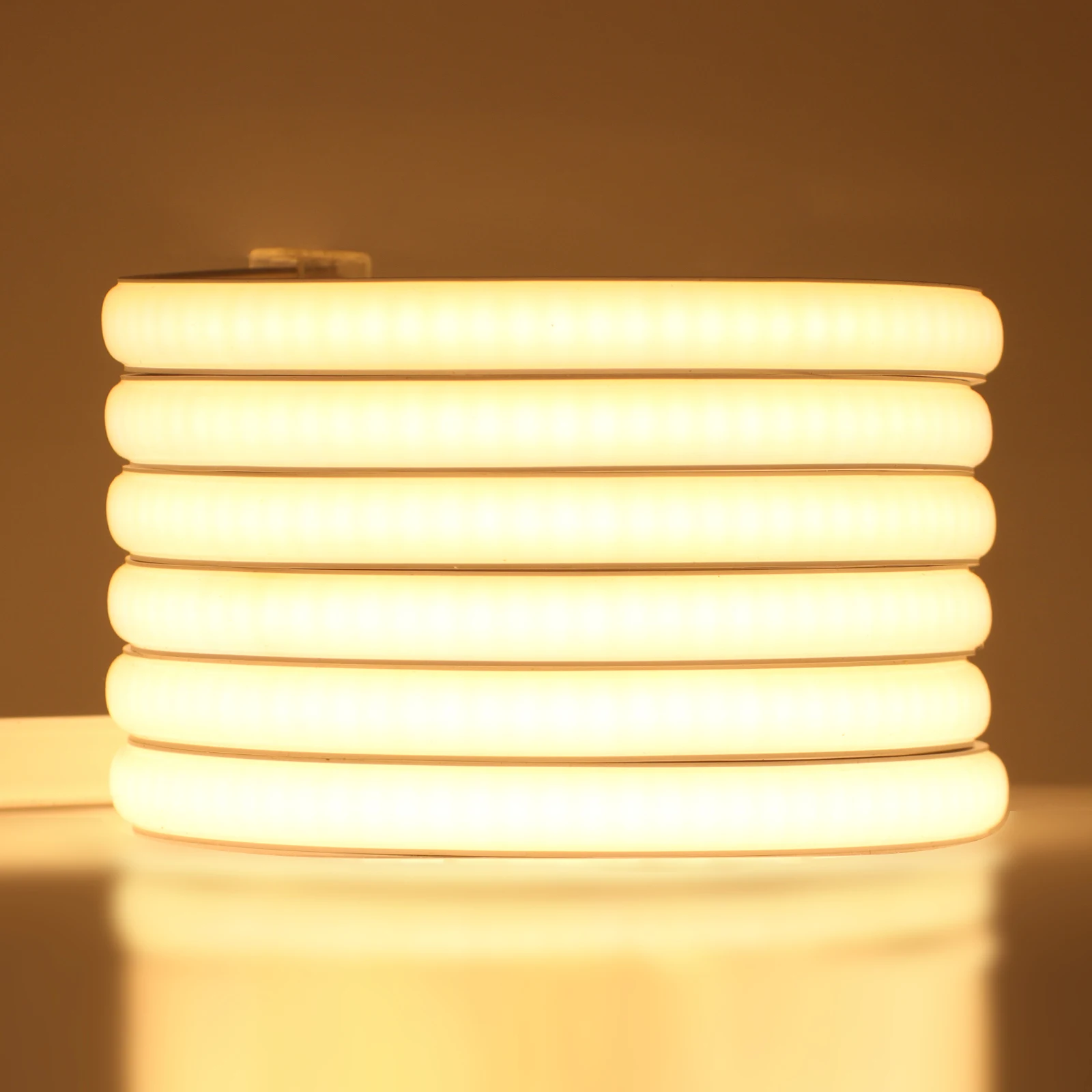

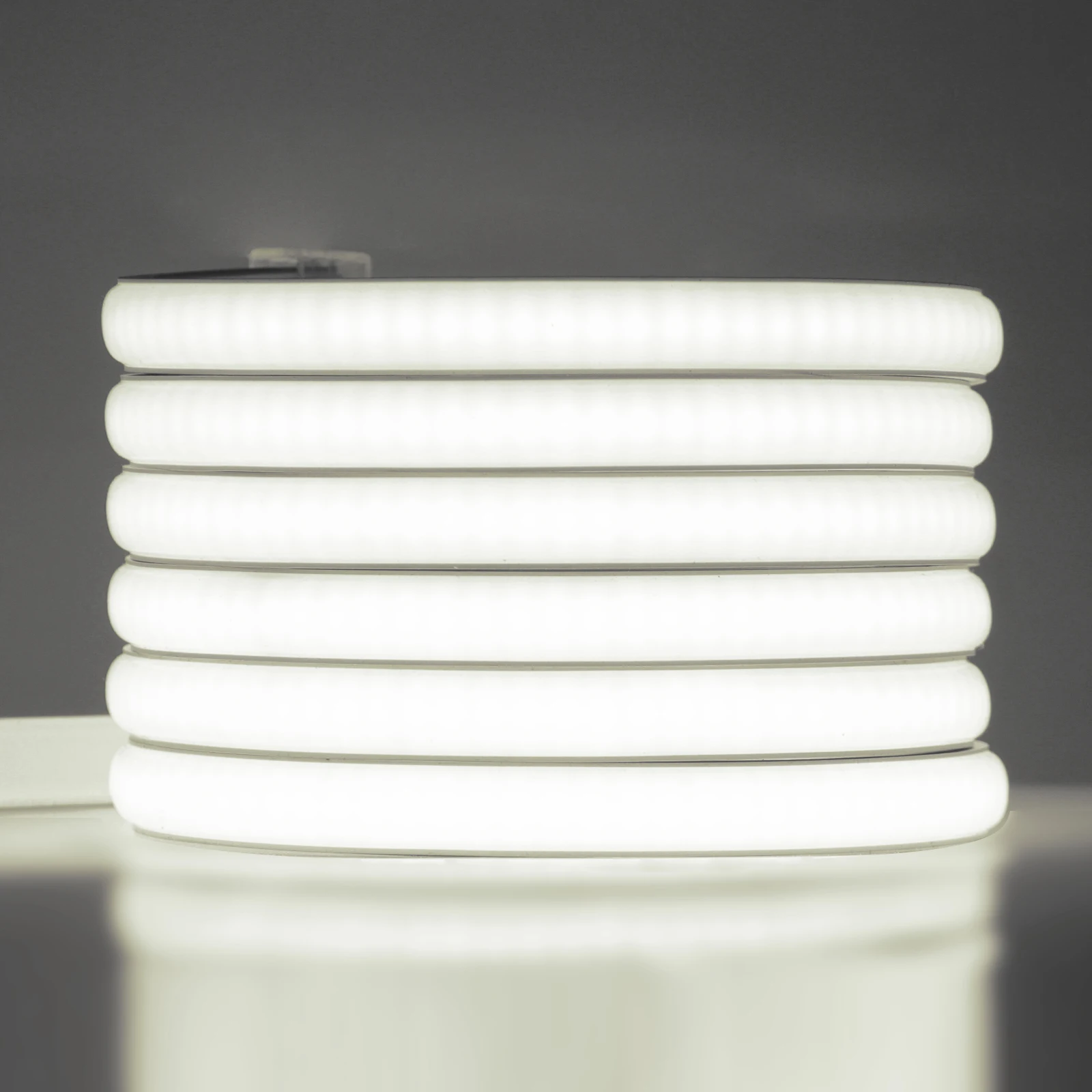

5. Light Color:Warm White/Natural White/White

6. Color Temperature: Warm White(3000K); Natural White(4000K); White(6000K)

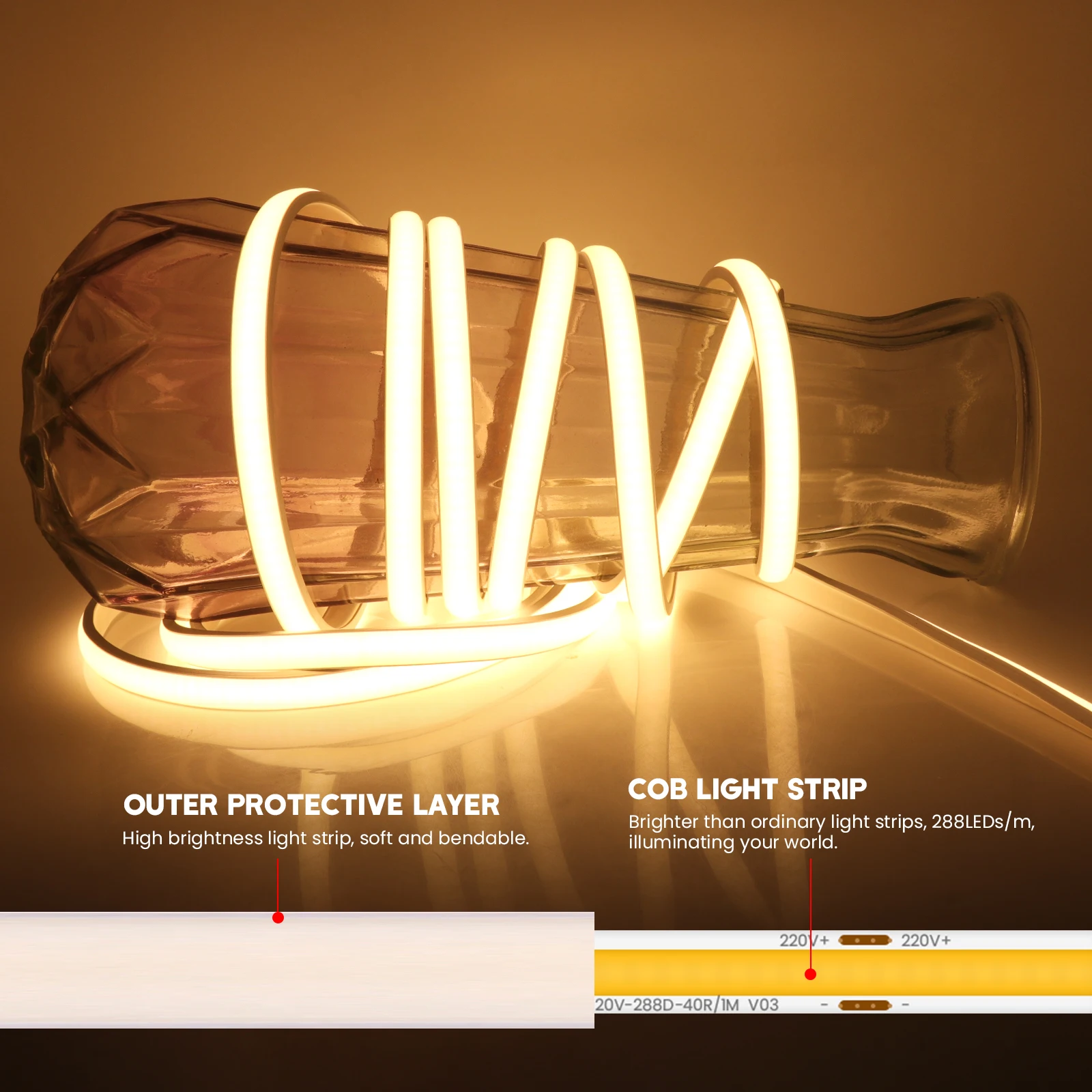

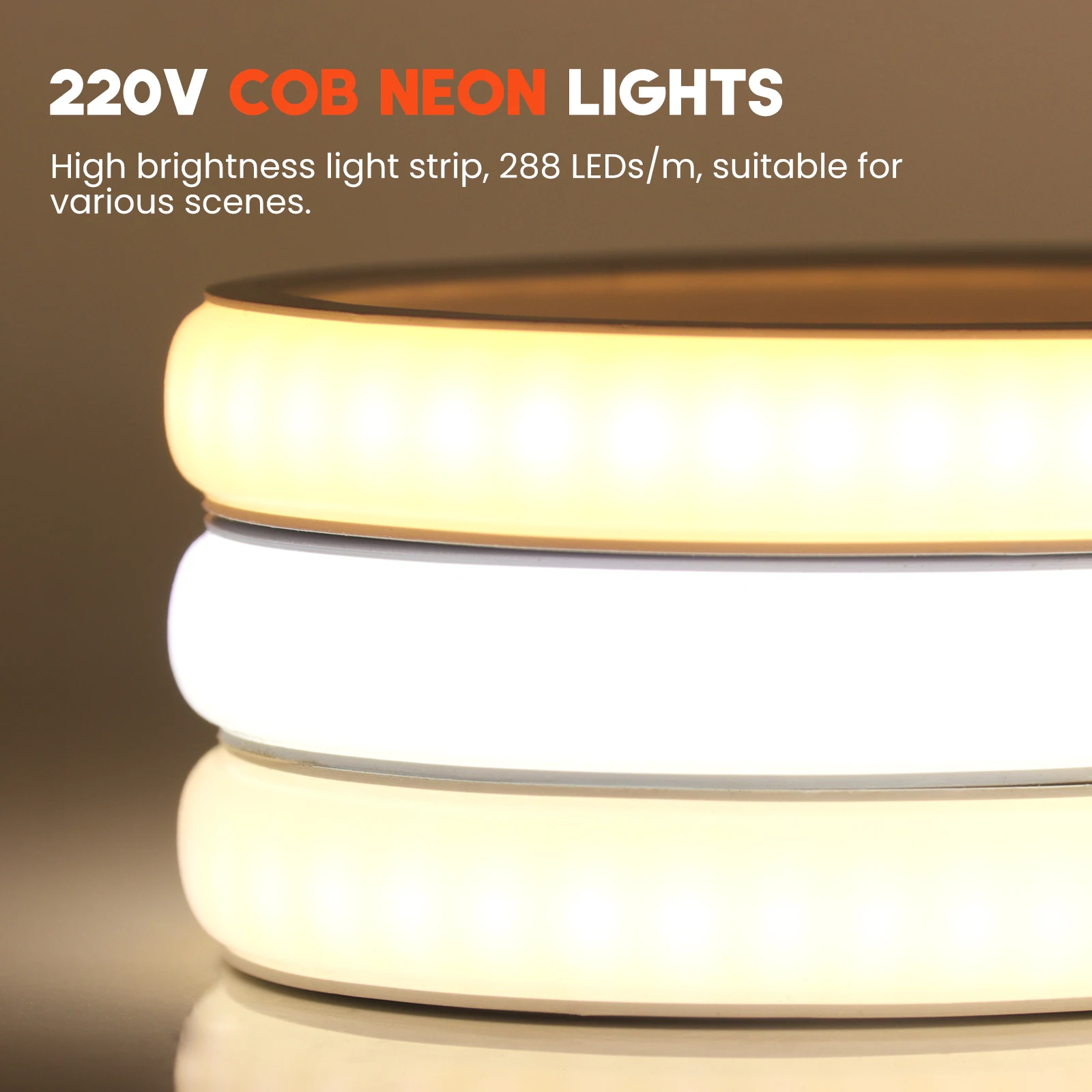

7. Lamp beads: COB(288 LEDs/M)

8. Length: 0.5M/1M/2M/3M/4M/5M/6M/7M/8M/9M/10M/11M/12M/13M//15M/20M/25M/30M/35M/50M/100M

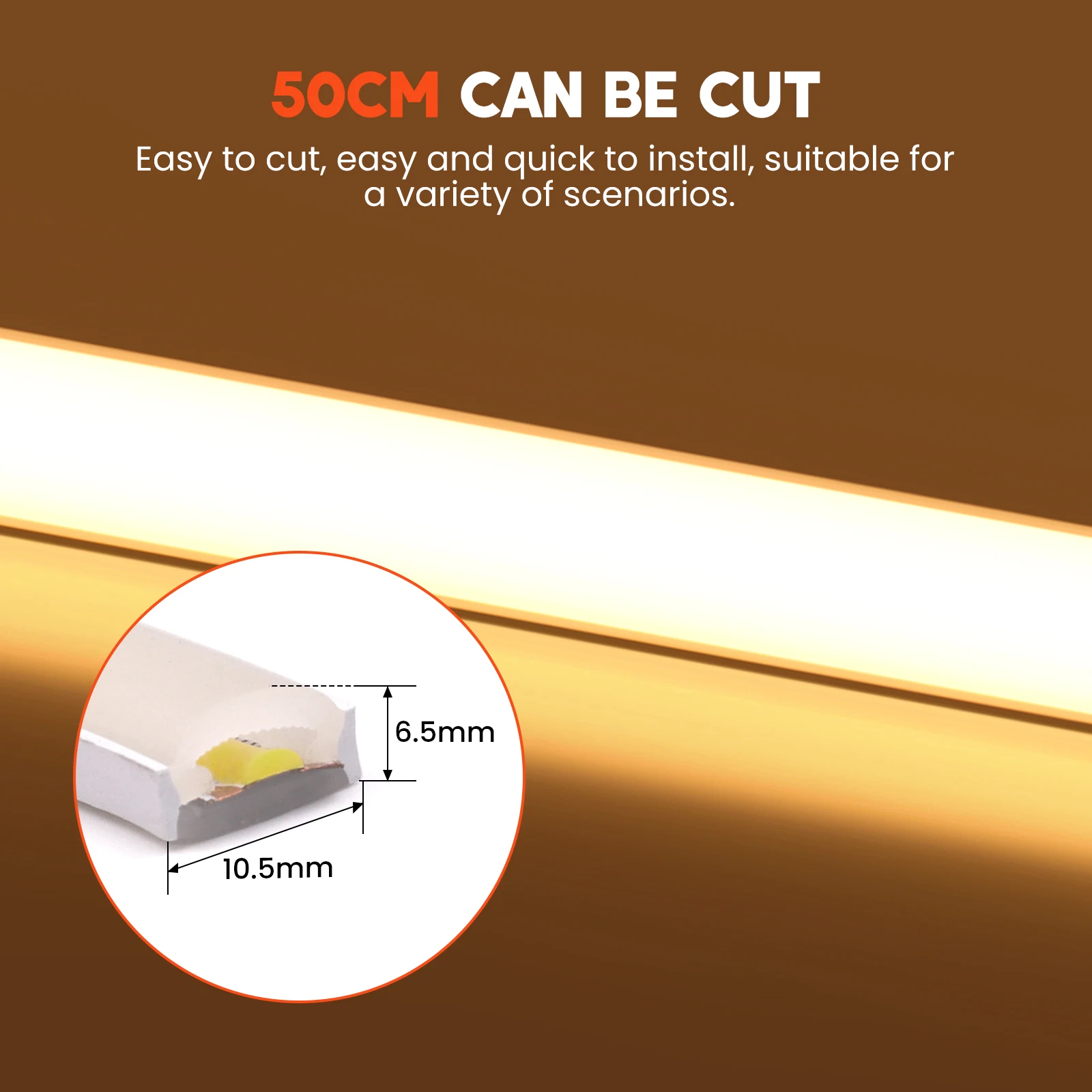

9. External Dimensions of the light bar: (Width:10-11mm x Height:6.5-7mm)

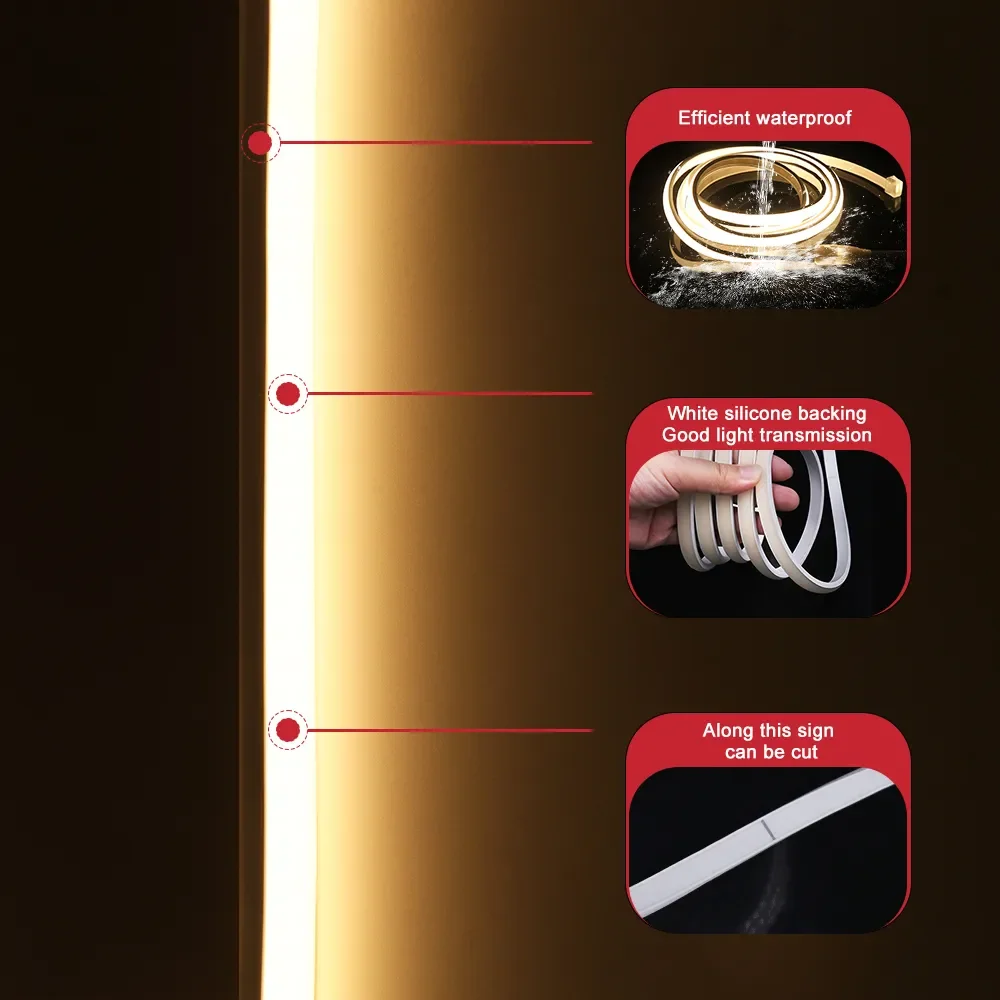

10. Waterproof Rate: Waterproof IP67(Can used outdoors, don't put in underwater), Power plug not waterproof.

11. Long life: 50,000 hours

12. Cuttable: every 50CM can be cut, easy to install

13. Color rendering index:CRI=90RA

14. Gift: Free 1pcs holder clips for each meter of strip light belt.

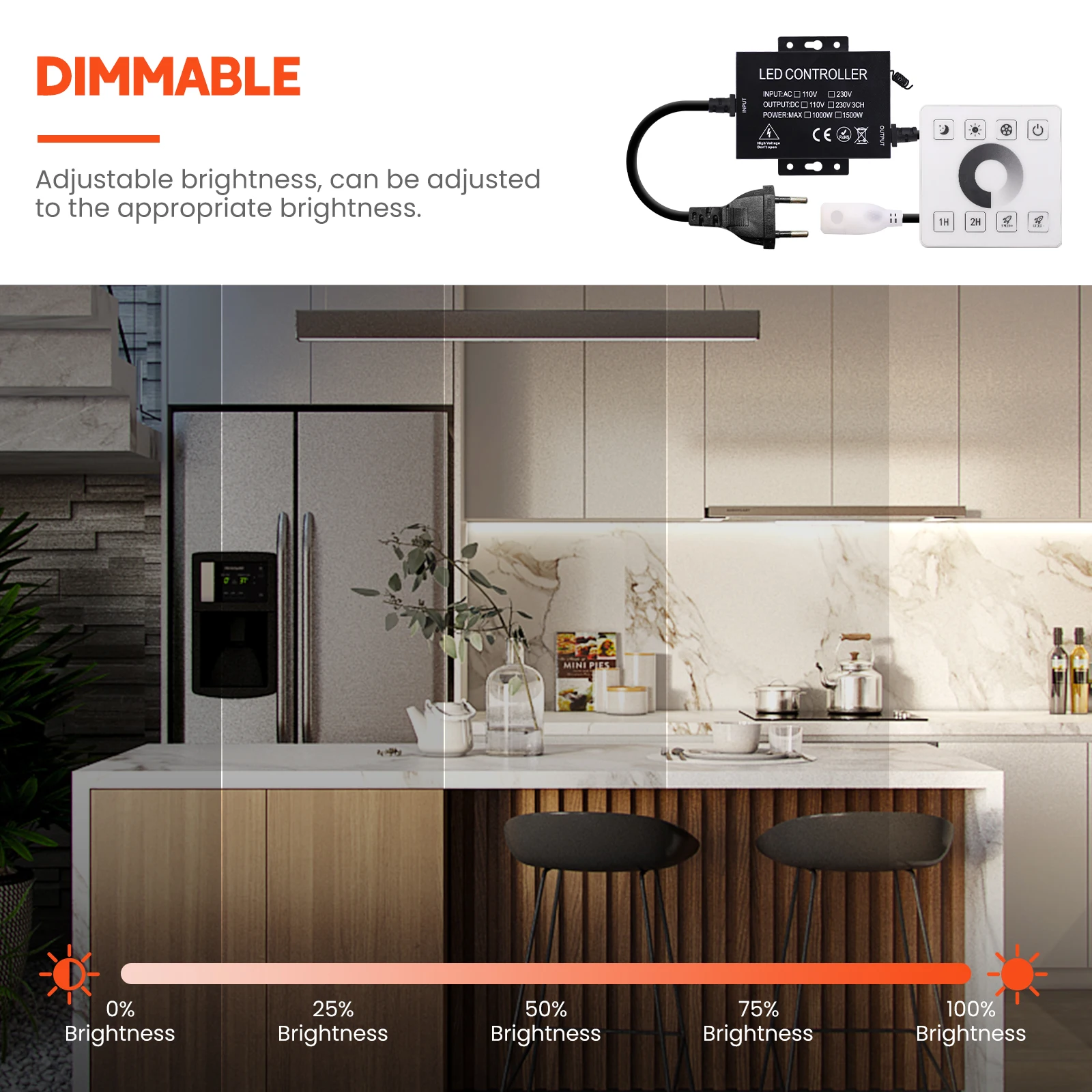

15. Dimmable: Yes

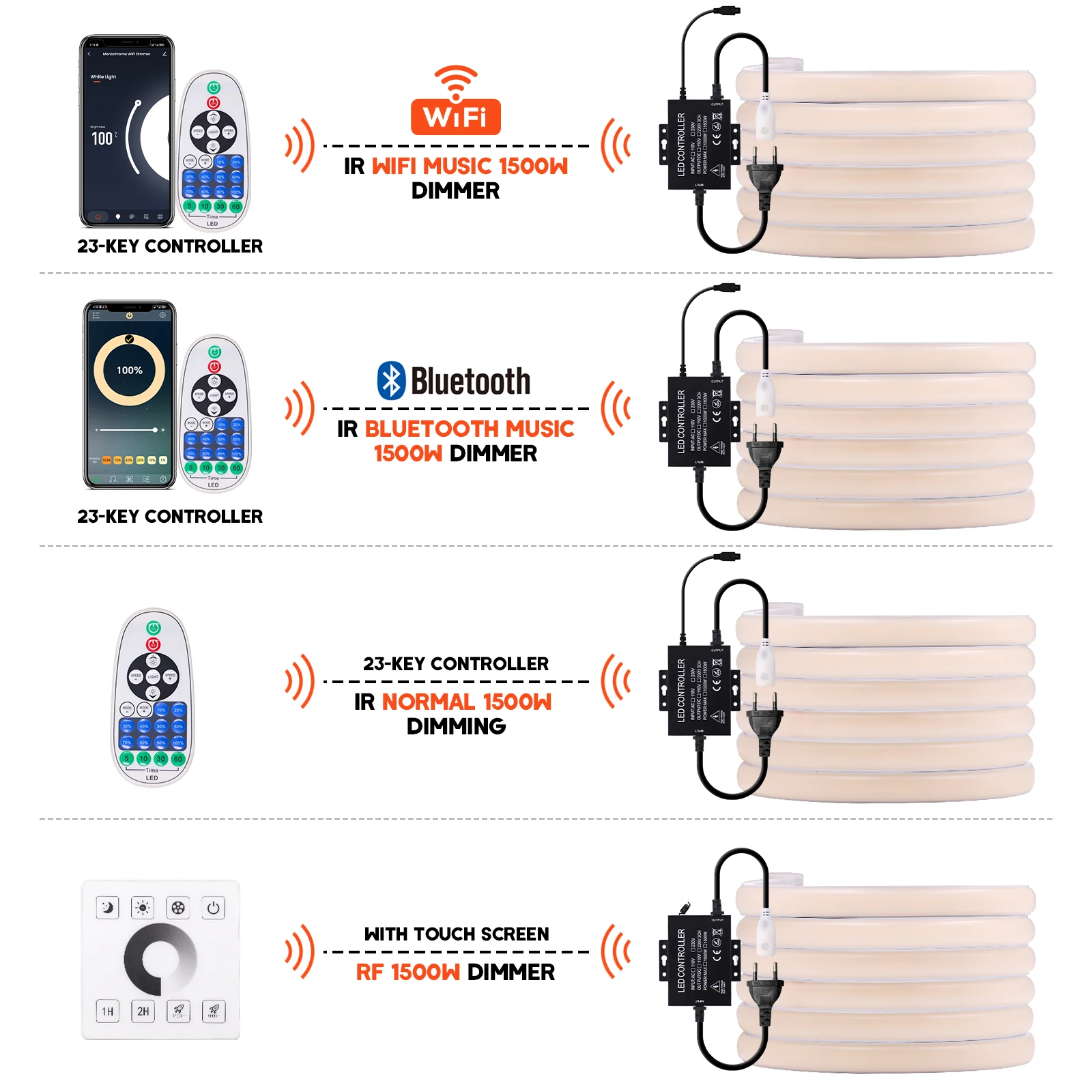

16. Dimmer control methods: 23Key IR Remote Control/Bluetooth APP Control/Wifi APP Control/Wall Touch RF Control

17. The Remote control does not include batteries

18. Wall Touch panel RF 1500W Controller, Control distance: 10-20 meters. The touch panel can be fixed with double-sided tape or screws for easy installation. The touch panel does not come with a battery and requires a CR2025 button battery to work.

19. Operation temperature: -40℃-+60℃

Applications:

1. Indoor lighting for Living room Bedroom, hallways, stairs, trails ,windows,kitchen;

2. Decoration for hotels, clubs, shopping malls;

3. Outdoor lighting for garden ,building, square, Archway, bridge edge lighting, Security Emergency lighting, DIY and sign lighting

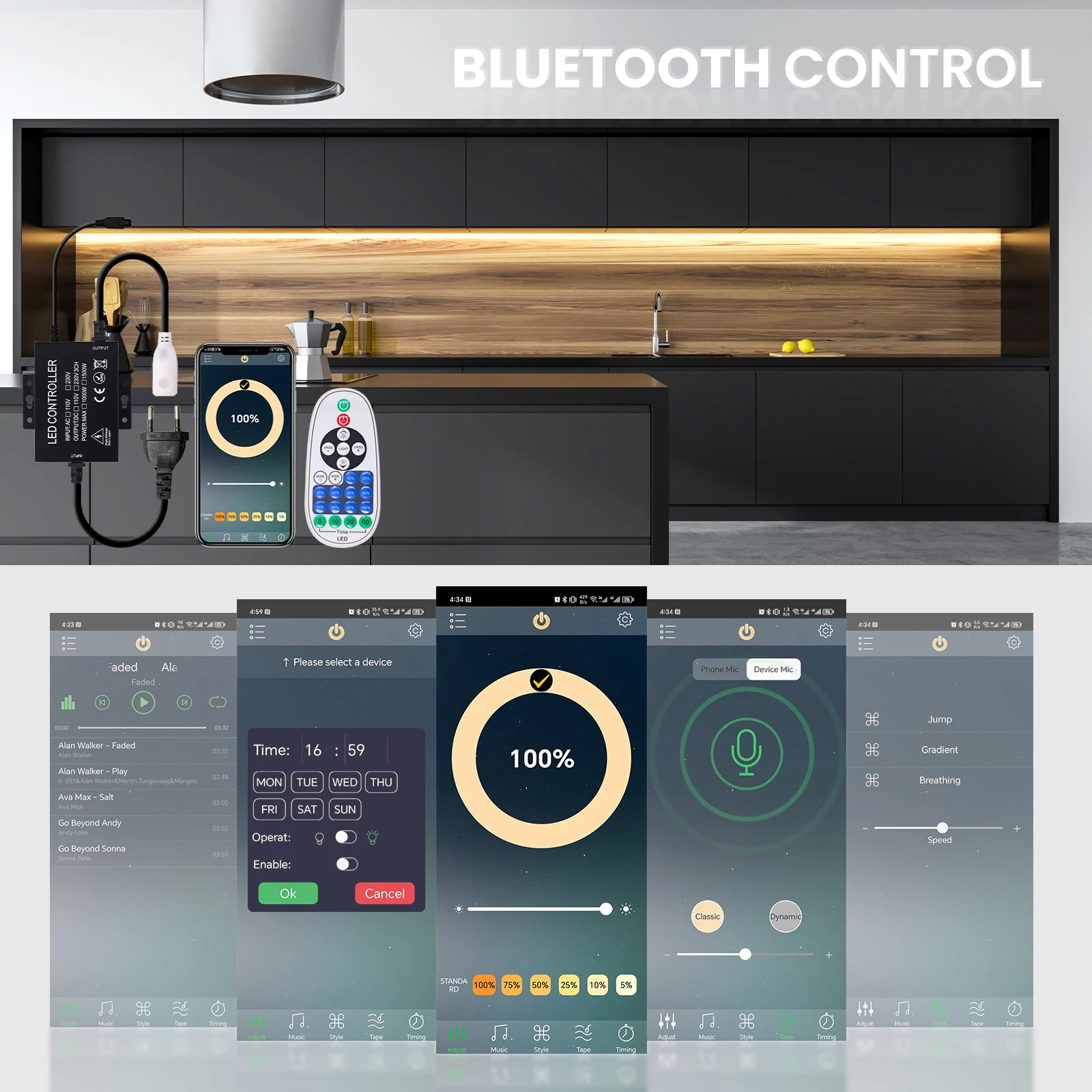

Bluetooth Controller Instructions:

(Comes with a microphone, the light can follow the change of music rhythm when the music mode.)

1. Scan the QR code of the product to download and install the APP. APP name: Trick Light, applicable to mobile phone operating system: IOS version 6.0 or Android version 4.3 or above, software language: English, Chinese, automatic language recognition according to the operating system.

2. Open Trick Light APP of mobile phone, connect LED Light bar and dimmer correctly, power on, software will automatically scan Bluetooth device, and automatically connect the device. Use APP or remote control to make the controller work as required.

3. When installing the infrared controller, the remote receiver should be installed in the position without obstacles to avoid remote control failure. RF radio frequency remote control is not restricted by obstacles.

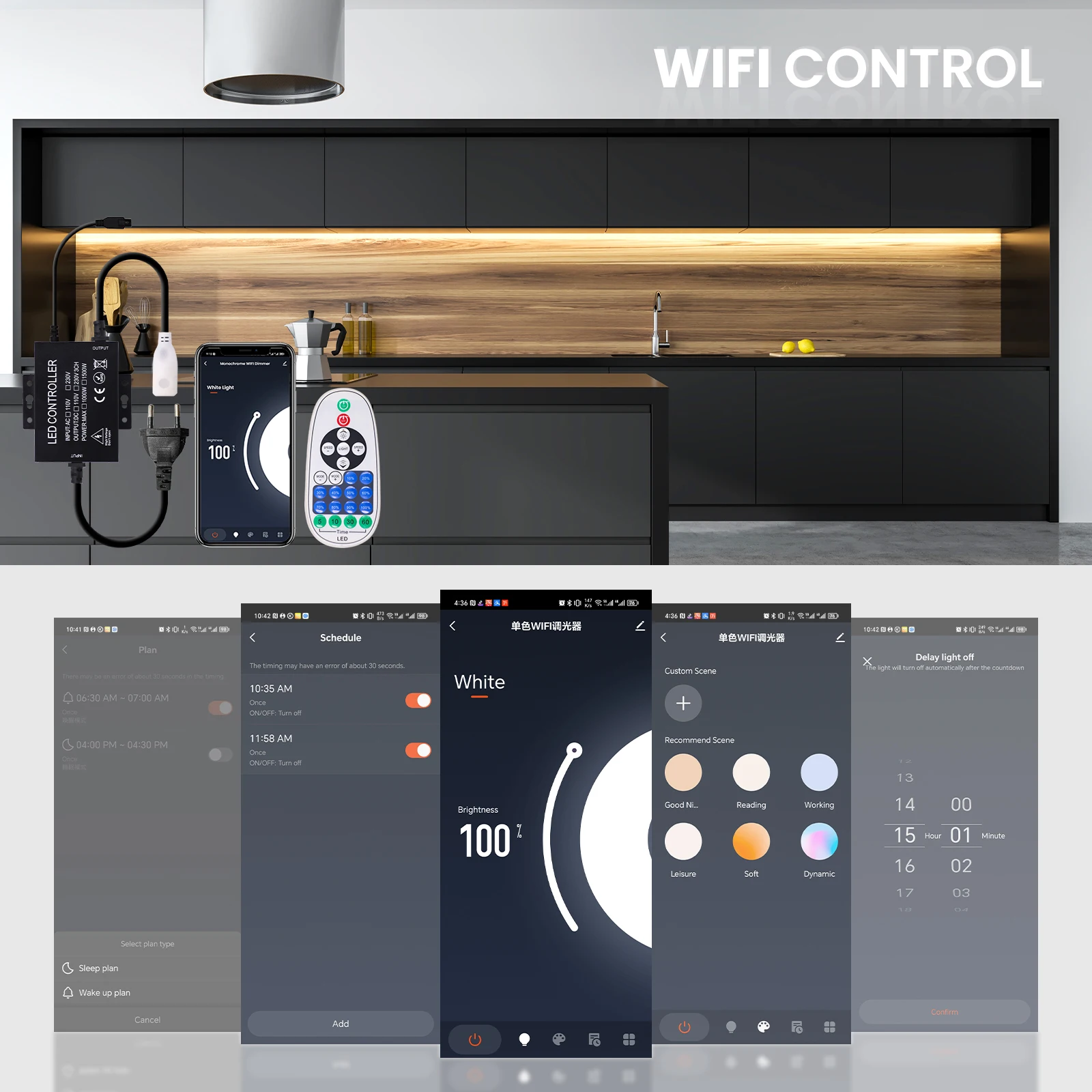

WiFi Controller Instructions:

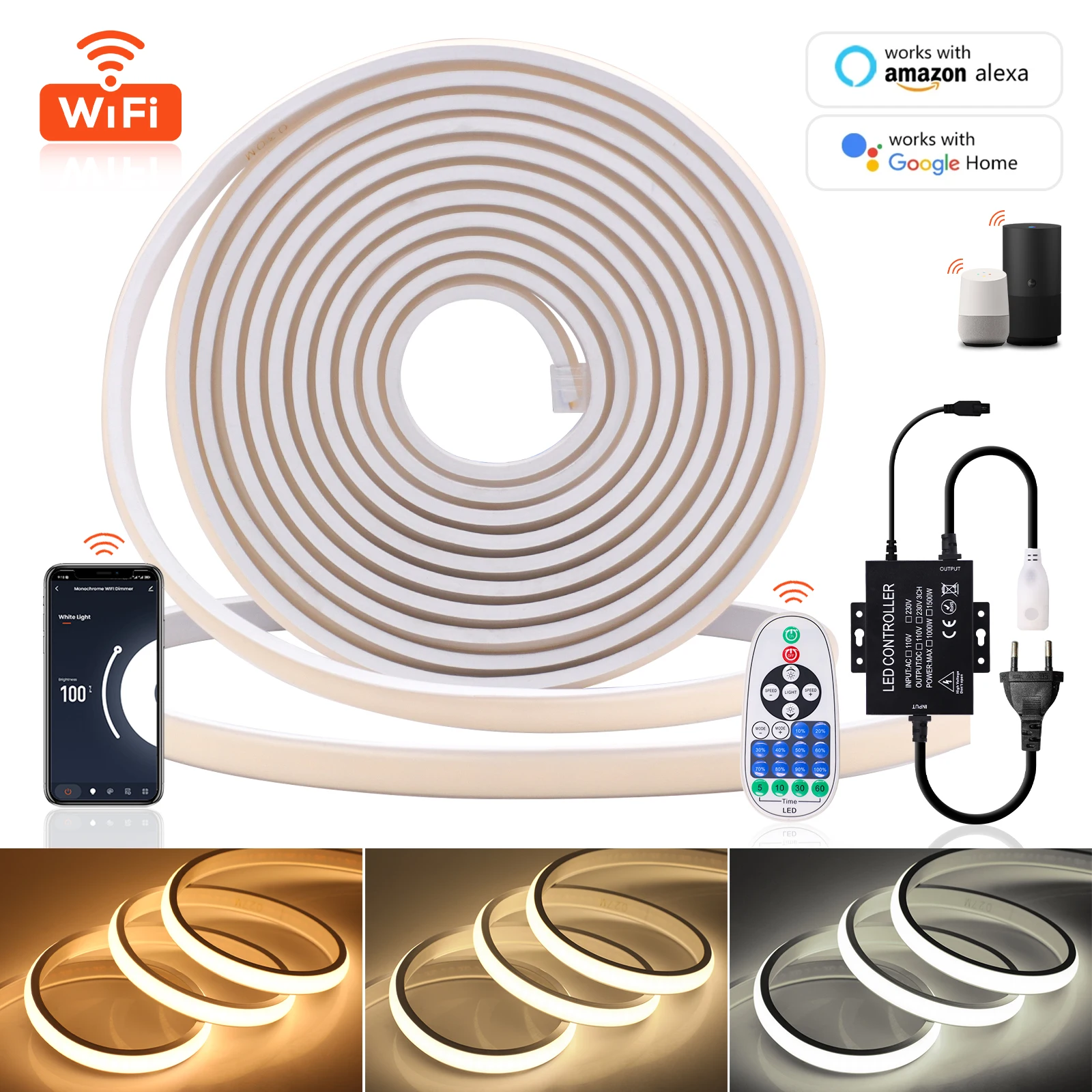

(Can be intelligent linkage of multiple devices, you can use Amazon Alexa, Google Assistant, Xiaodu, Tmall Genie voice control.)

1. Scan the QR code of the product to download the APP and register the account.

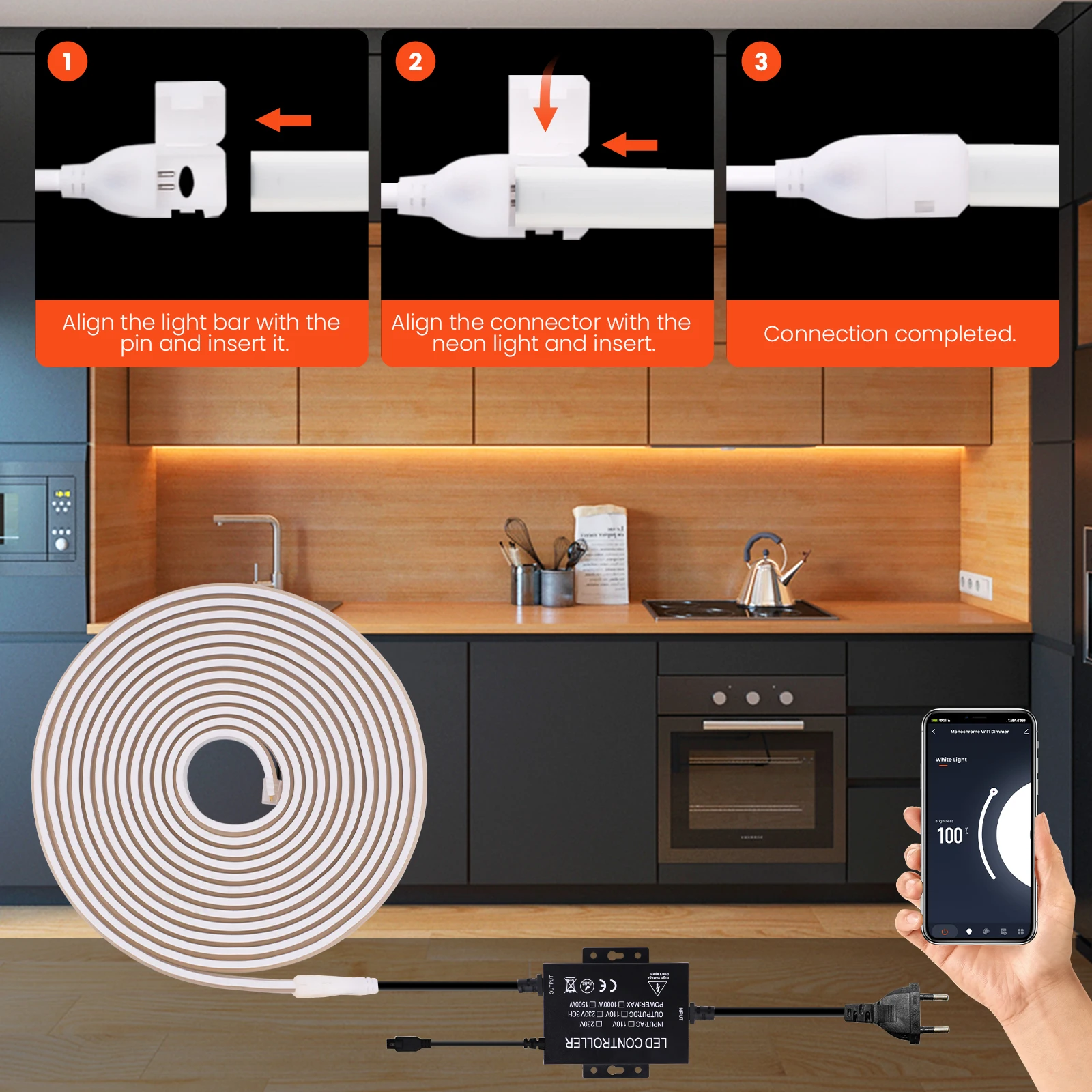

2. Connect the controller and LED light strip, and switch on the power supply.

3. Open the Tuya Smart App and click Add Device (reset the device, switch the power on and off 3 times, (Power on, power off, power on, power off, power on), enter the flash state and complete the network distribution operation within 3 minutes). Select Lighting → Light Strip → Confirm the indicator is in flash, enter WiFi password → Click Next → Connection is added successfully → Click Finish to complete the product network distribution.

4. Enter the APP main interface in five parts: on/off, white light brightness adjustment interface, scene, plan, and Settings.

① Enter the white color ring interface to adjust the light brightness.

② When entering the scene interface, you can freely select different scenes. The scene can be edited and set, such as the light mode can be set to static, jump, breath, etc., and the scene can be freely named.

③ Enter the schedule interface (you can select the timing type, sleep and wake up)

④Enter the setting interface for timing (lights off, lights on, lights on and dimming, lights on and setting scene), countdown (delayed lights off), power response.

23Key Remote controller Instructions:

23Key Remote control, can adjust the brightness of the remote control, can set the delay shutdown, with memory cut function, no need to setting often.

Wall Touch panel Instructions:

High precision capacitive touch control chip is used to increase the sensitivity of touch and reduce the wrong trigger. It has the advantages of convenient connection and simple use. According to the actual needs of customers can achieve jumping, gradient, flicker and other lighting effects. This product also has blackout memory function, each power on the execution of the last blackout pattern.

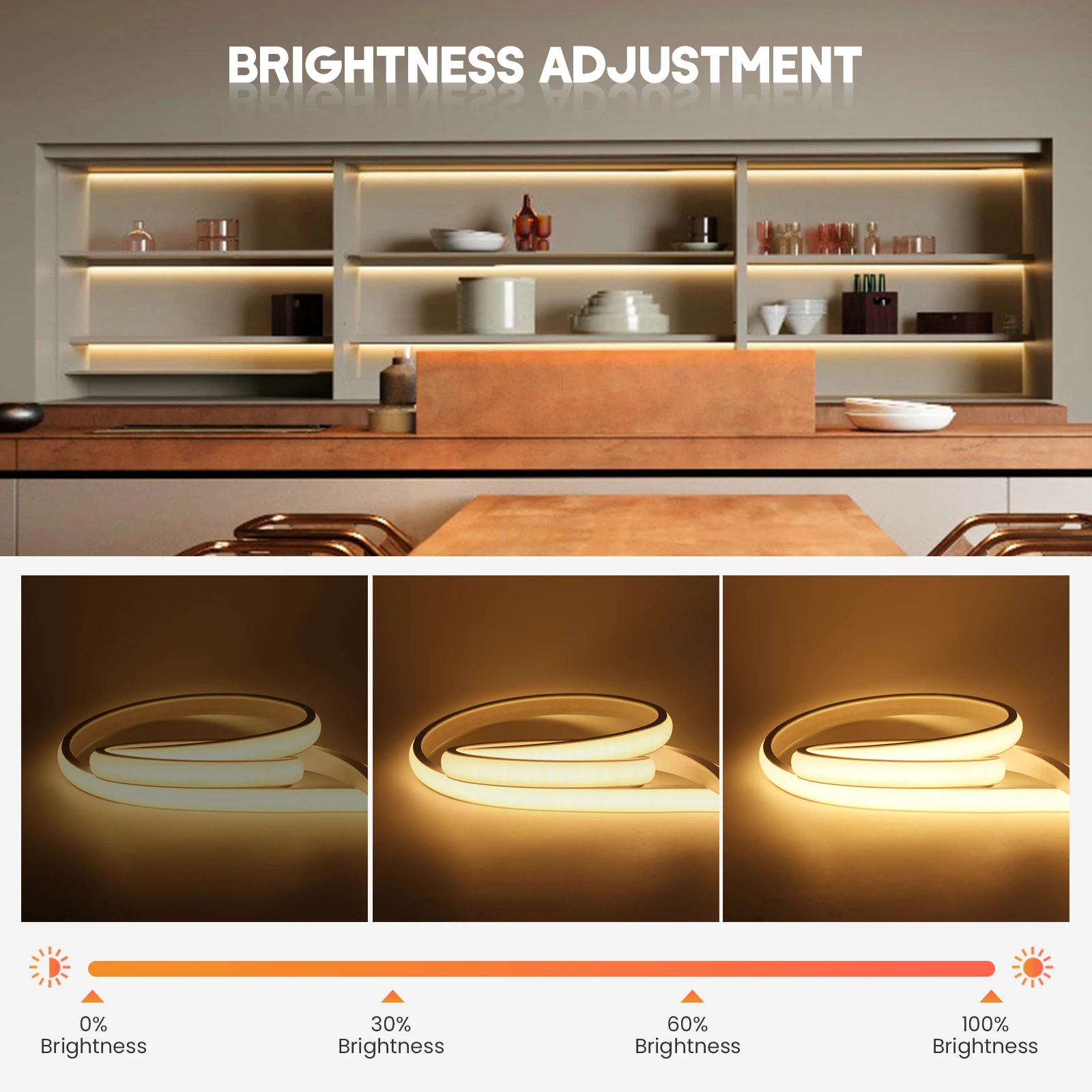

Brightness up/down: stepless dimming.

Speed plus or minus: 10 levels.

Description of product code matching and code clearing:

Code matching: keep press the Night light button within 5 seconds after the controller is powered on, and the light flashes slowly for 3 times.

Code clearing: keep press the Maximum brightness key within 5 seconds after the controller is powered on, and the light flashes quickly for 3 times.
