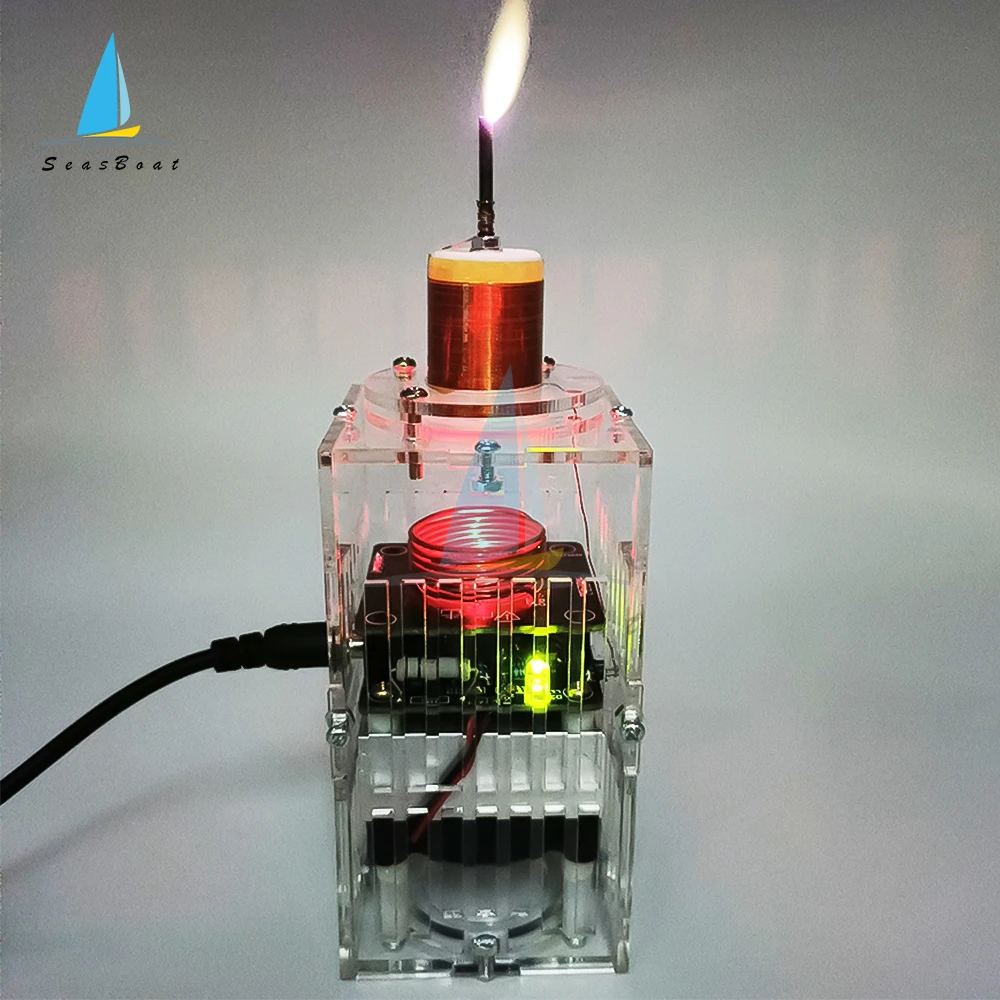

Tesla Coil HFSSTC Tesla Electronic Candle High Frequency Plasma Flame Teaching DIY Kit DC 36-40V 2A 15MHz

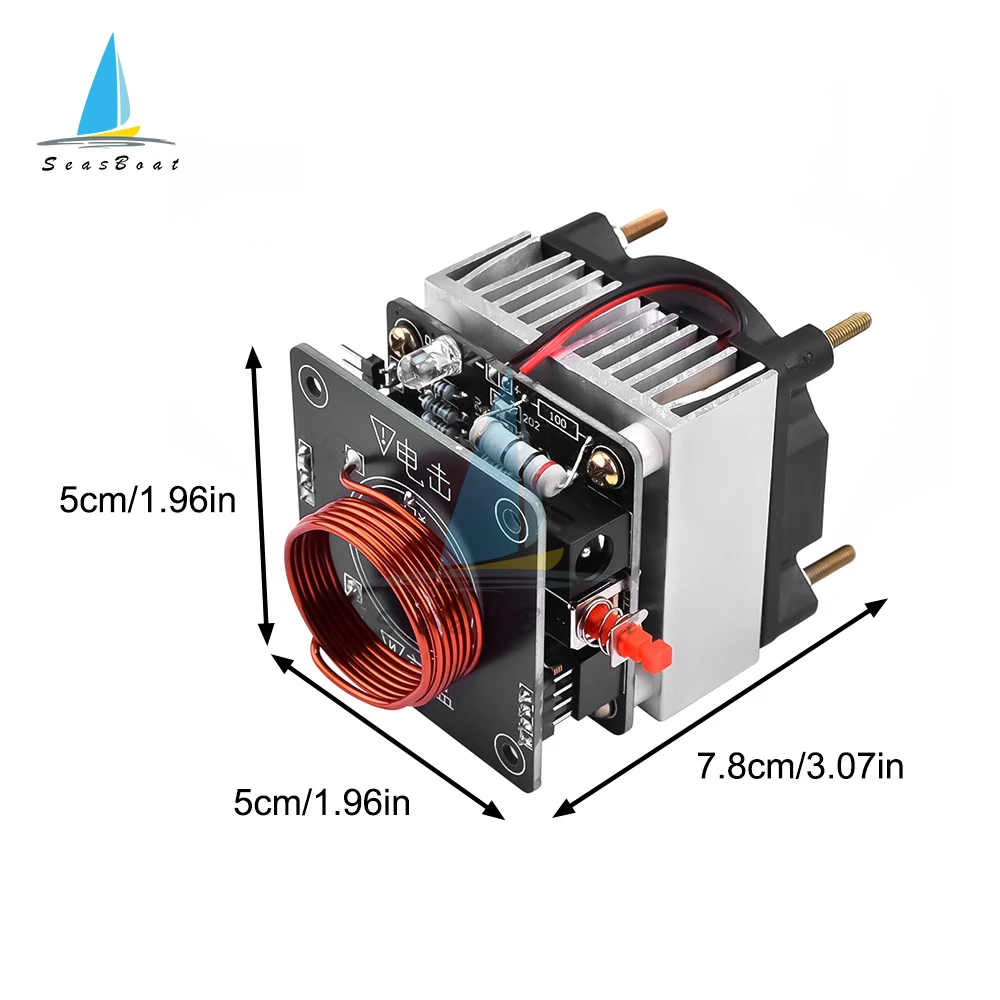

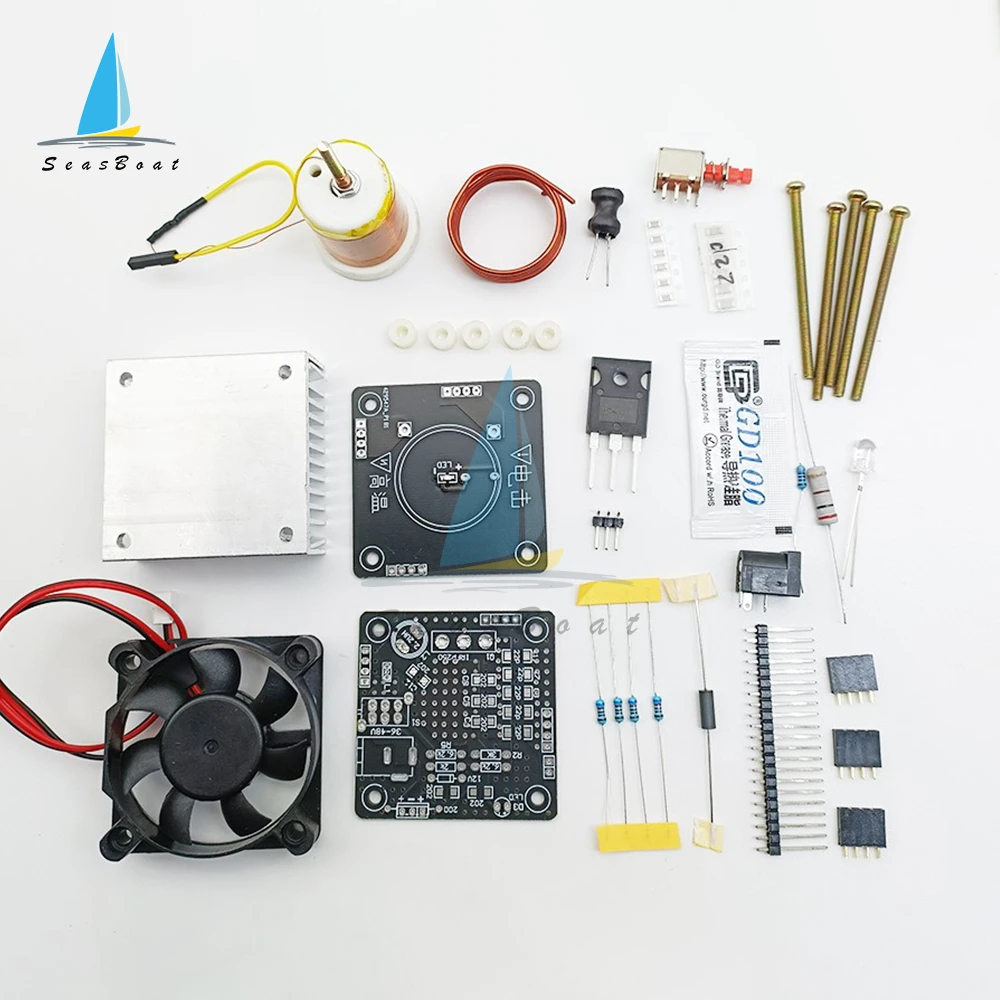

Description:Name: HFSSTC Tesla Electronic CandleOperating frequency: about 15MHzWorking voltage: 36-40V 2AProduct size: 5CM long * 5CM wide * 8CM high (size without secondary ignition coil)Material of secondary ignition coil: ceramicSecondary coil: 0.3 enamelled wire * 65 turnsRunning time: it can work continuously for more than 30 minutes after testing;Tesla plasma accessories: primary coil, upper PCB board (0805 LED red is welded), lower PCB board, 6.2K resistor, secondary coil (ceramic core, wound), 24V fan, 5CM * 5CM radiator, M3 * 50 screw (diameter: 3mm, length: 50mm), 5MM ABS spacer, extended half row of pins, 2P bent pins, 4P busbar, 1808 encapsulated 15P capacitance withstand voltage 3KV, 102 encapsulated 1206 withstand voltage 1KV, 8 * 12 I-shaped inductance 2.2UH In line magnetic bead 3.5 * 0.8 * 9, A03 self-locking switch, DC005 seat, 2W 200 ohm resistor, 5MM LED white green (ordinary green), 2K resistor (accuracy 1%)3K resistance (accuracy 1%), IRF250, silicone bagUsage Method:1. Connect the main machine and secondary coil;2. Before power on, make sure that the secondary coil is not close to anything, otherwise, after power on, the secondary coil and external contact objects will directly ignite and burn the coil.3. Connect the power supply and turn on the ignition switch (after pressing the ignition switch, the arc shall be led out as soon as possible (within 3 seconds), and metal objects such as screwdriver, blade and iron wire can be used).Safety precautions:1. It is forbidden to touch the ignition coil, host coil and electronic devices (except the ignition switch) when the product is working;2. To ensure safety, flammable and explosive materials shall not be placed around the product during operation;3. When the product is working, it may cause electromagnetic interference to the surrounding electronic equipment (15MHZ has no effect on human body);4. Not suitable for children to play.
