2,03 € 2,21 €
Poles:2P/3P/4P/5P/6P/7P/8P/9P/10P/12
Pin header: Brass, Tin plated
Housing:PA66, UL94V-0
ELECTRICAL
Rated voltage: 300V
Rated current: 15A
Contact resistance: 20mΩ
Insulation resistance:5000MΩ/DC1000V
Withstand voltage: AC2000V/1Min
MECHANICAL
Temperature range:-40℃~+105℃
SPECIFICATION

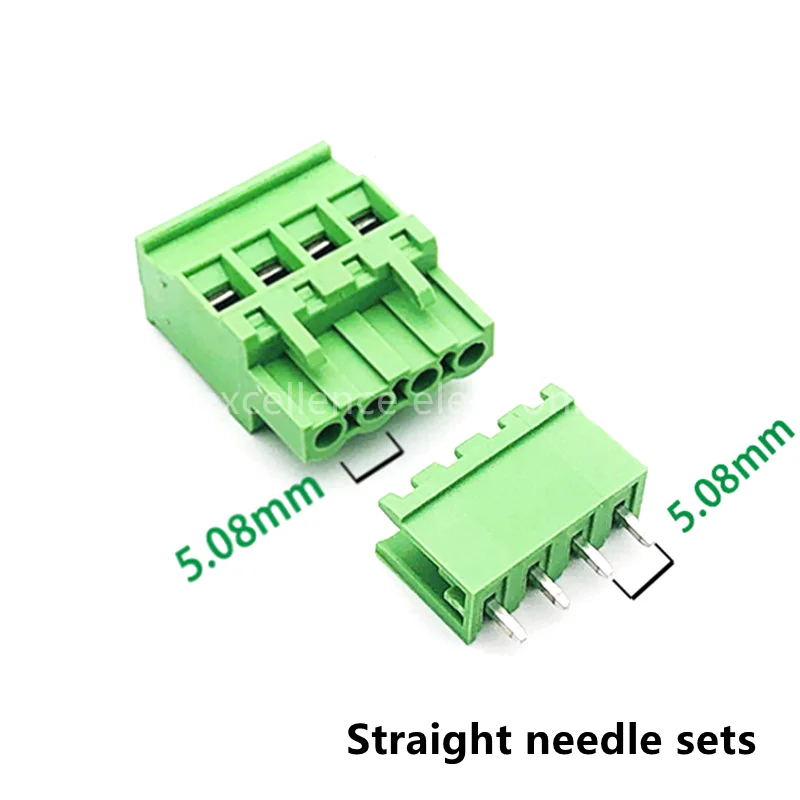

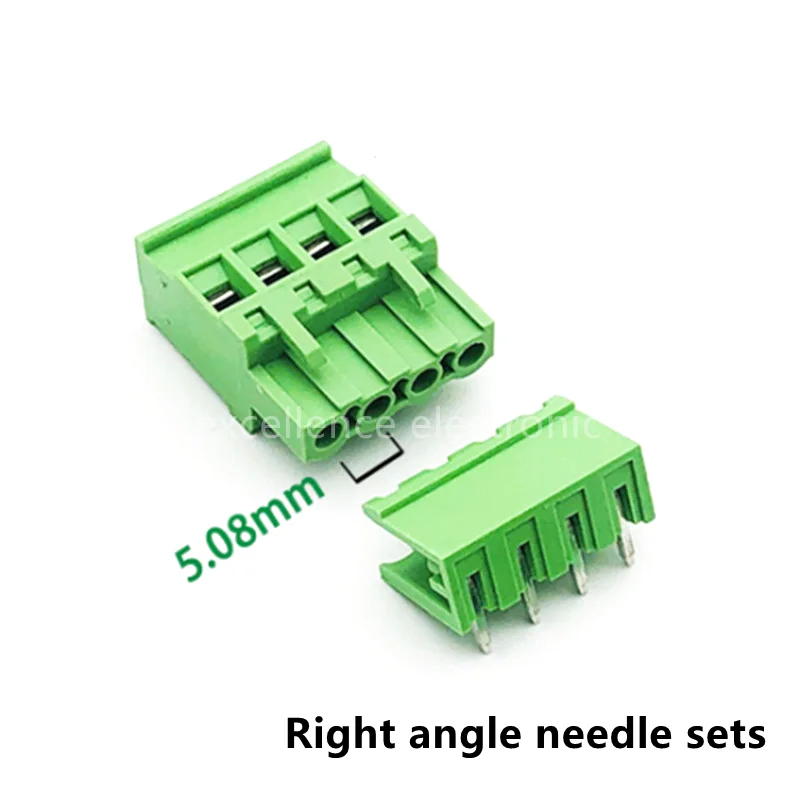

Pitch:5.08mm
Poles:2P/3P/4P/5P/6P/7P/8P/9P/10P/12

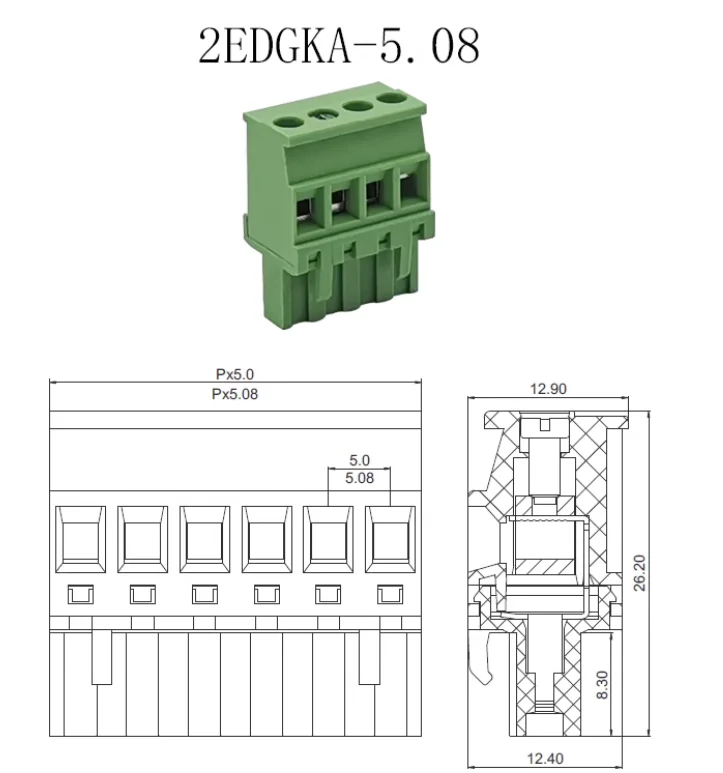

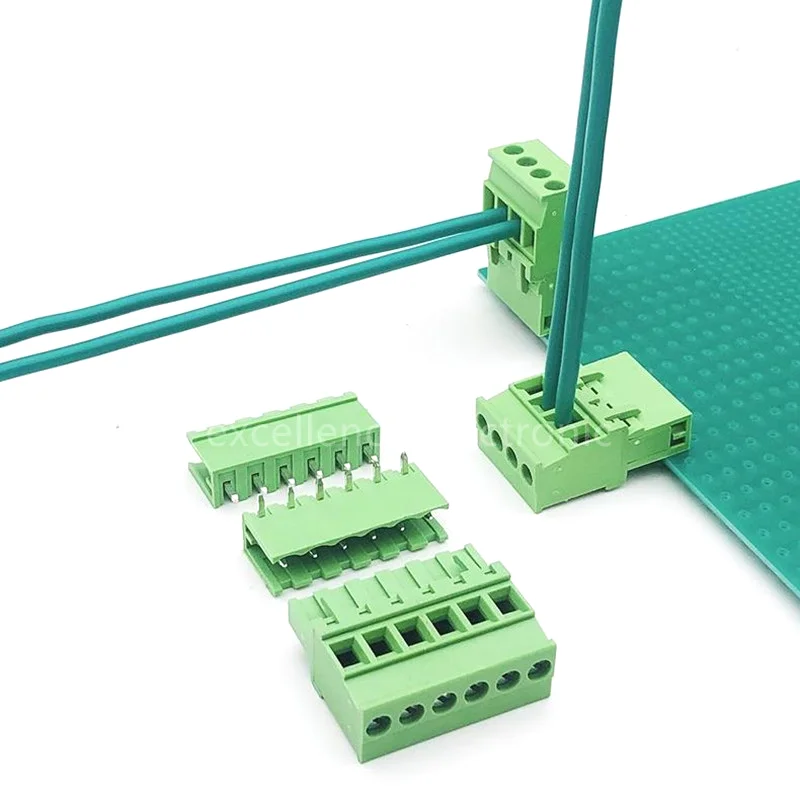

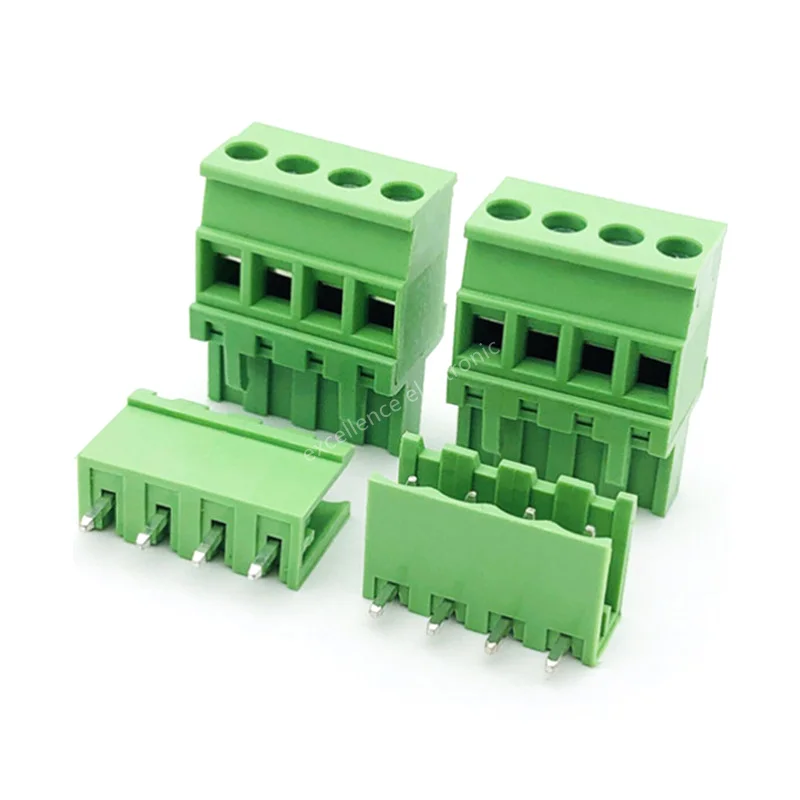

Comprar Terminal de cableado PCB enchufable, enchufe de salida lateral Vertical completo con soporte de aguja doblada recta, 2edgka, 5 Juegos, 5,08mm
