TC2070-IDC-NL14pin Tapón de clavos ™ Cable (sin patas) a 0,1 TC2070-IDC

Description

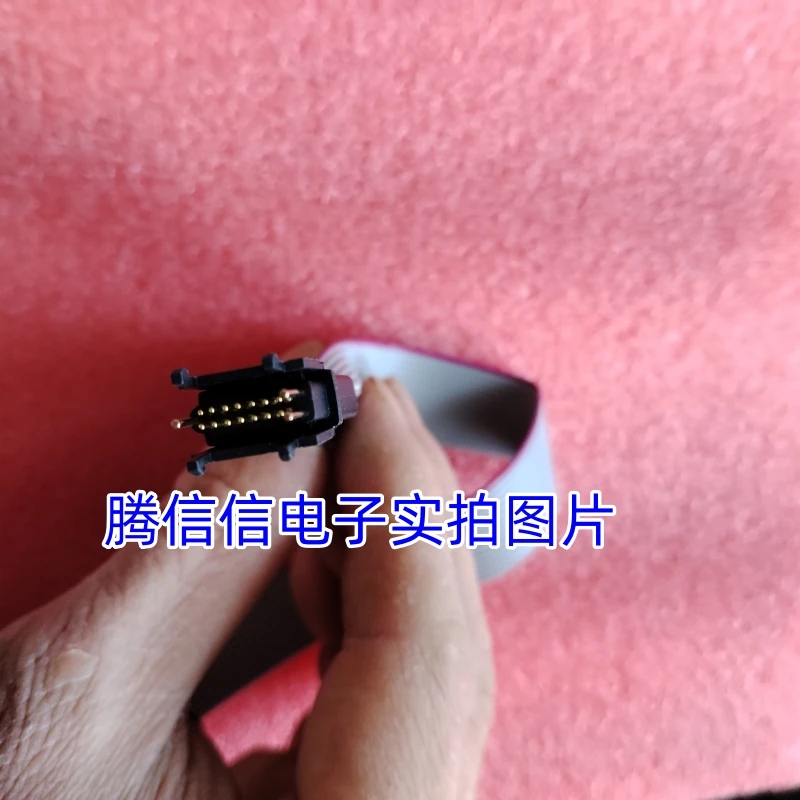

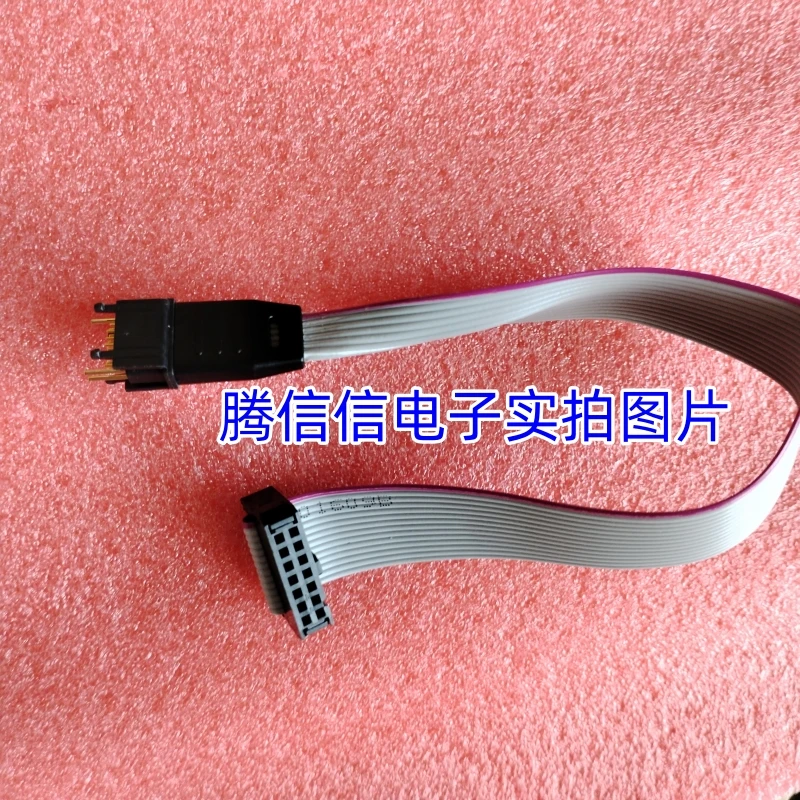

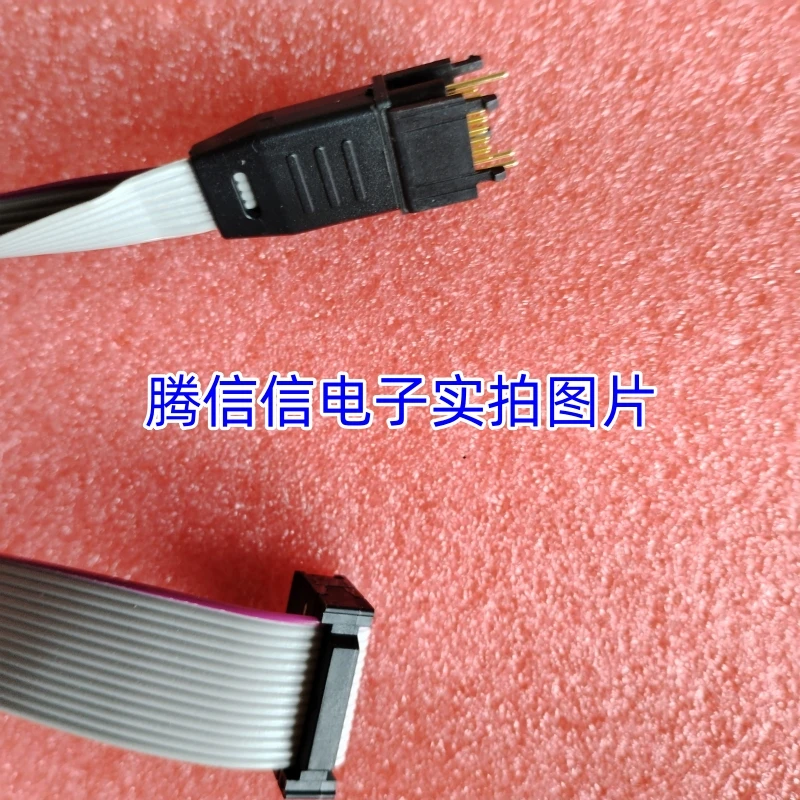

14-pin Plug-of-Nails™ programming cable – With Legs Version

Fitted with 14-pin (2×7) 0.1″ spaced ribbon cable connector.

Approx 8″ (200mm) of ribbon cable between connectors.

Note that for many applications where 14-pin connectors are natively used by a debugger (such as MSP430, TI and ADI DSP’s, Renesas MCU’s etc) we offer some excellent alternative solutions that in many cases can reduce the footprint size on your PCB to 6 or 10-pins as well as reducing the price per cable.

Datasheet

See also (no-legs) version.

This product is used in the following debugger/device solutions:

This product is used as part of the following solutions for particular debuggers, protocols and devices. Solutions may involve additional cables, adapters or retaining clips, as well as this product you are viewing now. Click on the solution links to see full solutions and installation instructions where applicable.
