Descripción
USB3.2 GEN2 Expansion Card 10Gbps PCI-E 4X Adapter 3xTYPE-C+2xType-A 5-port Desktop Adapter Card Suppor Small and Large Chassis
Product Interface:PCI-E 4X (motherboard needs to support 4X8X16X slots)
Output Interface: TYPE-A+TYPE-C connector
Product Speed:10Gbps

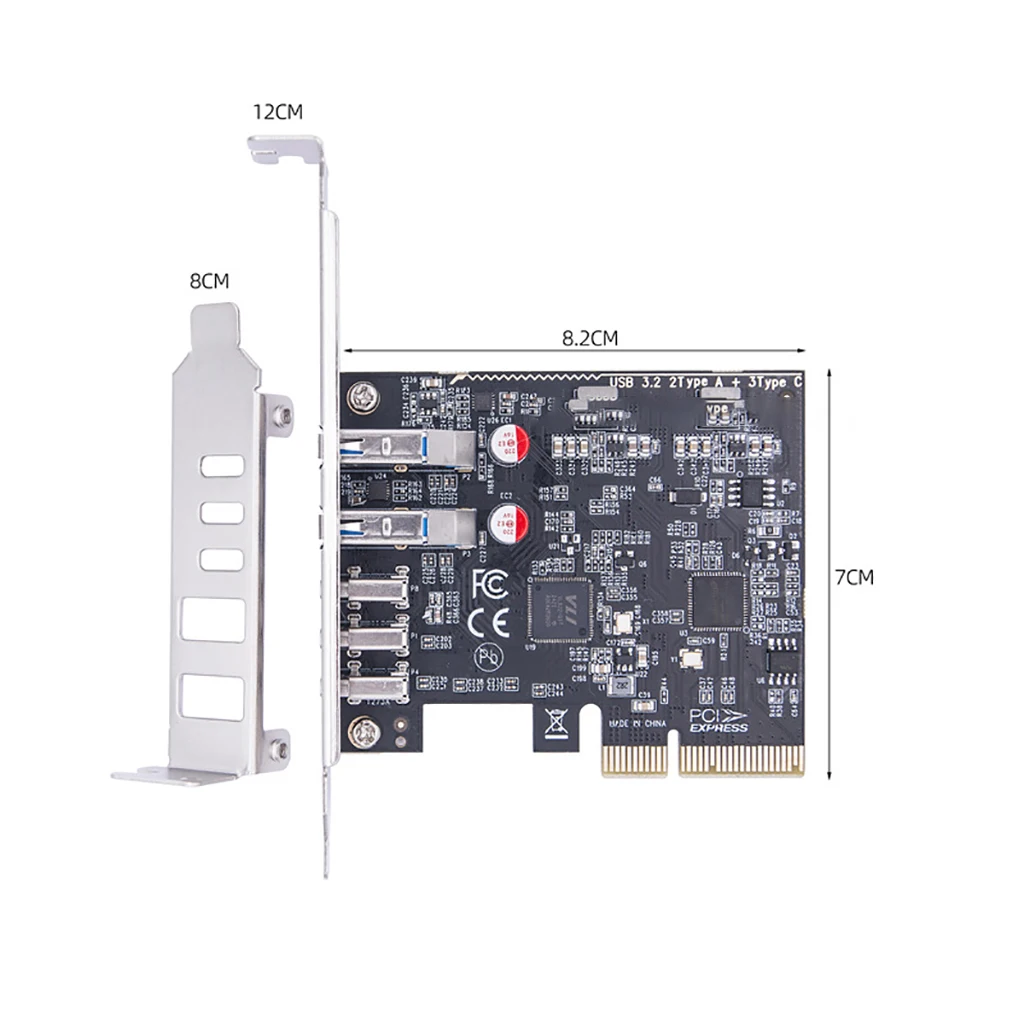

Supported Size:Full-height baffle/half-height baffle.
Support both large and small chassis
Main control chip: ASM2142 + VL822 main control
System Support: WIN7 WIN1O WIN11 LINUX etc.
Note: In the use of WIN7 need to install the driver, and the speed is slow.
Recommended for WIN10 and above.
Product features:
1. No power supply to use, no need for cumbersome wiring.
2. Support the use of large and small chassis.
3. 1 C port is an independent channel can be exclusive 10Gbps,
the remaining 4 interfaces share 10Gbps.
5 USB ports can be used simultaneously.
4. Can be used for other external USB interface device charging,
C port for 2A, A port for 1A.
Main control chip: ASMediaASM2142 + VL822 dual chip
Expansion interface: USB3.2GEN2 3 C port +2 A port
Product rate: 10Gbps
Product Description:
The motherboard needs to support PCI-E3.0 to run to 900-1060M/S. PCI-E2.0 below,
the speed is 700-800M/S, the
The specific speed is related to the motherboard, hard disk enclosure master and SSD,
the speed of different devices is not the same.
